Engine teardown, fuel injection, electrical, tracks, final drive, hydraulics, and mounted equipment all run end to end across the 531 pages of the Case 9030 service manual PDF, factory document 7-44860 for this excavator. The hydraulics section is the fattest part of the book, walking the main pump, pilot control circuit pump, hydraulic swivel, main control valve, swing motor and swing reduction gear box through pressure checks and rebuild, with a schematic foldout that traces the circuit to each cylinder. Track system troubleshooting sits beside roller and idler service, and the electrical section carries its own schematic plus display panel and alternator diagnosis. Torque the fuel shutoff solenoid to 43 Nm; scrap a track bushing once the OD wears to 2.24 inches (57 mm) or less. Bookmarked and text-searchable, yours to keep for as long as you own the 9030.
What's Inside This Case 9030 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 3-16 | Section Index - General (Standard Torque Specifications for 9000 Series Excavators, Fluids and Lubricants) |

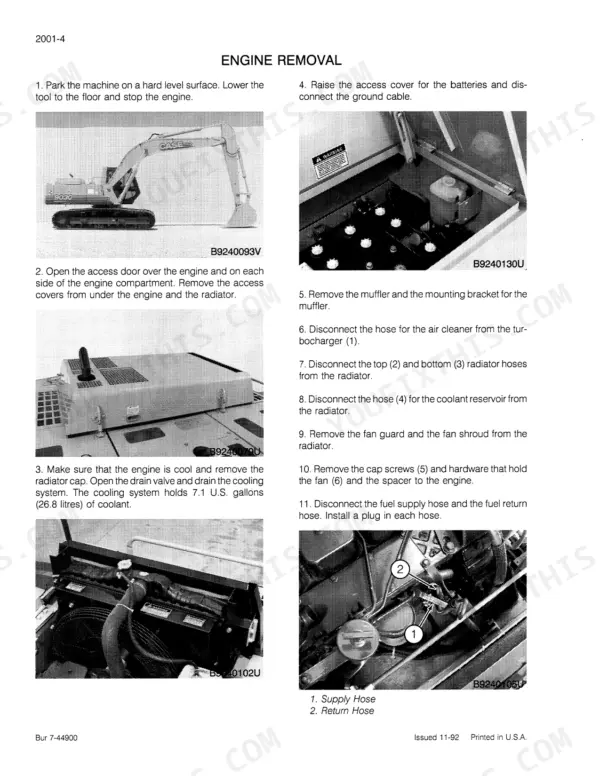

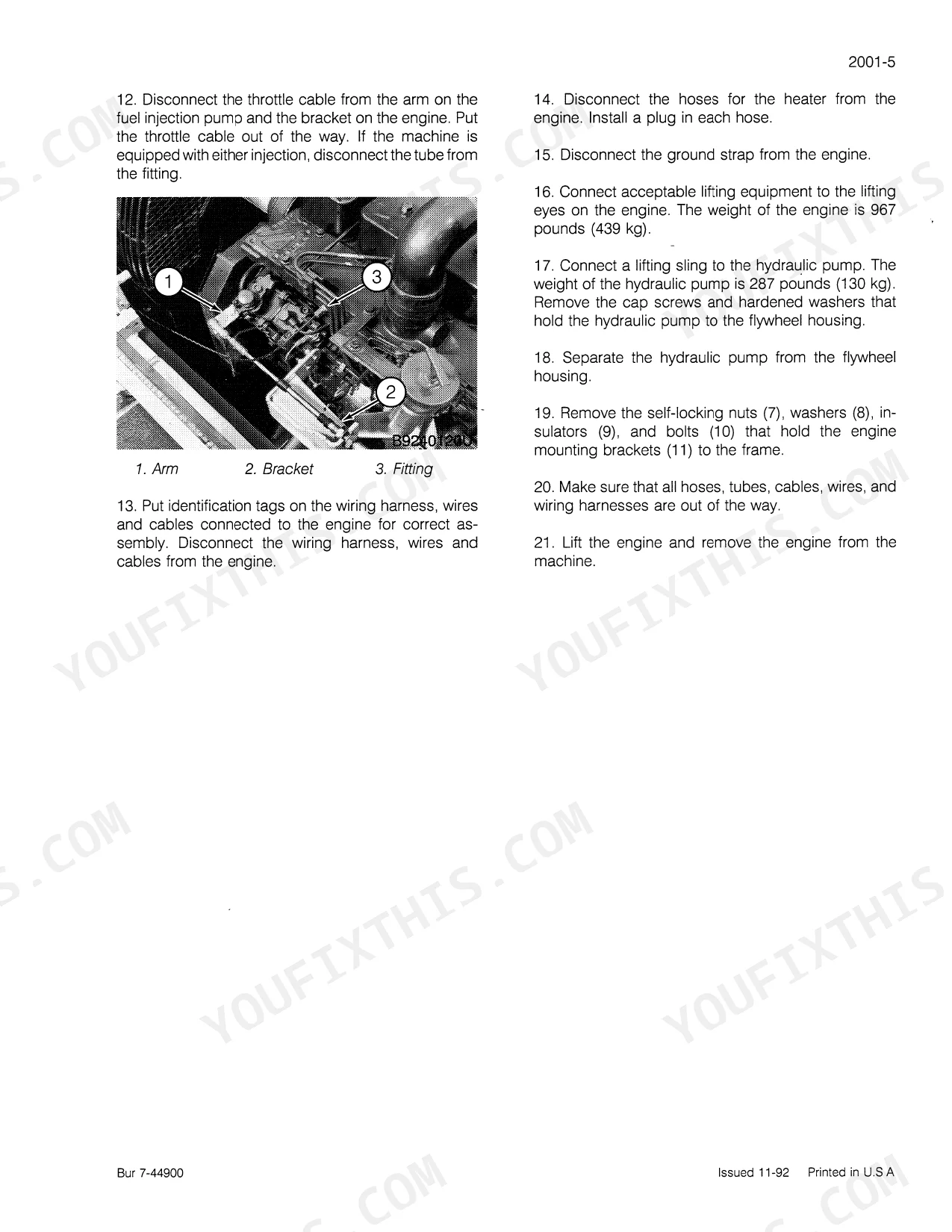

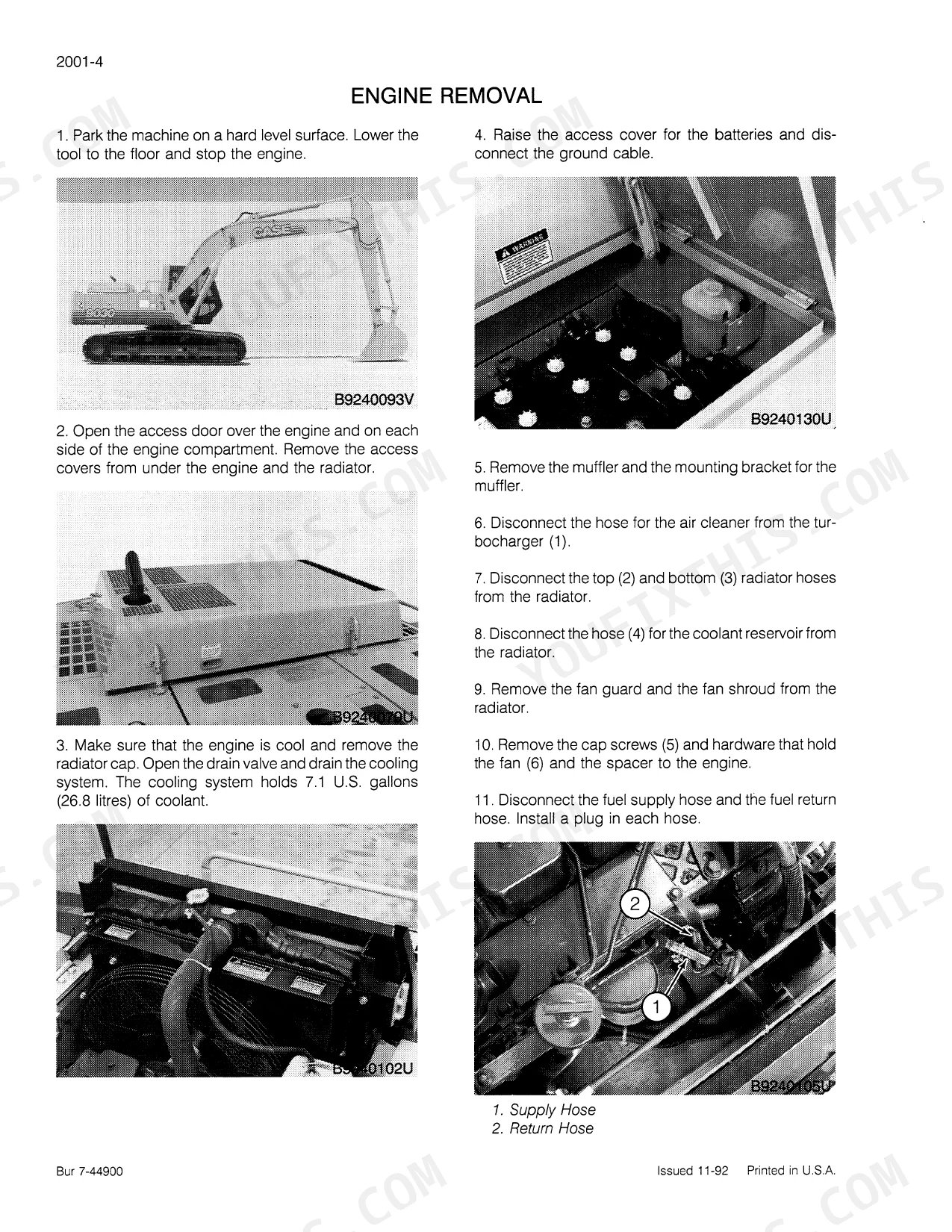

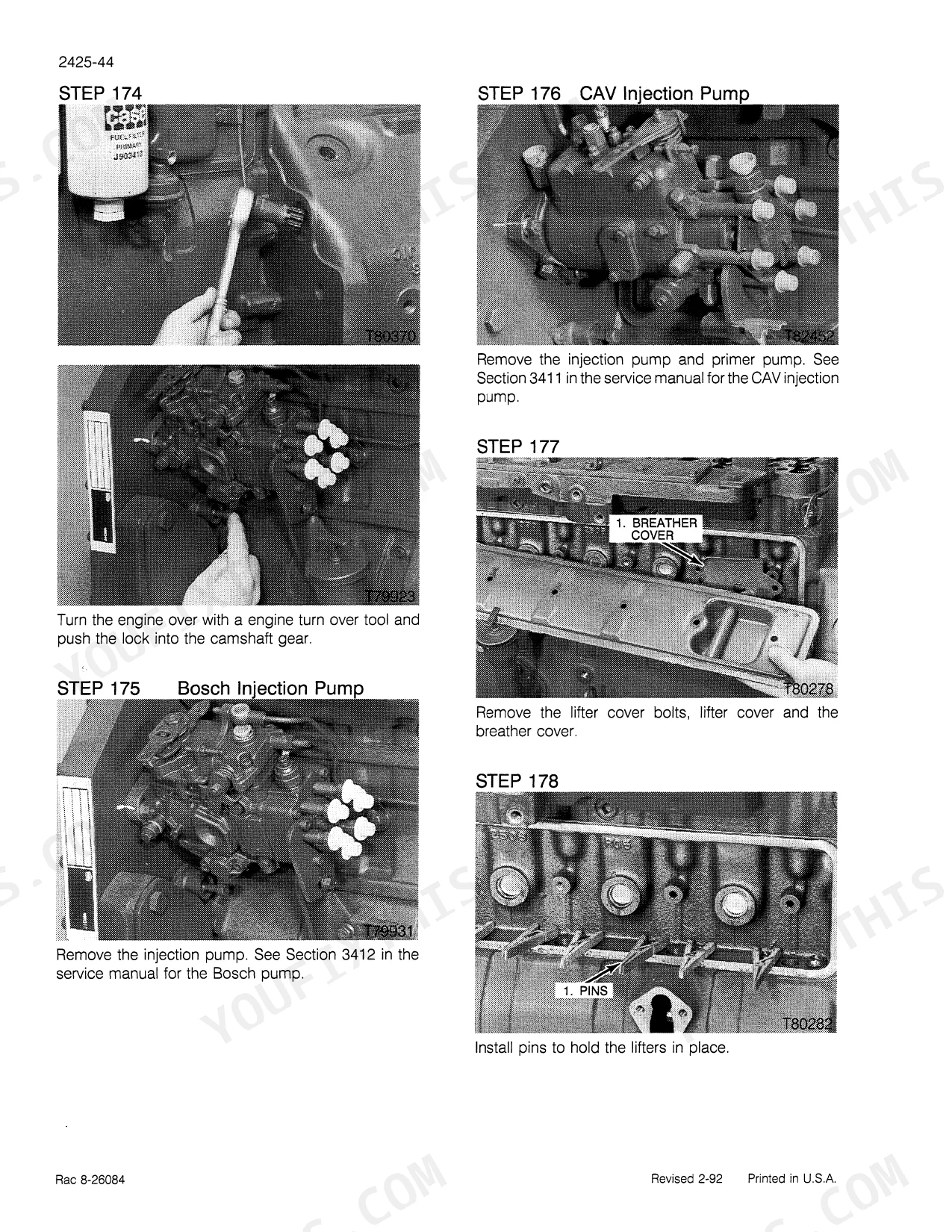

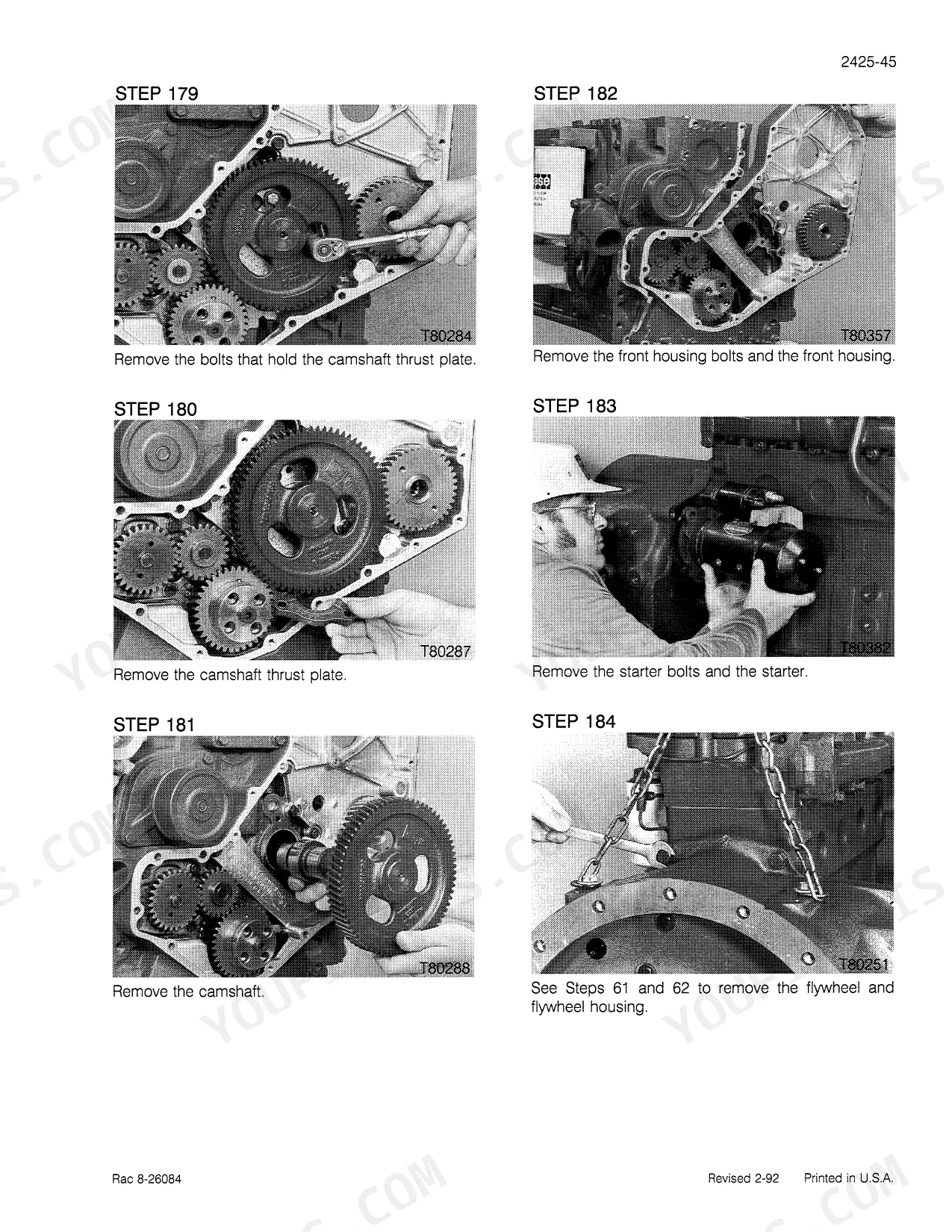

| Engine Removal and Installation | 17-26 | Engine Removal, Engine Installation, Cooling System Bleeding, Special Tools |
| Radiator Removal and Installation | 27-30 | Radiator Removal, Radiator Installation, Cooling System Maintenance |
| Engine Specification Details | 31-44 | 6-590 Diesel Engine, Run-In Instructions, Cylinder Block Specifications, Piston Specifications, Torque Specifications |
| Cylinder Head and Valve Train | 45-82 | Cylinder Head Removal, Valve Guide Replacement, Valve Seat Installation, Valve Inspection, Rocker Arm Assembly |
| Cylinder Block | 83-166 | Cylinder Block Reconditioning, Piston Assembly, Crankshaft Inspection, Main Bearing Replacement, Front/Rear Oil Seal Replacement |
| Lubrication System | 167-180 | Oil Pump Removal, Oil Pump Inspection, Oil Filter Housing, Oil Cooler, Oil Pan Installation |
| Cooling System | 181-198 | Water Pump Removal, Thermostat Replacement, Coolant Inlet Servicing, Fan Pulley Servicing, Belt Tensioner |
| Turbocharger | 199-230 | Turbocharger Removal, Turbocharger Inspection, Turbocharger Disassembly, Turbocharger Failure Analysis, Turbocharger Installation |
| Fuel System | 231-280 | Section Index - Fuel System (System and Filters, Injection Pump, Bosch, Injectors) |
| Electrical | 281-366 | Section Index - Electrical (Electrical Specifications and Troubleshooting, Electrical Schematic, Batteries, Systems Display Panel, Starter and Starter Solenoid, Alternator) |
| Tracks | 367-398 | Troubleshooting the Track System, Rollers, And Idlers |
| Power Train | 399-406 | Section Index - Power Train (Troubleshooting - See Section 8001, Drive Motor and Final Drive Transmission) |
| Hydraulics | 407-500 | Section Index - Hydraulics (Cleaning the Hydraulic System, Hydraulic Specifications, Troubleshooting) |
| Mounted Equipment | 501-531 | Section Index - Mounted Equipment (Pedals and Levers, Turntable Bearing, Boom and Arm, Seat and Seat Belts, Electrical Schematic Foldout, Hydraulic Schematic Foldout) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

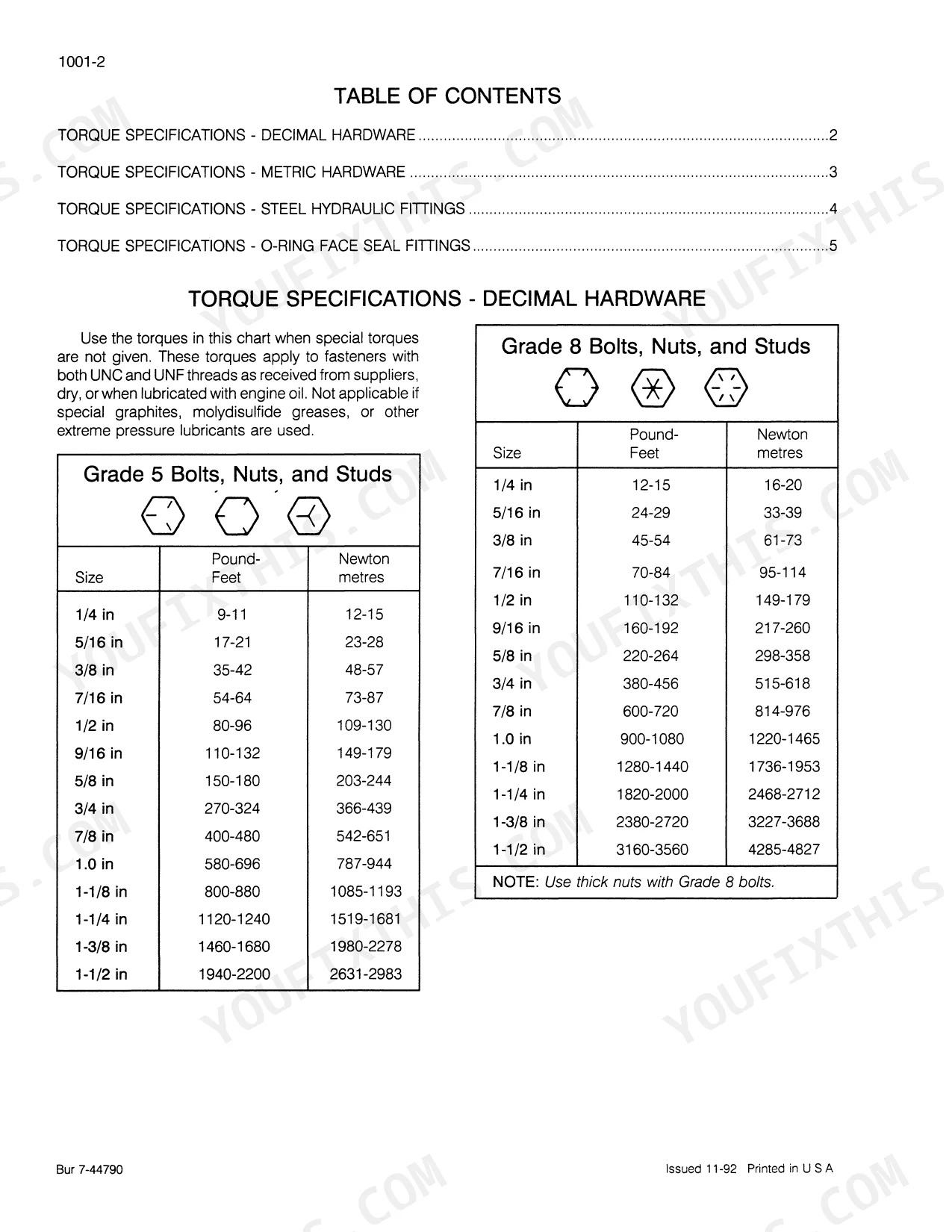

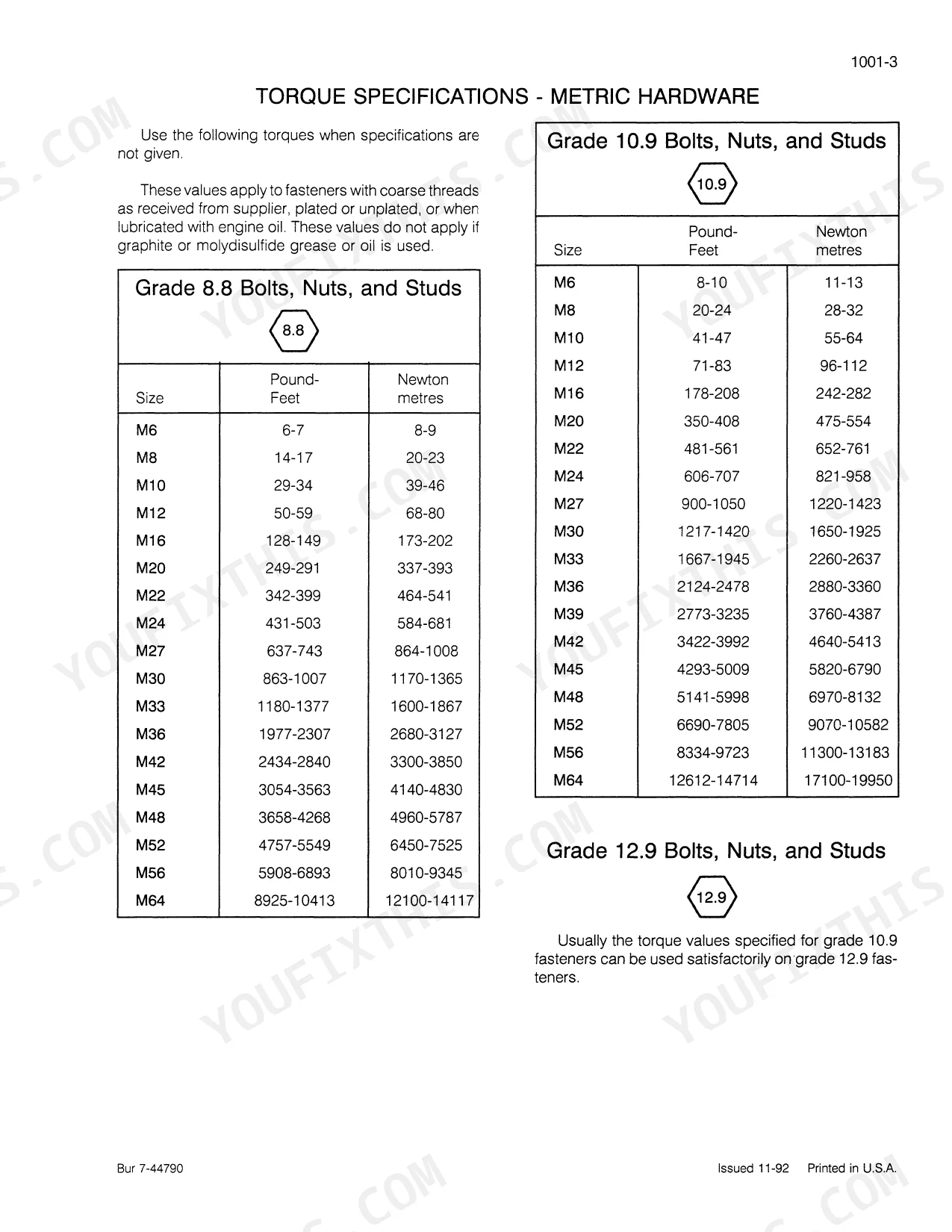

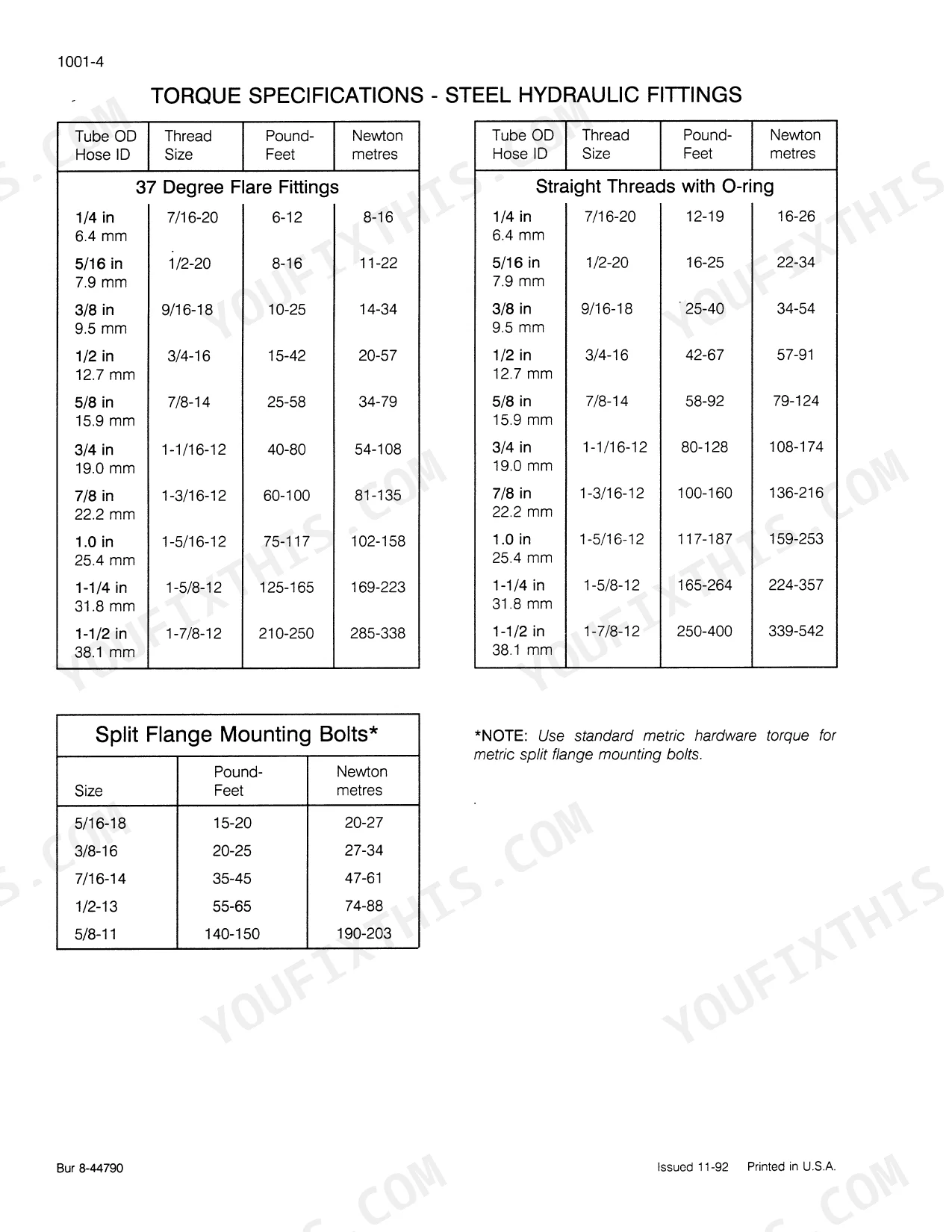

| Grade 5 Bolts, Nuts, and Studs (1/4 in) | 9-11 Pound-Feet (12-15 Newton metres) | p. 6 |
| Grade 5 Bolts, Nuts, and Studs (5/16 in) | 17-21 Pound-Feet (23-28 Newton metres) | p. 6 |
| Fuel Shutoff Solenoid Torque | 43 Nm | p. 239 |
| OD of the bushing | 2.24 inches (57 mm) or less | p. 381 |
| ID of the bushing | 1.38 inches (35 mm) or greater | p. 381 |
| Weight of the drive motor and final drive transmission | 595 pounds (270 kg) | p. 402 |
| Top pump capacity | 54 U.S. gpm at 2500 psi at 2200 rpm | p. 417 |
| Bottom pump capacity | 54 U.S. gpm at 2500 psi at 2200 rpm | p. 417 |
| Standard Attachment Weight | 8732 pounds (3961 kg) | p. 513 |
| Upper Structure (Including Counterweight and Turntable Bearing) Weight | 18081 pounds (8201 kg) | p. 513 |
| Fuel Tank Capacity | 74 U.S. gallons (280 litres) | p. 12 |
| Engine Oil Capacity (with filter change) | 16 U.S. quarts (15.1 litres) | p. 12 |
