Setting the main relief on the loader valve to 233 to 243 bar is one job this manual walks you through. It also covers the gear pump, reservoir, cooler and filters that feed that valve. The book covers the Case TV450 Alpha Series compact track loader, Tier 4B final, PIN NHM435463 and above, with the F5BFL413A*B007 engine.

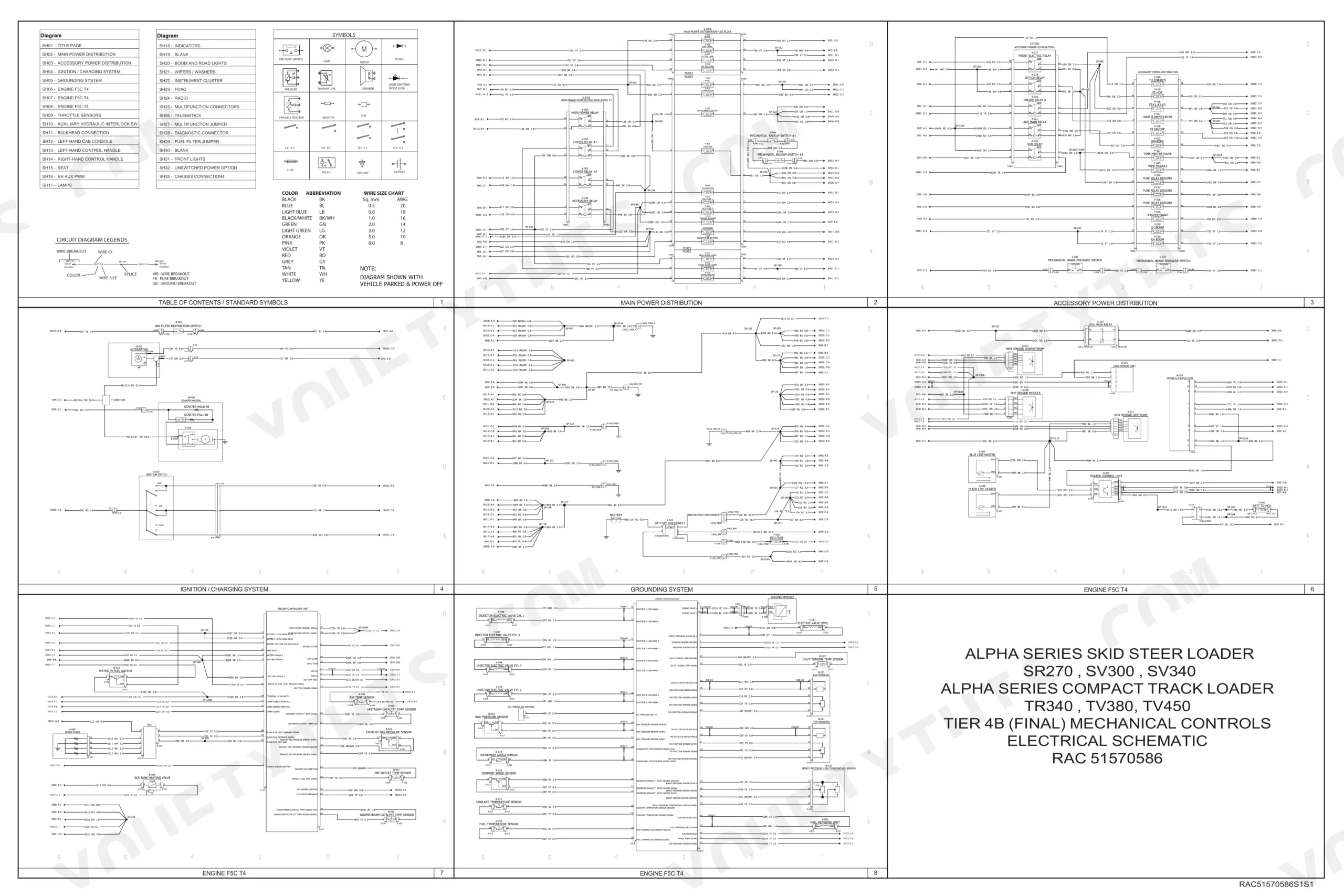

The fold-out hydraulic schematic RAC 51570577 traces the auxiliary and high-flow circuits from the pump through the main control valve. The electrical schematic RAC 51570586 covers the harnesses, modules and SCR system. Every fault code gets its own cause and solution.
The engine model and schematic numbers are printed in the book. Quote them at the parts counter and you get the right part number the first time.
What's Inside This Case TV450 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 9-32 | Fluids and Lubricants, Capacities, Engine and Hydraulic Oil Recommendations, Torque Tables |
| Engine | 33-156 | Engine and Crankcase, Fuel Tanks and Filters, SCR Exhaust Treatment, Cooling System, Fan Drive, Aftercooler, Lubrication |
| Power Coupling | 157-164 | Pump-Drive Assembly |
| Hydrostatic Drive | 165-290 | Mechanical Control, Pump and Motor Components, Hydrostatic Transmission |
| Brakes and Controls | 291-300 | Parking Brake or Parking Lock |
| Hydraulic Systems | 301-554 | Reservoir, Cooler and Filters, Fixed Displacement Pump, Main Control Valve, Auxiliary and High-Flow Hydraulics, Loader Control |
| Frames and Ballasting | 555-564 | Ballasts and Supports |
| Tracks and Track Suspension | 565-608 | Track Frame and Driving Wheels, Rubber Tracks, Tension Units, Rollers |

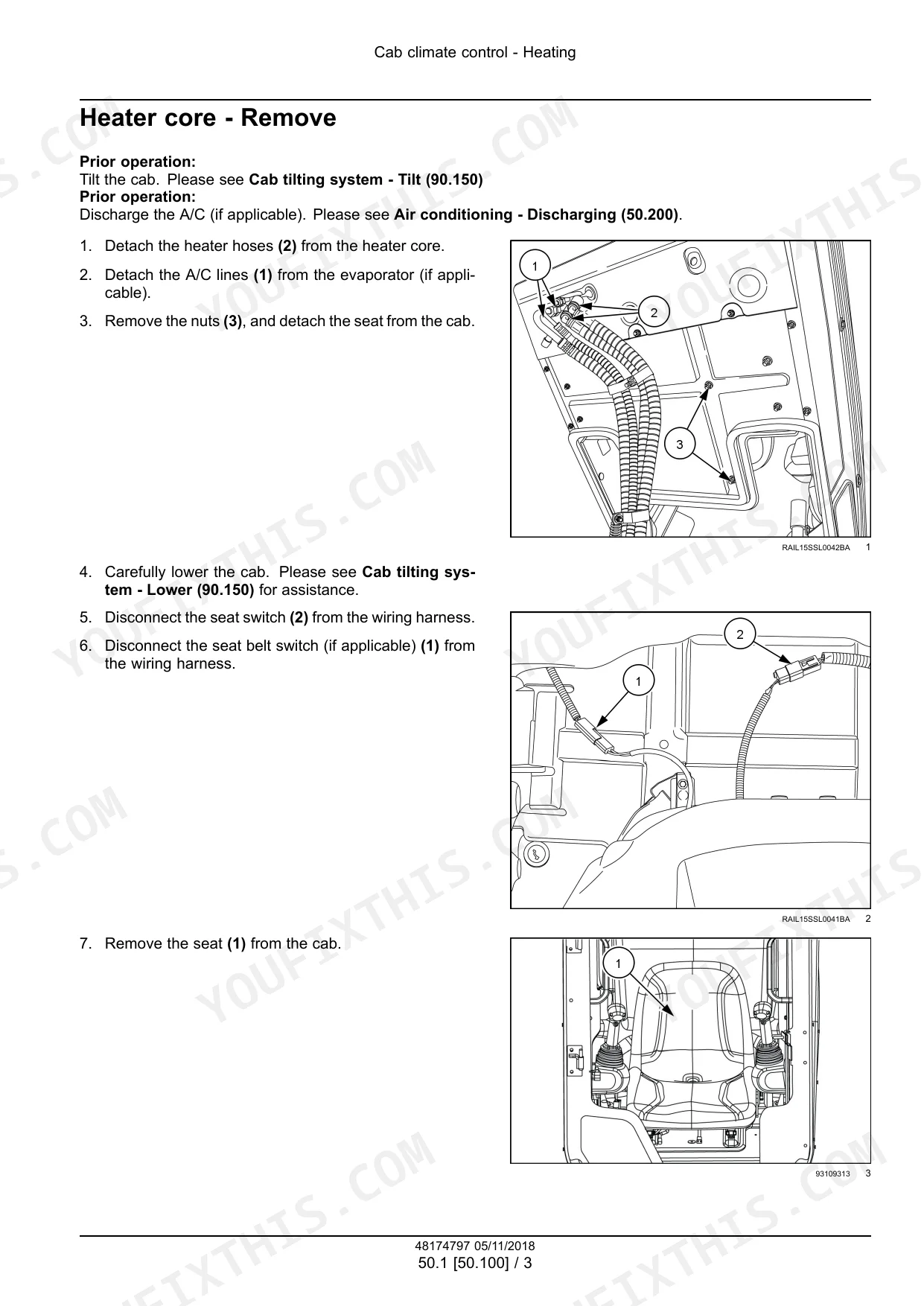

| Cab Climate Control | 609-670 | Heating, Air Conditioning |

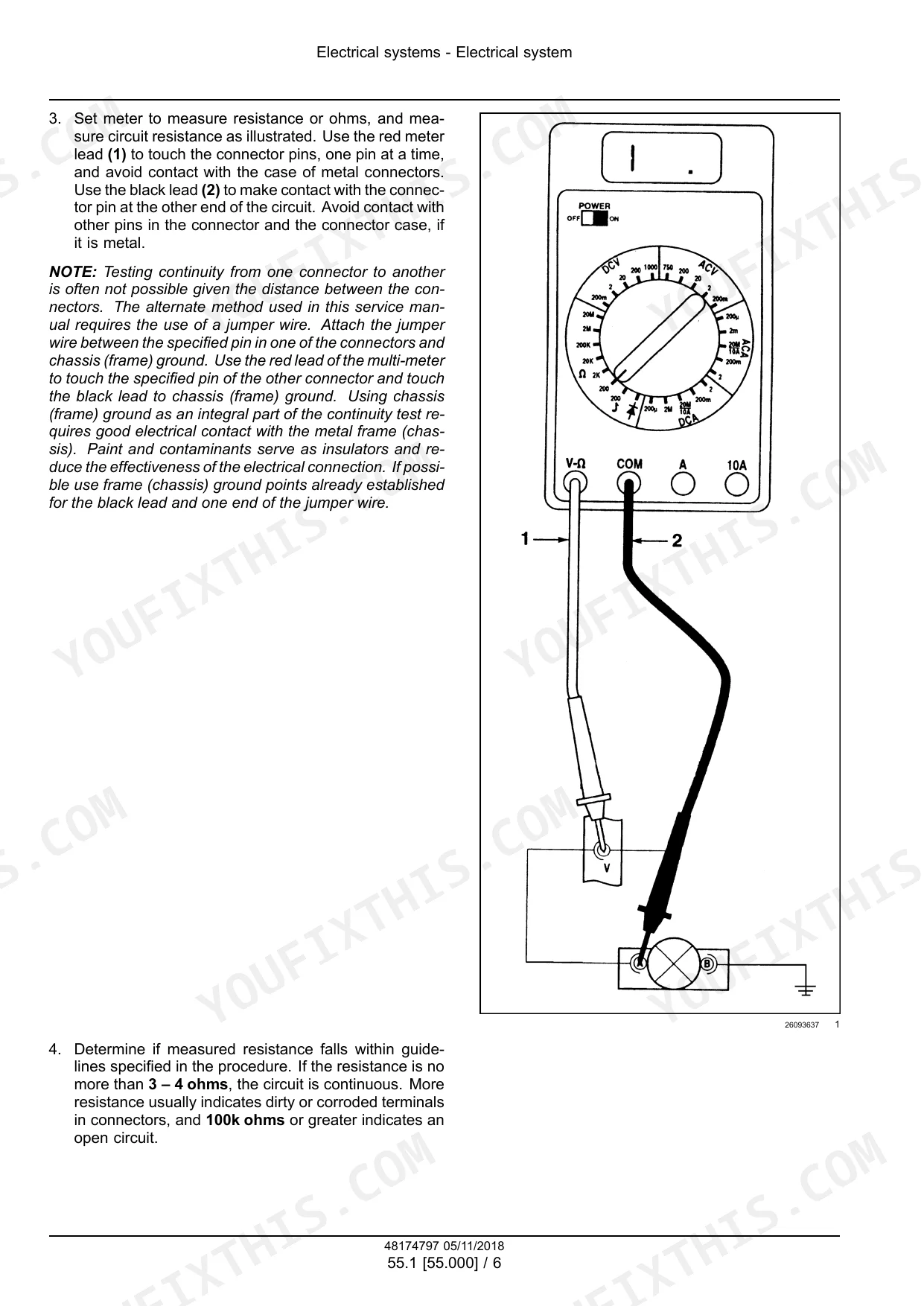

| Electrical Systems | 671-706 | Electrical System Overview and Contents |

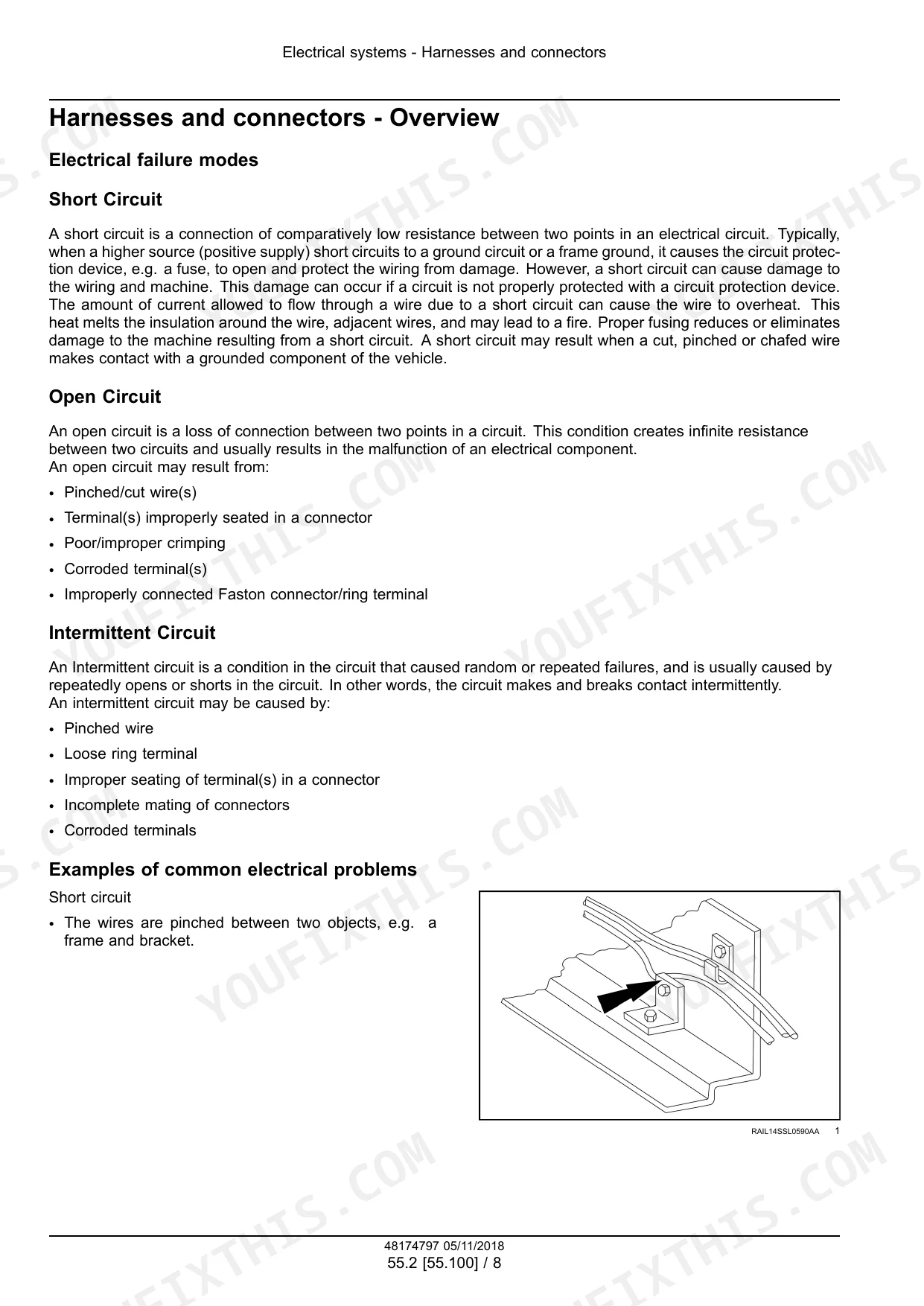

| Electrical Harnesses and Connectors | 707-1406 | Electrical Schematic Sheets, Harness Routing, Connector Pinouts |

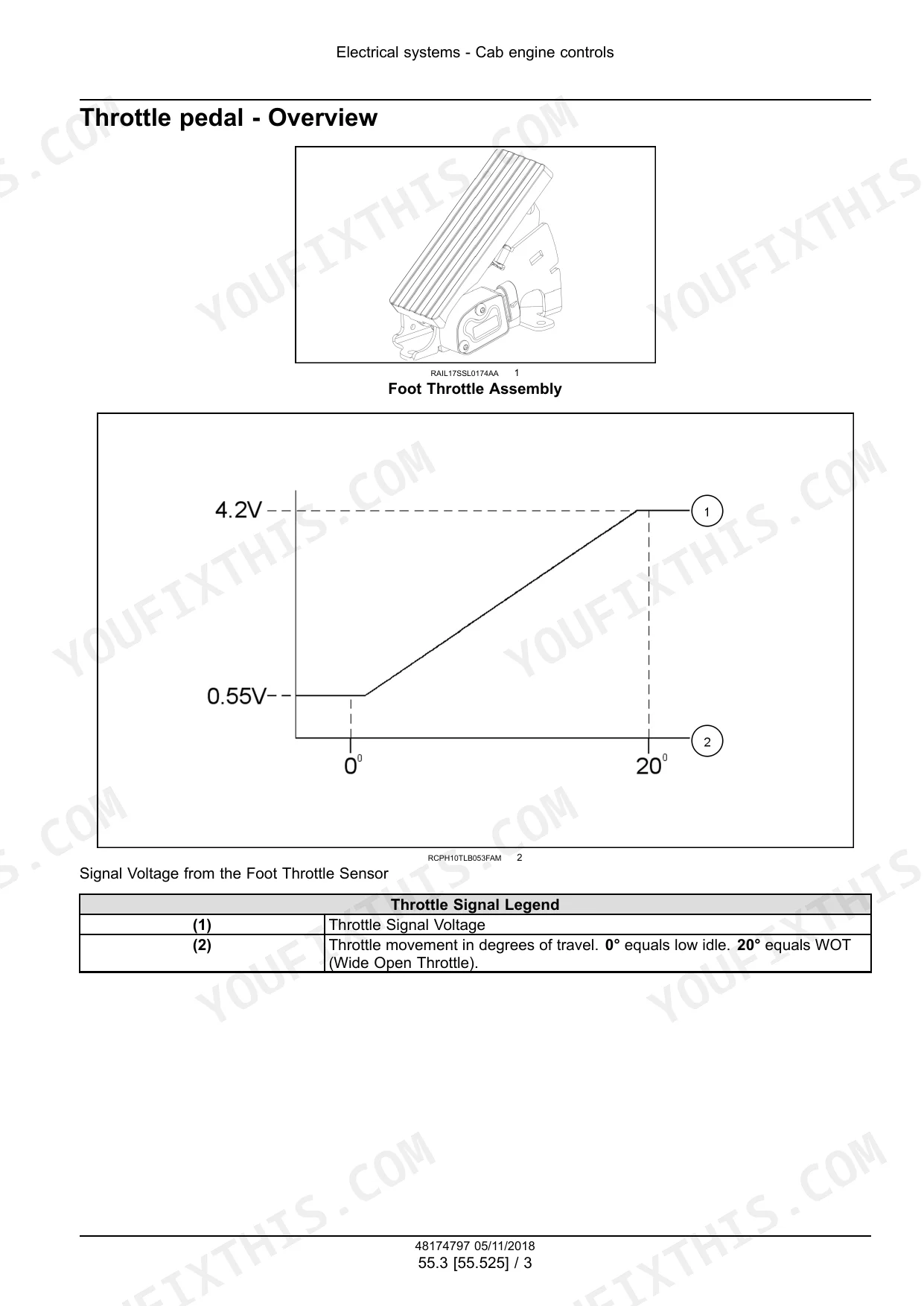

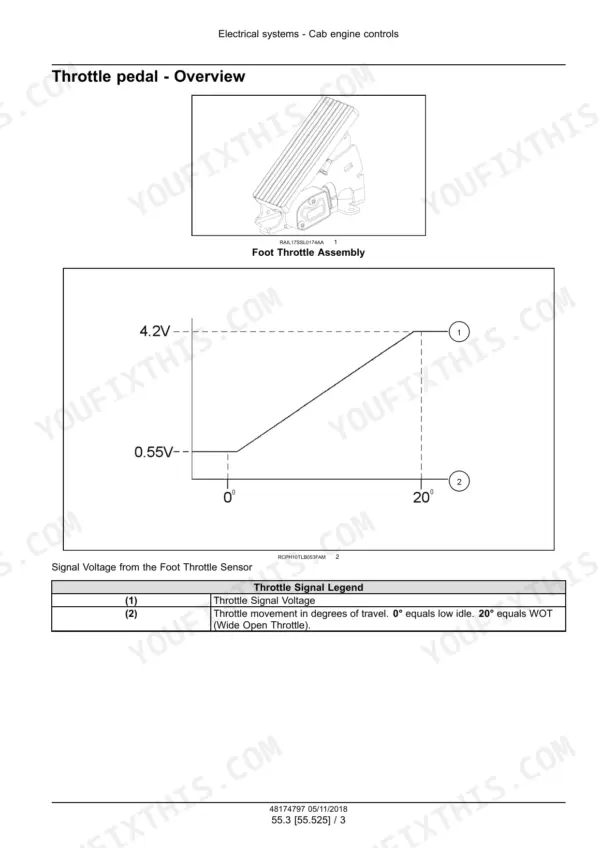

| Electrical Components and Control Systems | 1407-1647 | Cab Controls, Instrument Cluster and Warning Indicators, Hydrostatic Drive Control, SCR Electrical System, HVAC Electrical |
| Fault Codes | 1648-2642 | Per-Code Context, Cause and Solution for Each Diagnostic Trouble Code |
| Front Loader and Bucket | 2643-2692 | Arm, Bucket |
| Platform, Cab, Bodywork, and Decals | 2693-2757 | Cab Trim, Operator Seats, Cab Doors, Engine Shields and Hood Latches |
| Special Tool Index | 2758-2761 | Service Tool List |

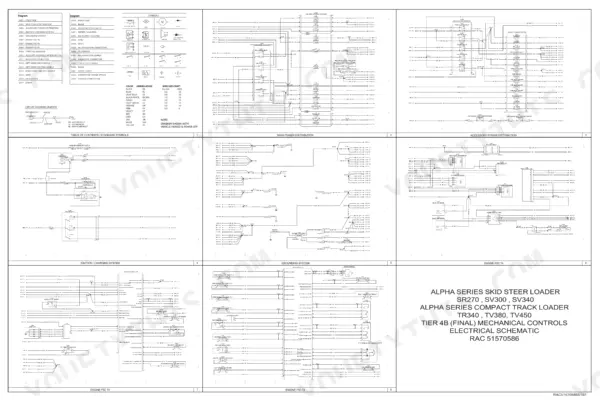

| Electrical Schematic RAC 51570586 | 2762-2765 | Fold-Out Electrical Schematic, Mechanical Controls |

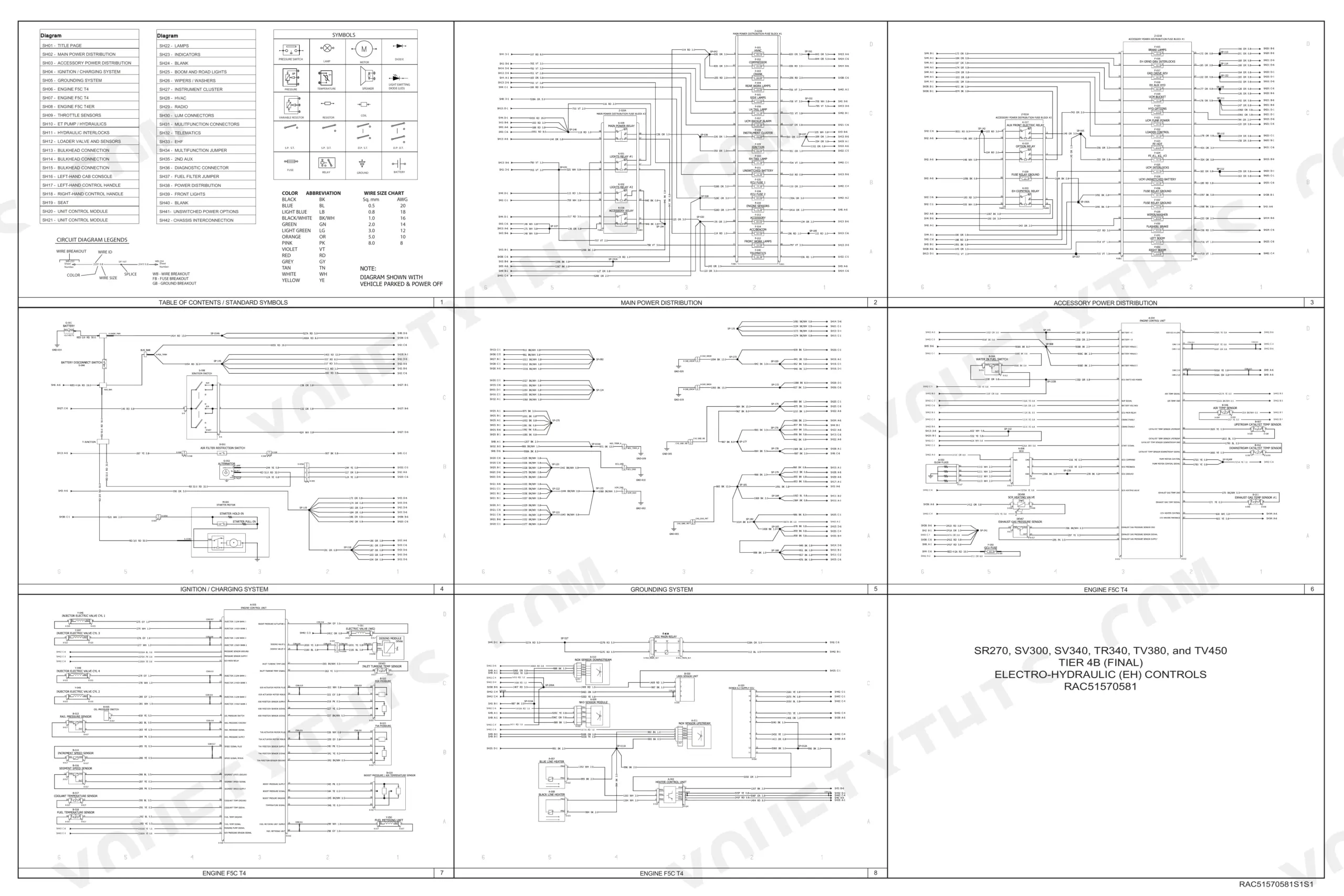

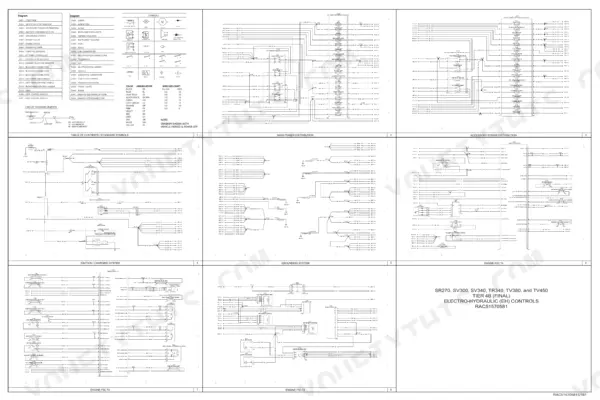

| Electro-Hydraulic (EH) Controls Schematic | 2766-2770 | Fold-Out Electrical Schematic, EH Controls |
| Hydraulic Schematic RAC 51570577 | 2771-2780 | Fold-Out Hydraulic Schematics, Mechanical and EH Valve Assemblies, Drive Circuit |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine (TV450 Tier 4B final, North America) | F5BFL413A*B007 | p. 3 |
| Fuel tank capacity | 96.5 L (25.5 US gal) | p. 25 |
| Cooling system capacity | 19.0 L (5.0 US gal) | p. 25 |
| Hydraulic reservoir capacity | 22.7 L (6.0 US gal) | p. 25 |
| Hydraulic system capacity | 45.4 L (12.0 US gal) | p. 25 |
| Engine crankcase oil, with filter change | 8.5 L (9.0 US qt) | p. 25 |
| Final track drive capacity, each side (TR340, TV380, TV450) | 1.0 L (1.06 US qt) +/- 0.1 L (0.1 US qt) | p. 25 |
| DEF/AdBlue reservoir capacity | 10.7 L (2.8 US gal) | p. 25 |
| Hydrostatic pump displacement (mechanical drive, Sauer-Danfoss) | 46 cm³ (2.8 in³) | p. 177 |
| Charge pressure relief valve | 24 - 25 bar (350 - 370 psi) at 1800 RPM | p. 177 |
| Drive circuit pressure limiter valves | 360 - 378 bar (5220 - 5481 psi) | p. 177 |
| Main relief setting (main control valve, mechanical drive) | 233 - 243 bar (3379 - 3524 psi) | p. 384 |
| Brake release pressure | 15 bar (218 psi) | p. 294 |
Case TV450 Common Problems This Manual Covers
Machine won't drive because the parking brake stays applied

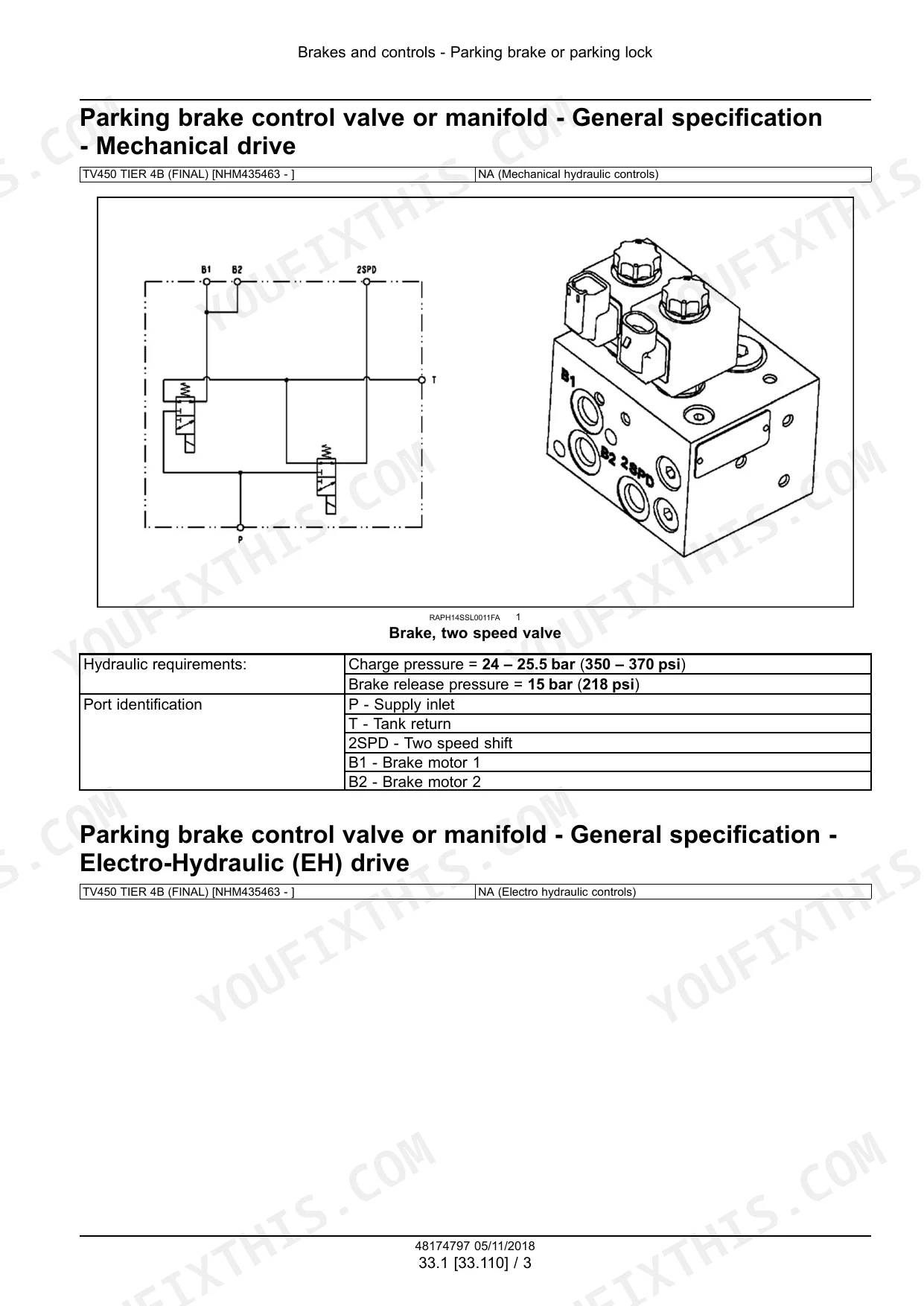

The parking lock needs 15 bar (218 psi) to release, and the Brakes and controls section covers the parking brake. If release pressure is low, go back through the charge circuit in the Hydrostatic drive section. Charge relief there should read 24 to 25 bar at 1800 RPM.
Manual Section: Brakes and controls - Parking brake / parking lock p. 294Lift arms and bucket cylinders slow down or stall under load
Check the main relief on the main control valve against 233 to 243 bar (3379 to 3524 psi). The Hydraulic systems section also covers the gear pump, reservoir, cooler and filters. Rule those out before you start adjusting the loader valve.
Manual Section: Hydraulic systems - Main control valve, gear pump, filters p. 384Weak tracking, or one side pulls when climbing or pushing into a pile
In the Hydrostatic drive section, start with charge pressure, then check the drive circuit pressure limiter valves at 360 to 378 bar. The section covers pump and motor components and the mechanical control linkage. Use it to work out whether the pump, a drive motor or the control is at fault.
Manual Section: Hydrostatic drive - Pump and motor components, hydrostatic transmission p. 177SCR or DEF fault code showing on the instrument cluster
Look up the code in the Fault codes section for its cause and solution. Then use the SCR electrical system pages and electrical schematic RAC 51570586 to trace the wiring. The Engine section covers the SCR exhaust treatment hardware, and the DEF reservoir holds 10.7 L (2.8 US gal).
Manual Section: Fault codes / Electrical systems - SCR electrical system / Engine - SCR exhaust treatment p. 1648Frequently Asked Questions
Can I work TV450 fault codes without the Case EST?
You can do most of the work. Each code has its own procedure with the cause and the solution, so you can trace the harness, connector or module yourself. The manual says codes are cleared with the Electronic Service Tool (EST). For that last step, plan on dealer access or a compatible tool. p. 1698
What are the charge and drive pressure specs for the hydrostatic pump on the Case TV450?
Charge pressure relief is 24 to 25 bar (350 to 370 psi) at 1800 RPM. The drive circuit pressure limiter valves are set at 360 to 378 bar (5220 to 5481 psi). These figures apply to the 46 cm³ (2.8 in³) Sauer-Danfoss pump on mechanical drive machines. Check charge pressure first, because low charge hurts everything downstream of it. p. 177
How much hydraulic oil does the TV450 hold?
The reservoir holds 22.7 L (6.0 US gal), and the whole system holds 45.4 L (12.0 US gal). Use the reservoir figure for a routine filter service. Use the system figure after a job that drains the lines or cylinders. The Introduction lists the hydraulic oil recommendations next to the capacities. p. 25
Will this manual match my machine's serial number?
It covers PIN NHM435463 and above, Tier 4B final. The engine listed for North America is the F5BFL413A*B007. If your PIN is lower, you have an earlier build and some specs may be different. Check the serial plate before you rely on any setting. p. 1
How much oil goes in each final track drive?
Each side takes 1.0 L (1.06 US qt), plus or minus 0.1 L. The same figure is listed for the TR340, TV380 and TV450. While you have the drain pan out, crankcase oil with a filter change is 8.5 L (9.0 US qt). p. 25
