Tracing an electrical fault on your Cat loader? This 36-page Caterpillar 216B3 service manual PDF (OEM #KENR9408-02) covers schematic reading and system specs for the 216B3, 226B3, 236B3, 242B3, 247B3, 252B3, 257B3, and 259B3 skid steer, multi-terrain, and compact track loaders. Inside: full electrical wiring schematics with harness and wire identification, relay and fuse block layouts, and hydraulic schematics with circuit color codes, line patterns, and component locations. You also get connector and splice identification tables plus hydraulic tap locations, pressure specs, and sensor data for every system option. Check CAN resistor resistance at 120 ohms, and confirm the hydraulic filter cracking pressure sits at 34.5 kPa. No more tracing wires blind with a test light and a hunch. Bookmarked PDF opens on any device; search a wire number, find the pin, fix the machine.
What's Inside This Caterpillar 216B3-259B3 Manual
| System | Pages | Key Topics |
|---|---|---|
| Electrical Power Graphic Symbols | 1-2 | Basic Component Symbols |
| Switches | 3 | Disconnect Switch, Temperature Switch, Pressure Switch, Toggle Switch, Flow Switch, Key Switch |

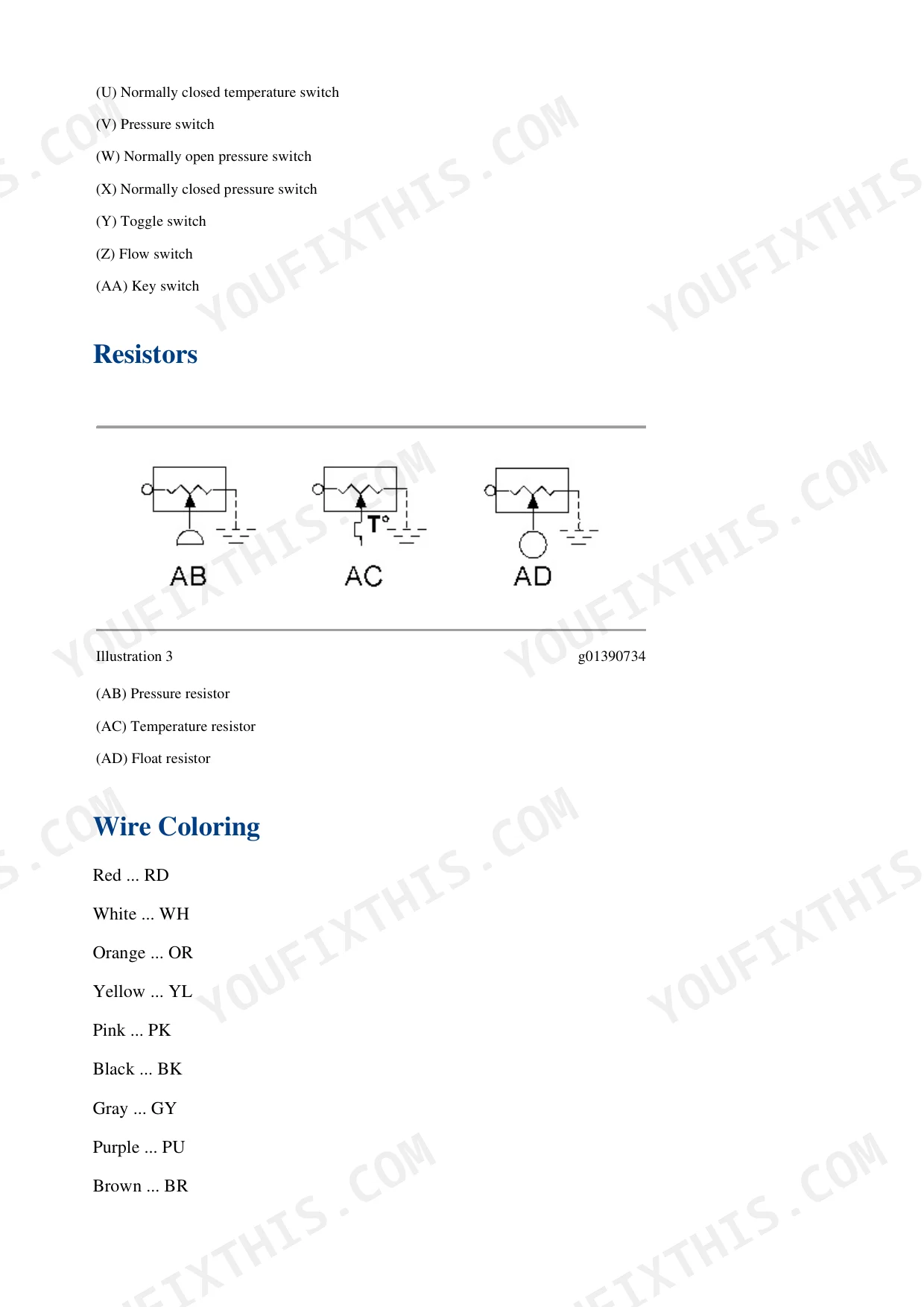

| Resistors | 4 | Pressure Resistor, Temperature Resistor, Float Resistor |
| Wire Identification | 5 | Wire Label, Color Code, Wire Size, Wire Number, Harness Identification |
| Connectors | 6 | Connector Label, Receptacle Side, Plug Side, Harness Identification, Connector Part Number |

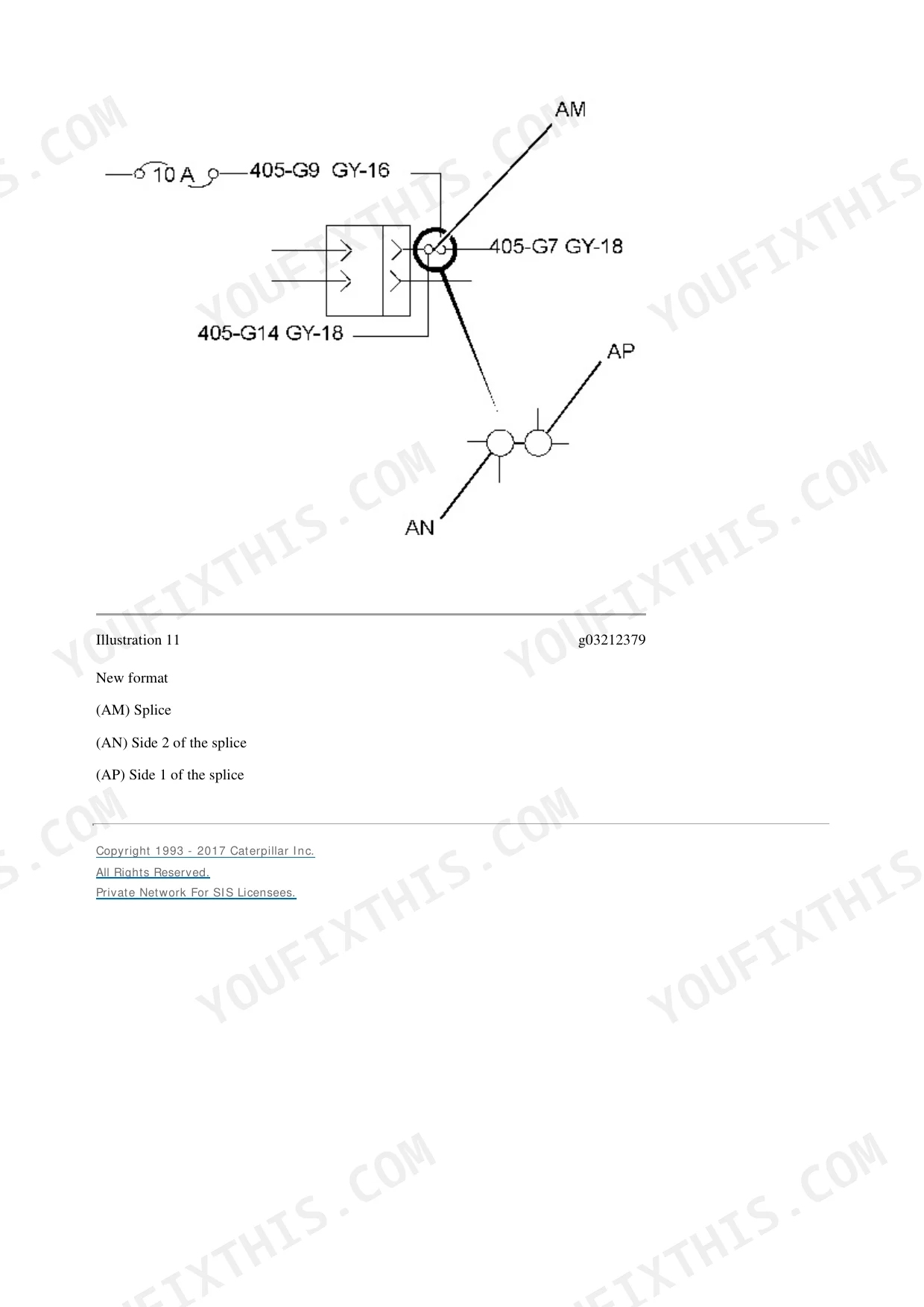

| Splices and Connectors | 7-8 | Splice Identification, Connector Labeling, Receptacle and Plug Identification, Harness Identification |

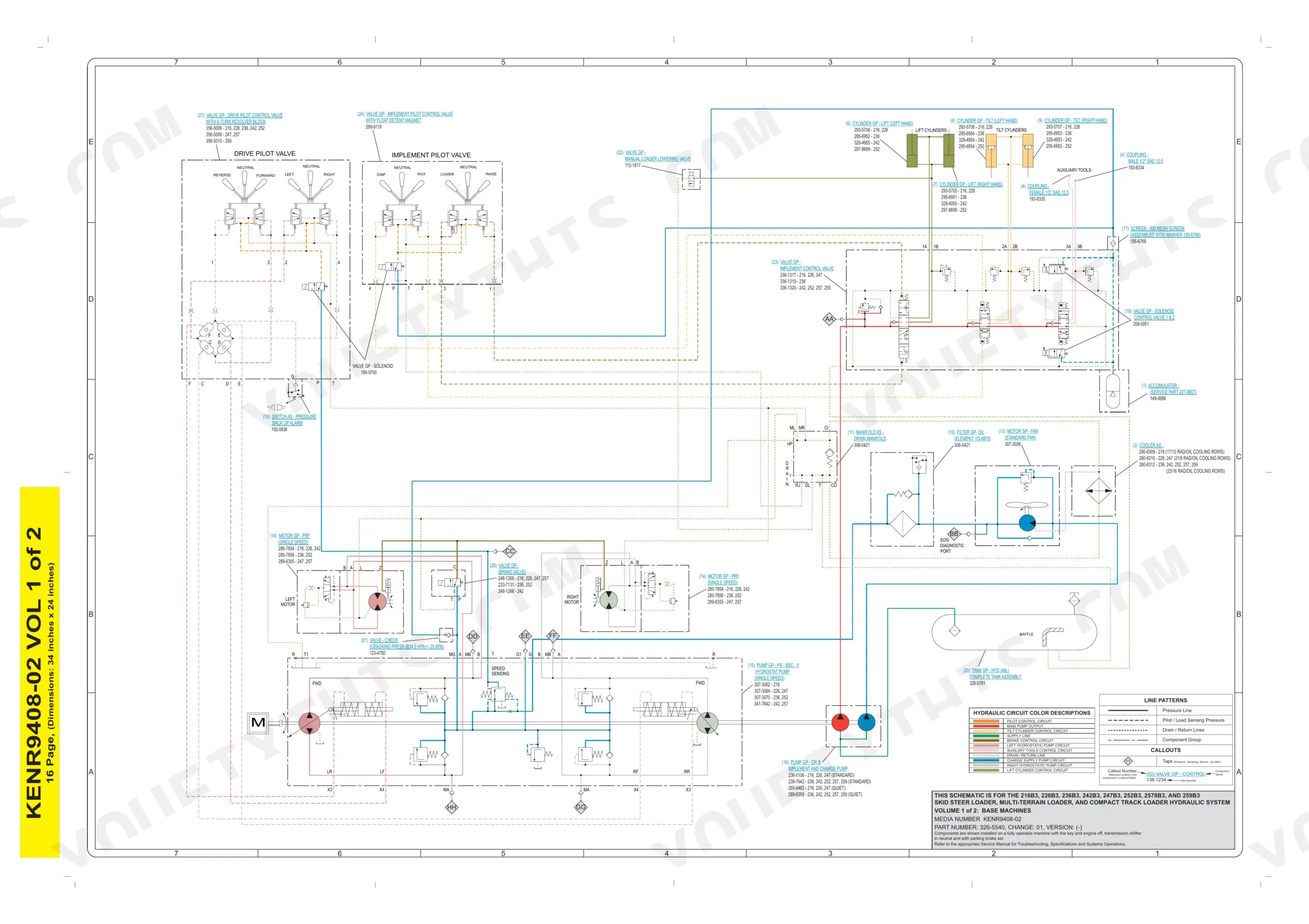

| Hydraulic System Overview | 9-20 | Hydraulic Symbols, Component Locations, Hydraulic Circuit Color Descriptions, Line Patterns |

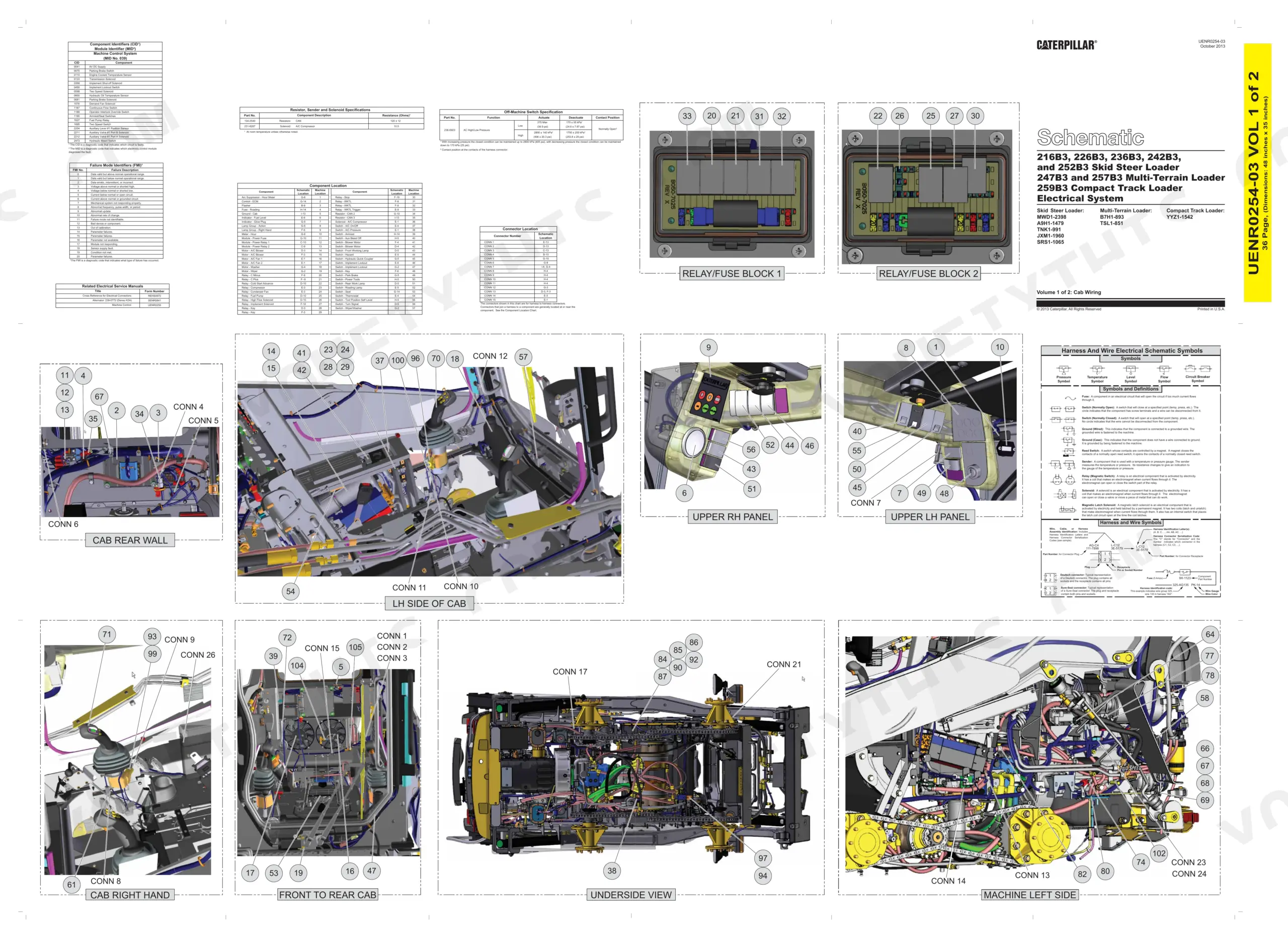

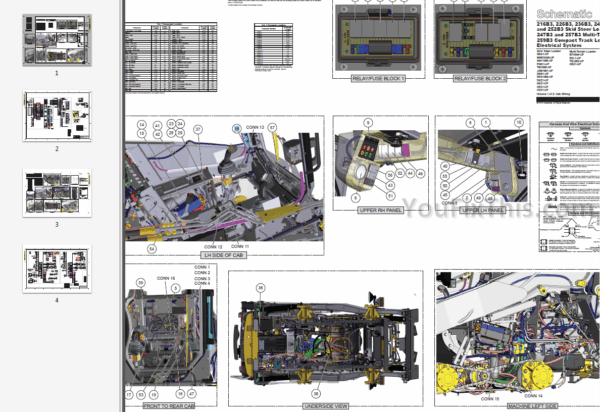

| Electrical System and Wiring | 21-28 | Electrical Schematic Symbols, Harness and Wire Identification, Relay and Fuse Block Layout, Wire Coloring |
| Hydraulic System Options and Specifications | 29-36 | Hydraulic System Options, Tap Locations, Pressure and Sensor Specifications, Component Location Tables |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic filter cracking pressure | 34.5 kPa +/- 20 kPa | p. 18 |
| Resistor Resistance (CAN) | 120 ± 12 Ohms | p. 21 |
| Solenoid Resistance (Coil Assembly) | 9.4 Ohms | p. 23 |
| Solenoid Resistance (Implement PLT Transmission) | 9.88 ± 0.49 Ohms | p. 23 |
| Solenoid Resistance (High Flow) | 5.9 ± 0.5 Ohms | p. 23 |
| Solenoid Resistance (Park Brake) | 8.8 ± 0.5 Ohms | p. 23 |
| Solenoid Resistance (Two Speed) | 2.2 ± 0.2 Ohms | p. 23 |
Caterpillar 216B3-259B3 Common Problems This Manual Covers
Caterpillar 236B3 hydraulic pressure loss under load, bucket lifts slowly and won't hold position
Check the hydraulic filter first; a plugged element bypasses at 34.5 kPa plus or minus 20 kPa, shown on the hydraulic schematic on page 18, and starves the pump. Replace the filter, then verify system pressure at the test taps in the options and specifications tables starting on page 29. Inspect suction lines for collapse.
Manual Section: Hydraulic System Overview p. 18Machine won't move in either direction, park brake stays locked with engine running
Test the park brake solenoid before pulling drive motors. Disconnect the coil and measure resistance across the pins; spec is 8.8 plus or minus 0.5 Ohms per the values on page 23. An open or shorted coil means the brake never releases. Check harness connectors between the fuse block and solenoid using the wiring diagram on page 21.
Manual Section: Electrical System and Wiring p. 23Two speed won't engage, machine stuck in low range on hard surfaces
Measure the two speed solenoid coil resistance: 2.2 plus or minus 0.2 Ohms is the spec listed on page 23. Anything outside that range, replace the coil assembly. If the coil checks good, trace the circuit back through the connectors with the wiring diagram on page 21 and check for voltage at the plug with the switch pressed.
Manual Section: Electrical System and Wiring p. 23Intermittent electrical fault codes, gauge cluster flashing, machine derates or shuts down at random
Check the CAN bus termination when codes come in storms. Key off, disconnect the battery, and measure resistance across the CAN pair; you should read 120 plus or minus 12 Ohms per the wiring diagram on page 21. A higher reading means a failed terminating resistor or open splice. Inspect splice points using the identification tables on page 7.
Manual Section: Electrical System and Wiring p. 21High flow attachment runs weak or won't run at all, standard auxiliary hydraulics work fine
Verify the high flow solenoid coil before condemning the pump. Measure resistance at the coil connector; spec is 5.9 plus or minus 0.5 Ohms, listed on page 23. Replace the coil if it reads open. If the coil passes, check the high flow circuit routing against the hydraulic options tables starting on page 29 and confirm the plumbing.
Manual Section: Electrical System and Wiring p. 23Frequently Asked Questions
What is the part number for the hydraulic oil filter element?
The hydraulic oil filter element for the skid steer loader is part number 1G-8878. p. 18
What is the part number for the hydraulic tank assembly?
The complete hydraulic tank assembly for the base machines is part number 326-5781. p. 18
What is the resistance specification for the CAN resistor?
The CAN resistor (part number 134-2540) has a resistance of 120 ± 12 Ohms at room temperature. p. 21
What is the resistance specification for the A/C compressor solenoid?
The A/C compressor solenoid (part number 231-6287) has a resistance of 10.5 Ohms at room temperature. p. 21
What is the actuate pressure for the A/C high/low pressure switch?
The A/C high/low pressure switch (part number 236-6923) has an actuate pressure of 2800 ± 140 kPa (406 ± 20.3 psi) for high pressure and 170 ± 55 kPa (24.6 ± 7.97 psi) for low pressure. p. 21
