Looking for the Doosan DX225LC shop manual PDF? All 816 pages of this Doosan Track Excavator Shop Manual (OEM #K1048003E) cover the DX225LC, DX225NLC, DX300LC, and DX340LC, from swing bearing to track assembly. Inside: full hydraulic schematics plus troubleshooting, testing, and adjustment procedures for the main control valve, axial piston pump, swing motor, and travel motor. You also get complete electrical schematics for chasing wiring faults, a standard torque section, cylinder and center joint rebuilds, and boom, arm, and bucket service. Set the boom and arm overload relief valves to 360 kg/cm2 (5,112 psi), and fill the 400-liter fuel tank without second-guessing capacity. Your machine is down; borrowed numbers off a forum won't cut it. Bookmarked and keyword-searchable, this PDF opens on your phone right at the machine. Download it and start wrenching.
What's Inside This Doosan DX225LC, DX225NLC, DX300LC, DX340LC Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 7-52 | - |

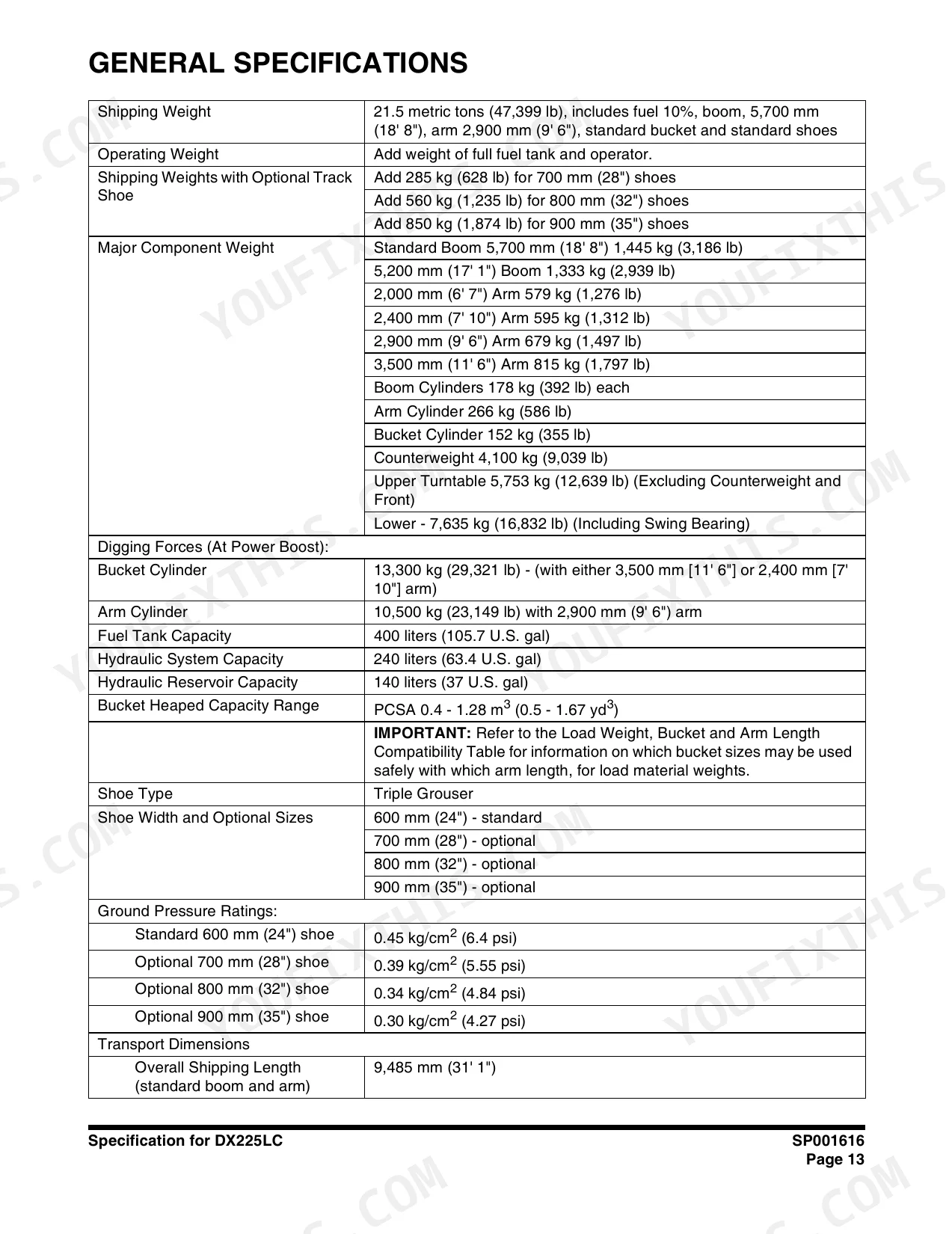

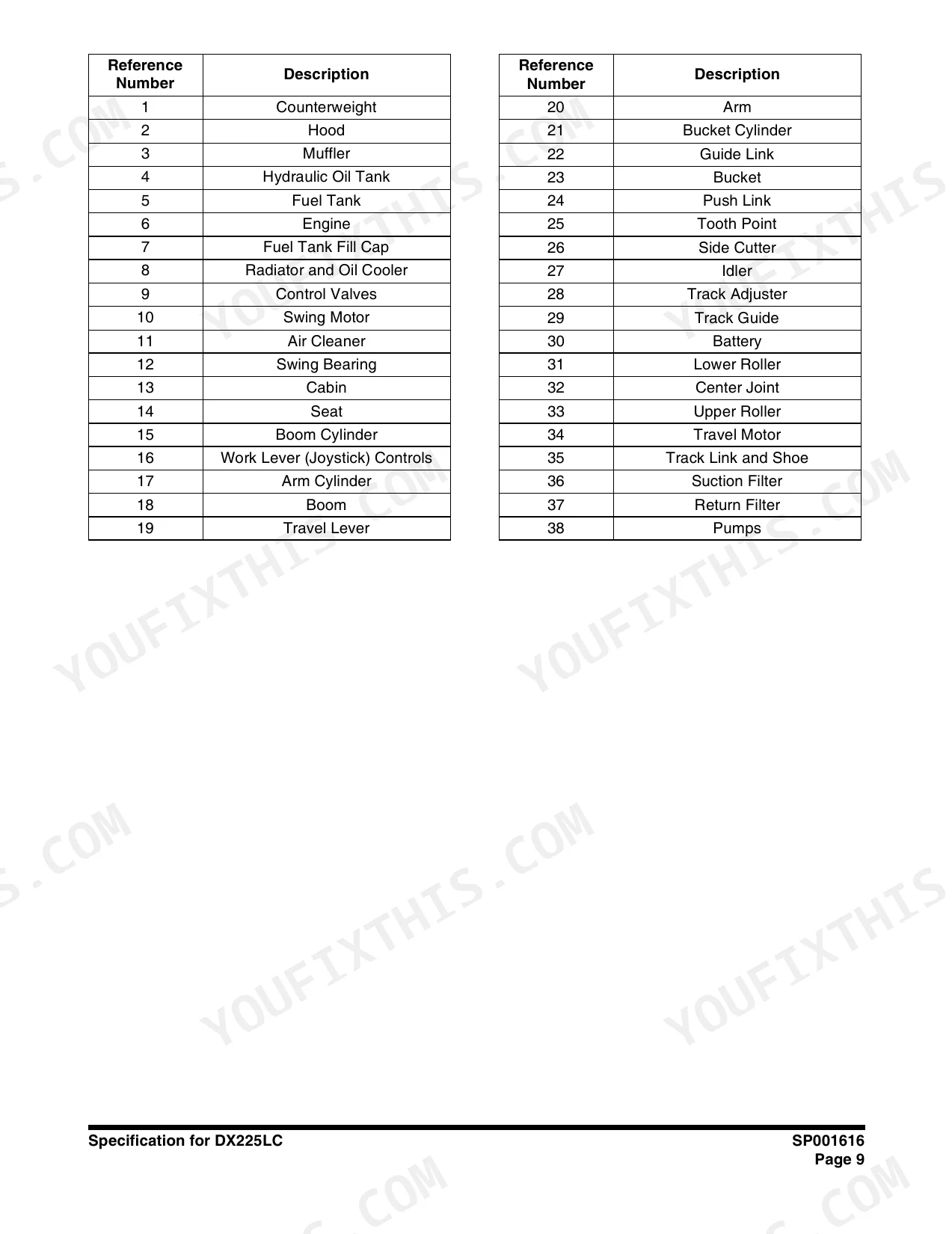

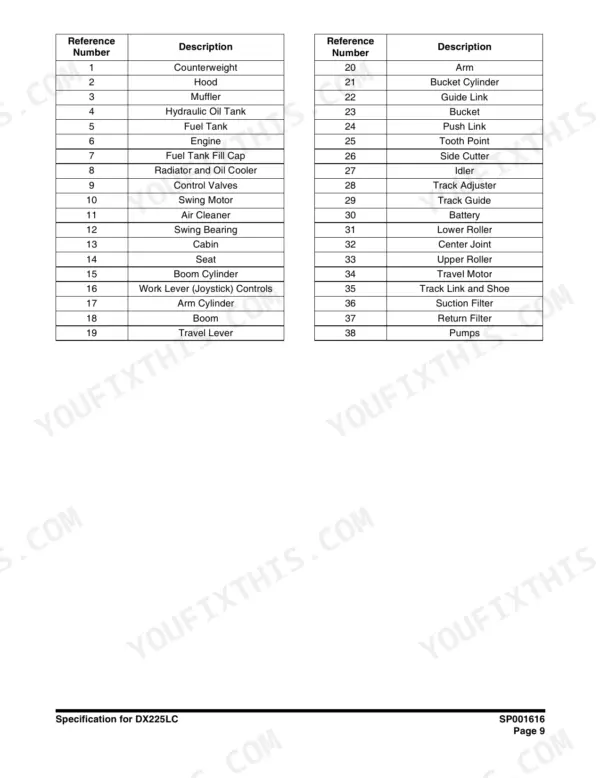

| Specifications | 53-80 | Specification for DX225LC |
| General Maintenance | 81-118 | General Maintenance Procedures, Standard Torques |

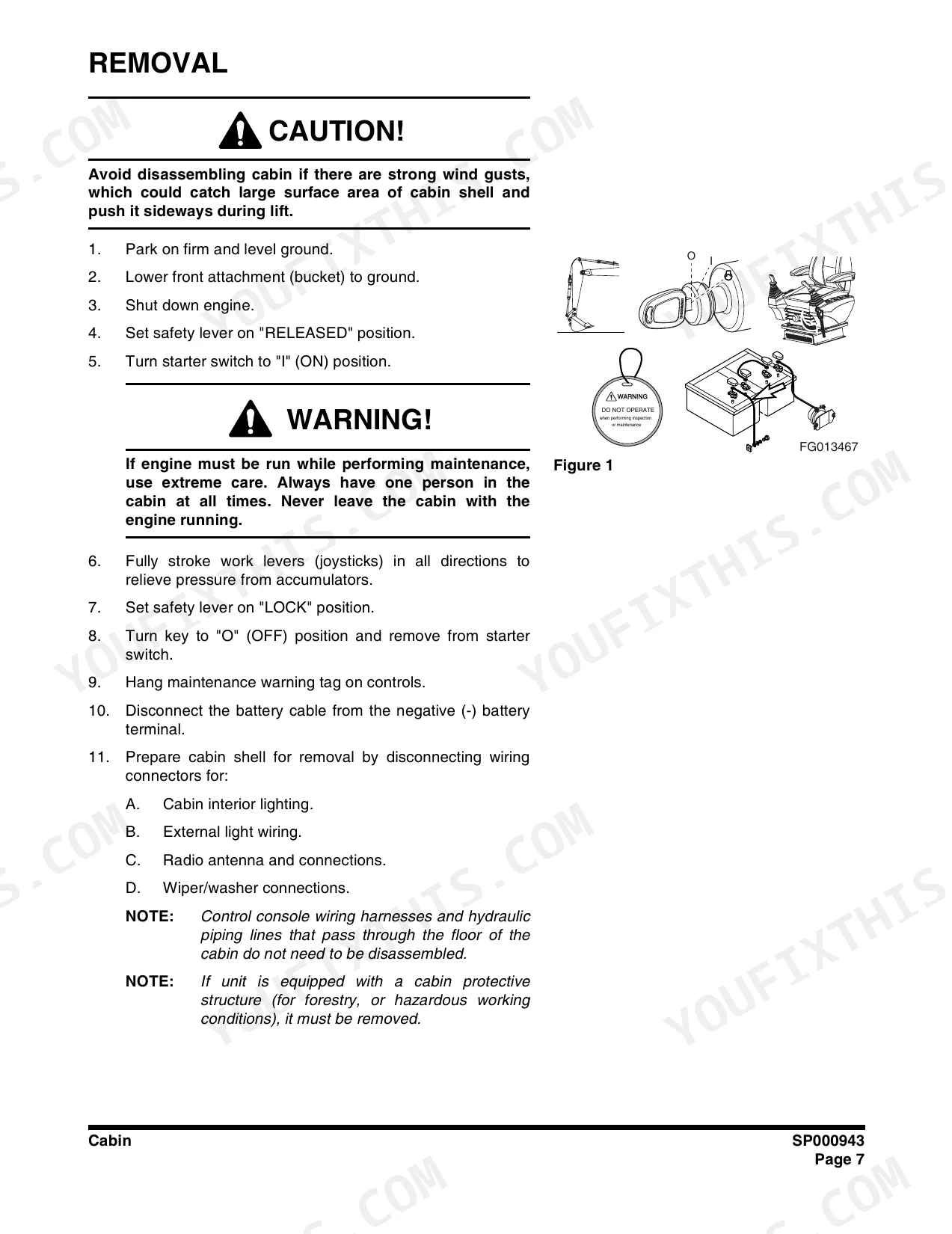

| Upper Structure | 119-226 | Cabin, Counterweight, Fuel Tank, Fuel Transfer Pump, Swing Bearing, Swing Reduction Gear |
| Lower Structure and Chassis | 227-262 | Track Assembly |
| Engine and Drive Train | 263-276 | Drive Coupling (Main Pump) |

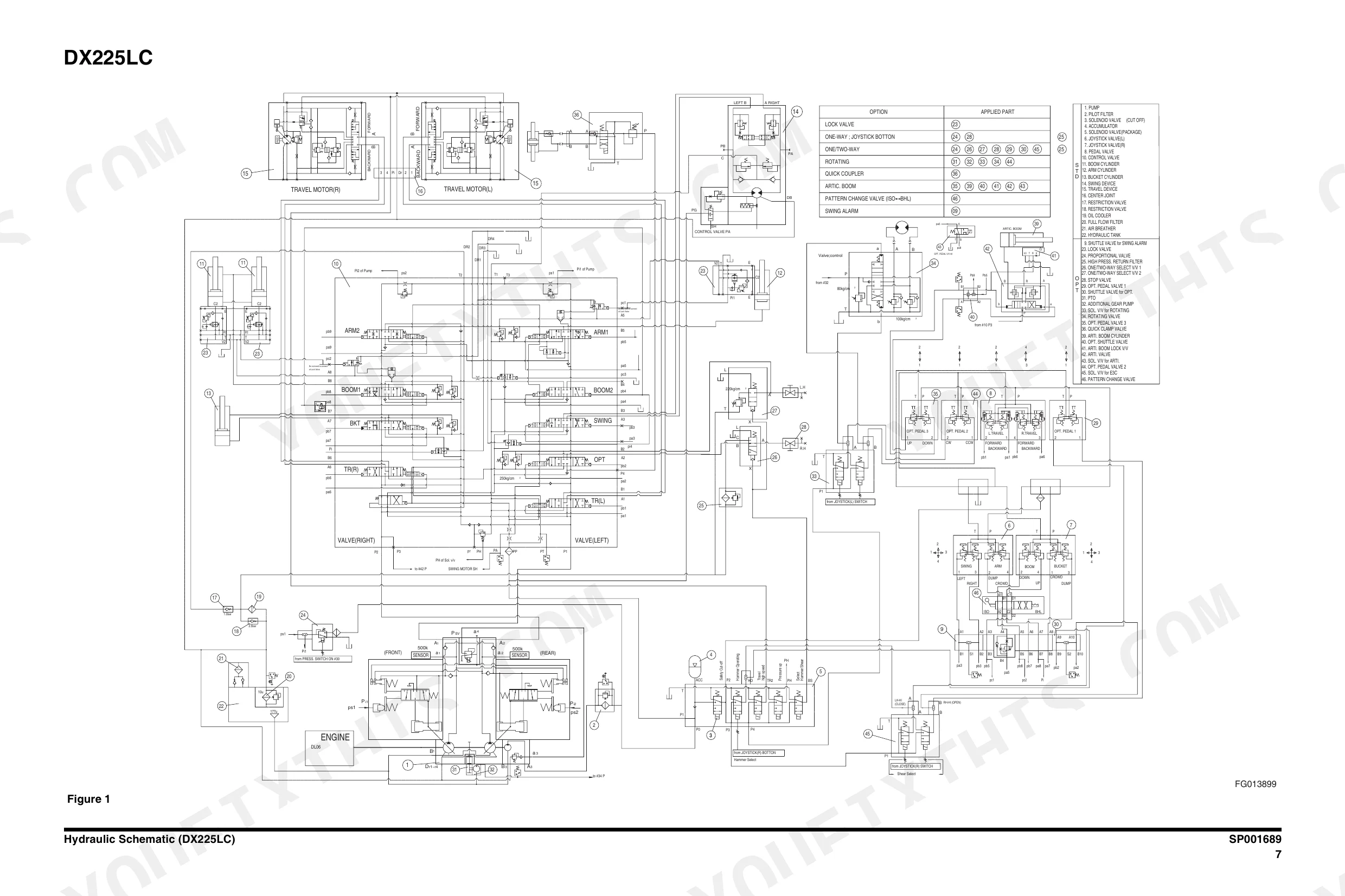

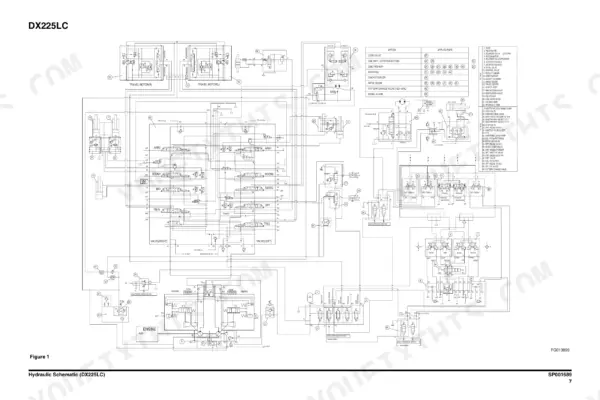

| Hydraulic System Troubleshooting, Testing and Adjustment | 279-314 | Safety Precautions, Applicable Models, Hydraulic System - General Notes, Hydraulic Schematic, Operation of Working Components, Boom Operating Circuit |
| Accumulator | 315-370 | Safety Precautions, Applicable Models, General Description |
| Swing Motor | 371-406 | Safety Precautions, Applicable Models, Operation Manual, Information on Marking, Structure and Operational Principles, Cautions |
| Travel Motor | 407-464 | Safety Precautions, Applicable Models, TM40VD Operation Manual, General Specifications, Legend, Basic Structure and Diagram |
| Gear Pump | 465-544 | Safety Precautions, Applicable Models, Single Gear Pump, Disassembly, Reassembly |
| Axle Piston Pump | 545-598 | Safety Precautions, Applicable Models, Pump Maintenance, Component Locations, Tools, Tightening Torque |
| Travel Control Valve (with Damper) | 599-624 | Safety Precautions, Applicable Models, General Description, Theory of Operation, Pressure Reducing Valve, Operating Theory of Damper Mechanism |
| Solenoid Valve Assembly | 625-659 | Safety Precautions, Applicable Models, Functions of 5-Solenoid Valve Assembly Package, Assembly Diagram and Tools Required, Cautions During Disassembly and Reassembly, Solenoid Valve Diagram |

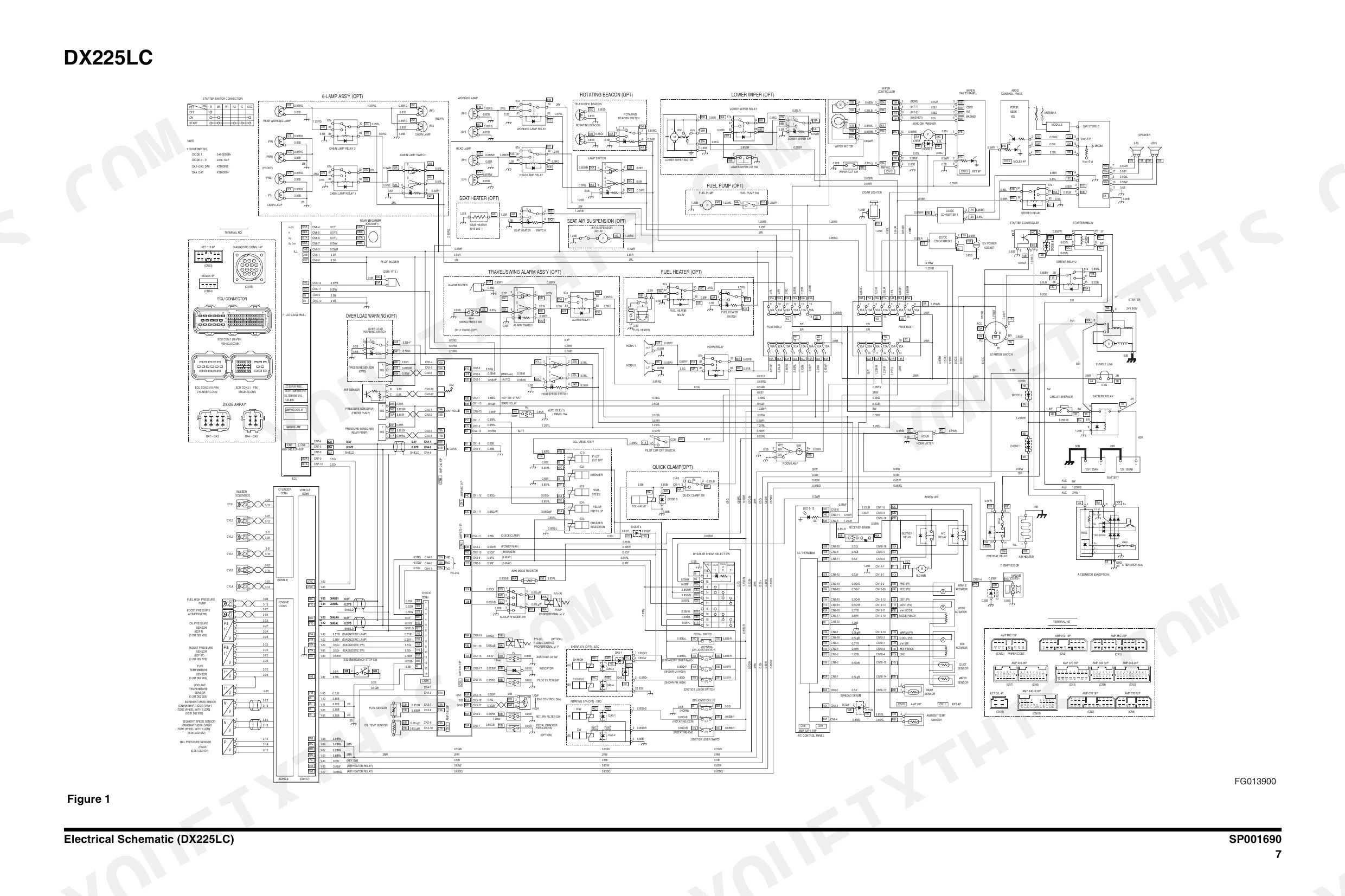

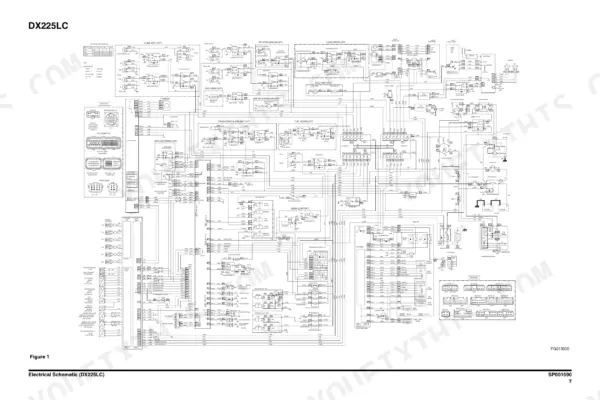

| Electrical System | 660-790 | Electrical Schematic (DX225LC) |
| Attachments | 791-816 | Boom and Arm, Bucket |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel tank capacity | 400 liters (105 U.S. gal) | p. 152 |
| Overload relief valves (Boom operating circuit) | 360 kg/cm2 (5,112 psi) | p. 288 |
| Overload relief valves (Arm operating circuit) | 360 kg/cm2 (5,112 psi) | p. 289 |
| Hydraulic Motor Max. Displacement | max. 174.7 cc/rev | p. 412 |
| Parking Brake Braking Torque | min. 40.6 kgf•m | p. 412 |
| Body Fitting Bolt Tightening Torque | 25.7 ± 4.0 kg•m | p. 422 |
| Sprocket Fitting Bolt Tightening Torque | 25.7 ± 4.0 kg•m | p. 422 |
| Battery voltage | 12 volts | p. 670 |
| Main Relief Pressure (Normal) | 330 kg/cm2 | p. 73 |
| Main Relief Pressure (Pressure Up) | 350 kg/cm2 | p. 73 |
| Fuel Tank Capacity | 400 liters | p. 67 |
| Hydraulic Reservoir Capacity | 140 liters | p. 67 |
Doosan DX225LC, DX225NLC, DX300LC, DX340LC Common Problems This Manual Covers
Doosan DX225LC weak uphill travel, one track runs slower than the other under load
Measure case drain flow from each travel motor with hydraulic oil warmed to 50 degrees C, using the test values on page 462. Flow over 2.0 liters per minute on one side means internal motor leakage. Verify drainage pressure stays under 0.8 kgf/cm2; higher readings point to a plugged drain line.
Manual Section: Travel Motor Troubleshooting p. 462All hydraulic functions feel weak and cylinders stall when digging under load
Test main relief pressure at the pump before condemning anything. On the DX225LC the spec is 330 kg/cm2 normal and 350 kg/cm2 in pressure-up mode, listed on page 73. If an adjusted relief valve will not hold pressure, replace the cartridge and torque it to 7.95 to 8.97 kg•m per page 537.
Manual Section: Hydraulic System Troubleshooting p. 73Hydraulic oil overheats with a whining pump noise and vibration during travel
Check reservoir oil level first; the DX225LC system holds 140 liters, spec on page 67. Clean packed dirt out of the oil cooler fins and replace the return filter whenever the monitor warning comes on. Inspect the suction line for loose clamps; air pulled in there makes the whine and cooks the oil.
Manual Section: Hydraulics p. 67Gear oil weeping from the final drive, oily ring building up around the sprocket
Drain the travel reduction gear case and inspect the old oil for metal flake. Refill with 3.3 liters on the DX225LC, per page 424, then torque the sprocket and body fitting bolts to 25.7 ± 4.0 kg•m, spec on page 422. Verify case temperature stays under 80 degrees C during continuous operation.
Manual Section: Hydraulics p. 424Cab air conditioner blows warm and the compressor cycles on and off rapidly
Check refrigerant charge with a manifold gauge set before swapping parts. The system takes 800 ± 20 grams of R134a on all four models, spec on page 766. Verify high and low side pressures against each other; rapid compressor cycling usually means a low charge from a leaking O-ring at the fittings.
Manual Section: Air Conditioner Troubleshooting p. 766Frequently Asked Questions
What is the tightening torque for the main relief valve?
The tightening torque for the main relief valve is 7.95 - 8.97 kg•m (58 - 65 ft lb). p. 541
What is the recommended interval for changing the gear oil in the travel motor?
The first gear oil change should be performed after 500 operating hours, and subsequent changes should occur every 1000 operating hours or once a year. p. 424
What is the standard torque for M10 socket bolts used in the pump body?
The standard tightening torque for M10 socket bolts (Quality: SCL435) is 5.8 kg•m. p. 555
How do I check the swing bearing for lateral play?
To check lateral play, fully retract the arm and bucket cylinders and extend the bucket tip as far forward as possible. With the excavator parked on a flat surface and the bucket tip just off the ground, push against the bucket sideways to take up all lateral clearance and record the measurement. p. 179
How is this Doosan DX225–DX340 Series Shop Manual delivered?
A 816-page Shop Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is printing allowed for this Doosan DX225–DX340 Series Shop Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Are there wiring harness diagrams in this Doosan DX225–DX340 Series manual?
Included. The Doosan DX225–DX340 Series Shop Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts. Page 110 carries one of them.
