Need the factory operator guide for your Ford 230A, 340A, 445, 530A, 540A, or 545? This 88-page Ford 445 operator manual (OEM #42023020) puts complete Tractor coverage in one place: break-in, controls, daily maintenance, and long-term storage. You get a full safety section covering PTO operation, loader/backhoe hazards, and driving precautions, plus a detailed controls chapter: seat and engine controls, brake layout, power reversing transmission, PTO control, and the hydraulic lift system. Lubrication and maintenance is the core of this manual: interval schedules, fuels and lubricants specs, service procedures, wheel tread settings, tractor weighting, and a pre-delivery 50-hour service checklist. Replace injectors at 600 hours; set spark plug gap to 0.023-0.027 in. No more guessing when service is due. Bookmarked by section, it opens on any device: pull it up on your tablet and walk straight to the machine.
What's Inside This Ford 230A/340A/445/530A/540A/545 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 7-8 | The Tractor, Servicing the Tractor, Driving the Tractor, Operating the PTO, LOADER/BACKHOE Operation, Maintenance |

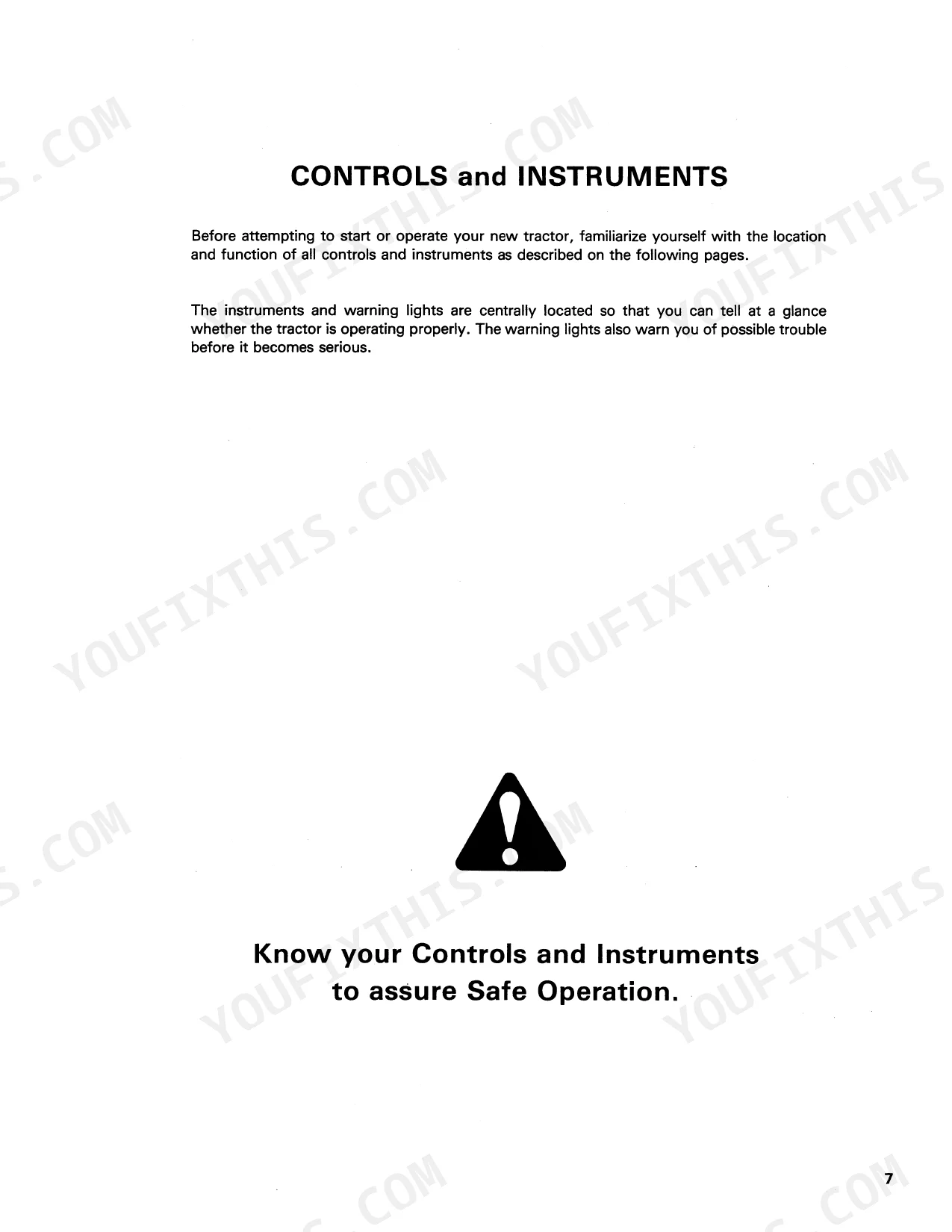

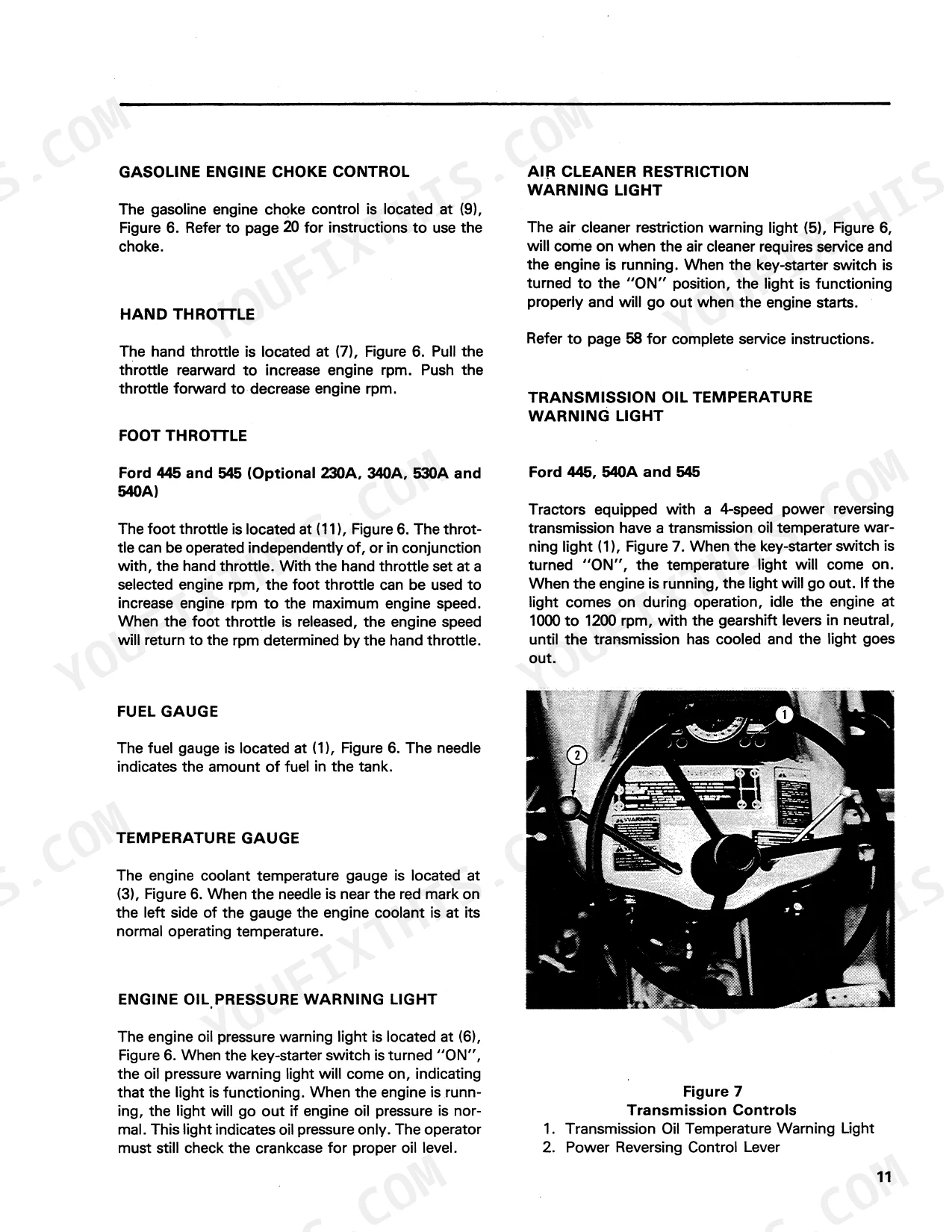

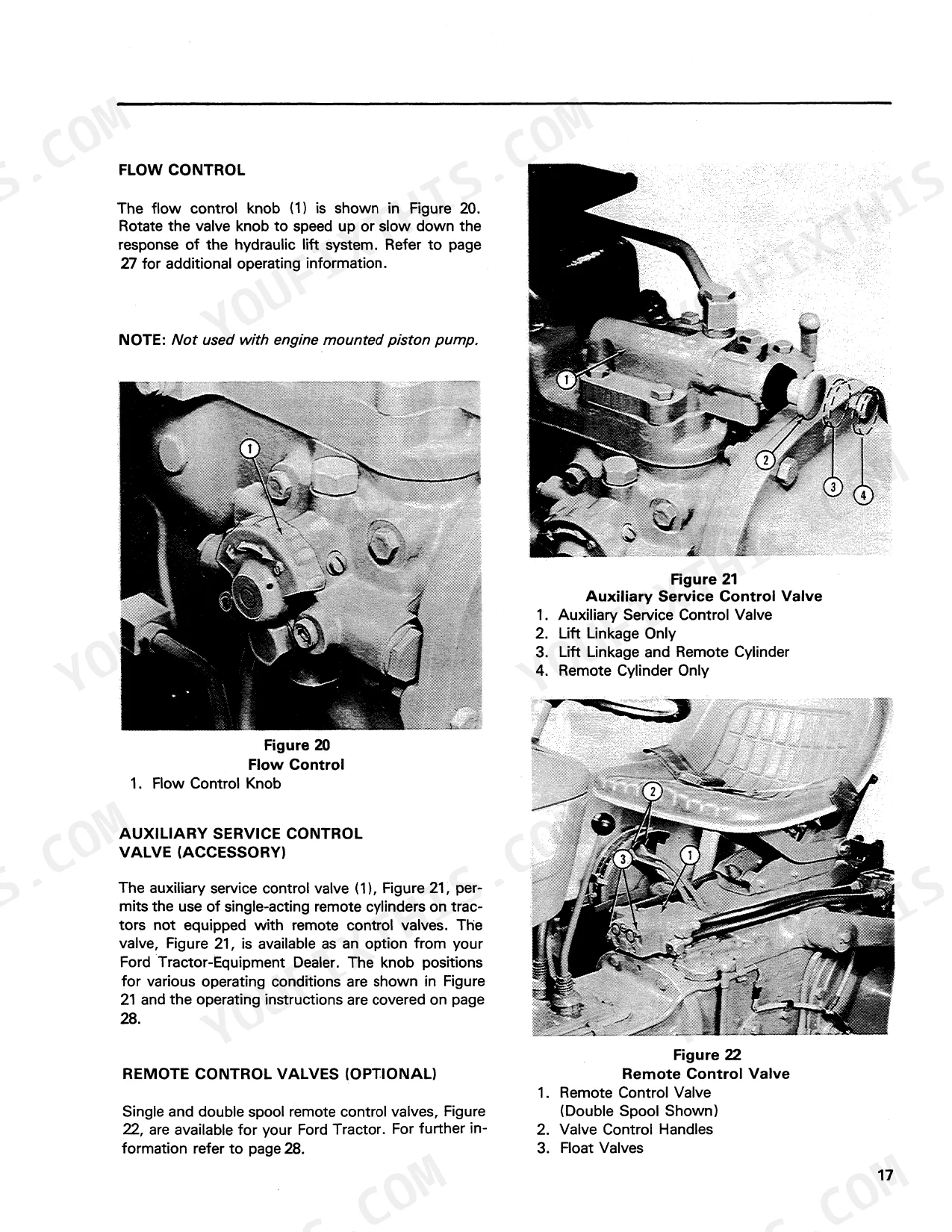

| Controls and Instruments | 9-20 | Seat, Light, And Engine Controls, Brake Controls, Manual Shift and Power Reversing Transmission and PTO Control, Hydraulic Lift System Controls |
| Operation | 21-40 | Break-In Procedures, Starting the Engine, Stopping the Engine, Operating Manual Shift and Power Reversing Transmission and PTO, Towing the Tractor, Operating Differential Lock |

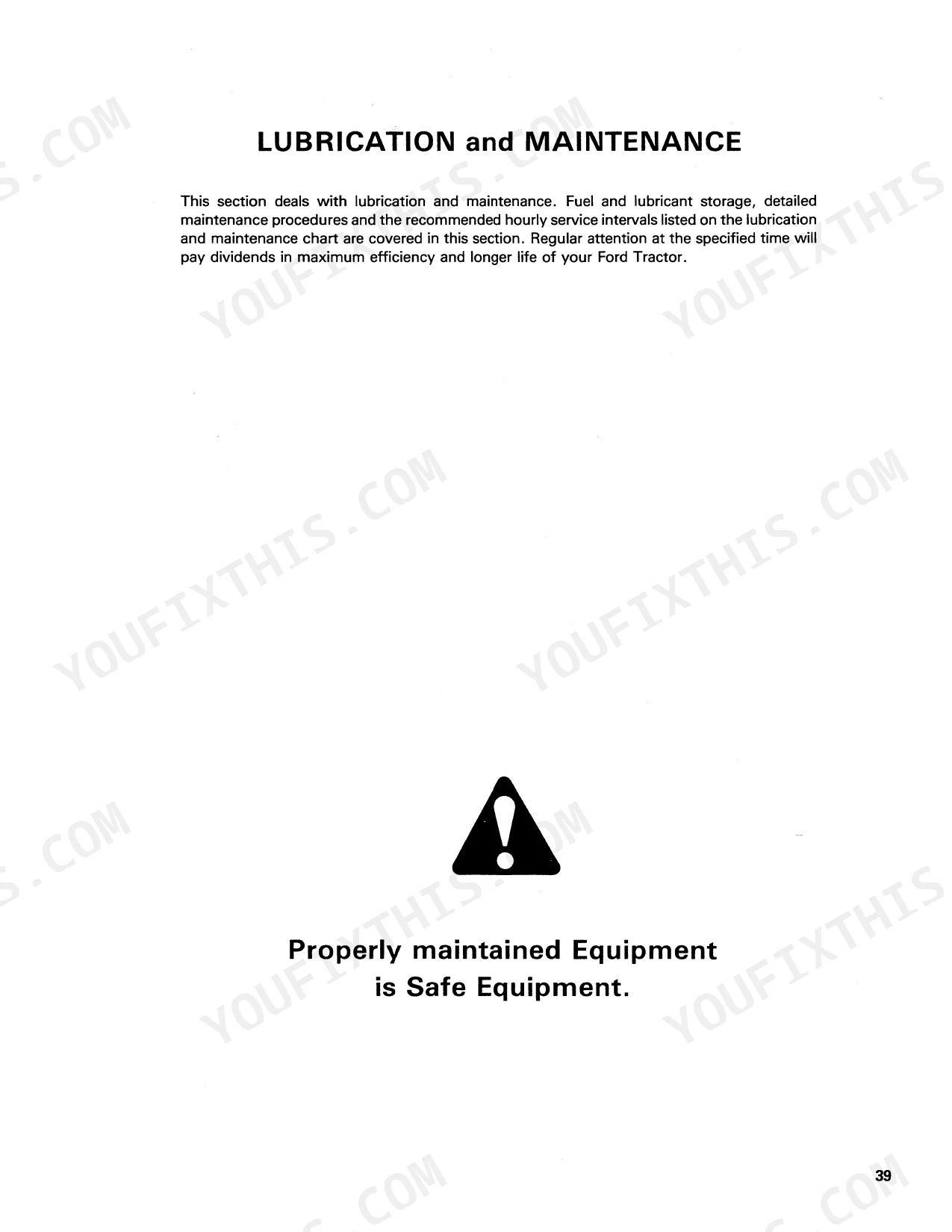

| Lubrication and Maintenance | 41-66 | Lubrication and Maintenance Chart, Fuels and Lubricants, Fuel and Lubricant Service Procedures, Tractor Storage, Accessories |
| Specifications | 67-76 | Torque Values, Engine, Capacities, Electrical, Fuel System, Brakes |
| Decals | 77-82 | Industrial Lubrication and Maintenance Service Intervals, Warning, Rotating Fan and Belts, To Protect Engine and Hydraulic Components, Torque Converter |
| Pre-Delivery and 50-Hour Service | 83-86 | Inoperative Service Checks, Operative Service Checks, Performance Service Checks |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel injector replacement interval | 600 hours | p. 57 |
| Spark Plug Gap | 0.023-0.027 in. | p. 59 |
| Rear Tire Inflation Pressure (8.30-24 4 Ply R3) | 18-22 P.S.I. | p. 38 |
Ford 230A/340A/445/530A/540A/545 Common Problems This Manual Covers
Ford 230A tractor engine runs rough and misfires under load at high RPMs. p. 59
Remove and inspect the spark plugs. Clean the electrodes with a wire brush and check the gap setting on page 59. Adjust the gap to exactly 0.023-0.027 in. before reinstalling the plugs. If the electrodes are heavily worn, replace them.
Manual Section: Lubrication and MaintenanceRear wheels lose traction and spin excessively when operating the loader in soft dirt. p. 38
Check the rear tire inflation pressure using a reliable air gauge. For tractors equipped with 8.30-24 4 Ply R3 tires, verify the pressure is set to 18-22 P.S.I. as shown on page 38. Adjust the air pressure to improve traction.
Manual Section: OperationDiesel engine produces thick black exhaust smoke and lacks power during heavy towing operations. p. 57
Review your maintenance log to verify the fuel injector replacement interval on page 57. Replace all fuel injectors if the tractor has exceeded 600 hours of continuous operation. Drain the fuel filter bowl to remove any accumulated moisture before restarting.
Manual Section: Lubrication and MaintenanceFrequently Asked Questions
How do you fix engine running rough and misfiring under load on the Ford 230A, 340A, 445, 530A, 540A, or 545 tractor?
Remove and inspect the spark plugs. Clean the electrodes with a wire brush and check the gap setting on page 59. Adjust the gap to exactly 0.023-0.027 in. before reinstalling the plugs. If the electrodes are heavily worn, replace them.
Why do the rear wheels lose traction and spin when operating the loader on the Ford 230A, 340A, 445 industrial tractor?
Check the rear tire inflation pressure using a reliable air gauge. For tractors equipped with 8.30-24 4 Ply R3 tires, verify the pressure is set to 18-22 P.S.I. as shown on page 38. Adjust the air pressure to improve traction.
When should fuel injectors be replaced on the Ford 445, 530A, 540A, or 545 industrial tractor?
Review your maintenance log to verify the fuel injector replacement interval on page 57. Replace all fuel injectors if the tractor has exceeded 600 hours of continuous operation. Drain the fuel filter bowl to remove any accumulated moisture before restarting.
What format is this Ford 230A, 340A, 445, 530A, 540A, 545 Operator Manual in?
Instant PDF download. You get the complete, searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone.
Can I print sections of this Ford 230A, 340A, 445, 530A, 540A, 545 Operator Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need.
