Looking for the Ford 2120 operator manual PDF? This 72-page factory owner's manual (OEM #42212010) walks you through the 2120 tractor, from break-in procedures to winter storage. Inside: instrument panel and controls walkthroughs, transmission, four-wheel drive and PTO operating procedures, wheel tread settings, tire pressures, and lubrication charts for both two-wheel and four-wheel drive models. You also get factory capacities, a general torque table, and every safety decal decoded so you know exactly what each warning means. Change the engine oil every 100 hours, grease the fittings every 50, and swap the hydraulic spin-on filter after the first 50 hours, then every 300 after that. Tired of pulling service intervals off forum threads? This bookmarked PDF opens on any laptop, tablet, or phone; download it and keep your 2120 earning.
What's Inside This Ford 2120, AV413A, AV413P Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| International Symbols | 5 | Engine Speed, Hours Recorded, Engine Water Temperature, Air Filter, Engine Oil Pressure, Parking Brake |
| Safety Precautions | 6-7 | Rollbar, Seat Belt, FOPS Canopy, hydraulic/diesel Fluid, P.T.O. Master Shield, Safety Frame |

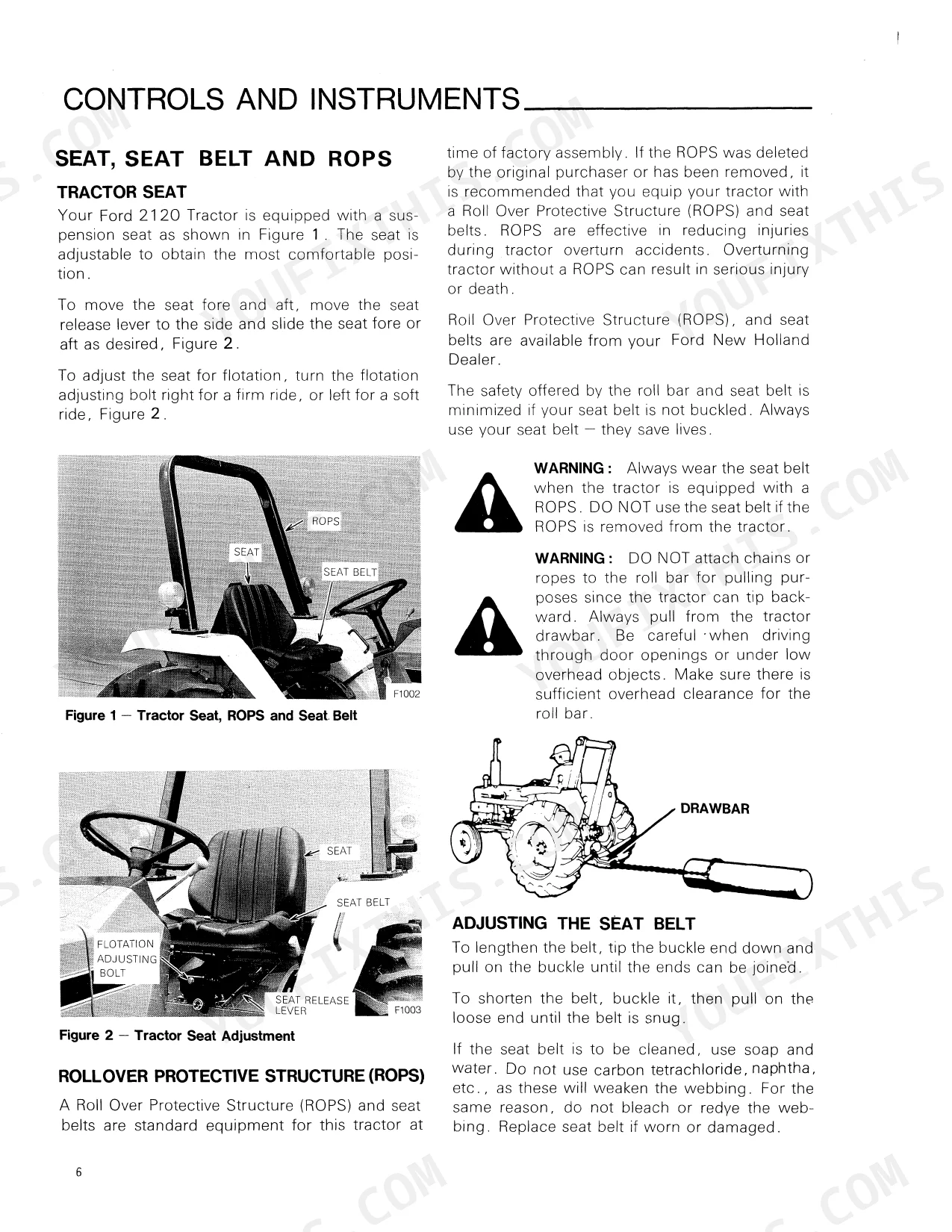

| Controls and Instruments | 8-15 | Seat, Seat Belt and ROPS, Lighting, Instrument Panel, Throttle Controls, Brake Controls, Differential Control, Transmission and PTO Controls |

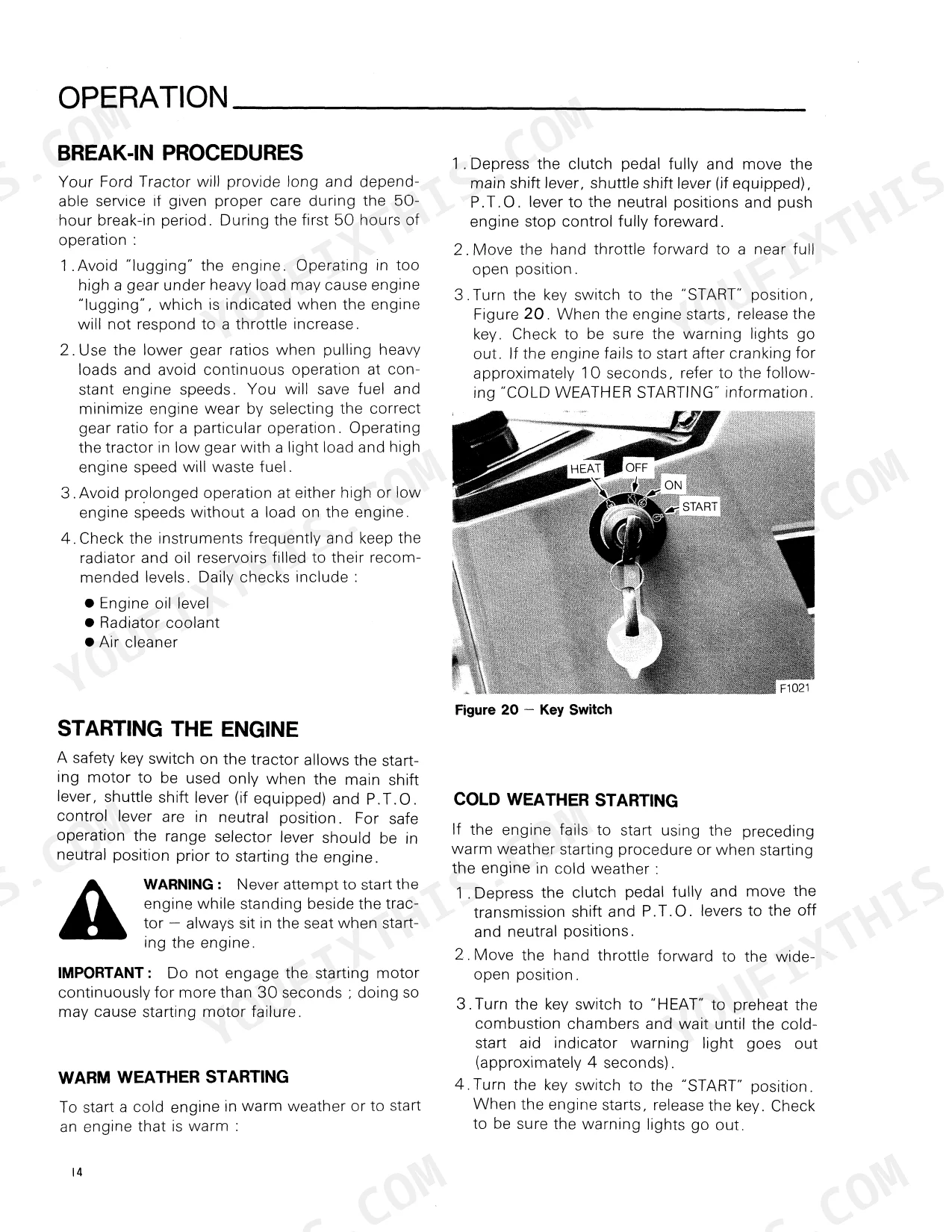

| Operation | 16-31 | Break-In Procedures, Starting the Engine, Stopping the Engine, Operating the Transmission, Four-Wheel Drive and PTO, Towing the Tractor, Operating the Differential Lock |

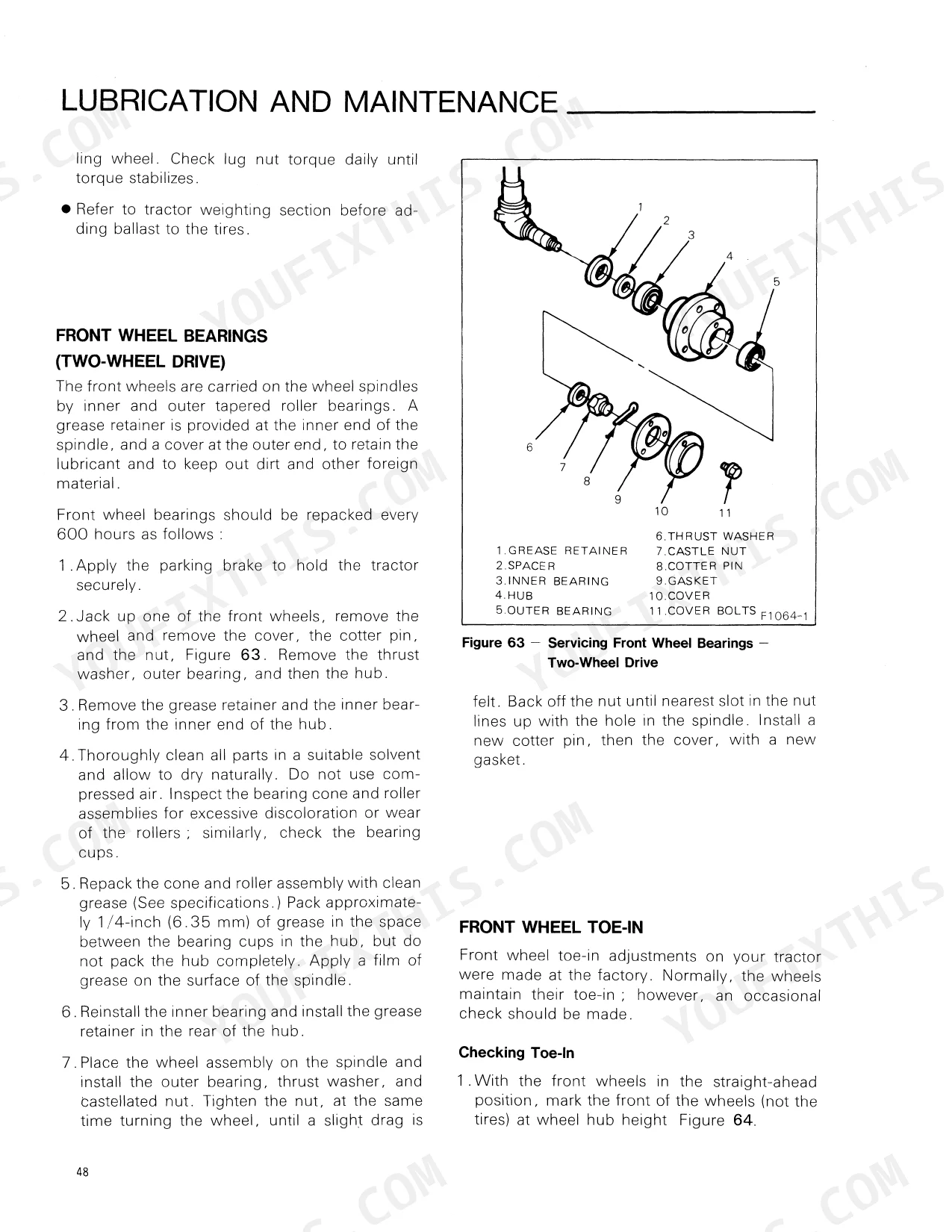

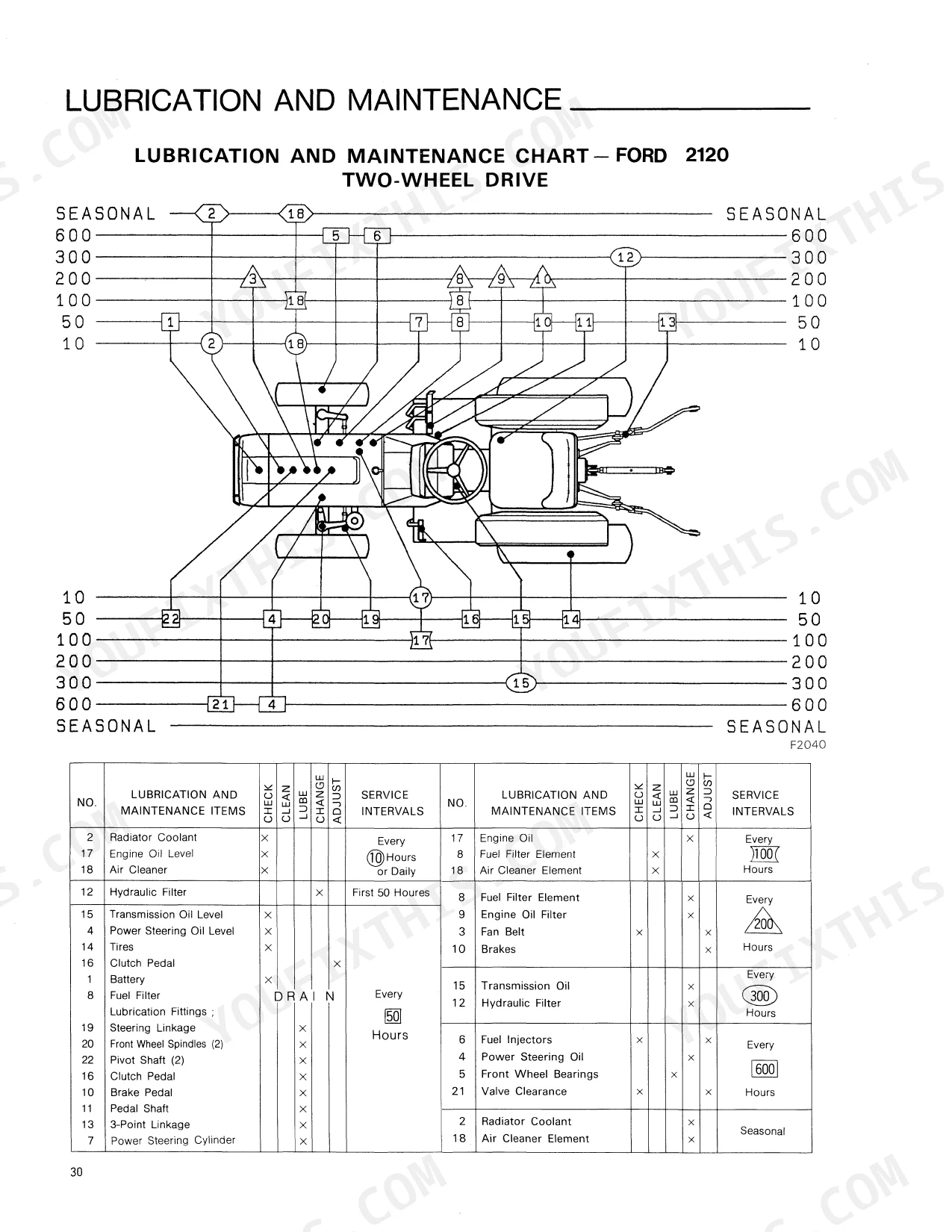

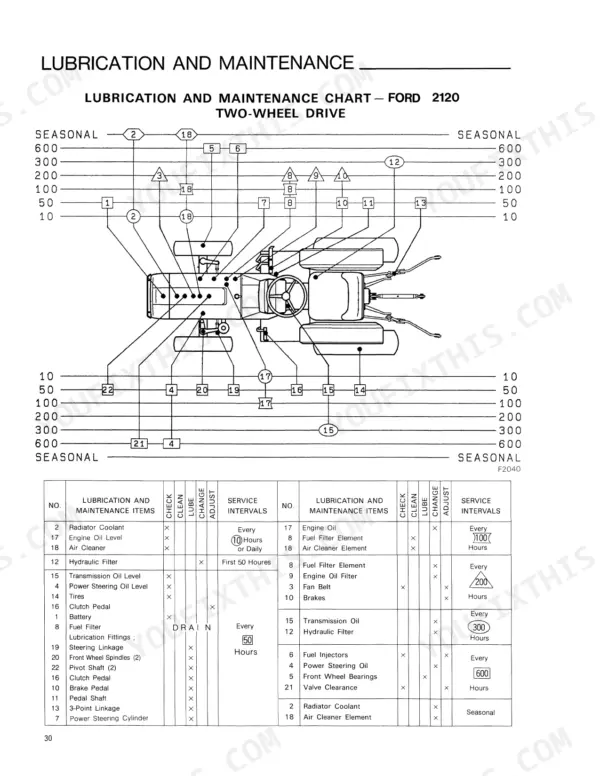

| Lubrication and Maintenance | 32-55 | Lubrication and Maintenance Chart (Two-Wheel Drive, Four-Wheel Drive), Fuel and Lubricants, Fuel and Lubricant Service Procedures, Tractor Storage |

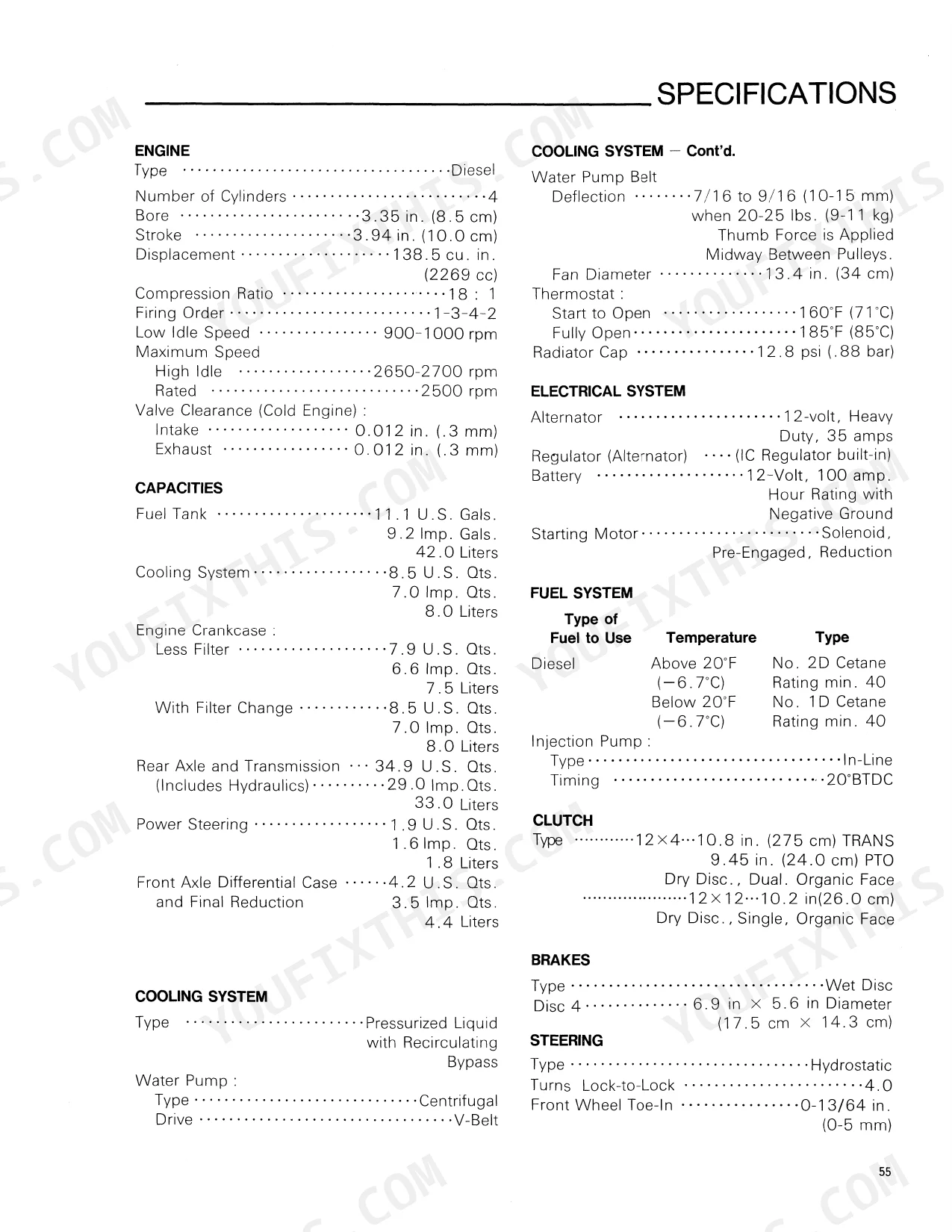

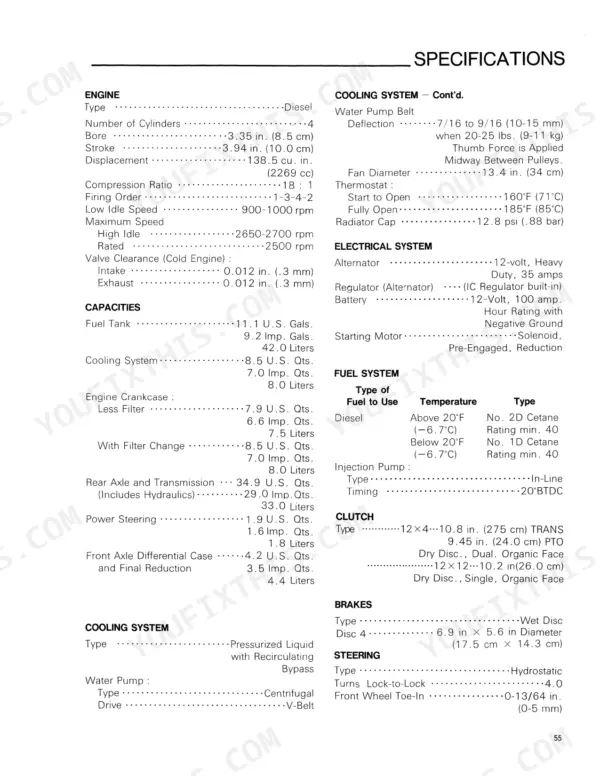

| Specifications | 56-60 | Engine, Capacities, Electrical System, Clutch, Brakes, Tires |
| Safety and Instruction Decals | 61-66 | Range Selector Lever, P. T. O. Control Lever, Differential Lock, Four-Wheel Drive Control Lever, Starter Switch, Flow Control Valve |
| Predelivery and 50 Hour Service | 67-70 | - |
| Owner Assistance | 71-72 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Engine oil pressure light | Engine oil pressure | p. 5 |
| Battery | Battery | p. 5 |
| Lubrication Fittings Grease Quality | good quality grease | p. 40 |
| Hydraulic System Oil Filter Replacement Interval | after the first 50 hours of operation and every 300 hours thereafter | p. 39 |
| Engine Oil Change Interval | 100 hours | p. 37 |
| Engine Oil Filter Change Interval | 200 hours | p. 37 |
| Transmission Oil Change Interval | 300 hours | p. 40 |
| Rear Wheel Disc-to-Rim Torque | 137-159 lbs. ft. (186-215 N.m) | p. 58 |
| Ford 2120 (Two Wheel Drive) | ||
| Front Wheel Disc-to-Hub Torque | 69-87 lb. ft. (93-117 N.m) | p. 58 |
| Ford 2120 (Four Wheel Drive) | ||
| Front Wheel Disc-to-Hub Torque | 137-159 lbs. ft. (186-215 N.m) | p. 58 |
Ford 2120, AV413A, AV413P Common Problems This Manual Covers
Ford 2120 engine cranks slowly and will not start on cold mornings
Check battery terminals for corrosion and loose connections before condemning the starter. Clean and tighten both clamps, then verify electrolyte level in each cell. Follow the cold starting procedure in the Operation section on page 16, and add terminal cleaning to every 50 hour service on the maintenance chart, page 32.
Manual Section: Operation p. 16Three-point hitch lifts slowly and hydraulic implements barely respond at working engine speed
Check the hydraulic oil level with the tractor on level ground and all cylinders retracted. Top up if low, then replace the spin-on hydraulic filter; the interval on page 39 calls for a change after the first 50 hours and every 300 hours after that. Old filters starve the pump slowly.
Manual Section: Hydraulic System Oil Filter Replacement p. 39Oil pressure warning light stays on after the engine starts and warms up
Check the oil level on the dipstick as soon as you shut the engine down, and top up before restarting. Match the light to the engine oil pressure symbol shown on page 5. Change the engine oil every 100 hours and the oil filter every 200 hours, both intervals listed on page 37.
Manual Section: Lubrication and Maintenance p. 37Rear wheel wobbles at road speed and wheel bolts keep working loose
Torque the rear wheel disc-to-rim hardware to 137-159 lbs. ft. (186-215 N.m) as listed in the Specifications section on page 58. Inspect the rim bolt holes for elongation before retorquing, and recheck the hardware after a short period of work, since a wheel that has run loose tends to loosen again.
Manual Section: Specifications p. 58Frequently Asked Questions
How to reset Ford 2120 oil pressure warning light?
The engine oil pressure warning light will go out once the underlying cause of low oil pressure is resolved. If the light comes on, stop the engine immediately and investigate the cause, regularly checking the crankcase for proper oil level. p. 10
What are the replacement specifications for Battery and terminals?
The Ford 2120 tractor uses a 12-Volt battery with a 100 amp. Hour Rating and Negative Ground. For maintenance, keep battery connections tight and free of corrosion, clean the outside surface and terminals with an ammonia or baking soda-water solution, and apply a small amount of petroleum jelly to the terminals. Check the electrolyte level every 50 hours. p. 47
What is the recommended engine oil change interval for the Ford 2120 tractor?
The engine oil should be changed every 100 hours, and the engine oil filter every 200 hours. More frequent changes are recommended if the tractor operates at maximum rated power and speed or under severe conditions, in which case the interval should be 70 hours. p. 37
What are the valve clearance specifications for the Ford 2120 engine?
The correct valve clearance for both intake and exhaust valves is 0.012 inches (0.3 mm). Valve clearance should be checked and adjusted every 600 hours with the engine cold to ensure good engine performance and prevent excessive noise or poor performance. p. 46
What is the cooling system capacity for the Ford 2120 tractor?
The cooling system capacity for the Ford 2120 tractor is 8.5 U.S. Quarts (8.0 Liters) or 7.0 Imp. Qts. It should be filled with a 50/50 solution of permanent antifreeze and clear water. p. 57
What do I get after purchasing this Ford 2120 manual?
Immediate download of the complete 72-page scanned Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
