Wrenching on a 1990-1995 Ford commercial mower? This 281-page Ford CM224, CM274 service manual PDF (OEM #40022420 590) walks you through the diesel engine, injection pump, hydrostatic drive, transaxle, power steering, and 60-inch deck from teardown to final adjustment. Inside: factory wiring diagrams for switches, glow plugs, instrumentation, and both charging system variants, plus hydraulic schematics for the drive and lift circuits. You also get troubleshooting charts, injection pump timing procedures, and pressure check specs for the hydrostatic system. Torque the blade bolts to 97-108 lb-ft (132-145 Nm), set new blade tip clearance at 1/16 inch, and swap blades at the 3/8-inch wear limit. Thirty-year-old iron deserves better than forum guesswork. Bookmarked by system and searchable by keyword; pull it up on your phone in the shop and get back to mowing.
What's Inside This Ford CM224, CM274, FM 60 Manual

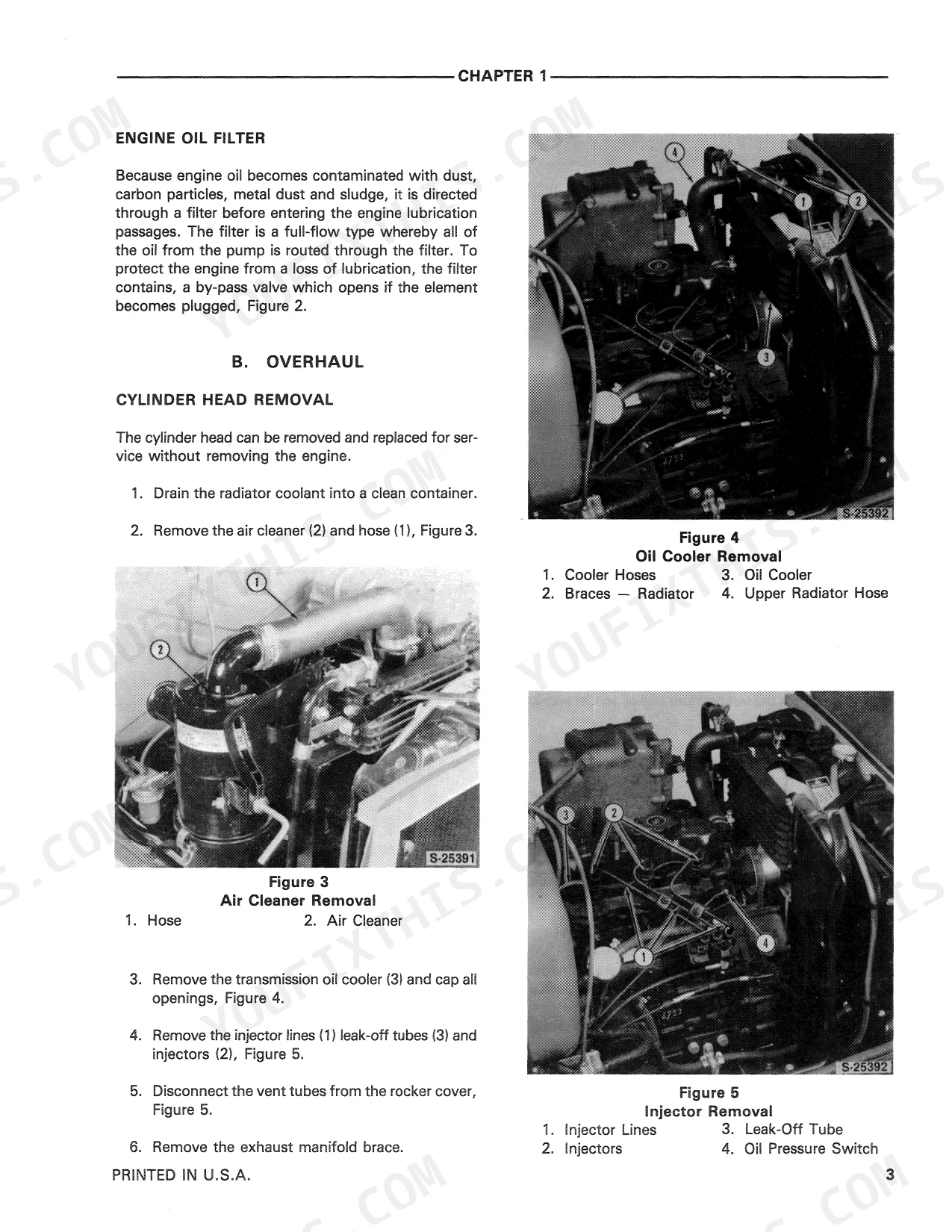

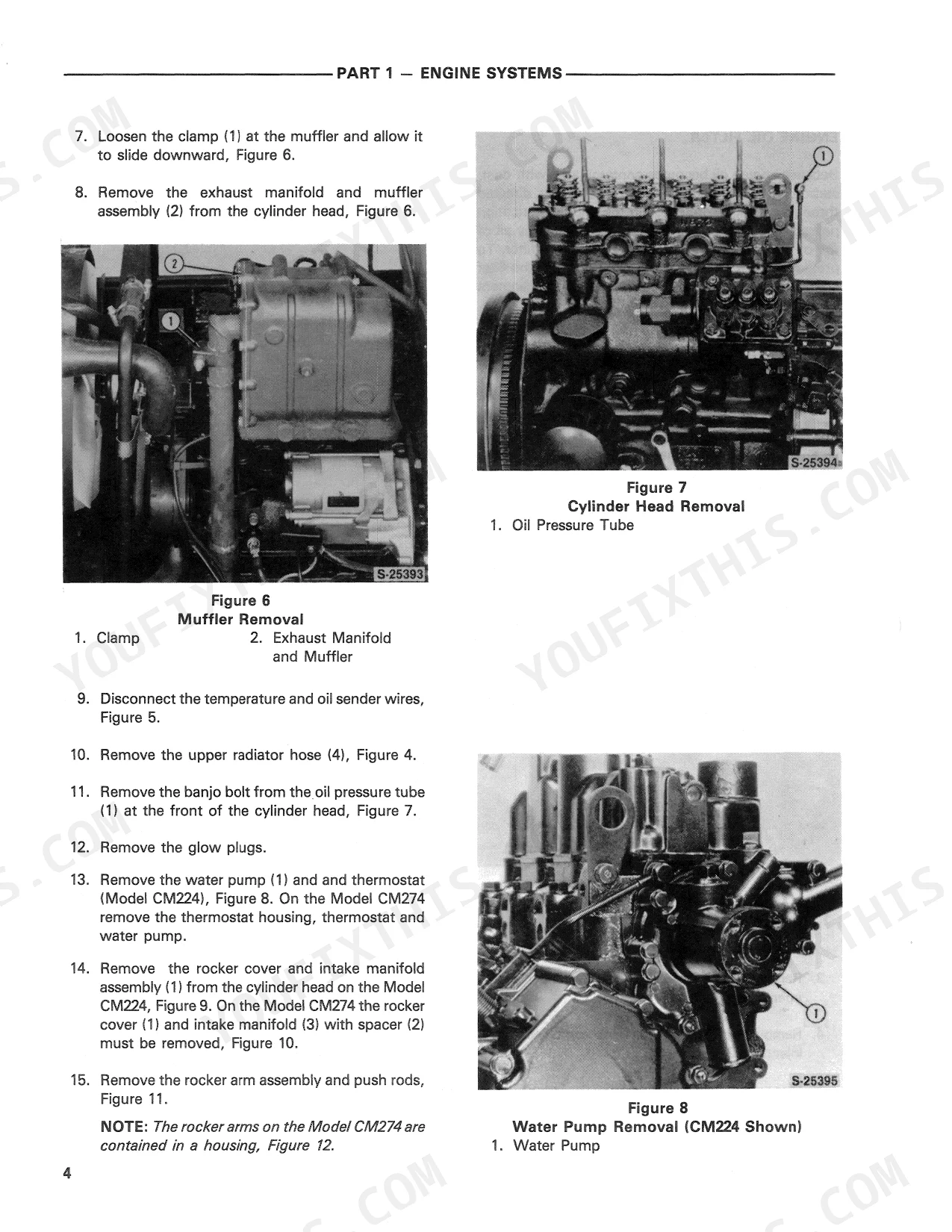

| System | Pages | Key Topics |
|---|---|---|
| Engines Systems Models CM224 & CM274 | 13-70 | Engine and Lubrication System, Description and Operation, Engine Overhaul, Cooling System, Overhaul, Trouble Shooting, Specifications and Special Tools |
| Fuel System | 71-92 | Injection Pump, Description and Operation, Removal and Installation, Timing, Fuel Pump and Governor Overhaul, Injectors, Overhaul |
| Electrical Systems | 93-152 | Wiring, Switches, Glow Plugs and Instrumentation, Description and Operation, Overhaul, Battery, Maintenance and Tests, Starting System |
| Hydrostatic Drive System | 153-180 | Hydrostatic Drive, Description and Operation, Overhaul, Hydrostatic Drive Control Linkage, Adjustments, Pressure Checks, Trouble Shooting and Specifications, Trouble Shooting |
| Transaxle and Brake | 181-204 | Transaxle, Brake, Differential Lock, PTO Output Shaft, Range Gearbox, Pinion |
| Steering and Rear Axle | 205-242 | Power Steering System, Description and Operation, Overhaul, Pressure Test, Rear Wheel Drive Axle, Trouble Shooting and Specifications, Trouble Shooting, Specifications |
| Implement Drive | 243-248 | PTO Lever, PTO Output Shaft, Center Gearbox, Belt Pulley, Idler, Blade Carriers |
| Hydraulic Lift System | 249-264 | Hydraulic Pump, Control Valve, Weight Transfer Valve, Lift Cylinder, Relief Valve |
| Wheels and Tires | 265-268 | Wheels, Tires, Rims, Weights |
| Mower | 269-281 | Inch Mower, Description and Operation, Overhaul, Specifications |
Quick Reference Specifications

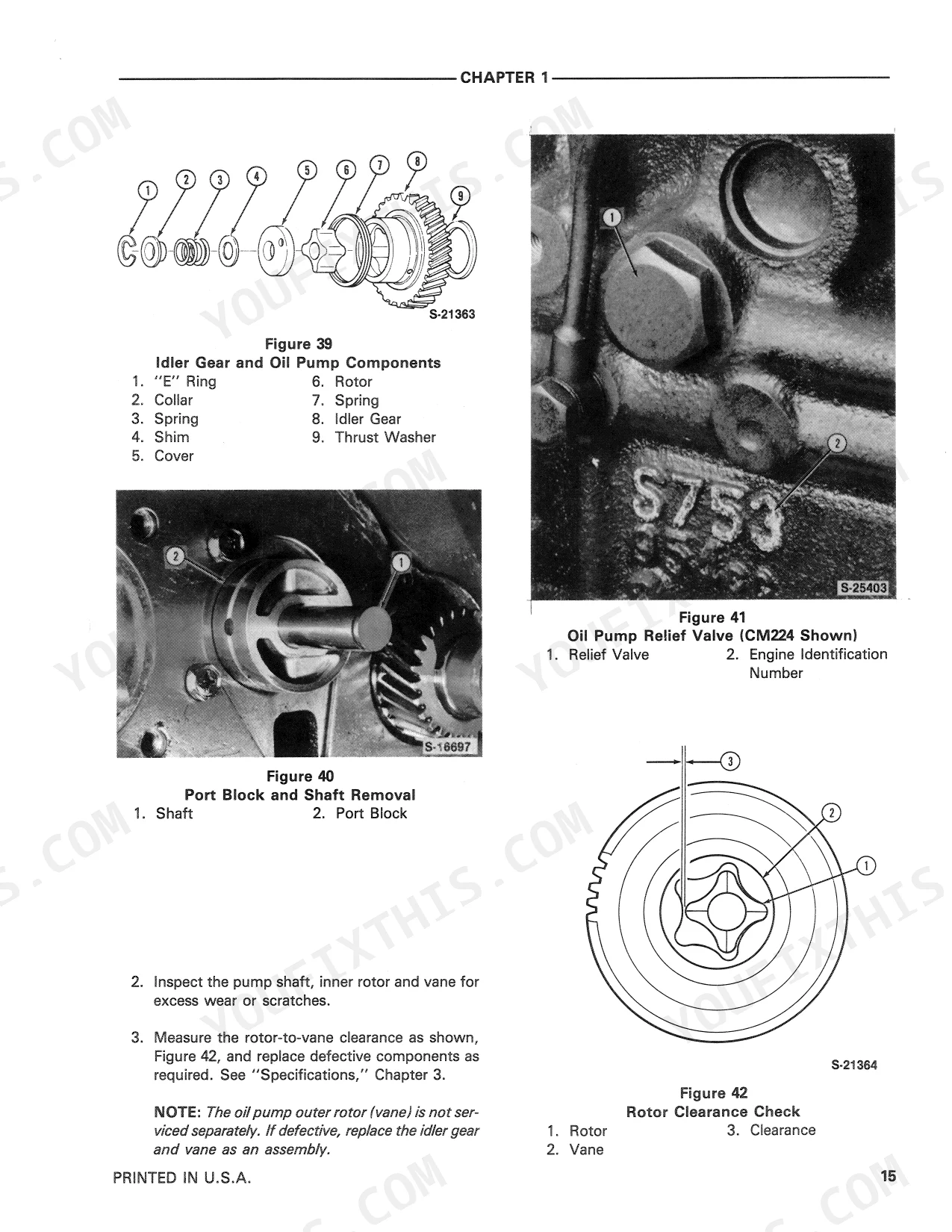

| Specification | Value | Page |
|---|---|---|
| Used motor oil | may cause skin cancer | p. 5 |
| Oil Pump Volume | .8 gal (3.2L) | p. 64 |
| Blade Tip Clearance New | 1/16″ (1.61 mm) | p. 277 |
| Blade Tip Clearance Wear Limit | 3/8" (10.0 mm) | p. 277 |
| Blade bolt torque | 97-108 lbs. ft. (132-145 Nm) | p. 280 |

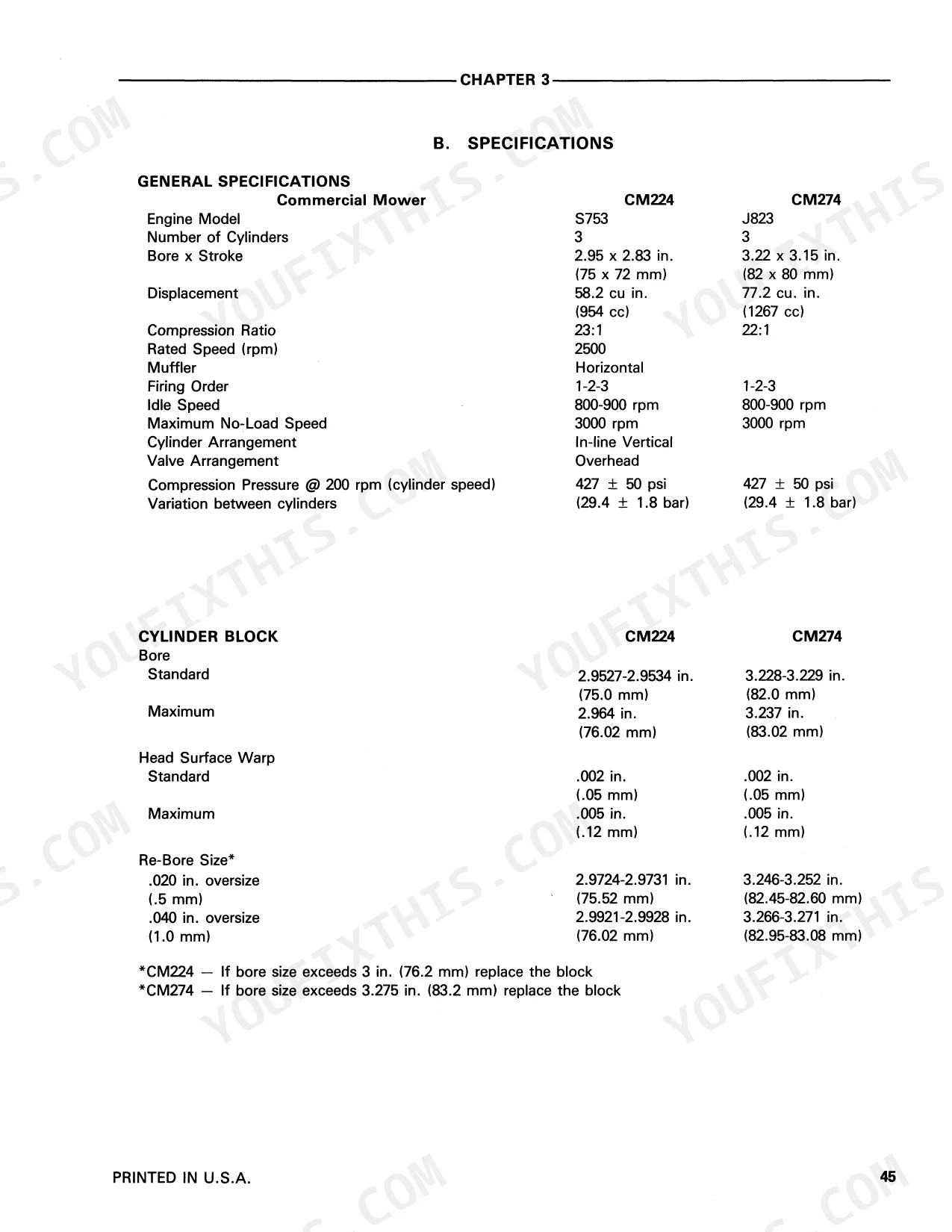

| Engine Number of Cylinders | 3 | p. 57 |
| Engine Rated Speed | 2500 rpm | p. 57 |
| Engine Idle Speed | 800-900 rpm | p. 57 |
| Engine Compression Pressure @ 200 rpm | 427 ± 50 psi | p. 57 |
| Oil Pump Pressure Relief Valve Opening Pressure | 42.66-49.7 psi | p. 64 |
| Cooling System Drive Belt Deflection | 3/16 inch (5 mm) | p. 64 |
| Radiator Cap Pressure Rating | 13 psi (.9 bar) | p. 64 |
Ford CM224, CM274, FM 60 Common Problems This Manual Covers
Ford CM224 diesel engine cranks but won't start, white smoke in cold weather
Check the glow plug circuit first; cold no-starts on these diesels usually trace to the preheat system covered in the electrical section starting on page 93. If preheat checks out, run a compression test at 200 rpm cranking speed; you want 427 plus or minus 50 psi per cylinder. Work the engine troubleshooting procedures.
Manual Section: Engine and Cooling System TroubleshootingEngine runs fine but hydrostatic drive won't move the machine in either direction
Check hydro oil level and look for leaks at the output shaft before condemning the pump. Inspect the control linkage for loose or worn joints and adjust it per the hydrostatic drive procedures starting on page 153. Run the pressure checks with the engine at its rated 2500 rpm to get valid readings.
Manual Section: Hydrostatic Drive System p. 153Deck leaves uncut strips and ragged grass even after slowing ground speed
Remove the blades and measure tip clearance: new spec is 1/16 inch (1.61 mm), and anything past the 3/8 inch (10.0 mm) wear limit gets replaced, page 277. Clean packed clippings from under the deck, then reinstall with the leaf spring recess on the blade side and torque the bolts to 97-108 lbs. ft. (132-145 Nm), page 280.
Manual Section: Mower p. 277Engine overheats and pushes coolant out the overflow tube during heavy summer mowing
Check cooling drive belt tension first: deflection should be 3/16 inch (5 mm) at midspan, spec on page 64. Test the radiator cap; it must hold 13 psi (.9 bar) or coolant escapes before the system reaches operating pressure. Clean chaff from the screen and fins, then follow the overheating chart in the troubleshooting procedures.
Manual Section: Engines Systems Models CM224 & CM274 p. 64Diesel starves under load, low power and black smoke at full throttle
Verify low idle sits at 800-900 rpm and the engine pulls its rated 2500 rpm under load; falling short with black smoke points to fuel delivery or injectors. Check the filters and lift pump, bleed the system, then work through the injection pump and injector procedures in the fuel system section starting on page 71.
Manual Section: Fuel System p. 71Frequently Asked Questions
What are the recommended service intervals?
The manual recommends draining and flushing the cooling system every 12 months. This procedure helps remove rust, sludge, and other foreign material, ensuring proper cooling system function. p. 47
What fluids and capacities does this machine require?
The machine requires a permanent type ethylene-glycol base antifreeze, preferably a 50/50 mixture with pure water. The cooling system capacity for CM224 & CM274 is 5.8 U.S. Qts. (5.5 Liters). The CM224 oil pump volume is 0.8 gal (3.2L), and the CM274 is 1.18 gal (4.5L). The steering pump uses Ford 134 oil with a capacity of 0.330 cu. in./rev (4.9 cc/rev). The mower oil capacity is 0.63 qts. (0.6L). p. 64
How to troubleshoot engine won't start?

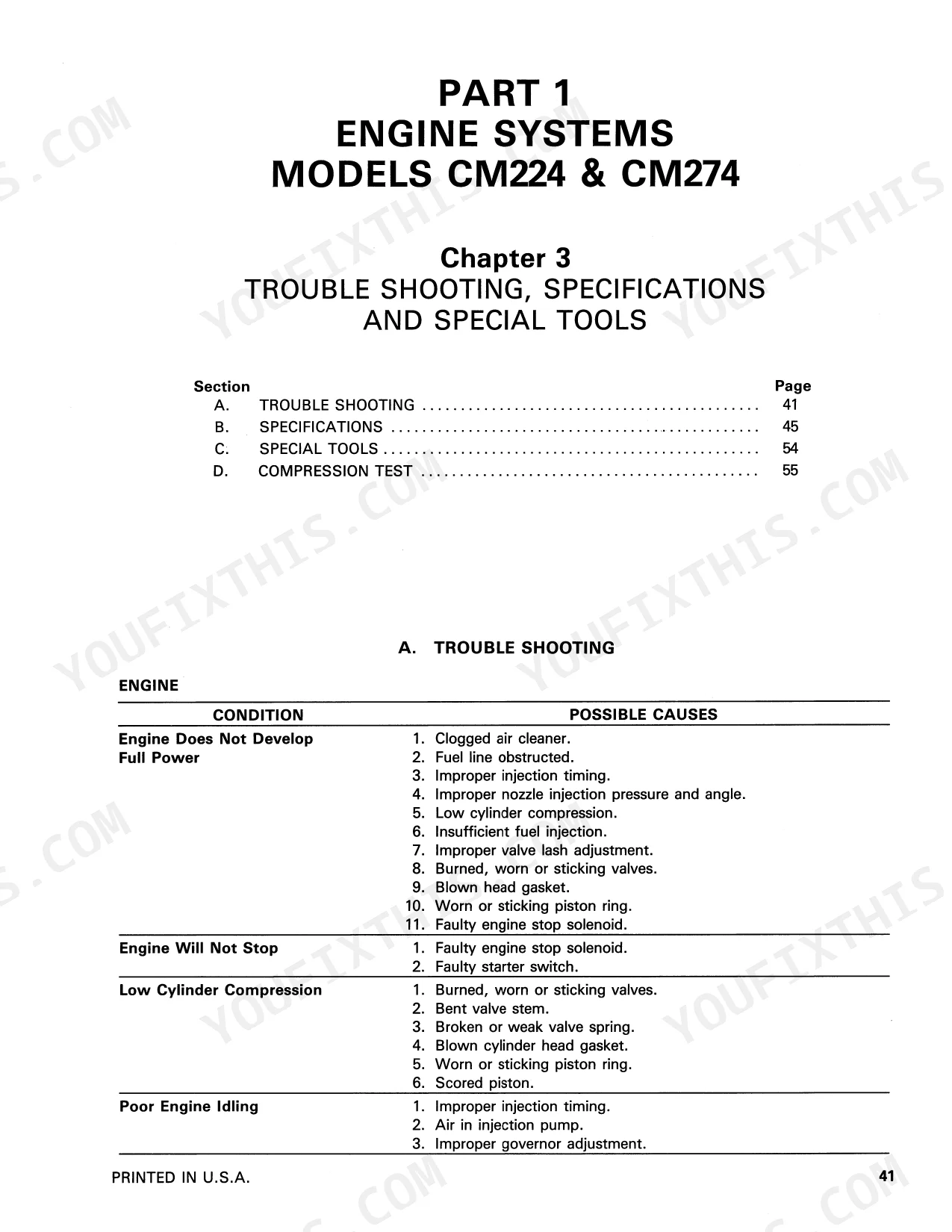

If the engine does not start, possible causes include a faulty starter switch, insufficient battery charge, lack of fuel, air in the fuel system, a clogged fuel filter, irregular fuel supply, glow plug not heating, improper lubricating oil viscosity, a clogged air cleaner, a faulty engine stop solenoid, or a burned out fuse. Each of these conditions should be checked and remedied as necessary. p. 55
What are the valve clearance specifications?

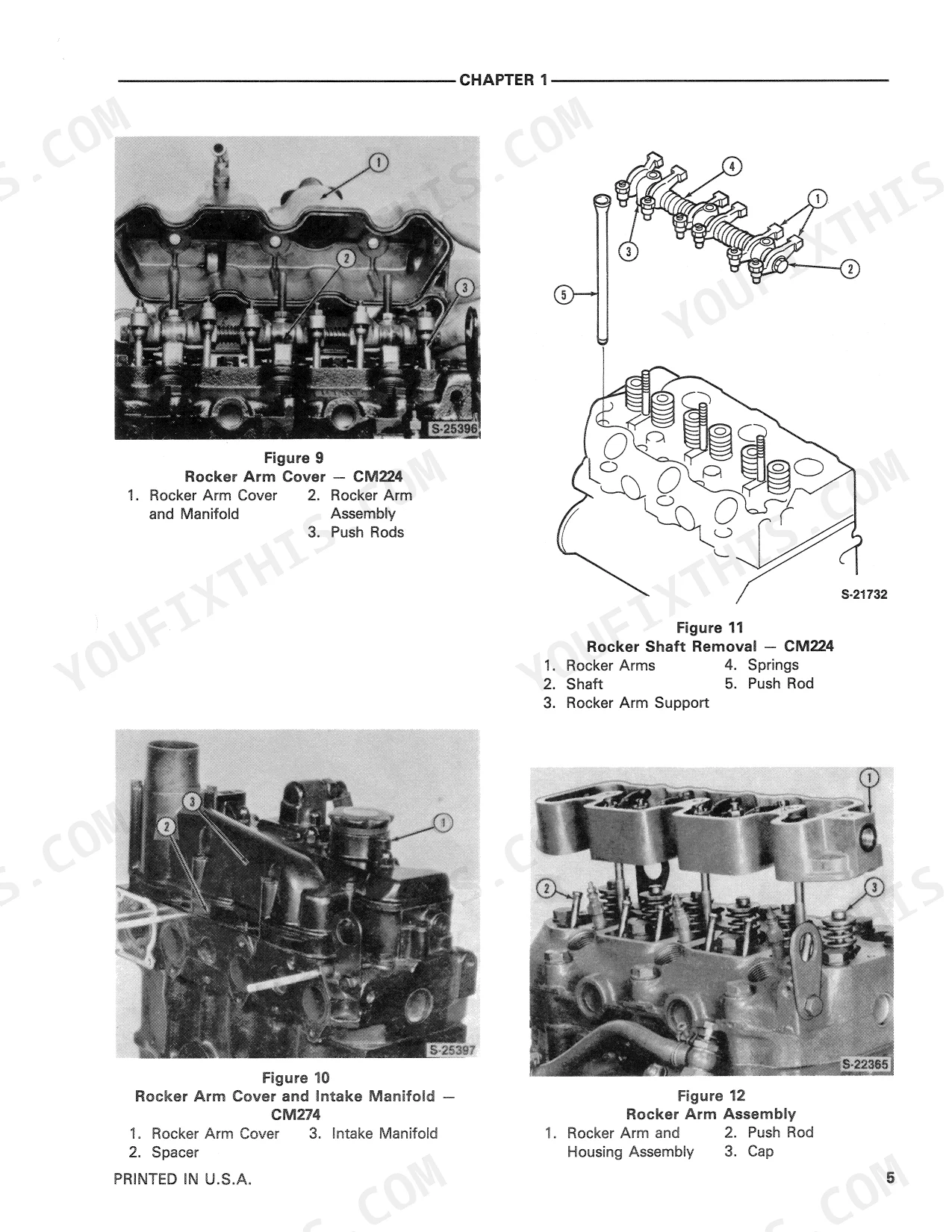

The rocker arm-to-valve clearance should be adjusted to 0.008 in. (0.2 mm) when the tappet is in its lowest position. This specification is for cold condition and is crucial for proper engine operation. p. 25

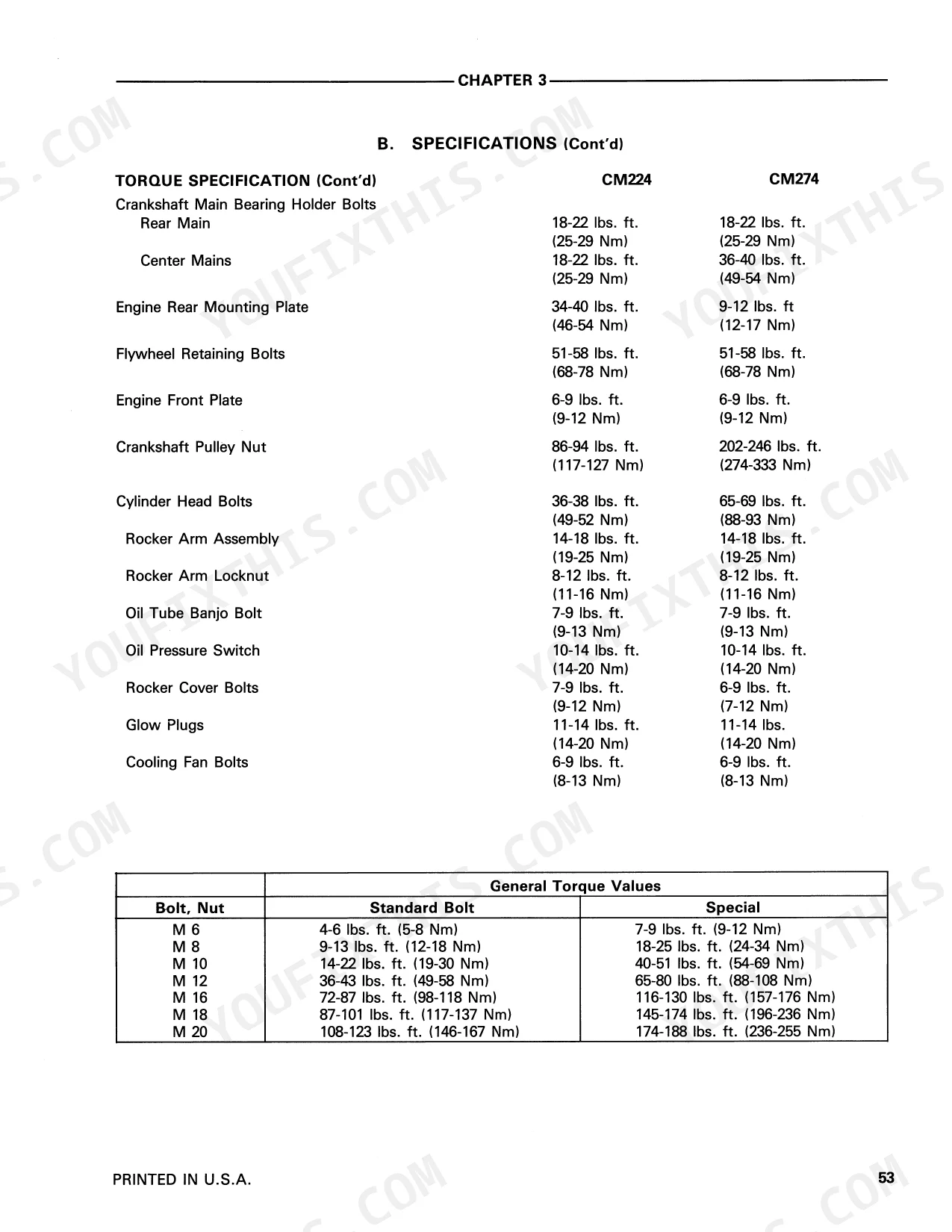

What torque specifications are listed?
Key torque specifications include Cylinder Head Bolts for CM224 at 36-38 lbs. ft. (49-52 Nm) and for CM274 at 65-69 lbs. ft. (88-93 Nm). Connecting Rod Cap Bolts are 22-25 lbs. ft. (24-27 Nm) for CM224 and 36-40 lbs. ft. (49-54 Nm) for CM274. Flywheel Retaining Bolts should be torqued to 51-58 lbs. ft. (68-78 Nm). p. 65
Is this Ford CM224, CM274 Service Manual a digital download?
This is a 281-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this Ford CM224, CM274 manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
