Charging, inspecting and fault-finding a Hyster T3.0UTS stand drive electric tow tractor all fit into the 15 pages of this Hyster T3.0UTS service manual PDF, OEM ID 4279887. The electrical schematic traces the controller, drive motor, speed encoder, main contactor, electric brake and emergency power off switch, while a fault code list and a mechanical breakdowns table help you pin a symptom to its cause. Battery chapters cover common, balancing and equalizing charges, electrolyte care and the charger, then loading, transport and storage of the truck. Hold brake clearance between 0.2 and 0.8 mm. Run the first stage of a new truck's initial charge at 30 A, with 28.8 V as the switch point. Your periodic checks run by interval: weekly (50 hours), monthly (200 hours), every 1000 hours and every six months (1200 hours). Bookmarks and a searchable text layer take you straight to the initial charge, so you can set up a new truck to Hyster's own charging figures.
What's Inside This Hyster T3.0UTS Manual
| System | Pages | Key Topics |
|---|---|---|
| Description of Symbols | 3 | Danger, Warning, Caution |

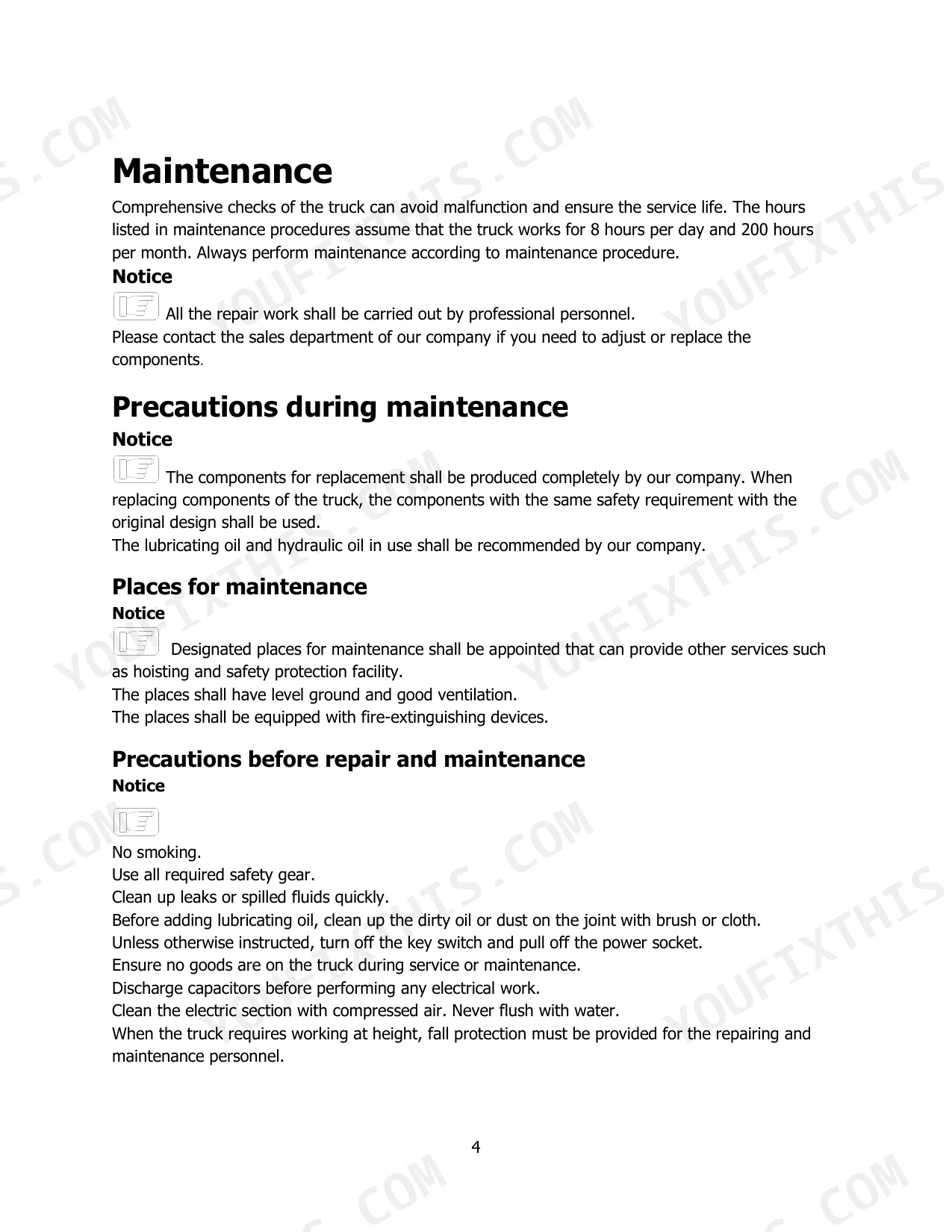

| Maintenance | 4 | Precautions During Maintenance (Places for Maintenance, Precautions Before Repair and Maintenance) |

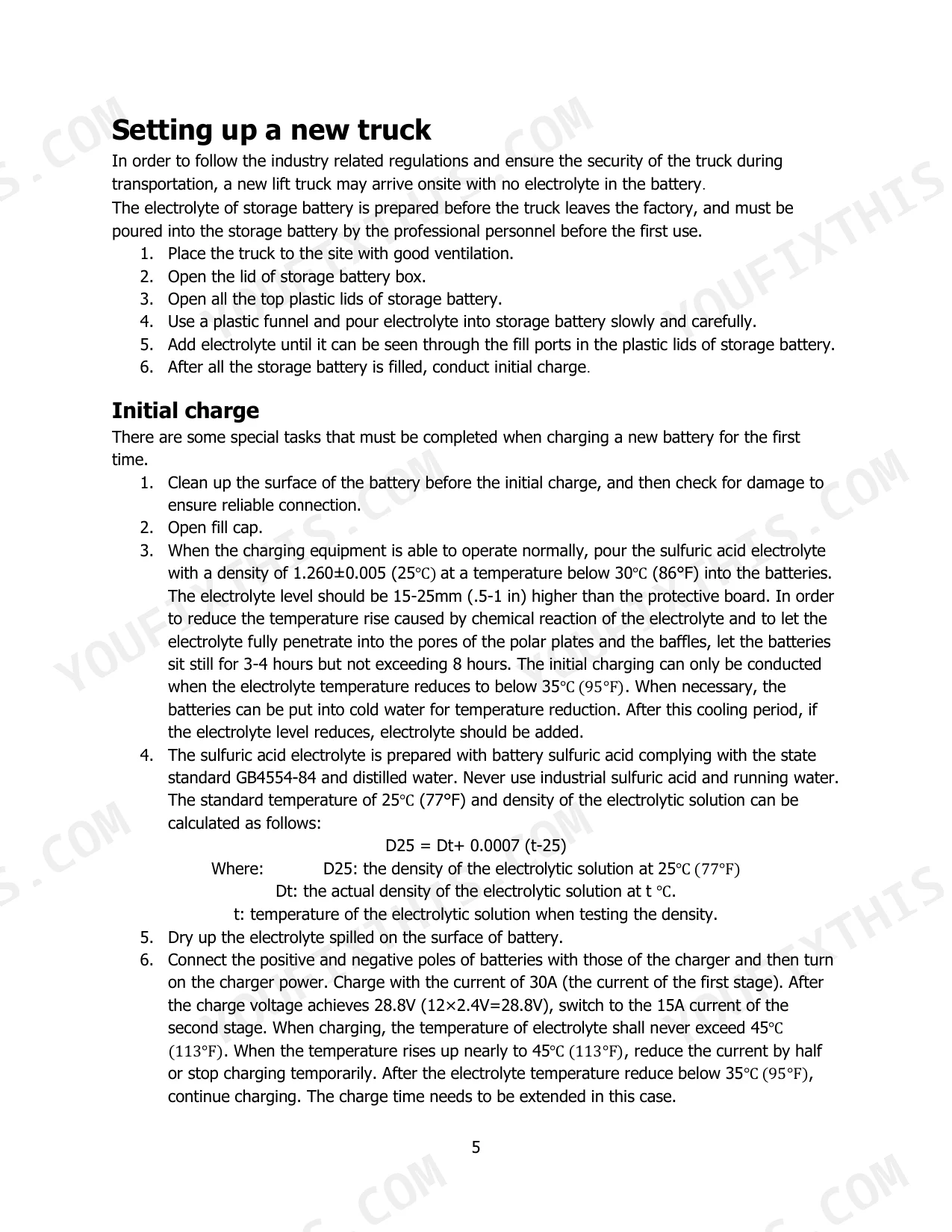

| Setting Up a New Truck | 5 | Initial Charge |

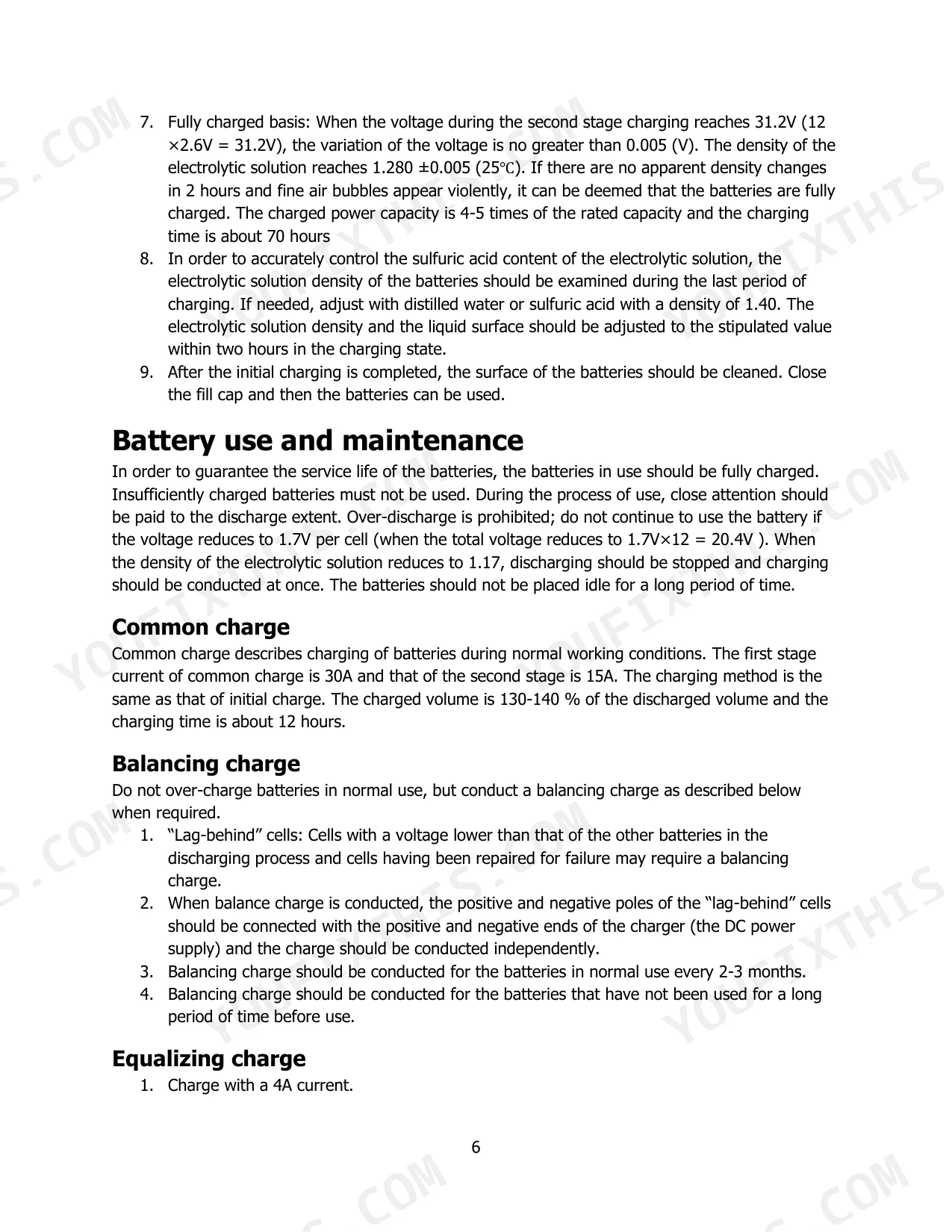

| Battery Use and Maintenance | 6-7 | Common Charge, Balancing Charge, Equalizing Charge, Battery Storage, Maintenance of Electrolyte, Operation of Storage Batteries During the Final Stage of Their Lifetime |

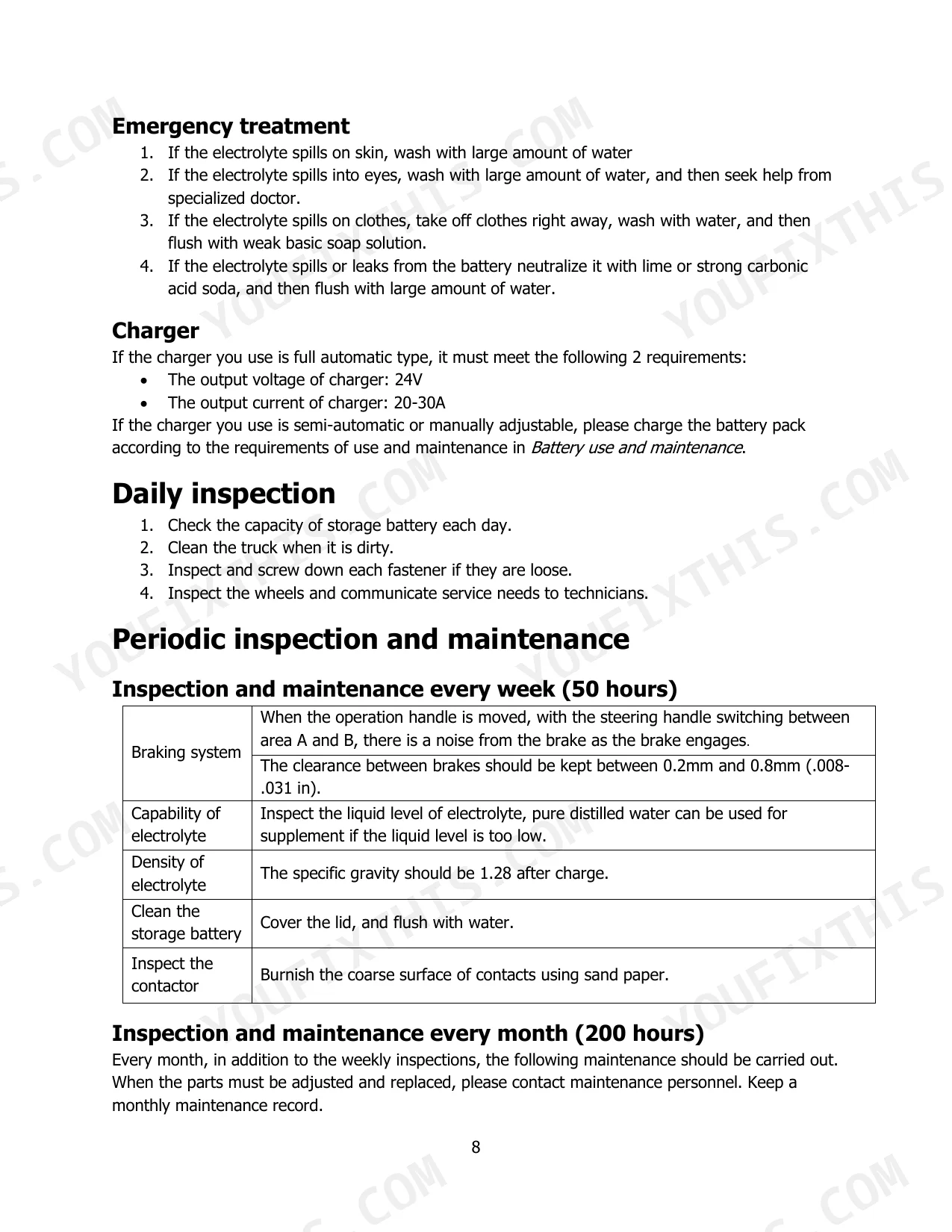

| Daily Inspection | 8-10 | Storage Battery Capacity, Truck Cleanliness, Fasteners, Wheels |

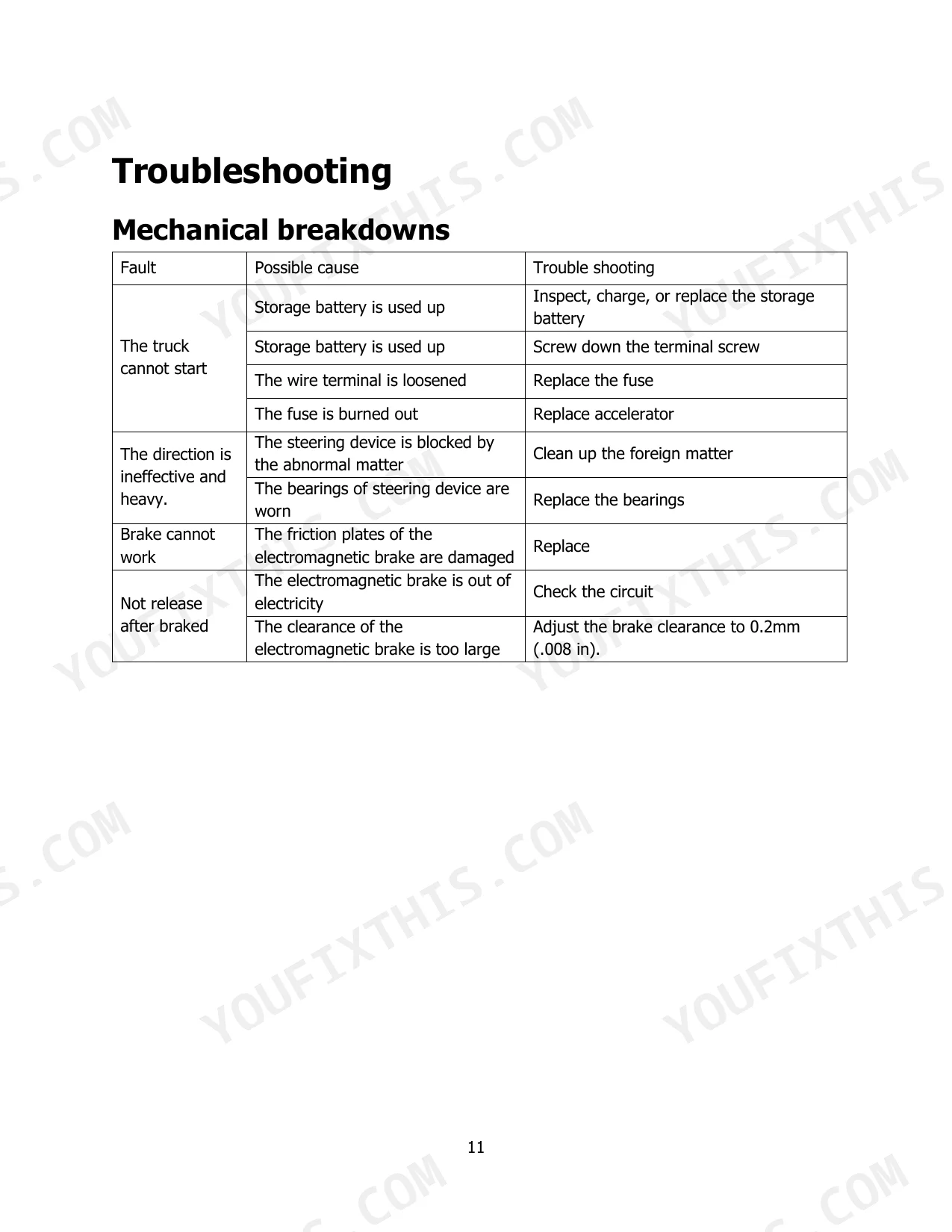

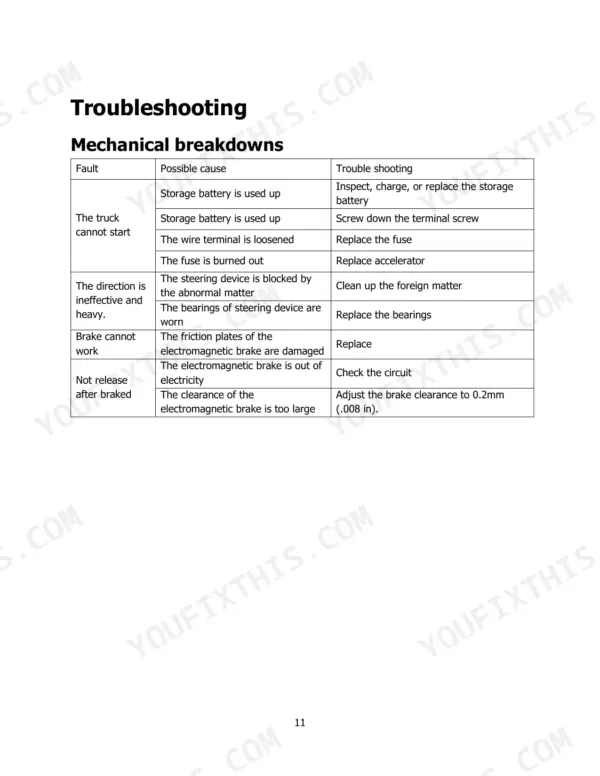

| Troubleshooting | 11 | Mechanical Breakdowns |
| Electrical Schematic | 12 | |

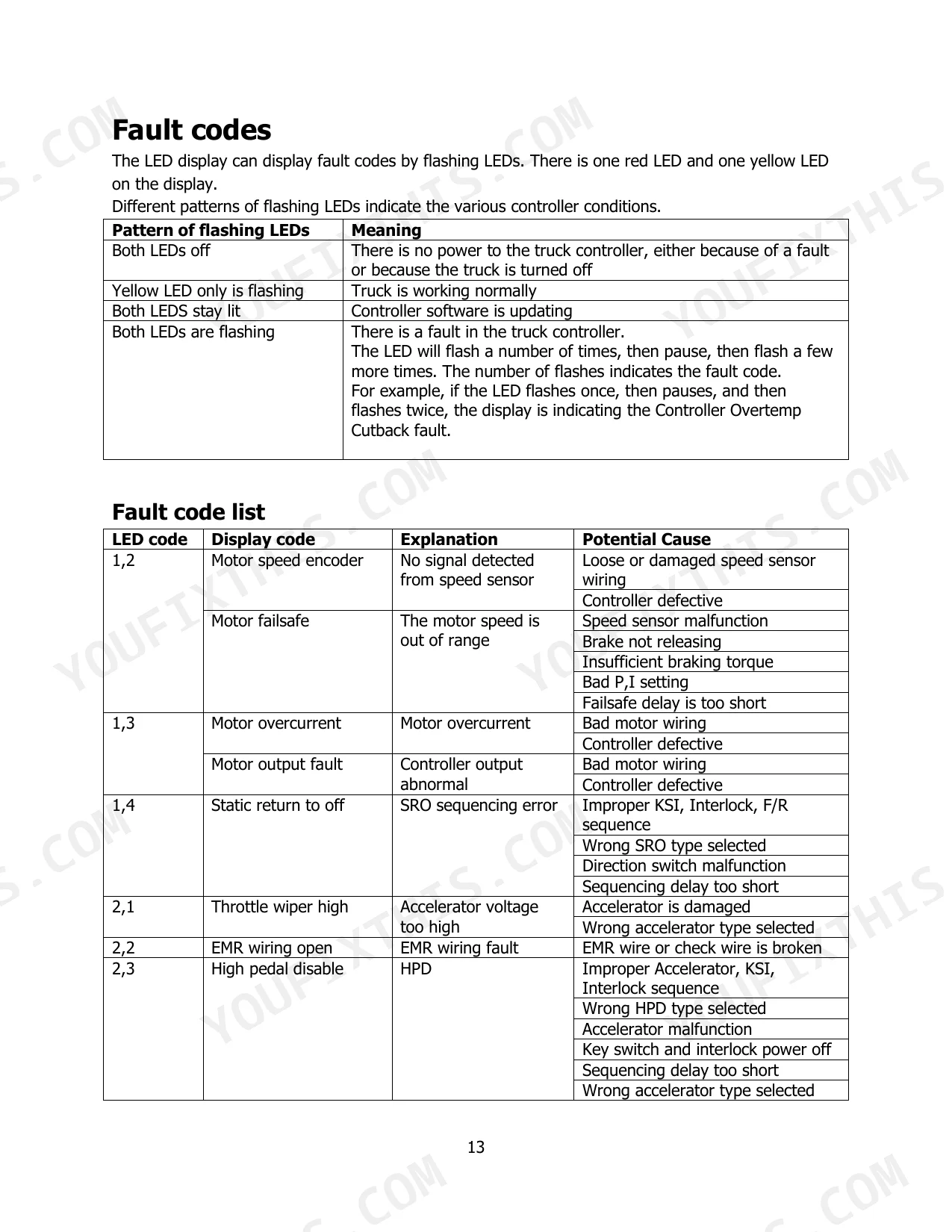

| Fault Codes | 13 | Fault Code List |

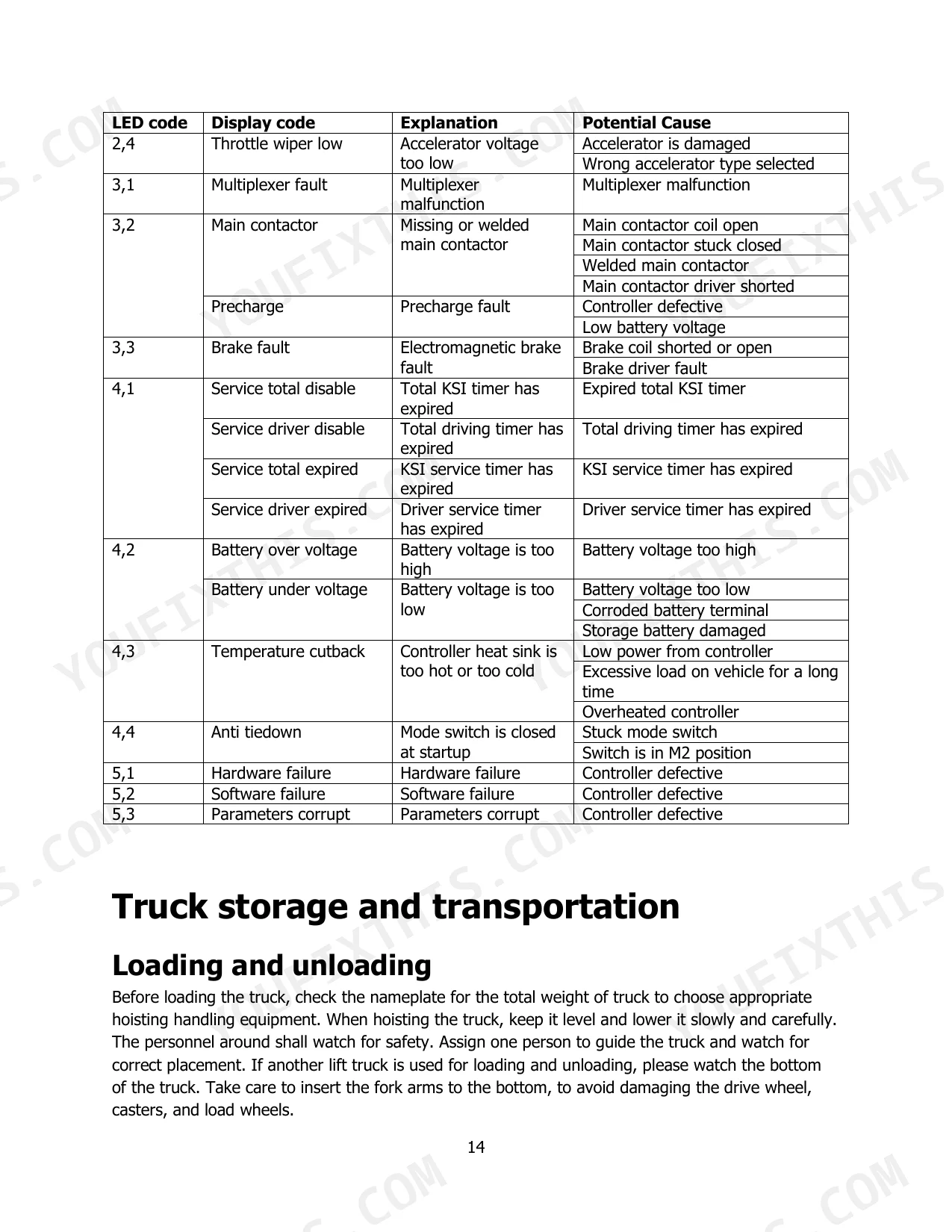

| Truck Storage and Transportation | 14-15 | Loading and Unloading, Transportation of Truck, Storing the Truck |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Charger output voltage | 24V | p. 8 |
| Charger output current | 20-30A | p. 8 |
| Brake clearance | 0.2mm-0.8mm | p. 8 |
| Initial charge current (first stage) | 30A | p. 5 |
| Initial charge voltage switch point | 28.8V | p. 5 |
| Common charge current (first stage) | 30A | p. 6 |
| Common charge current (second stage) | 15A | p. 6 |
| Equalizing charge current | 4A | p. 6 |
| Gear oil type | Hyperbola gear 85W-90(GL-5) | p. 10 |
Hyster T3.0UTS Common Problems This Manual Covers
Hyster T3.0UTS electric tow tractor cannot start and both display LEDs stay off
Check storage battery capacity first, then charge or replace it as page 11 directs. Turn off the key switch, pull the power socket and discharge capacitors before any electrical work (page 4). Screw down any loose terminal screw and replace a burned out fuse. If the truck still cannot start, replace the accelerator.
Manual Section: Mechanical Breakdowns p. 11Fault code 3,3 flashing on the LED display, electromagnetic brake will not release after braking
Check the brake circuit first, because an electromagnetic brake with no power will not release (page 11). Code 3,3 points to a shorted or open brake coil or a brake driver fault (page 14). Discharge capacitors before any electrical work (page 4). Measure brake clearance and adjust it to 0.2mm. The weekly check on page 8 keeps it within 0.2mm-0.8mm.
Manual Section: Mechanical Breakdowns p. 11Steering feels ineffective and heavy when swinging the tiller handle during normal travel
Inspect the steering device for abnormal matter jamming it and clean out any foreign material, following the mechanical breakdowns chart on page 11. If the tiller still binds once clean, check the steering device bearings for wear and replace them. On the monthly check, verify the operation handle for tightness and rotary flexibility as page 9 lists.
Manual Section: Mechanical Breakdowns p. 11Both display LEDs flashing fault code 2,1 or 2,4 throttle wiper high or low
Verify the code by counting the first flash group, the pause, and the second group against the fault code list on page 13. Code 2,1 means accelerator voltage too high; 2,4 means too low. Confirm the correct accelerator type is selected first, then replace the accelerator if it is damaged. Discharge capacitors before any electrical work (page 4).
Manual Section: Fault Codes p. 13Both display LEDs flashing fault code 4,2 with battery under voltage reported
Inspect for a corroded battery terminal and check the storage battery for damage, per the code list on page 14. Stop work and charge once total voltage drops to 20.4V, because page 6 prohibits over-discharge. Run a common charge at 30A first stage and 15A second stage, and keep electrolyte below 45℃ (113°F) while charging (page 5).
Manual Section: Fault Codes p. 14Both display LEDs flashing fault code 3,2, main contactor missing or welded
Turn off the key switch, pull the power socket, and discharge capacitors before touching the contactor (page 4). Check the main contactor coil for an open circuit, the contacts for welding or sticking closed, and the driver for a short, per page 14. Burnish rough contact surfaces with sand paper on the weekly check (page 8), and replace the contactor if required.
Manual Section: Fault Codes p. 14Frequently Asked Questions
What do the Hyster T3.0UTS fault codes mean?
Fault codes are indicated by the number of times the red and yellow LEDs flash on the display. For example, a code 1,2 indicates a motor speed encoder issue, while 4,3 indicates a temperature cutback fault. Refer to the fault code list on pages 13 and 14 for specific explanations and potential causes for each code. p. 13
Why is the Hyster T3.0UTS not moving or towing?
If the truck cannot start, check if the storage battery is used up, the wire terminal is loosened, or the fuse is burned out. If the truck is not releasing after being braked, check the circuit or adjust the electromagnetic brake clearance to 0.2mm (.008 in). p. 11
What are the maintenance requirements for the braking system?
The braking system should be inspected every week (50 hours). The clearance between the brakes must be maintained between 0.2mm and 0.8mm (.008-.031 in). p. 8
What is the recommended gear oil for the Hyster T3.0UTS?
The recommended gear oil for the truck is Hyperbola gear 85W-90(GL-5). This should be replaced every 1000 hours of operation. p. 10

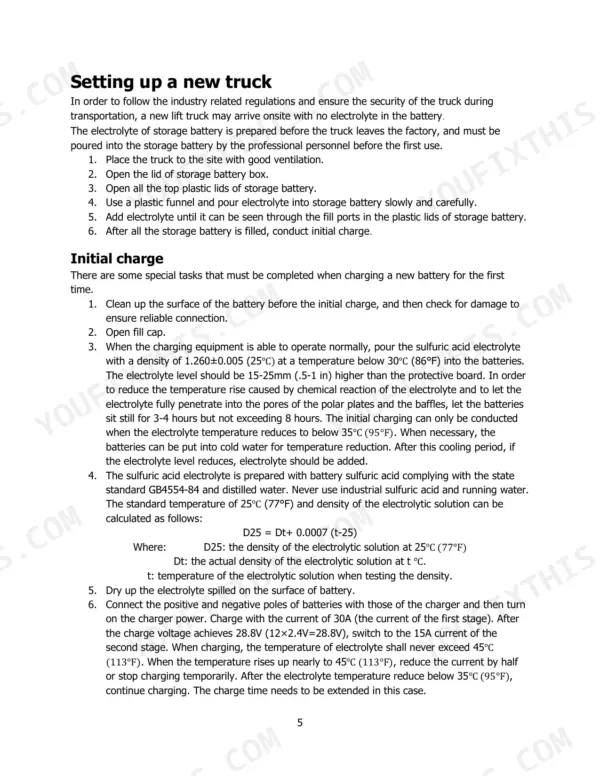

What is the procedure for the initial charge of a new battery?
Charge the battery with a current of 30A for the first stage. Once the voltage reaches 28.8V (12x2.4V), switch to a 15A current for the second stage. Ensure the electrolyte temperature never exceeds 45°C (113°F) during this process. p. 5
What exactly do I receive with this Hyster T3.0UTS Service Manual?
All 15 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Can I print pages of this Hyster T3.0UTS manual for my own shop?
Yes. It prints from any PDF reader, so run off the pages you need for your own repair work.
