Knowing how to operate and charge a Hyster T3.0UT sit-drive electric tow tractor correctly is what the 18 pages of this Hyster T3.0UT operator manual PDF (OEM ID 4279903) set out to give you. Controls come first. Operation control, display, steering system, braking, keyswitch and emergency power off each get their own explanation. Rules for safe operation, inspection before operation, driving and after-operation steps follow, together with intended use, operating environment and a main technical parameters table covering axle loading, wheelbase and travel speed. Size your charging plan to a 36 V, 250 Ah battery weighing 202 kg (405 lb), and keep towed loads within the 3000 kg rated traction weight. Perhaps you are here for charging with the external charger or for battery storage. Bookmarks and a searchable text layer take you straight to the battery chapter, where emergency treatment is covered too, so the job is done to Hyster's own figures.
What's Inside This Hyster T3.0UT Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Foreword | 3 | Description of Symbols, Safety Specification for Industrial Vehicles |
| Intended Use | 4 | Goods Towing, Short Distance Transportation, Traction Weight, Load Capacity |
| Unit Description | 5 | Specified Use, Operating Environment |
| Major Components | 6-8 | Operation Control, Display, Steering System, Braking, Keyswitch, Emergency Power Off |
| Main Technical Parameters | 9-10 | Rated Traction Weight, Axle Loading, Wheelbase, Travel Speed, Drive Motor Power, Battery Capacity |
| Operation | 11-15 | Rules for Safe Operation (Safety Operation: Norms, Specification), Driving and Operation (Inspection Before Operation, After Operation) |
| Battery Use, Charging, and Maintenance | 16-18 | Charging with the External Charger, Battery Storage, Emergency Treatment |

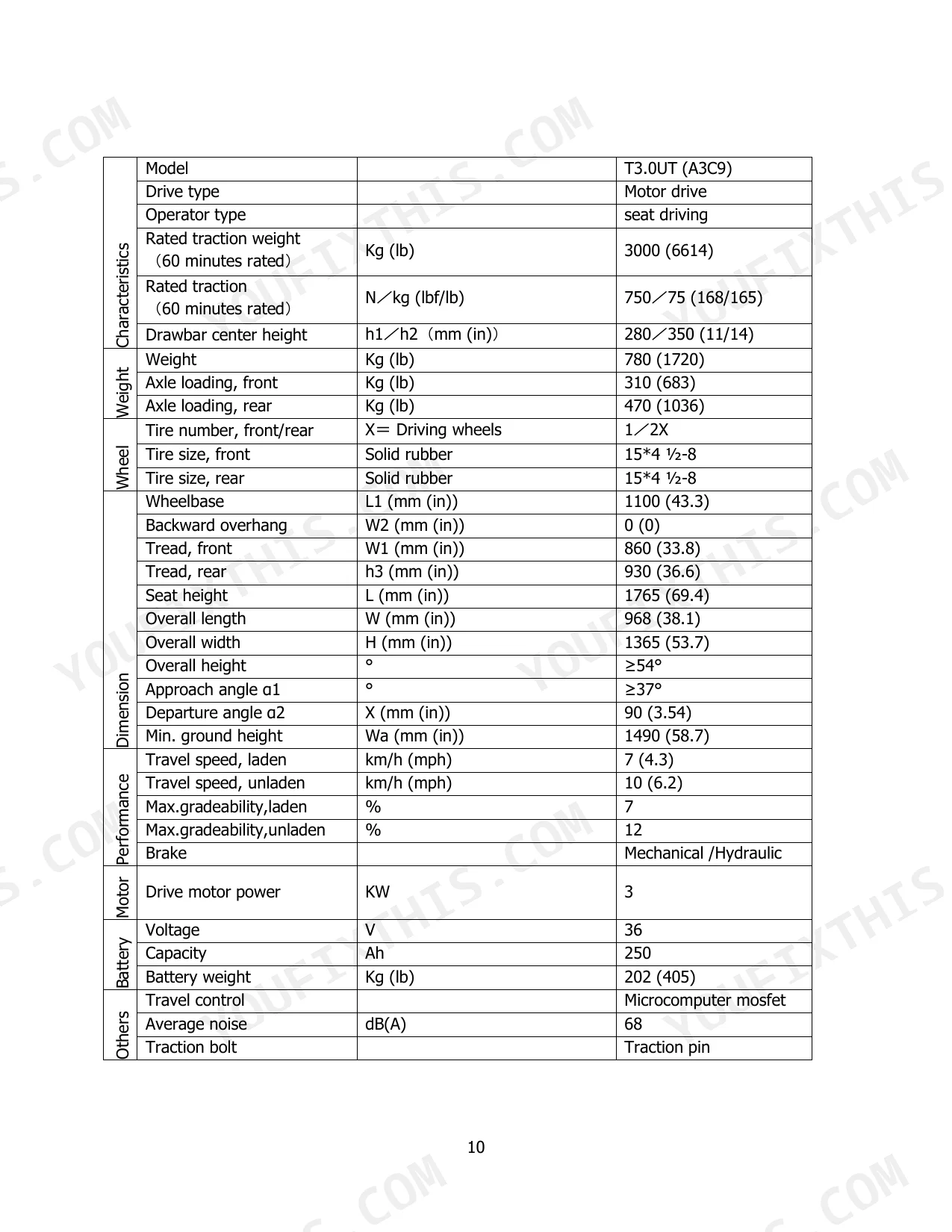

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery voltage | 36 V | p. 10 |
| Battery capacity | 250 Ah | p. 10 |
| Drive motor power | 3 KW | p. 10 |
| Rated traction weight | 3000 kg | p. 10 |
| Weight | 780 kg | p. 10 |
| Travel speed, laden | 7 km/h | p. 10 |
| Travel speed, unladen | 10 km/h | p. 10 |
| Max. gradeability, laden | 7% | p. 10 |
| Max. gradeability, unladen | 12% | p. 10 |
| Voltage | 36 V | p. 10 |
| Capacity | 250 Ah | p. 10 |
| Battery weight | 202 kg | p. 10 |
Hyster T3.0UT Common Problems This Manual Covers
Hyster T3.0UT electric tow tractor suddenly drops to a slower travel speed partway through the shift

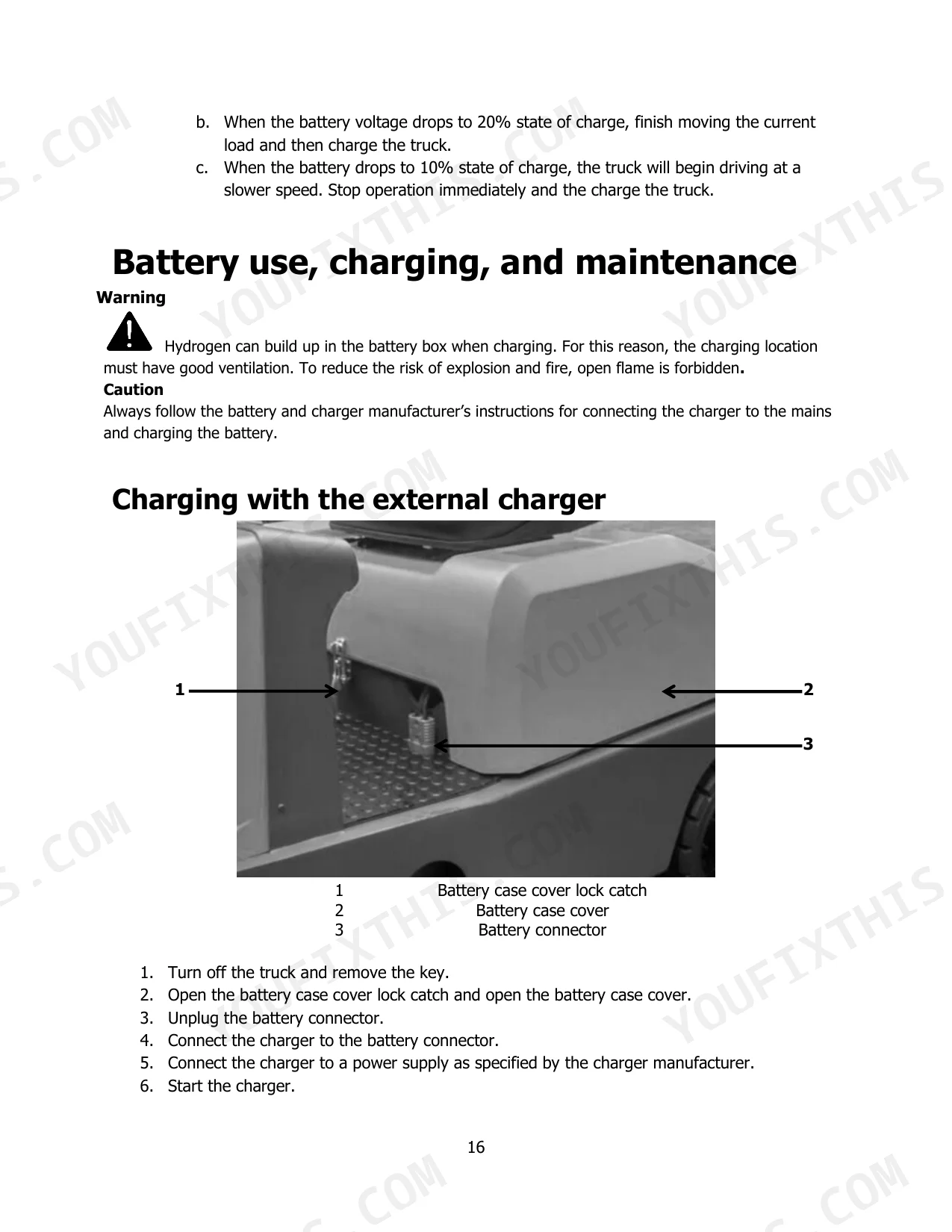

Stop operation immediately and charge the truck; page 16 notes the tractor slows once the battery falls to 10% state of charge. Turn off the truck, remove the key, open the battery case cover, unplug the battery connector and connect the charger. Charge only in a well ventilated spot with no open flame, since hydrogen builds up in the battery box (page 16). Next time, finish the current load and charge at 20%.
Manual Section: Battery Maintenance p. 16Tractor completely dead with no power to the display after turning the keyswitch on
Check the emergency power off button first. If it is pushed down it cuts all power instantly, so pull it out to restore power (page 8), and never use it as a keyswitch. If the truck is still dead, turn off the key switch and emergency isolation switches before checking the electrical system (page 12). Then inspect all connecting points and plugs of the electric system as listed on page 14.
Manual Section: Emergency Power Off p. 8Brake fluid leak found near the hydraulic service brake during the daily pre-shift inspection
Park the truck and do not drive it; page 14 forbids operating the truck with faults. The service brake is hydraulic, with the pedal push rod pressurizing the brake cylinder to work the brake shoes (page 8), so any leak needs repair before towing. Once repaired, verify the brakes by driving slowly and pressing the pedal as page 14 describes.
Manual Section: Braking System p. 8Battery electrolyte leaking from the battery or splashed on skin while servicing the battery

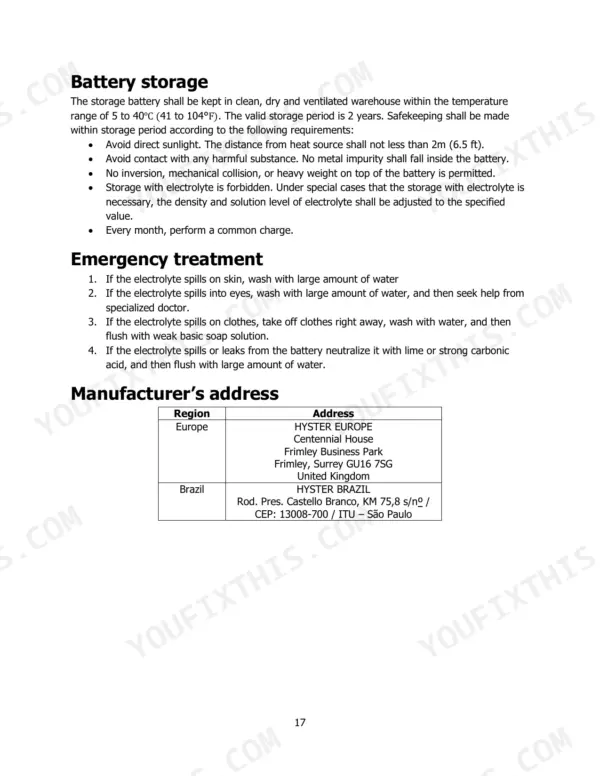

Neutralize leaked electrolyte with lime or strong carbonic acid, then flush with plenty of water (page 17). Wash splashed skin with large amounts of water. For eyes, flush and see a specialist doctor. Remove soaked clothes, rinse, then wash with weak basic soap solution. Before returning to work, check electrolyte level and proportion as the daily list on page 14 requires.
Manual Section: Emergency Treatment p. 17Spare battery pack going flat after long periods sitting unused in storage

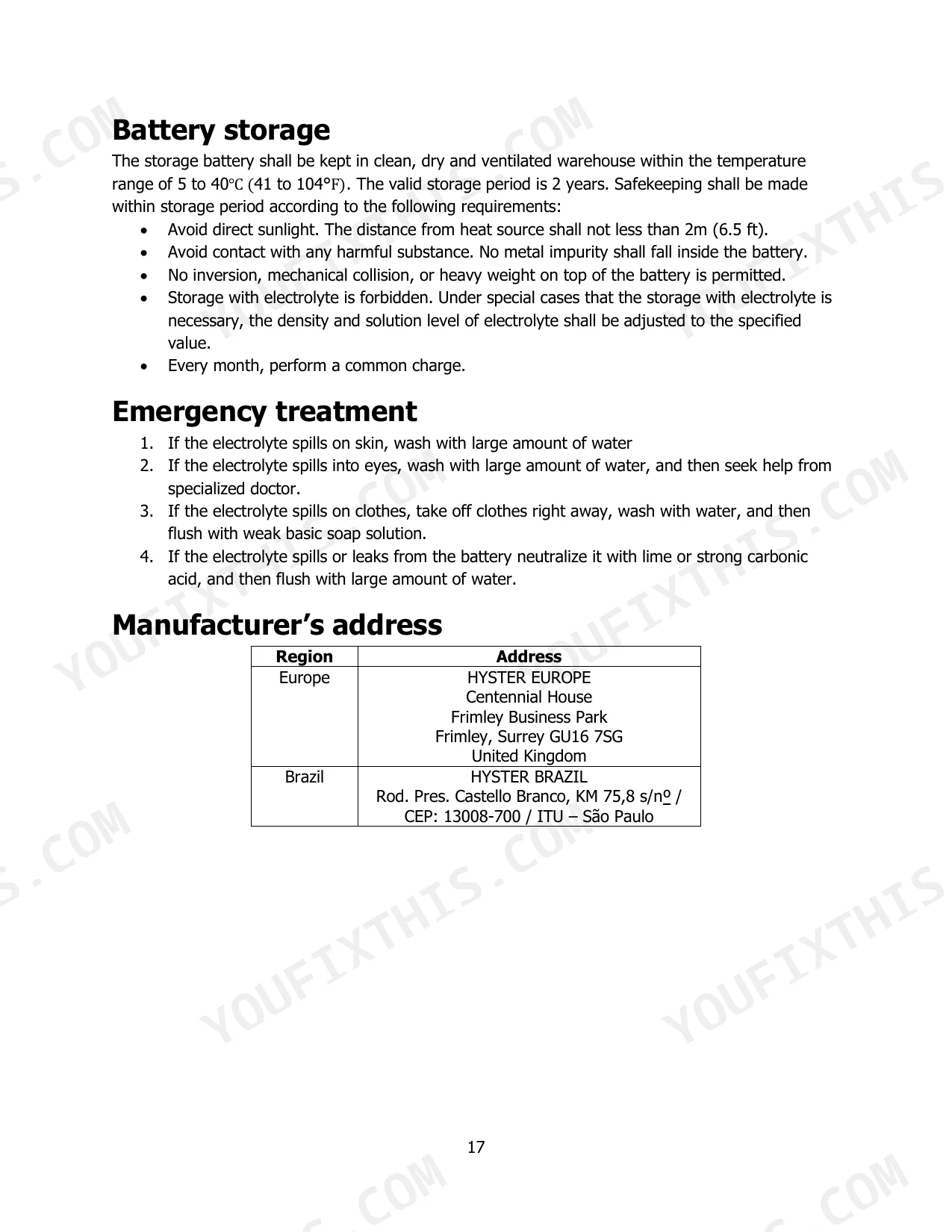

Store the battery in a clean, dry, ventilated room between 5 and 40°C (41 to 104°F), out of direct sunlight and at least 2 m (6.5 ft) from any heat source, following page 17. Perform a common charge every month, keep metal impurities out of the battery, and never invert it, knock it or stack heavy weight on top.
Manual Section: Battery Use, Charging, and Maintenance p. 17Signal lamps or working lights not coming on during the pre-shift check

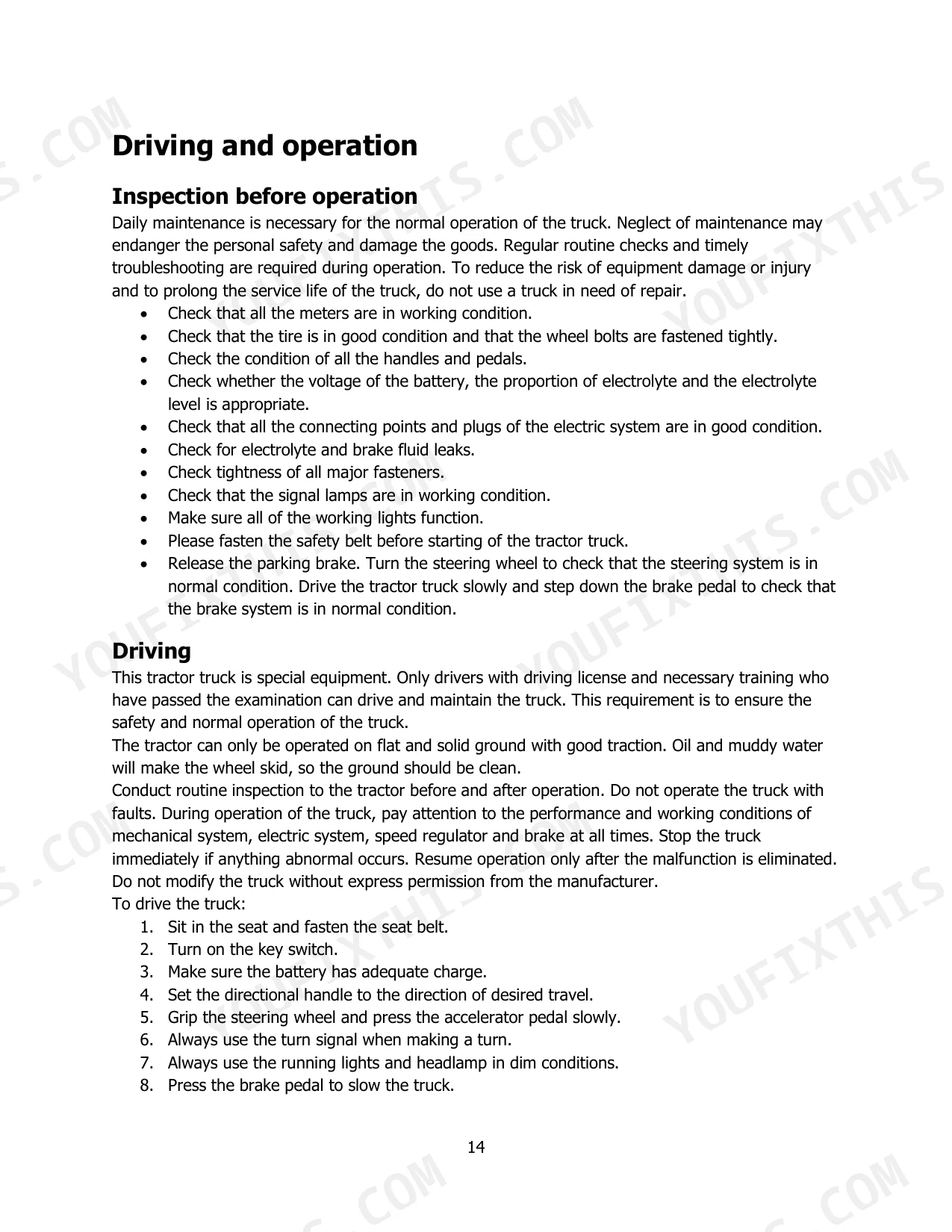

Turn off the key switch and emergency isolation switches before checking the electrical system (page 12). Inspect all connecting points and plugs of the electric system, confirm the meters and signal lamps work, and check that every working light functions as page 14 lists. Do not operate the truck with faults; resume towing only after the malfunction is eliminated.
Manual Section: Driving and Operation p. 14Frequently Asked Questions
Why will my Hyster T3.0UT not move?
If the battery charge drops to 10% state of charge, the truck will begin driving at a slower speed. You must stop operation immediately and charge the truck to restore normal performance. p. 16
What is the maximum noise level of the T3.0UT?

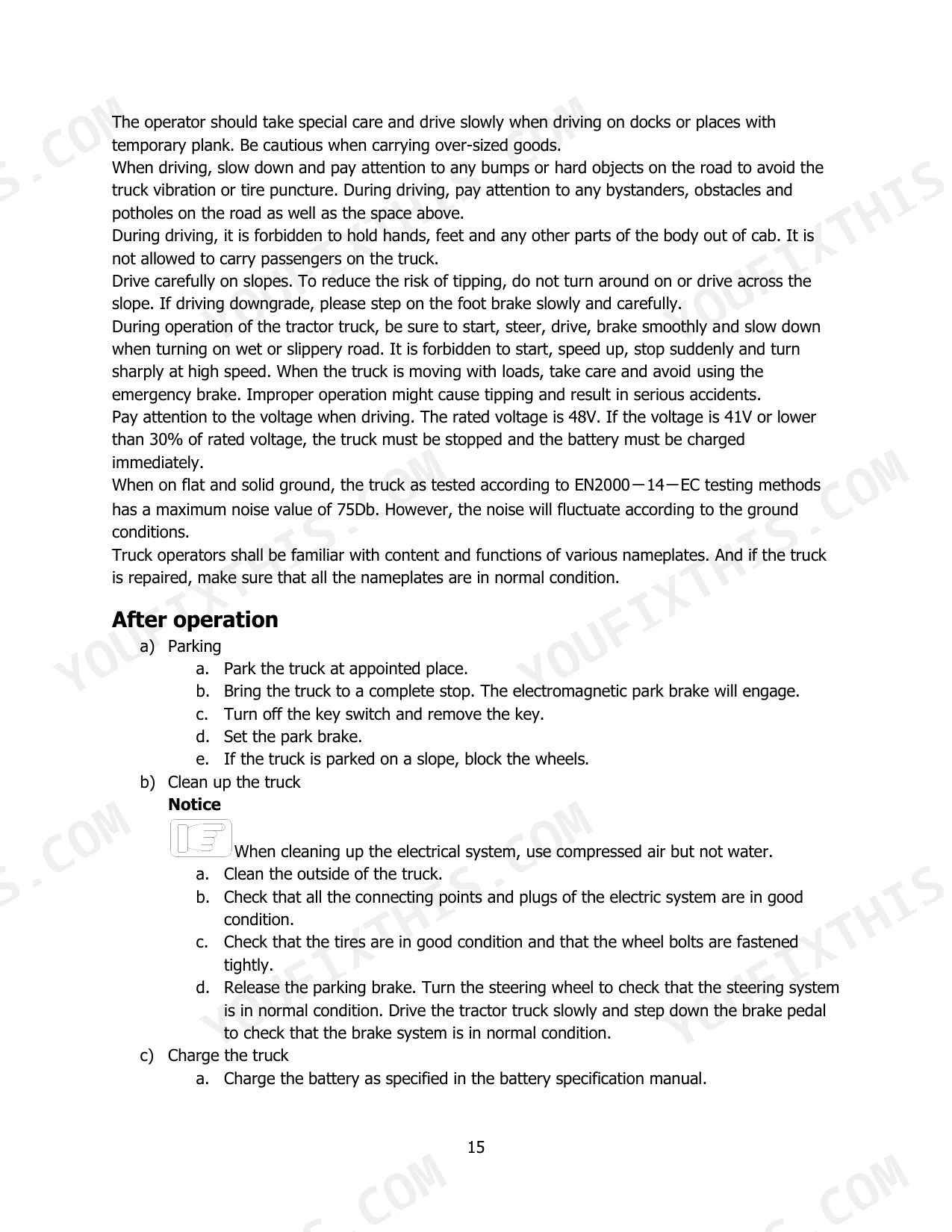

When tested on flat and solid ground according to EN2000-14-EC testing methods, the truck has a maximum noise value of 75 dB. p. 15
What is the rated traction weight of the T3.0UT?
The rated traction weight for the T3.0UT (A3C9) is 3000 kg (6614 lb) based on a 60-minute rating. p. 10
What is the required battery voltage for the T3.0UT?
The truck operates on a 36V system, and the battery has a capacity of 250 Ah. If the voltage drops lower than 30% of the rated 36V voltage, the truck must be stopped and charged immediately. p. 10
What is the procedure for cleaning the electrical system?
When cleaning the electrical system, you must use compressed air rather than water to avoid damage. Ensure the truck is turned off and the key is removed before performing any maintenance. p. 15
What exactly do I receive with this Hyster T3.0UT Operator Manual?
One searchable PDF covering 18 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Is this Hyster T3.0UT Operator Manual printable?
Yes. Many mechanics print the section they need for their own shop and bring it to the bench.
