Need the factory operating reference for your International 3444 Loader Tractor? This 102-page manual (OEM #1082759R1) walks you through every control, fluid interval, and safety check the machine requires. Inside: wiring diagrams for the complete electrical system, hydraulic schematics covering the hydrostatic steering circuit and auxiliary valve routing, and a multi-symptom troubleshooting guide for engine knock, power loss, overheating, and hydraulic faults. You get a full lubrication table with change intervals for the engine crankcase, transmission, hydraulic fluid, and front wheels, plus boom and bucket loader procedures, PTO operation, three-point hitch controls, and cold weather startup precautions. Set hot valve clearance to .020-inch with the engine warm before signing off any tune-up. Your machine is down and forum guesses won't fix it. Opens on any device; jump to any section by bookmark and get back to work.
What's Inside This International 3444 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 5 | Terms and Location of Units, Operation Instructions, Lubrication Instructions, Maintenance Instructions |

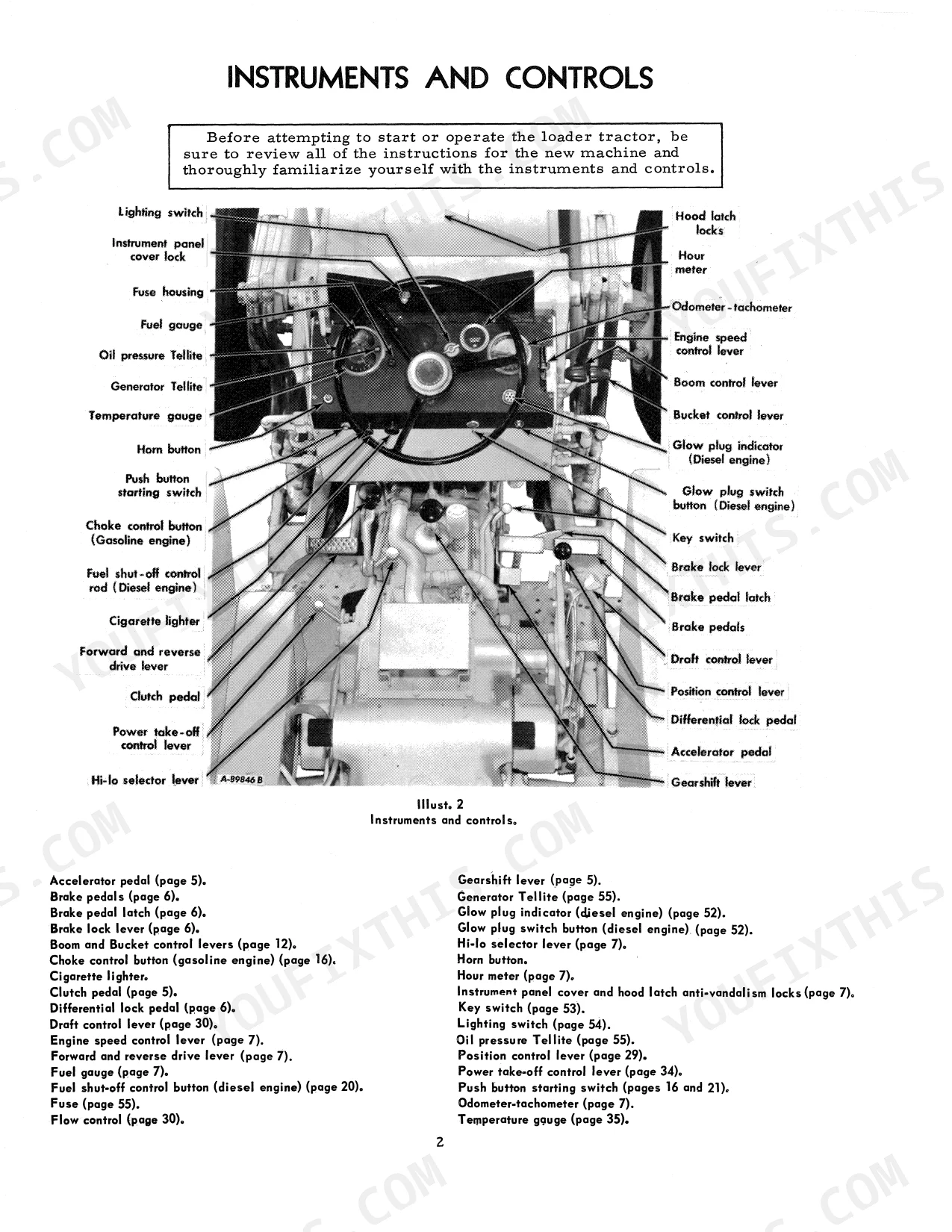

| Instruments and Controls | 6 | Gearshift Lever, Accelerator Pedal, Clutch Pedal, Boom and Bucket Control Levers, Differential Lock Pedal, Key Switch |
| Before Operating Your New Machine | 7 | Lubrication, Engine Cooling System, Counterweight, Break-In Procedure, Fuel System |

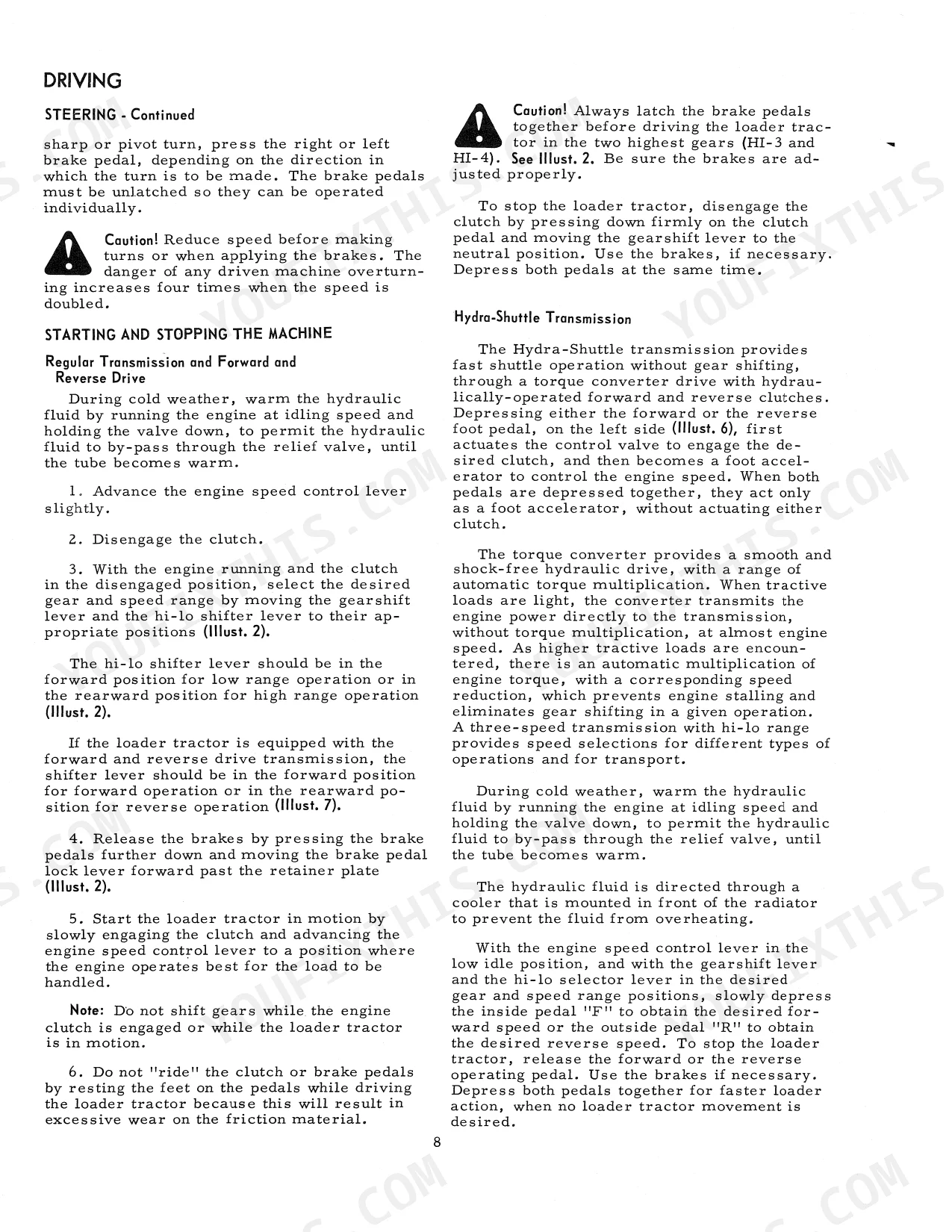

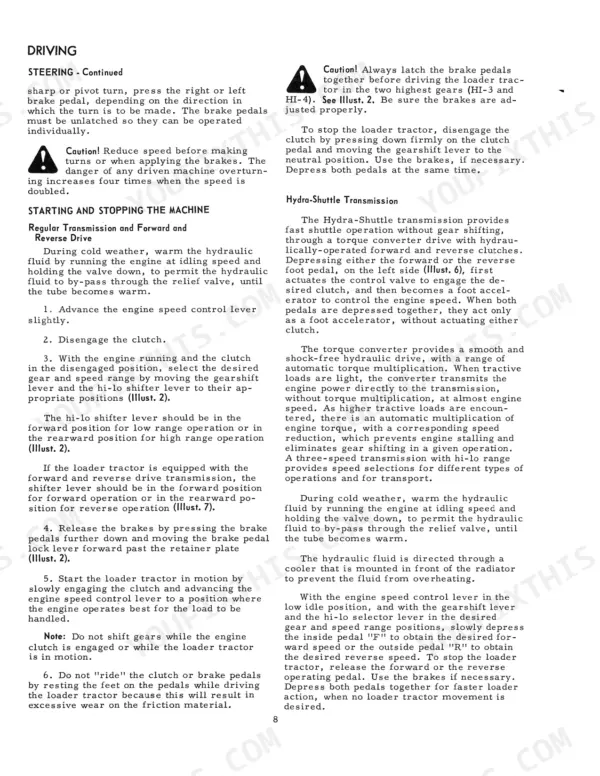

| Driving | 8-15 | Gearshift Lever, Accelerator Pedal, Clutch and Accelerator Pedals, Differential Lock Pedal, Forward and Reverse Drive Lever, Starting and Stopping the Machine |
| Operating the Loader | 16-18 | Boom and Bucket Control Levers, Bucket Leveling, Loading Hints and Procedures, Digging, Leveling, Grading, And Backfilling |
| Gasoline Engine and Fuel System | 19-21 | Fuel System, Safety Starting Switch, Starting the Engine, Stopping the Engine, Fuel Strainer and Sediment Bowl, Carburetor |

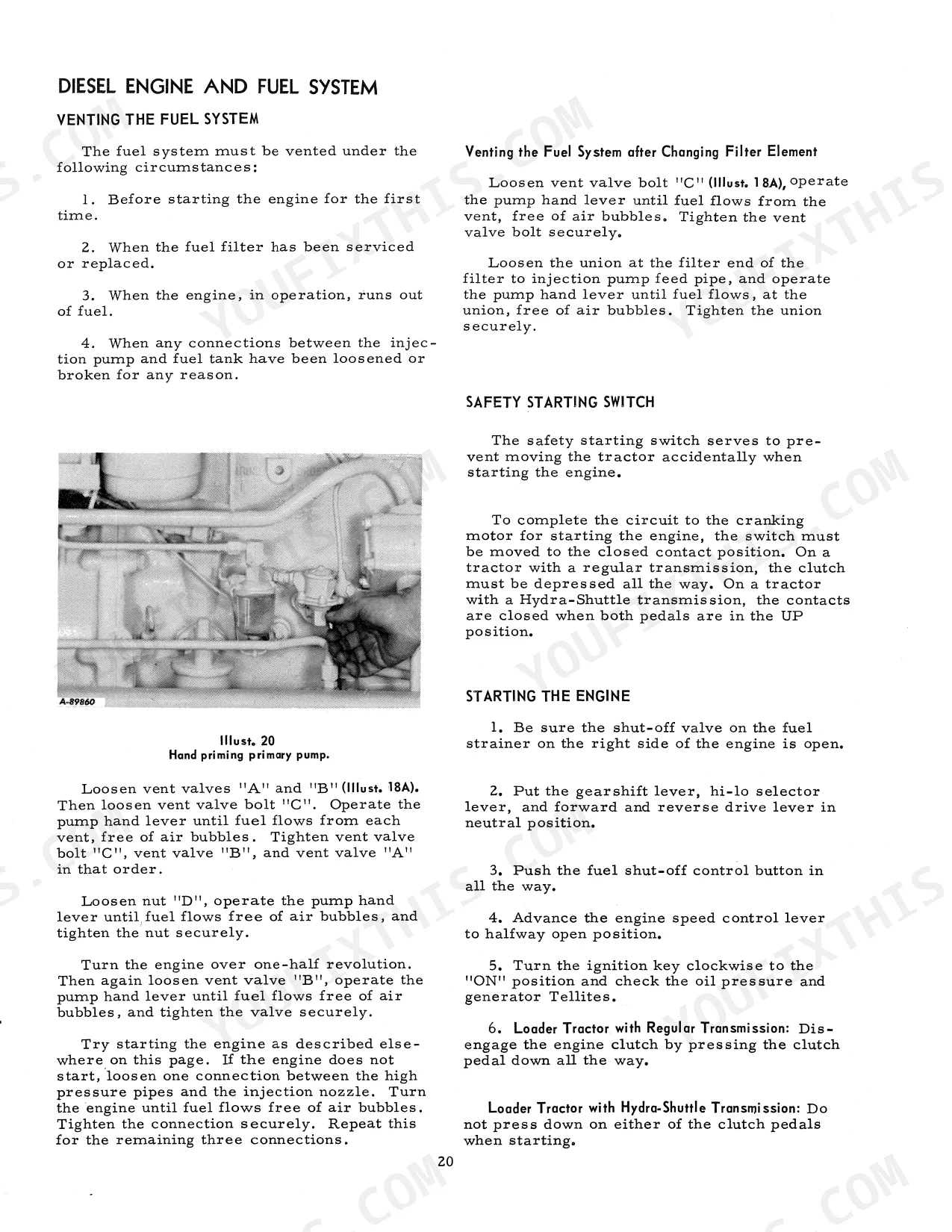

| Diesel Engine and Fuel System | 22-27 | Diesel Fuel Specification Requirements, Fuel System, Venting the Fuel System, Safety Starting Switch, Starting the Engine, Fuel Strainer and Water Trap |
| Hydraulic System | 28-32 | Hydrostatic Steering, Relief Valve, Air in the System, Auxiliary Valves, Hydraulic Controls for Three-Point Hitch |
| Hydraulic Controls for Three-Point Hitch | 33-34 | Draft Control, Position Control, Flow Control, Isolating Valve Handwheel |
| Three-Point Hitch | 35-36 | Leveling Screw Handle, Control Levers, Lift Link, Check Chain, Stabilizer, Three-Point Hitch Drawbar |
| Hitching Trailing Equipment to the Loader Tractor | 37 | Swinging Drawbar, Drawbar Position, Height Adjustment, Center Position |
| Power Take-Off | 38 | Power Take-Off Control Lever, Engine Speed Control Lever, Clutch Pedal, Engine Clutch and Power Take-Off Pedal |
| Cooling System | 39-41 | Temperature Gauge, Radiator Cap, Drain Cock, Rust Prevention, Generator Belt, Fan Belt |
| Air Cleaning System | 42-43 | Air Pre-Cleaner, Extension Pipe, Air Cleaner Body, Element, Oil Cup Service, Pre-Screener |
| Electrical System | 44-60 | Spark Plugs, Distributor, Ignition Coil, Wiring Diagram, Generator, Battery |
| Minor Engine Service Operations | 61 | Cylinder Head Gasket, Crankshaft Bearings, Pistons, Rings, Valve Clearance Adjustment, Valve Lever, Feeler Gauge |
| Pneumatic Tires/ Front Wheels | 62 | Tire Chains, Tire Valve Caps, Checking the Toe-In, Adjusting the Toe-In |
| Rear Wheels/ Brakes | 63 | Standard Rear Wheels, Optional Wheels, Brake Pedal, Brake Adjustment, Equalized Brakes, Test Brakes |

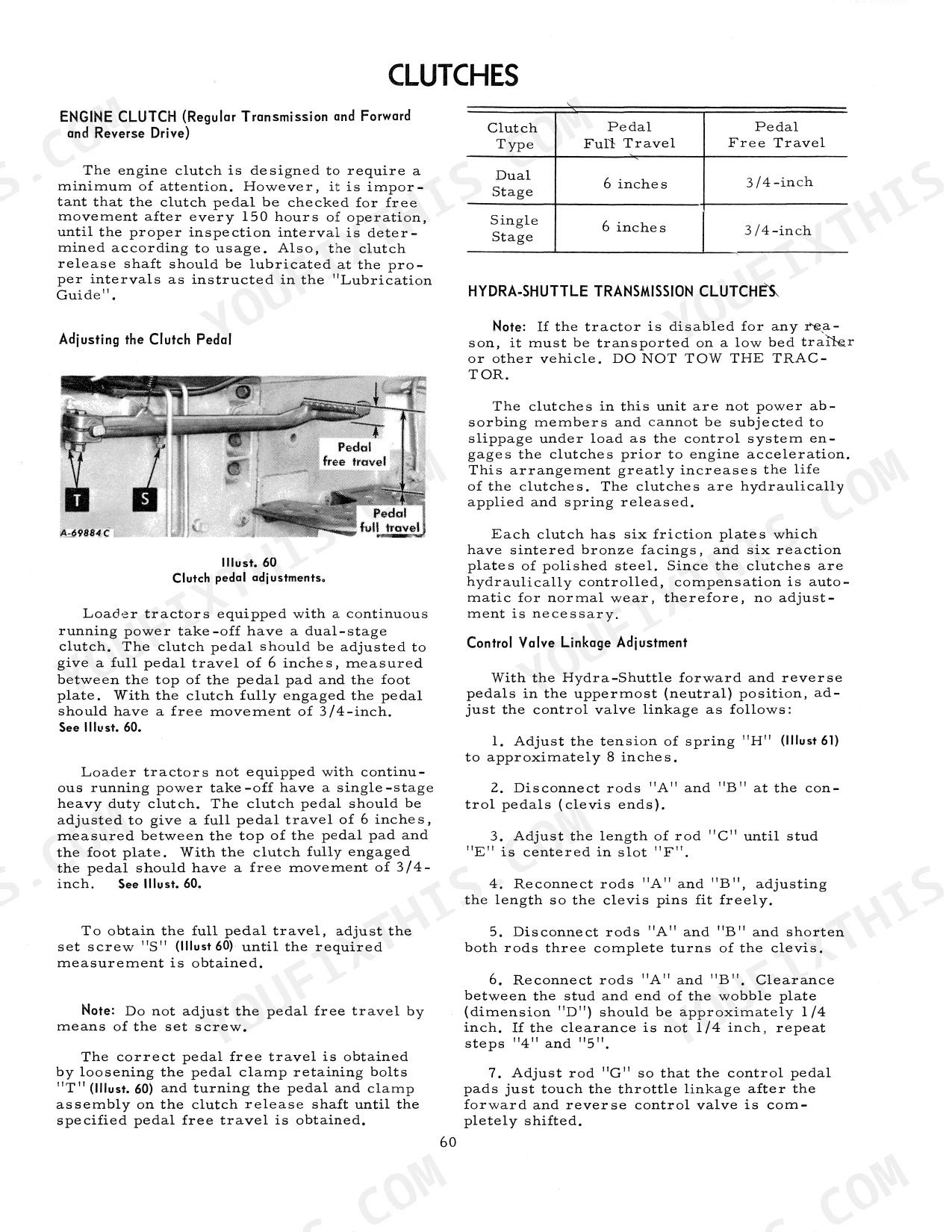

| Clutches | 64 | Engine Clutch, Clutch Pedal Adjustment, Hydra-Shuttle Transmission Clutches, Control Valve Linkage Adjustment |
| Storing the Machine | 65-66 | - |
| Cold Weather Precautions | 67 | Fuel System, Lubrication, Cooling System, Antifreeze Solutions |
| Trouble Shooting | 68-76 | Engine Operates Irregularly or Knocks, Lack of Power, Engine Overheats, No Oil Pressure, Engine Stops, Hydraulic System |
| Lubrication | 77-81 | Oil Pump, Engine Oil, Engine Oil Filter, Hydraulic Fluid, Transmission, Front Wheels |
| Lubrication Table | 82 | Engine Crankcase, Air Cleaner Oil Cup, Generator Oil Cups, Front Wheels, Transmission and Hydraulic System, Hydra-Shuttle Transmission |
| Lubrication Guide | 83-86 | Air Cleaner, Engine Crankcase Oil, Hydraulic Fluid Filter, Clutch Release Bearing, Three-Point Hitch, Front Mounted Hydraulic Pump |
| Preventive Maintenance | 87-88 | Air Cleaner Oil Cup, Cooling System, Fuel Strainer and Water Trap, Cylinder Head Bolts, Engine Valves, Hydraulic Fluid Filter |
| Specifications | 89-91 | Boom and Bucket, Engine (Diesel), Clutch, Loader Cylinders, Hydrostatic Steering System, Electrical System |
| Extra Equipment and Accessories | 92-96 | Material Buckets, Scarifier Teeth, Snow Bucket, Self Leveling Attachment, Fork Lift Attachments, Crane Lift Attachment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Valve clearance (hot) | .020-inch | p. 61 |
International 3444 Common Problems This Manual Covers
International 3444 loader boom lifts slowly or won't raise full height under load p. 71
Check hydraulic fluid level first: retract ALL cylinders fully before reading the sight glass, or you will get a false high reading. Inspect the hydraulic fluid filter on page 83 and replace if overdue. Verify the relief valve setting per page 28. If fluid is dark or smells burned, drain and refill the transmission and hydraulic system with the correct fluid type listed on page 82.
Manual Section: Hydraulic System Troubleshooting (General)Engine cranks but won't start or stalls shortly after startup p. 68
Check the fuel strainer and sediment bowl for restriction or water contamination — clean or drain as shown on page 19 (gasoline) or page 22 (diesel). Verify the safety starting switch is functioning, since it will prevent starting if the transmission is not in neutral. For diesel, vent the fuel system per page 22 to purge air. Inspect the carburetor or fuel injection components per the troubleshooting chart on page 70.
Manual Section: Engine Troubleshooting (General)Engine overheats during operation, temperature gauge reads high p. 69
Stop and let the engine cool before opening the radiator cap. Check coolant level and inspect the generator belt and fan belt for wear or slippage per page 39. Clean debris from the radiator fins. Verify the thermostat and drain cock are not stuck. Check that the rust prevention additive is present in the cooling system. Refill with the antifreeze solution ratio specified on page 67 if operating in cold conditions.
Manual Section: Cooling System TroubleshootingAir cleaner service light or sluggish engine performance after dusty work p. 42
Service the air cleaner oil cup and pre-screener per page 42. Remove and clean the element, tapping loose dirt out gently rather than blowing compressed air through it backward. Clean the oil cup, refill to the marked level with the same weight oil used in the crankcase (see page 82 for type), and reseat the cup firmly. Neglecting this interval is the fastest way to score cylinder bores on this machine.
Manual Section: Air Cleaning SystemEngine runs rough, lacks power, or develops a valve knock at operating temperature p. 61
Adjust valve clearance with the engine warm and valves closed. Correct clearance is .020-inch between the valve lever end and the valve stem, as specified on page 61. Use a feeler gauge and recheck after snugging the locknut, since the clearance tends to tighten slightly when the nut is torqued. An out-of-spec valve is one of the most overlooked causes of rough running on this engine.
Manual Section: Minor Engine Service OperationsBrakes don't hold evenly or one side drags when releasing the pedal p. 73
Inspect brake pedal free travel and adjust per page 63. Equalize both brake pedals so they engage at the same point: lock the pedals together before testing, then drive slowly and apply brakes to confirm the machine stops straight. Check the return spring on the dragging side for fatigue or damage. If the brake still slips after adjustment, consult the troubleshooting chart on page 73 for lining and drum condition indicators.
Manual Section: Brakes TroubleshootingFrequently Asked Questions
How to reset the 3-point hitch on an International 3444?
To set the 3-point hitch, adjust the position control lever and draft control lever. Move the draft control lever to the farthest forward position, then adjust the position control lever to achieve the correct working height, ensuring the lower links are at the same height as the equipment hitching pins. Refer to Illust. 29B on page 29 for visual guidance.
Torque specs for engine bolts on International 3444 diesel?
For diesel engine cylinder head bolts, the manual provides a tightening sequence (Illust. 57A on page 57) and instructs to tighten them fairly snug with a torque wrench. Retighten in the same order, giving each bolt a fraction of a turn at a time until all bolts are tight, ensuring even pressure on the gasket. A specific foot-pounds torque value for diesel engine cylinder head bolts is not provided, unlike the gasoline engine.
What are the error codes for International 3444 hydraulic system?
The manual does not list specific error codes for the International 3444 hydraulic system or on the dashboard. Troubleshooting is typically performed by identifying symptoms and consulting the "Trouble Shooting" section (pages 68-72) for possible causes and remedies, rather than relying on digital error codes.
How to fill hydraulics on an International 3444 backhoe edition?
To fill the hydraulic system, add IH Hy-Tran fluid to the reservoir up to the "FULL" mark on the dipstick. After filling, start the engine, operate it at a moderate idle speed, and cycle the loader pistons about ten times to remove air from the system. The manual specifies IH Hy-Tran® fluid for both the hydraulic system and Hydra-Shuttle Transmission.
Is this manual a digital download?
You get a 102-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this International 3444 Loader Tractor manual include wiring schematics?
Yes. You'll find an electrical wiring diagram covering the main wiring layout.
