All 663 pages of this International Harvester B-series Shop Manual cover nine tractor variants: B-275, B-414, 354, 364, 384, 424, 444, 2424, and 2444, including both diesel and gasoline powerplants. Inside: hydraulic schematics for the complete power steering circuit (control valve, flow divider, hand pump, steering cylinder), wiring diagrams spanning the generator, alternator, regulator, and starter, plus a full hydraulic lift troubleshooting section with pump testing procedures. You also get injection pump timing procedures, cam follower clearances, cylinder sleeve fits, and overhaul sequences for the transmission, differential, and final drive. On the B-275, set the hydraulic relief valve spring to 3-7/8 in. free length; the B-414, 354, 364, and 384 run 1.250 in. at the power steering relief valve. No more hunting forum threads for specs that may not match your serial number. Download it, search by keyword, and have the right number before you turn the first wrench.
What's Inside This International Harvester B-414 Manual

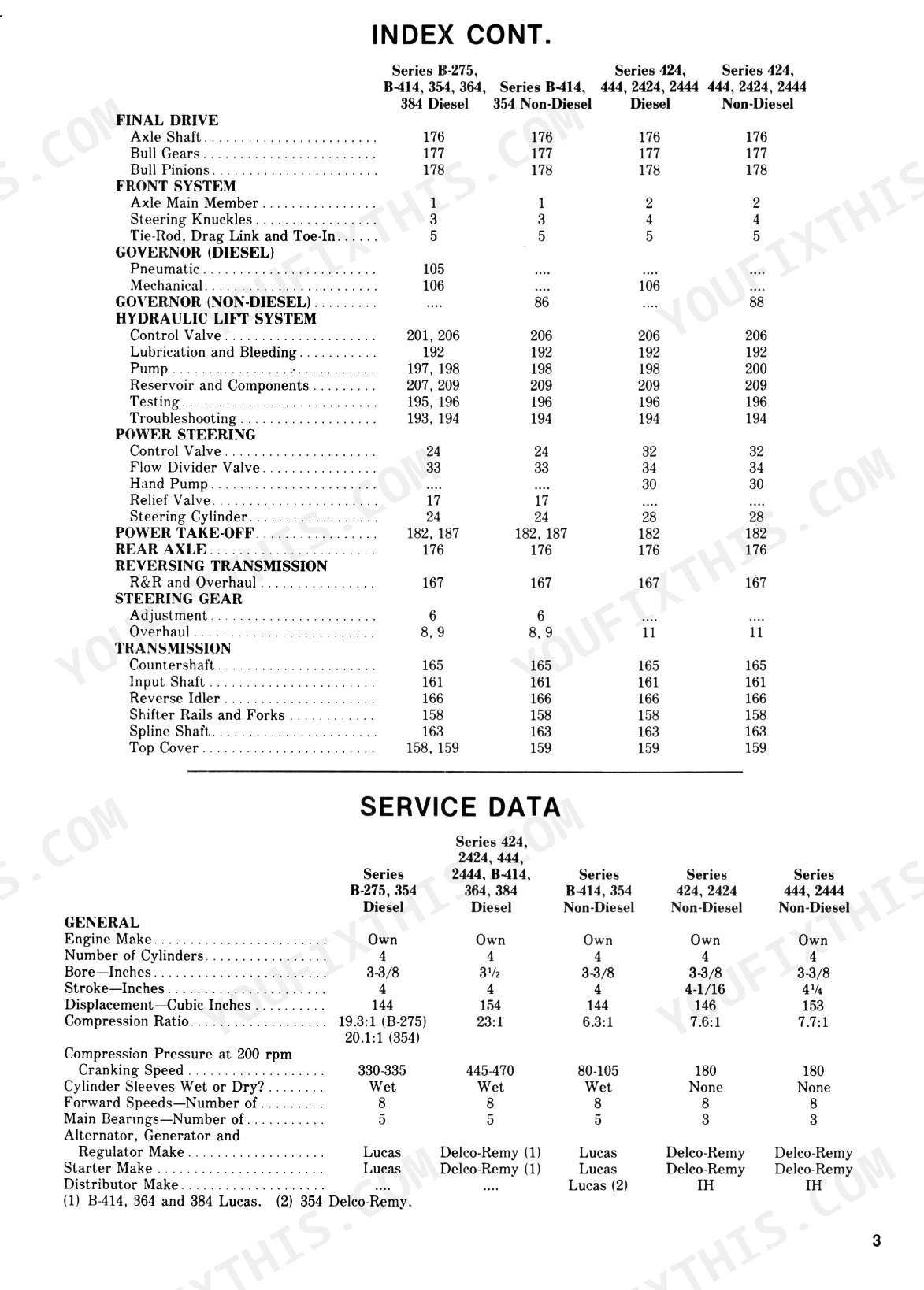

| System | Pages | Key Topics |
|---|---|---|
| Service Data | Tune-Up Data, The Sizes, Capacities and Clearances and the Tightening Torques for the B-Series Tractors | |
| Engine | Engine Removal and Overhaul, The Cylinder Head and Valves, The Pistons, Rings and Connecting Rods, And the Crankshaft and Bearings | |
| Cooling System | The Radiator, The Water Pump, The Thermostat and the Fan and Belt | |
| Diesel Fuel System | Bleeding, The Injection Nozzles, The Injection Pump Timing and Quick Checks, With the Pneumatic and Mechanical Governor | |
| Non-Diesel Fuel System | The Carburetor Removal and Overhaul, The Fuel Pump and the Governor for the Gasoline and Distillate Models | |
| Alternator, Generator and Regulator | The Alternator, The Generator and the Regulator, The Field Winding Continuity and the Rectifier Testing | |

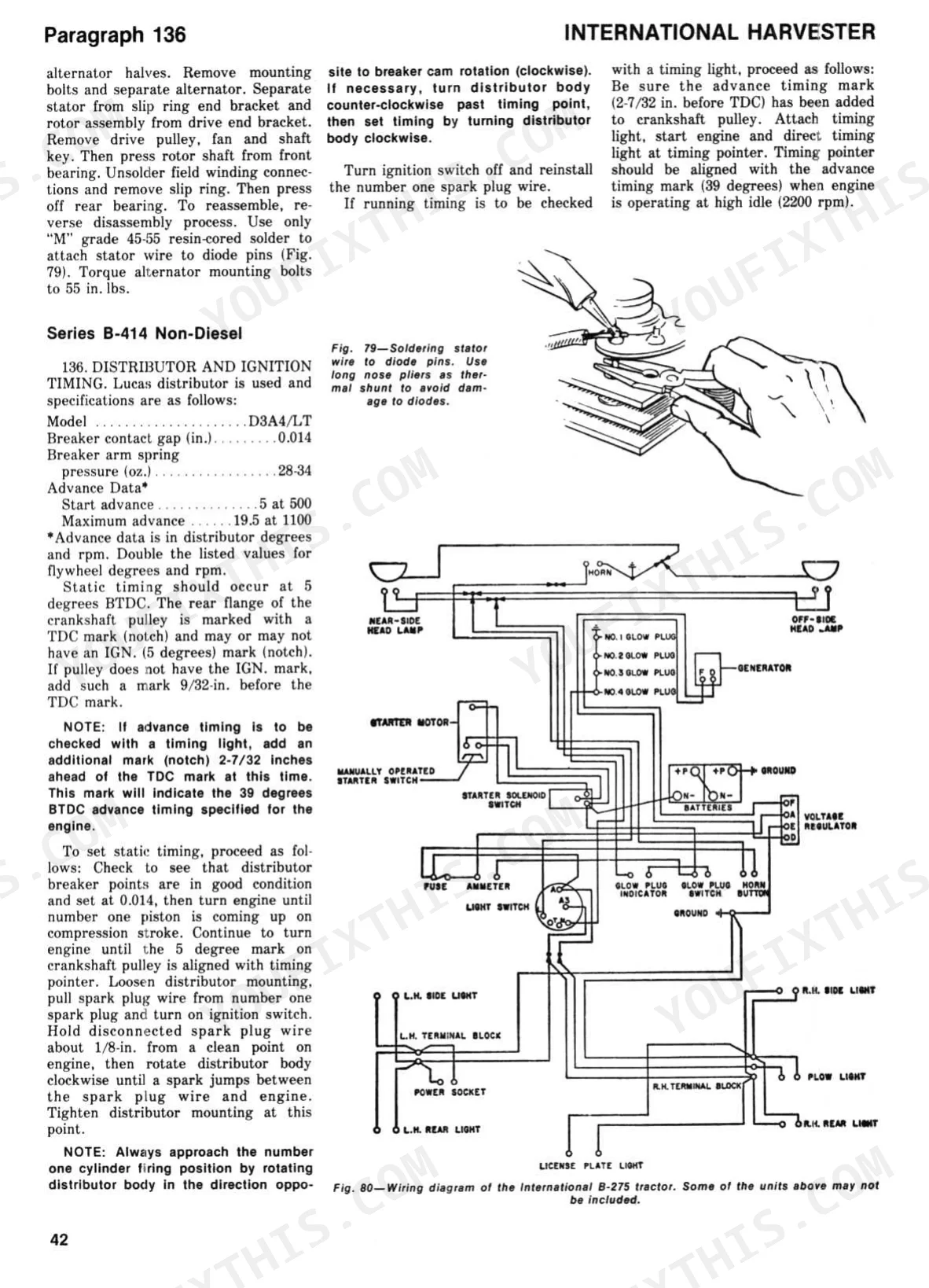

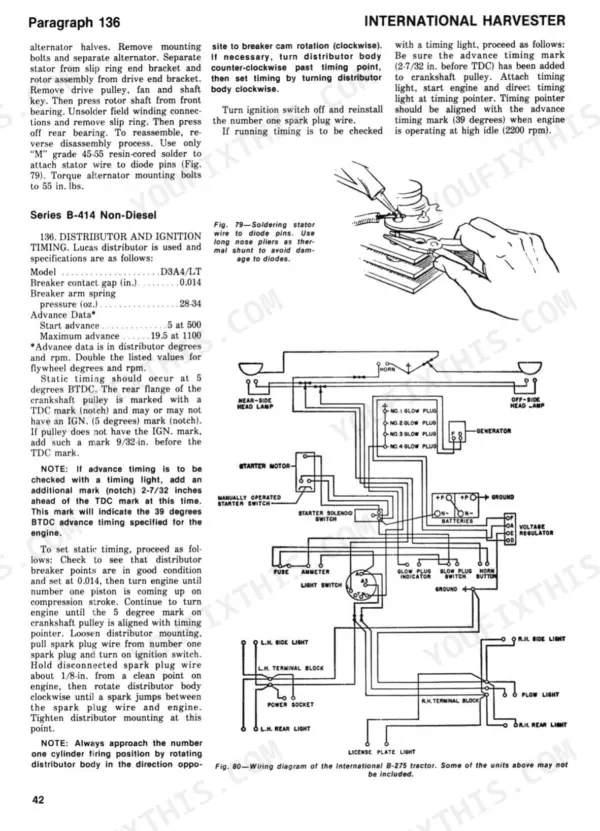

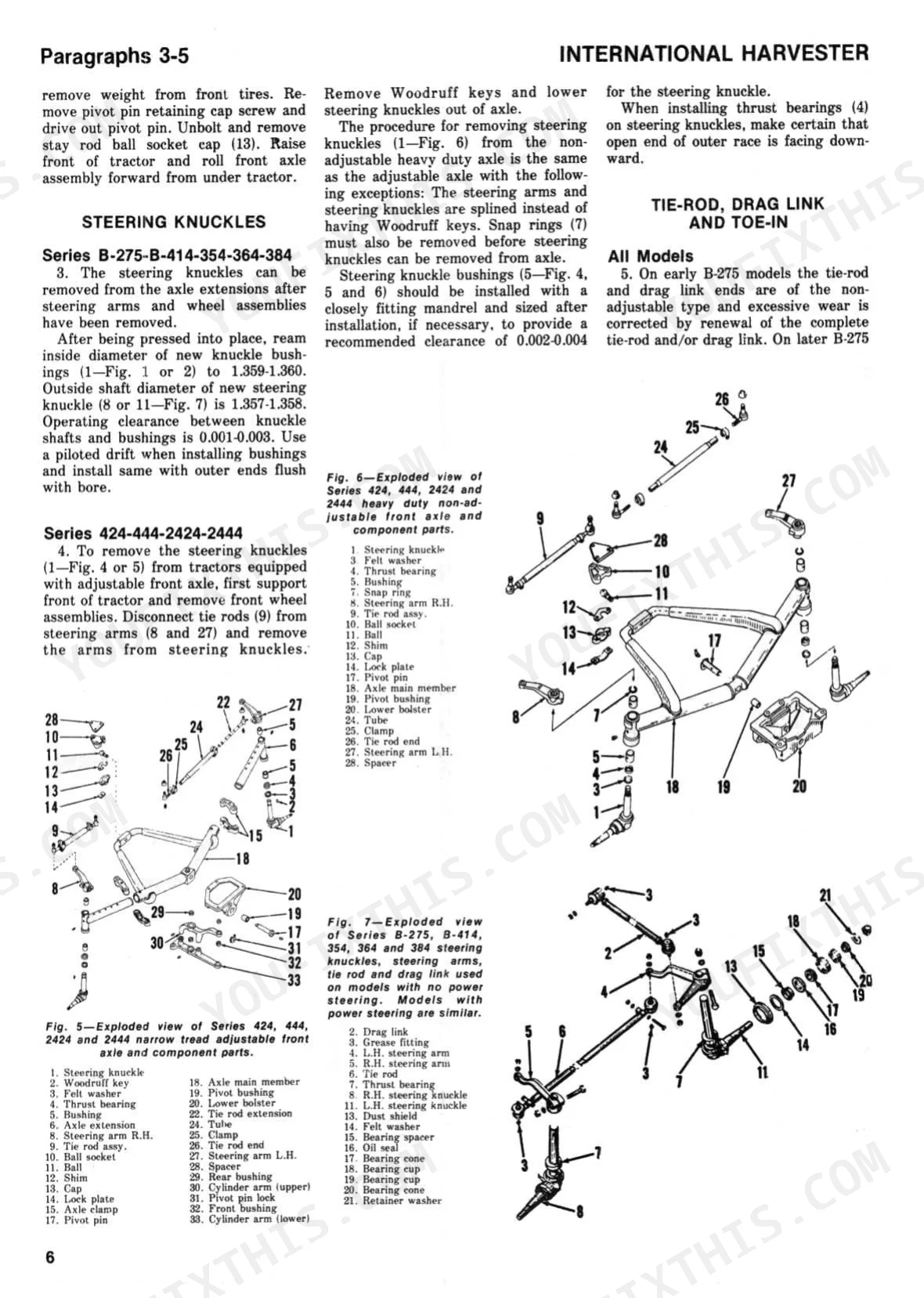

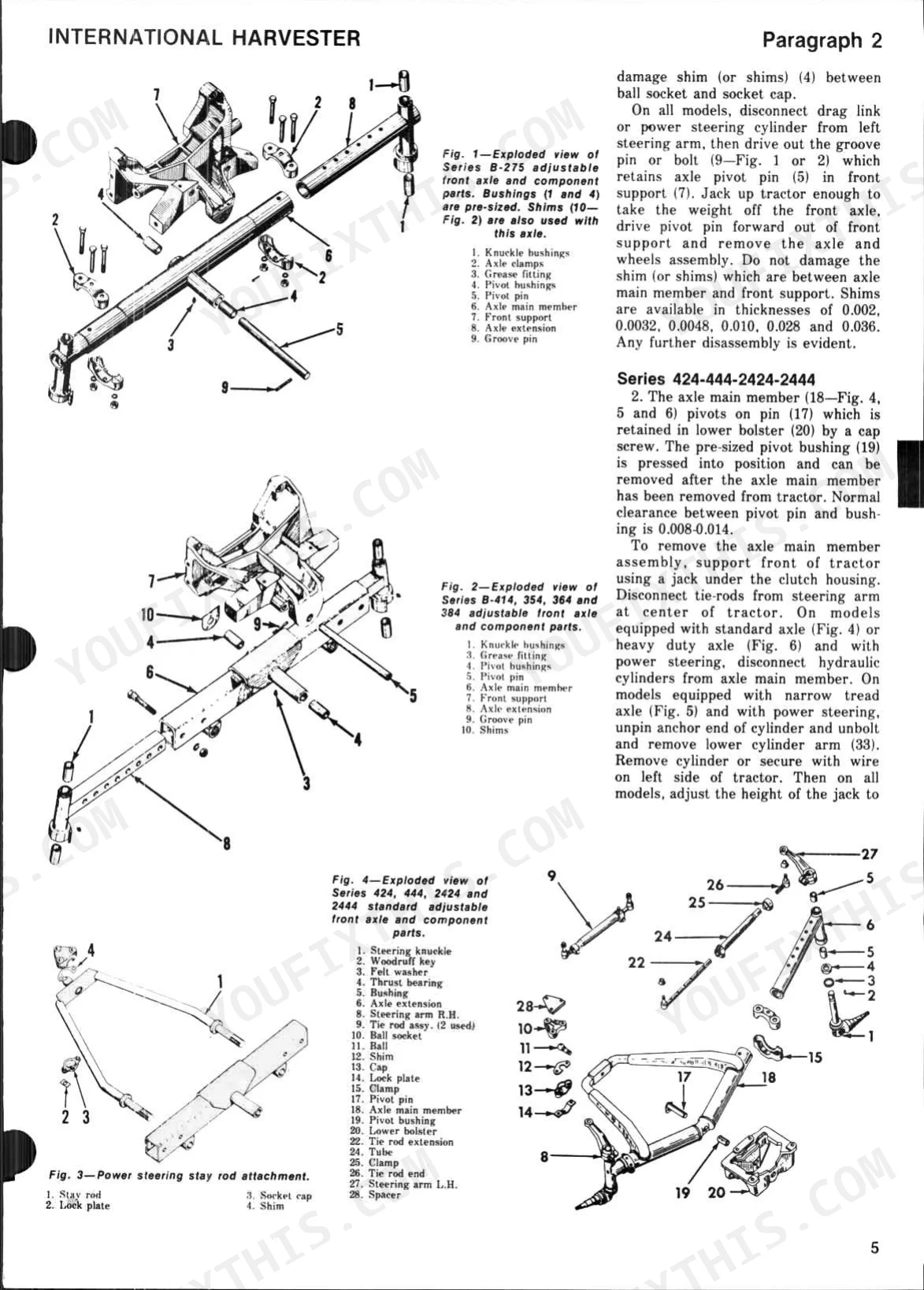

| Electrical System | The Wiring Diagrams, The Starter Motor, The Ignition Timing, The Lights and the Battery | |
| Clutch | Clutch Adjustment, Removal and Reinstallation | |
| Transmission | Transmission Removal and Overhaul, Including the Reversing (Shuttle) Transmission | |
| Differential | Renewing the Bevel Gears, The Differential Bearing Preload, The Mesh Position and the Backlash | |
| Rear Axle and Final Drive | Removing the Wheel Axle Shafts and the Bull Gears, And Servicing the Final Drive | |
| Power Take-Off | PTO Removal and Overhaul, The Rear Output Shaft and the Countershaft or Front PTO Shaft | |
| Belt Pulley | Belt Pulley Removal and Overhaul, The Drive Shaft, The Bevel Gear and the Oil Seal | |
| Brakes | The Double Disc Self-Energizing Brakes, The Bull Pinion Shafts and the Moulded Linings | |
| Front System and Steering | The Front Axle Main Member, The Steering Knuckles, Tie-Rod and Toe-In, The Steering Gear and the Power Steering | |
| Hydraulic Lift System | The Control Valve, The Pump, The Reservoir and Components, And the Lubrication and Bleeding | |
| B-414 Parts Catalog | The B-414 Illustrated Parts Catalogs (Bt-2A and Bt-2C) with the Exploded Assembly Views and the Part Numbers for Ordering |

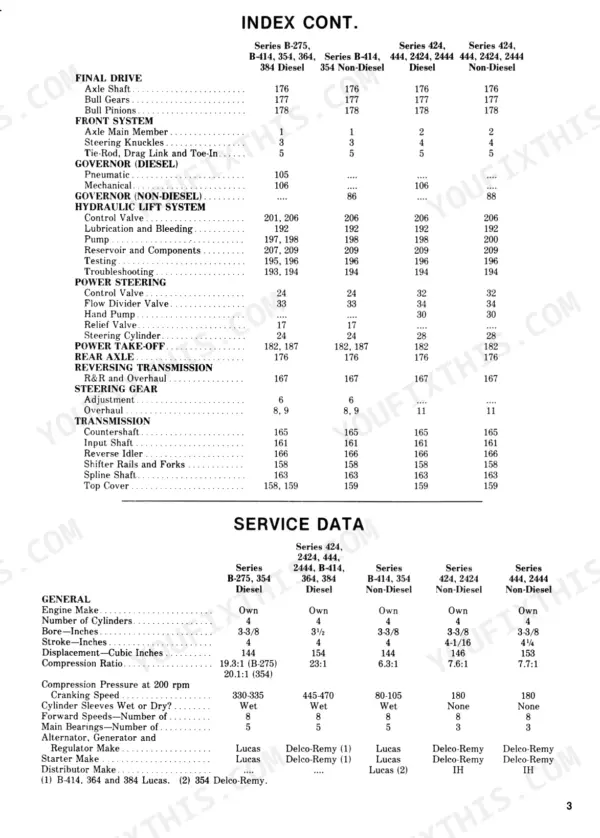

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Piston rod ball cups replacement | renew as necessary | p. 13 |
| Worm shaft end play adjustment | zero end play | p. 7 |
| Hydraulic lift system relief valve operating pressure | 2300-2400 psi | p. 65 |
| Series B-275, B-414, 354, 364, 384 | ||
| Shims for worm shaft end play | 0.0024, 0.005 and 0.010 inches | p. 7 |
| Series B-275 | ||
| Relief valve spring free length | 3-7/8 in. | p. 68 |
| Series B-414, 354, 364, 384 | ||
| Power steering relief valve spring (Fig 16) free length | 1.250 inches | p. 11 |
| Series B-414, 424, 444, 2424, 2444, 354, 364, 384 | ||
| Speed control piston spring free length | 2.51 inches | p. 69 |
| Speed control piston spring test load | 10 lbs. when compressed to a length of 1.625 inches | p. 69 |
| B-275 Diesel, 354 Diesel, B-414 Non-Diesel | ||
| Engine Oil Capacity | 8 Quarts | p. 4 |
| B-275 Diesel, 354 Diesel, 424 Diesel, 2424 Diesel, 444 Diesel, 2444 Diesel, B-414 Diesel, 364 Diesel, 384 Diesel, B-414 Non-Diesel, 354 Non-Diesel | ||
| Cooling System Capacity | 10.8 Quarts | p. 4 |
| 424 Non-Diesel, 2424 Non-Diesel, 444 Non-Diesel, 2444 Non-Diesel | ||
| Valve Tappet Gap (Hot) | Intake 0.014 inches, Exhaust 0.020 inches | p. 4 |
| B-275 Diesel | ||
| Compression Ratio | 19.3:1 | p. 4 |
International Harvester B-414 Common Problems This Manual Covers
International Harvester B-275 diesel hard to start or won't fire in cold weather
Bleed the fuel system completely, working through the sediment bowl, fuel filter bleed screw, injection pump, and injector pressure lines in sequence. Test each nozzle on a pressure tester; pneumatic governor models should open at 2130-2205 psi (page 31). Water in fuel lines freezes at the filter and nozzles first, so drain and inspect both before cranking again.
Manual Section: Diesel Fuel System p. 31Steering wheel chatters or vibrates when turning, especially at low speeds
Remove the steering gear housing cover and inspect the piston rod ball cups; any worn cups must be renewed (page 13). Worn cups are the primary cause of steering chatter on these tractors. While the housing is open, check worm shaft end play and adjust to zero using shims in 0.0024, 0.005, and 0.010 inch thicknesses.
Manual Section: Steering Gear p. 13Hydraulic lift arms won't raise under load or creep down with implement attached
Check fluid level in the reservoir first, then test system relief pressure; it should hold at 2300-2400 psi (page 65). On B-275 models, pull the relief valve and measure spring free length against the 3-7/8 in. spec (page 68). Clean the ball, seat, and spring bore, then retest before assuming pump failure.
Manual Section: Hydraulic Lift System p. 65Diesel engine misfires at idle, runs rough, or smokes black under load
Locate the faulty nozzle by loosening each injector line fitting one at a time while running; the cylinder that changes least is the dead one. Remove and test on a nozzle tester: pneumatic governor models should open at 2130-2205 psi, mechanical governor models at 2350-2425 psi (page 31). Replace any nozzle that fails spray pattern or seat leakage.

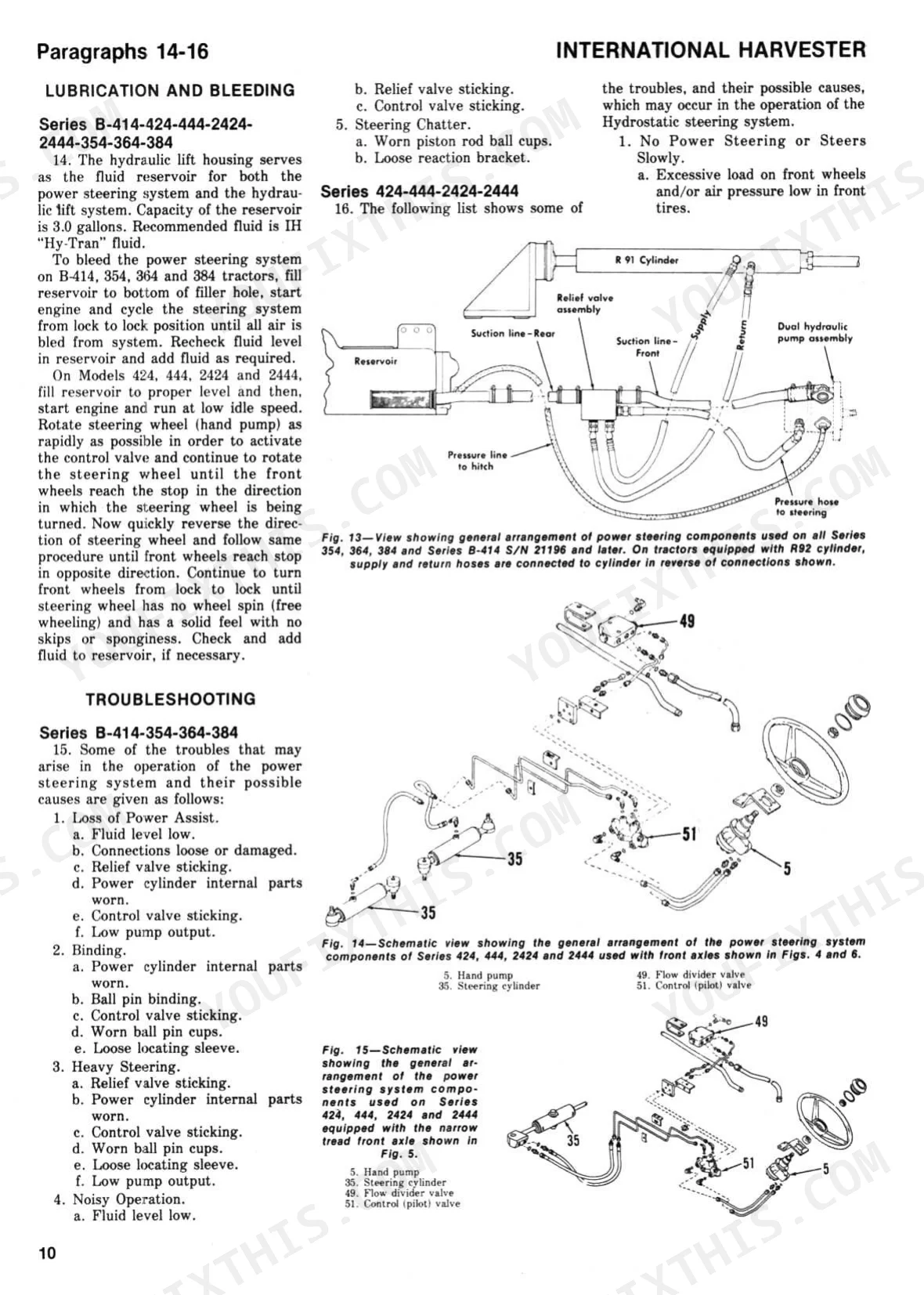

Manual Section: Injection Nozzles p. 31Steering requires excessive force after extended field work, especially on headland turns
Connect a pressure gauge at the power steering test port. B-414, 354, 364, and 384 tractors should read 900-1100 psi (page 11); 424, 444, 2424, and 2444 models should reach 1500-1600 psi (page 17). Low pressure at operating temperature points to a worn hand pump or sticking flow divider spool. Work through the troubleshooting chart.
Manual Section: Power SteeringFrequently Asked Questions
What are the torque specs for the engine bolts on IH B-414 tractor
For the International Harvester B-414 tractor, the cylinder head bolts should be torqued to 75-80 ft.-lbs. Connecting rod bolts should be torqued to 40-45 ft.-lbs. Main bearing bolts require a torque of 70-75 ft.-lbs. for Pitch bolts and 80-85 ft.-lbs. for Place bolts. p. 4
How do you fix international Harvester B-275 diesel hard to start or won't fire in cold weather?
Bleed the fuel system completely, working through the sediment bowl, fuel filter bleed screw, injection pump, and injector pressure lines in sequence. Test each nozzle on a pressure tester; pneumatic governor models should open at 2130-2205 psi (page 31). Water in fuel lines freezes at the filter and nozzles first, so drain and inspect both before cranking again. p. 31
How do you fix steering wheel chatters or vibrates when turning, especially at low speeds?
Remove the steering gear housing cover and inspect the piston rod ball cups; any worn cups must be renewed (page 13). Worn cups are the primary cause of steering chatter on these tractors. While the housing is open, check worm shaft end play and adjust to zero using shims in 0.0024, 0.005, and 0.010 inch thicknesses. p. 13
How do you fix hydraulic lift arms won't raise under load or creep down with implement attached?
Check fluid level in the reservoir first, then test system relief pressure; it should hold at 2300-2400 psi (page 65). On B-275 models, pull the relief valve and measure spring free length against the 3-7/8 in. spec (page 68). Clean the ball, seat, and spring bore, then retest before assuming pump failure. p. 65
What format is this manual in?
Instant PDF download. You get the full 663-page searchable Shop Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this International Harvester B-275 & variants Shop Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this International Harvester B-275 & variants manual cover the hydraulic?
Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
