Arguments over factory figures end with this book: a 238 page Iseki TM3160 service manual PDF covering five tractors in the TM series, gear drive and hydrostatic alike. Hydraulic system diagrams trace the circuit from suction filter through the gear pump to the main control valve, and the HST chapter walks the variable pump and fixed motor from teardown criteria to neutral adjustment at the pedals. Wiring diagrams map the safety interlock circuit, starter, alternator and glow plugs, while troubleshooting tables run through clutch, brakes, steering and the three point hydraulics. Set your clutch pedal free play at 20 to 30 mm, then pull the head down to 5.5 to 6.5 kg·m, straight from the servicing data section. A guessed head torque is a cracked block at planting. Bookmarks and a live text layer put you two clicks from the neutral adjustment procedure before the tractor cools.
What's Inside This Iseki TM3160-TM3240 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 3-14 | Tractor Types and Punched Identification Marks (Model Name Plate, Chassis Production Number, Engine Model and Serial Number) |

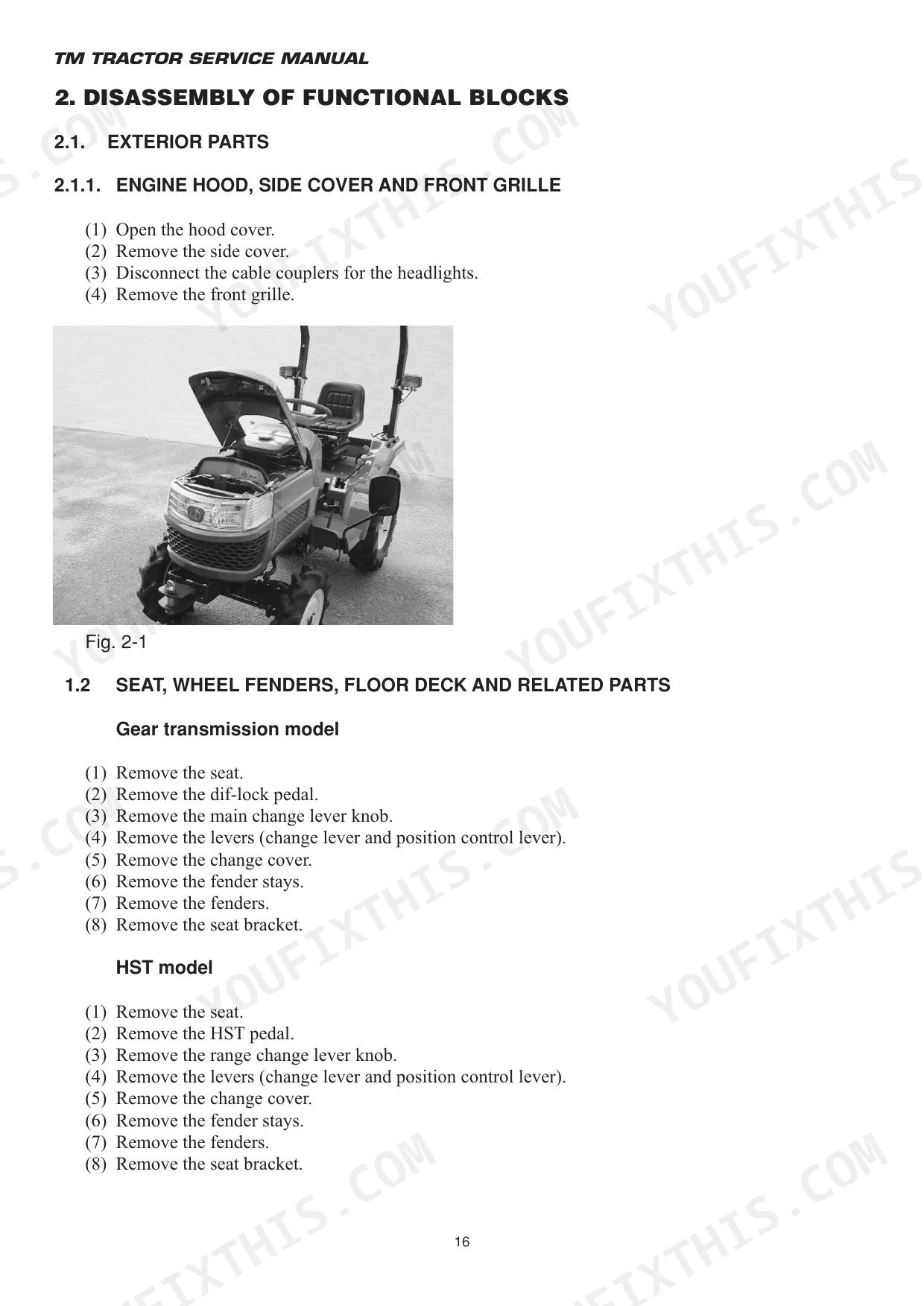

| Disassembling Into Major Functional Components | 15-22 | Engine, Clutch Housing, Front Transmission Case, Rear Transmission Case, Cylinder Case, Rear Axle Housing, Front Axle, Radiator |
| Engine Service Data and Accessories | 23-30 | Specifications, Tightening Torque of Major Fasteners, Radiator (Construction, Removal and Re-Installation, Inspection), Cooling Fan and Belt (Specifications) |
| Clutch System | 31-36 | Clutch Housing, Clutch Assembly, Clutch Disc, Flywheel, Release Bearing, Pressure Plate, Diaphragm Springs, Clutch Pedal |
| Transmission | 37-44 | Gear-Type Transmission (Power Train, Construction, Disassembly, Inspection), HST Transmission (Power Train |
| Rear Axle and Brakes | 45-52 | Rear Axle Housing and Differential Gears (Disassembly, Inspection), Brakes (Construction, Disassembly, Inspection, Brake Adjustment), Troubleshooting |
| Manual Steering System | 53-58 | Construction, Disassembly, Inspection, And Reassembly (Reassembly and Adjustment, Troubleshooting) |
| Power-Assisted Steering System | 59-70 | Constrouction, Major Component, Integral Orbit Roll (Component, Disassembly, Re-Assembly), Troubleshooting |
| Front Axle | 71-76 | Constrouction (Sectional Views, Major Components), Disassembly (Front Axle and Differential Gears, Final Case and Related Parts, The Final Case Assembly), Inspection |
| Hydraulic System | 77-94 | Specifications, Construction, Disassembly and Inspection of Major Components (Suction Filter, Hydraulic Pump, Cylinder Case, Disassemebly, Main Control Valve) |
| Hydrostatic Transmission | 95-118 | Construction and Names of Major Components, Operating Diagram of HST, Function (Variable Type Pump, Fixed Type Motor, Valves) |
| Electrical System | 119-122 | Fuses, Safety System Wiring, Battery, Meters, Gauges, Switches |
| Servicing Data | 123-134 | Specifications & Capacities, Lubrication Points, Maintenance Schedule, Service Standards, Tightening Torques |
| Engine Service Data and Accessories | 135-158 | Engine Specifications, Performance Curves, Cylinder Head Disassembly, Lubrication System, Cooling System, Fuel System |
| Electrical System | 159-176 | Starter Motor, Alternator, Glow Plugs, Troubleshooting, Wiring Diagrams |
| Appendix | 177-238 | Wiring Diagrams, Reassembly Precautions, Mechanical Transmission, Hydrostatic Transmission, Front Axle and Drive Mechanism |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head bolts | 5.5 - 6.5 kg·m | p. 24 |
| Rocker shaft holder | 1.9 ± 0.5 kg·m | p. 24 |
| Clutch assembly tightening torque | 1.5-2.2 kgf·m | p. 31 |
| Clutch pedal free play | 20-30 mm | p. 32 |
| Belt deflection at X point | 13.8-14.8 mm | p. 26 |
| Brake disc usable limit | 2.9 mm | p. 49 |
| Separator plate usable limit | 3.0 mm | p. 49 |
| Tyre inflation pressure | 1.8 kgf / cm2 (25.6 psi) | p. 76 |
| Toe-in | 2-6 mm (0.08-0.24 in.) | p. 76 |
| Suction filter filtering area | 80 cm2 | p. 80 |
| Relief valve leak | 0.1 cc / min | p. 82 |
| Safety valve leak | 0.1 cc / min | p. 82 |
Iseki TM3160-TM3240 Common Problems This Manual Covers
Iseki TM3200 clutch slips under load pulling uphill, pedal has normal free play
Check clutch pedal free play and set it to 20 to 30 mm per page 32. If free play is correct and the clutch still slips, split the tractor at the clutch housing and inspect the disc. Replace it when rivet head depression wears below 1.0 mm, and torque the cover bolts to 1.5 to 2.2 kgf·m.
Manual Section: Clutch System p. 32Brakes feel weak and one side drags, tractor pulls left with both pedals locked together
Adjust brake pedal free play to 20 to 30 mm and equalize both pedals so the tractor stops straight with the pedals locked. If braking stays weak, pull the brake covers and measure the wet discs. The usable limit on page 49 is 2.9 mm for discs and 3.0 mm for separator plates; replace them as a set.
Manual Section: Rear Axle and Brakes p. 49Engine cranks slowly or starter clicks once, battery seems charged after sitting overnight
Test battery voltage at rest; a healthy 12 V battery reading low means charge or replace it first. Clean and tighten both cable ends, then measure voltage drop across each connection while cranking. Anything beyond the 0.2 to 0.3 V limit on page 121 points to a bad connection, not the starter motor.
Manual Section: Electrical System p. 121Power steering gets heavy at low idle, wheel jerks when turning with loader on
Check front tyre pressure before touching the hydraulics; inflate to 1.8 kgf/cm2 (25.6 psi) per page 76, since soft tyres mimic a steering fault. Then verify hydraulic oil level, inspect the suction filter for plugging, and bleed air from the lines. Work through the power assisted steering section starting on page 59 if the wheel stays heavy.
Manual Section: Power-Assisted Steering System p. 59Engine overheats mowing in hot weather, coolant pushes out of the radiator overflow
Check fan belt tension first; deflection should measure 13.8 to 14.8 mm per page 26, so tighten a loose belt before condemning parts. Clean chaff out of the radiator screen and fins. Then pull the thermostat and test it in heated water; it must start opening at 76.5 degrees C as listed on page 200.
Manual Section: Engine Service Data and Accessories p. 26Engine dies after running out of fuel, will not restart after refilling the tank
Fill the tank, open the bleed screw on the fuel filter, and let fuel run until it flows free of bubbles, then bleed at the injection pump following the air bleeding steps on page 27. If the injectors came out during service, torque the nozzles to 4.5 kg·m on reinstall before cranking the engine again.
Manual Section: Engine Service Data and Accessories p. 27Frequently Asked Questions
How do I bleed the fuel system on an Iseki TM3160/TM3200/TM3240 after a filter change?
To bleed the fuel system, first fill the fuel tank and turn the fuel cock to the 'OPEN' position. Loosen the air-bleeding screw (2) on the fuel filter to let air bubbles out, then loosen the air-bleeding screw (3) on the fuel injection pump to let air bubbles out of the pump. p. 28
What are the torque specifications for the cylinder head bolts on the Iseki TM3160/TM3200/TM3240?
The tightening torque for the cylinder head bolts is 5.5 - 6.5 kg·m. p. 24
What are the clutch part replacement specifications for the Iseki TM3160-TM3240 tractor?
The standard thickness for the clutch disc is 7.8 ± 0.3 mm or 8.3 ± 0.3 mm depending on the model, with a usable limit of 6.6 mm or 7.0 mm. The rivet depression must be greater than 0.2 mm; if it is 0.2 mm or less, the disc must be replaced. p. 32
What is the specified valve clearance for the engine in the Iseki TM3160-TM3240 tractor?
The valve clearance for both intake and exhaust valves is 0.25 mm. p. 8
What is the engine oil capacity for the TM3200/TM3240 models?
The engine crankcase capacity with filter for the TM3200 and TM3240 models is 2.7 liters. p. 9
Is this Iseki TM3160–TM3240 Series manual a download or a disc?
You get a 238-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I free to print this Iseki TM3160–TM3240 Series Service Manual?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
