Getting the most out of your tractor requires the daily maintenance facts found in this 136-page JCB Fastrac 125, Fastrac 145T Operator Manual PDF (OEM #9801/1310). Inside, you get a full breakdown of the cab layout, electronic linkage controls, and independent power take-off operation. Open the file for complete fluid capacities, step-by-step service schedules, and clear instructions for bleeding the fuel system or greasing the front axle hubs. Verify your engine oil filter interval is set for 500 operating hours and tighten the heavy-duty wheel nuts to exactly 500 Nm. Prevent costly downtime caused by missed service intervals and ignored dashboard warnings. Download this bookmarked file straight to your phone, jump directly to the correct fluid chart, and keep your equipment working hard.
What's Inside This JCB FASTRAC 125, 145T Operator Manual

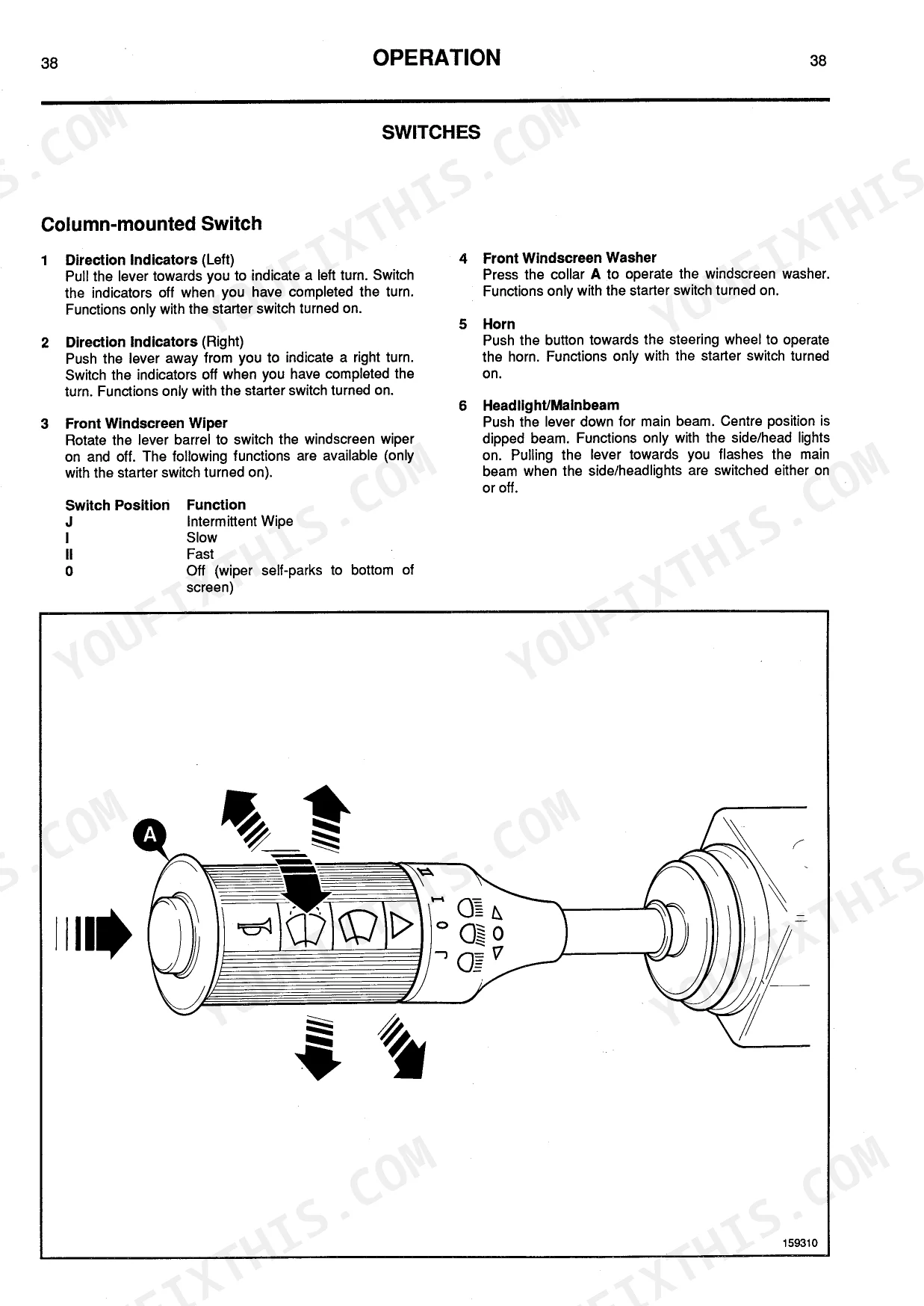

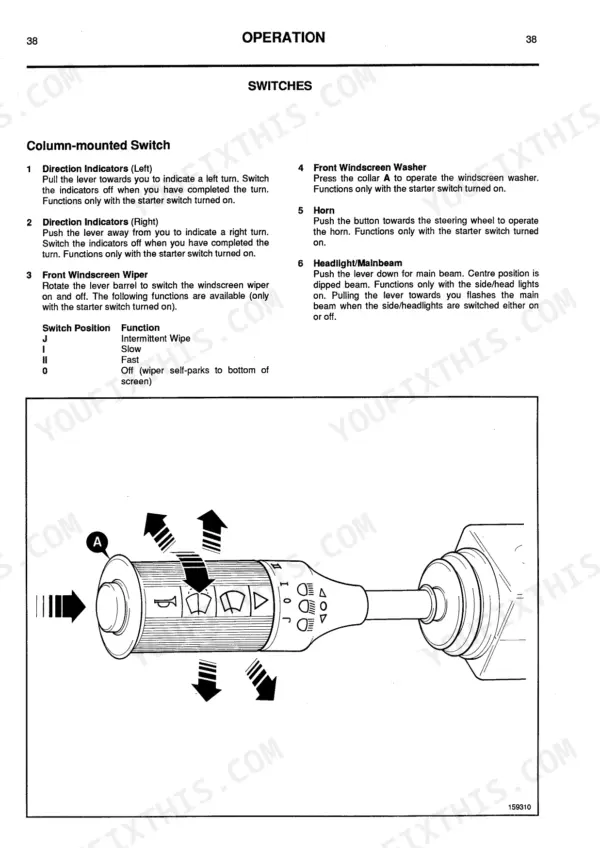

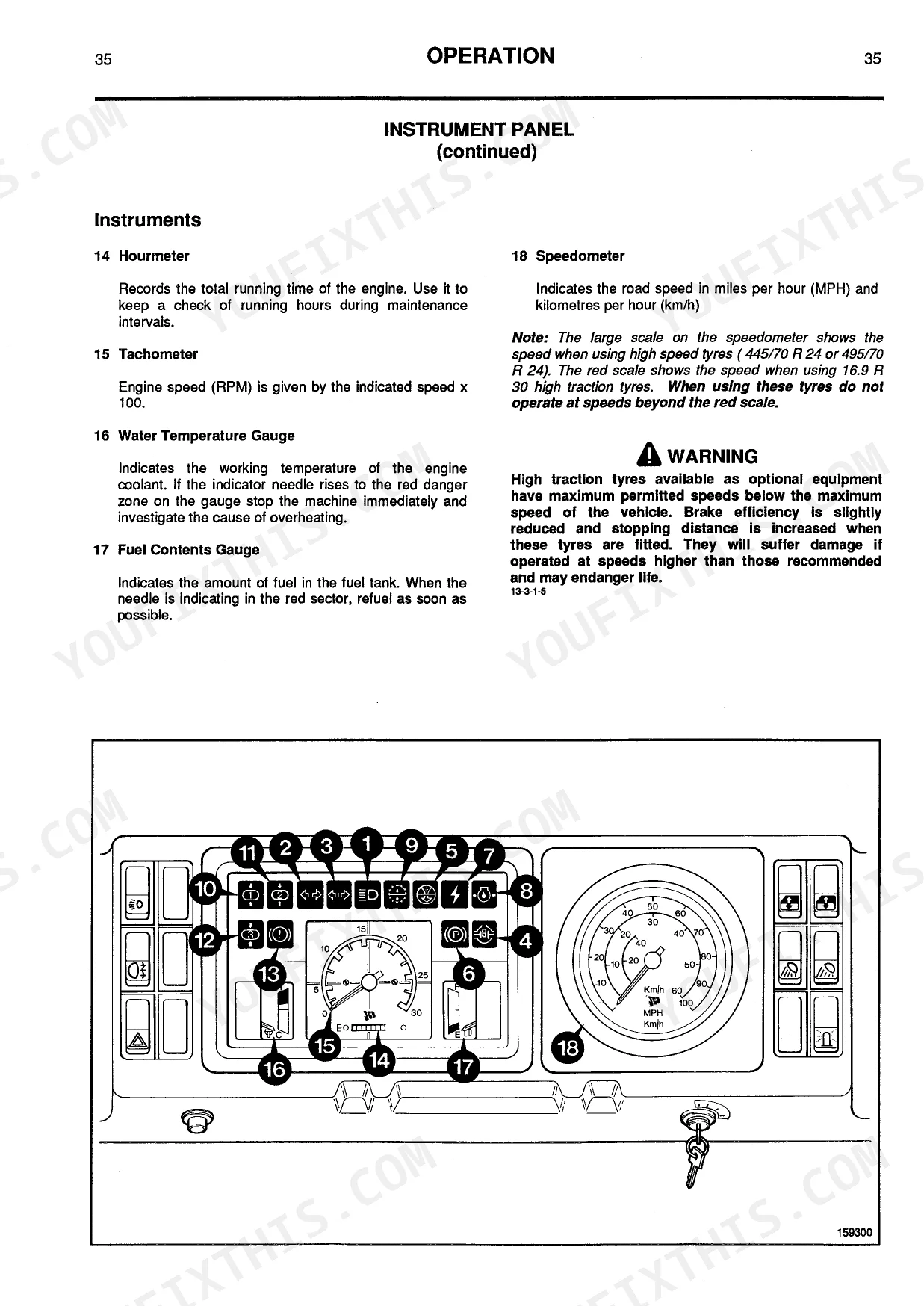

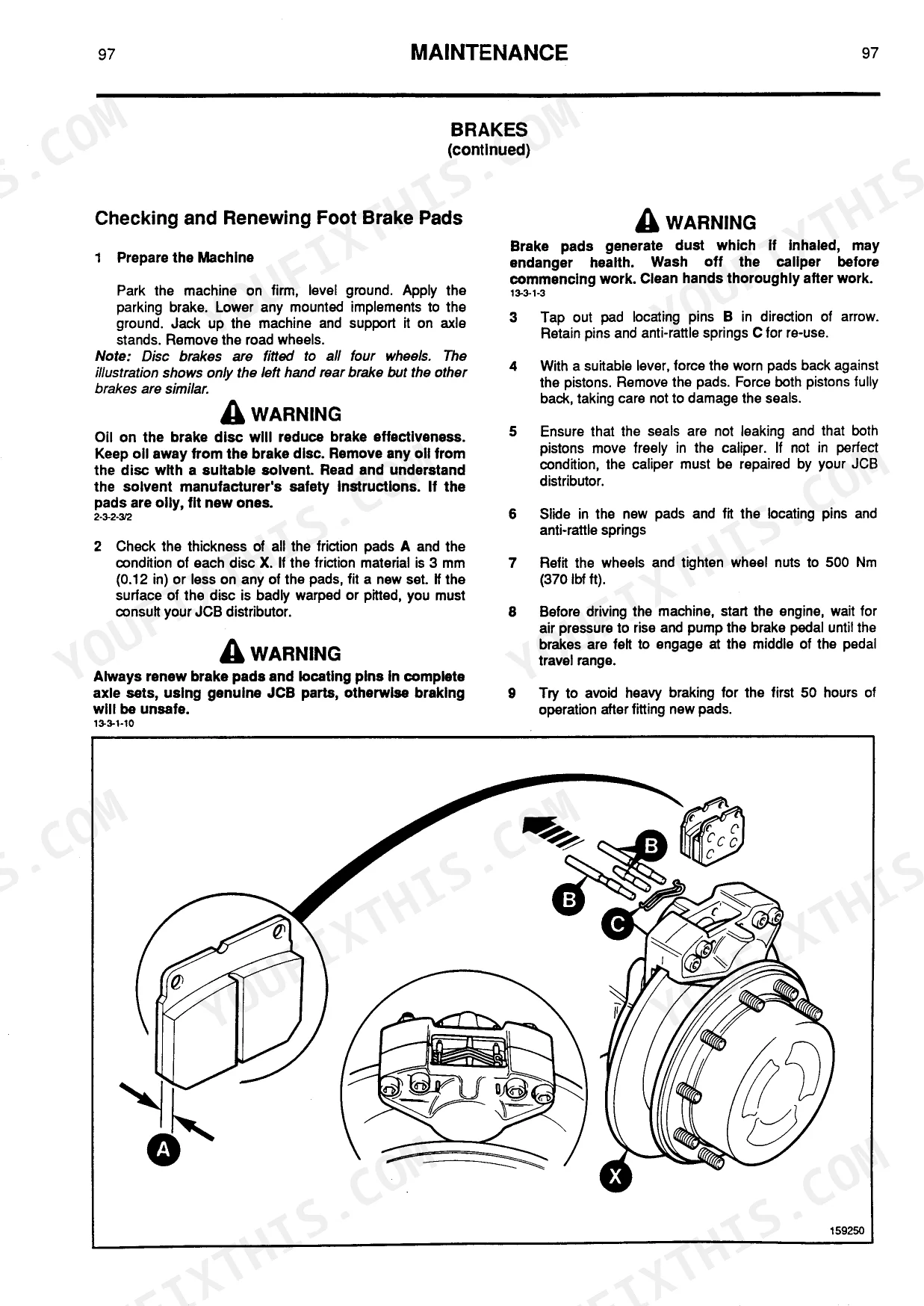

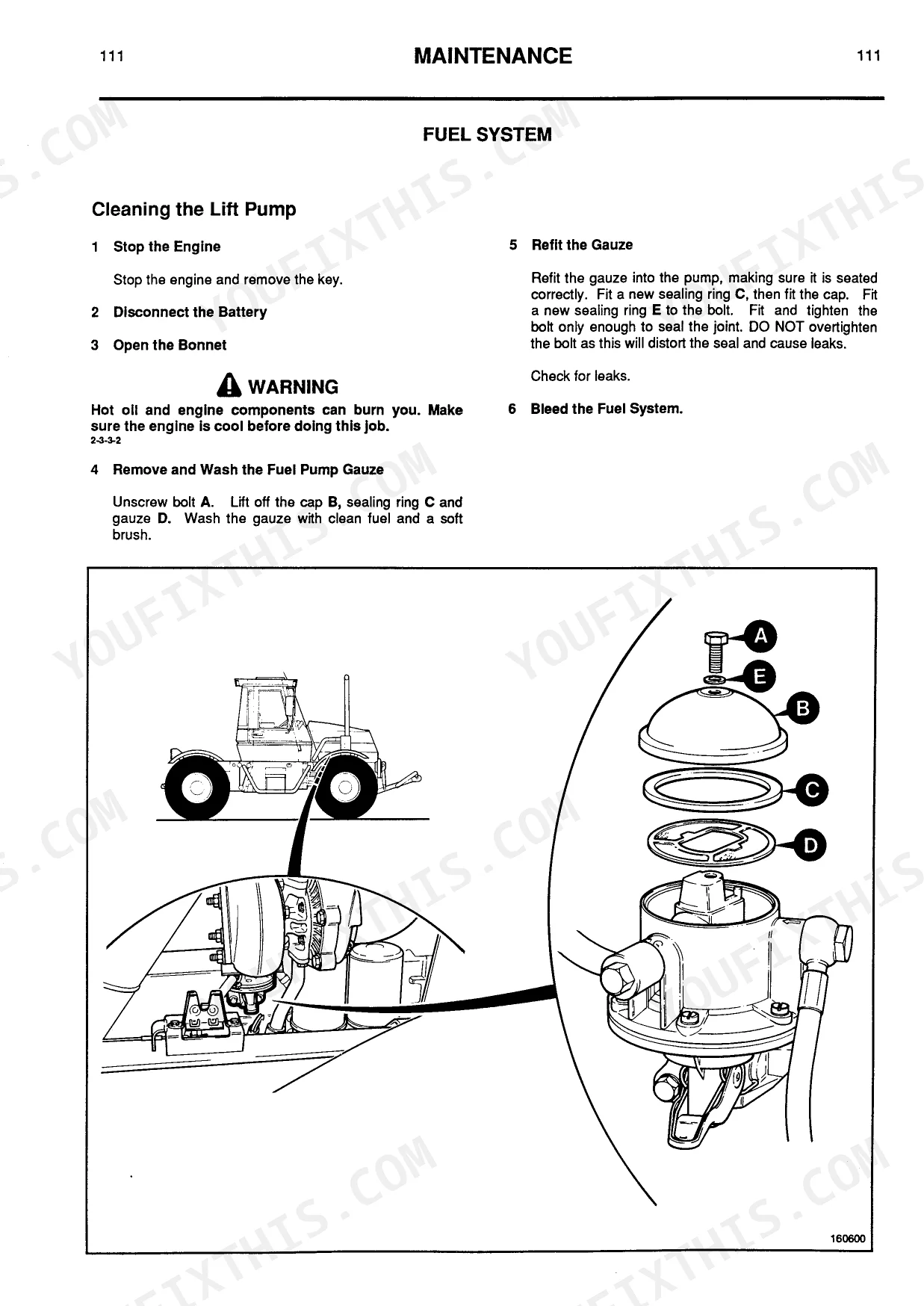

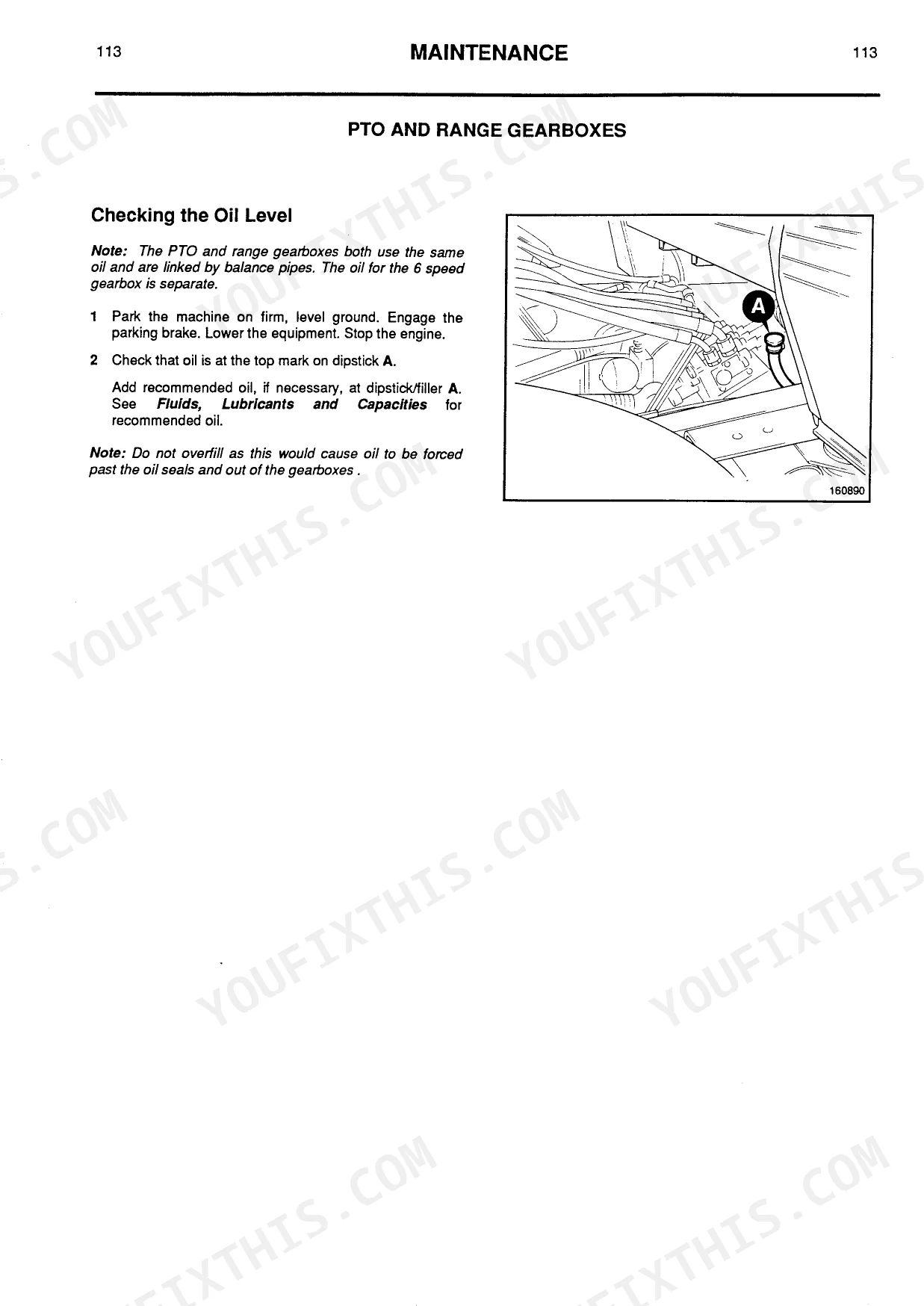

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 5-27 | About This Handbook, The JCB Fastrac, Safety First - Yours and Other People's, Operating Safety, Maintenance Safety, Safety Decals, Identifying Your Machine |
| Operation | 28-81 | Before Entering the Cab, Entering and Leaving the Cab, Doors and Windows (Opening and Closing the Doors, Opening and Closing the Windows, Emergency Exit), Cab Layout and Controls |
| Greasing | 84-94 | Service Contracts, Cleaning the Machine, Checking for Damage |
| Changing the Oil and Filter | 95-102 | Checking and Renewing the Parking Brake Pads, Brakes, Checking the Clutch Fluid Level, Checking and Renewing the Footbrake Pads, Changing the Inner Element, Engine Air Filter, Engine Oil and Filter |
| Draining/Cleaning the Sediment Bowl | 103-110 | Cleaning the Radiator, Changing the Coolant, Engine Cooling System, Coolant Mixtures, Fuel System, Adjusting the Fan Belts, Draining the Fuel Filters |
| Front Axle | 111-118 | Changing the Oil and Cleaning the Strainer, Bleeding the Fuel System, Cleaning the Lift Pump Gauze, PTO and Range Gearboxes, Front PTO Transfer Gearbox, Changing the Transmission Oil Filter, 6 Speed Gearbox |
| Tyres and Wheels | 119-122 | Rear Axle, Checking the Hub Oil Levels, Changing the Oil |
| Hydraulic System | 123-126 | Tyre Inflation, Checking and Adjusting the Front Wheel Toe-In |
| Air Conditioning | 127-130 | Battery, Electrical System, Windscreen Washer |
| Obtaining Replacement Parts | 131-136 | Adjusting the Compressor Belt |
JCB FASTRAC 125, 145T Common Problems This Manual Covers
JCB Fastrac 125 low or incorrect engine oil level found during daily walk-around inspection p. 87
Check the dipstick before operation to verify fluid levels. Fill the system with exactly 16.5 litres (UK Gal) of approved engine oil as specified on page 87. Replace the engine oil filter every 500 operating hours or six months to maintain peak performance.
Manual Section: MaintenanceParking brake condition appears poor or excessively worn during visual walk-around inspection p. 98
Inspect the brake components for severe wear, contamination, or damage. Measure the parking brake pads and replace them if the material thickness falls below 3 mm (0.12 in) as detailed on page 98. Torque the wheel nuts to 500 Nm (370 lbf ft) when reinstalling.
Manual Section: Brake System Maintenance/RepairFront and rear tyre cracking, bulging, or visible damage discovered during daily checks p. 122
Inspect all tyres for cuts, bulges, and severe tread wear. Verify the tyre inflation pressure is set to exactly 1.6 bar (23 lbf/in²) for 445/70 R 24 tyres running at 30 kph as outlined on page 122. Replace any compromised rubber immediately.
Manual Section: Tyre Inflation and RepairEngine overheating or severely restricted cooling performance observed during heavy field operation p. 107
Clean the radiator and cooling pack to remove dirt and debris buildup. Inspect the engine fan belts for proper tension and condition. Adjust the fan belt slack to exactly 10 mm (0.4 in) as specified on page 107 to restore optimal cooling.
Manual Section: Fan Belt AdjustmentFrequently Asked Questions
What are the torque specs for wheel nuts?
The correct torque setting for the wheel nuts is 500 Nm (370 lbf ft). It is recommended to check the wheel nut torques every ten hours until they remain correct, especially after a wheel has been removed and refitted. Before starting work each day, ensure the wheel nuts are tight.
What are the replacement specifications for engine oil filter?
To replace the engine oil filter, unscrew the single filter D (for normally aspirated engines) or the two filters E (for turbocharged engines). After cleaning the filter head, install new filters, ensuring the seals seat correctly and tightening them hand-tight only. For recommended oil grades, refer to the Fluids, Lubricants and Capacities chart on page 87, which specifies JCB 15W/40 Multigrade or JCB Super Universal Agricultural oil.
What are the replacement specifications for fuel filters?
To replace the fuel filter elements, first drain the fuel filters, then remove the bowl, element D, and 'O' ring E seals F and G. Wash the bowl in clean fuel. Install the new element D, new 'O' ring E sealing rings F and G, ensuring they seat correctly, and tighten bolt C. For fuel standards, refer to page 108 of the manual.
What should I check if the parking brake looks worn or performs poorly during a walk-around?
Inspect the brake components for severe wear, contamination, or damage. Measure the parking brake pads and replace them if the material thickness falls below 3 mm (0.12 in) as detailed on page 98. Torque the wheel nuts to 500 Nm (370 lbf ft) when reinstalling.
What do I do about tyre cracking, bulging, or visible damage found during daily checks?
Inspect all tyres for cuts, bulges, and severe tread wear. Verify the tyre inflation pressure is set to exactly 1.6 bar (23 lbf/in²) for 445/70 R 24 tyres running at 30 kph as outlined on page 122. Replace any compromised rubber immediately.
How do I fix engine overheating or restricted cooling during heavy field operation?
Clean the radiator and cooling pack to remove dirt and debris buildup. Inspect the engine fan belts for proper tension and condition. Adjust the fan belt slack to exactly 10 mm (0.4 in) as specified on page 107 to restore optimal cooling.
Document Quality
This document is a scanned PDF, meaning the text is embedded as images and is not searchable or selectable. The text quality is generally clear and readable, though it lacks the crispness of a native digital file. All diagrams and illustrations are raster images, which will show pixelation upon significant zooming, but their labels remain mostly readable. Pages are clean with minimal scan artifacts or background noise, and no significant stains or skewed content are present. Please note there are several blank pages interspersed throughout the document.
