Operating a 2002-2007 backhoe requires the right factory instructions, which is exactly what you get in this 176-page JCB 214 Operator Manual PDF (OEM #9048) covering the 214S, 215, 215E, 217, and 217S variants. Inside, you will find complete daily service schedules, dashboard indicator explanations, and safe operating limits for both the loader and backhoe attachments. Open up the maintenance section to discover detailed greasing routines, complete fluid capacities, and step-by-step procedures for safely anchoring your machine to a transport trailer. Lock down your front and rear wheel nuts to exactly 500 lbf ft (680 Nm) and secure the 4WS differential drain plug at 60 lbf ft before starting your shift. Ignoring daily upkeep leads to expensive downtime. Download this bookmarked file directly to your phone or tablet and keep your backhoe moving dirt.
What's Inside This JCB 214–217 Operator Manual
| System | Pages | Key Topics |
|---|---|---|

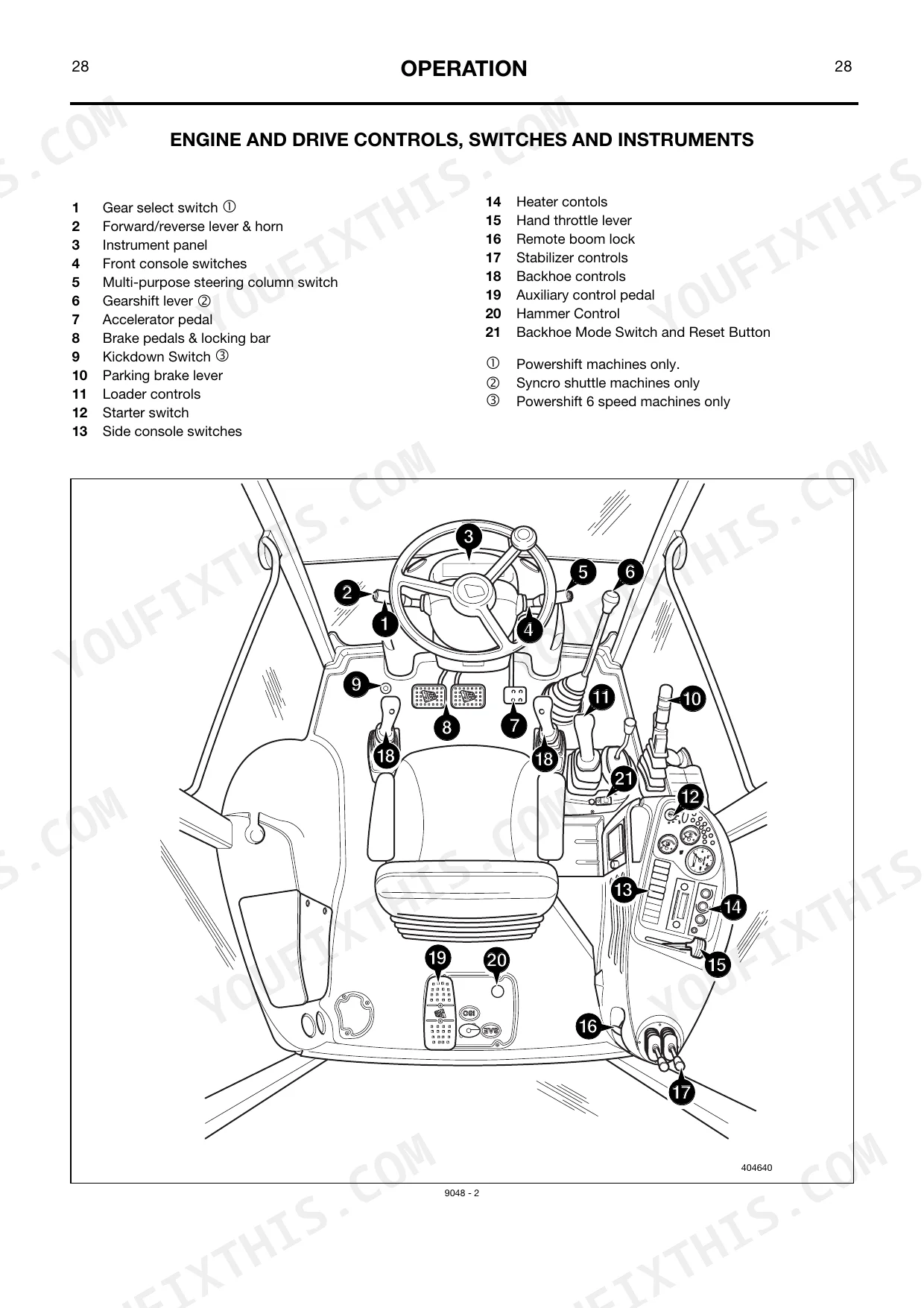

| Operation | 15-73 | Engine and Drive Controls, Switches and Instruments, Air Conditioning and Heater Controls, Loader Controls, Stabilizer Controls, Backhoe Controls, Boom and Swing Lock |
| Moving a Disabled Machine | 74 | Transmission, Hydraulic Circuits, Loader Arms, Backhoe, Stabilizers, Draw-Bar |
| Transporting the Machine | 75-76 | Move the Machine Onto the Trailer, Anchor the Machine, Measure the Machine Height |
| Maintenance | 77-134 | Lubricants - Health and Safety, Service Schedules, Greasing, Engine Oil and Filter, Fuel System, Hydraulic System |
| Windshield Washer | 135 | - |
| Stabilizer Legs (Sideshift Machines Only) | 136 | Wear Pads, Upper Wear Pads, Lower Wear Pads, Stabilizer Inner Leg, Outer Leg, Adjustable Pad |
| Air Conditioning | 137 | Re-Circulation Switch, Three Speed Fan Switch, Temperature Control Switch, Air Conditioning Switch, Air Distribution Control Switch, Compressor Drive Belt |
| Hose Burst Protection Valve | 138 | Checking Hose Burst Protection Valve, Lowering a Load, Boom and Dipper Hose Burst Protection Valve (Hbpv), Loader Hose Burst Protection Valve (Hbpv) |
| Service Capacities and Lubricants | 139-140 | Fuel Tank, Engine Oil, Engine Coolant, Synchro Shuttle Transmission, Powershift Transmission, Hydraulic System, Front Axle, Rear Axle |
| Optional Attachments | 141-162 | Quick Release Couplings, Loader Quickhitch, Backhoe Quick-Hitch, Directly Mounted Backhoe Attachments, Forks, Hydraulic Tool Circuit |

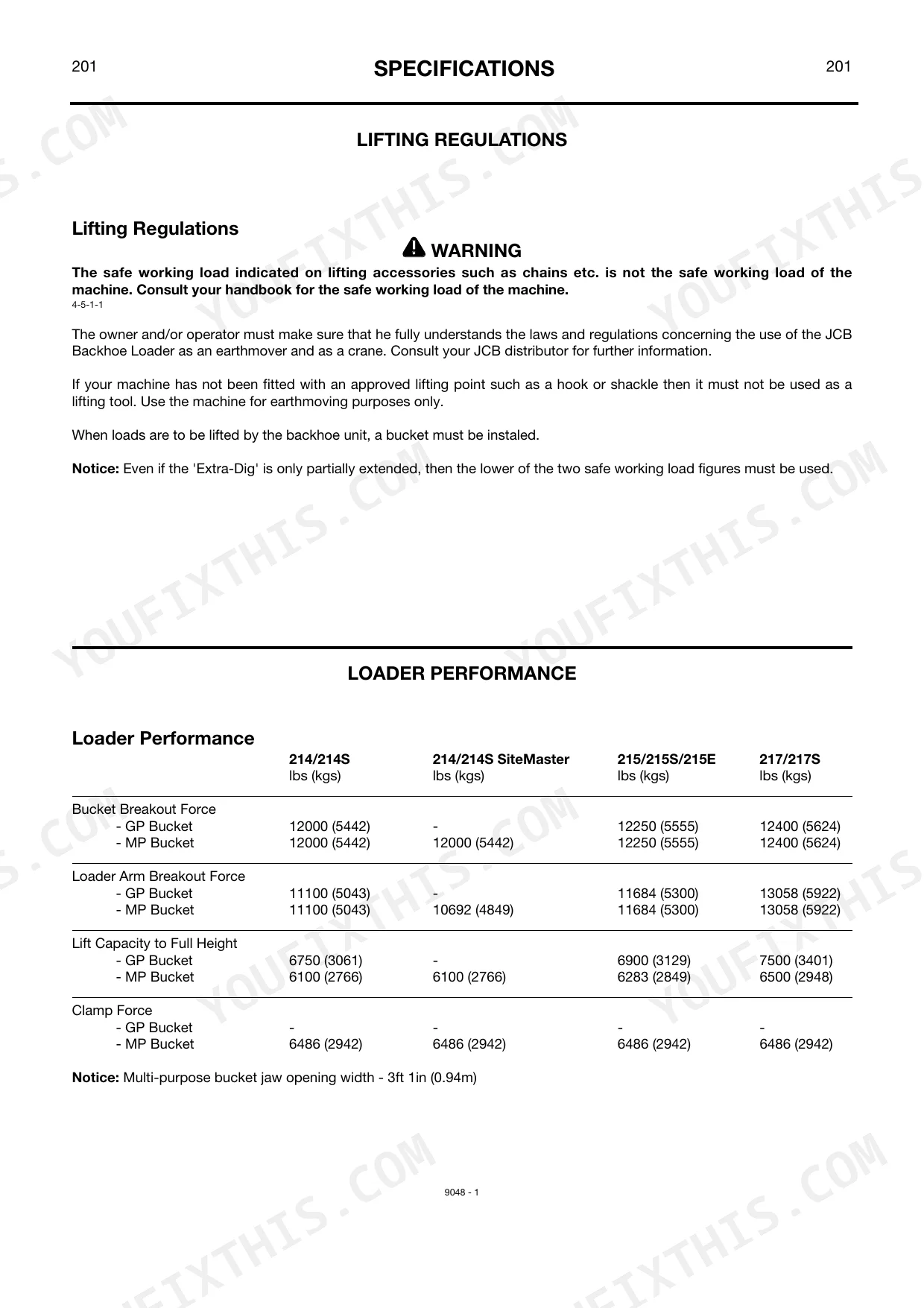

| Specifications | 163-176 | Lifting Regulations, Loader Performance, Backhoe Bucket Weights and Dimensions, Static Dimensions, Sae Lift Charts, Tire Sizes and Pressures |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Hydraulic Filter Warning Reset Procedure | Not found. The manual describes changing the filter element but does not provide a specific reset procedure for a warning light. It suggests contacting the nearest dealer for electronic input signal malfunction. | p. 34 |
| Wheel Nut Torque - Front | 500 lbf ft (680 Nm) | p. 110 |
| Wheel Nut Torque - Rear | 500 lbf ft (680 Nm) | p. 110 |
| Battery Electrolyte Level | 1/4 in (6 mm) above the plates | p. 144 |
| Alternator Fan Belt Slack | 3/8 in (10 mm) | p. 119 |
| Starter Motor Operating Limit | Do not operate for longer than 20 seconds at one time; allow two minutes to cool between starts | p. 37 |
| Auxiliary Hydraulics Fuse Rating | 10 Amp | p. 125 |
| Fuel Tank Capacity | 39.6 US Gal (150 Liters) | p. 139 |
| 4WS machines | ||
| Differential Drain/Fill Plug Torque | 60 lbf ft (79 Nm) | p. 122 |
| AK and AR Build Engines | ||
| Hazard Warning Lights Link Box Fuse Rating | 30 Amp | p. 126 |
| RE and RG Build | ||
| Engine Oil Capacity (RE and RG Build) | 2.87 US Gal (10.9 Liters) | p. 139 |
| AK and AR Build | ||
| Engine Coolant Capacity (AK and AR Build) | 6.07 US Gal (23 Liters) | p. 139 |
JCB 214–217 Common Problems This Manual Covers
JCB 214 engine cranks but will not start or turns over intermittently in cold weather p. 144
Check the battery electrolyte level is exactly 1/4 in (6 mm) above the plates as shown on page 144. Inspect the starter motor limits on page 37; do not operate for longer than 20 seconds at one time and allow two minutes to cool between starts.
Manual Section: MaintenanceMachine will not move forward or reverse and battery voltage drops steadily during operation p. 119
Inspect the charging system components and wiring connections. Check the alternator fan belt slack on page 119 to ensure it measures exactly 3/8 in (10 mm). Adjust the belt tension if necessary to maintain proper charging voltage for the transmission control circuits.
Manual Section: MaintenanceAuxiliary hydraulic attachments stop responding to control inputs after connecting a new loader tool p. 125
Verify the electrical connections at the quick release couplings. Inspect the main fuse panel using the chart on page 125. Replace the auxiliary hydraulics fuse if blown, ensuring you only install a correct 10 Amp replacement fuse to protect the circuit.
Manual Section: MaintenanceLoader arms lift slowly and hydraulic pump whines loudly under heavy digging loads p. 140
Check the hydraulic fluid level at the sight glass before operating. Fill the reservoir to the correct level, noting the total system capacity is 34.3 US Gal (130 Liters) as detailed on page 140. Clean debris from the filler cap to prevent system contamination.
Manual Section: Service Capacities and LubricantsFrequently Asked Questions
What are the replacement specifications for battery?
The manual specifies that the machine operates on a 12 volt, negative ground electrical system. When replacing the battery or using a booster supply, ensure it is compatible with this 12 volt system, as a higher voltage supply will damage the machine's electrical system. Specific battery capacity (e.g., Ah, CCA) is not provided.
How do you fix JCB 214 engine cranks but will not start or turns over intermittently in cold weather?
Check the battery electrolyte level is exactly 1/4 in (6 mm) above the plates as shown on page 144. Inspect the starter motor limits on page 37; do not operate for longer than 20 seconds at one time and allow two minutes to cool between starts.
How do you fix machine will not move forward or reverse and battery voltage drops steadily during operation?
Inspect the charging system components and wiring connections. Check the alternator fan belt slack on page 119 to ensure it measures exactly 3/8 in (10 mm). Adjust the belt tension if necessary to maintain proper charging voltage for the transmission control circuits.
How do you fix auxiliary hydraulic attachments stop responding to control inputs after connecting a new loader tool?
Verify the electrical connections at the quick release couplings. Inspect the main fuse panel using the chart on page 125. Replace the auxiliary hydraulics fuse if blown, ensuring you only install a correct 10 Amp replacement fuse to protect the circuit.
Is this JCB 214 & variants Operator Manual a digital download?
Instant PDF download. You get the full 176-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
