All 470 pages of this John Deere 325, 345 Technical Manual PDF (OEM TM1574 Feb-95) exist to get your Lawn and Garden Tractor running right, whether you're wrenching on the 325's FC540V engine or the 345's FD590V. Inside you'll find full electrical schematics covering power, cranking, and ignition circuits, a hydraulic lift system diagram with oil flow and pressure checks, and troubleshooting charts that walk you through both engines step by step. You also get complete torque value tables and hydrostatic transmission procedures for both models. Set your spark plug gap to 0.76 mm and torque it to 20 N·m, then check fuel pump pressure against the 6.12 kPa minimum before you chase a phantom no-start. No more flipping through a shop manual missing half the wiring. This bookmarked, searchable PDF jumps straight to whichever system you're chasing, on your laptop or your phone in the shop.
What's Inside This John Deere 325, 345 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3 | Specifications, Component Location, System Schematic, Theory of Operation, Troubleshooting Chart, Tests and Adjustments |
| Safety | 4-9 | Handle Fluids Safely-Avoid Fires, Use Care in Handling and Servicing Batteries, Service Cooling System Safely, Use Safe Service Procedures |

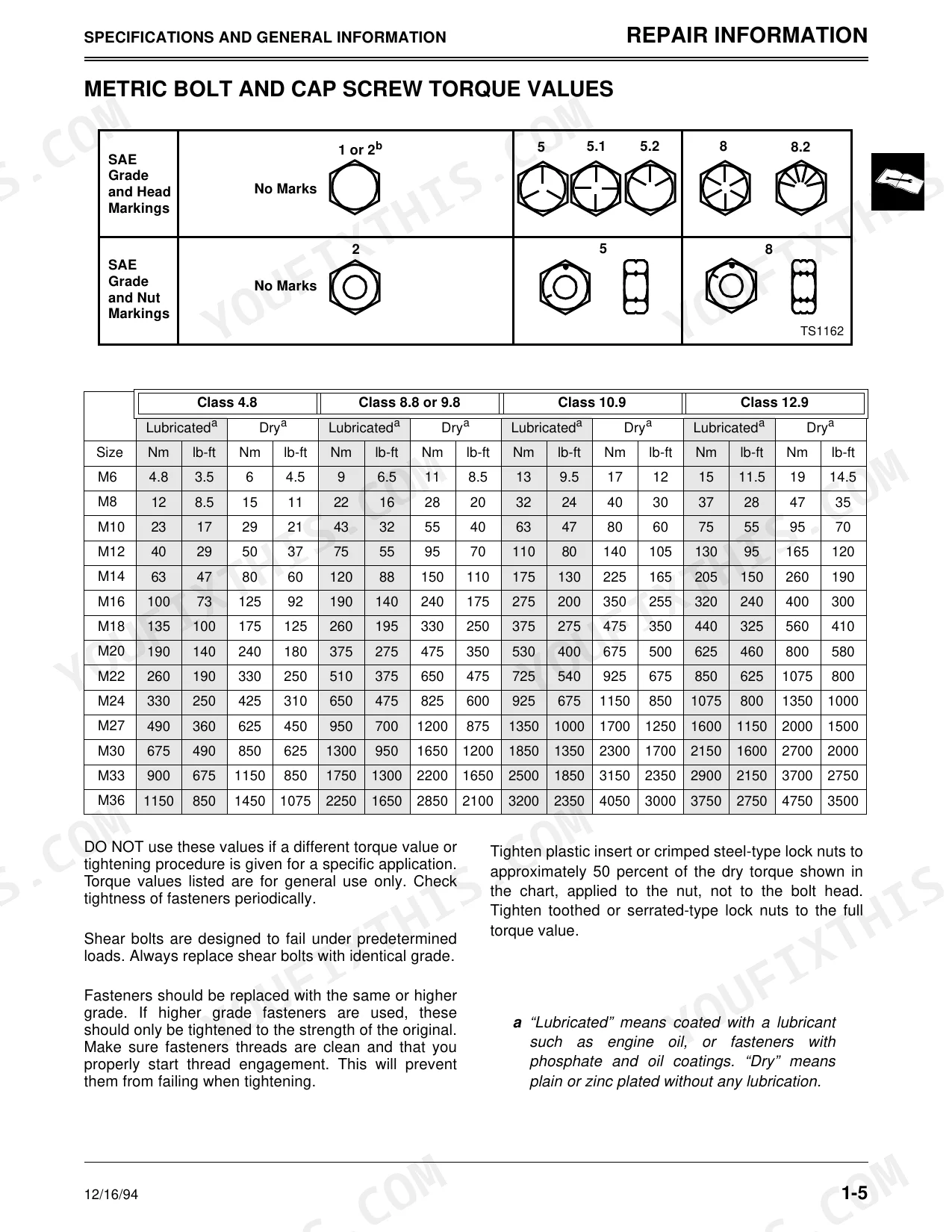

| Specs/General Info | 10-23 | General Vehicle Specifications, Metric Bolt and Cap Screw Torque Values, Unified Inch Bolt and Cap Screw Torque Values, Fuel and Lubricants, Serial Number Locations, Engine Oil |

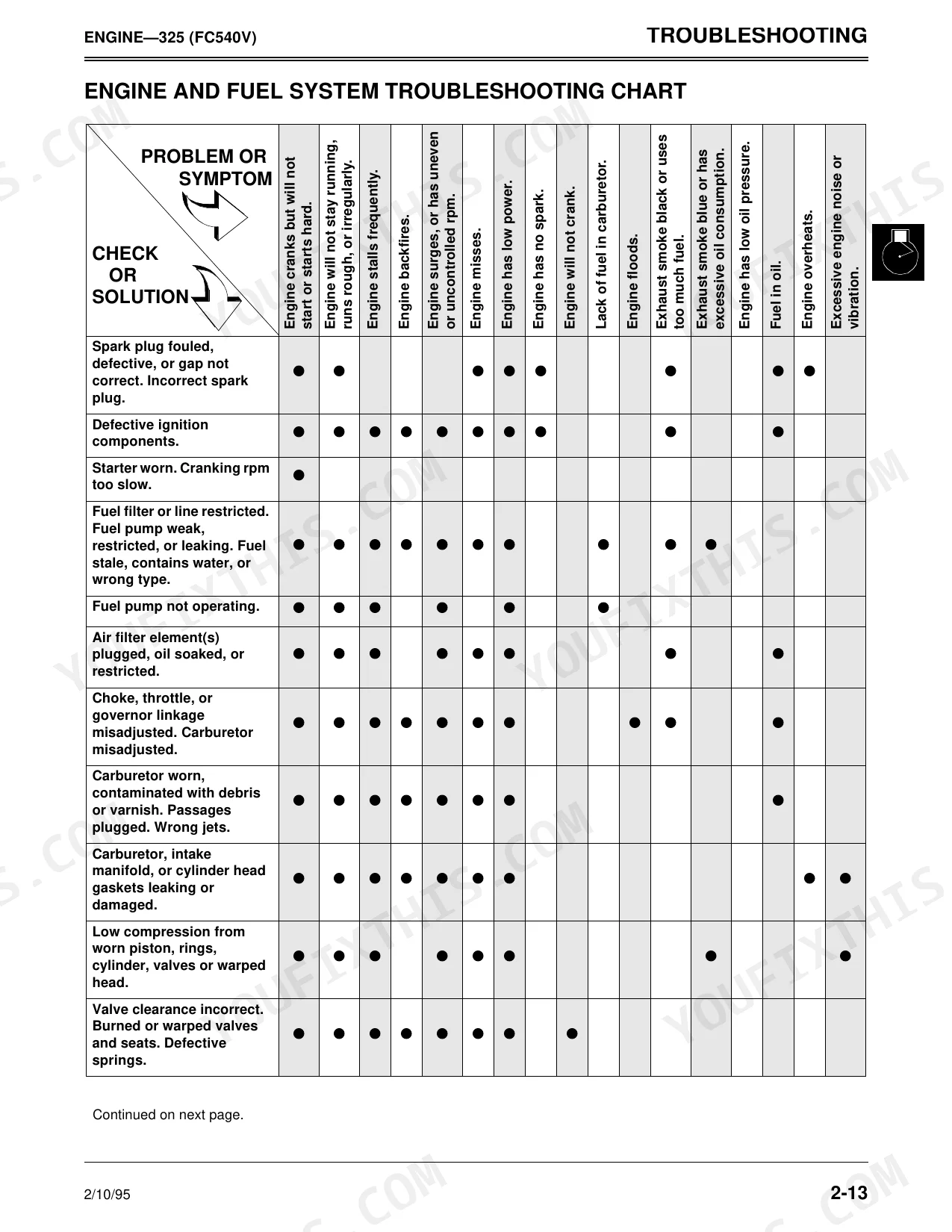

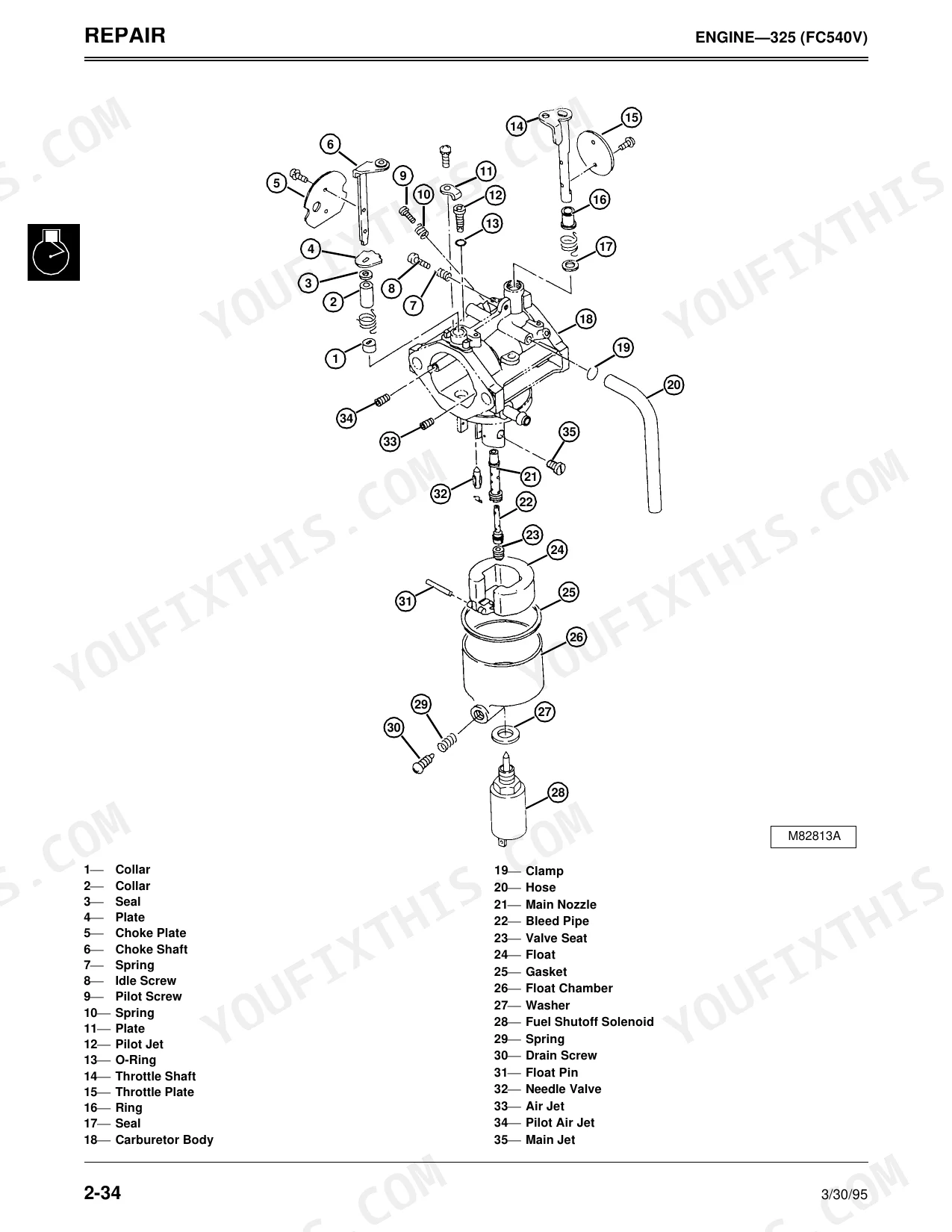

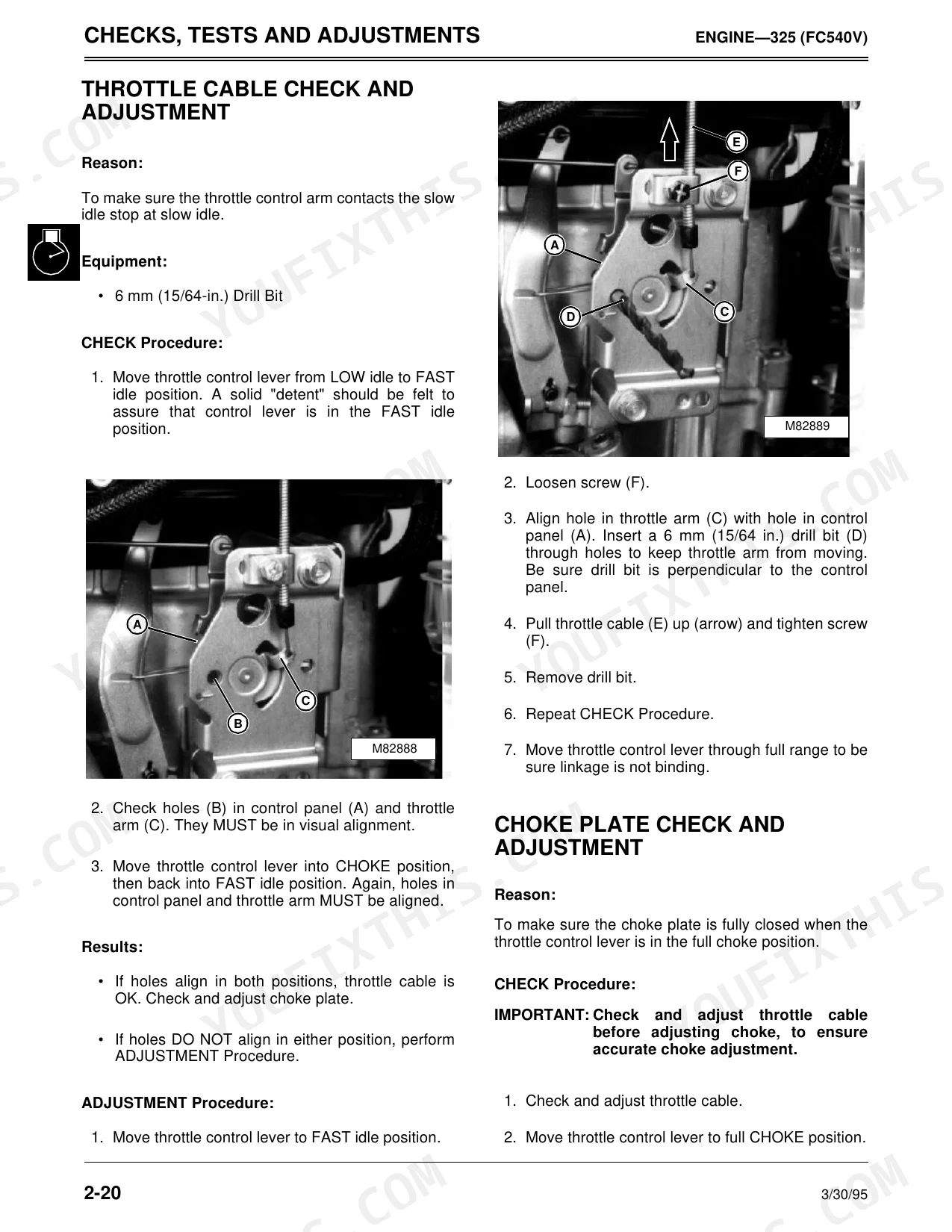

| 325 Engine | 24-87 | Engine Designation, Test and Adjustment Specifications, Exterior Engine Components, Engine and Fuel System Troubleshooting Chart, Cylinder Compression Pressure Test |
| 345 Engine | 88-157 | Engine Designation, Test and Adjustment Specifications, Exterior Engine Components, Engine and Fuel System Troubleshooting Chart, Cylinder Compression Pressure Test, Radiator |

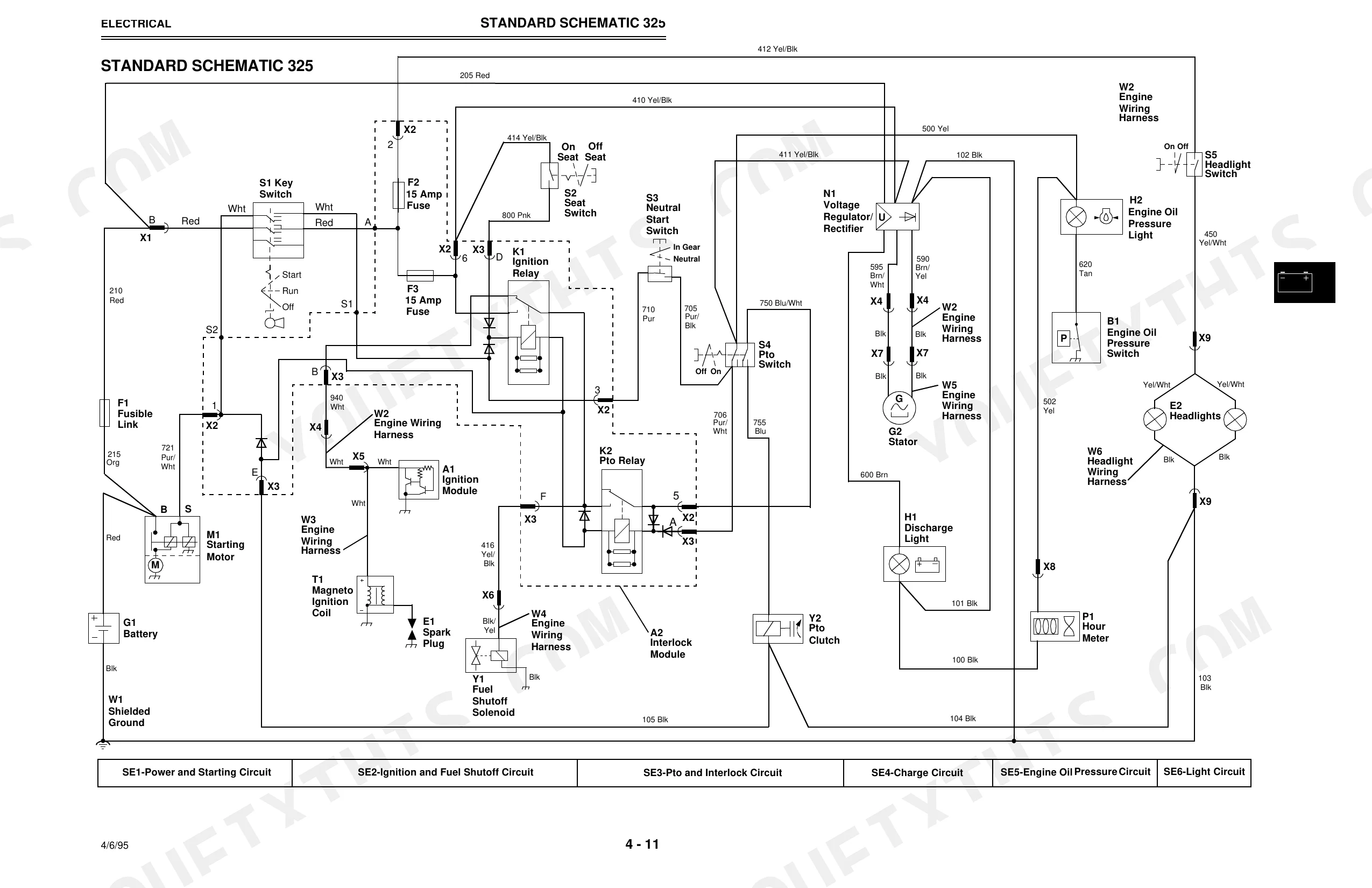

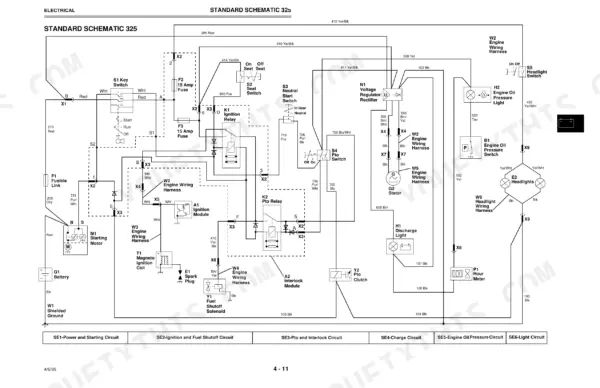

| Electrical | 158-285 | Test and Adjustment Specifications, Component Location, Standard Electrical Schematic, Power Circuit Operation, Cranking Circuit Operation, Ignition Circuit Operation |
| Power Train | 286-339 | Repair Specifications, Hydrostatic Transmission Components, Hydrostatic System Operation, Transaxle Operation, Gear Power Flow, Neutral Creep Adjustment, Hydrostatic Transmission |
| 325 Steering | 340-353 | Adjustment Specifications, Steering System Components and Operation, Steering Gearbox Operation, Drag Link, Toe-In, Steering Gearbox |
| 345 Steering | 354-377 | Steering VALVE/SYSTEM Operation, Tilt Steering Operation, Steering Cylinder, Steering Valve and Column, Toe-In Adjustment, Steering System Leakage Test |
| Brakes | 378-393 | External Brake Linkage Operation, Internal Brake Linkage Operation, Brake Linkage Check and Adjustment, Brake Pedal and Linkage, Brake Assembly |

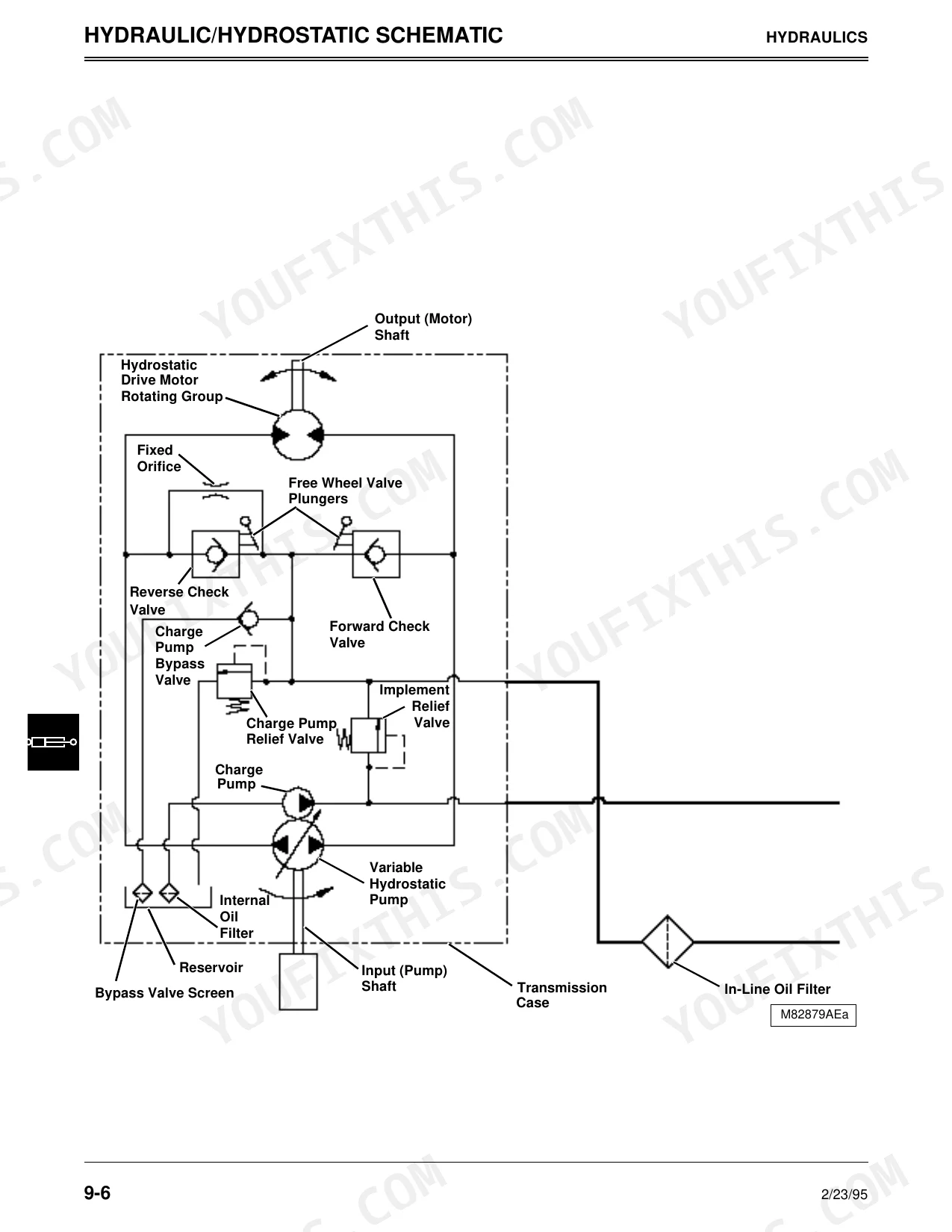

| Hydraulic | 394-415 | Hydraulic Lift System Components, HYDRAULIC/HYDROSTATIC Schematic, Hydraulic Lift System, Hydraulic Lift Oil Flow and Pressure Check, Hydraulic Lift Control Valve |
| Attachments | 416-453 | - |
| Miscellaneous | 454-463 | - |

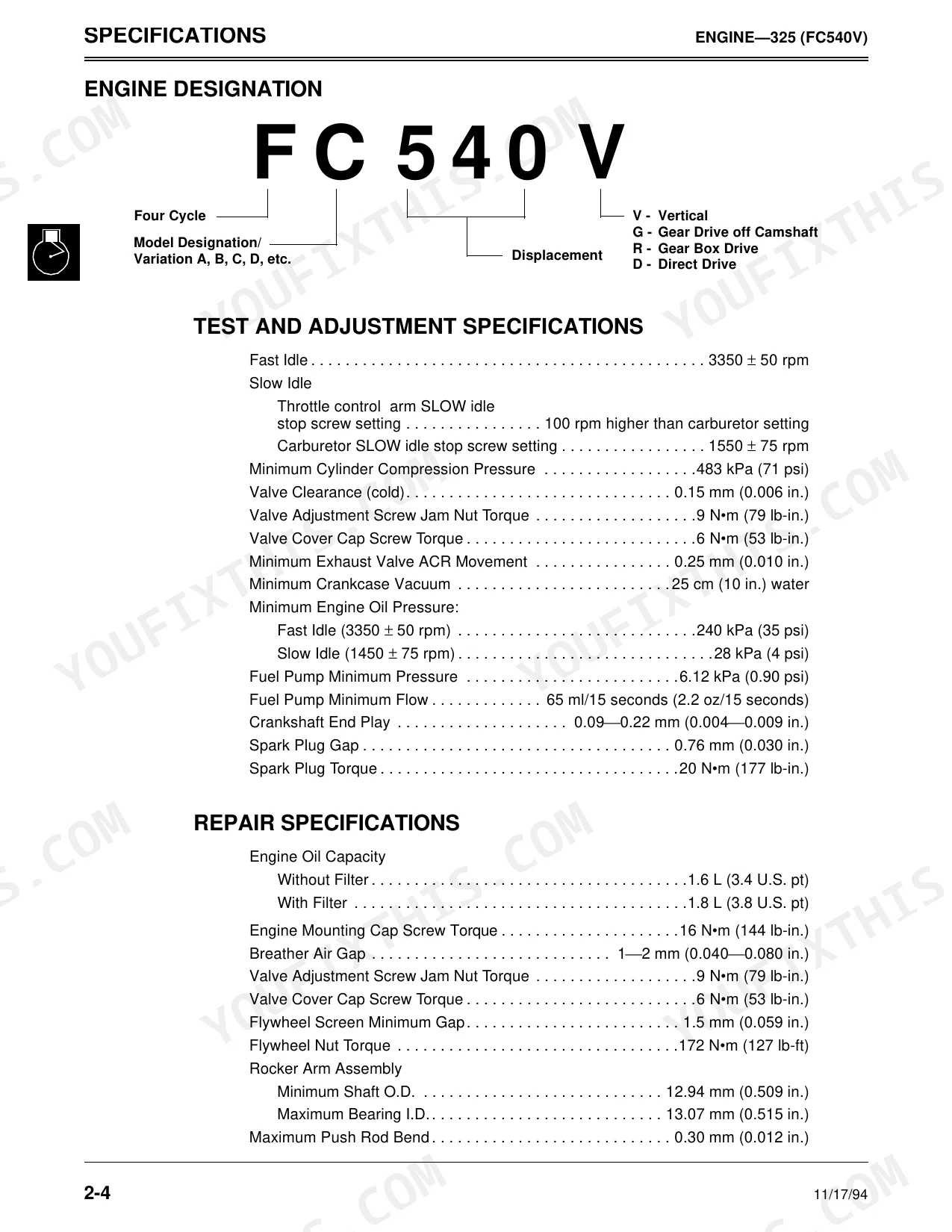

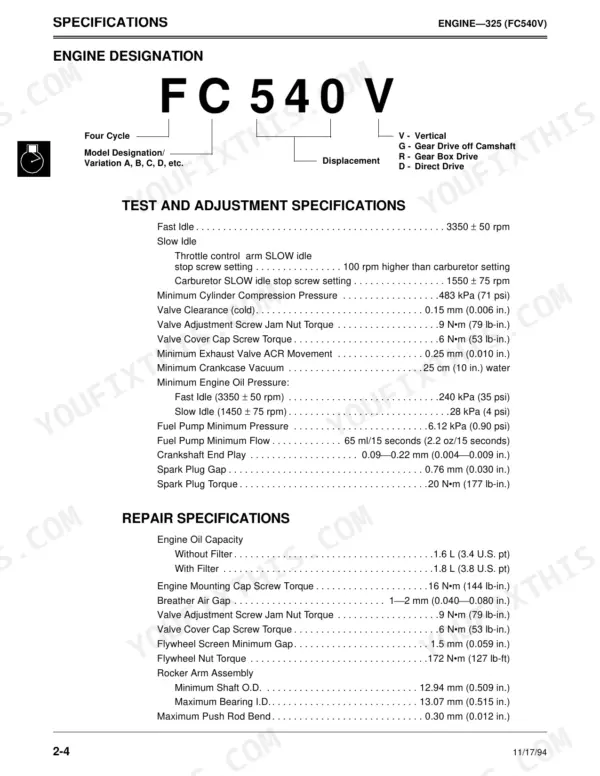

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel pump diaphragm | TM1574 Feb-95 | p. 1 |
| Fuel Pump Minimum Pressure | 6.12 kPa (0.90 psi) | p. 27 |
| Spark Plug Gap | 0.76 mm (0.030 in.) | p. 27 |
| Spark Plug Torque | 20 N•m (177 lb-in.) | p. 27 |
| Engine Oil Capacity Without Filter | 1.6L (3.4 U.S. pt) | p. 27 |
| Engine Oil Capacity With Filter | 1.8L (3.8 U.S. pt) | p. 27 |
| Pressure for Minimum at 15 Seconds | 90 kPa (13 psi) | p. 91 |
| Radiator Cap Opening Pressure | 73–103 kPa (10.5–15 psi) | p. 91 |
| Fuel Tank Capacity (Total) | 13.2 L (3.50 U.S. gal) | p. 12 |
| Battery Voltage | 12V | p. 12 |
| 325 | ||
| Engine Horsepower (SAEJ1940) | 12.6 kW (17 HP) | p. 11 |
| 345 | ||
| Engine Horsepower (SAEJ1940) | 13.4 kW (18 HP) | p. 11 |
John Deere 325, 345 Common Problems This Manual Covers
John Deere 325/345 engine dies every few minutes while mowing, needs choke to restart
Test fuel pump output before condemning the carburetor. On page 27, minimum flow is 65 ml per 15 seconds (2.2 oz) at 6.12 kPa (0.90 psi) minimum pressure. Remove the pump and check for disintegrated diaphragm material; black rubber debris in the fuel bowl means the carburetor needs full disassembly and cleaning before reinstalling a new pump.
Manual Section: 325 Engine p. 27Engine cranks but won't fire, or fails to start at all on random occasions
Check battery voltage and connections first; a healthy system holds the full 12V rating listed on page 12. Clean and tighten the battery cables and starter connections. Test the Interlock Module (A2) output separately and replace it if intermittent no-start continues after charging, as issues with the interlock module can prevent cranking.
Manual Section: Electrical p. 158Oil is leaking from the right cylinder and pooling inside the muffler housing
Pull the right-side spark plug and check for wet fouling, a sign oil is bypassing into the cylinder. Inspect the valve guide clearance and piston rings for wear; oil capacity with filter runs 1.9 L (4.0 U.S. pt) on page 93, so track consumption between changes. Replace worn valve guides or piston seals and retest for leakage into the muffler.
Manual Section: 345 Engine p. 93Mower spindle keeps spinning more than 5 seconds after the PTO is disengaged
Time the spindle from PTO disengagement with a stopwatch. Inspect the PTO brake pads for glazing or wear and check spring tension on the brake arm. Replace the brake assembly if drag is insufficient, and verify blade balance isn't adding rotational inertia that extends stopping time.
Manual Section: Mower Decks Troubleshooting & DiagnosisCoolant warning light stays on the dash despite the engine running at normal temperature
Check coolant level in the overflow tank and radiator cap seal; opening pressure should read 73-103 kPa (10.5-15 psi) per page 91. Inspect the coolant temperature sending unit and its wiring connector for corrosion, since a false signal often triggers the dash light without an actual overheating condition. Bleed air from the system and retest after topping off coolant.
Manual Section: 345 Engine p. 91Frequently Asked Questions
What are the torque specifications for John Deere 325 engine mounting bolts?
For the John Deere 325 engine, the engine mounting cap screw torque is 16 N•m (144 lb-in.). The cylinder head cap screws require an initial torque of 32 N•m (24 lb-ft) and a final torque of 52 N•m (38 lb-ft) when lubricated. Connecting rod cap screws should be tightened to 20 N•m (177 lb-in.). p. 27
What are the torque specifications for the rear wheel cap screws on John Deere 345?
The torque specification for the rear wheel cap screws on the John Deere 345 is 88 N•m (65 lb-ft). This ensures proper fastening of the wheels to the axle shafts. p. 455
What is the engine oil capacity for the John Deere 325 with a filter?
The engine oil capacity for the John Deere 325, when including the filter, is 1.8 L (3.8 U.S. pt). This measurement is crucial for proper engine lubrication and performance. p. 11
What is the recommended spark plug gap for the John Deere 325 engine?
The recommended spark plug gap for the John Deere 325 engine is 0.76 mm (0.030 in.). This gap ensures optimal spark for igniting the fuel/air mixture. p. 27
What format is this John Deere 325, 345 manual in?
You get a 470-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this John Deere 325, 345 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are there hydraulic schematics in this John Deere 325, 345 manual?
Yes, this John Deere 325, 345 Technical Manual includes a hydraulic system diagram.
