Covering the 2007 Kioti LK30 (OEM #SS41-W00), this workshop manual runs through engine teardown, transmission servicing, the hydraulic system, brakes, and the full electrical circuit from battery to lighting across its 326 pages. Hydraulic schematics map both the lift and steering circuits; wiring diagrams give component locations and a legend. Tightening-torque tables cover every fastener on the machine, and step-by-step procedures walk through clutch disassembly, rear axle, front differential, and fuel injection. Set clutch pedal free play to 20-30 mm. Once shaft-to-housing clearance passes 0.5 mm, the clutch is already beyond the factory allowable limit. No more guessing at wear limits: pull the PDF up on your phone, jump to any section with bookmarks, and fix it right.
What's Inside This Kioti LK30 Manual

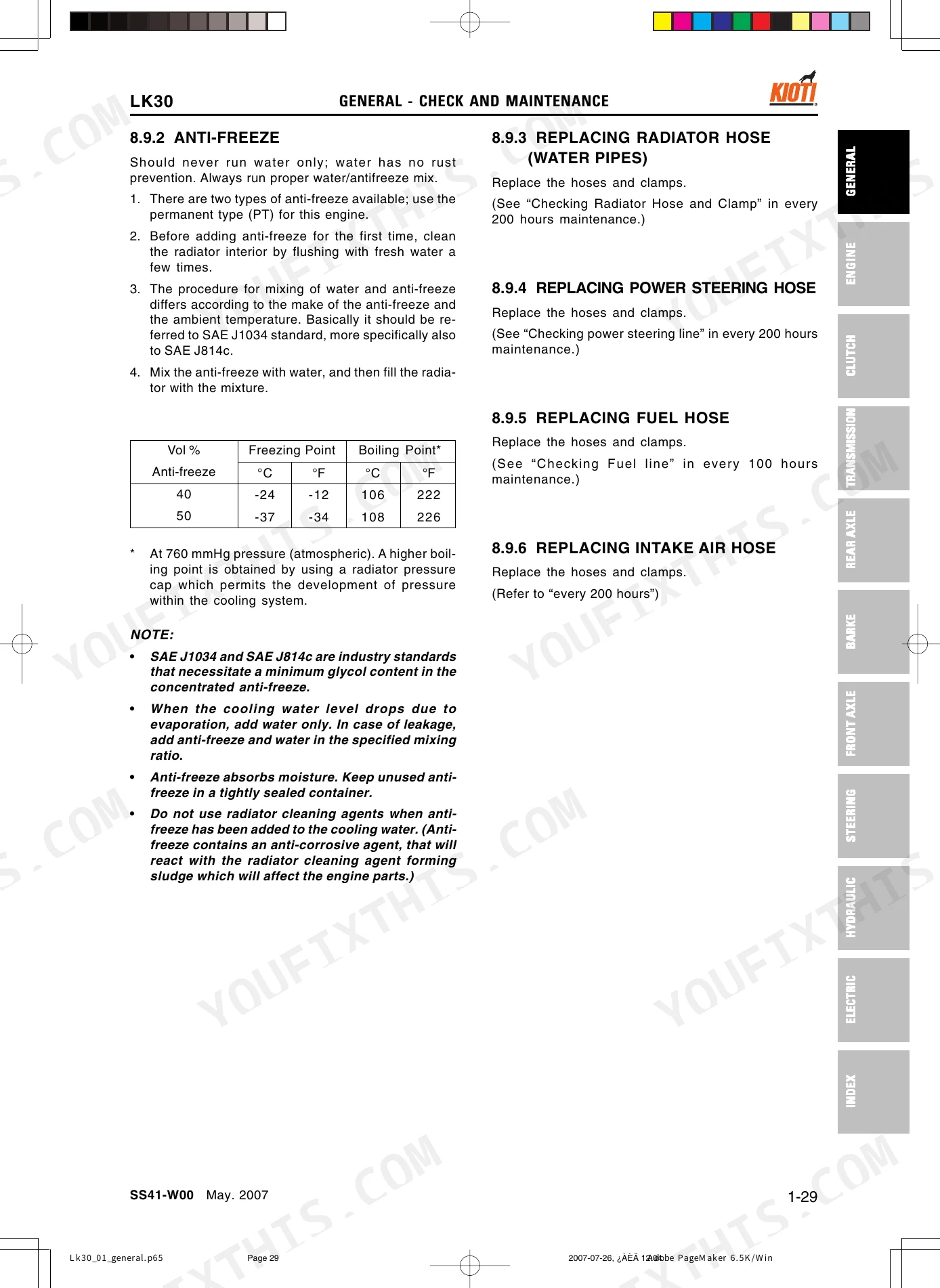

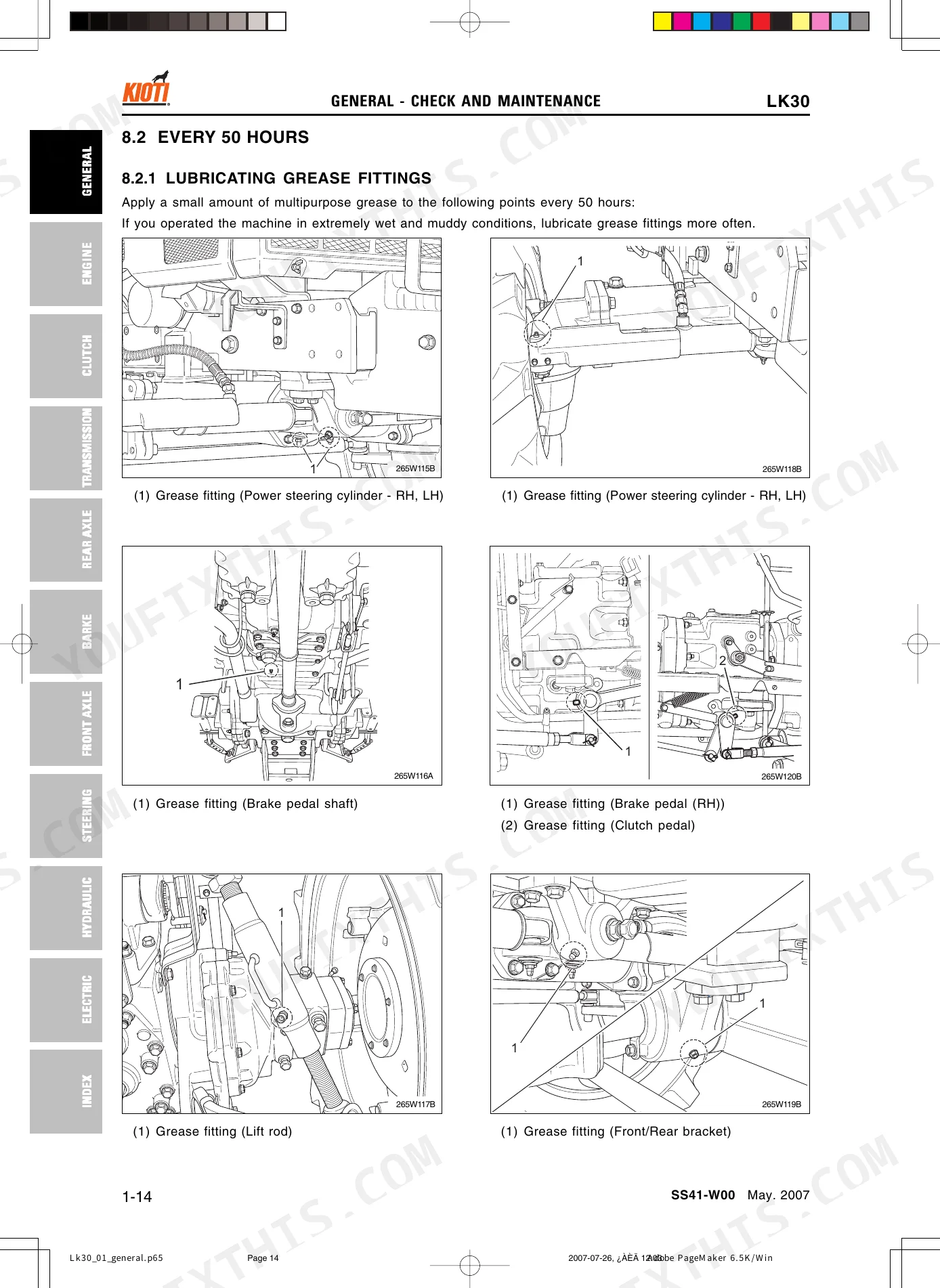

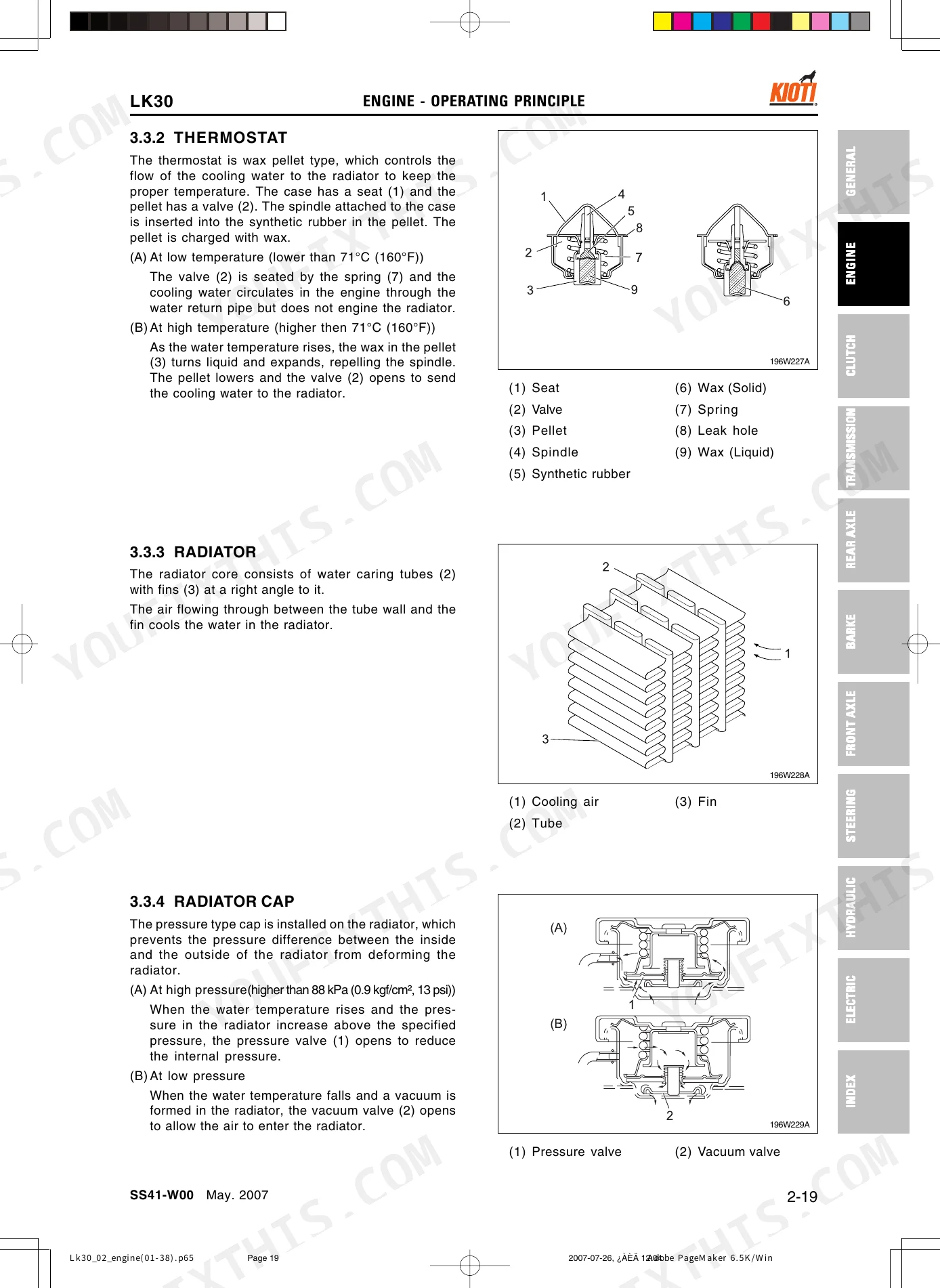

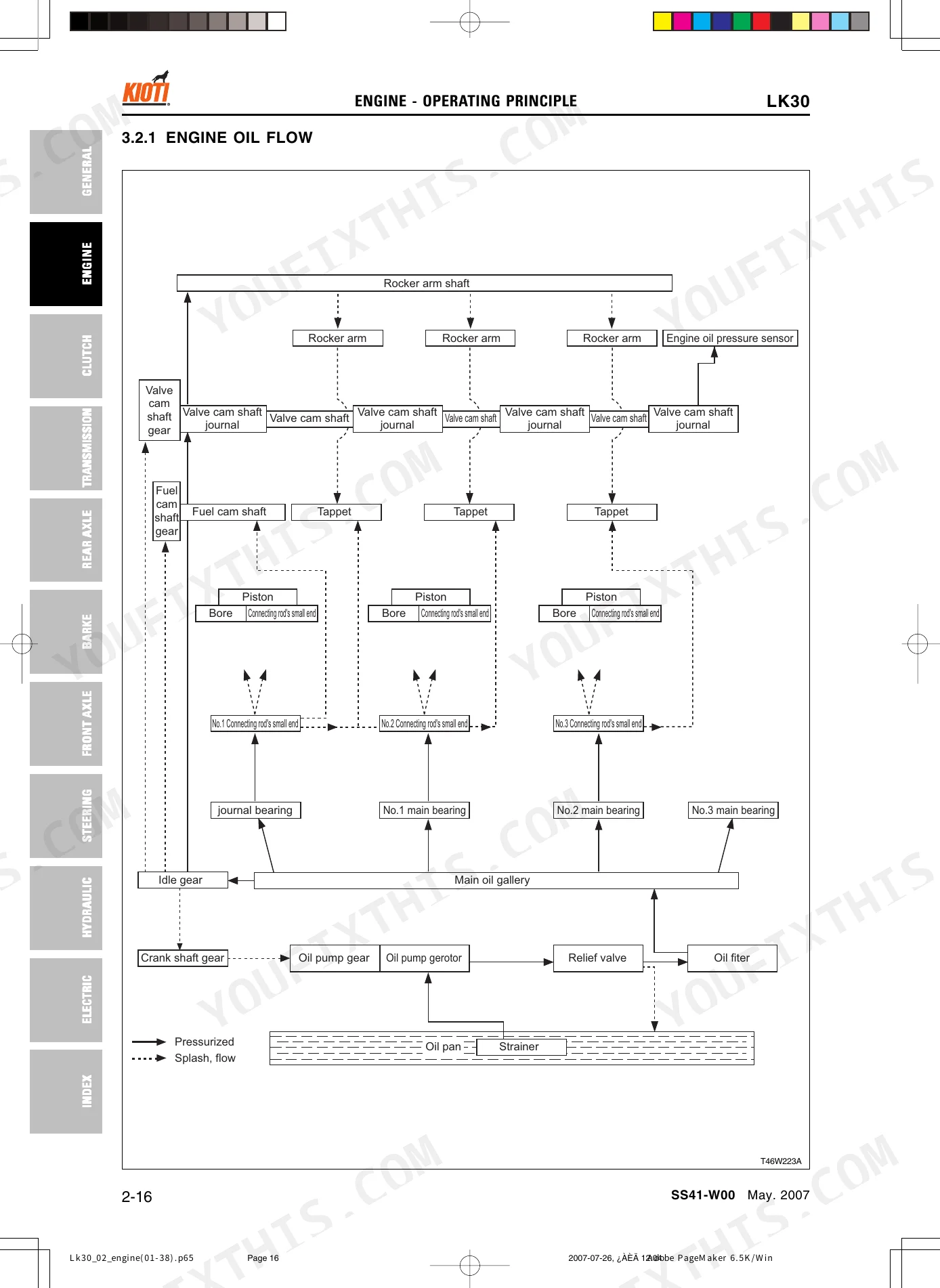

| System | Pages | Key Topics |
|---|---|---|
| Preface | 3-6 | Manual Purpose and Scope, Product Information and Updates, Customer Satisfaction, Important, Remark, Clean Working Area, Illumination, Ventilating System |
| Safety First | 7-16 | For Safety (Alert Symbols) |
| General | 17-52 | Tractor Identification, Dimensions, Specifications, Lubricants, Fuel and Coolant, Tightening Torques (Stud Bolts, American Standard Screws, Bolts and Nuts with Unc or Unf Threads) |
| Engine | 53-134 | Engine Identification |
| Clutch | 135-150 | Specifications, Operation Principle, Troubleshooting, Checking and Adjustment (Clutch Pedal Play Adjustment, Clutch Pedal Traveling, Safety Switch) |
| Transmission | 151-194 | Operating Principle, Power train diagram, Power train, Main gear shift section, Shuttle shift section, Range gear shift section, Front wheel drive section, PTO gear shift section |
| Rear Axle | 195-204 | Specificaions (Differential Gear, Tightening Torques), Operating Principle (Power Train, Principle of Differential System, Differential Lock System), Troubleshooting |
| Brake | 205-216 | Specifications (Servicing Specifications, Tightening Torque), Operating Principle (Structure, Operation, Features of Wet Disc Brakes), Troubleshooting |
| Front Axle | 217-238 | Specifications, Operating Principle (Front Axle Structure, Wheel Alignment), Troubleshooting |
| Steering System | 239-260 | Operating Principle, Hydraulic schematic, Hydraulic circuit diagram, Hydraulic oil flow, Operation, Neutral position, Right turn, Left turn |
| Hydraulic System | 261-286 | Specifications (Oil Pressure Relief Assembly, Hydraulic Cylinder, Control Linkage) |
| Electric System | 287-318 | Circuit and Component Location (Circuit Diagram, Electric Component Location, Legend for Circuit Diagram, Battery, Symbols for Electric Components, Checking Circuits) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Steering system bleeding procedure | Start the engine. Then turn the steering wheel slowly in both directions all the way alternately several times, and stop the engine. | p. 259 |
| Tightening Torques section | Refer to section '5. TIGHTENING TORQUES' | p. 23 |
| Clutch pedal free play | 20 ~ 30 mm | p. 136 |
| Safety switch pedal movement (When depressing clutch pedal to the stroke end) | 3.0 ~ 4.0 mm | p. 136 |
| Clearance lever shaft to clutch housing (Allowable Limit) | 0.5 mm | p. 136 |
| Release lever height (A) | 101.5 ~ 102.5 mm | p. 146 |

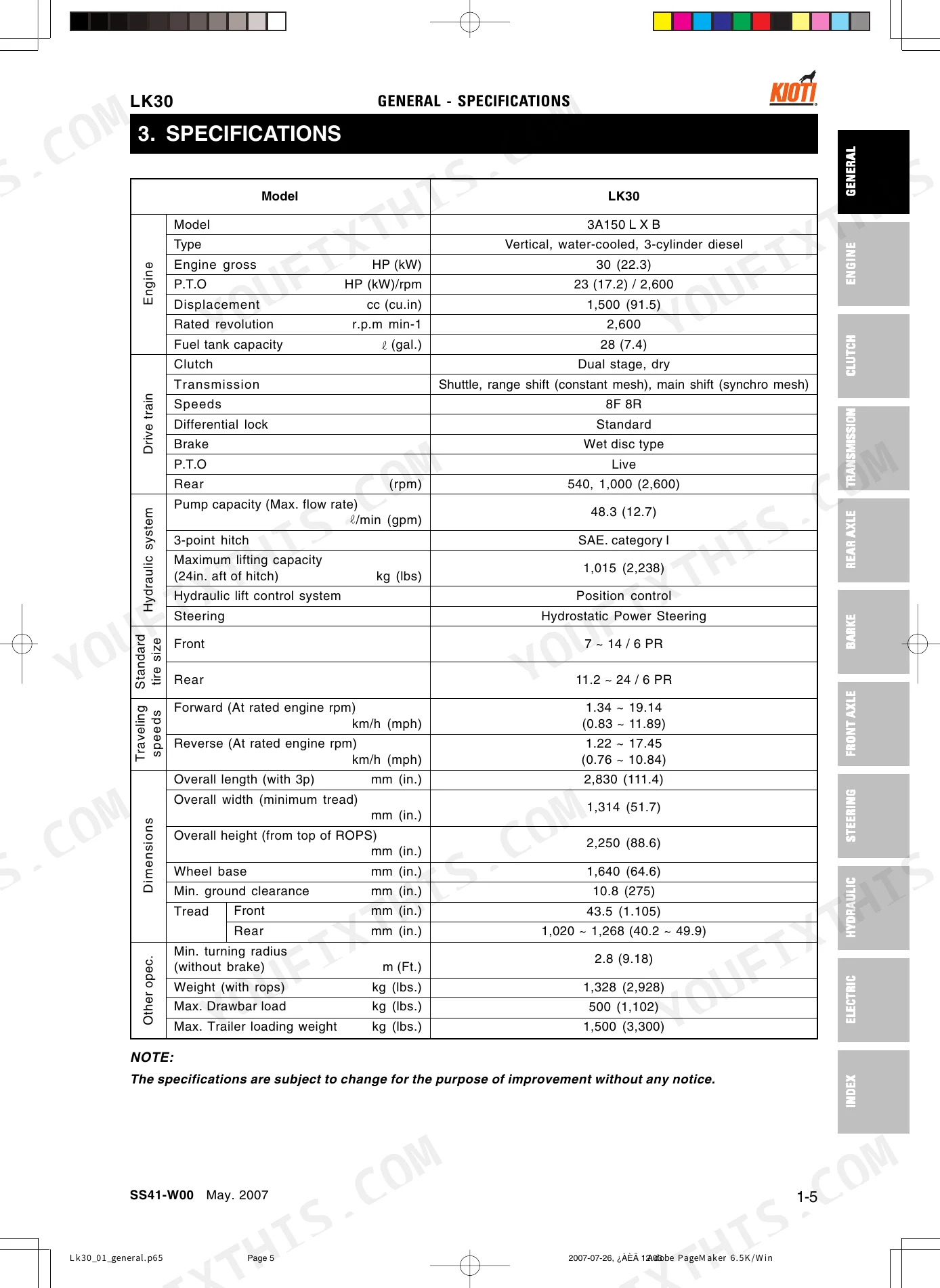

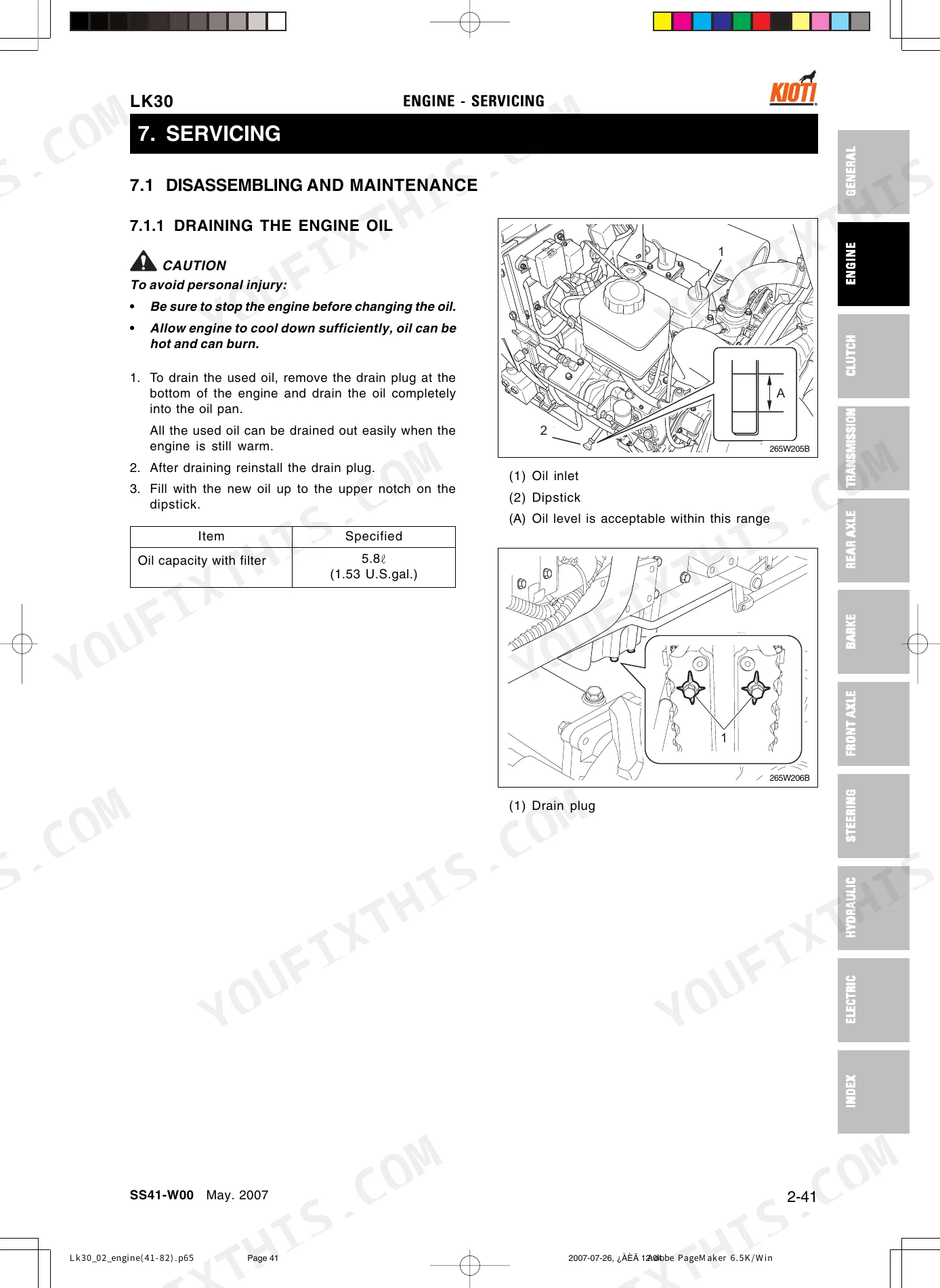

| Engine gross HP (kW) | 30 (22.3) | p. 21 |
| Fuel tank capacity | 28 (7.4 U.S.gal.) | p. 21 |
| Engine crankcase oil capacity | 5.8 (1.53 U.S.gal.) | p. 22 |
| Transmission case fluid capacity | 26 (6.86 U.S.gal.) | p. 22 |
| Cylinder head screws torque | 103.0 ~ 107.9 Nm | p. 61 |
| Clutch pedal free travel | 20 ~ 30 mm | p. 34 |
Kioti LK30 Common Problems This Manual Covers
Clutch pedal stays partially depressed and has to be lifted by foot to re-engage p. 136
Check clutch pedal free play at the pad; correct range is 20-30 mm (page 136). If the pedal won't spring back, inspect the return spring for fatigue and clean the pivot shaft of dirt and rust. Verify safety switch clearance is 2-3 mm at full stroke (page 140). Lubricate all pivot points and replace cracked or stretched linkage components.
Manual Section: ClutchEngine cranks slowly or won't fire at all in cold morning temperatures p. 56
Test glow plug operation: the dash indicator should cycle and hold several seconds before you crank. Verify diesel is clean and free of water contamination by cracking a fuel line at the filter. If the engine fires but runs rough, measure intake valve clearance cold; spec is 0.25 mm (page 56). Check fuel injection pressure against the 14.709 MPa spec (page 60) if rough running persists.
Manual Section: EngineHydraulic three-point hitch raises slowly or won't reach maximum lift height under load p. 261
Verify transmission case fluid is at the full mark; the system holds 26 liters (6.86 U.S. gal.). Check that the control lever detent is fully engaged and the implement stop is not set too low. If flow feels weak with correct fluid level, trace the circuit from pump to control valve using the hydraulic schematic on page 45 to isolate the restriction.
Manual Section: Hydraulic SystemGears grind or refuse to engage cleanly when shifting under light load p. 151
Rule out incomplete clutch release first: pedal free play must read 20-30 mm (page 136). If that checks out and gears still grind, drain the transmission fluid and inspect the drain plug magnet for metal particles. Refill to 26 liters (6.86 U.S. gal.), then check the shift linkage rods for bends or worn clevis pins per the Transmission section at page 151.
Manual Section: TransmissionSteering wheel has excessive free play or tractor drifts left and right on the road p. 259
Inspect tie rod ends and the drag link for worn ball joints; replace anything with measurable slop before adjusting. Check power steering fluid level and bleed the system per page 259: with the engine running, turn the wheel slowly all the way in both directions several times. When set correctly, steering effort stays below 0.6 kg (page 240).
Manual Section: Steering SystemBrakes feel uneven side to side or one pedal drags after being released p. 205
Separate the pedal coupling link and test each brake independently to isolate the dragging side. Inspect wet disc brake pads for contamination from axle seal leaks; contaminated pads must be replaced, not cleaned or dried. Adjust both sides until engagement is even and firm, then re-couple the pedals. Full wet disc brake structure and service specs are in the Brake section at page 205.
Manual Section: BrakeFrequently Asked Questions

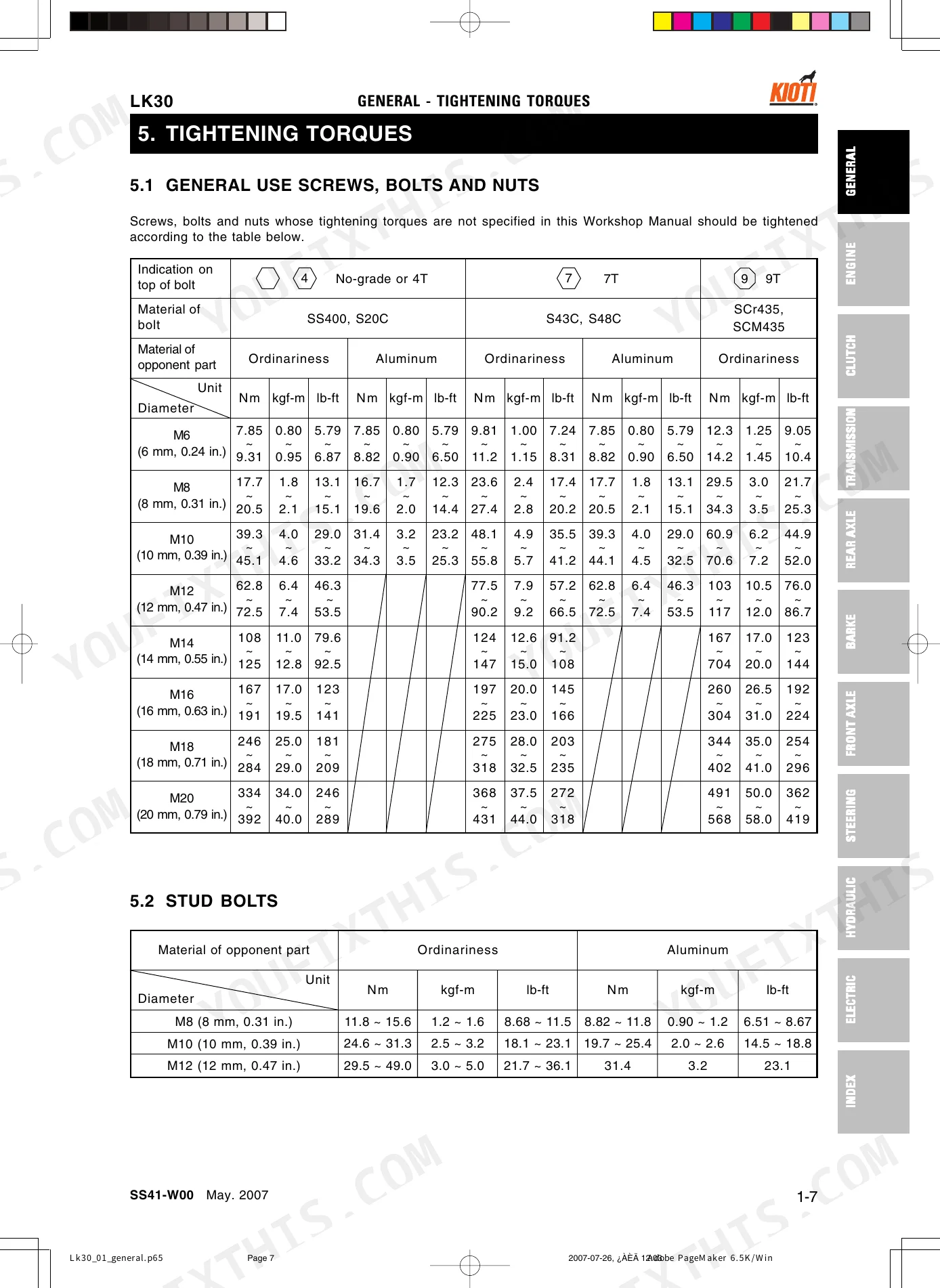

What are the torque specifications for the Kioti LK30?
Torque on the LK30 varies by fastener size and material. An M6 (6 mm, 0.24 in.) bolt in Ordinariness (SS400, S20C), for instance, takes 7.85 ~ 9.31 Nm (0.80 ~ 0.95 kgf-m, 5.79 ~ 6.87 lb-ft). Check the size-specific tables for exact values.
What are common Kioti LK30 clutch problems?
Two come up most often. A dragging clutch usually traces back to excessive pedal free play, which you correct by adjustment. A slipping clutch points to an excessively worn clutch disc, which has to be replaced.
How to bleed the Kioti LK30 hydraulic system?
Air in the steering circuit (part of the hydraulic system) bleeds out with the engine running: turn the wheel slowly all the way in both directions, alternately, several times, then shut the engine off. Do this after servicing any hydraulic components.
How to adjust the Kioti LK30 clutch?
Start by measuring free play at the end of the pedal. If the reading falls outside the specified 20 ~ 30 mm (0.79 ~ 1.18 in.), loosen the clutch rod lock nut, adjust the rod length to suit, then retighten the lock nut firmly.
Is this Kioti LK30 Workshop Manual a digital download?
A 326-page Workshop Manual in searchable PDF, ready the moment checkout completes. Read it on a computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this Kioti LK30 manual?
None at all. The PDF is DRM-free, so print whatever sections you want to take out to the shop. Standard letter or A4 paper works.
Are electrical wiring diagrams included in this Kioti LK30 Workshop Manual?
Yes. Full electrical schematics are included, with wire colors, connector locations, and circuit descriptions.
Document Quality
This document is a scanned PDF with an OCR text layer, allowing you to search and copy the full text. The text quality is generally clear and readable, though some characters exhibit minor OCR artifacts. Diagrams and illustrations are raster images, which remain mostly clear at normal viewing but will show pixelation when zoomed in. Labels within the diagrams are readable. Pages are clean with no scan artifacts or skewed content. Please note that pages 2, 4, 6, and 52 are intentionally blank or marked as "MEMO" pages.
