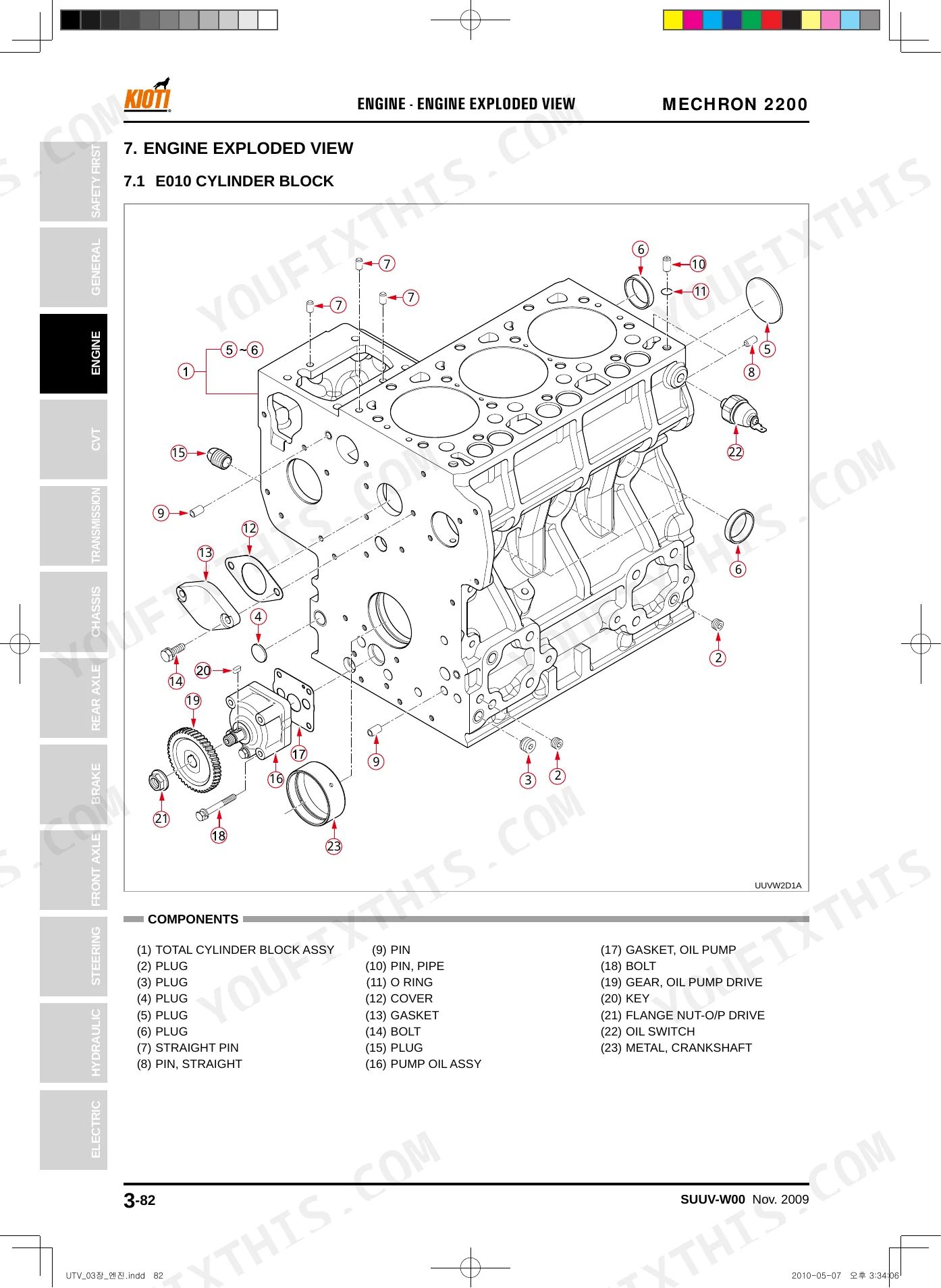

Pulled your 2002-2010 Kioti MECHRON 2200 into the shop and need numbers fast? Daedong's own factory workshop reference (OEM #SUUV-W00) runs 414 pages and walks every system on the UTV: engine, CVT, transmission, front and rear axles, brakes, steering, hydraulics, and electrical. Wiring comes as color-coded circuit diagrams; the hydraulic side maps gear pump, dumping cylinder, and auxiliary valve routing in full. Each major system gets its own troubleshooting section, and every assembly comes with exploded views. Need a quick figure? The CVT belt runs 29 mm (1.142 in.) at factory width, and M8 fasteners torque to 17.7-20.5 Nm. Downtime on a work machine adds up fast. The PDF is bookmarked and keyword-searchable, so pull it up on a phone or tablet and find what you need.
What's Inside This Kioti MECHRON 2200 Manual
| System | Pages | Key Topics |
|---|---|---|

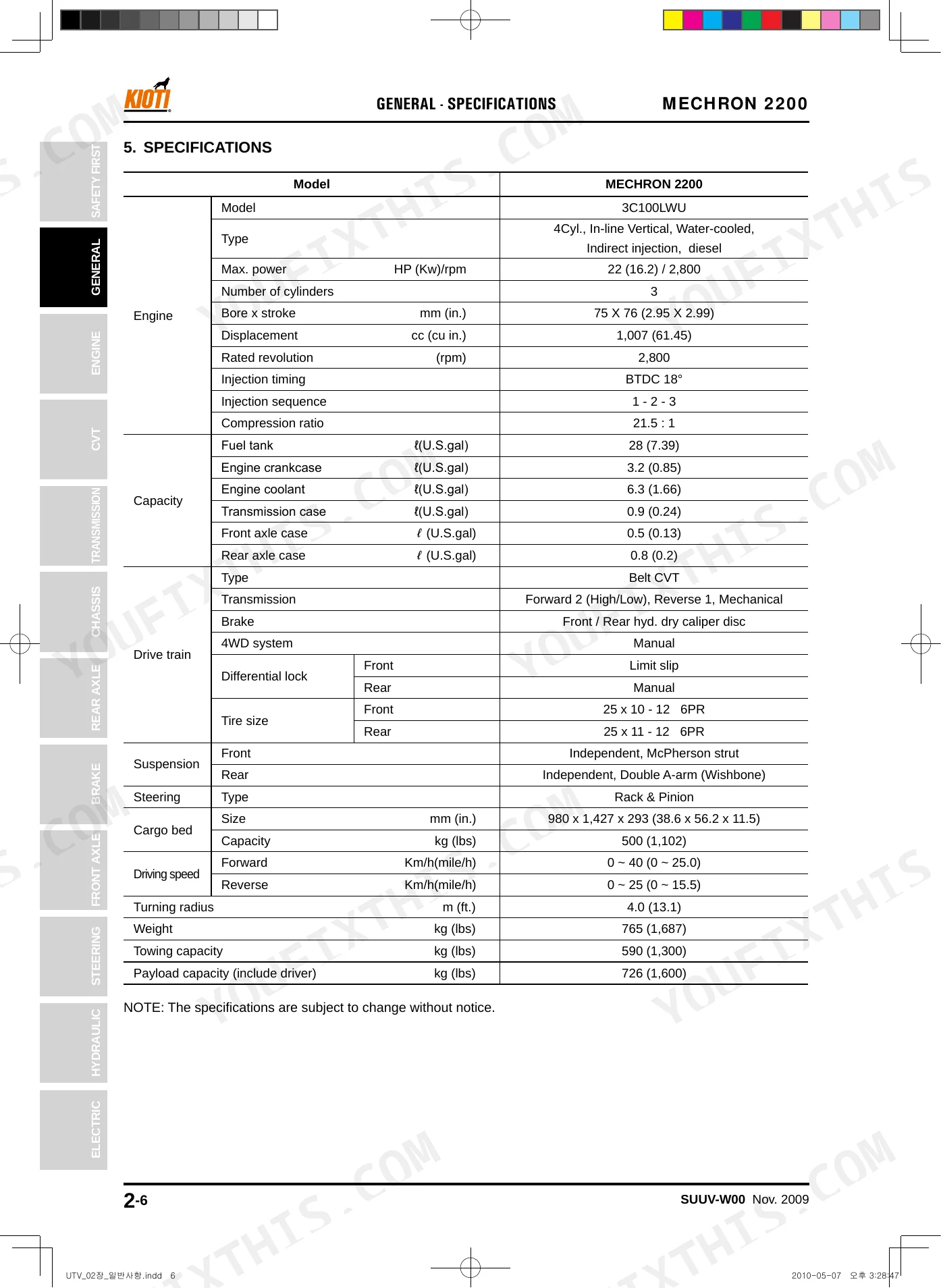

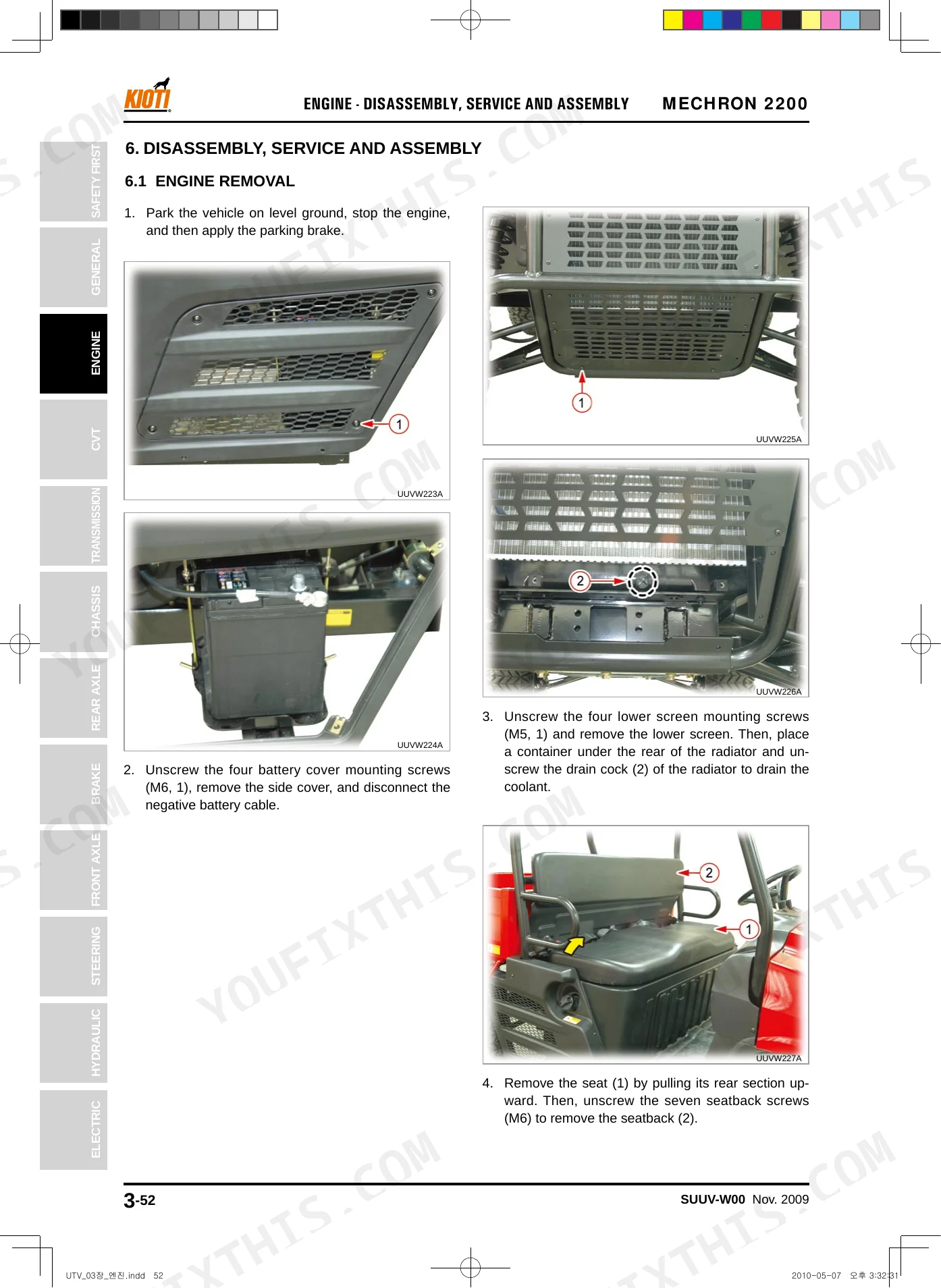

| General | 19-38 | Description For Symbols And Abbreviations, Utv Appearance, Serial Number, Utv Serial Number Location, Engine Serial Number Location, Others Location, Dimensions, Gear Arrangement And Driving Speed |
| Engine | 39-138 | General Information, Engine Views, Engine Identification, Engine Dimensions, Service Specifications, Cylinder Head, Valves, Valve Springs |
| CVT | 139-158 | Specifications (Tightening Torque, Sealant and Adhesive), Structure and Operating Principle (Structure of CVT, Principle of Cooling System for CVT), Troubleshooting |
| Transmission | 159-188 | Sealant And Adhesive, Structure And Operating Principle, Transmission Structure, Speed Control System, Shift System, Front Wheel Drive System, Check And Adjustment, Tooth Contact Of Spiral Bevel Gear |
| Chassis | 189-208 | Tire, Installation Direction Of Front/Rear Tires, Routes For Various Cables, Differential Lock Cable, Shift Selector Cable, Front Wheel Drive Cable, Parking Brake Cable, Accelerator Pedal Cable |
| Rear Axle | 209-242 | Rear Axle Case Oil, Suspension, Structure And Function, Structure Of Rear Axle Section, Rear Axle Power Transfer Diagram, Operating Principle Of Differential System, Check And Adjustment, Differential System Assembly |
| Brake | 243-262 | Structure And Function, Front And Rear Wheel Brakes, Parking Brake, Brake Disc Thickness, Brake Disc Runout, Caliper Pad Clearance And Thickness, Brake Pedal Free Play, Service And Assembly |
| Front Axle | 263-292 | Sealant And Adhesive, Structure And Function, Front Axle Power Transfer Diagram, Lsd (Limited Slip Device), Toe-In Adjustment, Turning Torque Of 8 Bevel Pinion Shaft, Tooth Contact Of Spiral Bevel Gear, Differential System Clearance Check |
| Steering System | 293-304 | Steering Gearbox, Structure And Function, Operating System Diagram, Structure In Steering Gearbox, Steering Gearbox Components, Tie-Rod Length Adjustment, Toe-In Adjustment, Service And Assembly |

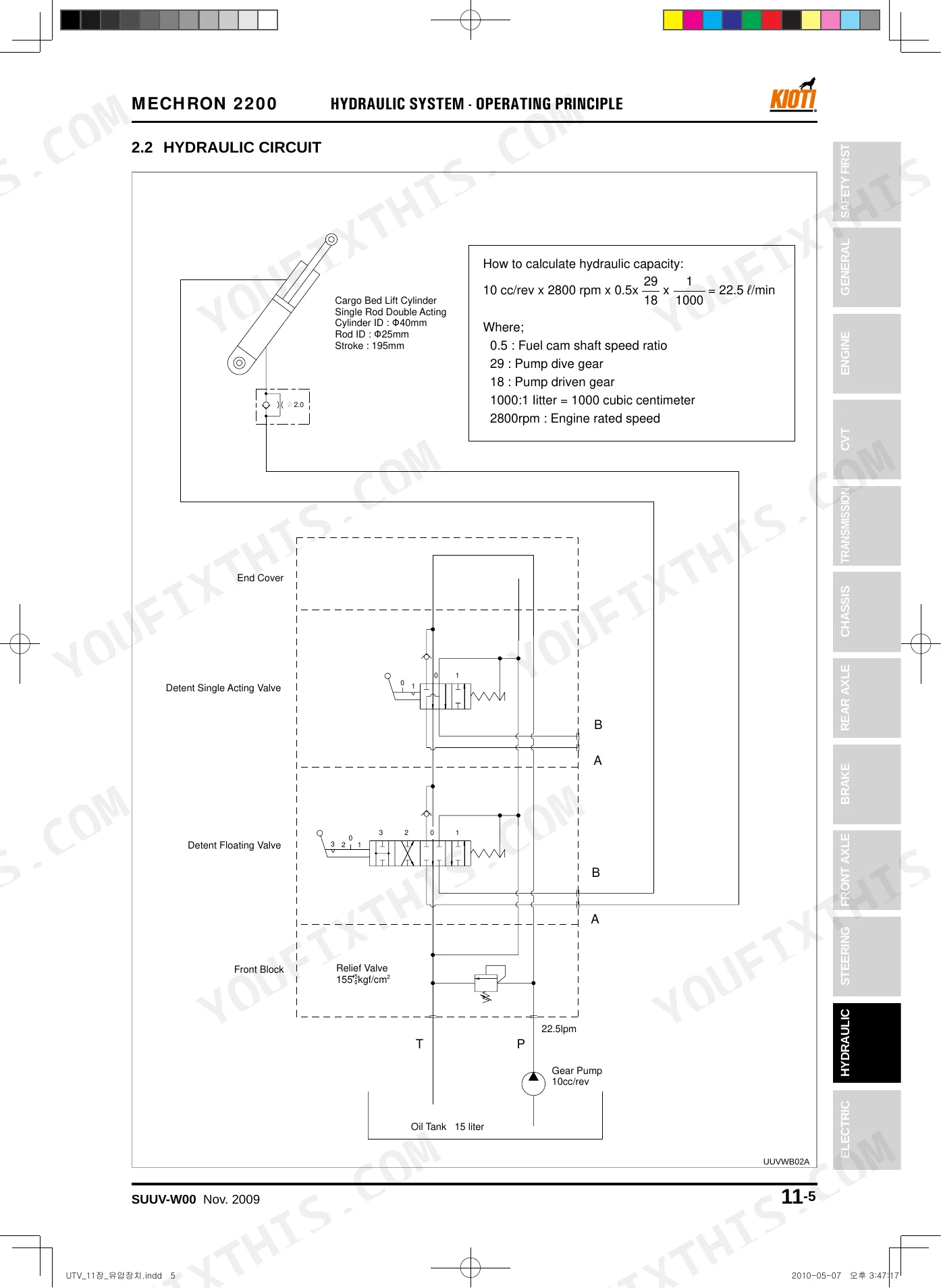

| Hydraulic System | 305-338 | Hydraulic Component Layout, Hydraulic Circuit, Gear Pump, Dumping Cylinder, Front Block (Dumping Valve), Auxiliary Hydraulic Valve |
| Electric System | 339-406 | Circuit Diagram, Electrical Components, Display Unit, Cooling Fan Motor, Alternator, Speed Sensor |
| Index | 407-414 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

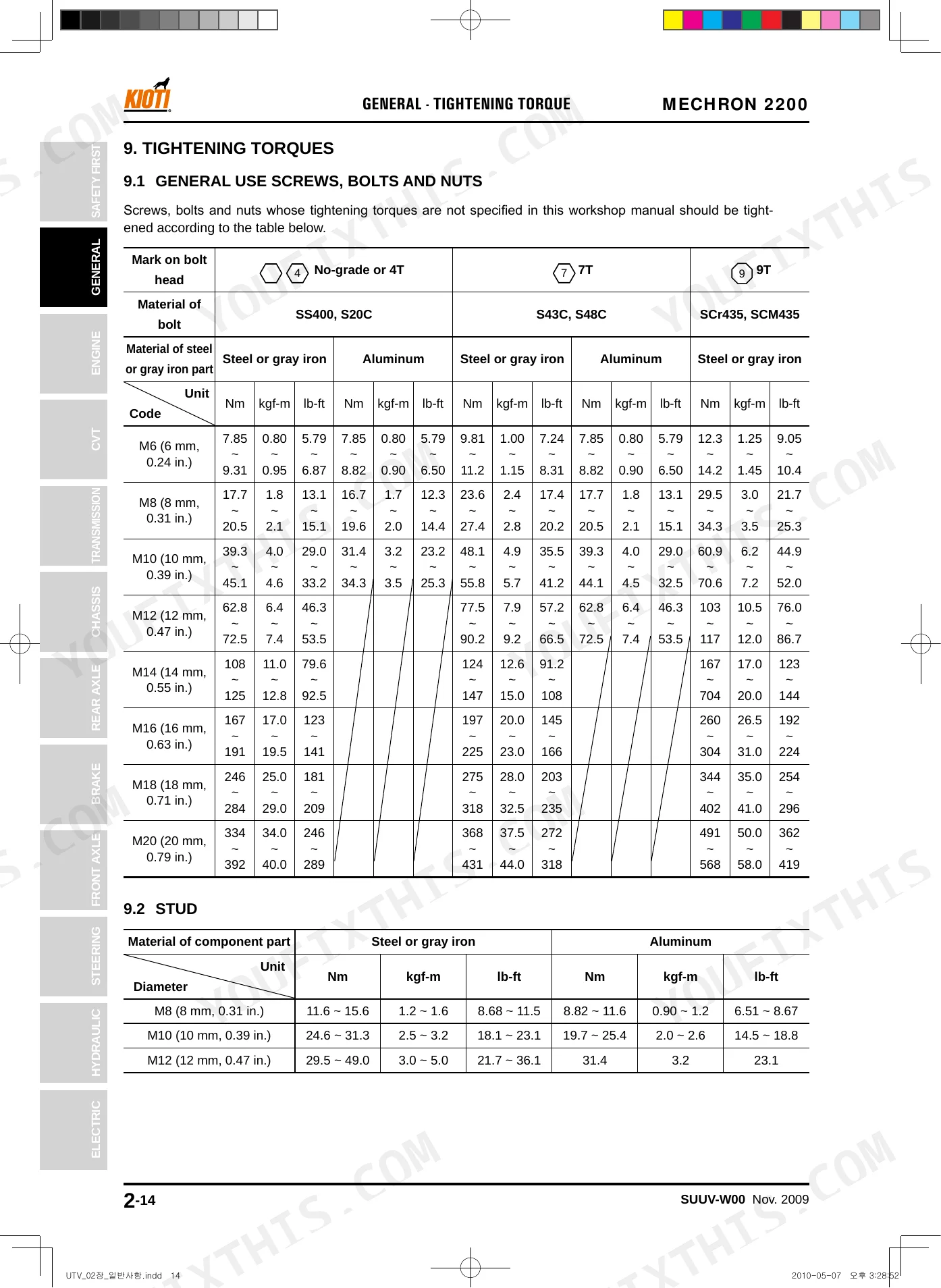

| General use screws, bolts and nuts (M6, Steel or gray iron) | 7.85 ~ 9.31 Nm | p. 32 |
| General use screws, bolts and nuts (M8, Steel or gray iron) | 17.7 ~ 20.5 Nm | p. 32 |
| Battery Voltage | 12V | p. 341 |
| Battery Capacity | 80AH | p. 341 |
| CVT Belt width (Specification) | 29 mm (1.142 in.) | p. 140 |
| CVT Belt width (Allowable limit) | 24 mm (0.945 in.) | p. 140 |
| Brake pad thickness (new component) | 5.0 mm (0.197 in.) | p. 244 |
| Brake pad thickness (Allowable limit) | 2.0 mm (0.083 in.) | p. 244 |
| Engine oil and filter replacement interval (initial) | 10 hours | p. 28 |
| Engine oil and filter replacement interval (subsequent) | Every 50 hours | p. 28 |
| Air cleaner filter check interval | Every 50 hours | p. 28 |
| Air cleaner filter replacement interval | Every 1 year or every 5 times of cleaning, whichever comes first | p. 28 |
Kioti MECHRON 2200 Common Problems This Manual Covers
CVT belt slipping or burning smell, slow acceleration, or the vehicle won't move
Remove the CVT cover and measure belt width; replace if it measures 24 mm (0.945 in.) or less. Clear debris from the cooling air inlet first, since blockage drives most premature wear on this machine. Inspect the drive and driven pulley faces for scoring, and schedule replacement at 800 hours regardless of how the belt looks. The CVT troubleshooting section walks through burning smell and no-movement diagnosis.

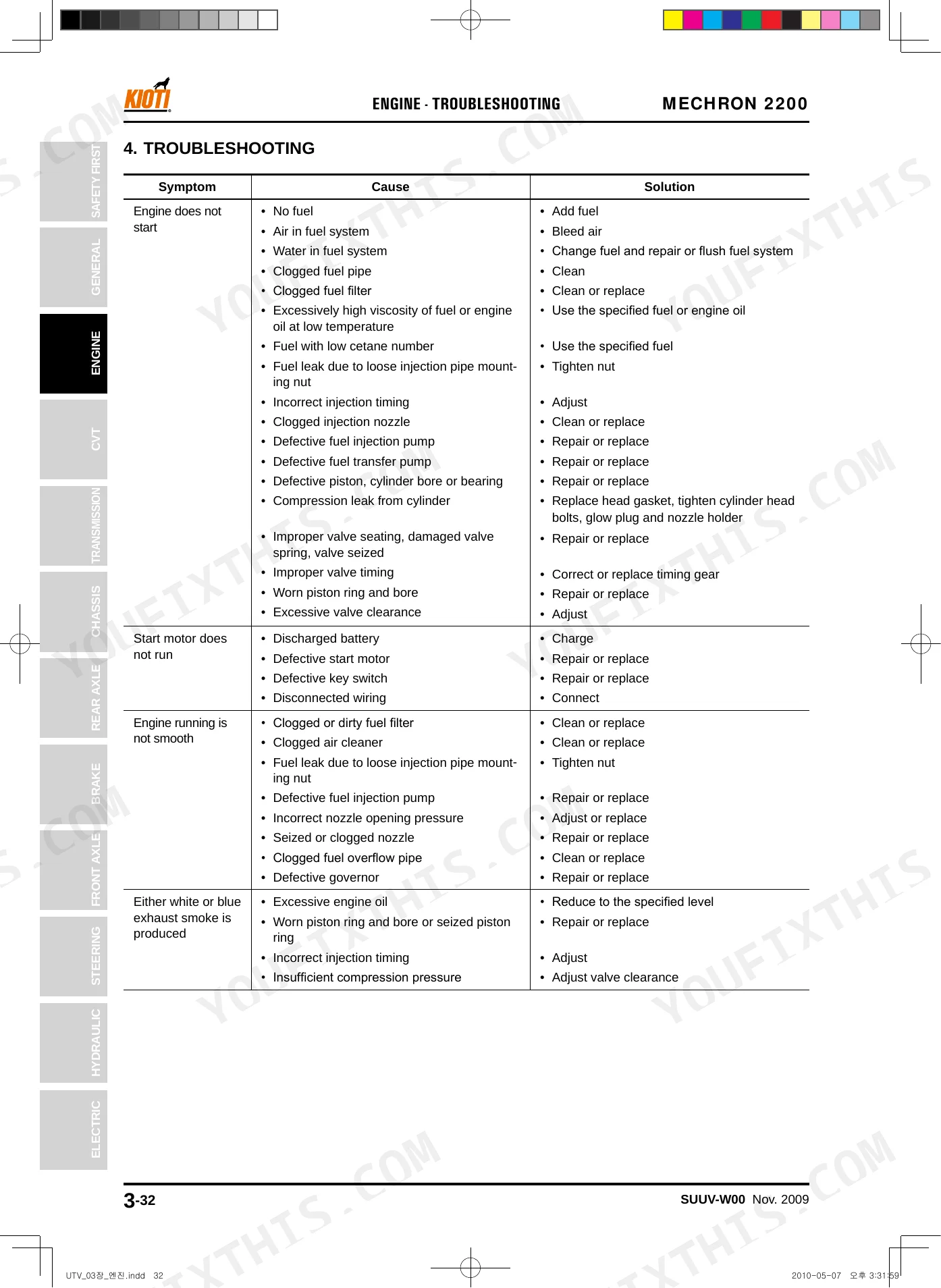

Manual Section: CVT TroubleshootingEngine cranks but won't start or turns over slowly in cold weather
Check battery voltage first; the spec calls for 80AH, 630CCA at -18°C (page 341). A weak battery is the top cold-start culprit. Verify the fuel shutoff valve is open and the fuel bowl is not iced or plugged. If the engine cranks strong but won't fire, work through the no-start tree, starting with the safety interlock circuit.
Manual Section: Engine TroubleshootingBrake pedal travels too far, pulls to one side, or stopping distance is excessive
Measure pad thickness and replace if worn to 2.0 mm (0.083 in.) or below; new pads measure 5.0 mm (0.197 in.). Adjust pedal free play to 15-20 mm per page 250. If it still pulls to one side, compare left and right pad wear and inspect for fluid contamination. The brake section covers delay and noise too.
Manual Section: Brake TroubleshootingTransmission difficult to shift, gears won't engage, or oil leaking from the case
Confirm the transmission fluid level first; capacity is 0.9 L (page 160), and low fluid causes hard shifting and abnormal noise. Drain a sample and look for metal particles, which signal internal gear damage. For gears that disengage under load, inspect shift linkage wear before splitting the case. The transmission troubleshooting section covers leakage, noise, and disengagement.
Manual Section: Transmission TroubleshootingEngine temperature climbs into the red, coolant boiling out of the reservoir, or steam from the hood
Verify coolant level against the 6.3 L capacity (page 24); top off with the correct 50/50 mix. Clean the radiator fins and inspect all coolant hoses, squeezing each one and replacing any that feel spongy or cracked. Persistent bubbling at idle with no external leak points to head gasket failure; run the bubble test in the engine inspection section.
Manual Section: Engine Inspection and AdjustmentFront wheels wander, steering feels loose, or clunking noise over rough terrain
Grab each front wheel at 9 and 3 o'clock and rock it; any play points to worn tie rod ends or ball joints. Inspect the front axle case oil level too; capacity is 0.5 L (page 264). Clunking over rough terrain usually means a worn CV joint. The front axle troubleshooting section covers wander, abnormal noise, and improper steering.
Manual Section: Front Axle TroubleshootingFrequently Asked Questions
What are the torque specs for KIOTI MECHRON 2200 wheel lugs?
Both front and rear wheel nuts take 39.2 ~ 45.1 Nm (4.0 ~ 4.6 kgf-m, 28.8 ~ 33.1 lb-ft). The figure applies to the M10 flange nuts.
What are the replacement specifications for battery?
Replacement battery is a 12V, 80AH unit rated 630CCA at -18°C, with 135 minutes reserve capacity and dimensions of 259 x 172 x 240mm (L x W x H).
What are the replacement specifications for drive belt?
A new CVT drive belt measures 29 mm (1.142 in.) wide. Replace it once width drops to the 24 mm (0.945 in.) allowable limit, or after 800 hours of use.
How quickly can I access this Kioti MECHRON 2200 manual after buying?
Download is instant. The full 414-page searchable Service Manual lands as soon as payment clears, ready to open on a laptop, tablet, or phone right in the shop.
Am I able to print pages from this Kioti MECHRON 2200 manual?
None at all. The PDF ships DRM-free, so print whatever sections you want to carry out to the shop. Standard letter or A4 paper works.

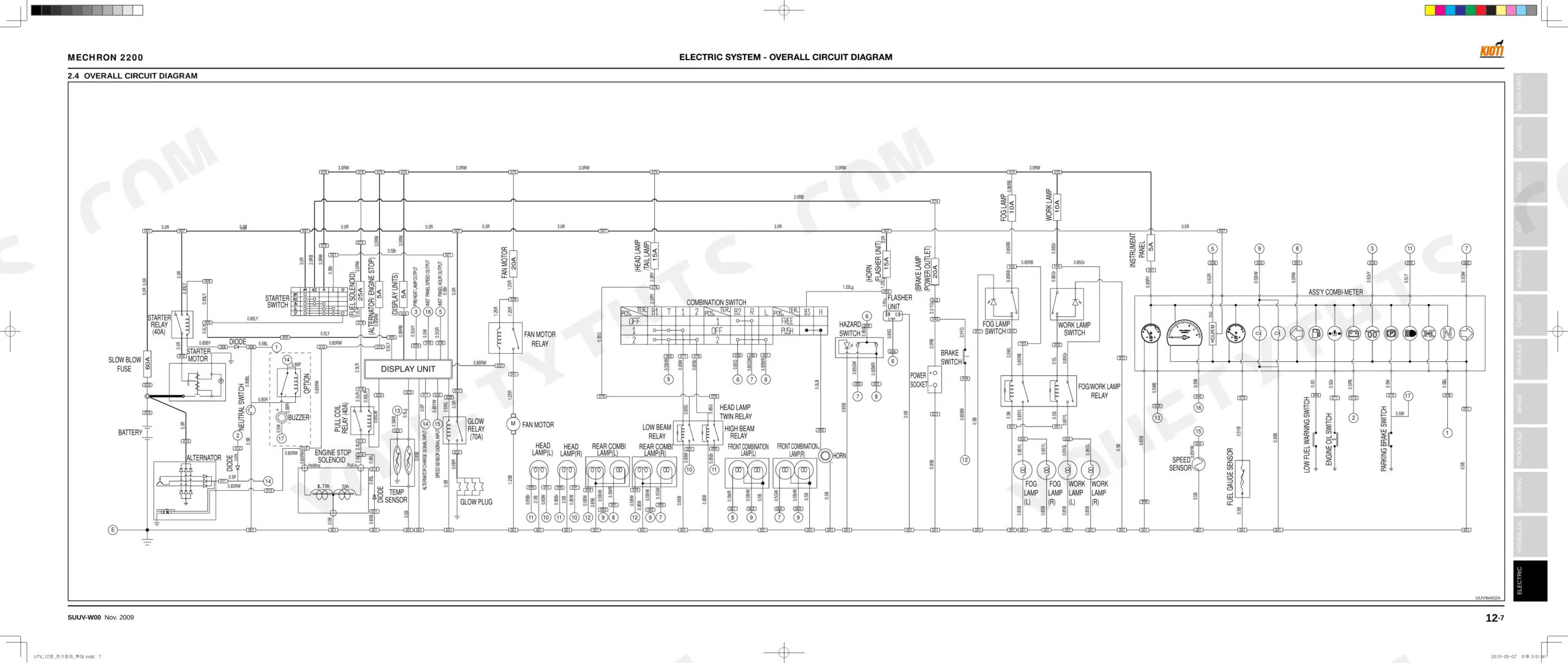

Does this Kioti MECHRON 2200 manual include wiring diagrams?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
Document Quality
This document is a scanned PDF, but it includes an OCR layer, so you can search and copy the full text. The text throughout is crisp and easy to read, with no blurriness or fading. Diagrams and illustrations are a mix of sharp vector-like line drawings and clear raster images (photos), with all labels remaining readable. Pages are generally clean, though some exhibit minor scanning artifacts like faint background textures and slight skewing. Note that several pages are intentionally blank or contain only a background image, serving as section dividers.
