All 204 pages of this Kohler KDI Workshop Manual (OEM #ED0053029590) target one job: complete factory service coverage for the 2013 KDI 1903 TCR and 2504 TCR diesel engines. Inside, you get a full teardown-to-rebuild sequence covering electronic injector replacement, EGR cooler service, turbocharger disassembly, cylinder head overhaul, and crankshaft and piston procedures. A dedicated diagnostic section walks you through the error code list and the software interface for the on-board tool, so you can read faults and confirm fixes without guessing. Set your baseline at the 17:1 compression ratio, then follow the factory maintenance schedule: oil filter and fuel filter cartridges, both on a 12-month swap cycle. No more chasing fault codes with a scan tool and a prayer. Bookmarked by section and keyword-searchable; open it on your phone or tablet and get straight to wrenching.
What's Inside This Kohler KDI 1903 TCR, KDI 2504 TCR Manual

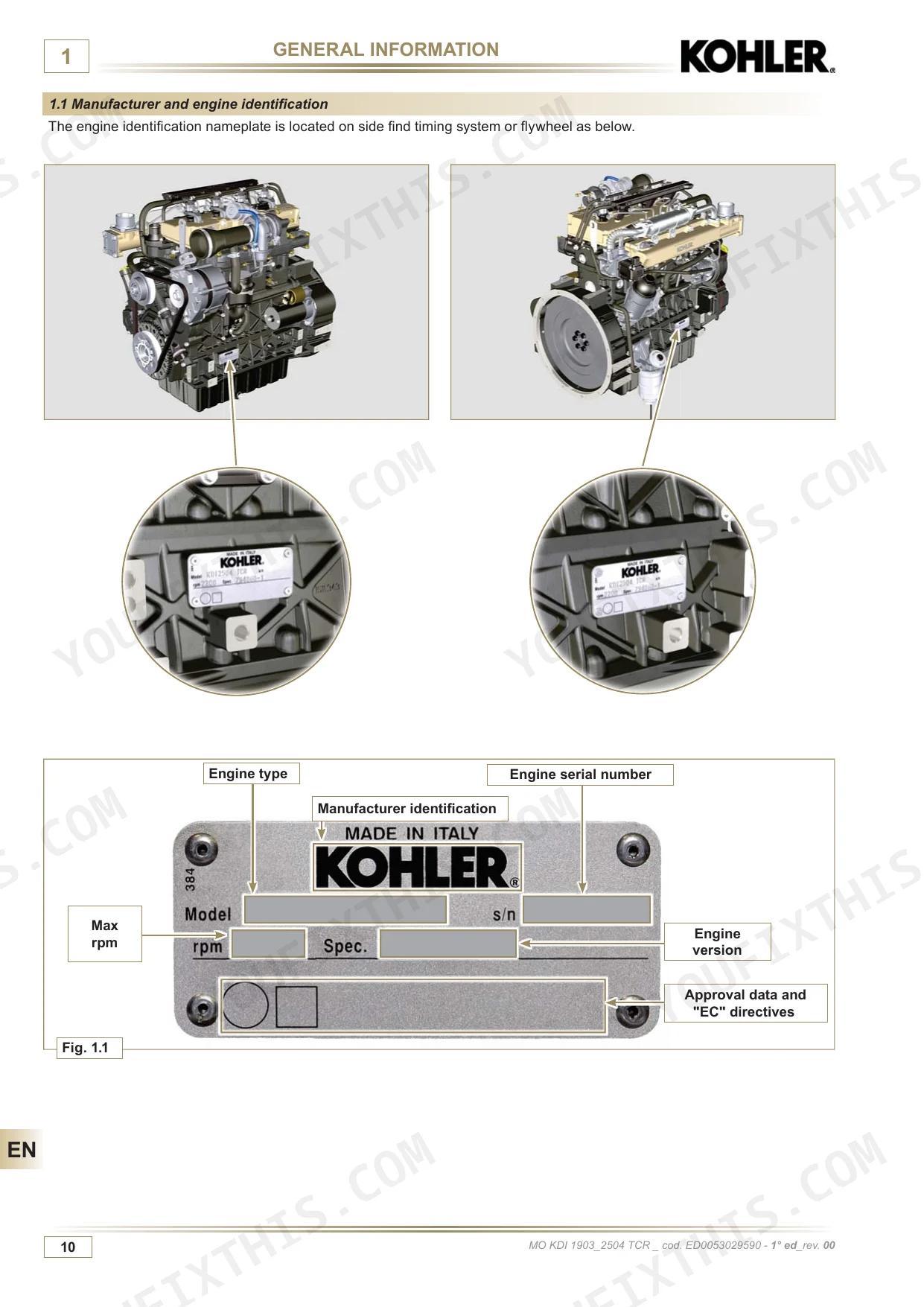

| System | Pages | Key Topics |
|---|---|---|
| Introduction - Foreword | 3 | Introduction, Intended Use of the Engine, Regulations for Safety and Accident Prevention, Scrapping |
| Chapter Index | 4-7 | Alphabetical Listing of Sections, Page References |
| General Information | 9-13 | Glossary and Definitions, Manufacturer and Engine Identification, Name Plate for EPA Regulations, Engine Views |
| Technical Information | 14-47 | Engine Specifications, Engine Dimensions, Power/Torque Curves, Fuel, Coolant, Battery, Periodic Maintenance, Fuel System |
| Safety Information | 56-60 | Before Start-Up, Safety Precautions, Safety Signals, Location of Safety Signals on Engine |
| Storage Information | 62 | Product Preservation, Engine Starting After Storage, Engine Storage (Up to 6 Months), Engine Storage (Over 6 Months) |
| Liquid Drainage Information | 64-65 | Coolant Drainage, Engine Oil Drainage |
| Information for Replacing the Functional Units | 66-85 | Electronic Injector Replacement, High Pressure Fuel Pipes, EGR Cooler Replacement, Water Pump Replacement, Timing System Crankcase, Oil Pump, Oil Filter Replacement |
| Disassembly Information | 87-109 | Exhaust Fumes Recycle Circuit, Electric Components, Belt and Alternator, Camshaft Phase Sensor, Turbocharger, Exhaust Manifold, Water Pump, Timing System Crankcase |
| Information About Overhauling and Tuning | 111-123 | Crankcase, Cylinder Head, Camshaft, Tappets, Crankshaft, Connecting Rod, Piston, Valve Seats |
| Assembly Information | 124-160 | Crankshaft Bushings, Piston and Connecting Rod, Flywheel, Timing System, Cylinder Head, Fuel System, Oil System, Turbocharger |
| Information About Optional Components | 161-179 | Oil Dipstick, Heater, Poly-V Alternator Belt, PTO, Balancer Shafts |
| Information on Adjustments | 180 | "Waste Gate" Valve Adjustment |
| Tools Information | 182-185 | Special Tools, Description, Features |
| Information About Failures | 188-189 | Possible Cause, Troubles, Lubrication Circuit, Cooling Circuit, Fuel Circuit, Engine |
| Diagnostic Information | 191-201 | Error List, Diagnostic Tool, Software Interface, Parameter Menu, Status Menu, Activation Menu, Error Menu |
Quick Reference Specifications

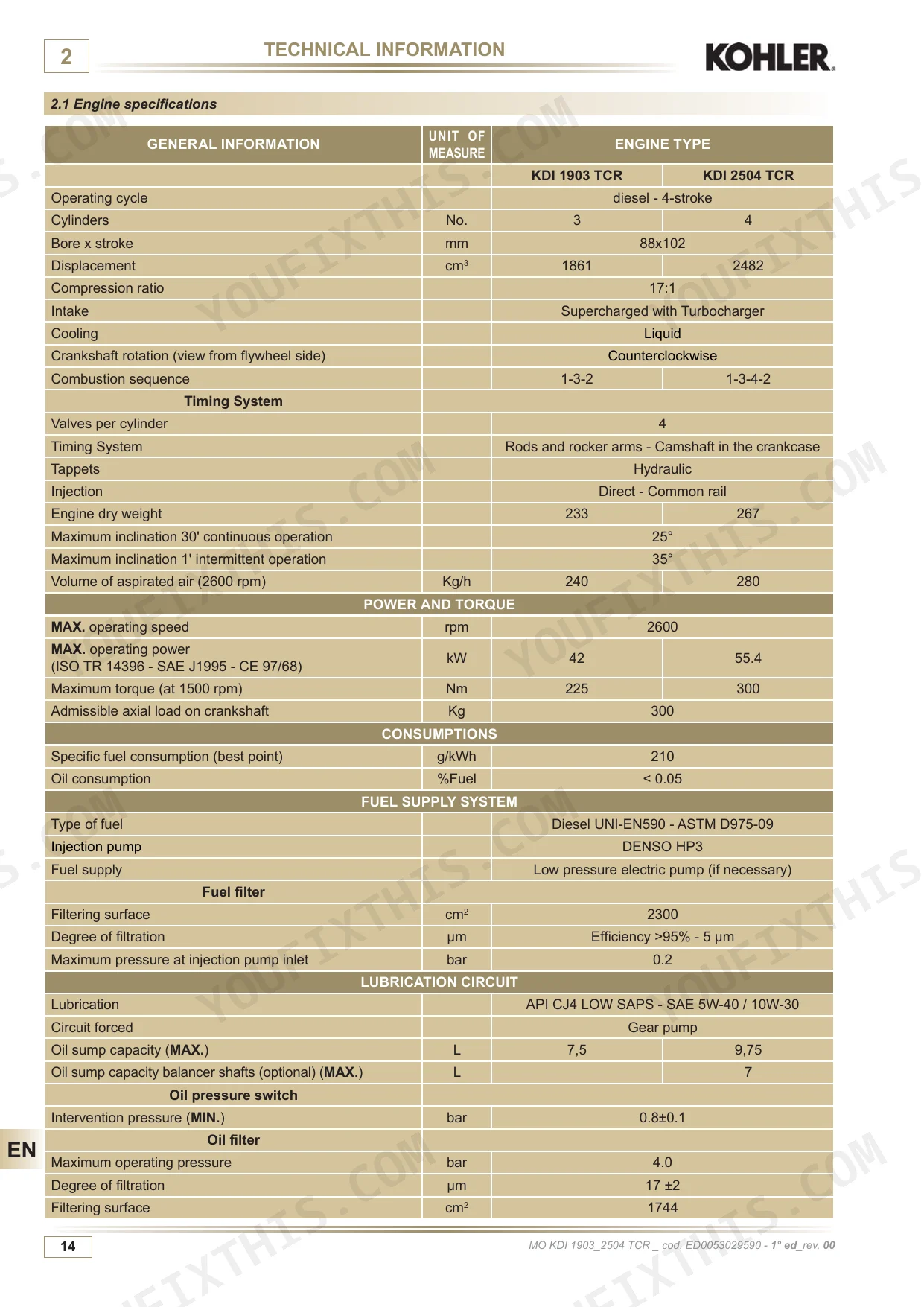

| Specification | Value | Page |
|---|---|---|
| Oil filter cartridge replacement interval | 12 months | p. 21 |
| Fuel filter cartridge replacement interval | 12 months | p. 21 |
| Compression Ratio | 17:1 | p. 15 |
| Coolant Type | 50% ANTIFREEZE and 50% ACQUA | p. 15 |
Kohler KDI 1903 TCR, KDI 2504 TCR Common Problems This Manual Covers

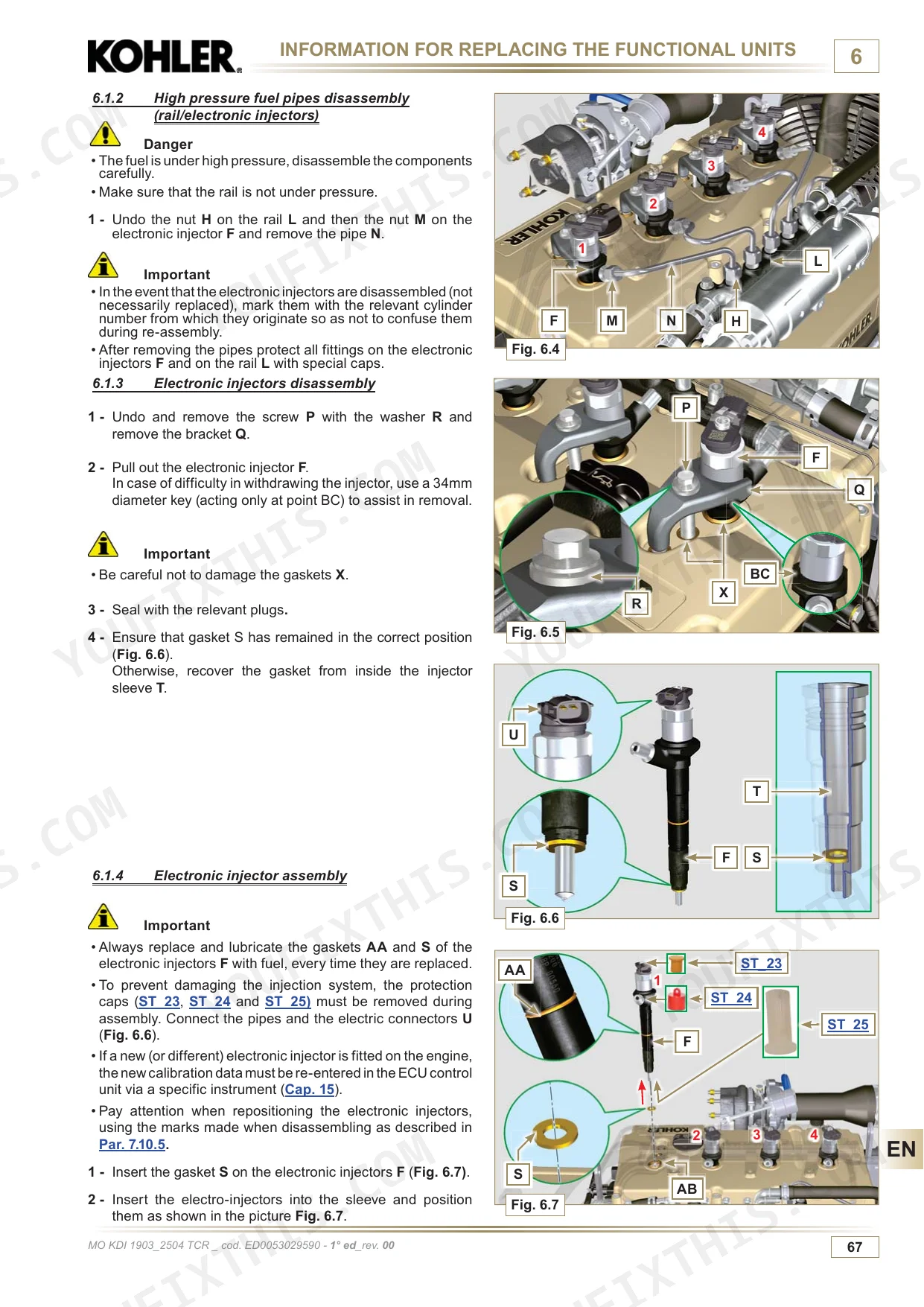

Kohler KDI 1903 TCR common rail injectors wearing rapidly, low oil pressure warning active p. 66
Check the oil level on the dipstick before any further starts. Top up immediately if low and inspect for leaks at the filter housing and drain plug. Replace the oil filter cartridge if it has exceeded the 12-month service interval (page 21). If injector damage is suspected, follow replacement procedures on page 66.

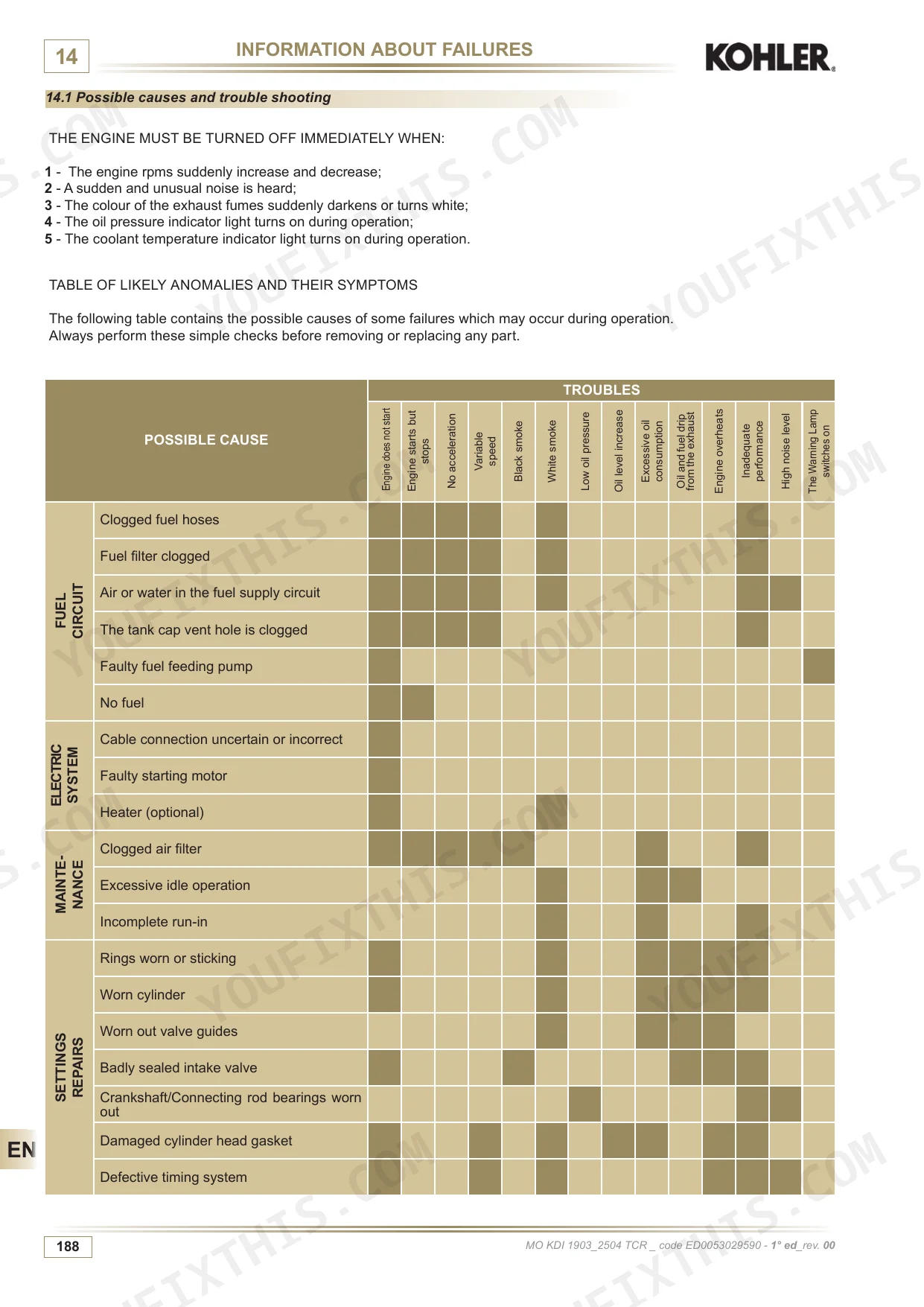

Manual Section: Information for Replacing the Functional UnitsEngine does not start after engaging starter motor longer than 15 seconds, battery depletes p. 188
Wait between consecutive start attempts to let the starter motor cool. Keep each crank attempt under 15 seconds. If the engine does not fire after three tries, inspect the fuel circuit for air ingestion and blocked hoses per the troubleshooting chart on page 188. Replace a damaged starter per page 66.
Manual Section: Information About FailuresPower loss and rough running after continuous idling beyond 30 minutes, smoke from exhaust p. 188
Increase engine RPM and apply load immediately to stop the fouling cycle. Inspect and replace the air filter if restricted. Replace the fuel filter cartridge if it has reached the 12-month service interval on page 21. Retrieve any stored fault codes on page 191 to confirm combustion health after the load run.

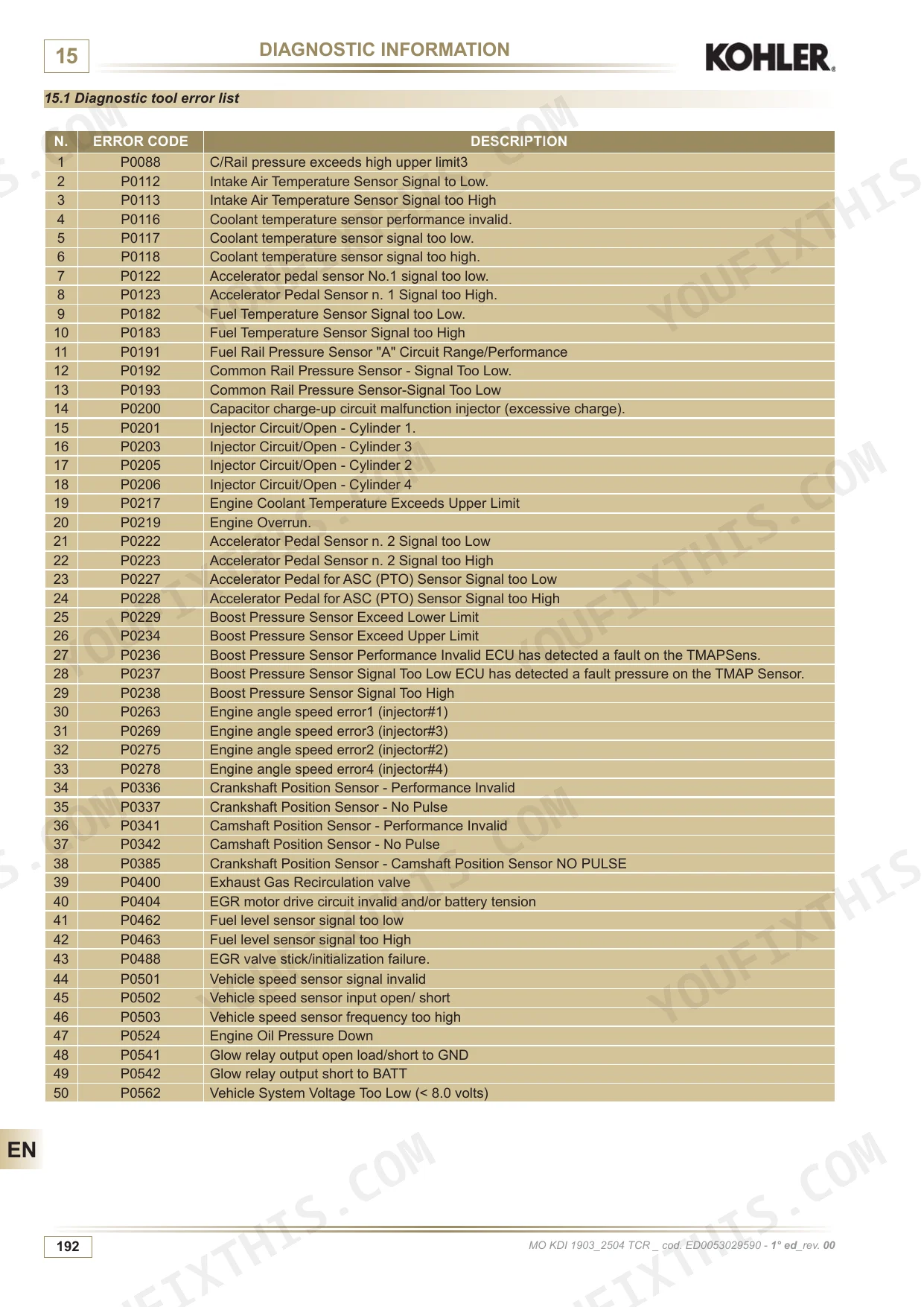

Manual Section: Information About FailuresFault code P0087 stored, engine loses power under load, fuel rail pressure low p. 192
Replace the fuel filter cartridge first; its 12-month replacement interval is shown on page 21. After replacement, bleed the fuel circuit and inspect all hose connections for air ingestion. If P0087 persists, examine the high-pressure pump and injector circuits per page 66. Confirm code clearance with the diagnostic tool on page 192.
Manual Section: Diagnostic InformationTemperature gauge climbs to red zone, coolant level full, fan running normally p. 188
Verify the coolant mixture is 50% antifreeze and 50% water as specified on page 15. Inspect the radiator cap, thermostat housing, and all hose connections for leaks. Check the fan for proper engagement and clear any debris from the radiator core. If overheating continues, test the water pump per the replacement procedures on page 66.
Manual Section: Information About FailuresFrequently Asked Questions
What are the torque specs for the cylinder head?
For the cylinder head fastening screws, the first phase requires a torque of 70 Nm. Subsequent phases (2nd, 3rd, 4th, and 5th) each require a torque of 120 Nm. These specifications apply to both 3-cylinder and 4-cylinder engines, as detailed in Table 9.5.
