Need factory specs for your Kohler KDI 1903 M or KDI 2504 M diesel engine? This 166-page workshop manual (OEM #ED0053029610) is the source: teardown sequences, rebuild procedures, and overhaul data straight from Kohler. You get detailed exploded views of internal components, full step-by-step procedures for injector and injection pump replacement, crankshaft and connecting rod overhaul, and optional PTO configurations for 3rd and 4th power take-off setups. Open to a troubleshooting section that maps failure symptoms to probable causes, a torque specification section, and fluid capacity data for proper engine preparation. Swap the oil and fuel filter cartridges every 250 hours or 12 months; flush the coolant at the 24-month mark. Engine's apart and you need the right numbers, not a forum guess. Bookmarked and searchable on laptop, tablet, or phone: find the spec, fix the engine.
What's Inside This Kohler KDI 1903 M, KDI 2504 M Manual

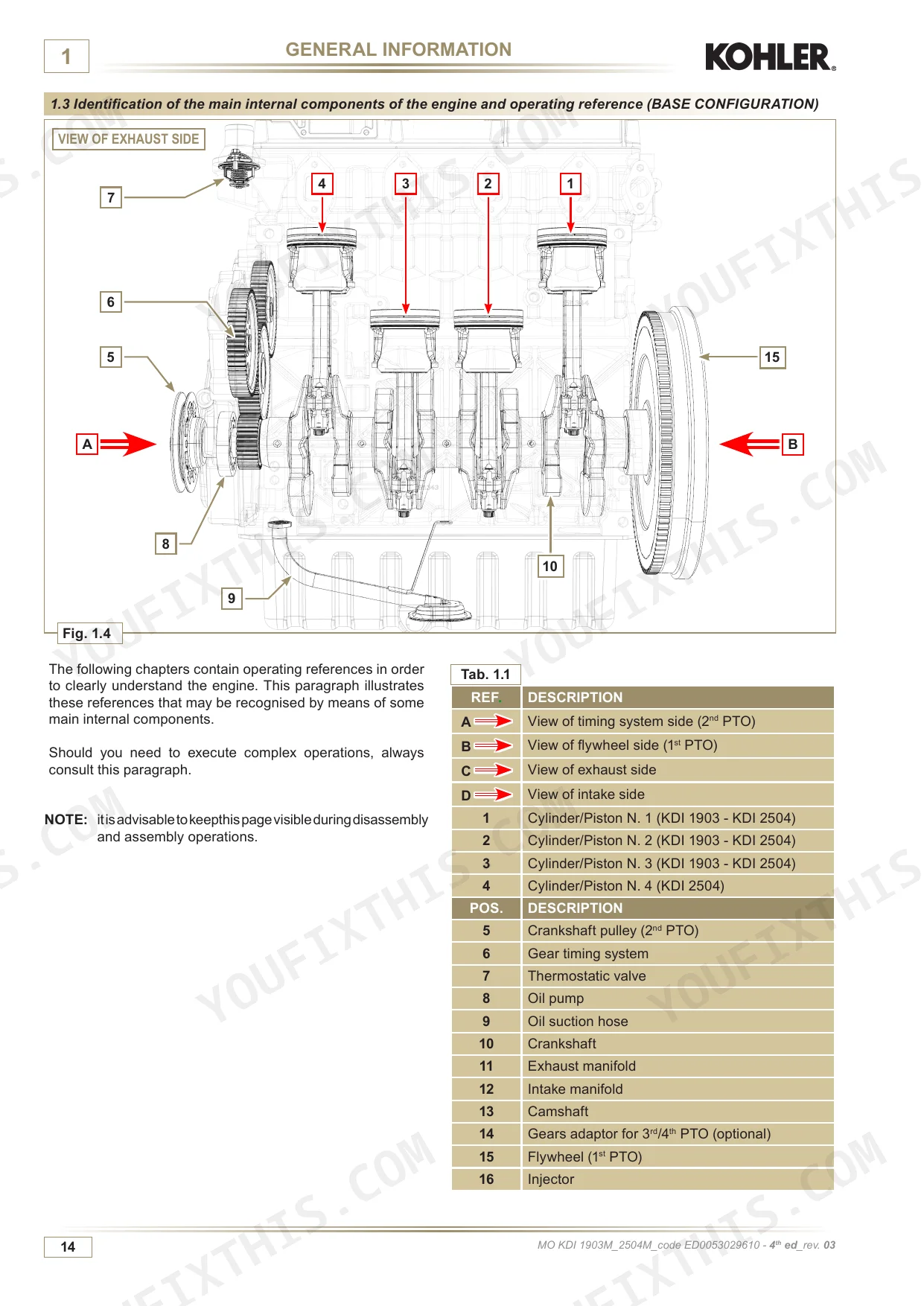

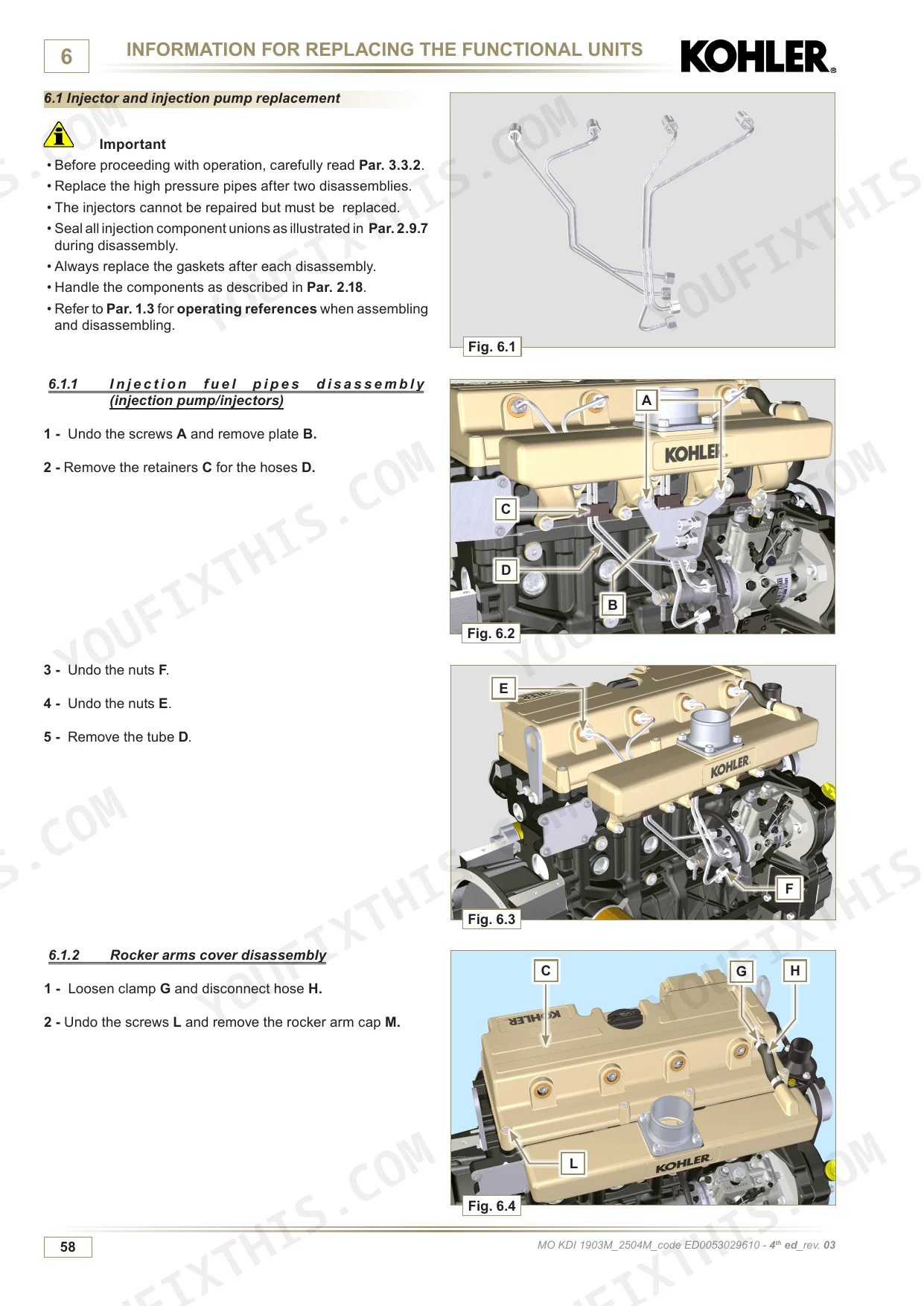

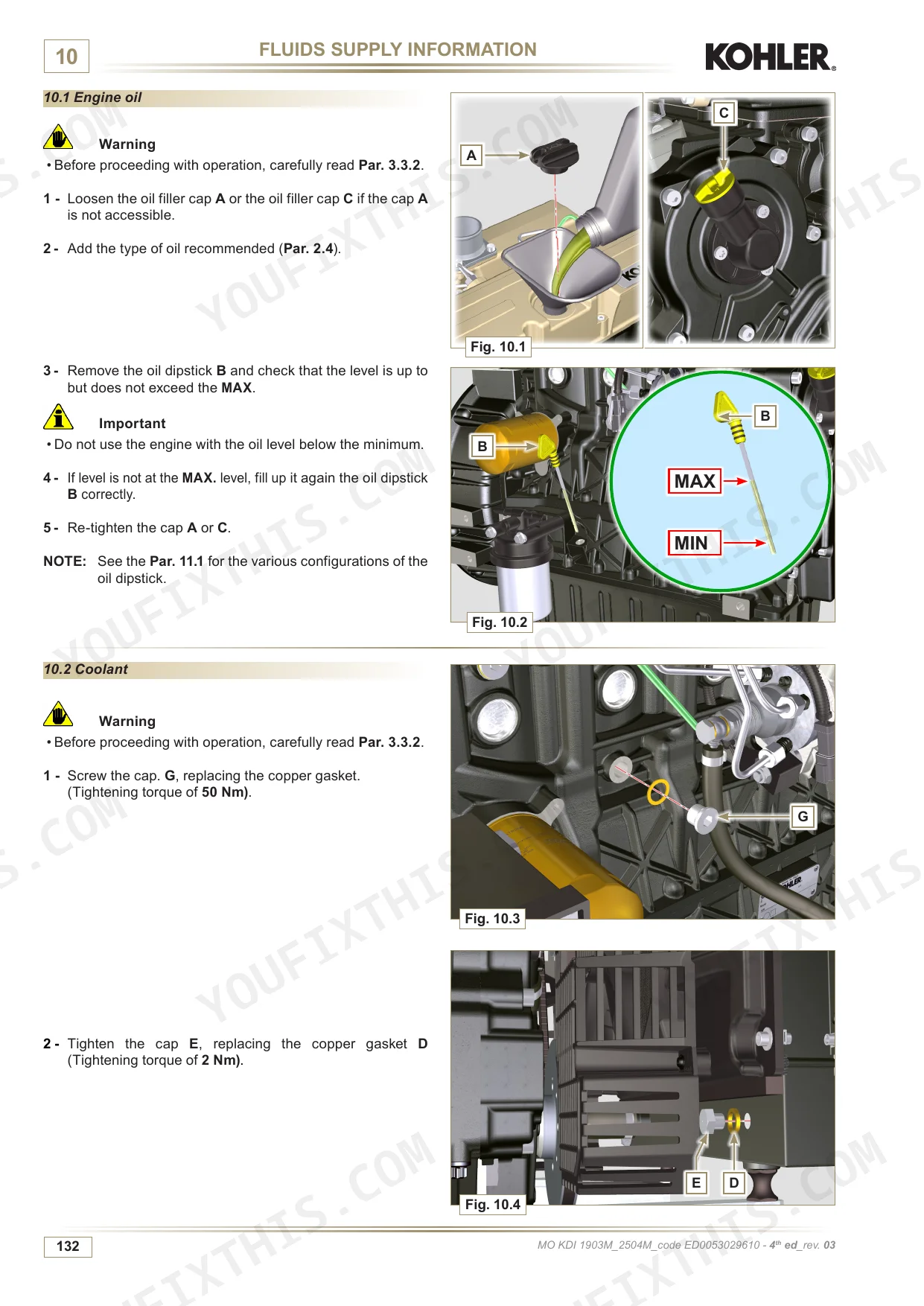

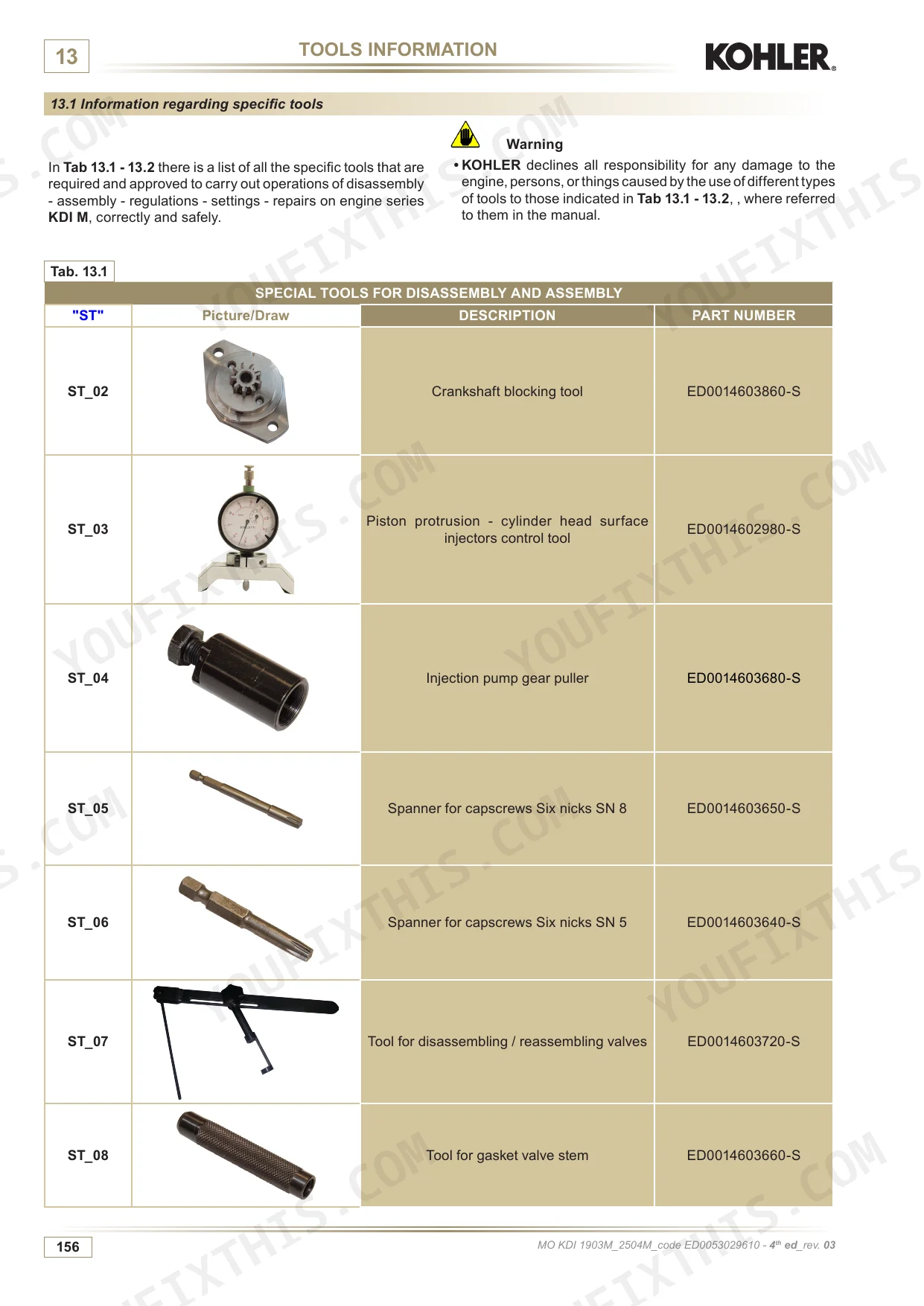

| System | Pages | Key Topics |
|---|---|---|
| General Information | 12-18 | Useful Information (-Accident Prevention - Environmental Impact), Manufacturer and Engine Identification |
| Technical Information | 19-49 | Engine Specifications, Engine Dimensions (Mm), Performance Diagrams, Oil, Fuel, Coolant, Periodic Maintenance, Fuel System |
| Safety Information | 50-54 | Before Start-Up, Safety Signal Description, Information and Safety Signals, Location of Safety Signals on Engine |
| Storage Information | 55 | Product Preservation |
| Information Regarding Discharge of Liquids | 56-57 | Coolant, Engine Oil |
| Information for Replacing the Functional Units | 58-71 | Injector and Injection Pump Replacement, Coolant Pump Replacement, Replace the Crankshaft Pulley, Oil Pump Replacement, Oil Pressure Valve Replacement, Oil Filter Replacement |
| Disassembly Information | 72-89 | Recommendations for Disassembly, Exhaust Manifold Disassembly, Crankshaft Pulley Disassembly, Intake Manifold Disassembly, Timing System Gear Disassembly, Flange Unit Disassembly |
| Information About Overhauling | 90-103 | Recommendations for Overhauls and Tuning, Crankcase, Tappets and Tappet Housings, Crankshaft, Connecting Rod - Piston Assembly, Cylinder Head, Oil Pump Check |
| Assembly Information | 104-131 | Information on Engine Configuration, Engine Block Assembly, Oil Sump Unit Assembly, Flange Unit Assembly, Timing System Gear Assembly and Injection Pump |
| Fluids Supply Information | 132-133 | Engine Oil |
| Information About Optional Components | 134-153 | Oil Dipstick in Cylinder Head, Heater (Replacement), Idler Gear (for 3rd / 4th PTO), 3rd PTO (Replacement), 4th PTO (Replacement), 3rd + 4th PTO (Configurations) |
| Information on Adjustments and Checks | 154-155 | Air Filter Check, Oil Leak Check |
| Tools Information | 156-159 | Information Regarding Specific Tools |

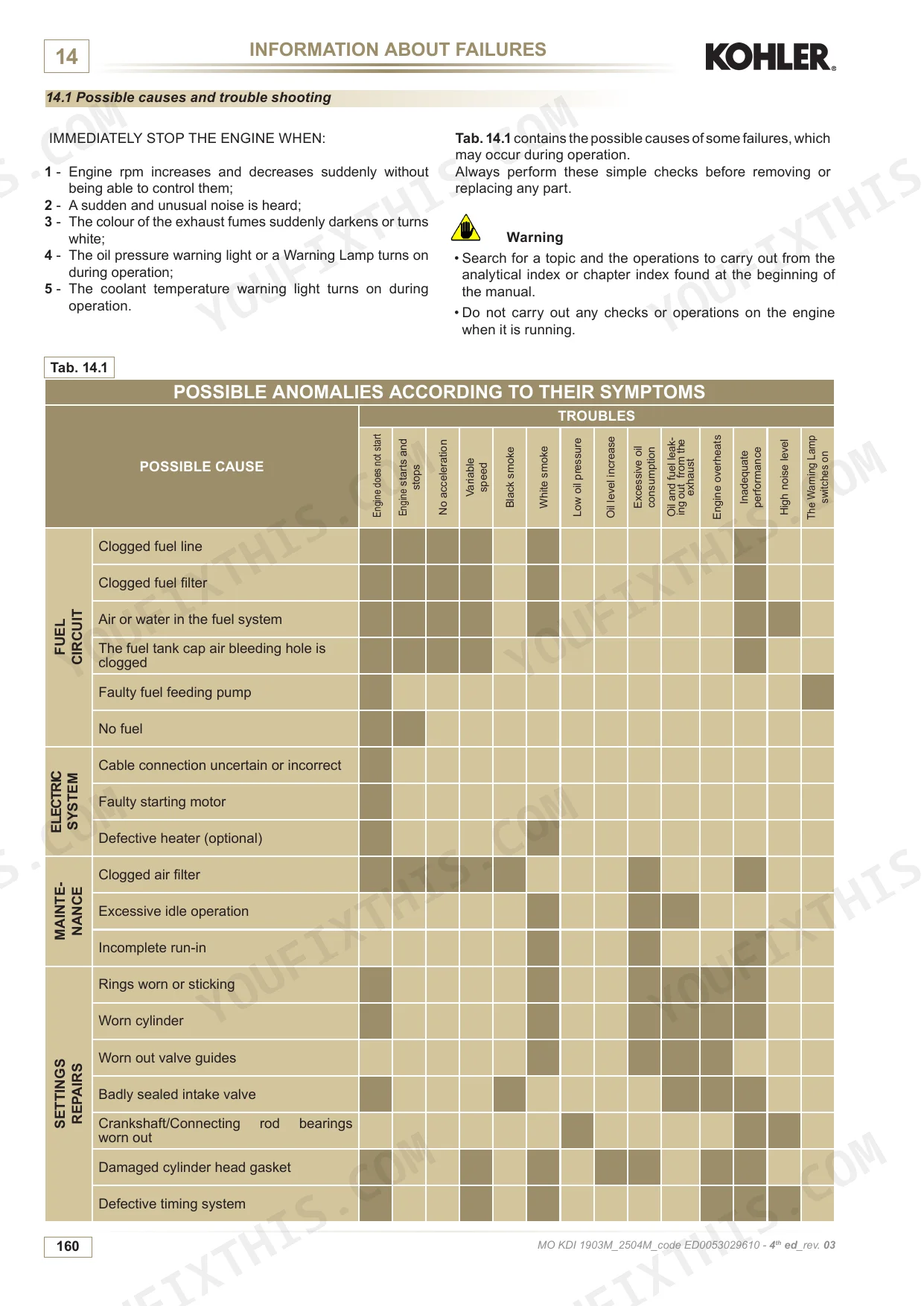

| Information About Failures | 160-161 | Possible Causes and Trouble Shooting |
| Glossary | 162-166 | Air Gap, Alternator, Balancer Device, BDC, Crankshaft, Tightening Torque |

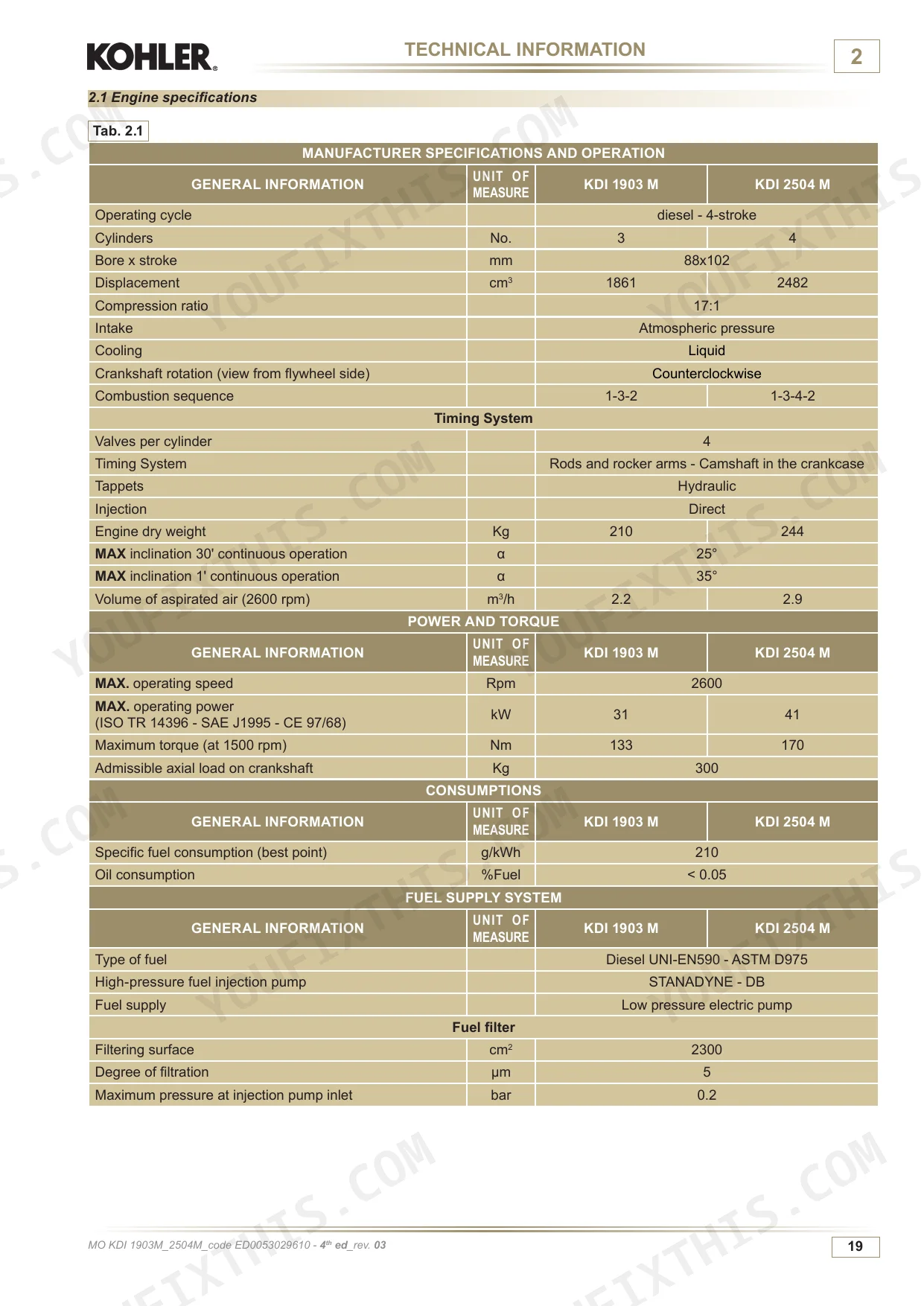

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Dry air cleaner external cartridge replacement interval | 250 hours / 12 months | p. 26 |
| Oil filter cartridge replacement interval | 250 hours / 12 months | p. 26 |
| Coolant (interior radiator cleaning) replacement interval | 24 months | p. 26 |
| Fuel filter cartridge replacement interval | 250 hours / 12 months | p. 26 |
| Fuel filter cartridge Filtering surface | 2,300 cm² | p. 29 |
| Coolant type | 50% ETYLENGLYCOL e 50% DECALCIFIED WATER | p. 25 |
| MAX. operating speed | 2600 Rpm | p. 19 |
| Oil pressure switch intervention pressure (MIN) | 0.8 ± 0.1 bar | p. 20 |
| KDI 1903 M | ||
| Displacement | 1861 cm³ | p. 19 |
| Oil sump capacity (MAX) | 8.9 Lt. | p. 20 |
| KDI 2504 M | ||
| Displacement | 2482 cm³ | p. 19 |
| Oil sump capacity (MAX) | 11.5 Lt. | p. 20 |
Kohler KDI 1903 M, KDI 2504 M Common Problems This Manual Covers
Kohler KDI 1903 M starter cranks but engine won't fire after repeated 15-second attempts p. 160
Limit each start attempt to 15 seconds maximum, then wait 1 minute before trying again. Check battery voltage holds above cranking threshold and verify fuel delivery. If the engine fails to start after three attempts with proper rest intervals, consult the troubleshooting chart on page 160 for no-start diagnosis.
Manual Section: Information About FailuresBlue exhaust smoke and rising oil consumption after running at idle longer than 30 minutes p. 160
Avoid continuous idle operation beyond 30 minutes. If blue smoke appears, check the oil level with the engine on level ground before drawing any conclusions. Inspect the air filter and replace it at 250 hours or 12 months per the maintenance schedule on page 26. Run the engine under moderate load to clear combustion chamber deposits.
Manual Section: Information About FailuresEngine oil turns dark and requires change well before the 250-hour interval p. 26
Check fuel sulfur content before servicing; if it exceeds 500 mg/kg, shorten oil change intervals below the standard 250-hour schedule. Replace the oil filter at every oil change, using a filter rated at 17 ± 2 µm filtration. Review the lubrication specifications on page 19 and verify the oil grade meets the manual's SAPS classification.
Manual Section: Technical InformationCoolant system shows corrosion deposits and discolored fluid in the expansion tank p. 25
Drain and refill the cooling system with a 50% ethylene glycol and 50% decalcified water mixture, as specified on page 25. Never use plain water or undiluted coolant. Flush the radiator interior every 24 months. Verify the expansion tank is clean and free of rust scale before refilling to the marked level.
Manual Section: Technical InformationOil level reads incorrectly on dipstick, engine shows false low or overfill condition p. 154
Park the engine on level ground and let oil settle for 5 minutes before checking. Wipe the dipstick clean, reinsert fully, then pull to read the true level per the check procedure on page 154. If the oil pressure warning light triggers below 0.8 ± 0.1 bar, stop the engine and recheck before restarting.
Manual Section: Information on Adjustments and ChecksFrequently Asked Questions

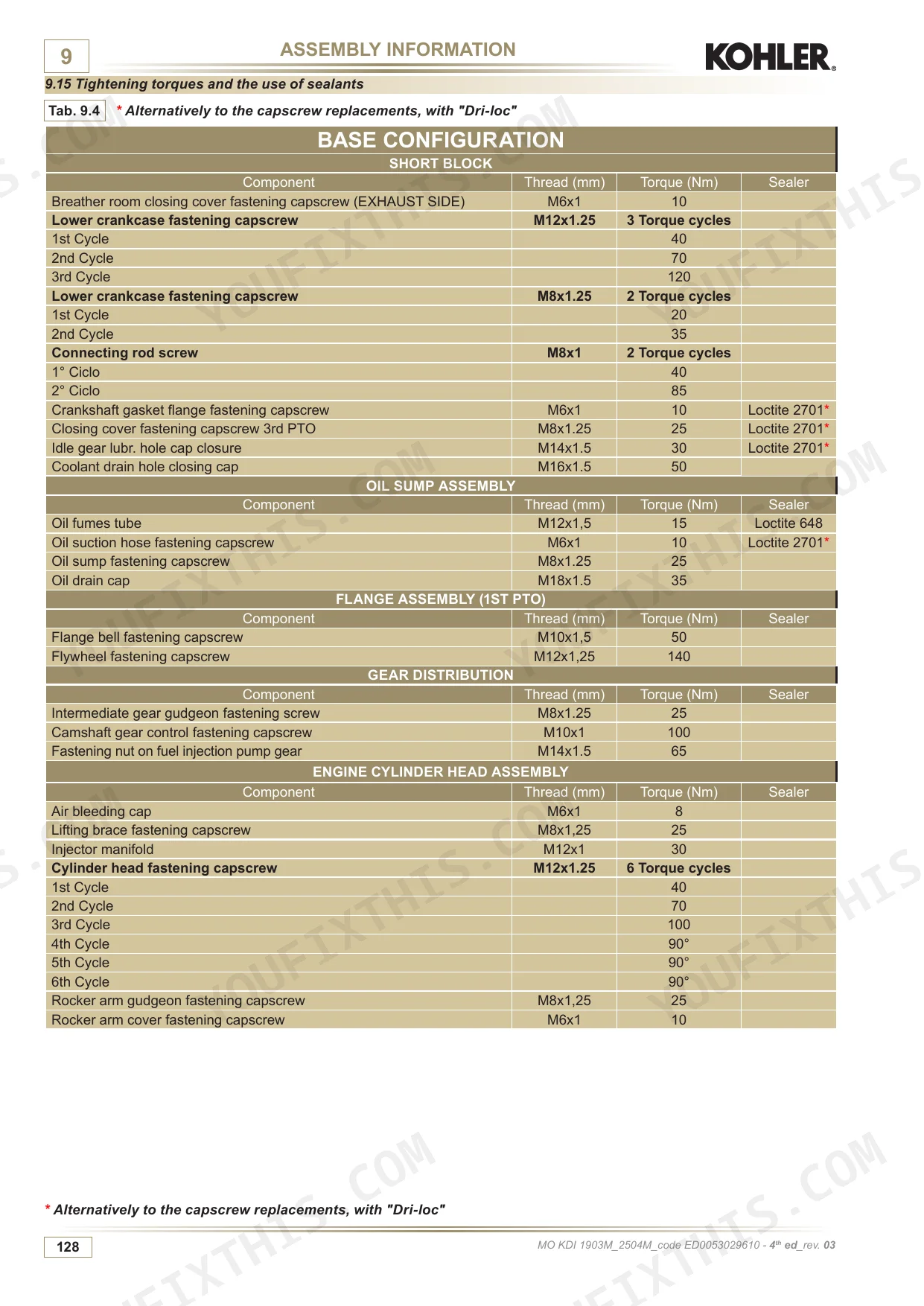

What are the torque specs for cylinder head bolts on Kohler KDI engines?
The cylinder head fastening capscrews (M12x1.25) require 6 torque cycles. The tightening sequence is: 1st Cycle: 40 Nm, 2nd Cycle: 70 Nm, 3rd Cycle: 100 Nm, 4th Cycle: 90°, 5th Cycle: 90°, and 6th Cycle: 90°.
What are the replacement specifications for Air filter (cleaned/replaced frequently in dusty conditions)?
The dry air cleaner external cartridge should be replaced after 6 checks with cleaning, or with a maximum period of 12 months. The filter element's checking period depends on the operating environment, and it must be cleaned and replaced more frequently under very dusty conditions.
What are the replacement specifications for Oil filter?
The oil filter cartridge should be replaced every 250 hours of operation. In cases of low use, the oil filter cartridge must be replaced every 12 months.
How do you fix kohler KDI 1903 M starter cranks but engine won't fire after repeated 15-second attempts?
Limit each start attempt to 15 seconds maximum, then wait 1 minute before trying again. Check battery voltage holds above cranking threshold and verify fuel delivery. If the engine fails to start after three attempts with proper rest intervals, consult the troubleshooting chart on page 160 for no-start diagnosis.
Is this Kohler KDI 1903 M, 2504 M Workshop Manual a digital download?
Immediate download of the complete 166-page searchable Workshop Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
