Every part number, exploded view, and cross-reference your TL421 loader needs lives in these 31 pages. The diagrams and numbered parts lists cover the side frame, swing frame, bucket, control valve assembly (with its internal spool and seal kits), control lever linkage, hydraulic hoses, boom and bucket cylinders, hydraulic tubes, and delivery return hose routing. Cross-reference tables pair each ref number with Kubota part numbers, quantities, and interchangeability codes. Detail runs down to individual fasteners: 9/16-18UNF*1 1/2 hex bolts and 1/4-28T.T. grease fittings, plus O-ring kit callouts for both boom and bucket cylinder seal kits. Bookmarked by system and searchable by keyword, so you can open it on a tablet, jump to the section you need, and reach the dealer with the right number in hand.
What's Inside This Kubota TL421 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

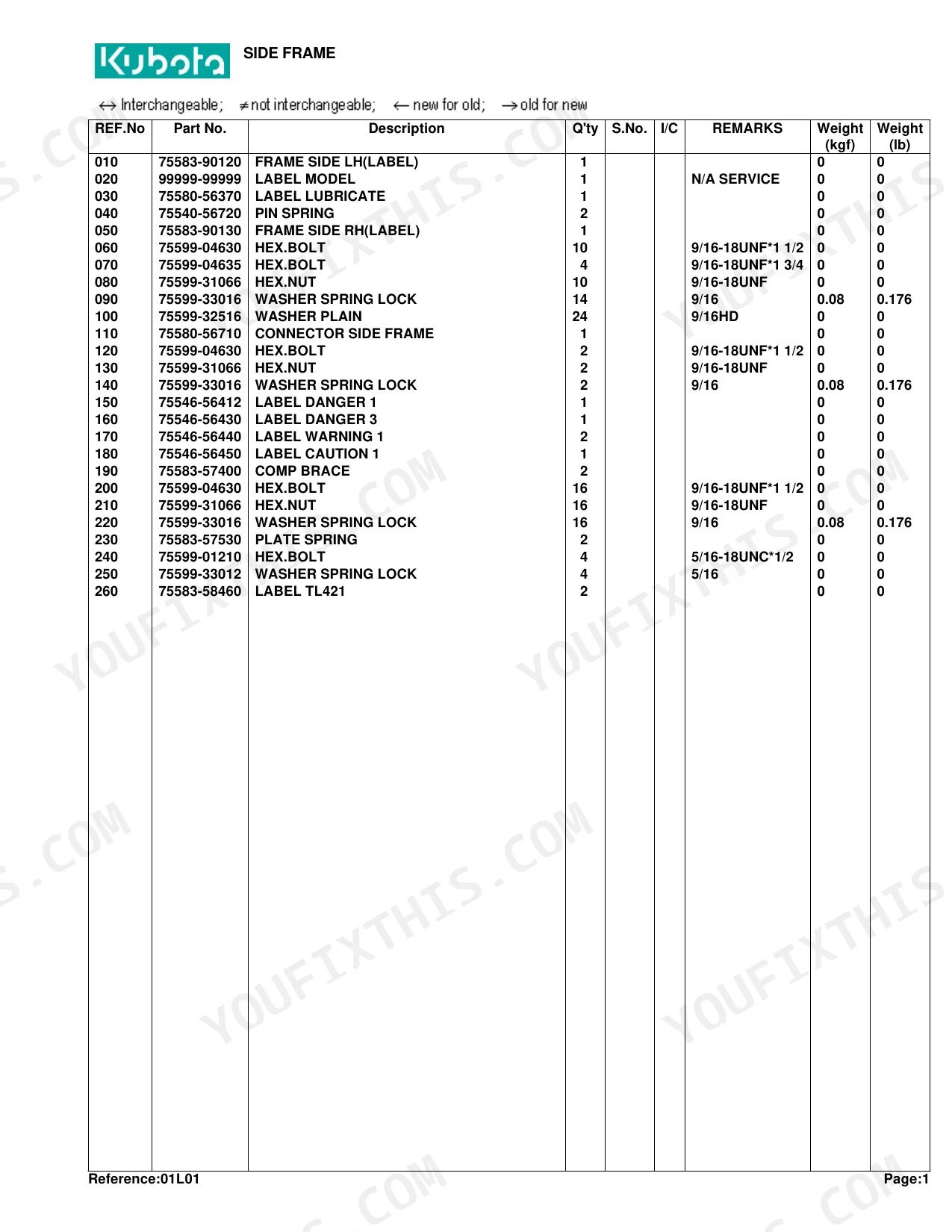

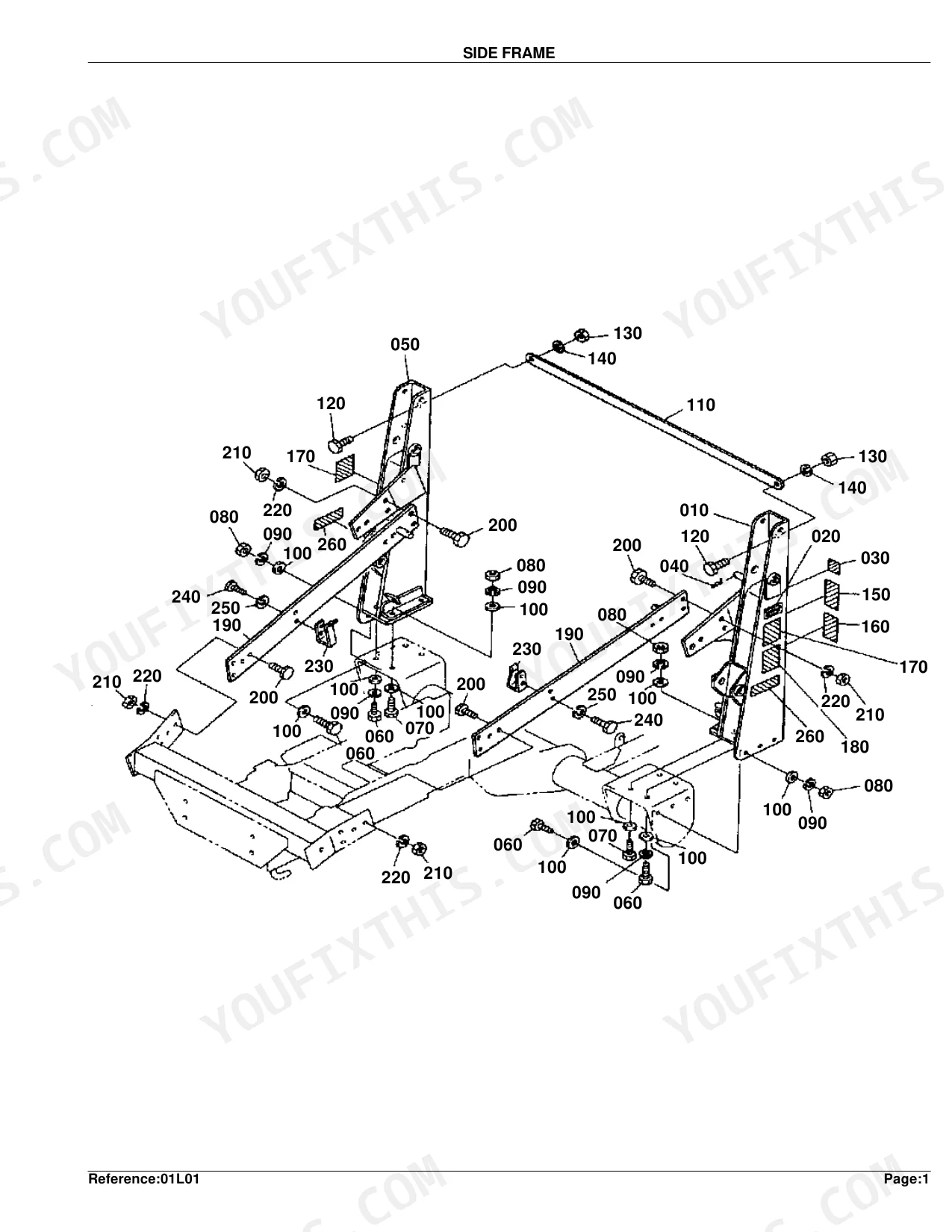

| Side Frame | 3-4 | Side Frame Diagram, Interchangeability Symbols Definition, Side Frame Parts List, Frame Side LH(Label), Label Model, Label Lubricate, Pin Spring, Frame Side RH(Label) |
| Swing Frame | 5-6 | Swing Frame Diagram, Interchangeability Symbols Definition, Swing Frame Parts List, Boom, Label Kubota, Label B21, Pin 1, Pin 2 |

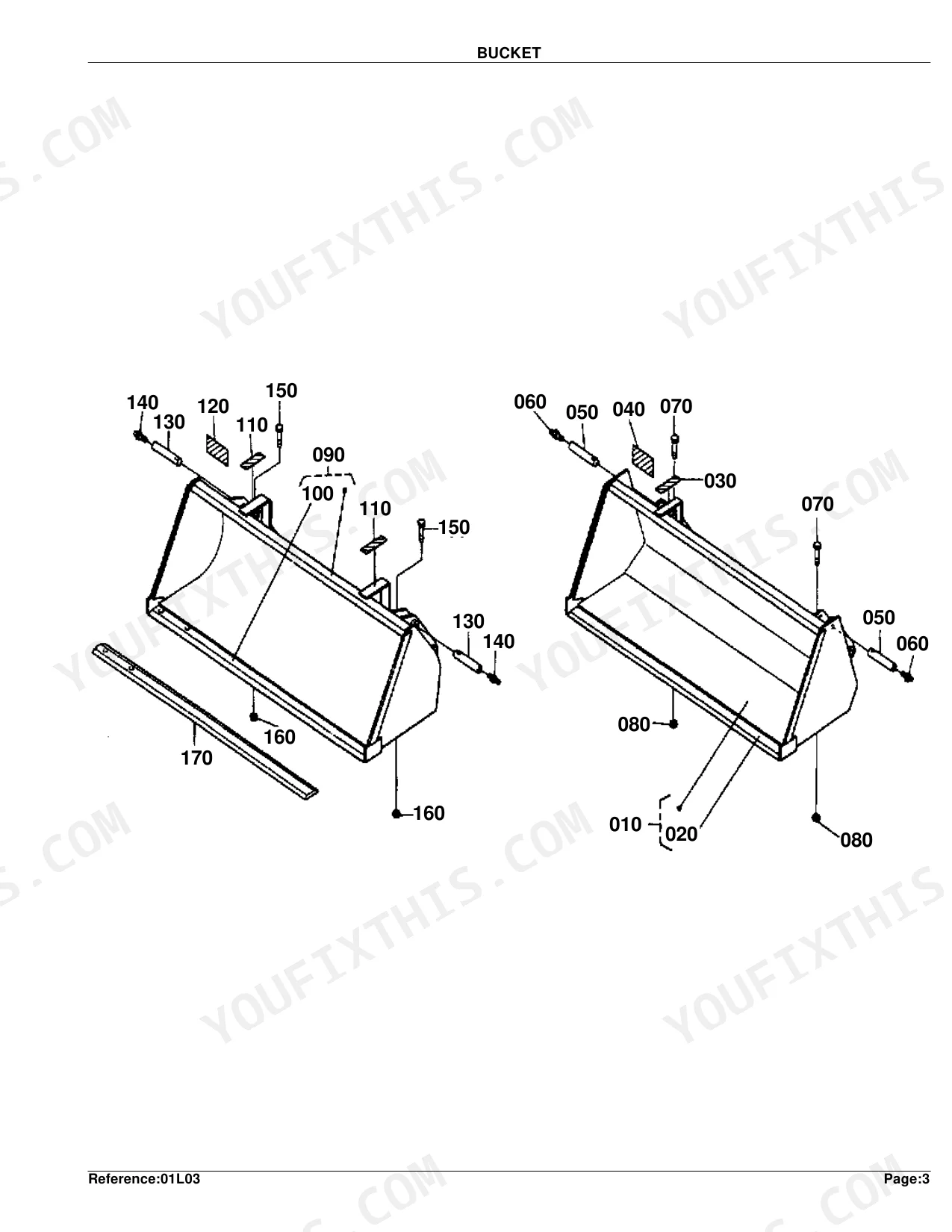

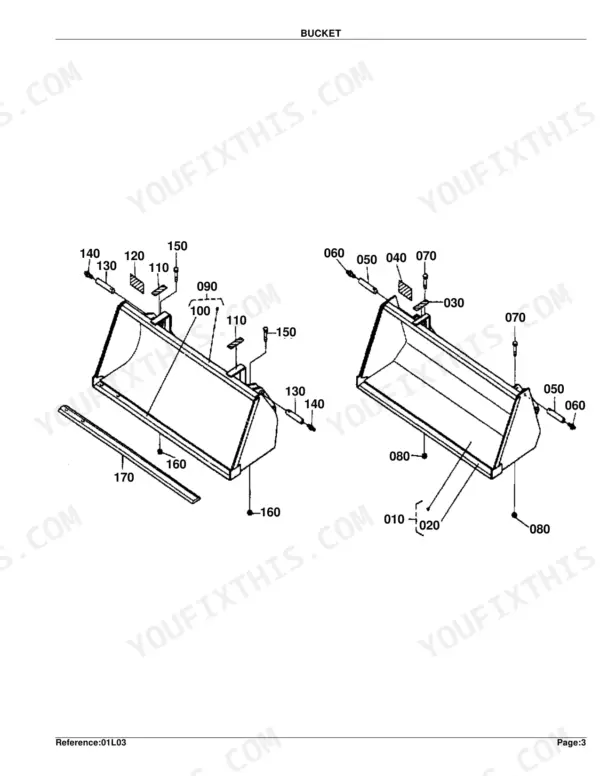

| Bucket | 7-8 | Bucket Diagram, Interchangeability Symbols Definition, Bucket Parts List, Bucket 56, Edge Cutting, Label Leveler, Label Model, Pin 3 |

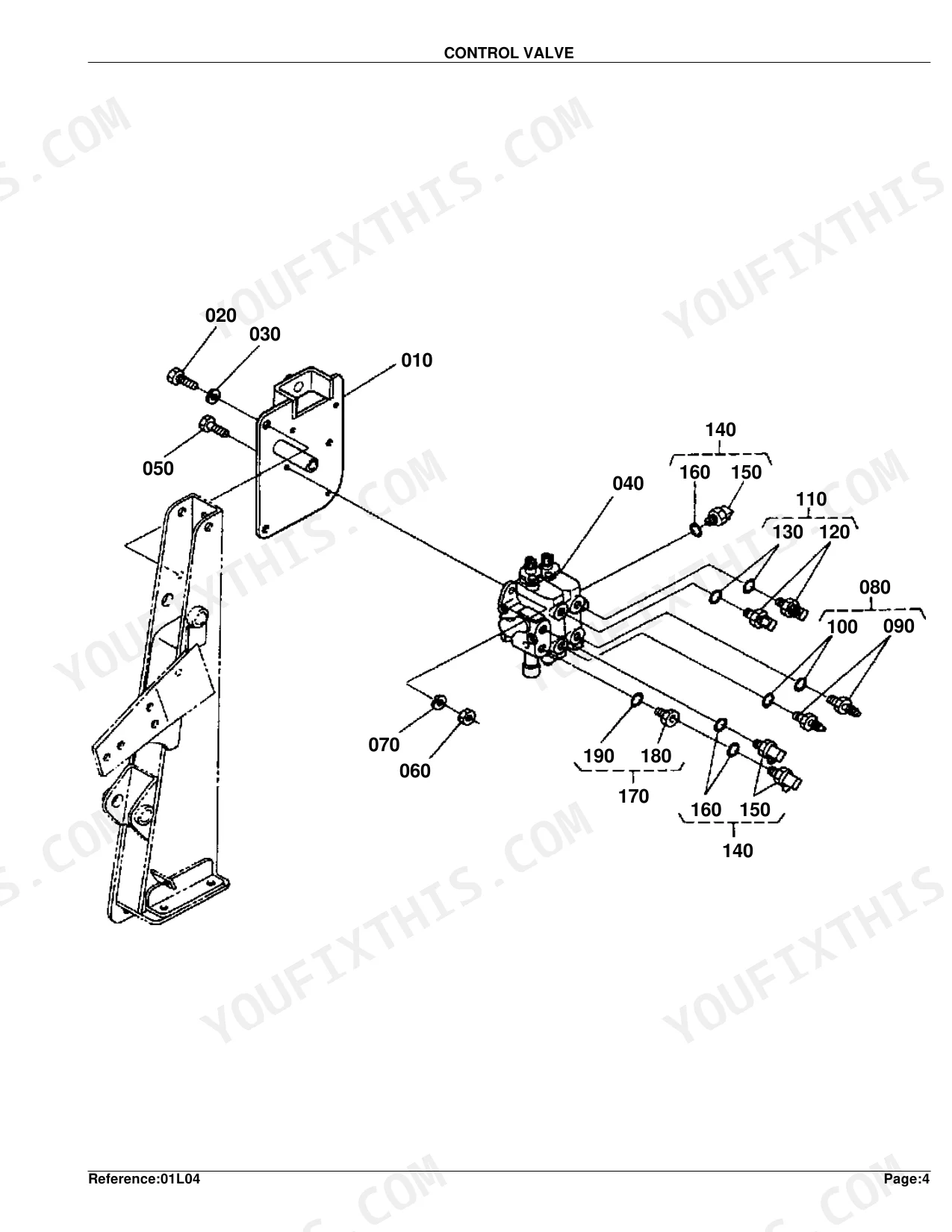

| Control Valve | 9-10 | Control Valve Diagram, Interchangeability Symbols Definition, Control Valve Parts List, Stay Valve, Hex.Bolt, Washer Spring Lock, Valve Control, Hex.Nut |
| Control Valve(Component Parts) | 11-12 | Control Valve(Component Parts) Diagram, Interchangeability Symbols Definition, Control Valve(Component Parts) Parts List, Valve Control, Assy Inlet Section, O-Ring, Assy Spool Section 1, Clevis End |

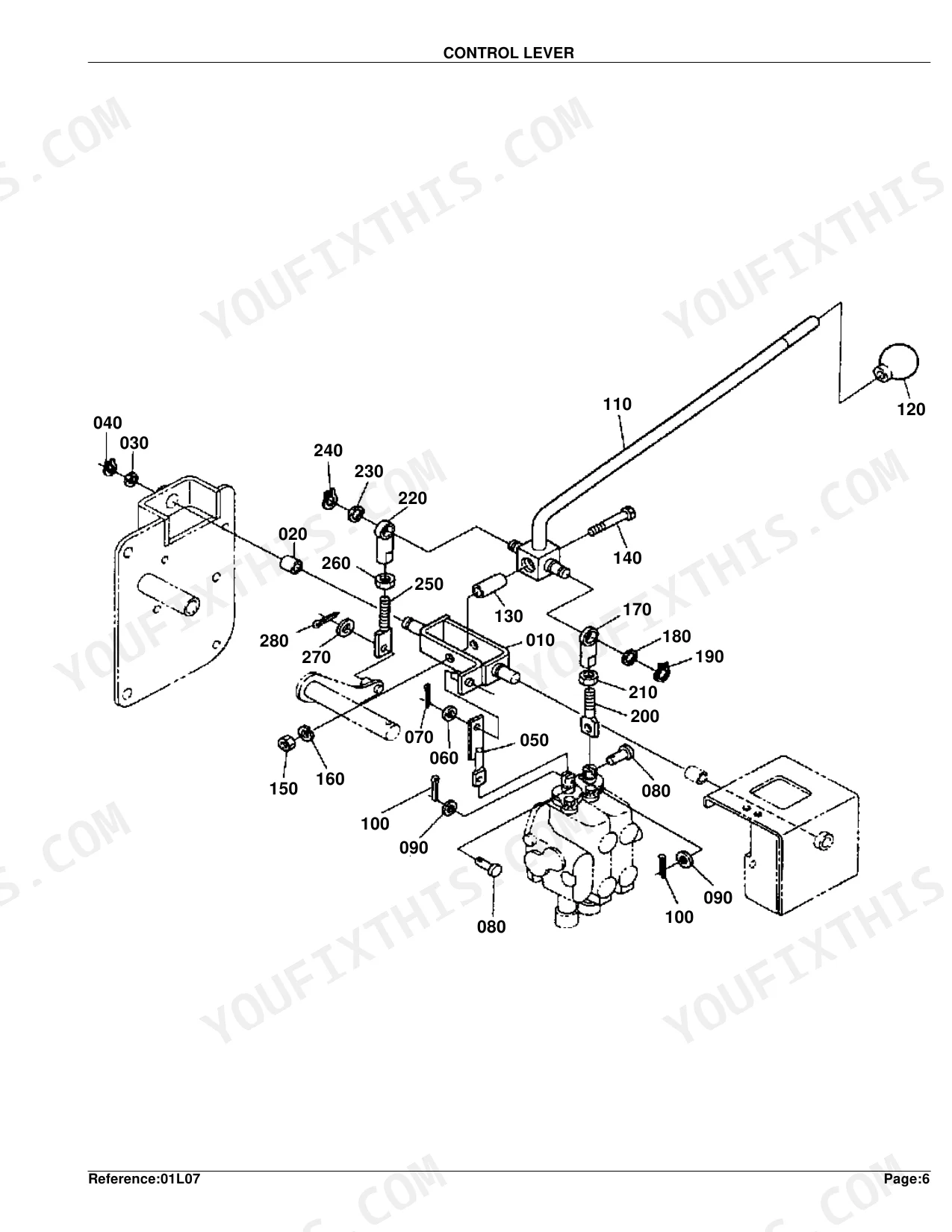

| Control Lever | 13-14 | Control Lever Diagram, Interchangeability Symbols Definition, Control Lever Parts List, Lever, Bushing, Collar 5/8, Cir-Clip External, Rod 1 |
| Lever Cover | 15-16 | Lever Cover Diagram, Interchangeability Symbols Definition, Lever Cover Parts List, Comp Cover, Bushing, Hex.Bolt, Washer Spring Lock, Label Control |
| Link | 17-18 | Link Diagram, Interchangeability Symbols Definition, Link Parts List, Link 3, Bushing, Link 4, Pin Spring, Rod 1 Connecting |
| Cylinder Hydraulic Hose | 19-20 | Cylinder Hydraulic Hose Diagram, Interchangeability Symbols Definition, Cylinder Hydraulic Hose Parts List, Cylinder 1, Cylinder 2, Band Code, Mark White, Mark Yellow |
| Boom Cylinder (Component Parts) | 21-22 | Boom Cylinder (Component Parts) Diagram, Interchangeability Symbols Definition, Boom Cylinder (Component Parts) Parts List, Cylinder 1, Tube 1 Comp, Rod 1 Comp, Head 1, Piston 1 |
| Bucket Cylinder (Component Parts) | 23-24 | Bucket Cylinder (Component Parts) Diagram, Interchangeability Symbols Definition, Bucket Cylinder (Component Parts) Parts List, Cylinder 2, Tube 2 Comp, Rod 2 Comp, Head, Piston |
| Hydraulic Tube | 25-26 | Hydraulic Tube Diagram, Interchangeability Symbols Definition, Hydraulic Tube Parts List, Tube 1 Hydraulic, Tube 2 Hydraulic, Tube 3 Hydraulic, Tube 4 Hydraulic, Clamp 1 |
| Delivery Return Hose | 27-28 | Delivery Return Hose Diagram, Interchangeability Symbols Definition, Delivery Return Hose Parts List, Tube P.B., Sleeve, Hose 5 Hydraulic, Sleeve 1, Tube Pump |
| Front Guard | 29-30 | Front Guard Diagram, Interchangeability Symbols Definition, Front Guard Parts List, Guard Front, Collar, Hex.Bolt, Washer Plain, Washer Spring Lock |
| Accessories and Service Parts | 31 | Interchangeability Symbols Definition, Accessories and Service Parts Parts List, Operator's Manual |
Every system also includes interchangeability symbols definition, a parts list, and a diagram.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| PIN COTTER dimension | 1/32*1/2 | p. 14 |
| PIN SPRING dimension | 1/4*1.0 | p. 18 |
| Hex.Bolt size | 9/16-18UNF*1 1/2 | p. 4 |
| Washer Spring Lock size | 9/16 | p. 4 |
| Fitting Grease type | 1/4-28T.T. | p. 6 |
| Nut Locking size | 1/4-20UNC | p. 6 |
| Pin Spring size | 1/4*1.0 | p. 18 |
| Fitting Grease angle | 90DEG. | p. 22 |
| Pin Clevis size | 3/8*3/4 | p. 30 |
Kubota TL421 Common Problems This Manual Covers
Kubota TL421 loader boom cylinder seal kit part number needed, oil seeping from cylinder rod p. 21
Open the Boom Cylinder (Component Parts) exploded view on page 21, locate each seal and O-ring position, then match its item number to the parts list. The grease fitting on this cylinder is a 90-degree 1/8-27PTF angle (page 22). Hand your dealer the serial number so they confirm the seal kit for your build range.
Manual Section: Boom Cylinder (Component Parts)Bucket cylinder seals are leaking, need correct O-ring kit part numbers for replacement p. 23
Inspect the Bucket Cylinder (Component Parts) exploded view on page 23, then match each seal position to the adjacent parts list by item number. Confirm the grease fitting angle matches the 90-degree 1/8-27PTF spec (page 22) before ordering. Give your dealer the serial number so they pull the right O-ring kit for your production range.
Manual Section: Bucket Cylinder (Component Parts)Quick-connect coupler threads are stripped or damaged, correct replacement coupler part number unknown p. 25
Trace the coupler line through the Hydraulic Tube exploded view on page 25, then the Delivery Return Hose section on page 27, to find the right coupler assembly. Fittings have to match the thread spec of your existing connections before you order.
Manual Section: Hydraulic TubeLoader boom pivot pins are worn or missing, correct pin dimensions and part numbers needed p. 17
Locate the pin positions in the boom pivot assembly through the Link section on page 17. The spring pin there measures 1/4 x 1.0 (page 18). Cross-reference the Side Frame parts list on page 4 to confirm bushing and pin part numbers. Measure the worn pin before ordering for an exact fit.
Manual Section: LinkControl valve O-rings are weeping hydraulic oil, component part numbers not clear from exploded view p. 11
Pull up the Control Valve (Component Parts) diagram on page 11. Every O-ring and seal in the valve stack carries an item number; match those to the parts list column. Then confirm port locations against the main Control Valve diagram on page 9. Your serial number lets the dealer catch any superseded numbers.
Manual Section: Control Valve(Component Parts)Swing frame mounting hardware is corroded and needs replacement, correct bolt size unknown p. 5
Compare the Swing Frame diagram on page 5 with the parts list on page 6. This frame takes 1/4-20UNF x 2-1/4 hex bolts and 1/4-20UNC locking nuts (page 6), and its grease fittings are 1/4-28 T.T. thread (page 6). Match each hardware item number to the parts list column before you submit the dealer order.
Manual Section: Swing FrameFrequently Asked Questions
What are the replacement specifications for quick-connect couplers?
The couplers listed here are grease fittings. For example, FITTING GREASE part no. 75599-81521 carries a 1/4-28T.T. thread, as shown on page 6, while a second FITTING GREASE, part no. 75599-81531, uses a 1/8-27PTF thread, found on page 22.
What are the replacement specifications for O-rings / seals?
Each O-ring and seal kit is called out by its own part number. O-RING 75540-61820 appears several times on page 10, and O-RING 75540-61250 shows up on page 12. For the cylinders, KIT 1 SEAL (part no. 75545-63400) covers the boom on page 22, and KIT SEAL (part no. 75554-63400) covers the bucket on page 24.
How do I find the correct boom cylinder seal kit for the Kubota TL421 loader?
Open the Boom Cylinder (Component Parts) exploded view on page 21, locate each seal and O-ring position, then match its item number to the parts list. The grease fitting on this cylinder is a 90-degree 1/8-27PTF angle fitting (page 22). Have your serial number ready when ordering so the dealer confirms the correct seal kit for your build range.
How do I identify the correct control valve O-ring part numbers from the exploded view?
Pull up the Control Valve (Component Parts) diagram on page 11. Every O-ring and seal in the valve stack carries an item number; match those to the parts list column. Then confirm port locations against the main Control Valve diagram on page 9. Your serial number lets the dealer catch any superseded part numbers.
Is this Kubota TL421 Parts Catalog a digital download?
Yes, it's an instant PDF download. The full 31-page searchable Parts Catalog lands in your account right after payment, ready to open on a laptop, tablet, or phone in the shop.
Can I print this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for the shop. It works with any standard printer.
