From the crankshaft and Lucas starter through the 12 speed transmission, dual clutch, PTO controls and rear differential lock, this 292-page Landini Frutteti 560 F, 8560F parts catalog PDF (OEM ID 3311544M2) breaks the tractor into exploded views and part numbers. Each exploded view ties a callout to its part number, so a worn three-point hitch bush or a 4WD steering cylinder seal kit gets identified before you ring the parts counter. Hydraulic coverage runs from the lift distributor and Orbitrol steering distributor to the trailer brake valve, while the reducer and instrument panel sections take a hefty share of the book. Spec the battery at the listed 100 AH, and confirm your 2WD or 4WD build first; front axle and steering parts are split by version. A tractor waiting on the wrong part burns spray days. Bookmarked and text-searchable, the PDF rides along on the shop laptop, so the part number is with you at the field edge.
What's Inside This Landini Frutteti 560 F, 8560F Parts Manual
| System | Pages | Key Topics |
|---|---|---|

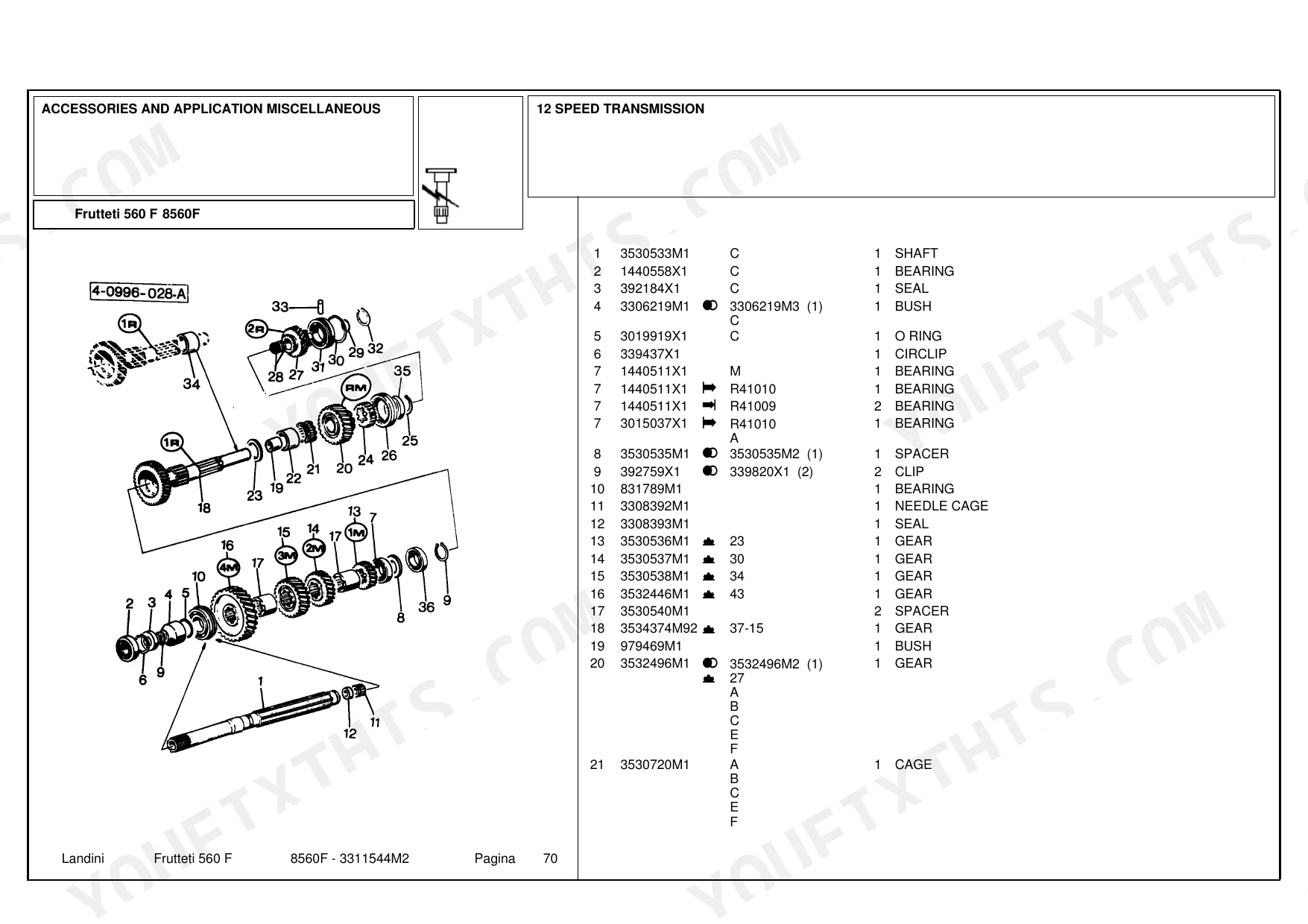

| Clutch & Transmission | Speed Transmission, Centre Axle Housing and Transmission Housing, Clutch Dual Clutch, Shift Levers 12 Speed Transmission, Transfer Gear Box 4 Wheel Drive | |
| Fuel System | Fuel Injection Equipment Diesel, Low Pressure Fuel System, Fuel System Fuel Filter, Fuel System Fuel Tank and Attachments | |
| Cooling System | Lubricating Oil Filter and Integral Cooler, Cooling System Engine | |

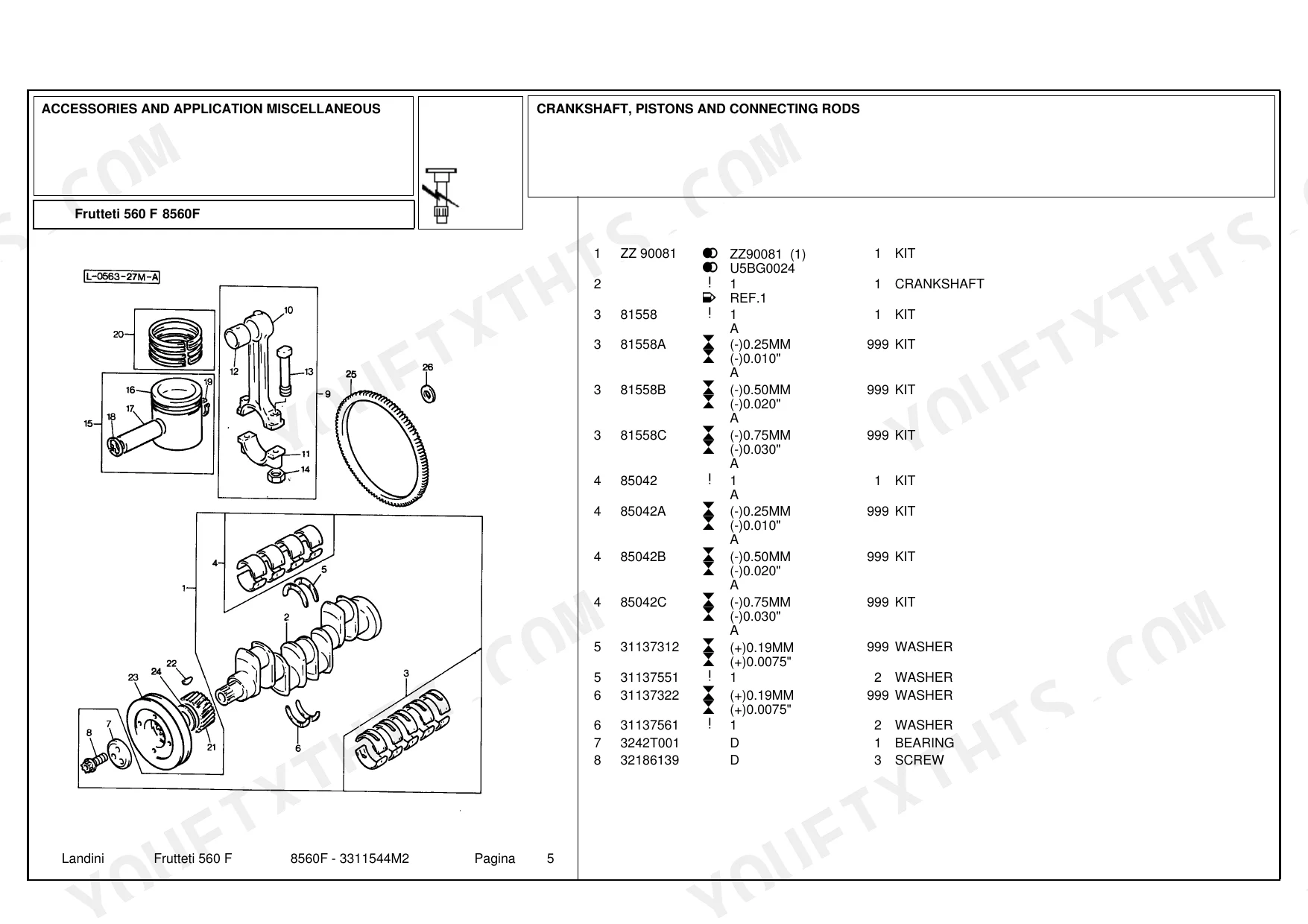

| Engine | Rocker Shaft, Crankshaft, Pistons and Connecting Rods, Lubricating Oil Sump, Air Induction and Exhaust System, Joints and Gaskets, Heater Kit Engine, Timing Gear and Camshaft, Cylinder Block, Exhaust System Horizontal, Exhaust System Vertical, Cylinder Head | |

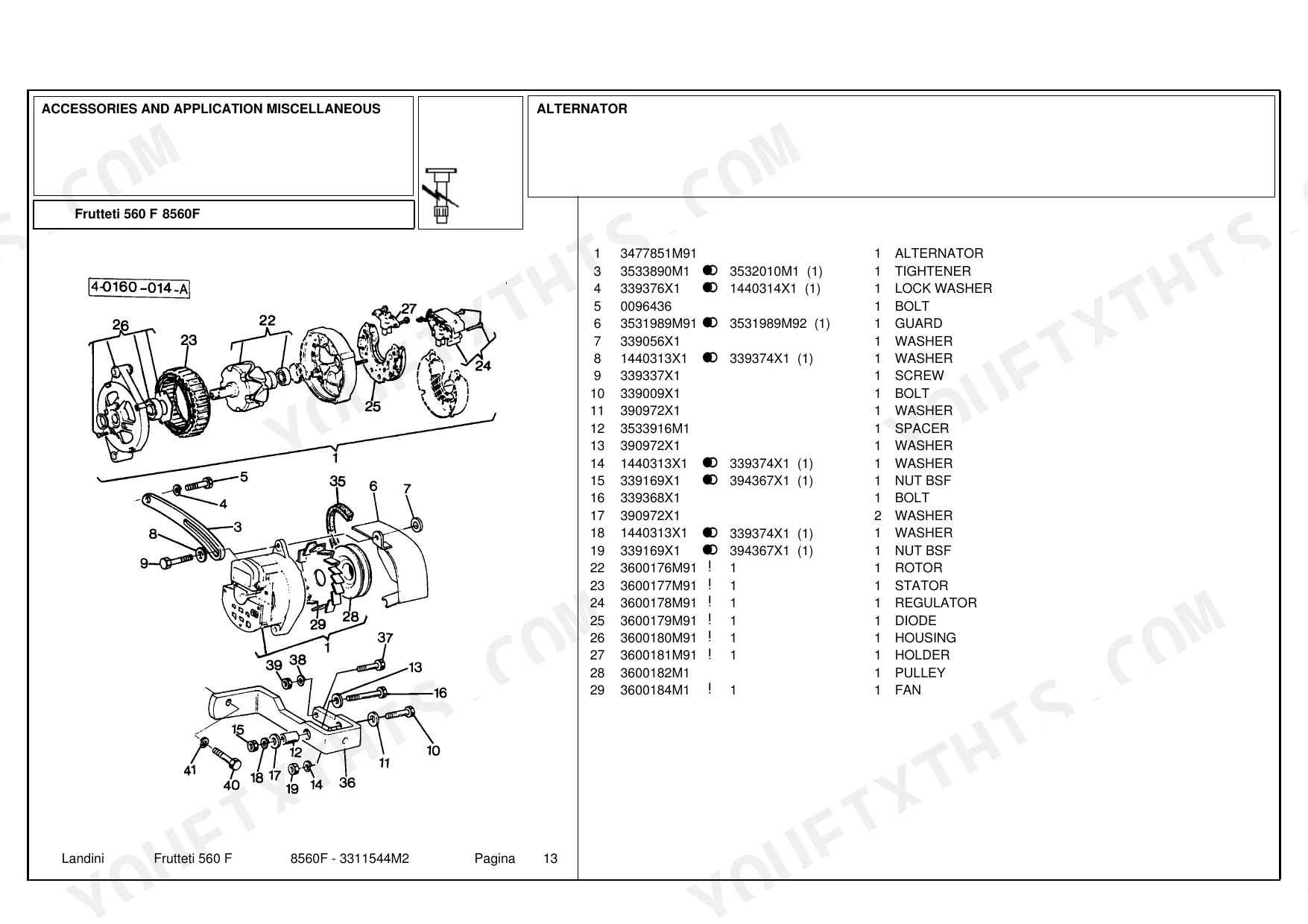

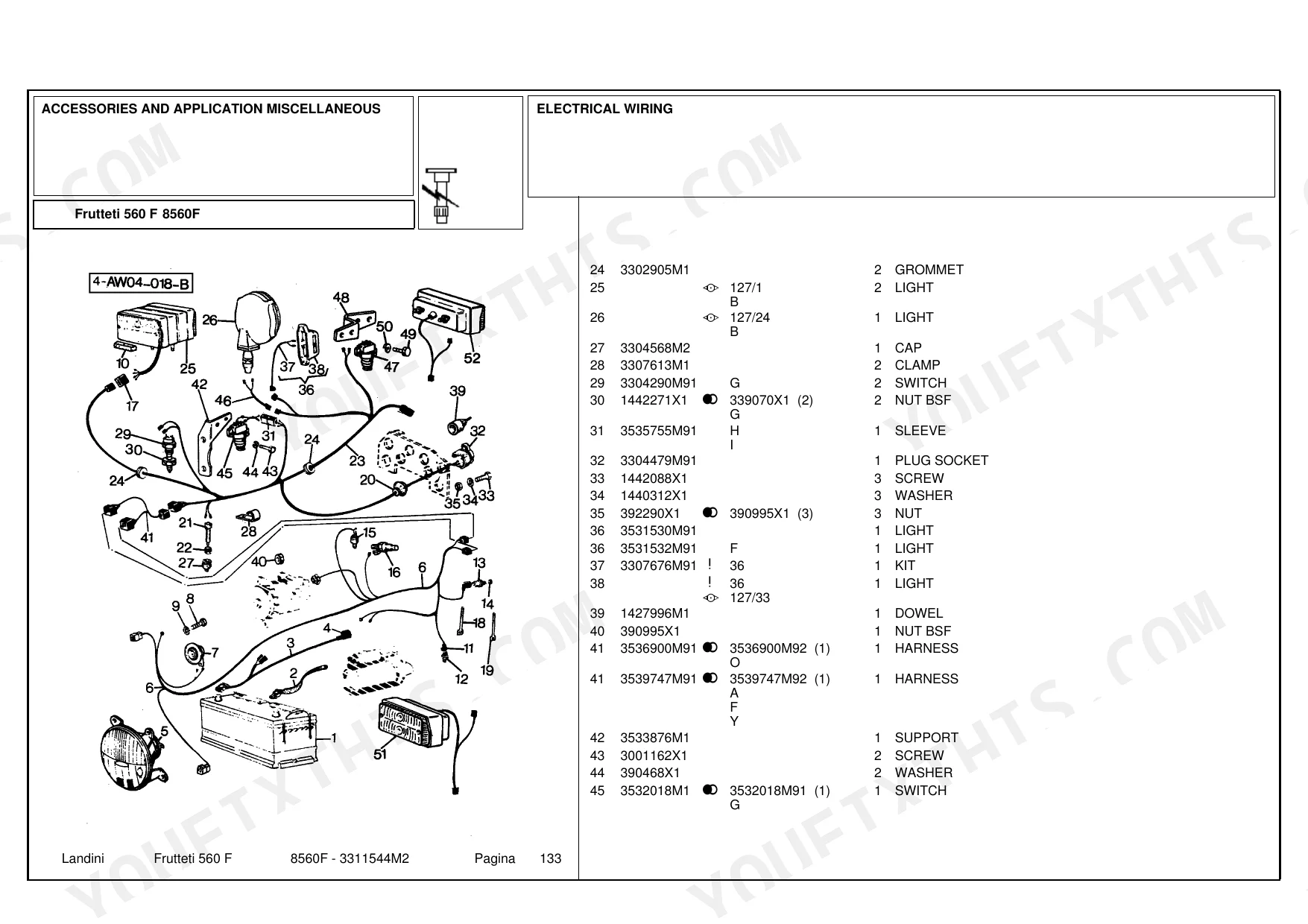

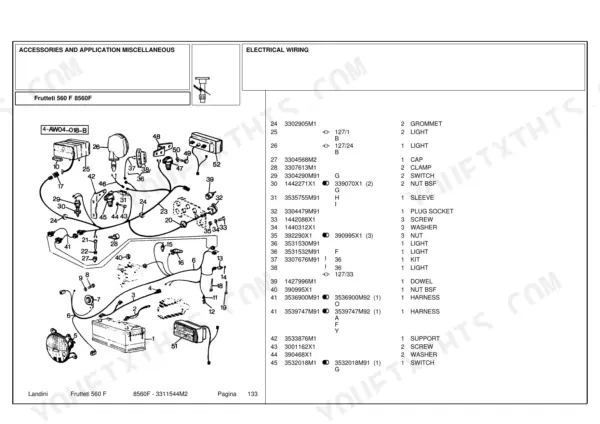

| Electrical System | Alternator Lucas, Cab Electrical Equipment, Electrical Wiring Tractor Cab, Electronic Harness Instrument Panel, Sensors Harness, Electrical Wiring, Lighting Equipment, Alternator Positioner, Starter Motor, Starter Lucas | |
| PTO | Front PTO Drive Shaft, PTO Control | |
| Rear Axle, Differential & Brakes | Front Axle 4 Wheel Drive Final Drive, Rear Axle Differential Lock Mechanism, Rear Axle Housing, Rear Axle Differential, Brake Cylinder, Brakes and Controls, Brakes Handbrake, Brakes Master Cylinder, Trailer Brakes, Rear Wheels | |

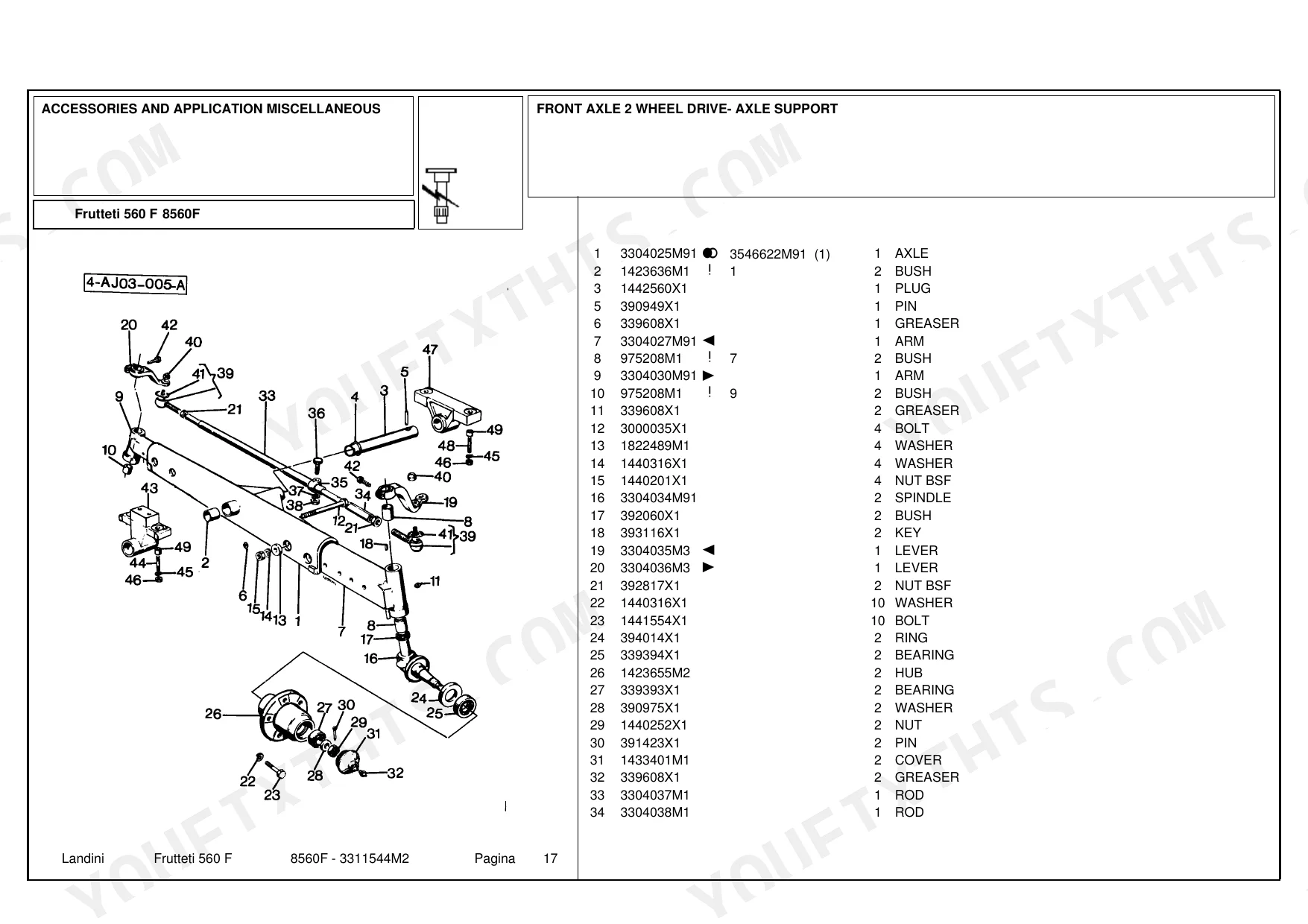

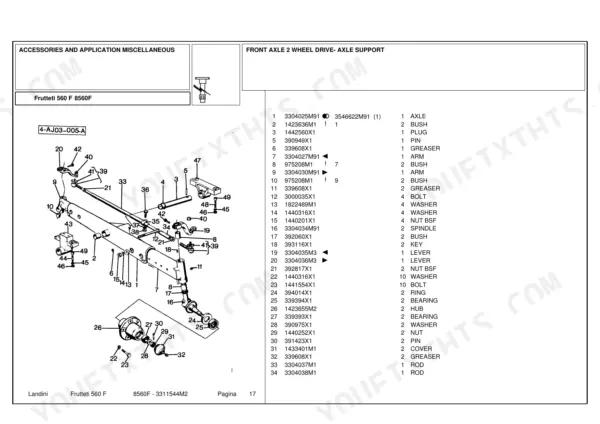

| Front Axle & Steering | Front Axle 2 Wheel Drive Axle Support, Front Axle 4 Wheel Drive Differential, Steering Cylinder 2 Wheel Drive, Steering Cylinder 4 Wheel Drive, Steering Distributor Orbitrol, Front Wheels, Steering Hydraulic Lines, Steering Steering Pump | |

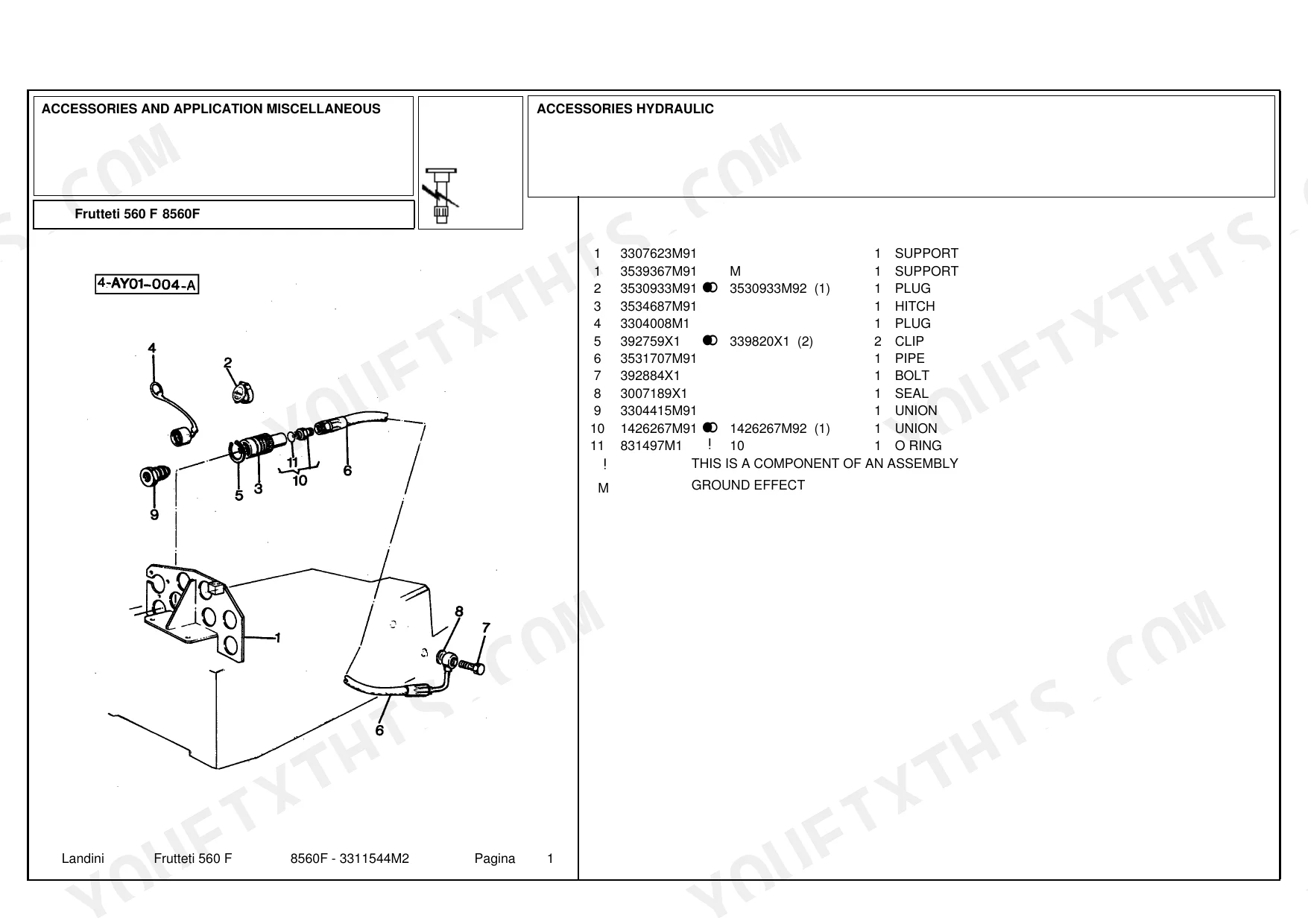

| Hydraulics & 3-Point Hitch | Accessories Hydraulic, Hitch Connections, Hitch, Linkage Cat 2, Drawbar, Hydraulic Lift Cylinder, Rear Controls Draft and Position, Hydraulic Lift Lift Arms, Linkage Link End, Pipings Auxiliary Valve, Hydraulic Lift Pipings | |

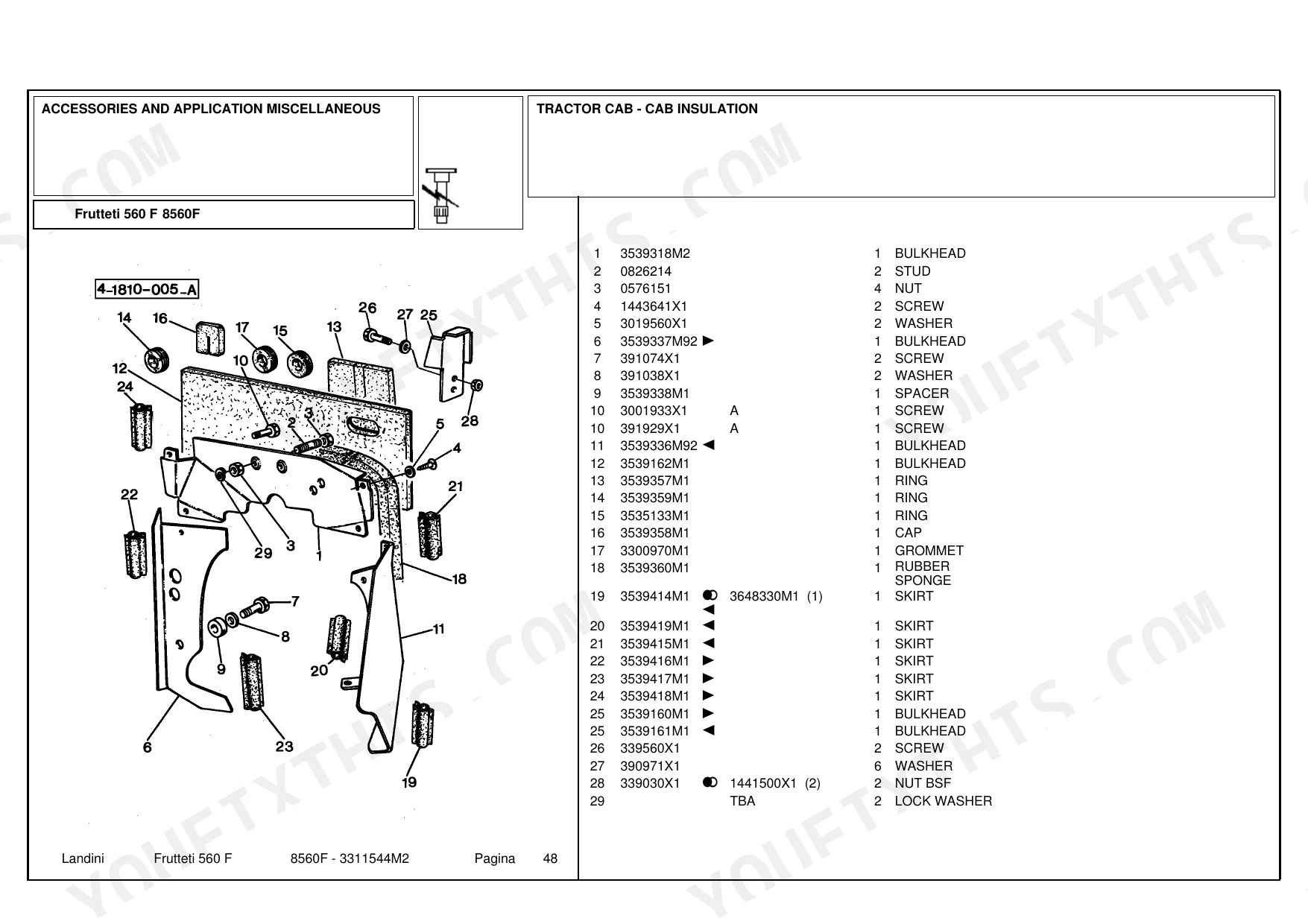

| Body & Operator Station | Tractor Cab Cab Insulation, Tractor Cab Cab Door, Tractor Cab Roof, Tractor Cab Air Conditioner, Cab Frame, Sheet Metal Hood, Sheet Metal Grille, Sheet Metal Panels, Instrument Panel and Instruments, Seat Grammer, Weight Frame and Weights, Safety Frame | |
| Decals & Accessories | Decals, Tool Kit | |
| Other Components | Wheel Drive Controls, Throttle Controls, Reducer Control, Lift Distributor, Auxiliary Distributor, Rear Hook Adjustable, Balancer Unit, Reducer, Stand |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery Capacity | 100 AH | p. 47 |
Landini Frutteti 560 F, 8560F Common Problems This Manual Covers
Landini Frutteti 560 F and 8560F steering pump seal kit, cover and circlip part numbers hard to find
Check the Steering Steering Pump exploded view on page 269 and match each callout to the parts list for the pump, cover, seal kit, circlip and key. Verify the pipes, unions and bolts on the steering hydraulic lines starting at page 264 before ordering, so one parts run gets the tractor back in the field.
Manual Section: Steering Steering Pump p. 269Hydraulic lift cylinder piston, liner, stem and gasket kit part numbers hard to identify
Check the Hydraulic Lift Cylinder exploded view on page 87 and match the cylinder, liner, stem, piston, breech plate and gasket callouts to the parts list. Verify the lift arm shafts and levers on page 260 and the unions and O rings in the lift pipings at page 287 before you order. Get it all in one trip.
Manual Section: Hydraulic Lift Cylinder p. 87Cooling system radiator, radiator cap, pipe and clip part numbers hard to pin down
Check the Cooling System exploded view on page 249 and match the radiator, cap, pipes, clips, guard, rubber and gaskets to their callouts in the parts list. Verify the grille frame and supports on page 78 if the front end came apart to reach the radiator. Order the small hardware with the radiator so nothing holds up harvest.
Manual Section: Cooling System p. 249Fuel filter element, seals and pipe olives hard to identify in the parts book
Check the Fuel System Fuel Filter exploded view on page 283 for the element, seals, pipes, nuts and olives, and match each callout to the parts list. Verify the lift pump and fuel filter listing in the Low Pressure Fuel System on page 258 too. Keep spare elements and olives on the shelf before planting starts.
Manual Section: Fuel System Fuel Filter p. 283Dual clutch plate, lever, spring, flywheel and ball bearing part numbers hard to sort out
Check the Clutch Dual Clutch exploded view on page 160 and match the plates, packing, levers, struts, springs, flywheel and ball bearing to the parts list callouts. Verify the PTO Control lever, yoke and spring on page 101 and add any worn pieces to the same order. Nobody wants to wait on a second parts order in season.
Manual Section: Clutch Dual Clutch p. 160Brake master cylinder repair kit, piston and bellows part numbers hard to tell apart
Check the Brakes Master Cylinder exploded view on page 156 for the body, piston, rings, bellows, breather and repair kit, and match each callout to the parts list. Verify the Brake Cylinder pump, piston and repair kit on page 85 as well, so both ends of the brake circuit get ordered together before harvest hauling starts.
Manual Section: Brakes Master Cylinder p. 156Frequently Asked Questions
What are the replacement specs for the fuel pump repair kit on the Landini Frutteti 560 F, 8560F?
The repair kit for the lift pump (part number 2641A053) is identified as part number 26410087, which is a 999 kit. p. 258
What is the part number for the fuel filter element on the Landini Frutteti 560 F, 8560F?
The fuel filter element for the Frutteti 560 F is part number 3405418M1. p. 258
What is the part number for the alternator belt on the Landini Frutteti 560 F, 8560F tractor?
The alternator belt for the Frutteti 560 F is part number 2614B145. p. 14
What is the engine oil filter part number for the Landini Frutteti 560 F, 8560F tractor?
The oil filter for the engine is part number 1447048M1. p. 147
What is the part number for the starter motor on the Landini Frutteti 560 F, 8560F tractor?
The starter motor for the Frutteti 560 F is part number 3539390M91. p. 184
Is this Landini Frutteti 560 F manual a download or a disc?
A single searchable PDF file of 292 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Am I able to print pages from this Landini Frutteti 560 F manual?
Yes. Print individual pages or full chapters for your own shop use, on letter or A4 paper.
