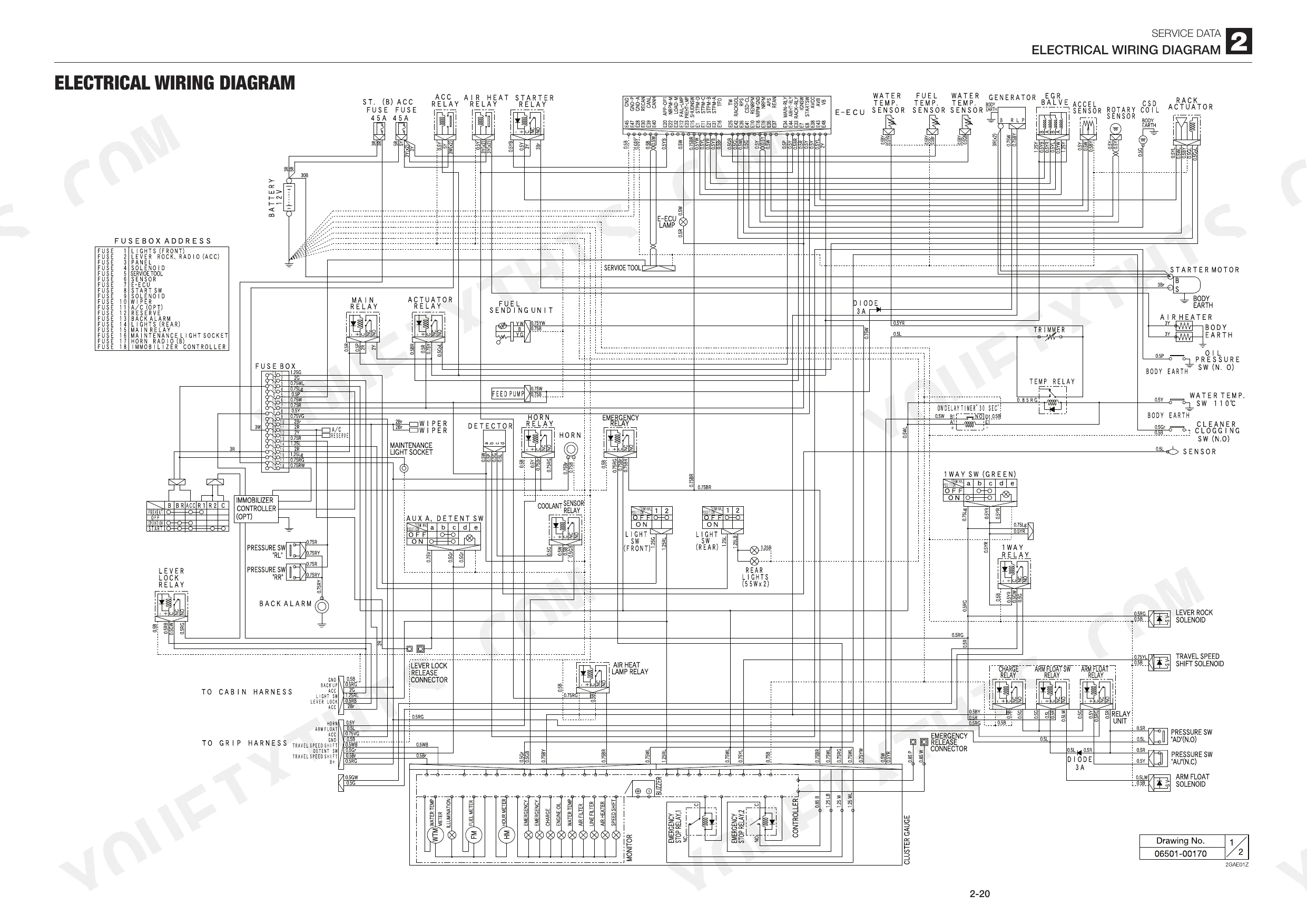

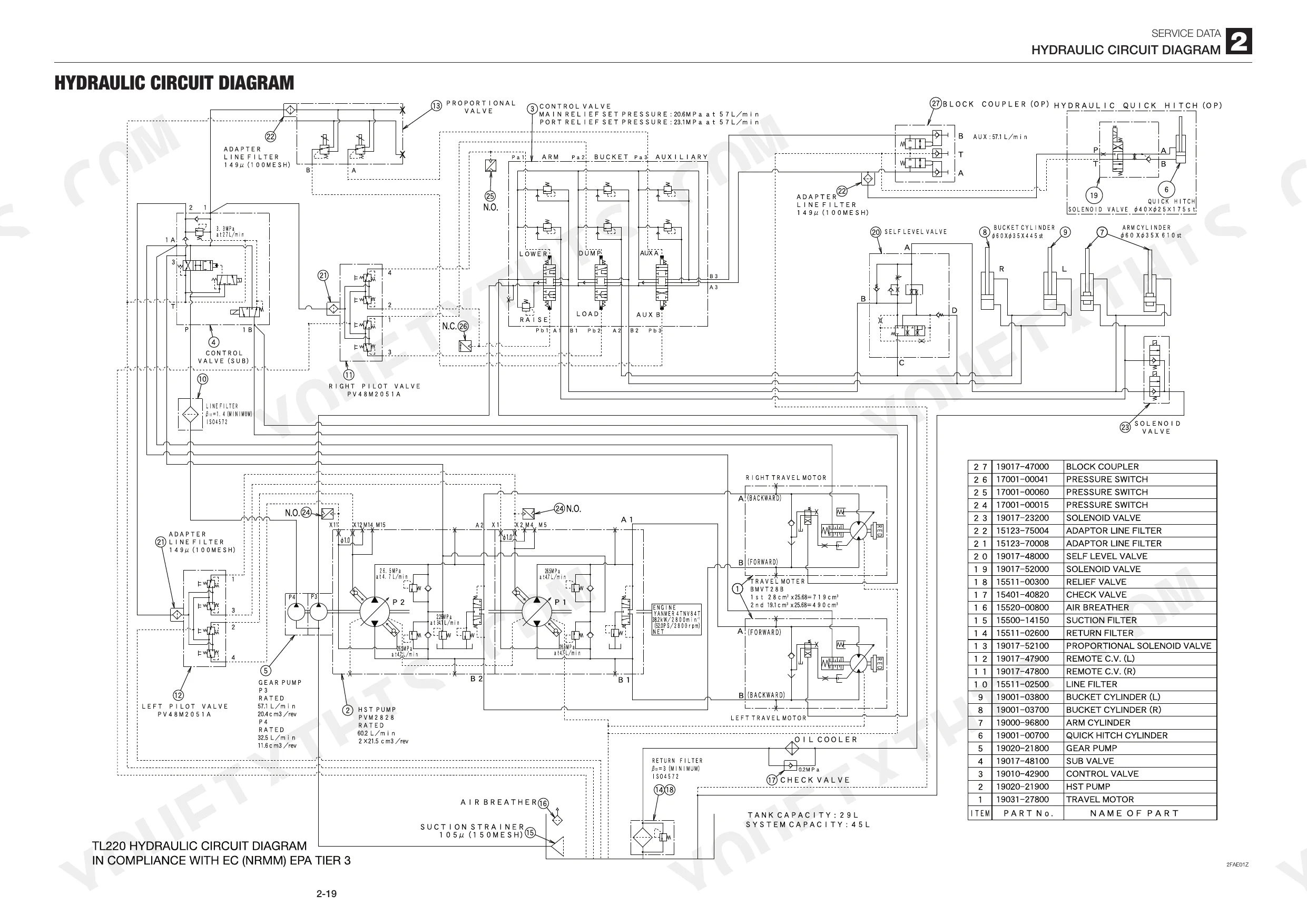

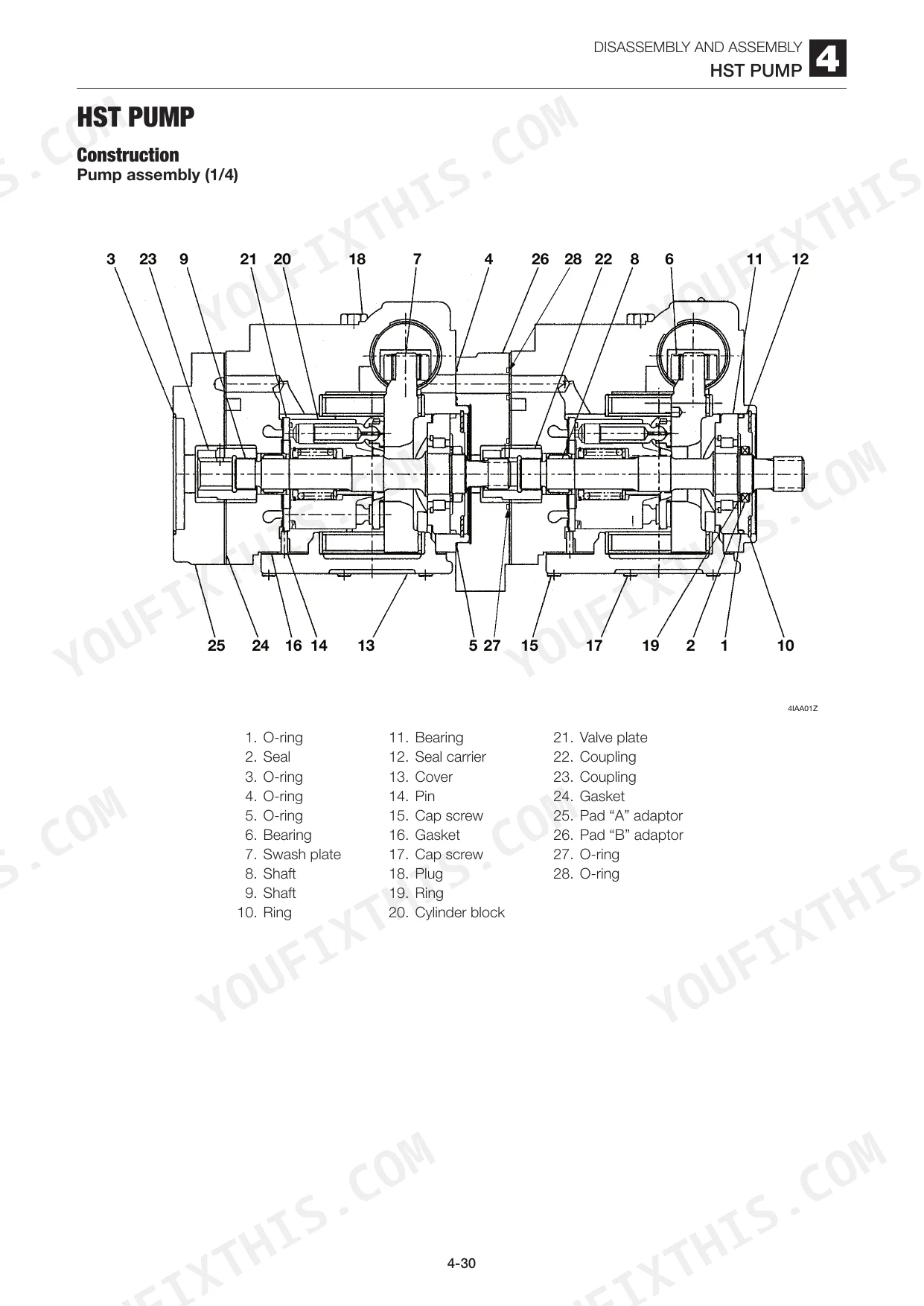

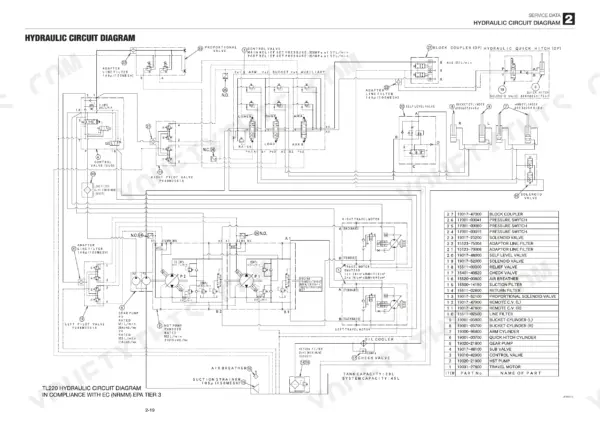

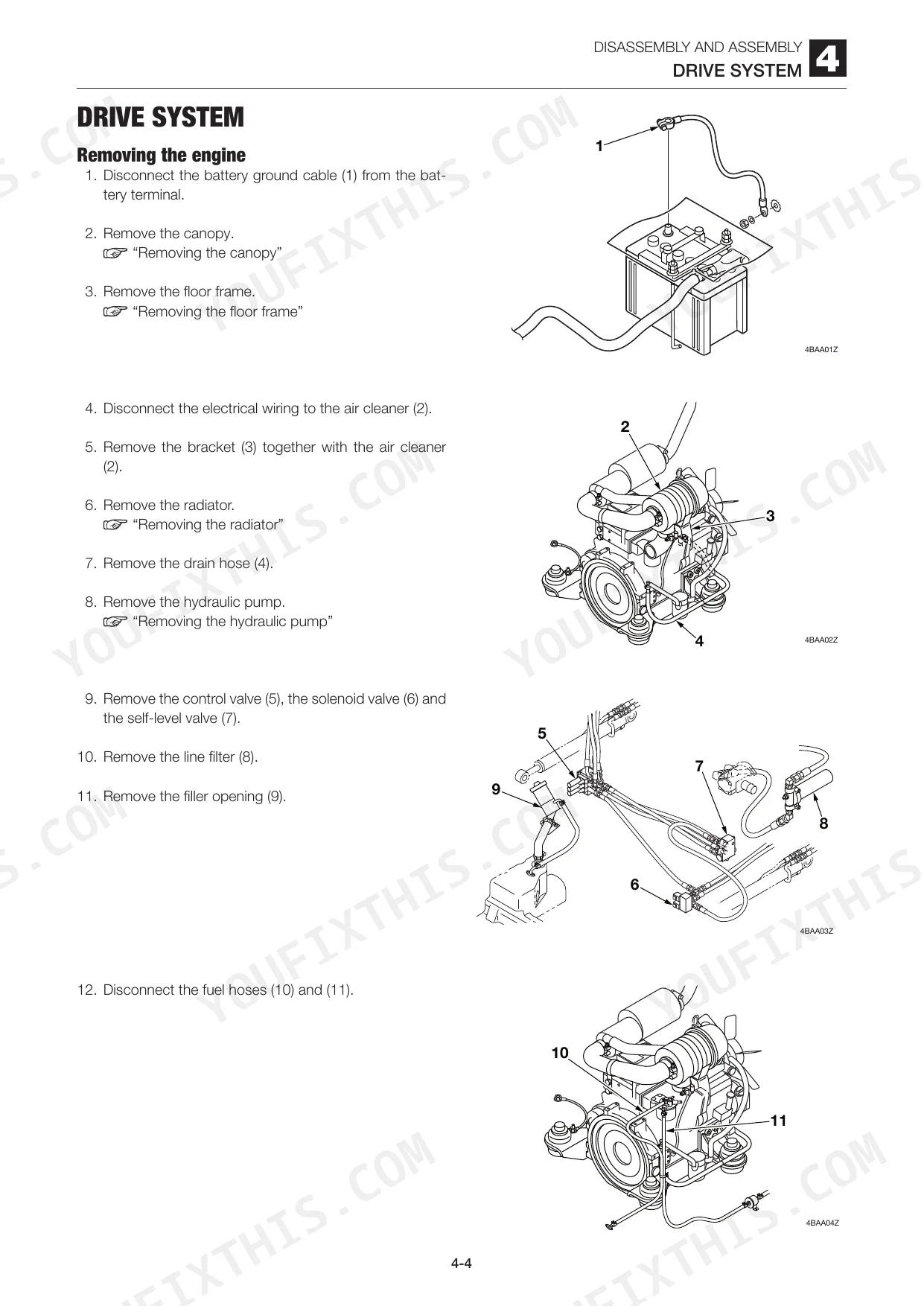

This is the factory Mustang MTL312 service manual PDF (OEM #917367), 263 pages built around the parts that move dirt: gear pump, control valve, self-level valve, pilot valve, proportional control solenoid valve, cylinders, and travel motor. The hydraulic circuit diagram maps complete fluid routing, backed by the electrical wiring diagram and the full wire harness diagram. Troubleshooting runs 63 pages of step-by-step fault isolation; Disassembly and Assembly fills 120 pages of component-level rebuild work. The hydraulic oil tank holds 29 L (45 L total system), with a change due at 1,000 hours. Service Data lists tightening torques, starter specs (12 V, 2.3 kW), and the fluid capacity tables. When the machine won't move, you want factory numbers, not a forum guess. Sections are bookmarked and keyword-searchable on any device.
What's Inside This Mustang MTL312 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 3-12 | - |
| Service Data | 13-36 | Hydraulic Circuit Diagram, Electrical Wiring Diagram, Wire Harness Diagram |
| Function | 37-78 | Air Conditioner System |
| Gear Pump | 132-136 | - |
| Control Valve | 137-142 | - |
| Sub Valve | 143-147 | - |
| Self-Level Valve | 148-151 | - |
| Pilot Valve | 152-158 | - |
| Cylinders | 159-174 | Proportional Control Solenoid Valve |
| Travel Motor | 175-194 | - |
| Air Conditioner | 195-198 | - |

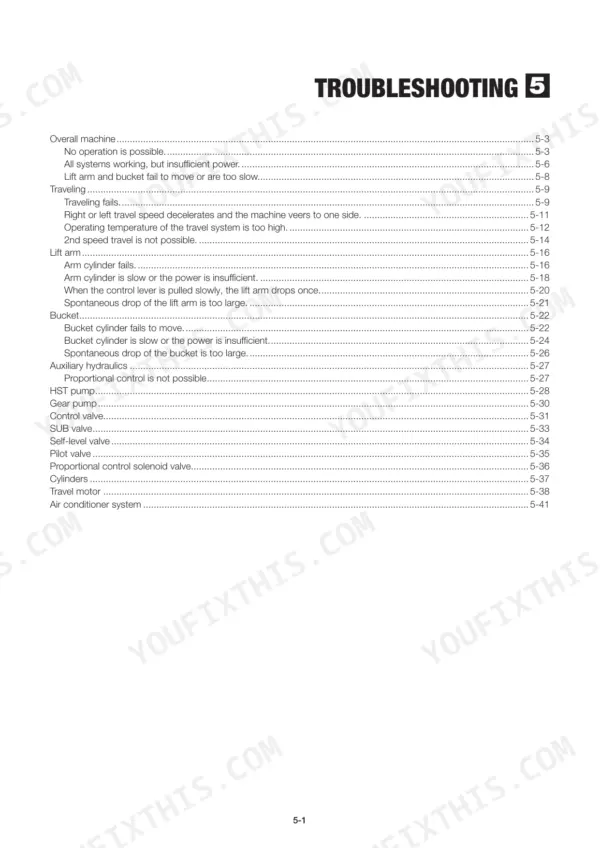

| Troubleshooting | 199-263 | Air Conditioner System |
Quick Reference Specifications

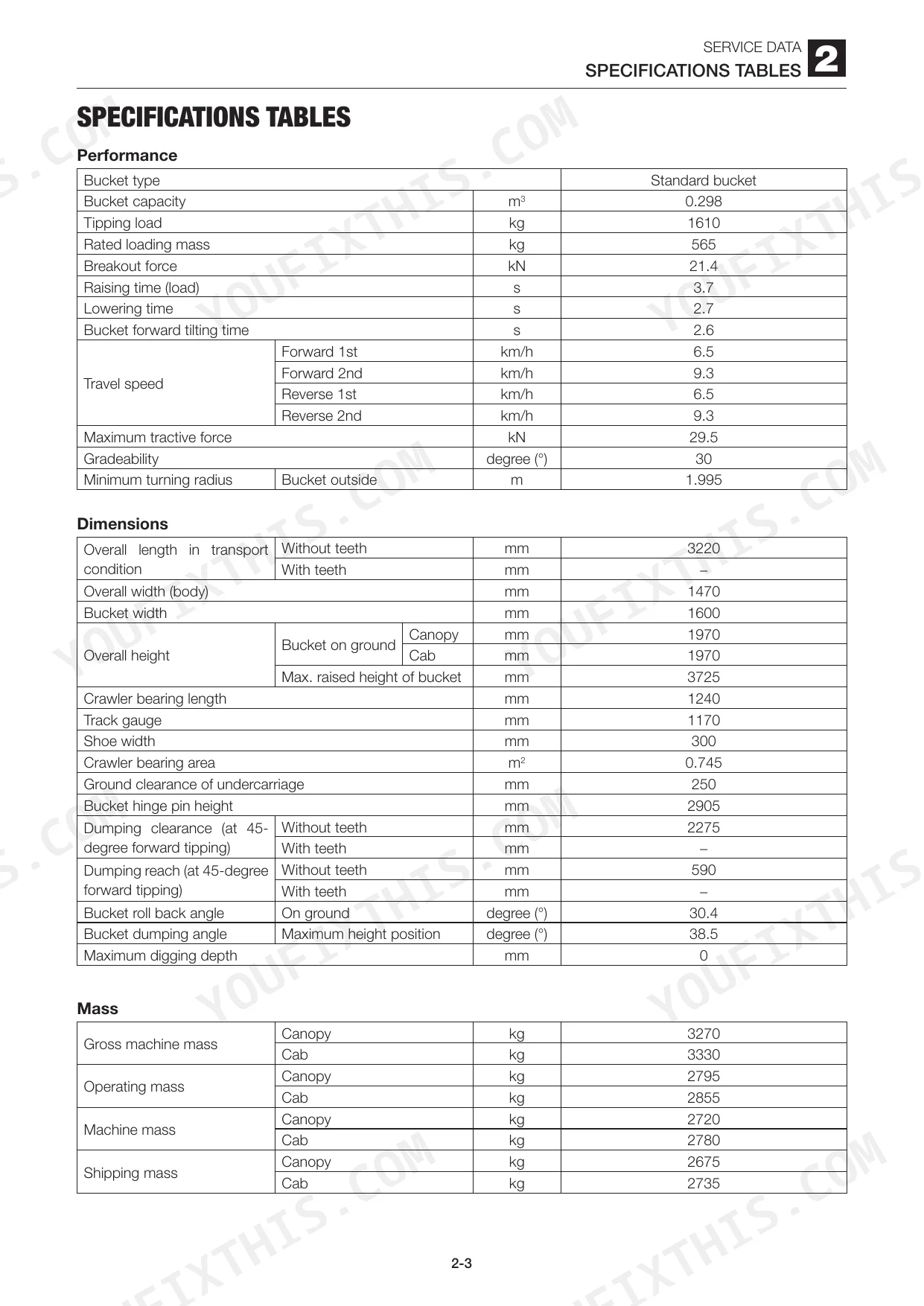

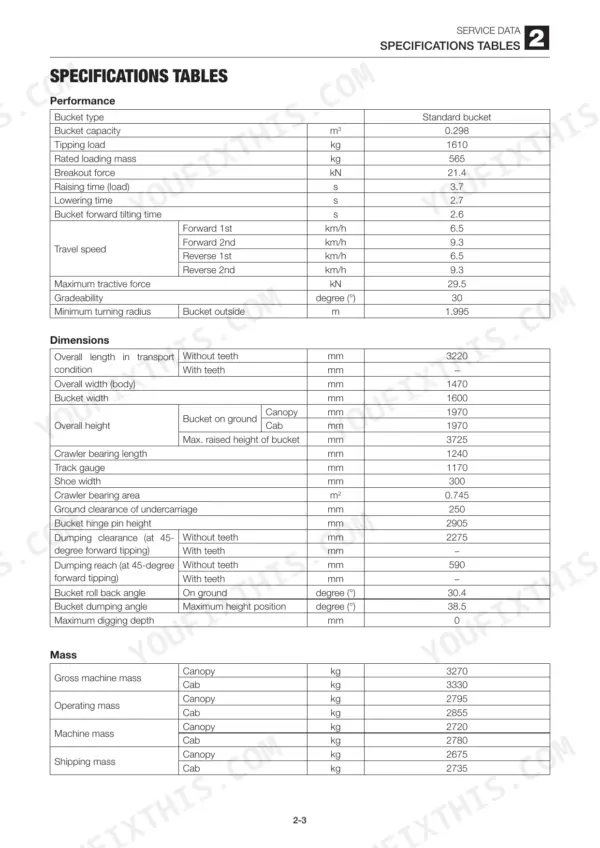

| Specification | Value | Page |
|---|---|---|
| Tightening torque section | PDF page 28 | p. 28 |
| Hydraulic oil tank total amount of oil | 45 L | p. 18 |
| Hydraulic oil tank capacity | 29 L | p. 18 |
| Starting system voltage | 12 V | p. 16 |
| Starting system output | 2.3 kW | p. 16 |
| Fan belt adjustment (force) | 98 N | p. 195 |
| Fan belt adjustment (yield) | 8 mm | p. 195 |
| Crawler tension | 25 to 50 mm | p. 20 |
| Drive sproket A standard dimension | 384 mm | p. 80 |
| Drive sproket A allowable value | 374 mm | p. 80 |
| Rated engine speed | 2800 min-1 | p. 16 |
| Bucket capacity | 0.298 m3 | p. 15 |
Mustang MTL312 Common Problems This Manual Covers
Mustang MTL312 track drive feels weak or jerky, one side loses traction under load
Gauge hydraulic fluid against the 29 L tank capacity on page 18 and top off if low. Verify travel circuit pressure at the HST pump test port: spec is 26.5 MPa (page 20). Measure crawler tension: sag must be 25 to 50 mm (page 20). If only one side loses drive, inspect the travel motor for internal wear or a stuck parking brake.
Manual Section: TravelingEngine overheats or drops rpm during heavy digging cycles, machine loses power
Inspect the radiator core for debris and blow it clean from the engine side out. Check coolant level. Verify fan belt tension: deflection force spec is 98 N (page 195). Confirm the air filter is not clogged. If rpm still drops below the rated 2800 min-1 (page 16), pull the fuel filter and check for restriction.
Manual Section: Overall machineEngine cranks slowly or refuses to fire, no-start condition in cold weather
Clean battery terminals of corrosion and tighten any loose connections. Inspect the fuel filter for water contamination, then confirm the 57 L tank (page 19) holds clean fuel. Verify the proximity switch and lever lock solenoid release before condemning the starter. If the starter still cranks weakly, test cranking voltage under load and check ground strap continuity to the block.
Manual Section: Overall machineHydraulic lift arm and bucket functions become slow or weak after hours of use
Compare hydraulic oil against the 29 L tank capacity on page 18 and top off if low. Inspect the return filter for contamination and replace if clogged. Verify travel circuit pressure at the HST pump: spec is 26.5 MPa (page 20). If pressure holds but functions stay sluggish, disassemble the gear pump and inspect for wear or internal bypass.
Manual Section: Gear pumpUndercarriage clanks or rattles, one or both tracks feel loose during travel
Measure crawler tension: sag must be 25 to 50 mm (page 20), and adjust if it falls outside that range. Inspect drive sprockets: sprocket A standard diameter is 384 mm, wear limit 374 mm (page 80). Replace sprockets worn past that limit before fitting new chain. Torque all undercarriage fasteners to spec on page 28 after reassembly.
Manual Section: TravelingFrequently Asked Questions
What are the torque specs for Mustang MTL312 track loader bolts and fasteners?

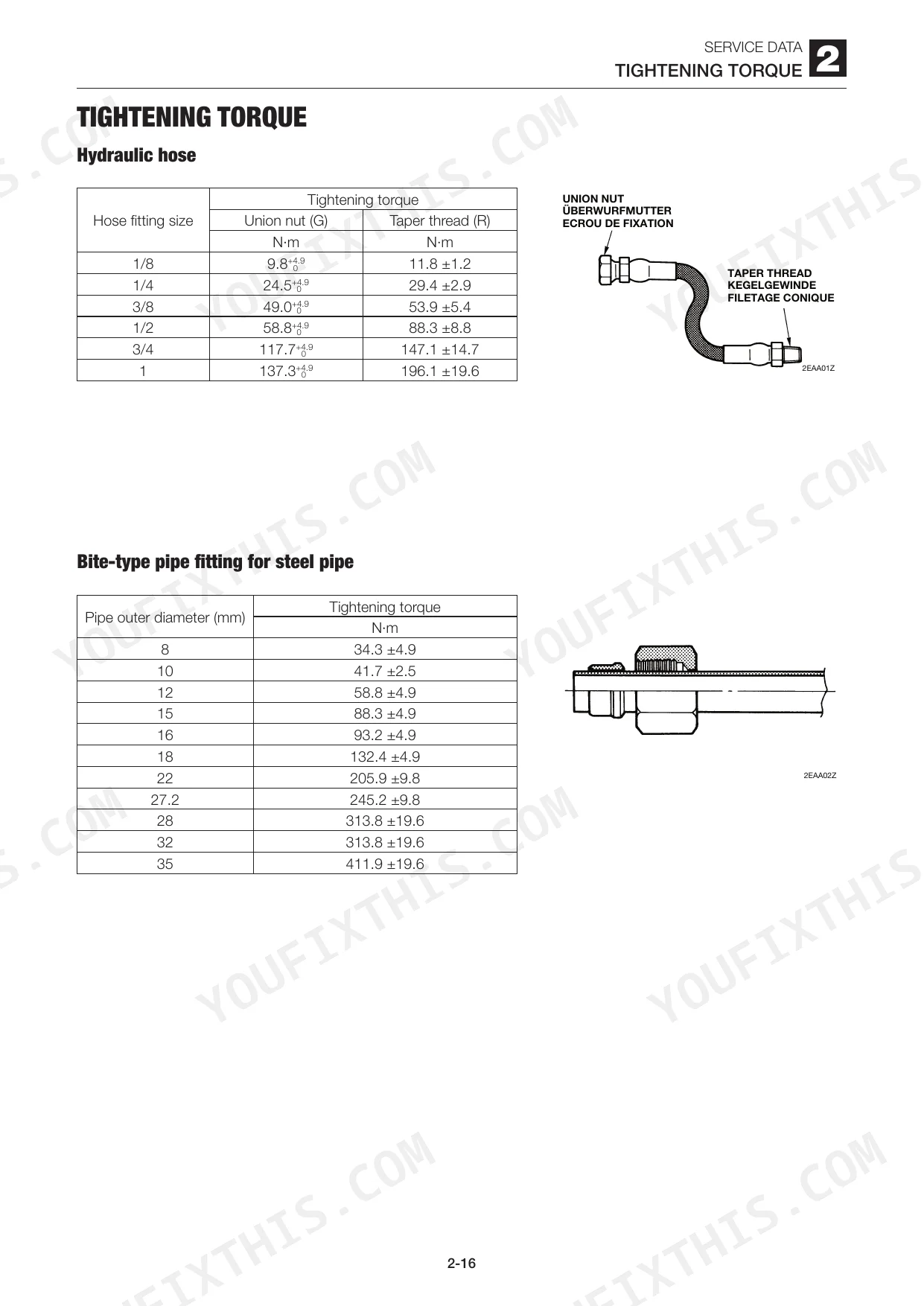

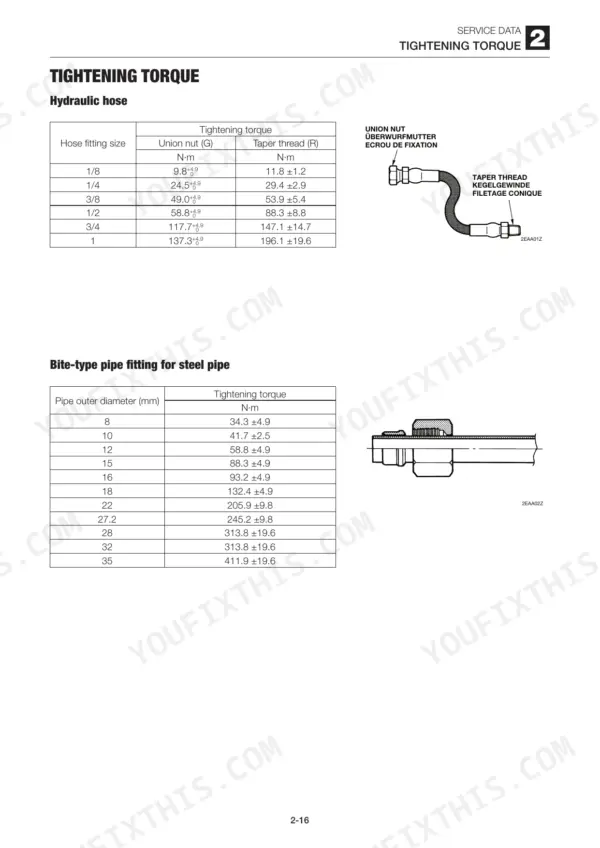

Torque tables run by thread size and grade. For coarse-thread bolts and nuts (JIS strength category 10.9), general tightening points range from 9.8 ±0.5 N·m at M6 × 1.0 to 410.9 ±20.5 N·m at M20 × 2.5. Special tightening points for the same grade span 11.8 ±1.1 N·m at M6 × 1.0 to 475.6 ±23.7 N·m at M20 × 2.5. Separate values cover hydraulic hoses, bite-type pipe fittings, and piping joints.
How will I receive this Mustang MTL312 Service Manual?
It's a 263-page searchable PDF ready for immediate download. Works on any device, so you can pull it up on your phone right at the machine. No shipping, no waiting.
Can I print this Mustang MTL312 manual?
Yes. Print as many copies as you want, with no restrictions. Plenty of mechanics print just the section they need and carry it to the shop floor.
Does this Mustang MTL312 Service Manual cover the hydraulic system?
Yes. Complete hydraulic schematics are included, with flow diagrams, valve configurations, and pressure specifications.
