Part of the New Holland Repair Manuals.
Every major overhaul on your New Holland equipment starts with this 111-page New Holland Construction F4CE0354A, 334T/M2 repair manual PDF (OEM #87458412NA). You get a dedicated diagnostic section to track down irregular knocking, power loss, and dark exhaust smoke, plus step-by-step procedures for the entire cylinder cluster. Open up to detailed exploded views, valve timing instructions, and clearance tables for the complete rotating assembly. Packed with factory test values, this reference leaves nothing to chance. Verify the injection pressure hits exactly 260 bar and lock down the injector fastening hardware to 60 ± 5 Nm before moving on to the pump gear cover. Stop chasing fuel system faults with bad data. Download this bookmarked file directly to your phone or tablet, click straight to the section you need, and get that engine running right.
What's Inside This New Holland F4CE0354A, 334T/M2 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 4-5 | To the Reader, Further References, Page Number, Symbols, Unit of Measure |
| Diagnostics | 8-23 | Engine Won't Start, Engine Overheats, Engine Lacks Power and Works Erratically, Engine Exhaust Smoke Black or Dark Grey, Engine Knocks Irregularly, Engine Stops |

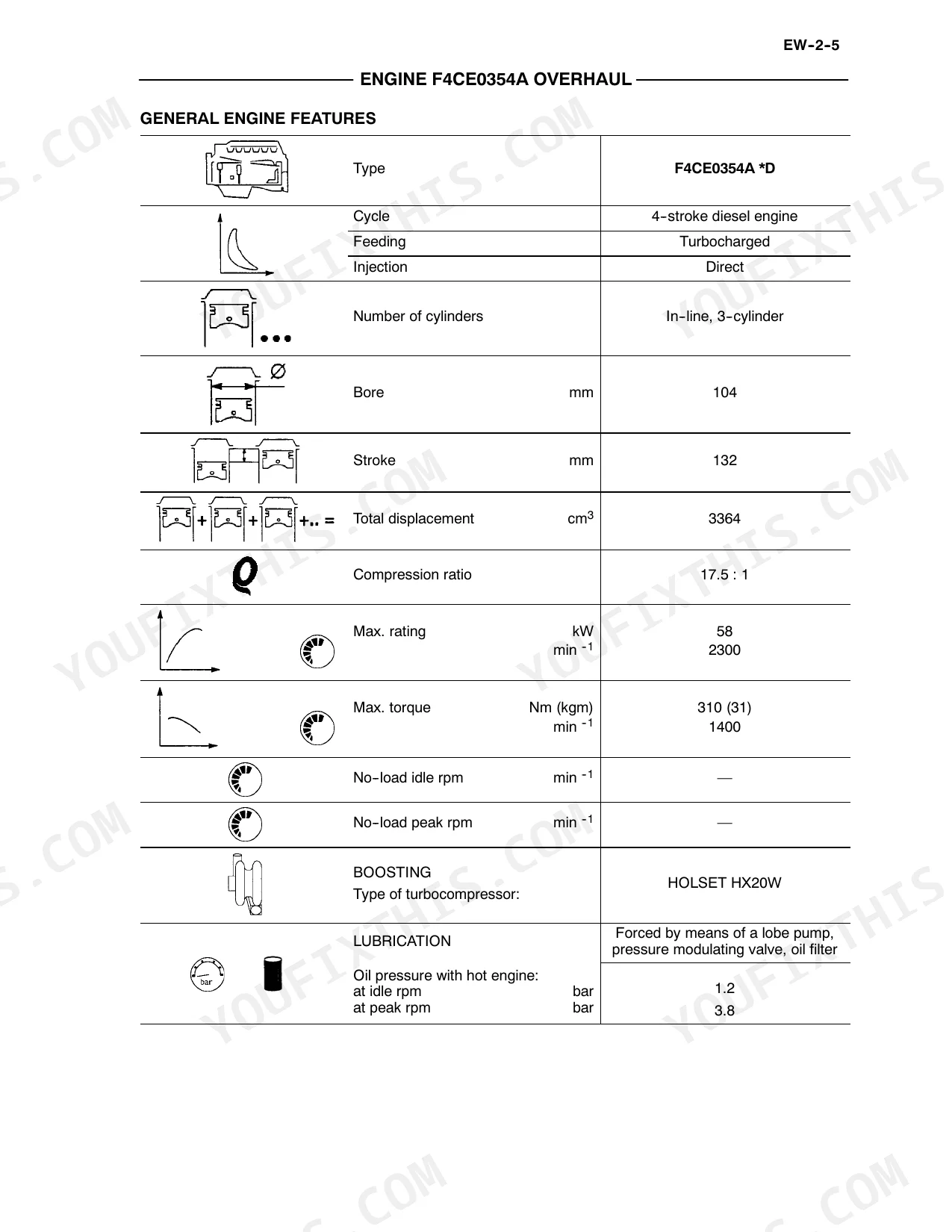

| Engine Identification & Coding | 24-29 | Engine F4CE0354A Identification, Coding of Source Engines, General Engine Features |

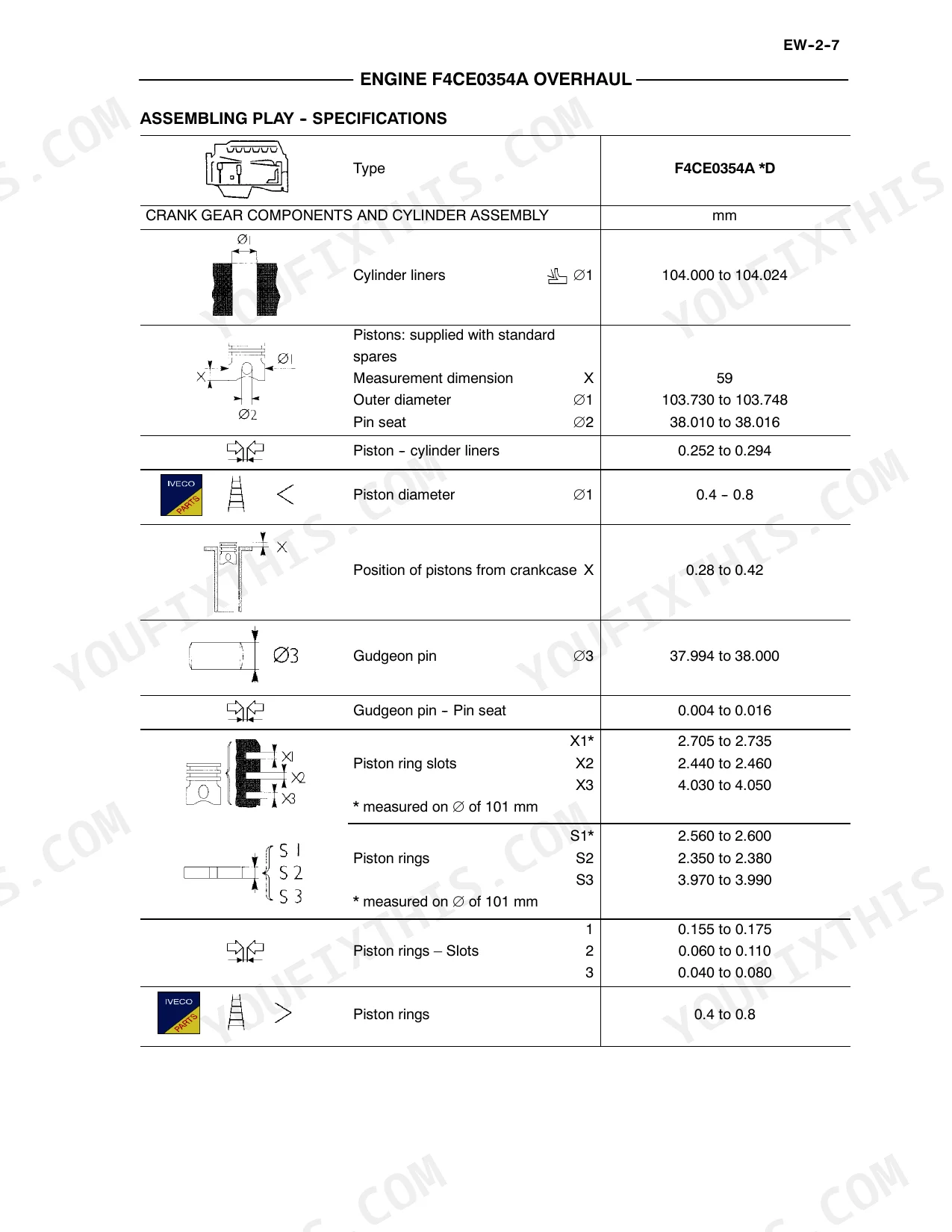

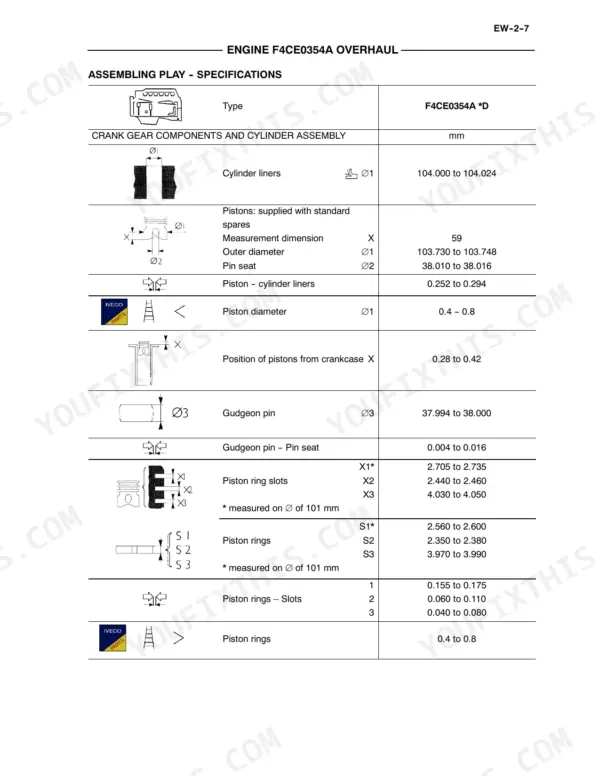

| Assembling Play, Torque & Specifications | 30-39 | Assembling Play Specifications, Tightening Torque Values, Special Tools, Graphic Indications and Symbols |

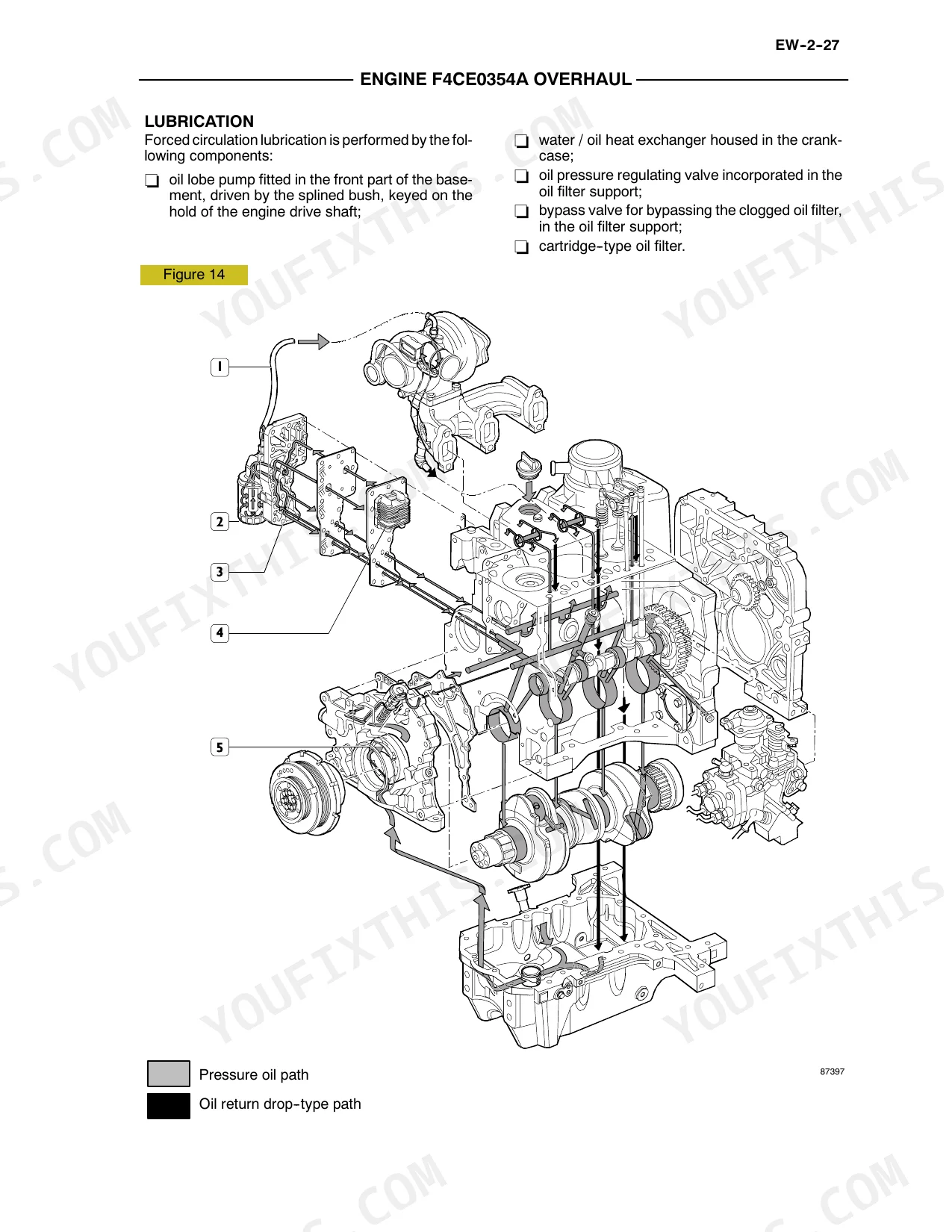

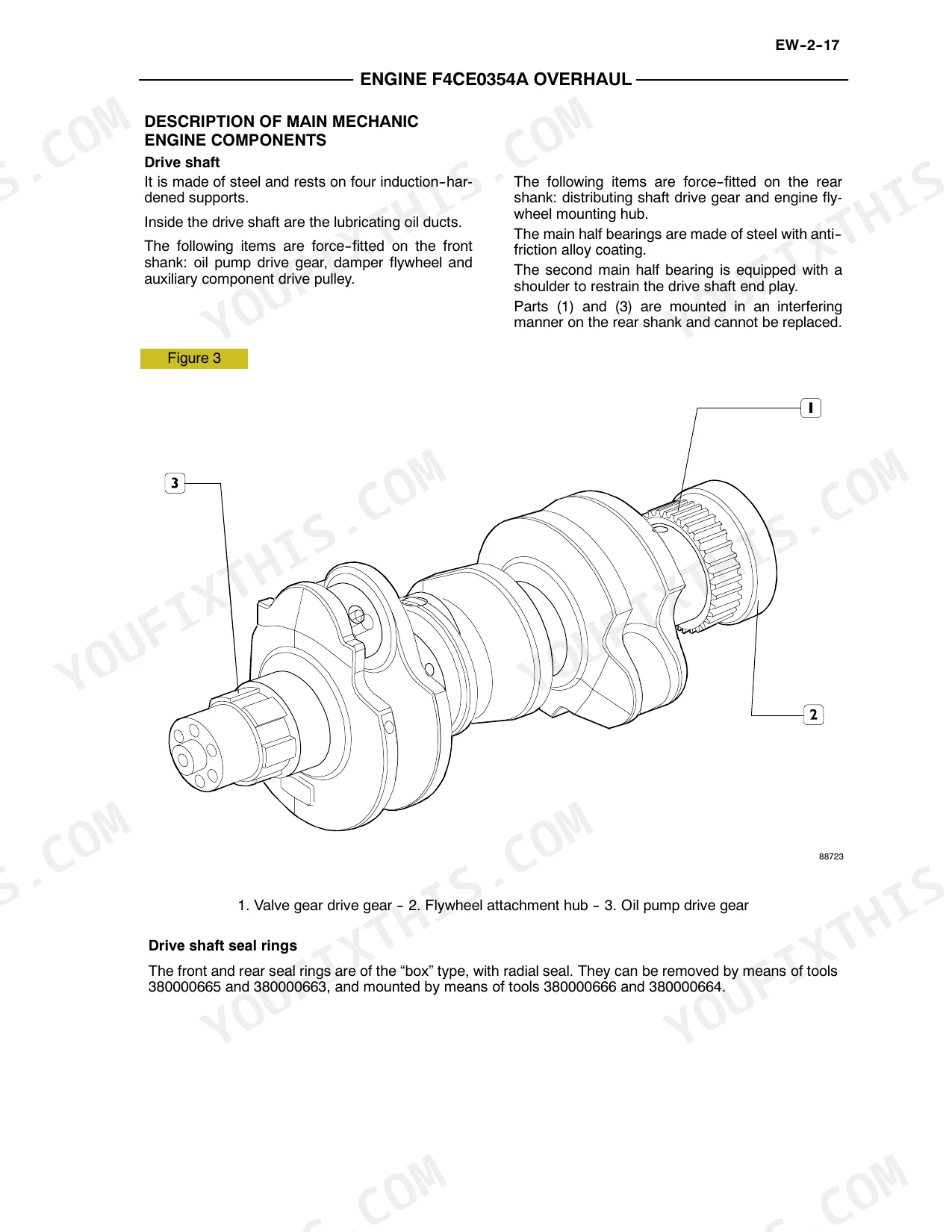

| Engine Components Overview | 40-59 | Connecting Rods, Pistons, Distributing Shaft, Cylinder Head, Lubrication and Cooling System, Mechanical Injection Supply System |

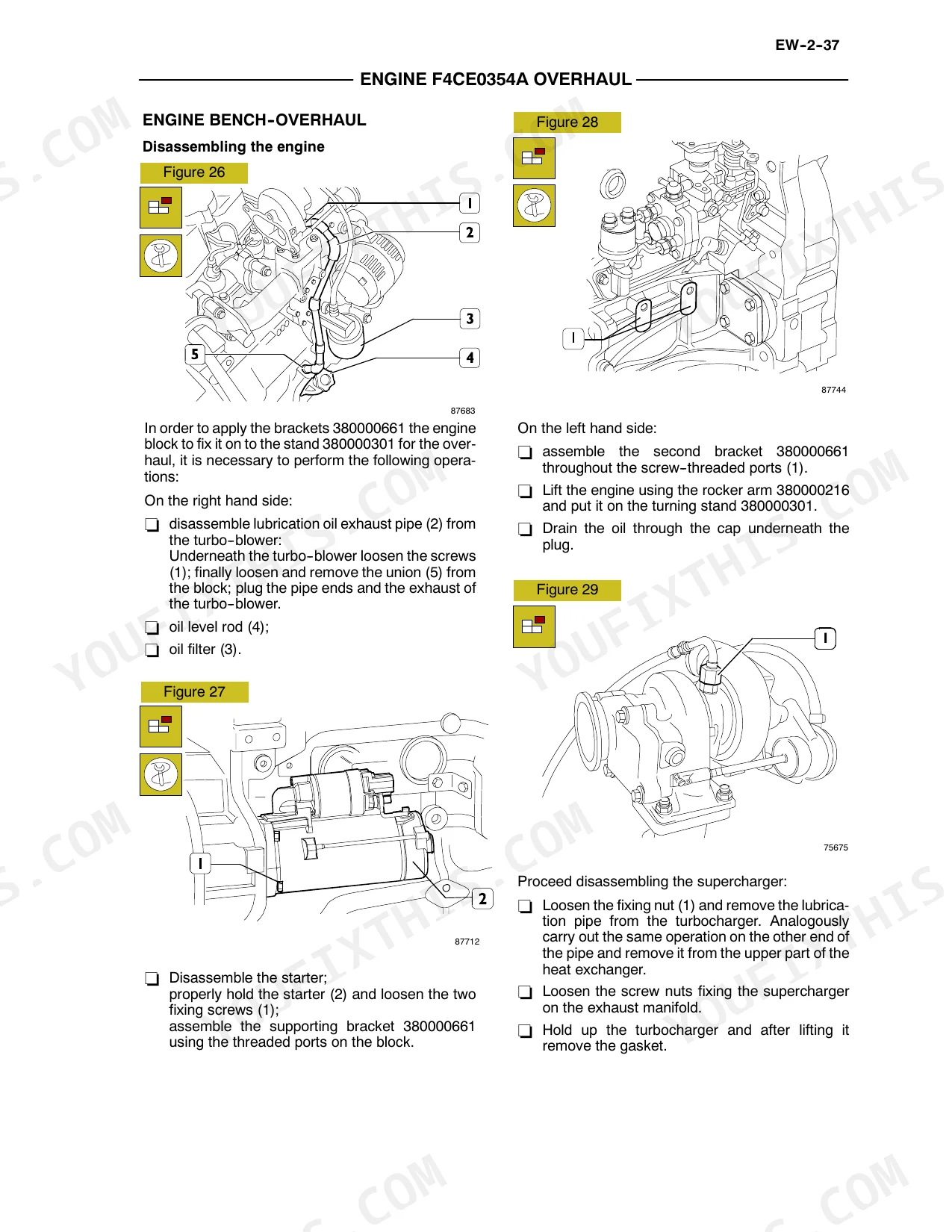

| Engine Bench-Overhaul | 60-67 | Engine Bench-Overhaul Procedures |
| Repair Work on Cylinder Cluster | 68-107 | Valve Gear and Bushings, Drive Shaft and Main Bearings, Connecting Rod-Piston Assembly, Valve Timing, Cylinder Head Refitting, Injection Pump Timing and Bleeding |
| Recharge and Start-Up | 108-111 | Alternator Characteristics, Quick Diagnosis, Fault, Possible Causes, Remedy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Injector fastening torque | 60 ± 5 Nm | p. 36 |
| Injector manifold nuts fastening torque | 50 Nm | p. 106 |
| Injection pump gear cover fastening screw torque | 25 ± 5 Nm | p. 36 |
| Injection pump fastening screw torque | 12 ± 5 Nm | p. 36 |
| Turbocompressor fastening screw torque | 25 ± 5 Nm | p. 36 |
| Fuel filter tightening | contact + 3/4 turn | p. 36 |
| Cylinder head fastening screw torque (1st phase, M12x1.75x70) | 50 ± 5 Nm | p. 36 |
| Cylinder head fastening screw torque (1st phase, M12x1.75x140) | 40 ± 5 Nm | p. 36 |
| Engine Bore | 104 mm | p. 28 |
| Engine Stroke | 132 mm | p. 28 |
| Total Displacement | 3364 cm3 | p. 28 |
| Max. Rating | 58 kW | p. 28 |
New Holland F4CE0354A, 334T/M2 Common Problems This Manual Covers
FPT F4CE0354A excessive oil consumption with light blue exhaust smoke at idle p. 18
Check exhaust smoke color against the diagnostics chart on page 18. Light blue smoke points to worn cylinder head or a failed oil vapour vent letting oil past the rings. Pull the head, inspect for scoring, and torque the M12x1.75x70 fastening screws to 50 Nm on first phase per page 106. Confirm engine oil meets high-quality diesel spec before reassembly.
Manual Section: Engine Exhaust Smoke Light BlueMechanical knock detected coming from the injection pump under load p. 18
Reference the engine knocks irregularly section on pages 18-19 to isolate pump versus drive shaft knock. Remove the injection pump gear cover, torqued at 25 ± 5 Nm, and check for metal contamination in the SCV. Verify injection pump fastening screws hold 12 ± 5 Nm and recheck presetting value of 1 ± 0.05 mm on the dial gauge per page 105 before returning to service.
Manual Section: Engine Knocks IrregularlyInjectors sticking or failing prematurely with black exhaust smoke on acceleration p. 16
Work through the black or dark grey smoke diagnostics on page 16 to rule out air filter and timing faults first. Pull injectors and check protrusion, which is not adjustable per page 34, then bench test at the 260 bar injection pressure spec from page 29. Torque injector fastening to 60 ± 5 Nm and injector manifold nuts to 50 Nm on reinstall, referencing page 106.
Manual Section: Engine Exhaust Smoke Black or Dark GreyTurbocharger boost leak with sluggish throttle response and power loss under load p. 13
Follow the engine lacks power and works erratically procedure on pages 13-15 to check turbocharger operation and air circuit piping for leaks. Inspect the wastegate and all clamps for cracked boots, then remove and reseat the turbo housing, torquing the turbocompressor fastening screws to 25 ± 5 Nm. Clean any debris from the radiator fins while the front end is open to restore airflow.
Manual Section: Engine Lacks Power and Works ErraticallyOverheat alarm triggers with coolant temperature climbing above normal range p. 12
Work the engine overheats checklist on page 12: verify coolant level, inspect fan and water pump drive belts for glazing or slip, and confirm the thermostat opens fully. Clean plugged radiator fins with low pressure air or water from the engine side out. Check coolant flow openings in the block for scale buildup before refilling and bleeding the system.
Manual Section: Engine OverheatsLow oil pressure warning with no drop in oil level p. 21
Use the excessive or insufficient oil pressure section on page 21 to check the pressure control valve and oil pump condition. Confirm hot engine idle oil pressure holds at least 1.2 bar as specified on page 28, and inspect main and connecting rod bearings for excess clearance. Verify the engine is filled to the 9 litre sump plus filter capacity from page 29 with the correct SAE viscosity oil.
Manual Section: Excessive or Insufficient Oil PressureFrequently Asked Questions
What fluids and capacities does this machine require?
For engine lubrication, the manual specifies Ambra Super Gold 15W40 or 10W30 oil. The engine sump requires 8 kg of oil, and with the filter, it requires 9 kg. Oil pressure with a hot engine should be 1.2 bar at idle rpm and 3.8 bar at peak rpm.
How to troubleshoot engine won't start?

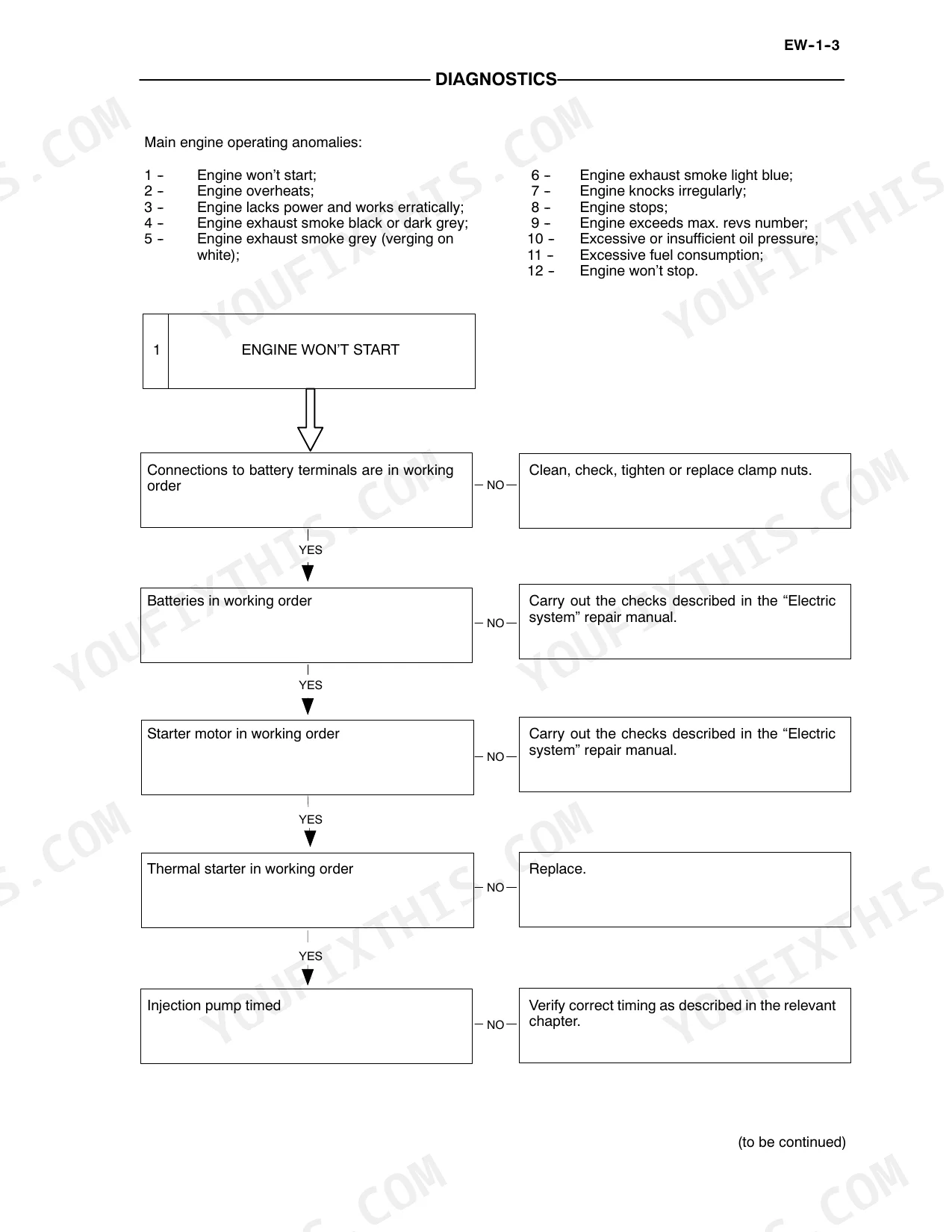

To troubleshoot an engine that won't start, first check if connections to battery terminals are in working order; if not, clean, check, tighten, or replace clamp nuts. Then, verify if batteries are in working order, and if not, carry out checks described in the “Electric system” repair manual. Continue by checking the starter motor, thermal starter, and injection pump timing, following the detailed flowchart on page 10.
What torque specifications are listed?
The manual provides extensive torque specifications for various engine components. For example, cylinder head fastening screws (M12x1.75x70) require a 1st phase torque of 50 ± 5 Nm (5 ± 0.5 kgm), followed by a 2nd phase of 90°. Engine flywheel fastening screws require a pre-tighten torque of 30 ± 5 Nm (3 ± 0.5 kgm) and an angle of 60° ± 5°.
What are the common electrical problems?
Common electrical problems include the engine not starting, which could be due to battery terminal connections, faulty batteries, or a non-working starter motor. Alternator issues like 'No recharge', 'Poor recharge', or 'Excessive recharge' are also listed, with causes such as interrupted recharge circuits, loose belts, faulty voltage regulators, or worn brushes.
What format is this manual in?
You get a 111-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this New Holland Construction F4CE0354A, 334T/M2 Repair Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
