Seeding waits for nobody, and when your air cart quits metering halfway across a quarter, the New Holland SC180–SC430 Series repair manual PDF (OEM 87367201) is where the fix starts: 836 pages covering all five carts in the series. Hydraulic schematics trace the primary power system from filter to fan drive, while wiring diagrams map the lighting, electronic, and seeding control harnesses circuit by circuit. A long fault code section decodes communication errors, sensor faults, and low battery warnings, so the monitor's complaint points you straight at the failed part. Check the variable rate drive against its 5.68 L/min flow requirement, and know the pressure sensor alarm trips at 3100 kPa before you condemn a pump. Out there it's just you and the cart. Bookmarked and text-layered, this PDF prints clean, so the pages can sit on the bench and take the grease while the drill keeps working.
What's Inside This New Holland SC180–SC430 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3-76 | Foreword, Decals, Hand Signals, Safety Rules, Torque, Basic Instructions, Definition, Abbreviation |

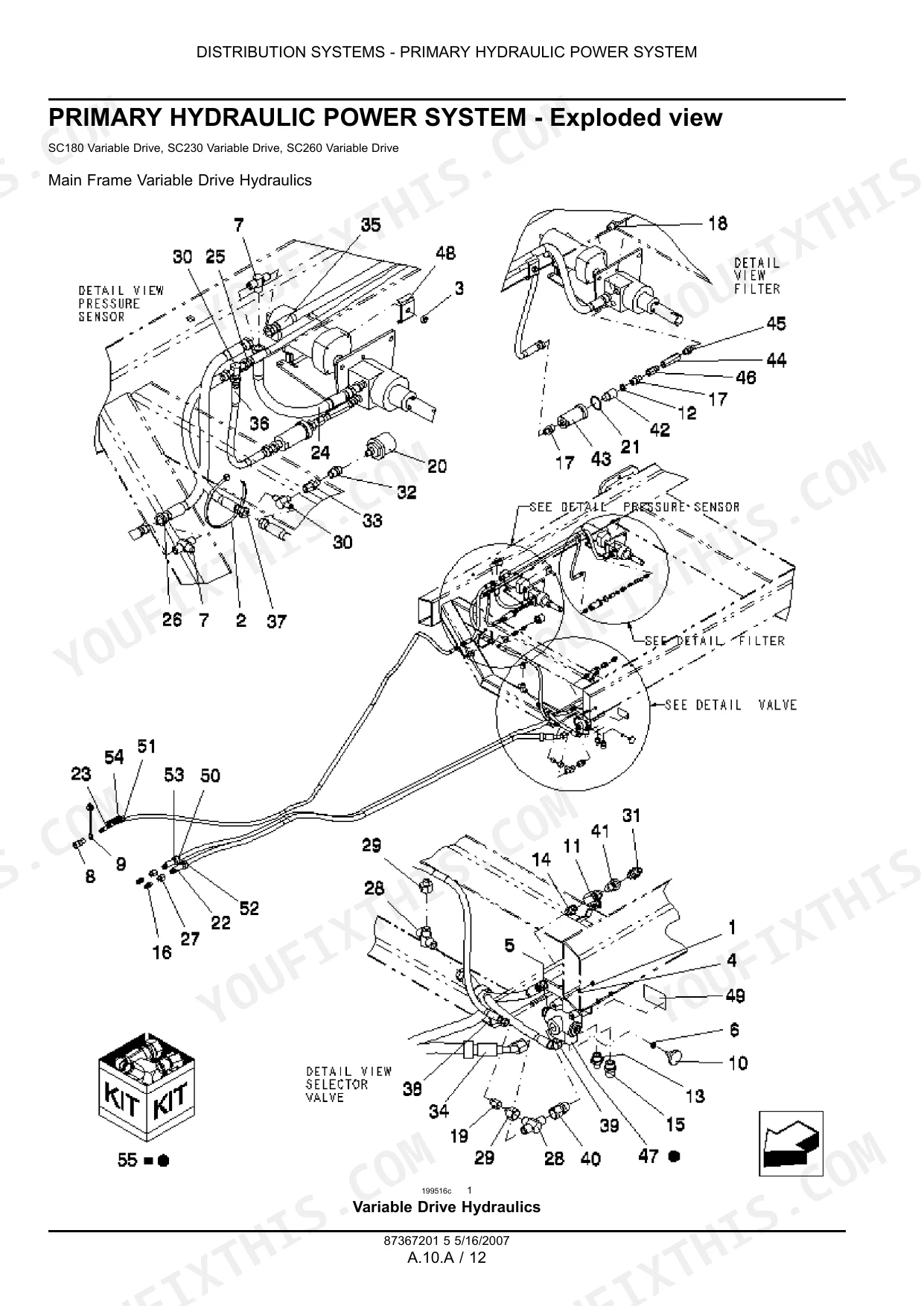

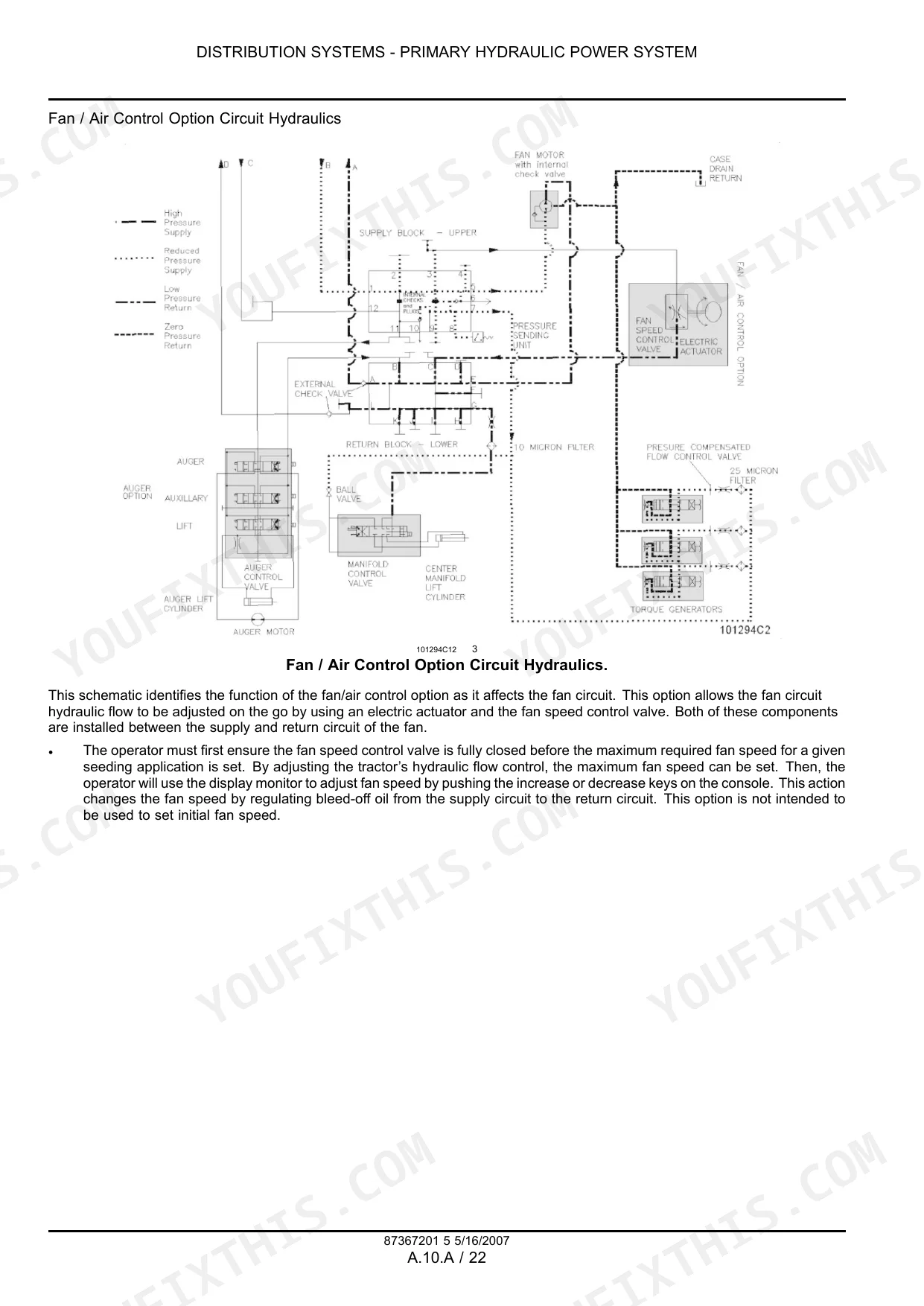

| Distribution Systems - Primary Hydraulic Power System | 79-126 | Hydraulic Schema, Exploded View, Filter Replacement, Testing, Troubleshooting |
| Distribution Systems - Electrical Power System | 127-140 | Electrical Schema, Alternator and Alternator Drive System, Alternator Harness Cable, Wiring Harness, Belt Tension Adjustment, Optional Switched Power Extension Harness |
| Distribution Systems - Lighting System | 141-162 | Static Description, Wiring Harness, Unloading Tube Light, Work Light, Clearance Adjustment |
| Distribution Systems - Electronic System | 163-280 | Special Tools, Farming System, Wiring Harness, Monitor Testing, Control Module Testing |
| Distribution Systems - Fault Codes | 281-442 | Communications Error, Excessive Current, Low Battery Voltage, Sensor Faults, Memory Faults |
| Travelling - Front Axle | 445-456 | General Specification, Static Description, Visual Inspection, Remove/Install, Grease, Tension Adjustment |
| Travelling - Rear Axle | 457-464 | Hub Components, Disassemble and Assemble, Wheel Bearing and Seal Service, Dust Cap Greasing |
| Travelling - Wheels and Tracks | 465-472 | Rear Wheel Tire Pressure, Rear Wheel Torque, Caster Wheel Tire Pressure, Caster Wheel Torque |
| Working Arm - Hitch Front Hitch | 475-480 | General Specification, Visual Inspection |
| Working Arm - Hitch Rear Hitch | 481-488 | Hydraulic Line Exploded View, Grease |
| Field Processing - Seeding Mechanical System | 491-526 | Auger Drive System, Auger Grease Locations, Exploded View, Hydraulic Lines, Visual Inspection, Overhaul, Tension Adjustment, Tow Between and Tow Behind Configurations |
| Field Processing - Seeding Electronic System | 527-634 | Circuit Descriptions, Cavity and Pin Assignments, Flow Gateway, Flow Sensor, Terminator Plug and Receptacle, Tow Between and Tow Behind Seed Tool Harnesses, Dust Caps |
| Field Processing - Seeding Fan System | 635-670 | Single and Dual Fan Motors, Exploded View, Remove and Install, Disassemble and Assemble, Overhaul, Troubleshooting |
| Field Processing - Seeding Air System | 671-740 | Product and Fertilizer Rate Charts, Tank Settings, Canola and Granular Products, Initial Fan Speed, Shoot Damper Position, Suggested Single-Shoot Settings |
| Field Processing - Seeding Metering System | 741-816 | Seed Meter and Meter Box, Mechanical Drive, Variable Drive, Agitator Cam Follower, Exploded View, Greasing, Testing, Recommended Settings |
| Field Processing - Seeding Optional Tank | 817-836 | Pneumatic Schema, Variable Drive, Exploded View, Manifold Lift, Tank Lid, Flow Setting, Tension Adjustment, Installation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Variable rate drive hydraulic flow requirement | 5.68 L/min | p. 82 |
| Pressure sensor alarm threshold | 3100 kPa | p. 84 |
| Alternator belt deflection | 3 mm | p. 136 |
| Alternator belt deflection force | 2.25 kg | p. 136 |
| Brake pad pressure (Dual Caster) | 23 kg | p. 451 |
| Brake pad pressure (Single Caster) | 16 kg | p. 451 |
| Brake pad pressure setting | 203 - 217 Nm | p. 453 |
| Mechanical drive slip torque limit | 111 Nm | p. 745 |
New Holland SC180–SC430 Common Problems This Manual Covers
New Holland SC430 air cart meters not turning, no product flow to the openers during seeding
Check the mechanical drive for slippage before condemning the meter. Load the drive; it must hold at or below 111 Nm (25 lb ft) without slipping, per the slip test on page 745. If it slips, inspect the rollers, sprockets, and drive clutch for wear, and replace any seized meter roller bearings.
Manual Section: Field Processing - Seeding Metering System p. 745Variable rate drive stalls or turns slow, metering rate reads incorrect on the monitor
Verify hydraulic flow to each variable rate drive; every drive needs 5.68 L/min (1.25 US gpm), noted on page 82. Check the tractor remote hydraulics flow setting and inspect couplers for restriction or a collapsed hose. If flow checks good and the drive still stalls, work through the hydraulic troubleshooting steps on page 124.
Manual Section: Distribution Systems - Primary Hydraulic Power System p. 82Monitor loses power intermittently, battery voltage drops off during long days in the field
Check alternator belt tension first; deflection should be 3 mm under 2.25 kg of force, adjusted per page 136. Clean and tighten the battery terminals and ground straps, then test the monitor power feed and fuses. Trace any harness shorts through the electronic system procedures starting on page 163 before harvest weather closes the window.
Manual Section: Distribution Systems - Electrical Power System p. 136Hydraulic oil overheating and pressure alarm sounding halfway through a seeding pass
Check the pressure sensor circuit; the alarm trips at 3100 kPa, shown on the hydraulic schematic on page 84. Verify the tractor remotes are set to the correct flow rate and confirm the return line is not kinked or restricted. Then follow the low pressure and hot oil steps in the troubleshooting procedures on page 124.
Manual Section: Distribution Systems - Primary Hydraulic Power System p. 124Caster wheels shimmy and hunt at transport speed, front axle brake pads worn
Measure caster brake pad pressure on the front axle: 23 kg for dual casters or 16 kg for single casters, per the checks on page 451. Reset worn pads by torquing the adjustment to 203 - 217 Nm (150 - 160 lb ft) as shown on page 453, then road test between fields to confirm the shimmy is gone.
Manual Section: Travelling - Front Axle p. 451Frequently Asked Questions
What are the replacement specifications for the meter roller?
When refitting meter rollers, you must use new bearings, new bearing shields, new O-rings, new end pucks, and new segments. Ensure the meter roller shaft is clean of any dirt, rust, or chemical residue before assembly. p. 801
What is the torque specification for the gearbox cover bolts?
When replacing the gearbox cover, the washers and screws should be tightened to a torque of 30 - 35 Nm (265 - 310 lb in). p. 498
What is the required oil pressure for the fan motor?
Hydraulic oil pressure for the fan motor typically ranges between 10340 - 13790 kPa (1500 - 2000 psi) for normal applications, though up to 15510 kPa (2500 psi) may be required for heavy product flow rates. p. 82
How do I adjust the fan belt tension?
Tighten the fan belts until a 1.8 - 2.7 kg (4 - 6 lb) force applied to the mid-span of the belts causes a deflection of 6 mm (1/4 in). Do not over-tighten, as this can cause premature bearing failure or damage to the hydraulic motor. p. 666
What is the recommended service interval for cleaning the hydraulic oil filter?

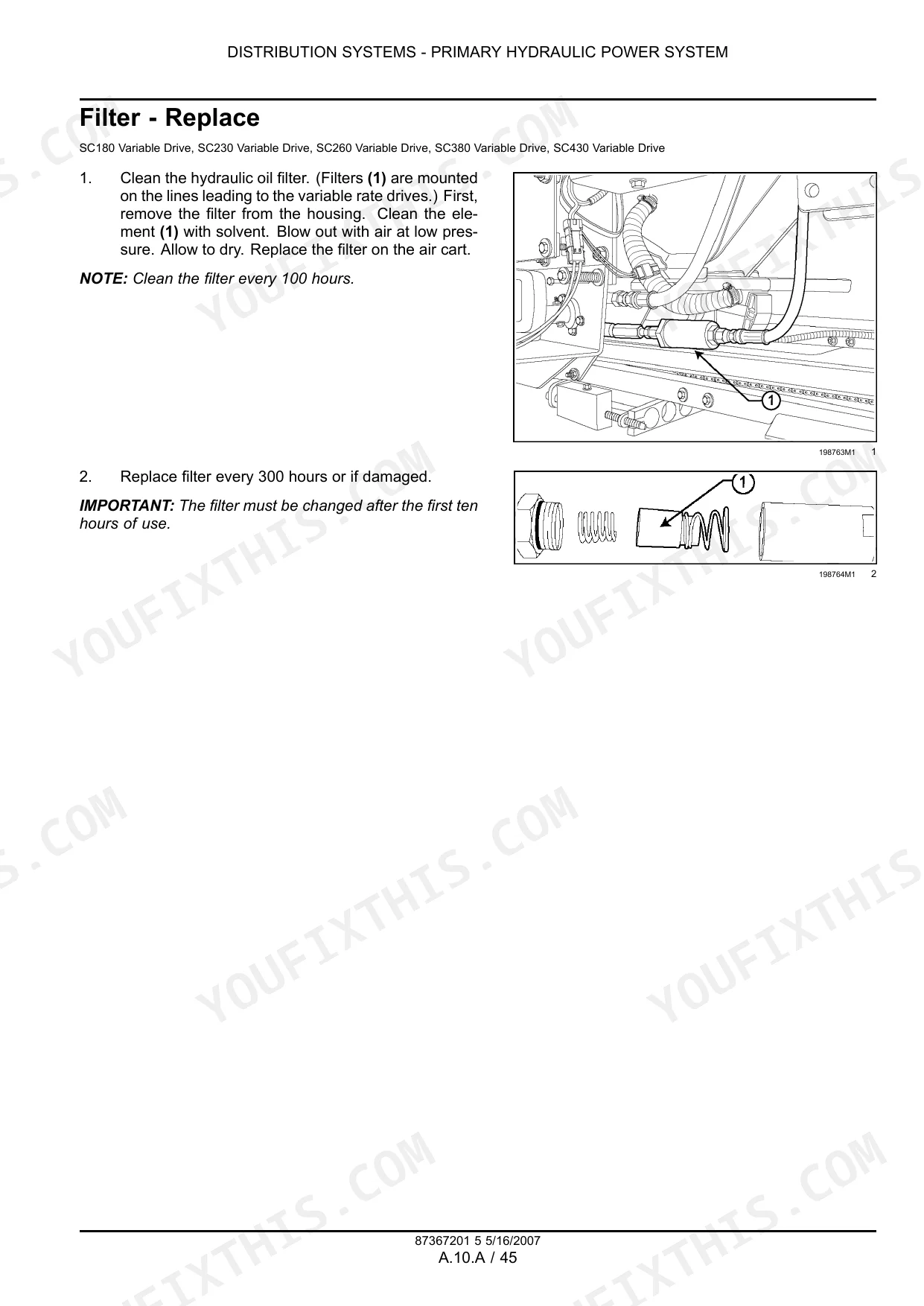

The hydraulic oil filter mounted on the lines leading to the variable rate drives should be cleaned every 100 hours of operation. p. 123
How will I receive this New Holland SC180–SC430 Series Repair Manual?
Straight to your device: 836 pages of searchable Repair Manual, downloadable the moment payment goes through.
Are there any print restrictions on this New Holland SC180–SC430 Series manual?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
