Part of the New Holland Repair Manuals.

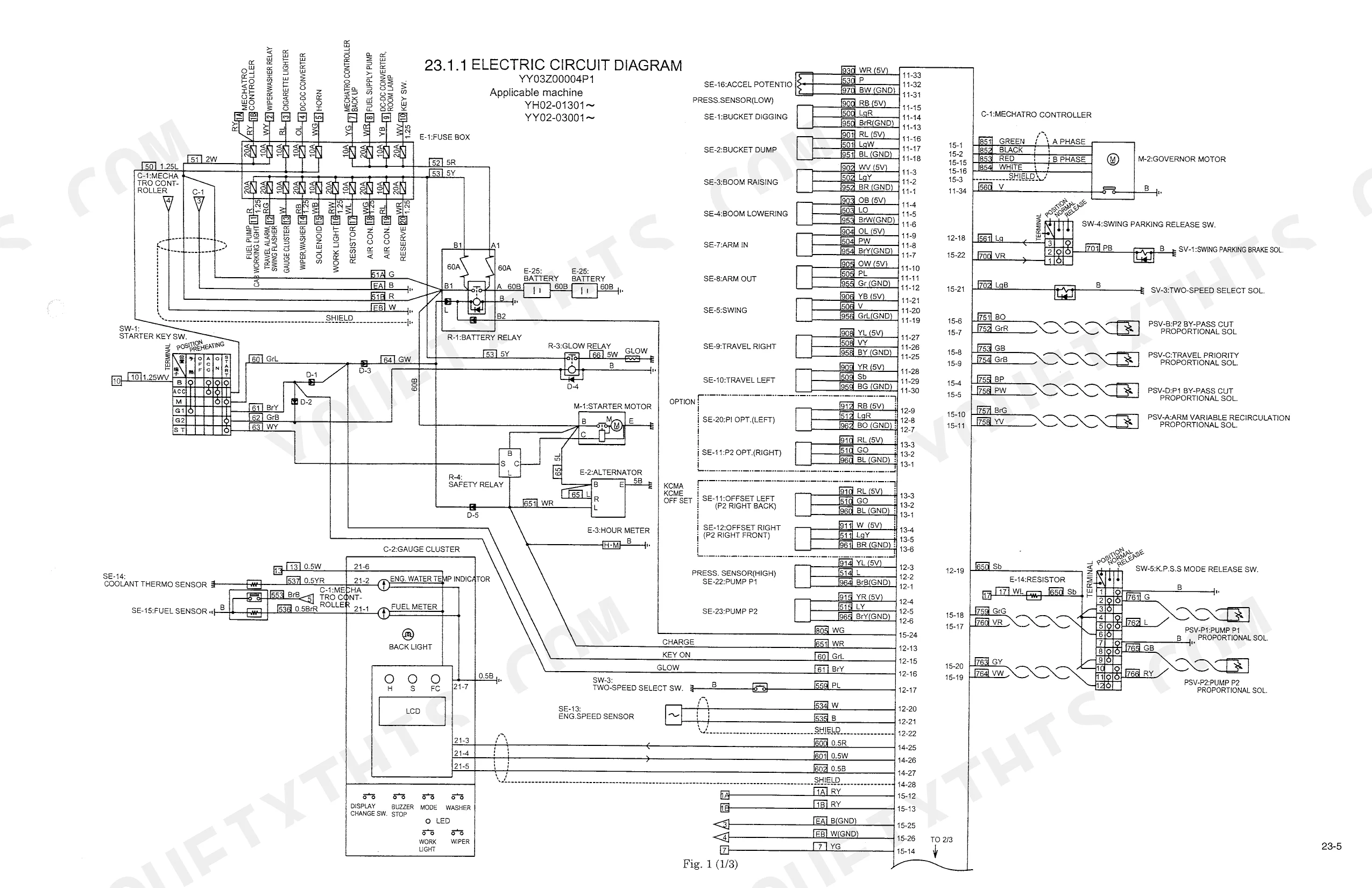

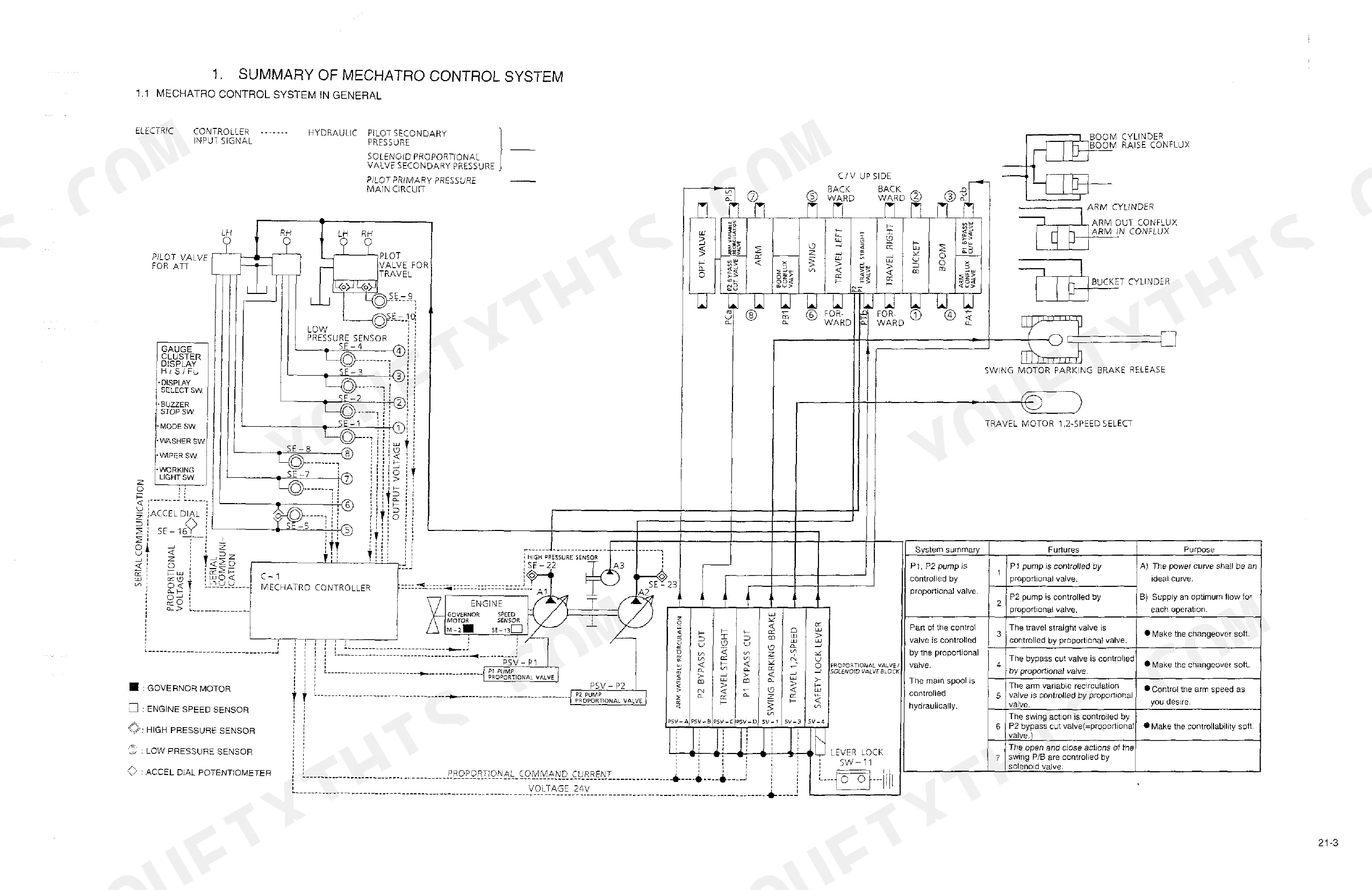

This 974-page New Holland E130 Shop Manual (OEM #87360591) puts the entire Crawler Excavator in your hands: Mechatro control, hydraulic system, electrical system, and every disassembly procedure from the upper slewing structure down to the travel gear. You get full wiring diagrams for tracing the electrical system, hydraulic schematics that lay out the Mechatro and component circuits, and a dedicated troubleshooting section covering hydraulic, electrical, and engine faults side by side. Set the D-1 P1 bypass propo-valve to 600mA and confirm the D-2 P2 valve reads the same before you chase a phantom boom or arm power loss. No more guessing which O-ring or valve setting caused that hydraulic foaming. Bookmarked by section so you can jump straight from troubleshooting to the exact procedure, this PDF opens on your phone or tablet and puts you back in the cab faster.
What's Inside This New Holland E130 Manual

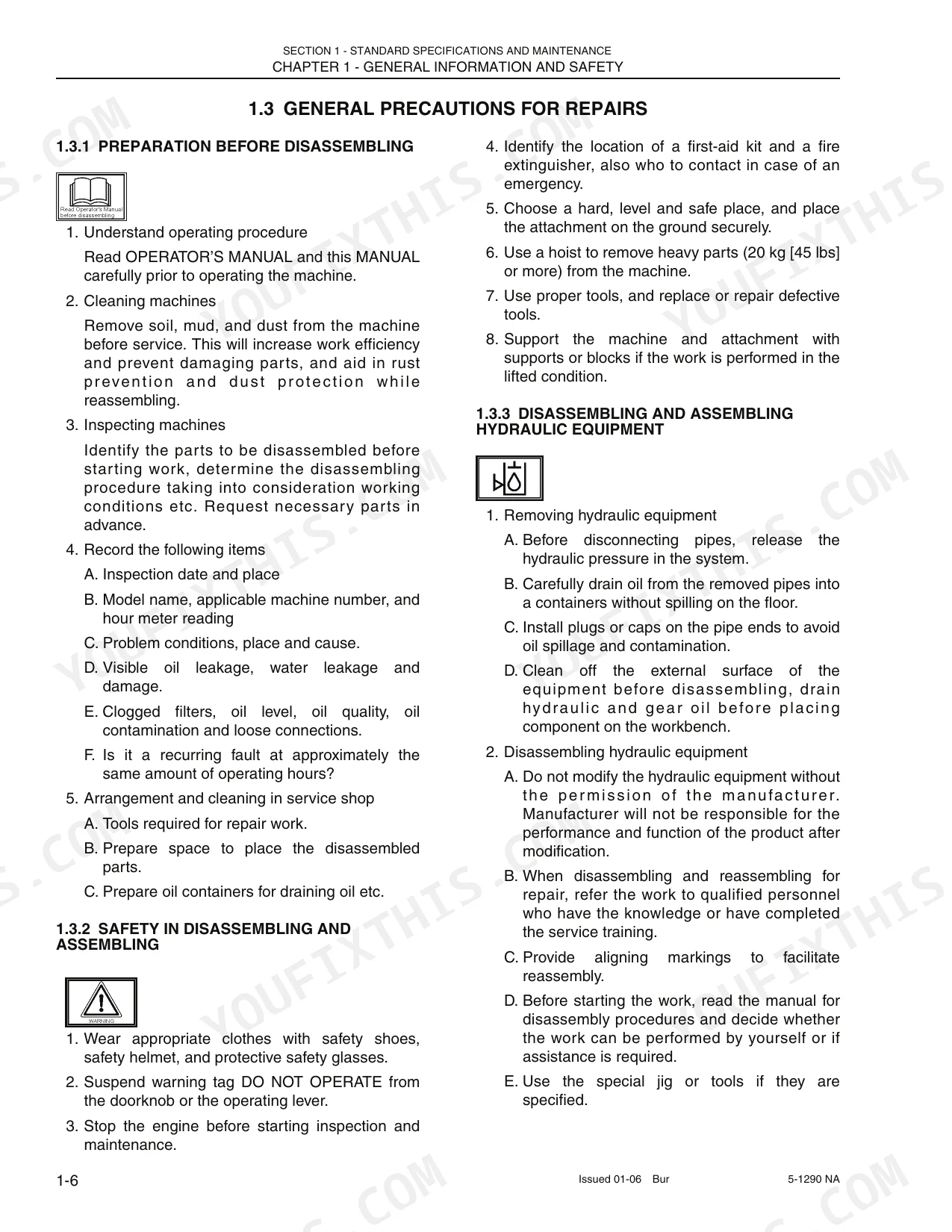

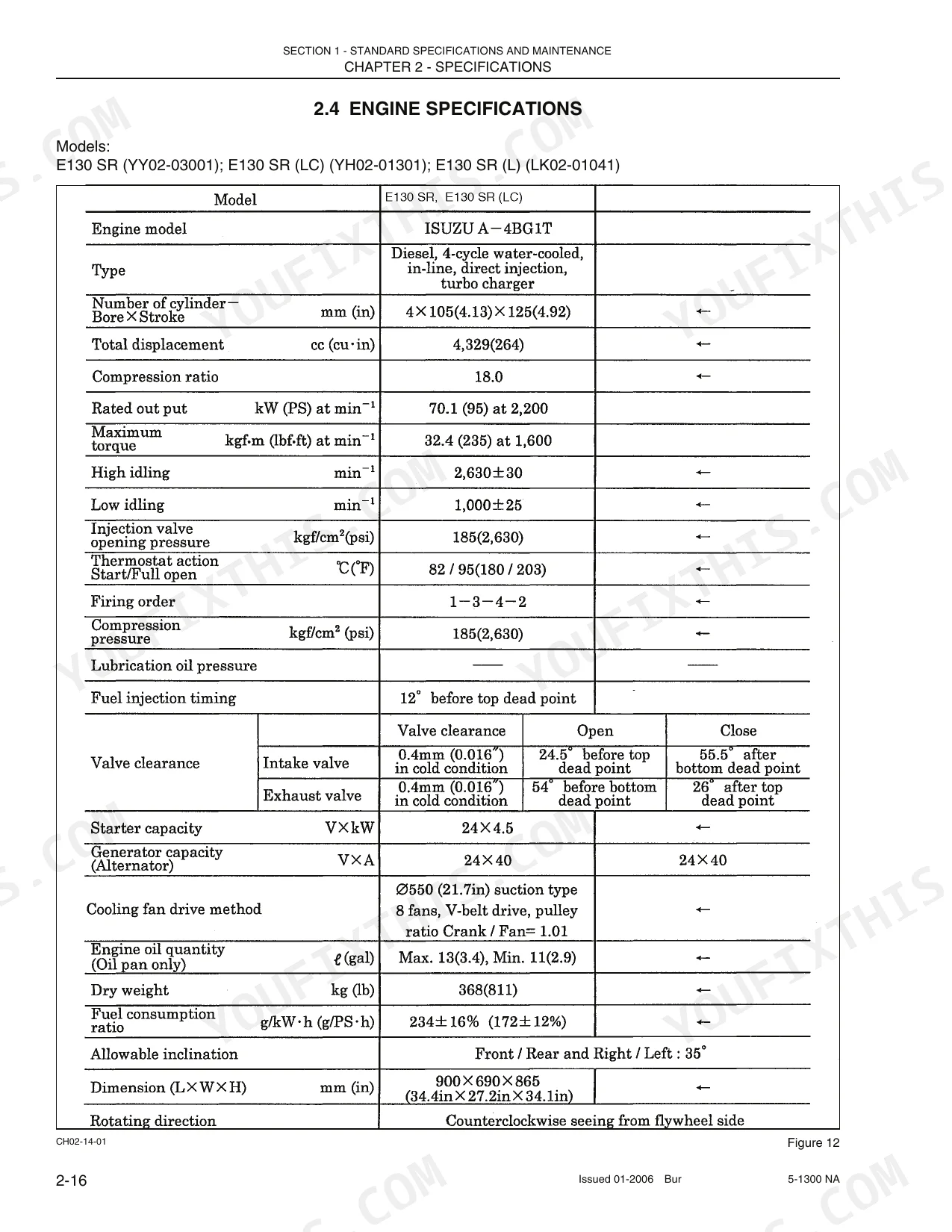

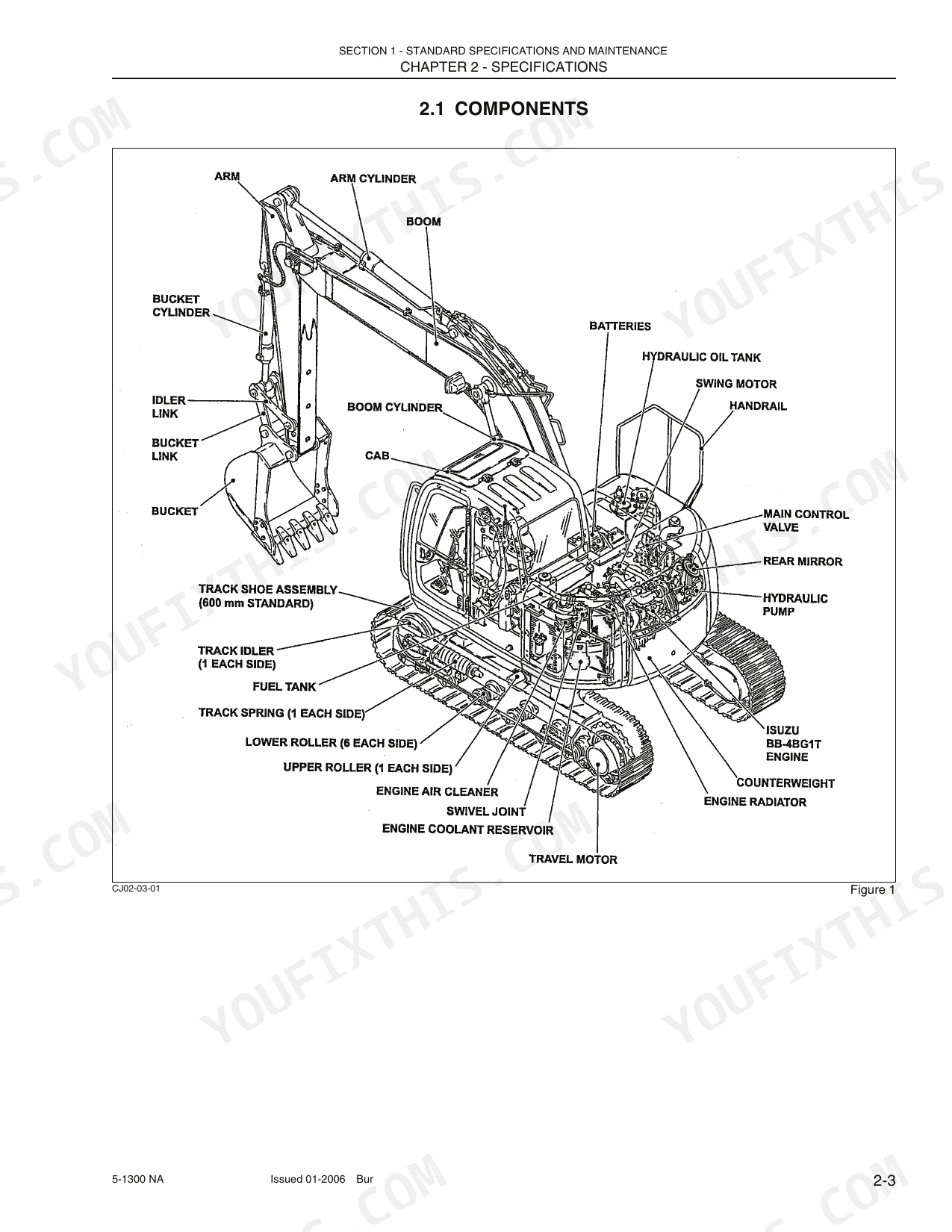

| System | Pages | Key Topics |
|---|---|---|
| E130 Crawler Excavator | 1-2 | Standard Specifications and Maintenance, Hydraulic, Electrical, And Component Systems, General Disassembly and Assembly, Troubleshooting, Engine |
| Standard Specifications and Maintenance | 7-122 | General Information and Safety, Specifications, Attachment Dimensions, Tools, Standard Maintenance Time Table, Maintenance Standards and Test Procedures |

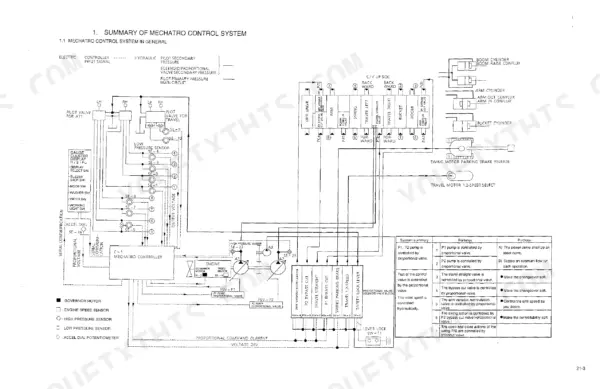

| Hydraulic, Electrical, and Component Systems | 123-452 | Mechatro Control System, Hydraulic System, Electrical System, Components System, Air Conditioning System |
| General Disassembly and Assembly | 453-748 | Attachments, Upper Slewing Structure, Travel System |

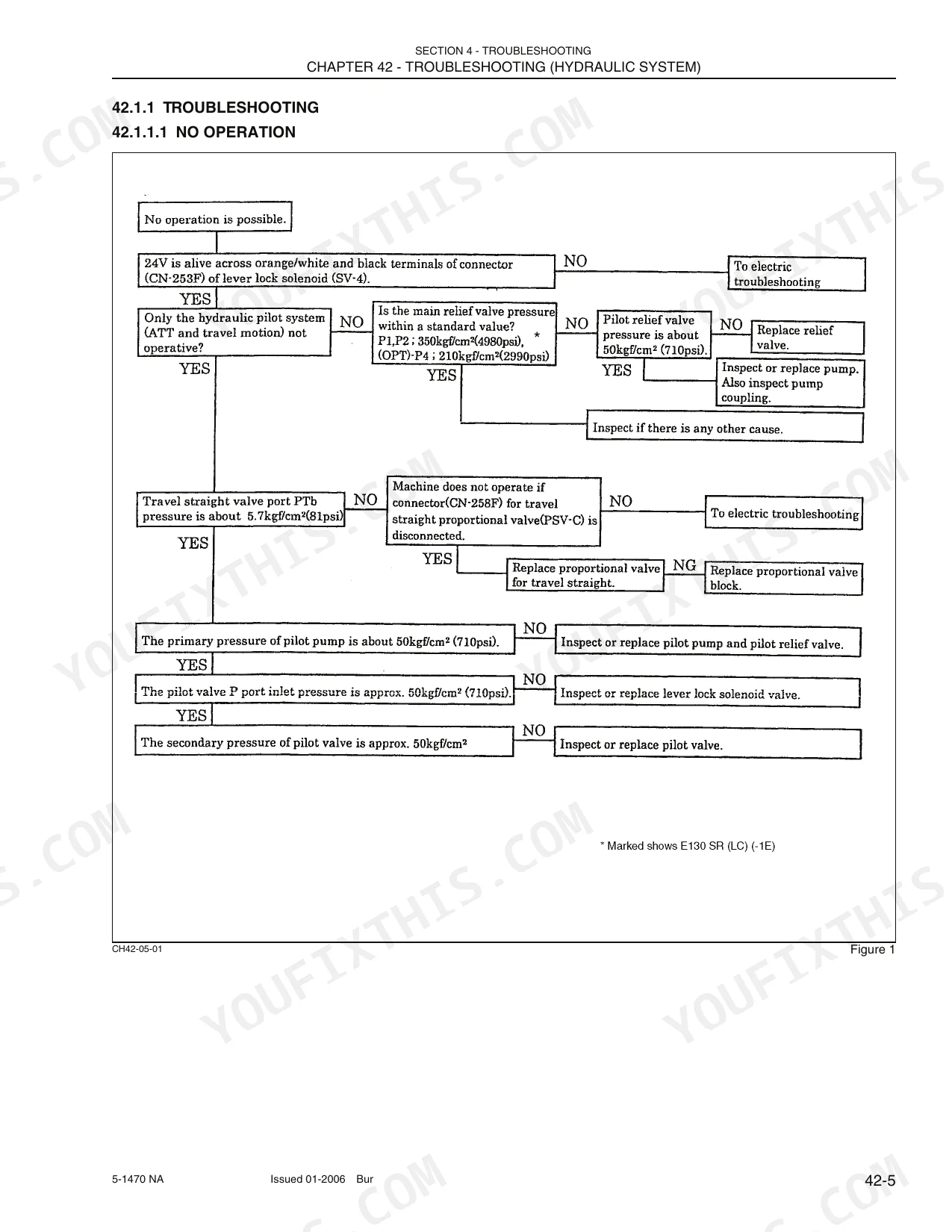

| Troubleshooting | 749-828 | Mechatro Control, Troubleshooting (Hydraulic System), Troubleshooting (Electrical System), Troubleshooting (Engine) |
| Engine | 829-974 | Engine Proper, Lubrication System, Cooling System, Fuel System, Turbocharger, Starter |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| STANDARD MAINTENANCE TIME TABLE | 12-1 | p. 3 |
| HYDRAULIC SYSTEM | 22-1 | p. 3 |
| PROPO-VALVE D-1 P1 BYPASS COMP. | 600mA | p. 154 |
| PROPO-VALVE D-1 P1 BYPASS MEAS. | 600mA | p. 154 |
| Swing motor unit part No. | YY15V00004F1 | p. 339 |
| Swing motor assy part No. | YY15V00005F1 | p. 339 |
| Water capacity of radiator | 7 liters (1.8 gallons) | p. 515 |
| Fuel filter tightening torque | 2.0 - 2.5 kgfm (15 - 18 pound-foot) | p. 900 |
| Clearance between impeller and body | 0.3 - 1.3 mm (0.012 - 0.051 inches) | p. 907 |
New Holland E130 Common Problems This Manual Covers
New Holland E130 hydraulic fluid foaming after short operation, bucket and boom lose lifting power
Check the suction side of the hydraulic pump first; a loose suction hose clamp or degraded suction seal is the usual cause of air ingress. Verify the hydraulic oil is not clouded per the cavitation check on page 541, then torque the suction line fittings to 15 ± 2.0 Nm (page 66) before bleeding the system and retesting boom power.
Manual Section: Hydraulic Pump Troubleshooting p. 541Engine runs hot and overheats repeatedly despite no coolant loss or visible exterior damage
Pull the radiator cap and pressure test it for a weak seal, then check the water pump impeller clearance against the 0.3 to 1.3 mm spec on page 907, since a worn impeller cuts coolant flow without any external leak. Verify the thermostat opens at 82° ± 1.5°C on page 908 and confirm the radiator still holds its full 7 liter capacity from page 515.
Manual Section: Engine Troubleshooting p. 908Swing motor rotation turns jerky and hesitates intermittently after roughly 200 hours of operation
Start at the troubleshooting index on page 749 and work through the swing circuit before tearing into the motor; a sticking control valve spool causes the same hesitation as worn seals. Pressure test the case drain and check the relief valve against the spec for swing motor part YY15V00004F1 on page 339, then replace the seal kit if bypass continues.
Manual Section: Troubleshooting p. 749Fuel filter clogs and needs replacement every 50 hours despite using clean fuel sources
Drain the water separator bowl daily and replace the fuel filter element per the service procedure on page 909; torque the filter housing to 2.0 to 2.5 kgfm (15 to 18 pound-foot) per page 900. Check the fuel cap vent and fill strainer for damage letting contaminants bypass the primary filter, and switch to sealed fuel containers on site.
Manual Section: Fuel System p. 900Swing motor fault code E12 triggers repeatedly with sluggish or delayed rotation response
Pull code E12 from the mechatro controller and check the swing circuit's electrical connectors and ground strap; corroded pins or a loose ground often mimic seal failure on the diagnostic display. Clean and reseat every connector, torque the ground strap bolt to 100 Nm per the general fastener spec on page 459, then clear the fault and retest rotation.
Manual Section: Electrical System Troubleshooting p. 459Frequently Asked Questions
How to reset error codes on New Holland E130?
To erase stored error codes, turn the starter switch OFF, then press the buzzer stop switch and turn the starter switch ON. All stored items are erased by the hour meter when it differs; press the work mode select switch and the buzzer stop switch, and ensure the displayed items are correct. Partial erasure of data is not possible. p. 155
What are the torque specifications for New Holland E130 hydraulic connections?

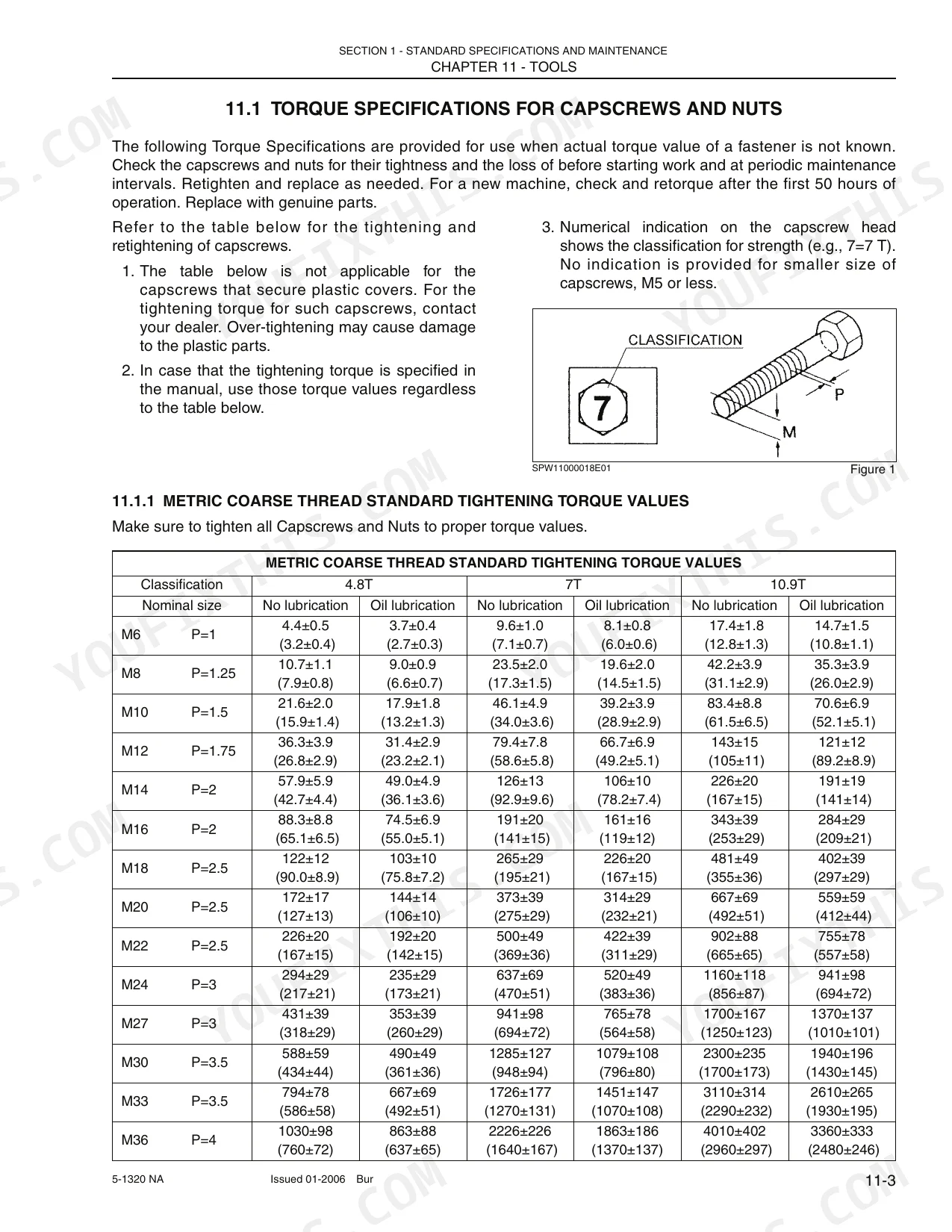

For O-ring sealing type joints, a 1/8 PF connection requires a tightening torque of 17±2 Nm (12±1 lb ft). For hydraulic hoses (30 degree flare type), a 1/8 PF connection requires a tightening torque of 15±2.0 Nm (11±1 lb ft). p. 66
What are the common error codes for New Holland E130 excavator?
Common error codes include 'Mechatro controller fail' (No. 1), 'ROM data failure' (No. 2), and 'Boom raising pressure sensor fail' (No. 4). These codes are displayed on the monitor during self-diagnosis. p. 151
How to reset the service interval on New Holland E130?
To correct the engine oil supply cumulative time, press the gauge cluster screen change switch once to display the cumulative time. Then, press the buzzer stop switch to increase the cumulative time. The screen may change over during this process. p. 156
What do I get after purchasing this New Holland E130 manual?
You get a 974-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this New Holland E130 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this New Holland E130 manual include hydraulic schematics?
Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
