This is the factory service manual for the New Holland CX Elevation and CR series combines, part number 47612507, dated March 2014. One book covers ten machines: the CX7080, CX7090, CX8070, CX8080 and CX8090 Elevation, and the CR8070, CR8080, CR9070, CR9080 and CR9090. It works through the machine the way New Holland builds it, then follows the crop path from header attachment through feeding, threshing, separation, residue handling, cleaning and unloading. The hydraulic section explains something worth knowing before you diagnose anything: the CCLS pump has no charge pump of its own and is charged from the hydrostatic return oil.

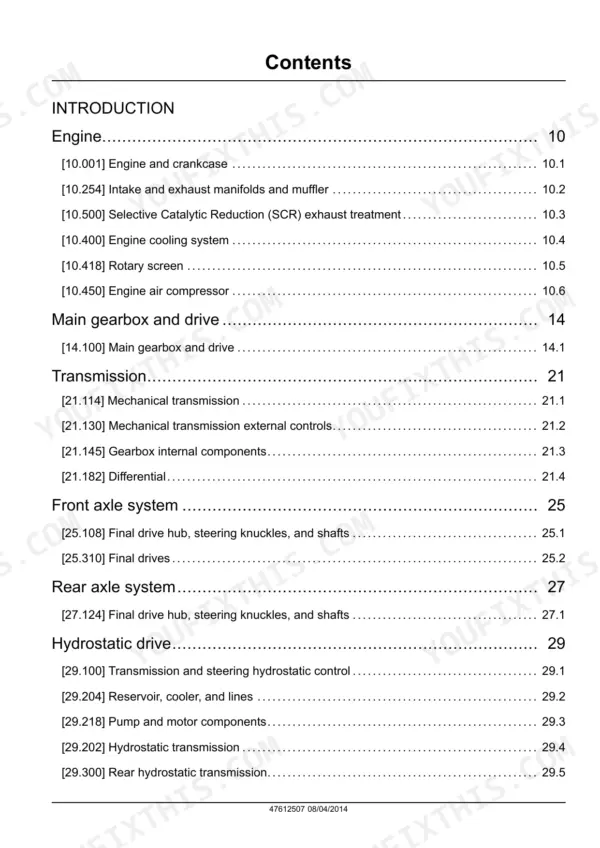

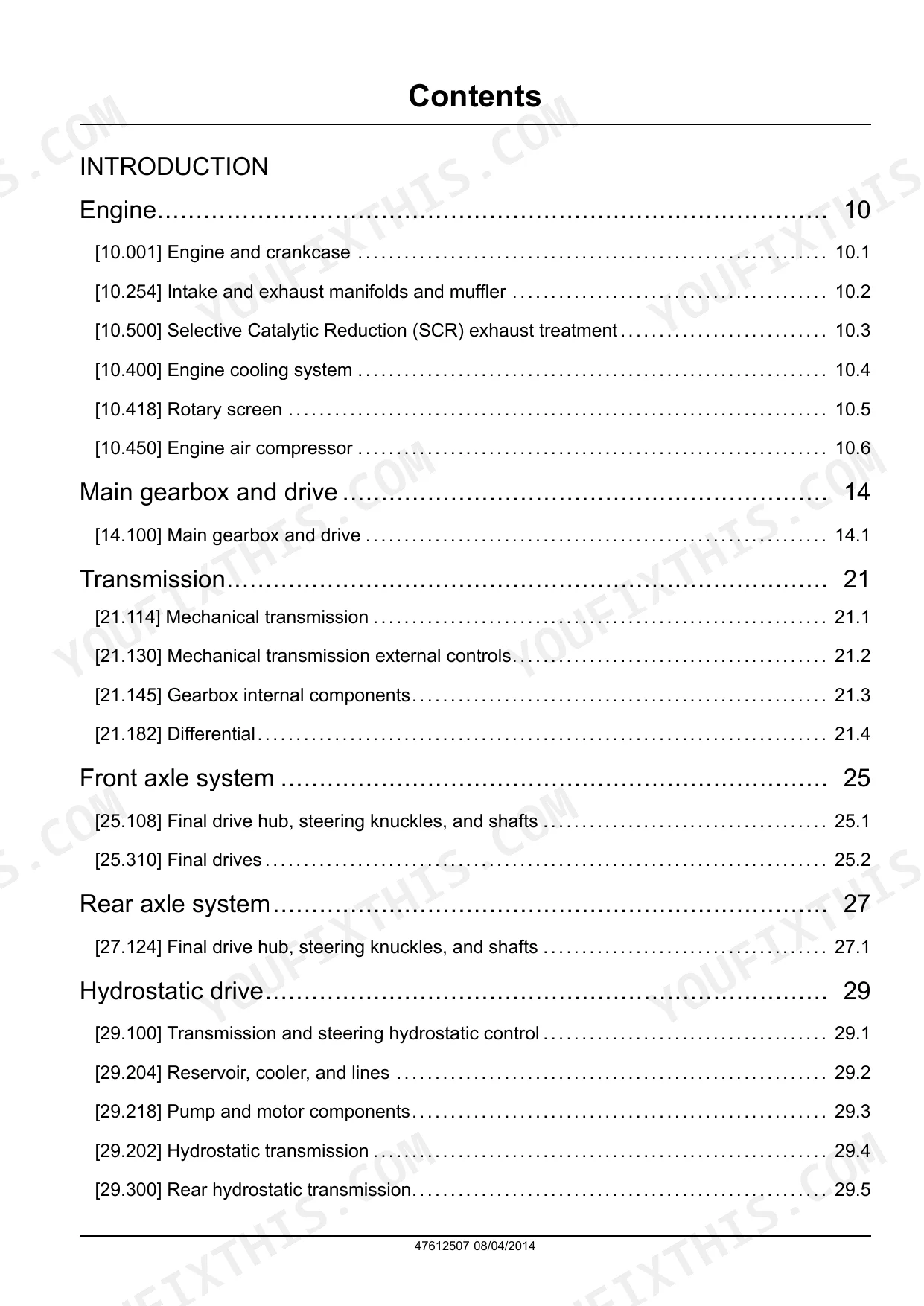

What's Inside This New Holland CX Elevation and CR Series (CX7080-CX8090, CR8070-CR9090) Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Standard Torques | 11-42 | How to Use the Manual, Shop Safety, Standard Tightening Torques, Approved Fluids, Special Tools with Their Gauge and Flow-Meter Ranges |
| Engine | 43-140 | Engine Installation and Mountings, Cooling Package, Air Intake and Exhaust, Fuel Supply and Filtration, Engine Ancillaries |
| Main Gearbox and Drive | 141-202 | Main Gearbox, Drive Belts and Pulleys, Drive Couplings, Gearbox Overhaul |
| Transmission | 203-290 | Transmission and Range Unit, Drive Shafts and Final Drives, Transmission Controls and Overhaul |
| Front Axle System | 291-350 | Front Drive Axle and Final Drives, Hubs and Bearings, Axle Rebuild |
| Rear Axle System | 351-360 | Steering Rear Axle, Hubs, King Pins and Bearings |

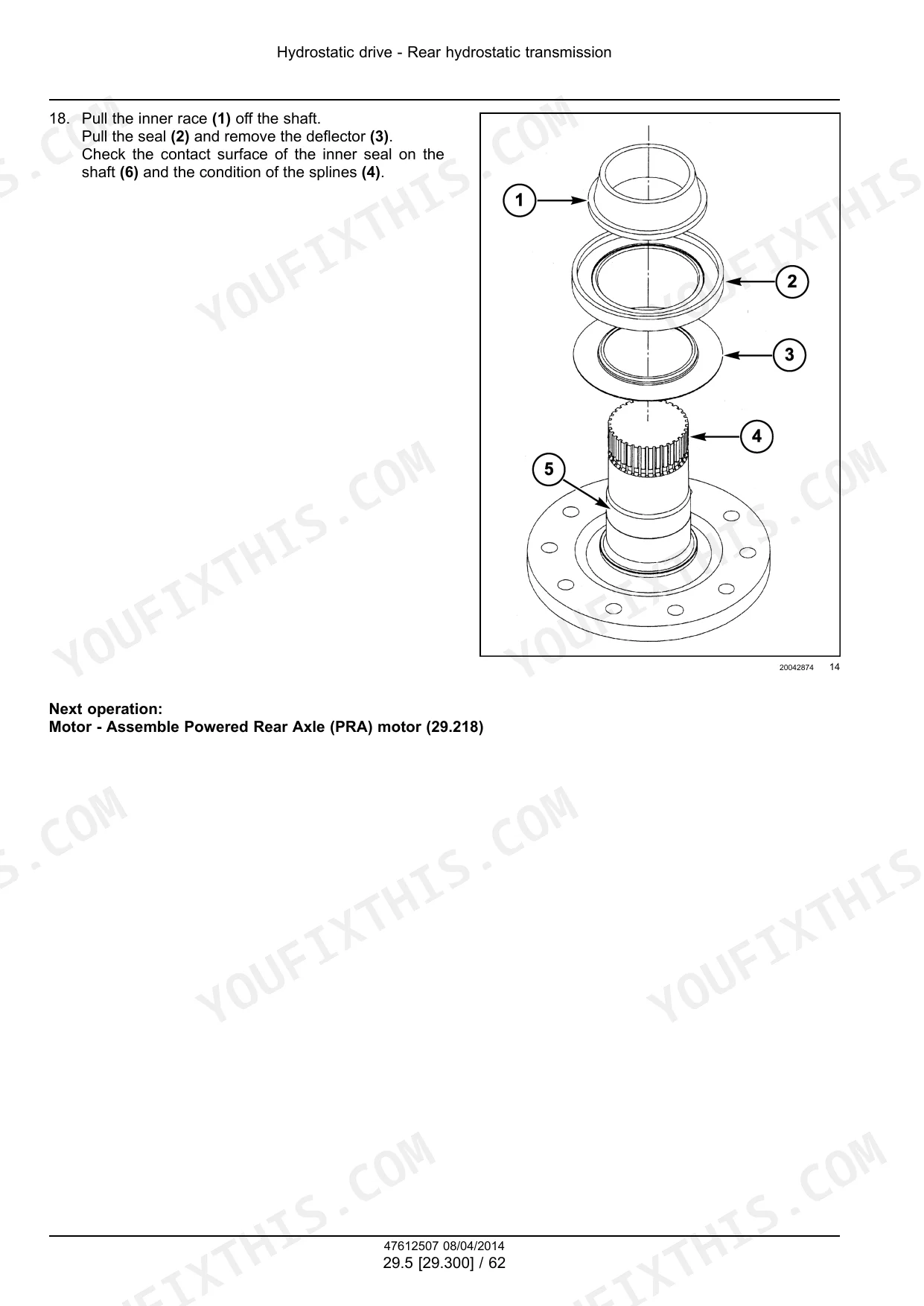

| Hydrostatic Drive | 361-576 | Hydrostatic Pump and Drive Motors, Return Oil Through the Oil Cooler, Ground Drive Control, Drive Pressure Testing and Pump Overhaul |
| Brakes and Controls | 577-614 | Service Brakes, Parking Brake, Brake Circuit and Bleeding |
| Hydraulic Systems | 615-846 | Ccls Pump Charged From the Hydrostatic Return, Low Pressure Gear Pump, Load Sensing and Priority Valves, High Pressure Relief and In-Line Filter, Header Height and Lateral Flotation Control with Its Accumulators, Reel Adjustment Valves, Straw Elevator and Header Reversing, Pressure Testing |
| Steering | 847-870 | Steering Motor and Cylinders, Steering Relief Valve, Priority and Load-Sensing Shuttle Valves, Steering Circuit Fault Finding |
| Tracks and Track Suspension | 871-926 | Rubber Track and Undercarriage, Idlers, Rollers and Sprockets, Track Tension Setting and Replacement |
| Cab Climate Control | 927-1038 | Heating, Ventilation and Air Conditioning, Compressor and Condenser, Refrigerant Handling, Charging and Leak Testing |

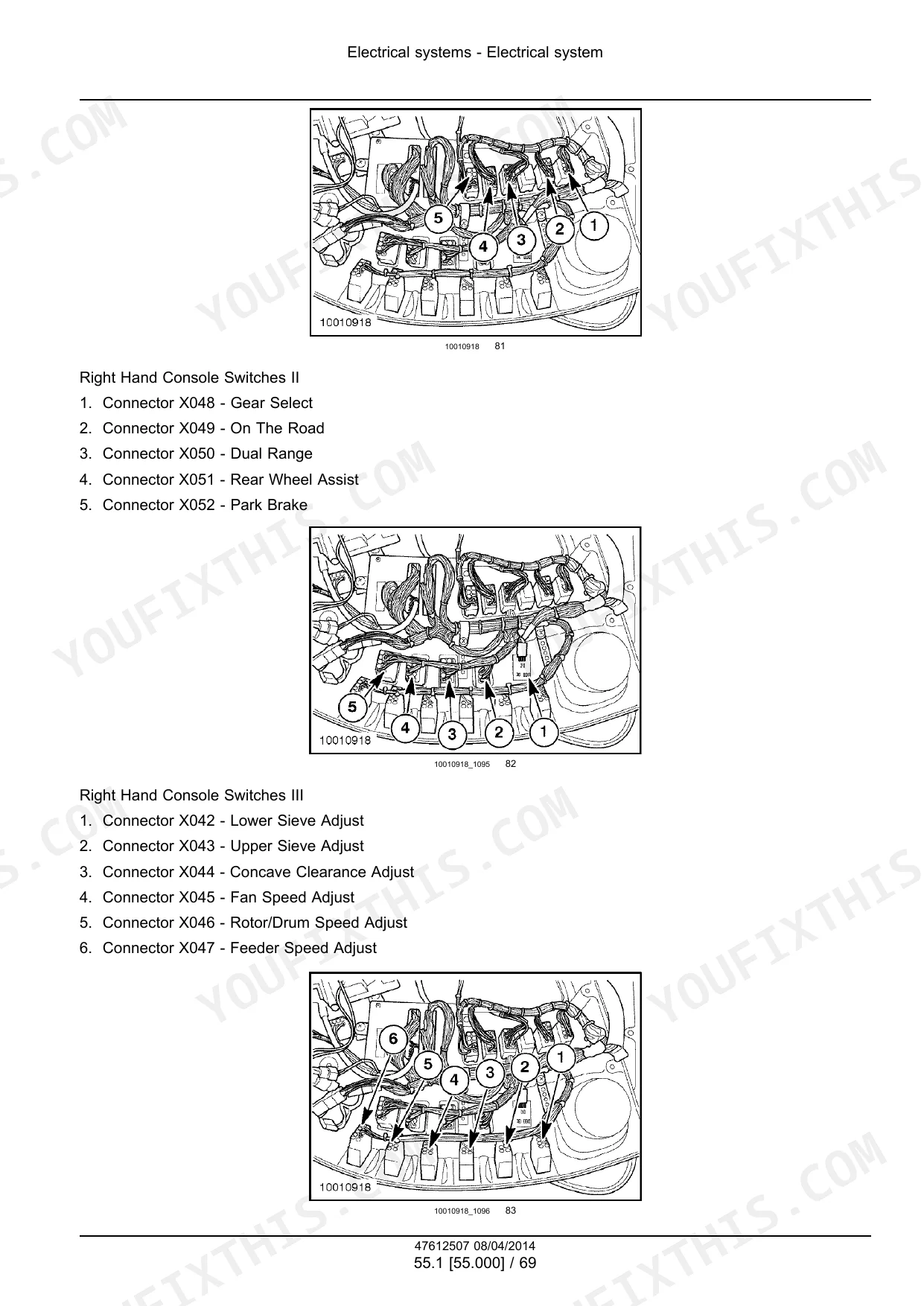

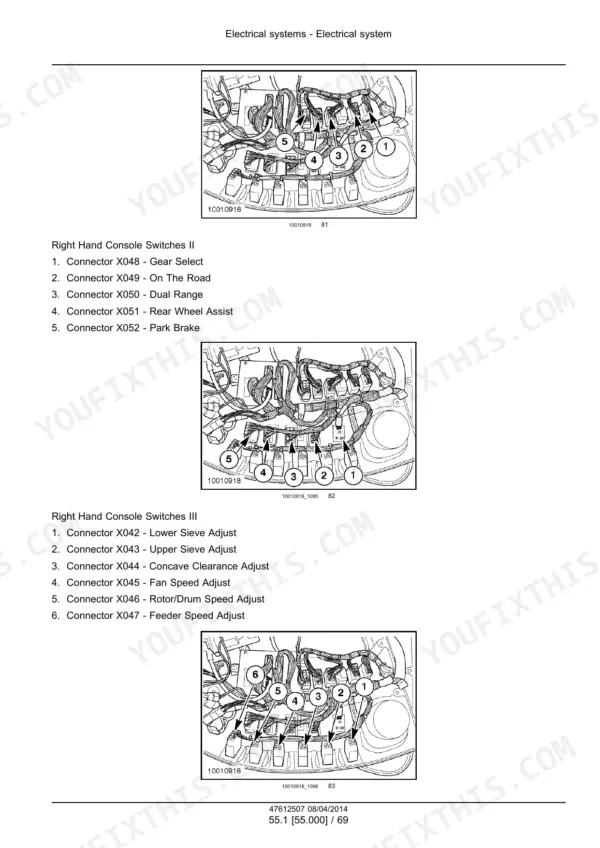

| Electrical Systems: Machine Circuits | 1039-1149 | Electrical System Architecture, Batteries, Fuses and Relays, Machine Control Circuits |

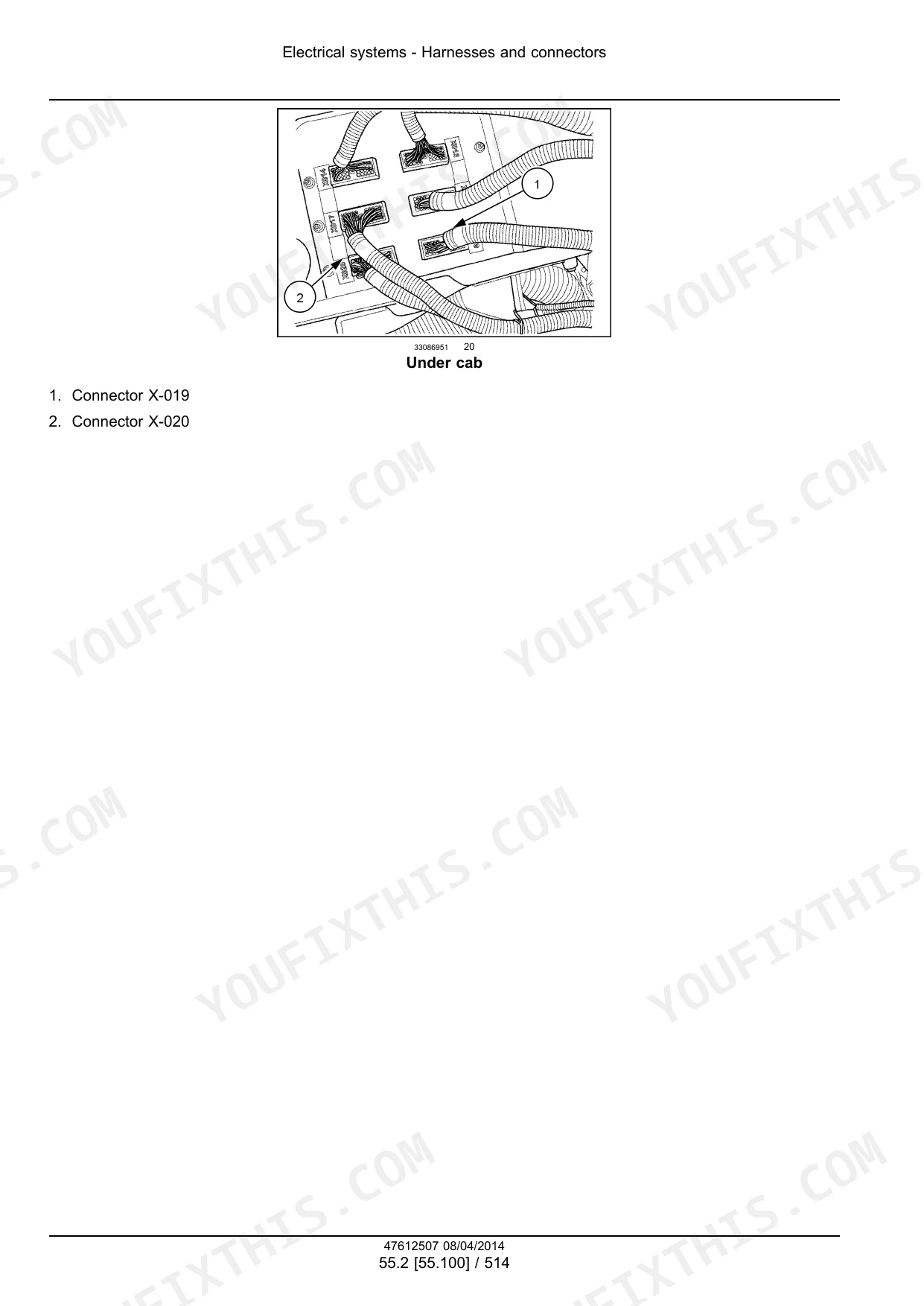

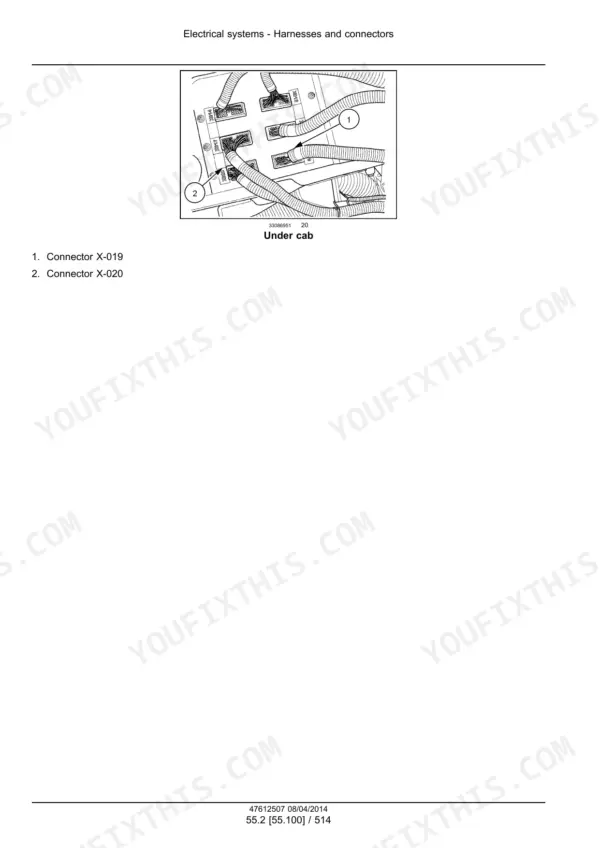

| Electrical Systems: Harnesses and Connectors | 1150-2649 | Complete Wire Harness Drawings, Connector Component Diagrams, Pin-Out Tables, Component Location, Wiper and Washer Circuits |
| Electrical Systems: Warning Indicators and Instruments | 2650-2699 | Warning Indicators, Alarms, Instrument Cluster and Operator Displays |
| Electrical Systems: Fault Codes and Diagnostics | 2700-3898 | Fault-Code Index and Tables, Guided Diagnostic Test Procedures, Circuit-Level Troubleshooting |
| Attachments and Headers | 3899-3910 | Header Attachment and Drive, Multi-Coupler, Header Service |
| Product Feeding | 3911-4086 | Feeder House and Elevator, Stone Trap, Feed Beater and Drive, Header Reversing |
| Threshing | 4087-4330 | Threshing Rotors or Cylinder and Concave, Concave Clearance and Rotor Speed, Threshing Drive |
| Separation | 4331-4448 | Separation Grates and Beaters, Separation Drive and Bearings |
| Residue Handling | 4449-4568 | Straw Chopper and Spreader, Chaff Spreader, Residue Drive |
| Cleaning | 4569-4790 | Cleaning Shoe, Sieves and Chaffer, Cleaning Fan and Drive, Returns System |
| Crop Storage and Unloading | 4791-4892 | Grain Tank and Level Sensors, Unloading Auger and Drive, Unloading Control |
| Accessories, Platform and Cab | 4893-4985 | Fitted Accessories, Cab and Platform Assembly, Bodywork Panels, Glazing, Decals, Special Tool Index |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| CCLS pump | ||
| CCLS pump charge | Hydrostatic return oil via the oil cooler; no dedicated charge pump | |
| Hydrostatic return to the CCLS pump | ||
| Flow rate | 60 l/min (63 qts/min) | |
| Hydraulic system | ||
| High pressure relief valve | 197 bar (2856 psi) | |
| Lateral float accumulator | ||
| Charge pressure and volume | 80 bar (1160 psi), 0.5 L (17 oz) | |
| Lateral float accumulator, second unit | ||
| Charge pressure and volume | 100 bar (1450 psi), 0.5 L (17 oz) | |
| This manual | ||
| Publication | Part number 47612507, March 2014 | |
New Holland CX Elevation and CR Series (CX7080-CX8090, CR8070-CR9090) Common Problems This Manual Covers
Hydraulic functions are slow or weak, and the hydrostatic drive also feels off.
Do not treat those as two faults. The CCLS pump is charged from the hydrostatic return oil, which reaches it through the oil cooler at 60 l/min, so a restricted cooler or a hydrostatic problem starves the hydraulic pump directly. Check the return flow and the cooler first, then measure against the 197 bar high pressure relief setting before you condemn the CCLS pump itself.
Manual Section: Hydraulic SystemsThe header will not float properly, or lateral float feels harsh.
Check both accumulators, since the circuit uses two at different pressures. One is charged to 80 bar (1160 psi) and one to 100 bar (1450 psi), each 0.5 L. A soft accumulator makes the float feel dead or bouncy long before a cylinder or valve is at fault. The hydraulic section names the lateral flotation control valve, the pressure compensation valve, the minimum pressure valve and both accumulators on one numbered circuit.
Manual Section: Hydraulic SystemsSteering goes heavy under load while other functions work.
Steering is fed through a priority valve and a load-sensing shuttle valve and protected by its own steering relief valve, so it is the first thing to suffer when supply drops and the last thing to blame. Confirm the CCLS supply and the high pressure relief at 197 bar, then work the steering section for the motor, the cylinders and the relief valve. Only then look at the priority valve itself.
Manual Section: SteeringFrequently Asked Questions
Which combines does this manual cover?
Ten machines in two families: the CX7080, CX7090, CX8070, CX8080 and CX8090 Elevation, and the CR8070, CR8080, CR9070, CR9080 and CR9090. They share the drives, the hydraulics and the electrical architecture, and the manual names the series wherever a component differs, for instance in the hydraulic overview which is drawn separately for the CX7000 and CX8000 Elevation series.
How is the CCLS pump charged?
From the hydrostatic system's return oil, not from a charge pump of its own. Return oil reaches the pump through the oil cooler at 60 l/min (63 qts/min), and only under high demand does the CCLS pump pull an under-pressure on its suction line. That coupling matters in diagnosis: a hydrostatic problem shows up as a hydraulic one long before it shows up as a drive one.
What pressures should I set the accumulators to?
The lateral float circuit uses two accumulators, one charged to 80 bar (1160 psi) and one to 100 bar (1450 psi), each 0.5 L (17 oz). The high pressure relief valve in the hydraulic circuit is set to 197 bar (2856 psi). The hydraulic section carries the full numbered circuit with every valve and cylinder identified.
Is the crop path covered?
Yes, in flow order and each in its own section: attachments and headers, product feeding, threshing, separation, residue handling, cleaning, and crop storage and unloading. That runs from page 3899 to page 4892 and covers the feeder and stone trap, the concave and rotor settings, the sieves and fan, the chopper and the unloading auger.
How big is the manual and can I search it?
It runs to 4985 pages in English and is a searchable, printable PDF. Search the text, print the pages you need for the bench, and keep the rest on a laptop in the workshop.
What format is this New Holland CX7080 Elevation, CX7090 Elevation, CX8070?
Immediate download of the complete 4985-page searchable Service Manual (168 MB). Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this New Holland CX7080 Elevation, CX7090?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
