Part of the New Holland Repair Manuals.
This 848-page New Holland T1530 Service Manual (OEM #84227369) breaks down every system on your Tractor, from the hydrostatic transmission and PTO clutch to the differential and rear axle. Open it up and you get complete wiring diagrams for the electrical system, hydraulic schematics covering the control valve assembly and lift cylinder, and a dedicated troubleshooting section that walks you through engine and transmission faults step by step. Set clutch disc clearance between 0.2 and 0.35 mm, with an allowable limit of 0.6 mm before you swap parts, and torque the hydraulic pump installation per the factory table on page 6. No more guessing whether that clutch wear is within spec or reaching for a forum thread written for a different model year. This PDF carries multi-level bookmarks, so you jump straight from the General Information section to Hydrostatic Transmission or Electrical Systems without scrolling. Pull it up on your phone in the shop and get your T1530 back together right the first time.
What's Inside This New Holland T1530 Manual

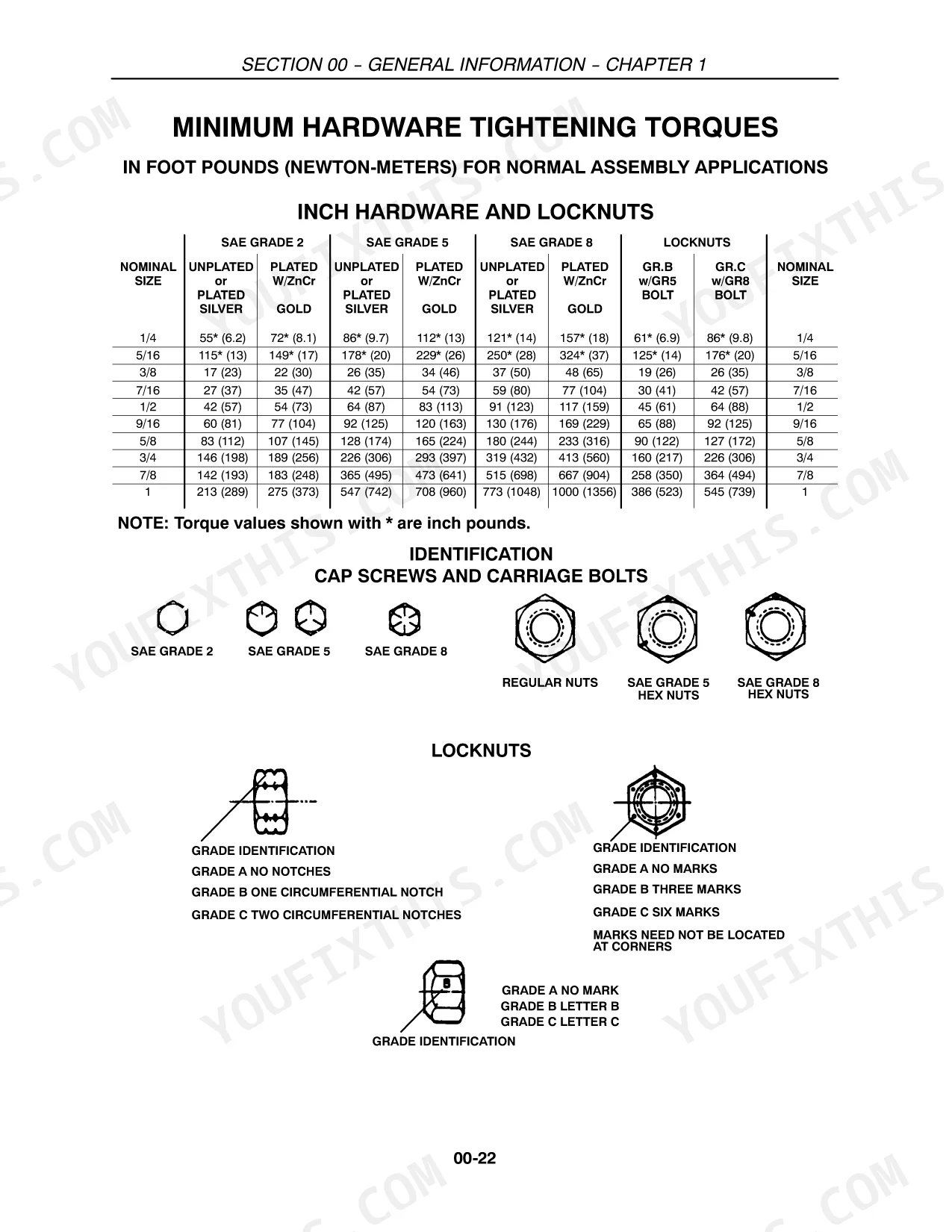

| System | Pages | Key Topics |
|---|---|---|
| General Information | 39-64 | Introduction, Precautionary Statements, Personal Safety, Machine Safety and Information, Safety |

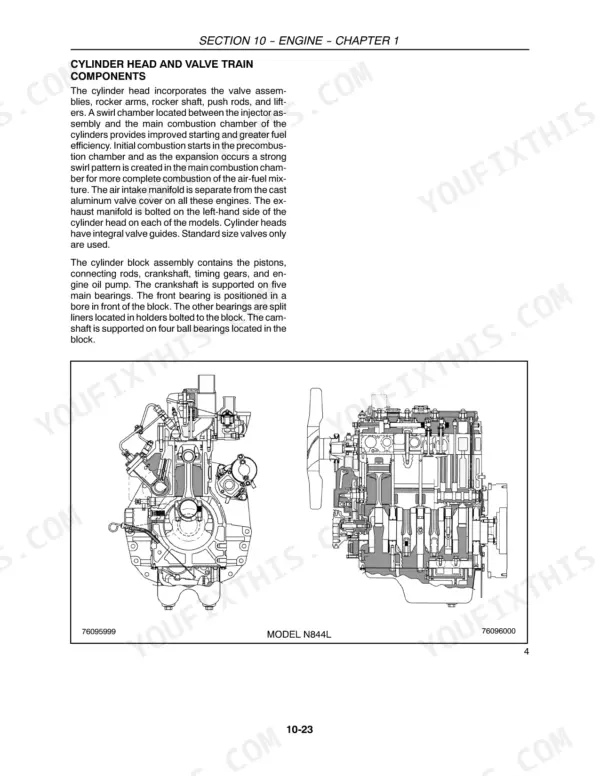

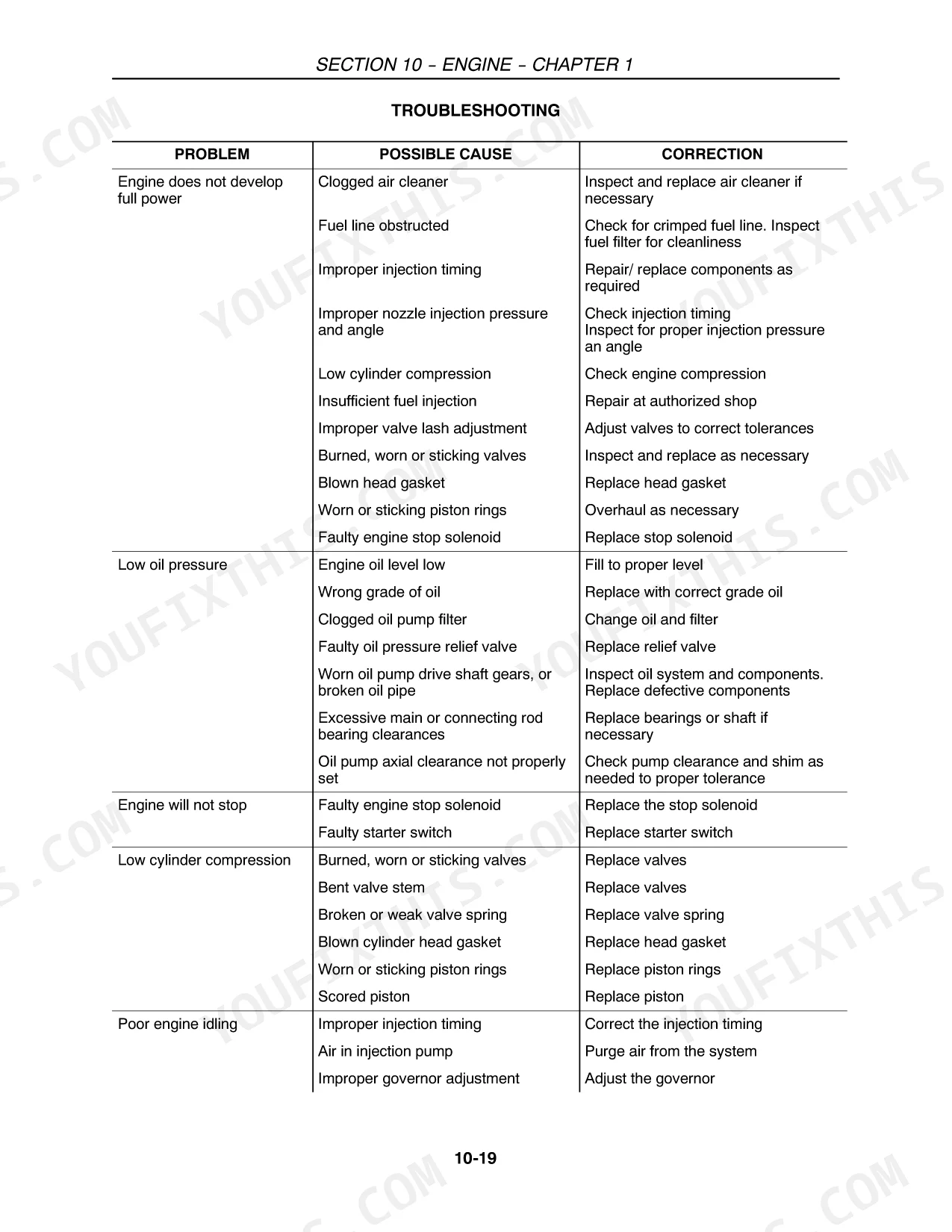

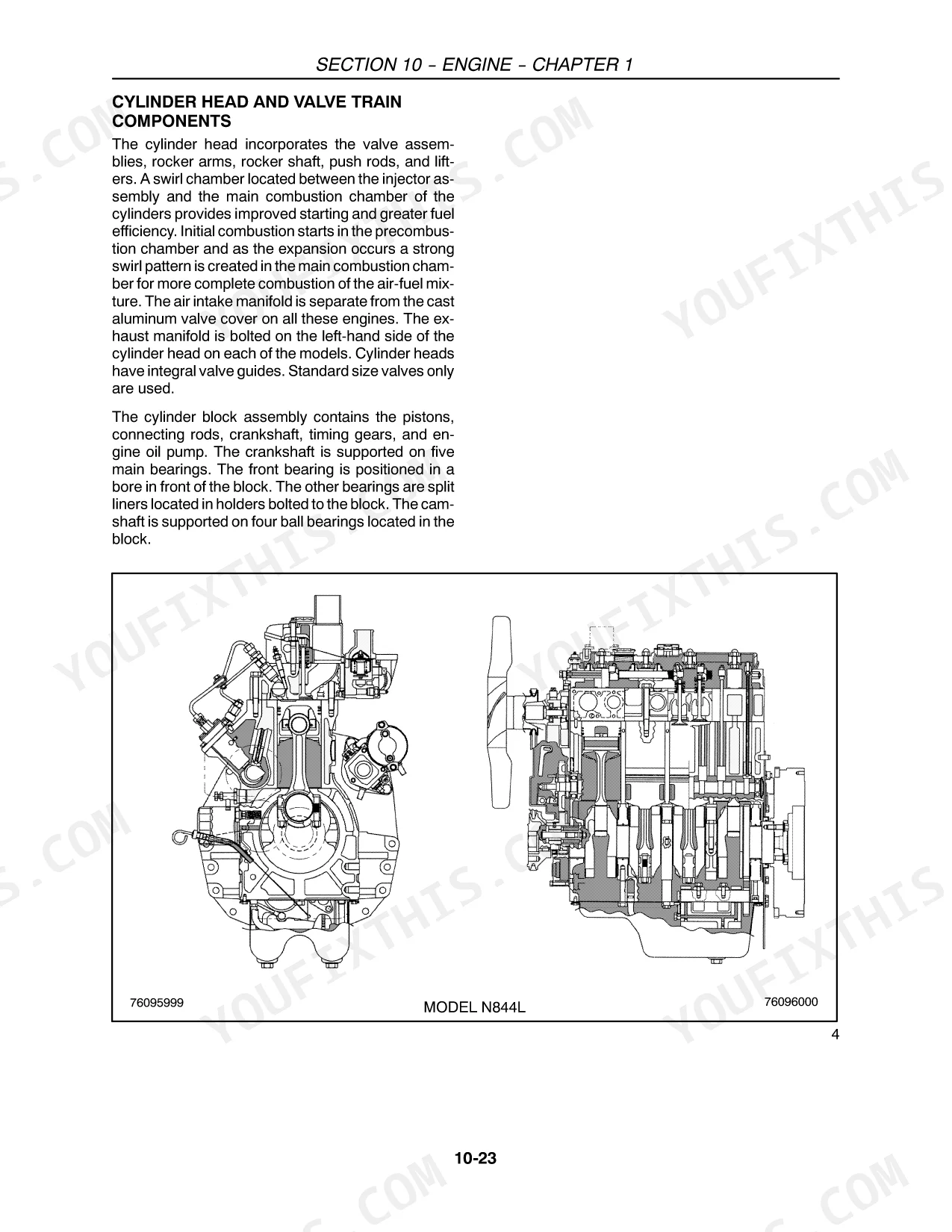

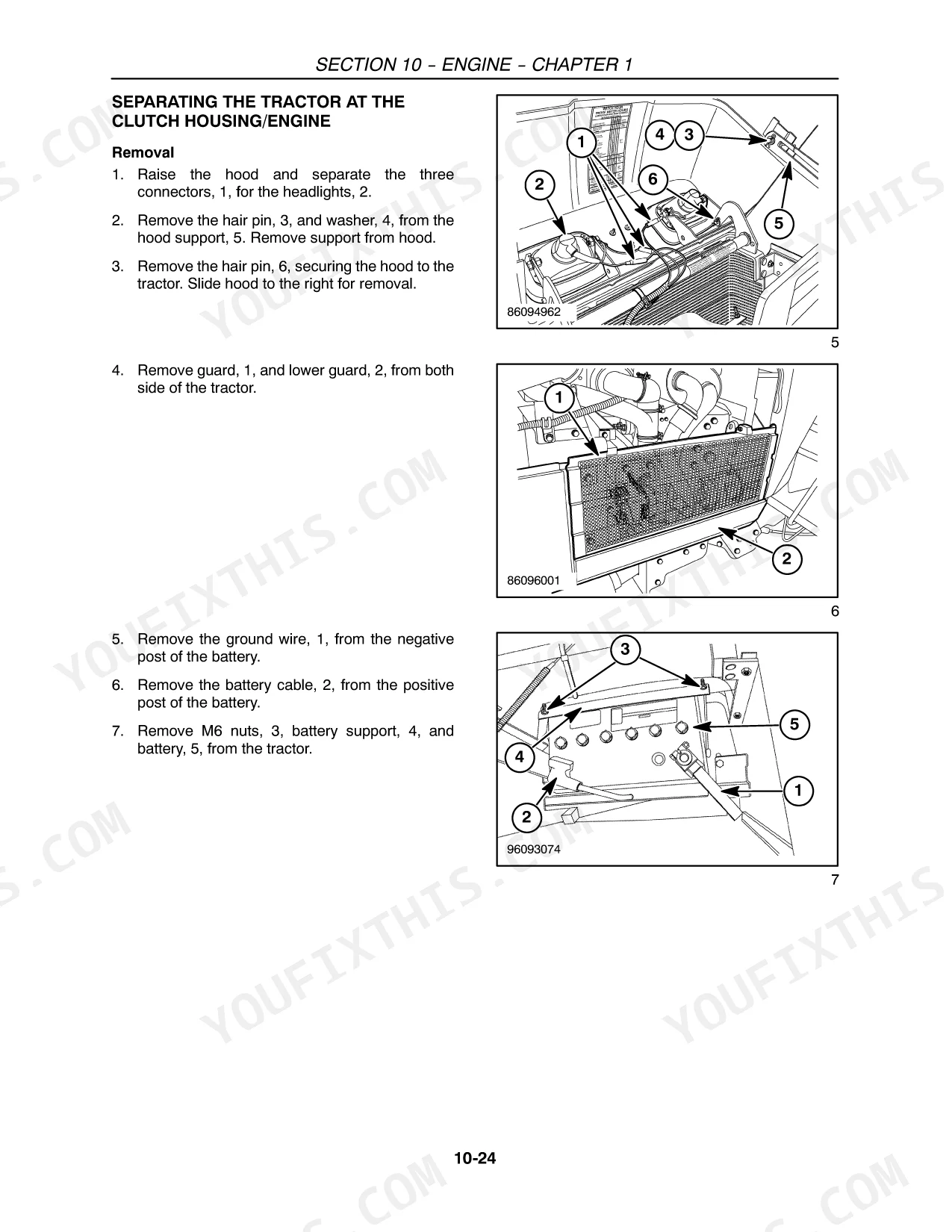

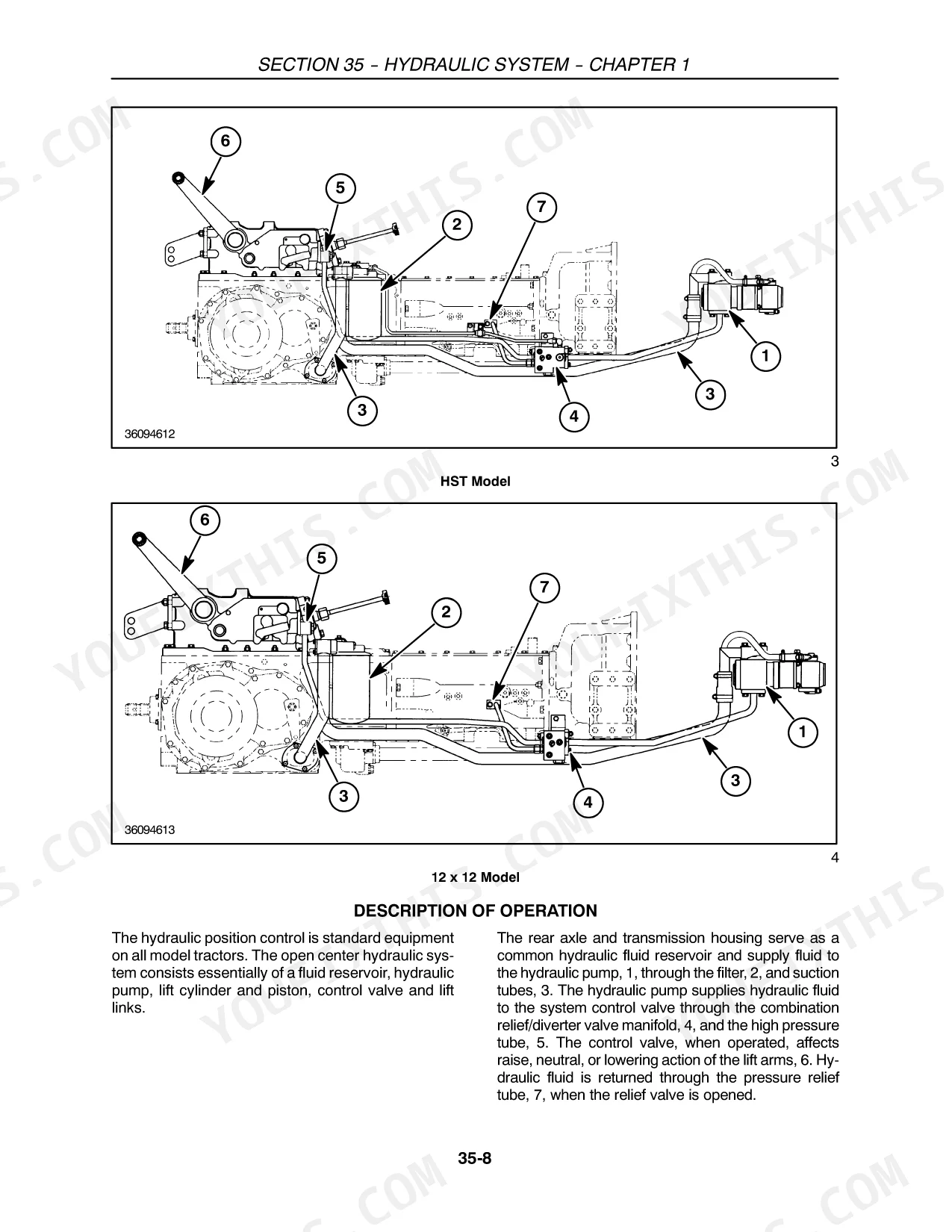

| Engine | 65-206 | Specifications, Troubleshooting, Cylinder Head, Crankshaft, Fuel Injection Pump, Governor |
| Clutch | 207-236 | Specifications, Troubleshooting, Clutch Release Bearing, Clutch Linkage Components, Clutch Pedal Safety Switch |
| Transmission | 237-302 | Specifications, Powerflow, Troubleshooting, Main Transmission Input Shaft Retainer, Main Shaft, Synchronizers - Shuttle Gears |
| FWD Front Axle | 303-330 | Specifications, Troubleshooting, Gear Reduction Drop Box, Differential, Ring Gear-to-Pinion Backlash |
| Differential, Rear Axle | 331-362 | Specifications, Description of Operation, Differential, Differential Lock, Rear Axle, Drive Pinion |
| Hydrostatic Transmission | 363-446 | Description of Operation, Overhaul, Hydrostatic Pump, Hydrostatic Motor, HST Control Linkage, Hydrostatic Gearbox |
| Power Take-Off (PTO) Systems | 447-508 | Specifications, Description of Operation, Troubleshooting, PTO Clutch, PTO System Diverter Valve Assembly, PTO Input Shaft |
| Brakes | 509-520 | Specifications, Description of Operation, Park Brake, Overhaul, Adjustment |
| Hydraulic System | 521-612 | Hydraulic Pump, Control Valve Assembly (Hpl), Main System Relief Valve, Flow Control Valve, Lift Cylinder, Combination System Relief - Diverter Valve Manifold Assembly |
| Steering | 613-650 | Power Steering System, Power Steering Control Motor, Power Steering Pump, Steering Cylinder, Check Valve and System Relief Valve, Power Steering Tubes |
| Wheels and Tires | 651-658 | Wheel Tread Settings, Tractor Weighting, Cast Iron Weights, Rear Wheel Weights, Liquid Ballast, Tire Pressure |
| Electrical Systems | 659-828 | Battery, Fuse Block, Key Switch, Alternator, Starter Motor, Safety Controller |
| Platform | 829-848 | Hood, Steering Wheel, Instrument Panel, Seat, Roll Over Protection System (ROPS), Fuel Tank |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic Oil Pump Installation | 79 | p. 6 |
| Clearance between drive shaft and clutch disc | 0.2-0.35 mm (0.0078 0.0137 in) | p. 209 |
| Allowable Clearance Limit | 0.6 mm (0.0236 in) | p. 209 |
| Axle pivot holders inspection | Inspect for cracks, excessive pitting, wear, or distortion. Replace if found to be defective. | p. 312 |
| Differential Pinion Gear to Shaft Clearance Std. | 0.1 mm (0.004 in) | p. 332 |
| HST filter replacement | new HST filter | p. 396 |
| Charge pressure reading | 390 - 590 kPa (57 - 86 psi) | p. 397 |
| Flow | 3.0 L/min (0.8 US gal/min) | p. 449 |
| Relief pressure | 16895 kPa (2449 psi) | p. 536 |
| Pressure Reading | 17202 kPa (2495 psi) | p. 547 |
| Relief valve setting | too low | p. 544 |
New Holland T1530 Common Problems This Manual Covers
New Holland T1530 transmission won't shift under load, grinding when engaging gears
Check the transmission troubleshooting section for gears not engaging. Remove the inspection cover and measure clutch disc clearance against the drive shaft; standard is 0.2-0.35 mm (0.0078-0.0137 in) with a 0.6 mm (0.0236 in) allowable limit. Replace the clutch pack if disc thickness has worn below 7.2 mm (0.28 in) on page 209.
Manual Section: Transmission TroubleshootingHydraulic lift arms move sluggish or won't raise implement under normal engine RPM
Check the hydraulic system troubleshooting chart on page 544 for implement lift issues; a low relief valve setting is a common cause. Test system pressure at the test port; it should read approximately 17202 kPa (2495 psi) on page 547. If pressure is low, remove and inspect the hydraulic pump for wear, and drain and replace fluid if contamination is found in the filter.
Manual Section: Hydraulic System Troubleshooting p. 544Rear axle running hot with a whining or grinding noise after several hours of field work
Inspect the rear axle bearing assembly per the specifications on page 332. Verify drive pinion pre-load falls within 13-17 kg (28.6-37.5 lb) and check drive pinion to ring gear backlash, which should measure 0.13-0.18 mm (0.0051-0.0071 in) with a maximum of 0.4 mm (0.0157 in). Replace worn bearings and refill with the correct axle lubricant before returning to service.
Manual Section: Differential, Rear Axle p. 332Clutch pedal feels loose with excessive free play before engagement
Measure clutch pedal free-travel at the pedal pad; standard range is 19-30 mm (0.748-1.181 in) with a maximum allowable of 30 mm (1.181 in) per page 209. Adjust the linkage rod at the clevis to bring free-play back into spec. If adjustment doesn't hold, inspect the release bearing and clutch linkage components for wear.
Manual Section: Clutch Troubleshooting p. 213HST charge pressure drops or system runs hot during extended operation
Check the hydrostatic transmission troubleshooting index for oil pressure and temperature symptoms. Test charge pressure at the test port; it should read 390-590 kPa (57-86 psi) as noted on page 397. If reading is low, remove and replace the HST filter per page 396 and bleed any trapped air from the circuit before retesting.
Manual Section: Hydrostatic Transmission TroubleshootingPTO output shaft won't rotate or engages intermittently under load
Reference the PTO troubleshooting section for output shaft rotation faults. Measure clutch disc thickness against the 1.80 mm (0.71 in) minimum on page 449, and check air gap between clutch plates, which should measure 1.5-2.5 mm (0.059-0.098 in). Replace worn clutch discs and verify hydraulic pump flow of 3.0 L/min (0.8 US gal/min) before reassembly.
Manual Section: PTO System Troubleshooting (HST)Frequently Asked Questions
What are the torque specifications for the engine bolts on New Holland T1530?
The manual provides various torque specifications for engine bolts. For example, Connecting Rod Cap Bolts should be torqued to 49-54 N·m (36-40 lb ft), Main Bearing Retaining Bolts to 49-54 N·m (36-40 lb ft), and Cylinder Head Bolts to 98-103 N·m (72.3-76 lb ft). p. 78
What are the replacement specifications for the Transmission clutch pack?
The clutch pack for the T1530 (12x12) transmission consists of 3 discs. The minimum clutch disc thickness is 1.80 mm (0.071 in), and the clutch disc diameter is 100 mm (3.937 in). The air gap should be maintained between 1.5 mm and 2.5 mm (0.059 in - 0.098 in). p. 209
What are the replacement specifications for the Hydraulic pump?
The hydraulic pump is a gear type pump with a capacity of 37.1 L/min (9.8 US gal/min) at 2600 rpm engine speed. The system relief valve setting is 17167 kPa (2490 psi). The only serviceable parts are the shaft seal and internal O-rings; if troubleshooting indicates a faulty pump, the entire pump assembly must be replaced. p. 525

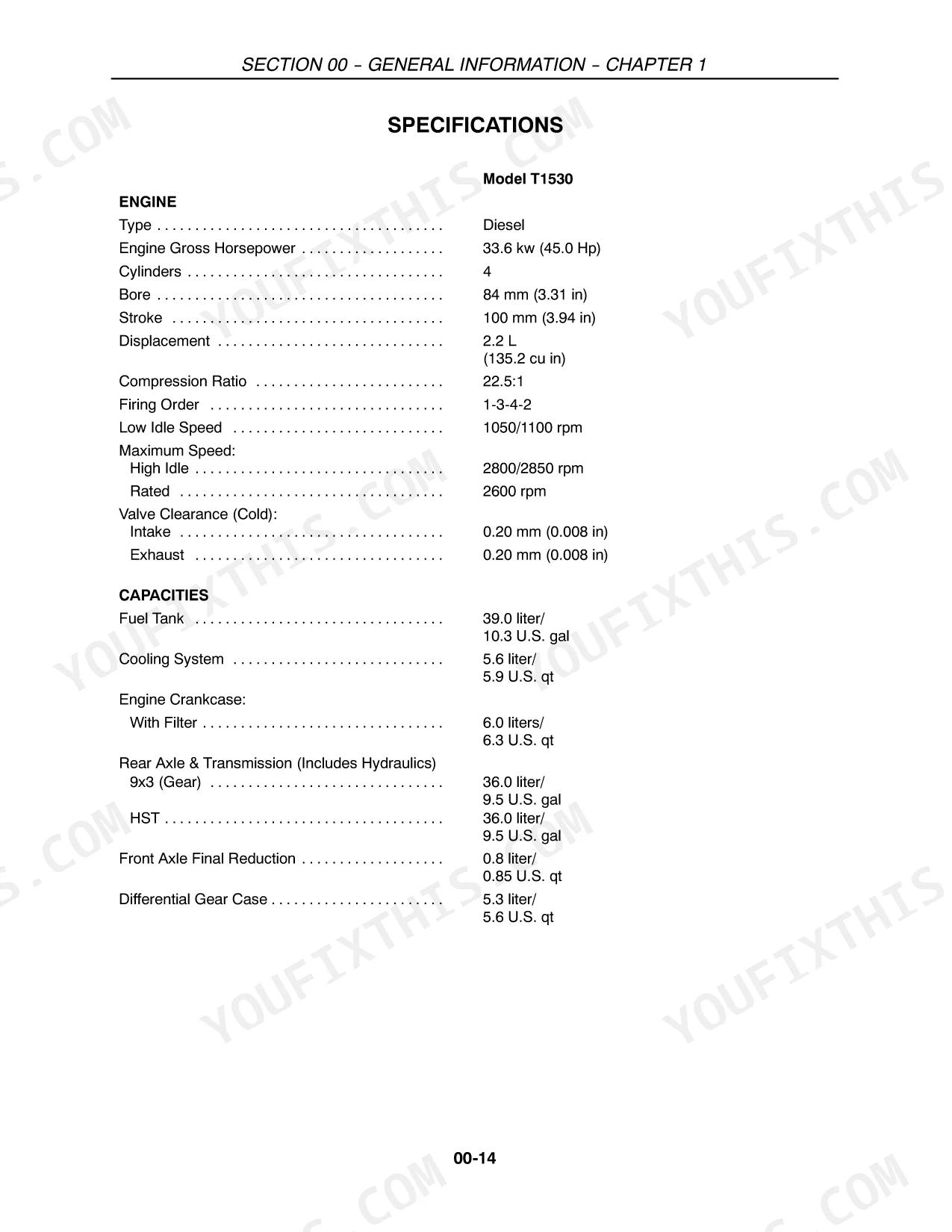

What is the engine oil capacity with the filter for the New Holland T1530?
The engine crankcase capacity for the New Holland T1530, including the filter, is 6.0 liters (6.3 U.S. qt). p. 52
What do I get after purchasing this New Holland T1530 manual?
You get a 848-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this New Holland T1530 Service Manual printable?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Does this New Holland T1530 manual include wiring diagrams?

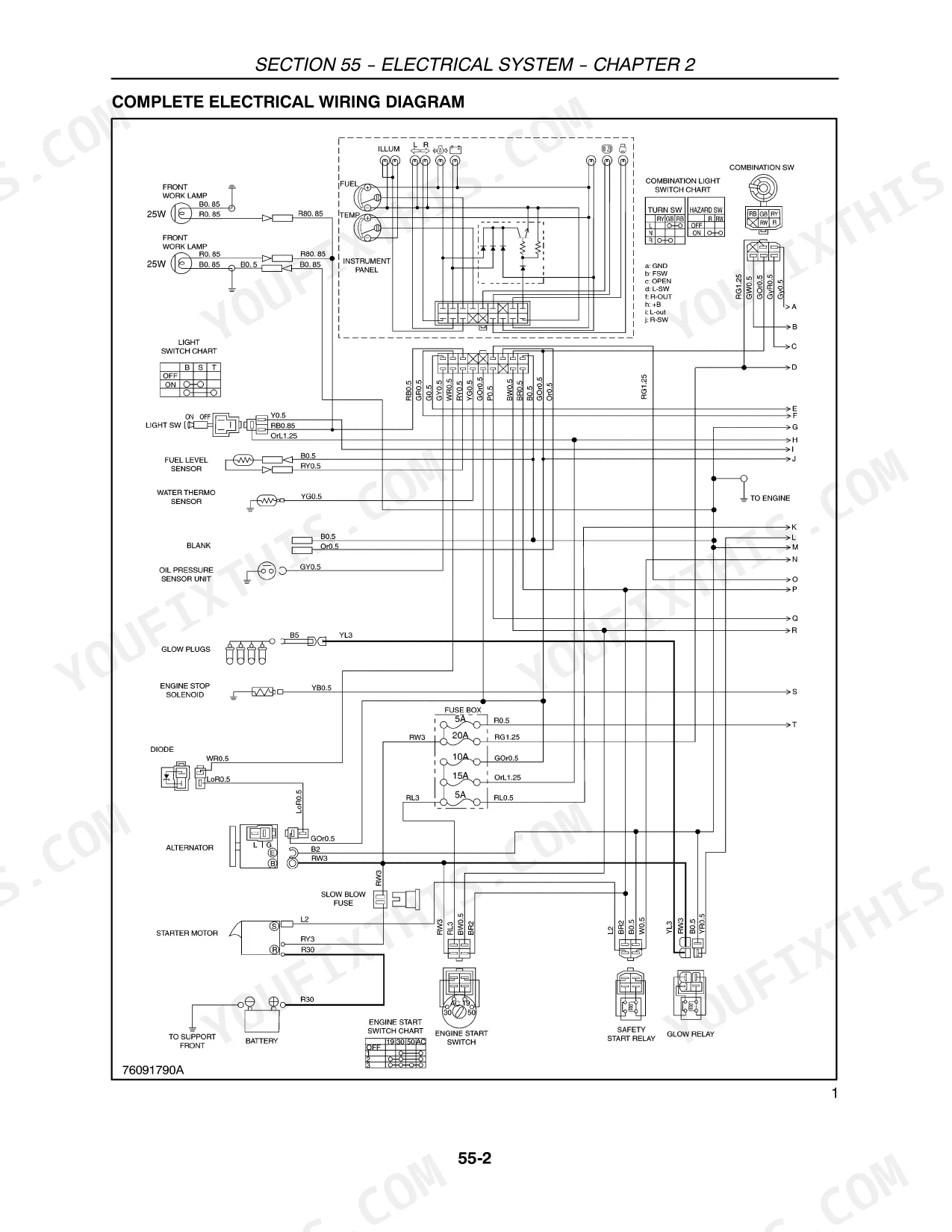

Yes, this New Holland T1530 Service Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
