Arguments over relief pressures on these loaders end with the factory numbers, and the 512-page Weidemann 2070 CX50, 2070 CX80 repair manual PDF (OEM ID 1000245276) is where Weidemann printed them. Replacement and repair procedures fill well over half the book, walking you through engine removal, hydraulic cylinder resealing, variable displacement pump service, axle removal, and center joint work on both the CX50 and CX80. Electrical circuit diagrams anchor the back sections with plug and contact assignments for each connector, next to the full hydraulic circuit diagram. Check steering pressure against the 190 bar setpoint before you condemn a pump, and pull wheel nuts to 285 Nm. A misread pressure test buys the second teardown. Bookmarked and text-searchable; confirm the spec before you order, and order once.
What's Inside This Weidemann 2070 CX50, 2070 CX80 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 21-44 | - |
| Technical Data, Testing Equipment and Special Tools | 45-80 | Technical Data, Filling Quantities, Tightening Torques, Pressure Values, Flow Rates, Safety Stickers, Testing Equipment, Special Tools |
| Inspections, Maintenance Work and Troubleshooting | 81-142 | - |
| Complete Vehicle | 143-144 | Helpful Tips, Replacing Protective Stickers |

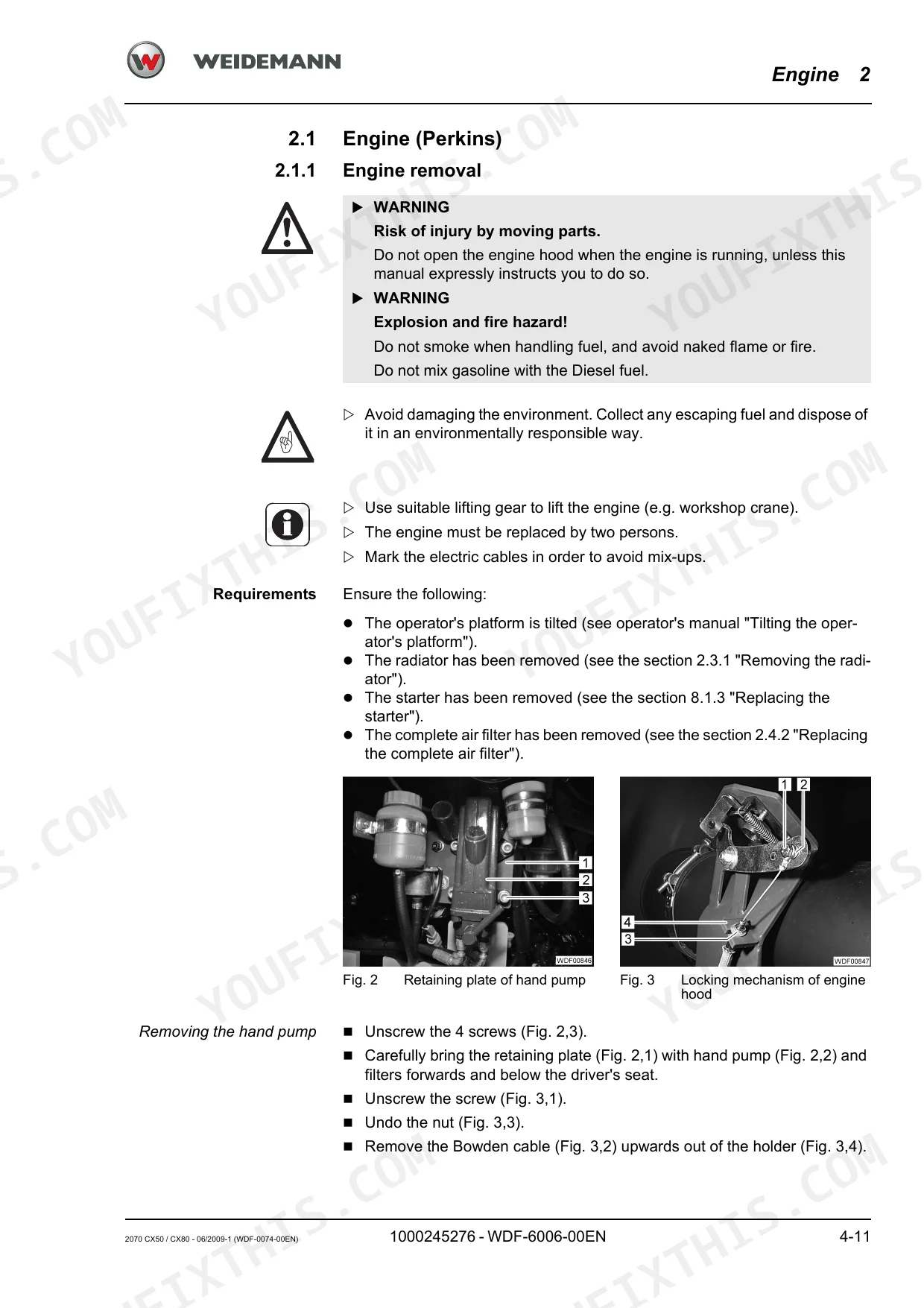

| Engine | 145-192 | Engine Removal, Engine Installation, Rubber Buffers, Clutch Pa Flange, Air Filter System, Fuel System, Exhaust System |
| Hydraulic System | 193-256 | Depressurizing Hydraulic System, Hydraulic Cylinder Sealing, Variable Displacement Pump, Steering Hydraulics, Brake Hydraulics, Gear Pump, Control Valve |
| Drive and Axles | 257-268 | Drive Shaft Replacement, Front Axle Removal, Rear Axle Removal |
| Brake System (Mechanical Section) | 269-272 | Service Brake, Brake Shoes, Brake Drum, Parking Brake |
| Vehicle Frame and Load Arm | 273-330 | Front Carriage, Rear Carriage, Engine Hood, Center Joint, Load Arm, Telescopic Arm, Tool Attachment |
| Operator's Platform and Cab | 331-366 | Driver's Seat, Cab Removal, Windows and Doors, Steering Column, Heater and Air-Conditioning, Cab Lift Hydraulic |
| Electrical System | 367-400 | Generator, Starter, Switches, Sensors, Relays, Indicator Lamps, Lighting System |
| Circuit Diagrams and Technical Descriptions | 413-482 | Hydraulic Circuit Diagram, Electrical Circuit Diagram, Plug Assignments and Contact Assignments, Technical Description |
| Supplier Service Manuals | 483-512 | Engine Workshop Manual, Variable Displacement Pump Repair Instructions, Variable Displacement Motor Repair Instructions, Planetary Axle Workshop Manual, Electrical Components |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel nut tightening torque | 285 Nm | p. 53 |
| Steering pressure setpoint value | 190 bar | p. 107 |
| Primary pressure setpoint value | 210 bar | p. 85 |
| Tightening of filter housing | 1/6 of a rotation | p. 254 |
| Hydraulic Fluid Tank Capacity | 65L | p. 51 |
| Front Axle Oil Capacity | 3.2L | p. 51 |
| Rear Axle Oil Capacity | 3.9L | p. 51 |
| Front Axle Securing Torque | 360 Nm | p. 53 |
| 2070 CX50 | ||
| Perkins Engine Output | 35.7 kW | p. 49 |
| Perkins Engine Oil Capacity | 8.0L | p. 51 |
| 2070 CX80 | ||
| Deutz Engine Output | 58.0 kW | p. 49 |
| Deutz Engine Oil Capacity | 10.5L | p. 51 |
Weidemann 2070 CX50, 2070 CX80 Common Problems This Manual Covers
Weidemann 2070 wheel loader loses drive after high hours, no thrust uphill, wheel motors weak
Rule out hydrostatic drive pressure first before condemning wheel motors. Inspect drive shafts and axle mounts using the removal procedures starting on page 257. If an axle comes off, torque the securing bolts to 360 Nm on reinstall. Compare both wheel motors for case drain flow; the worn motor bypasses noticeably more oil.
Manual Section: Drive and Axles p. 257Lift arms slow to raise, weak bucket rollback, hydraulics sluggish when oil warms up
Check hydraulic oil level first; the tank holds 65 L and low oil aerates fast. Test primary pressure at the gear pump against the 210 bar setpoint on page 85. If pressure is low, replace the return filter and tighten the housing 1/6 turn past contact per page 254 before adjusting the relief.
Manual Section: Hydraulic System p. 193Engine starts hard when cold and lacks power pushing into the pile
Check the air filter and drain the fuel water separator before chasing bigger faults. Replace both fuel filters and bleed the system per the fuel system procedures starting on page 145. While you are in there, verify oil level; the Perkins in the CX50 takes 8.0 L on a change, per page 51.
Manual Section: Engine p. 145Steering feels heavy or slow, articulation joint groans when turning at low idle
Test steering pressure with the engine at full throttle; the setpoint is 190 bar per page 107. If pressure checks out, grease the articulation joint pins and inspect them for wear following the center joint procedures starting on page 273. Check the hydraulic tank sits at the full mark before condemning the steering unit.
Manual Section: Inspections, Maintenance Work and Troubleshooting p. 107Machine feels tippy on slopes, front end light when turning unloaded uphill
Match tire pressures side to side first; uneven tires change the tip line more than operators expect. Keep the load arm low and the bucket rolled back on grades. Verify rated operating capacity for your attachment against the technical data on page 49, and torque wheel nuts to 285 Nm after any wheel service.
Manual Section: Technical Data, Testing Equipment and Special Tools p. 49Frequently Asked Questions
What are the torque specifications for the wheel nuts on the Weidemann 2070 CX50 and CX80?
The tightening torque for the wheel nuts on the Weidemann 2070 CX50 and CX80 is 285 Nm. p. 53
What is the capacity of the fuel tank for the Perkins engine in the Weidemann 2070 CX50?
The fuel tank capacity for the Perkins engine is 55.0 liters. p. 51
What is the valve play specification for the Perkins engine in the Weidemann 2070 CX50?
The valve play for the Perkins engine (inlet and outlet) is 0.2 mm when the engine is cold. p. 89
How often should hydraulic hoses be replaced on the Weidemann 2070 CX50/CX80?
Hydraulic hoses must be replaced after a service life of six years at the latest, or sooner if country-specific regulations require it. p. 29
What is the tightening torque for the front and rear axle securing bolts on the Weidemann 2070 CX50 and CX80?
The tightening torque for both the front and rear axle securing bolts is 360 Nm. p. 53
Is this Weidemann 2070 CX50 manual a download or a disc?
This is a 512-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print just the pages I need from this Weidemann 2070 CX50 manual?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
