This Yanmar 3TNE74 Parts Catalog (OEM #Y00R5260) maps every component across five engine variants: the 3TNE74-SA, 3TNE74-G1A, 3TNE74-G2A01, 3TNE74C(E)SA, and 3TNE74C(E)G1. Across 30 pages, exploded views and OEM part numbers run from the cylinder block and crankshaft to the fuel injection pump, governor, and starting motor. Coverage reaches the panel, tool set, and gasket kit, so one publication carries it all. Every assembly breaks down to individual components with factory numbers, including the fuel injection valve, fuel filter, engine control device, and the cold-district starting motor. No more ordering by guesswork: find the number, confirm it against the diagram, and get the right part on the first call. Bookmarked by assembly, it opens on any device and jumps straight to the system you need.
What's Inside This Yanmar 3TNE74-SA / G1A / G2A Series Parts Manual

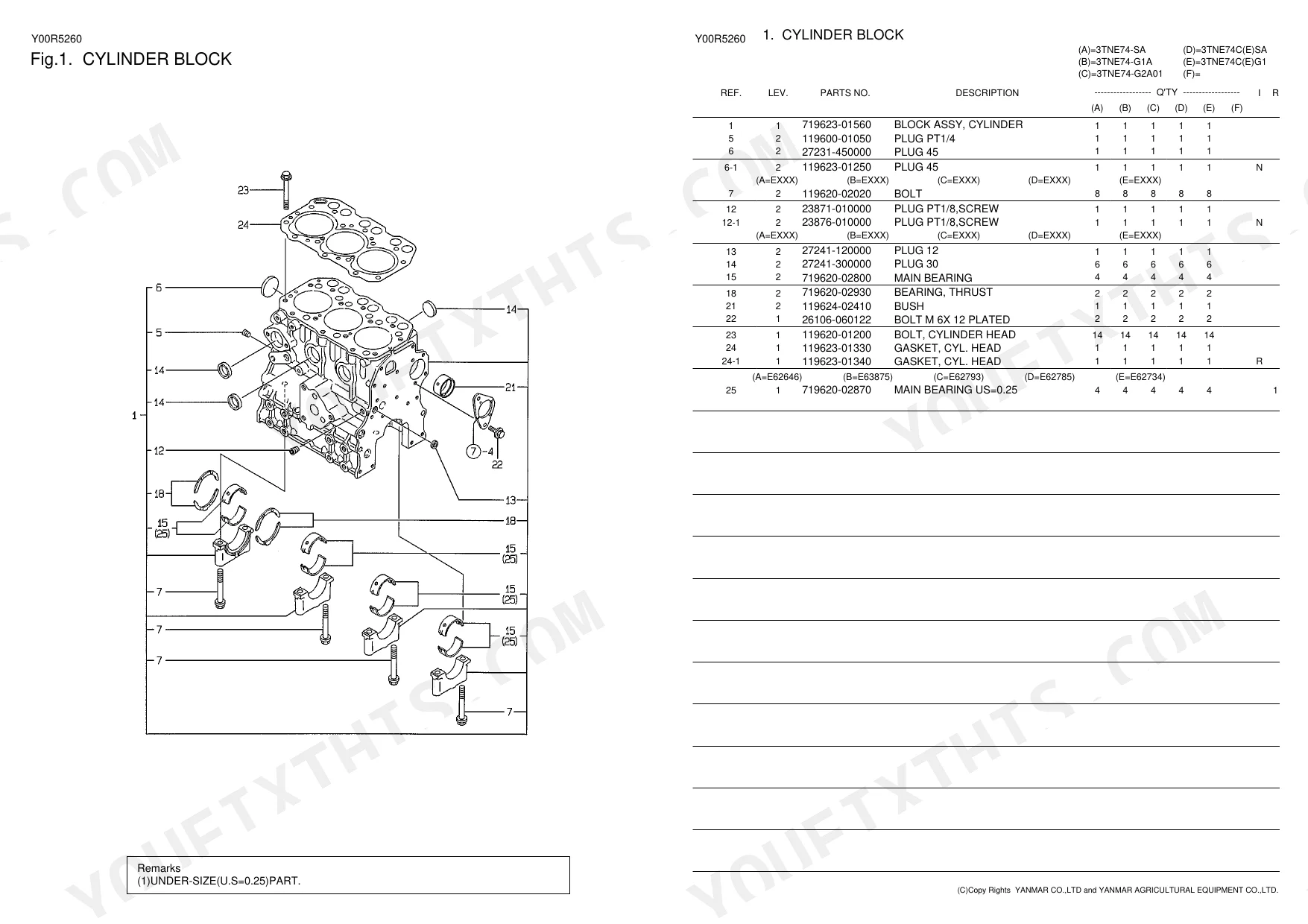

| System | Pages |
|---|---|
| Cylinder Block | 0-0 |
| Gear Housing | 0-0 |
| Flywheel Housing & Oil Sump | 0-0 |

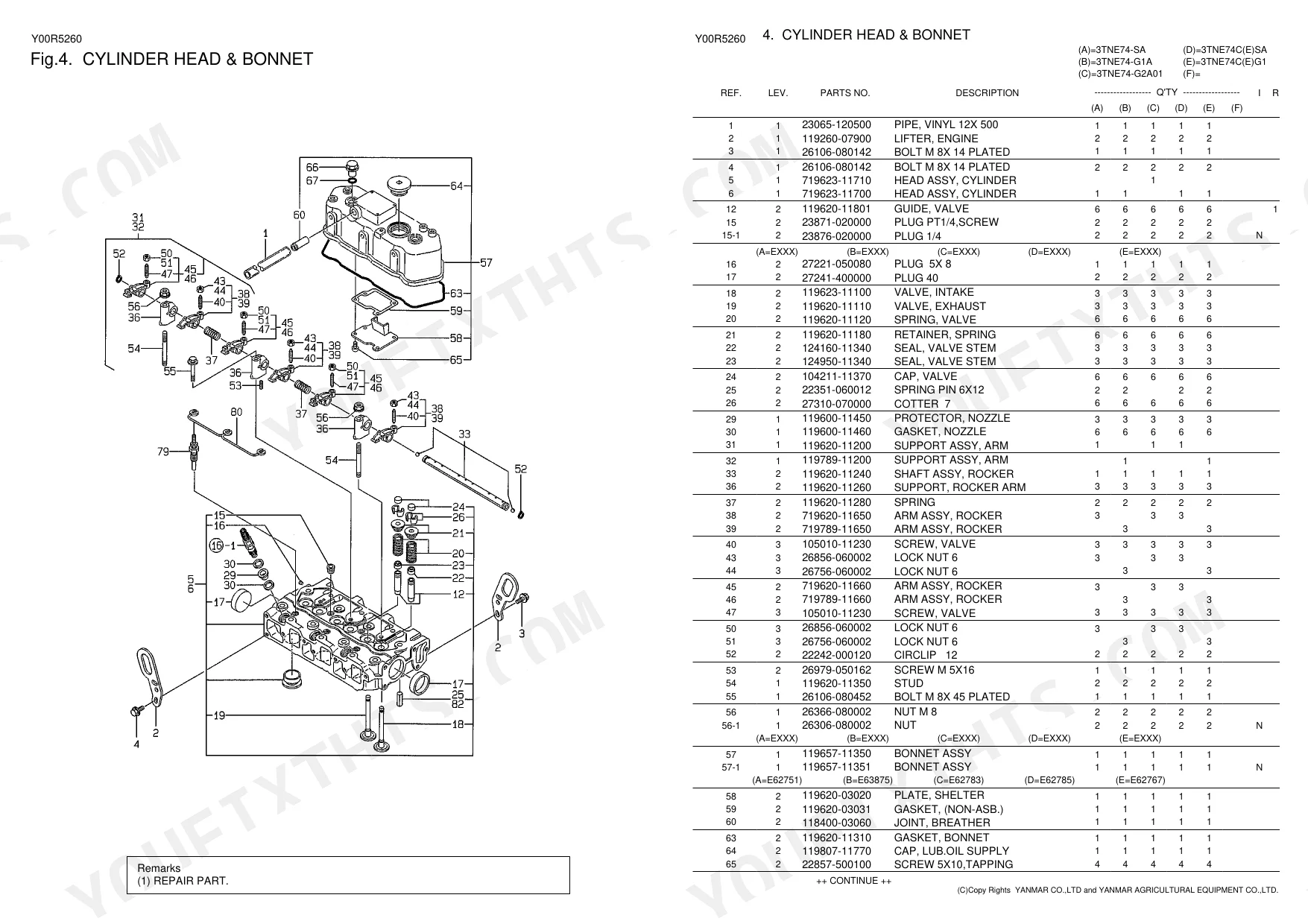

| Cylinder Head & Bonnet | 0-0 |
| Suction Manifold & Air Cleaner | 0-0 |

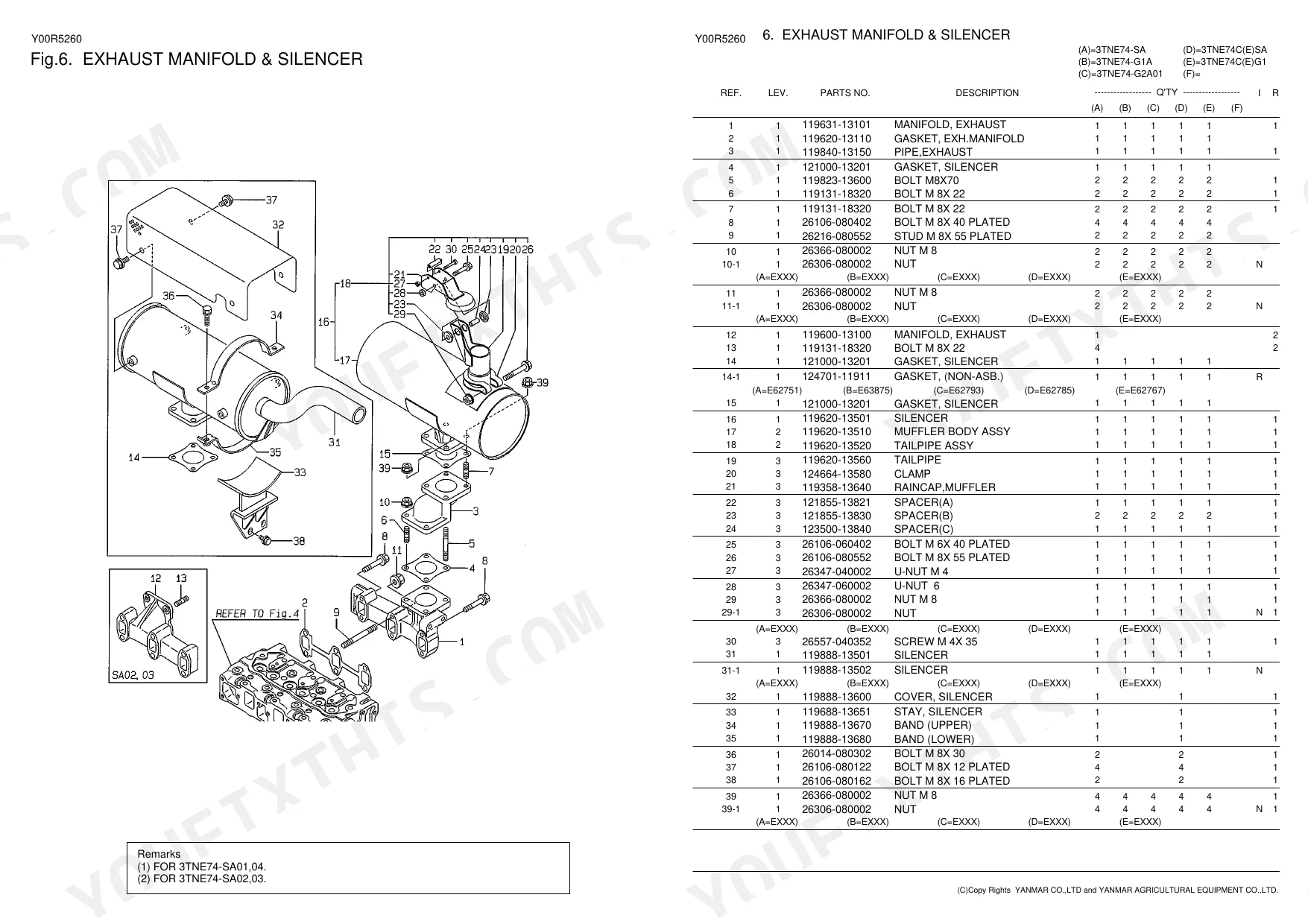

| Exhaust Manifold & Silencer | 0-0 |
| Camshaft & Driving Gear | 0-0 |
| Crankshaft & Piston | 0-0 |
| Lub.Oil System | 0-0 |
| Cooling Water System | 0-0 |
| Radiator | 0-0 |
| Fuel Injection Pump | 0-0 |
| Governor | 0-0 |
| Fuel Injection Valve | 0-0 |
| Fuel Filter | 0-0 |
| Engine Control Device | 0-0 |
| Starting Motor | 0-0 |
| Starting Motor (Cold District) | 0-0 |
| Generator | 0-0 |
| Panel | 0-0 |
| Tool & Gasket Set | 0-30 |
