Genuine Yanmar factory parts data across 47 pages: OEM catalog #917329 covers the 3TNV88-BKMS engine fitted to the Gehl 3640 and the Mustang 2026 and 2044 skid-steer loaders. Exploded assembly views sit alongside itemized parts lists for all 17 engine systems, from cylinder block and gear housing through the fuel injection pump, governor, injection valves, and full gasket set. A numerical index ties every component back to its diagram, so finding part #182130 (fuel filter) or #194315 (oil filter) takes seconds rather than a trip to the parts counter. Confirm the exact OEM crankpin bearing number before you order, not after you've split the engine. No more misreads off a worn tag or guesswork over the phone. Download it, jump to any system through the bookmarks, search any part number by keyword, and order right the first time.
What's Inside This Yanmar 3TNV88-BKMS / 4TNV88 (Gehl / Mustang) Parts Manual
| System | Pages | Key Topics |
|---|---|---|

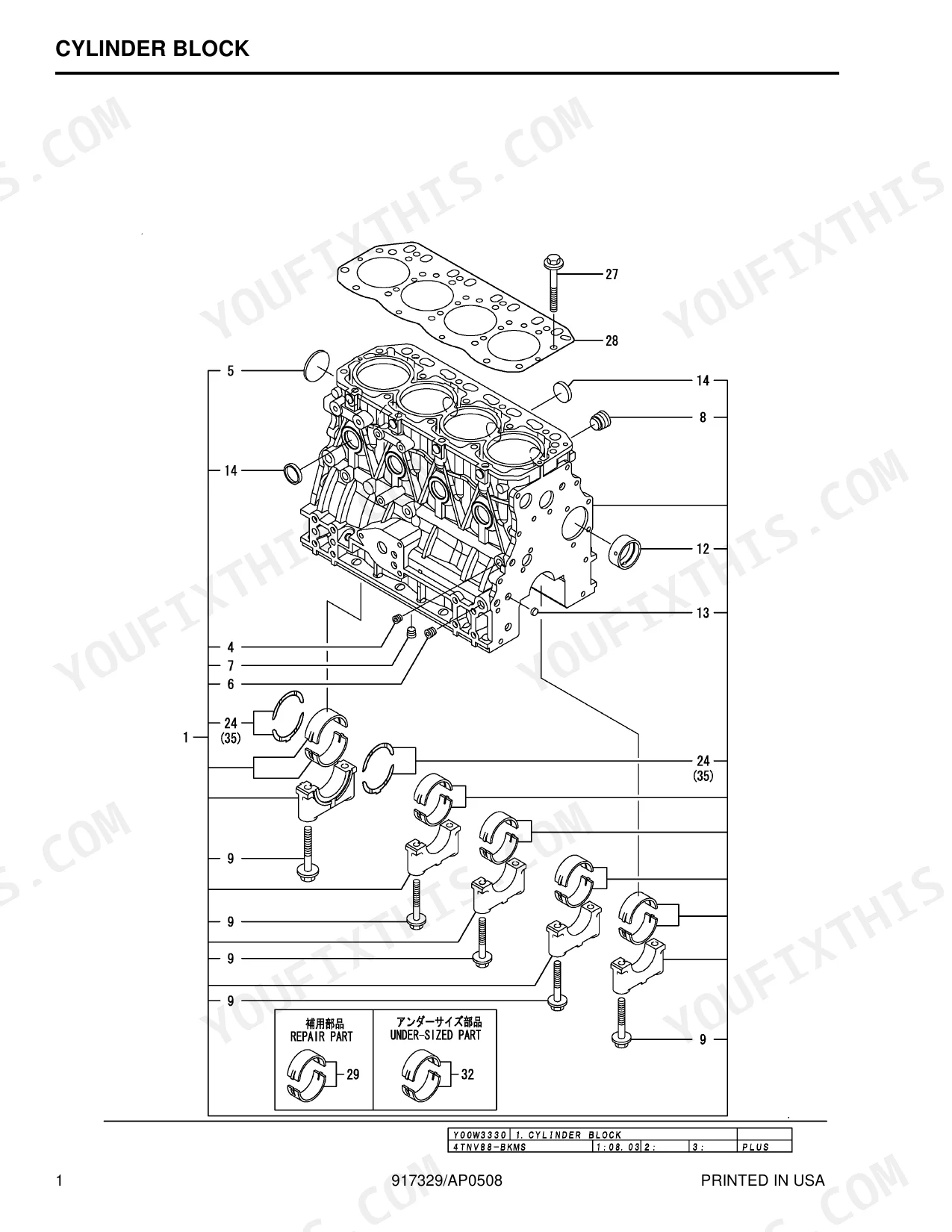

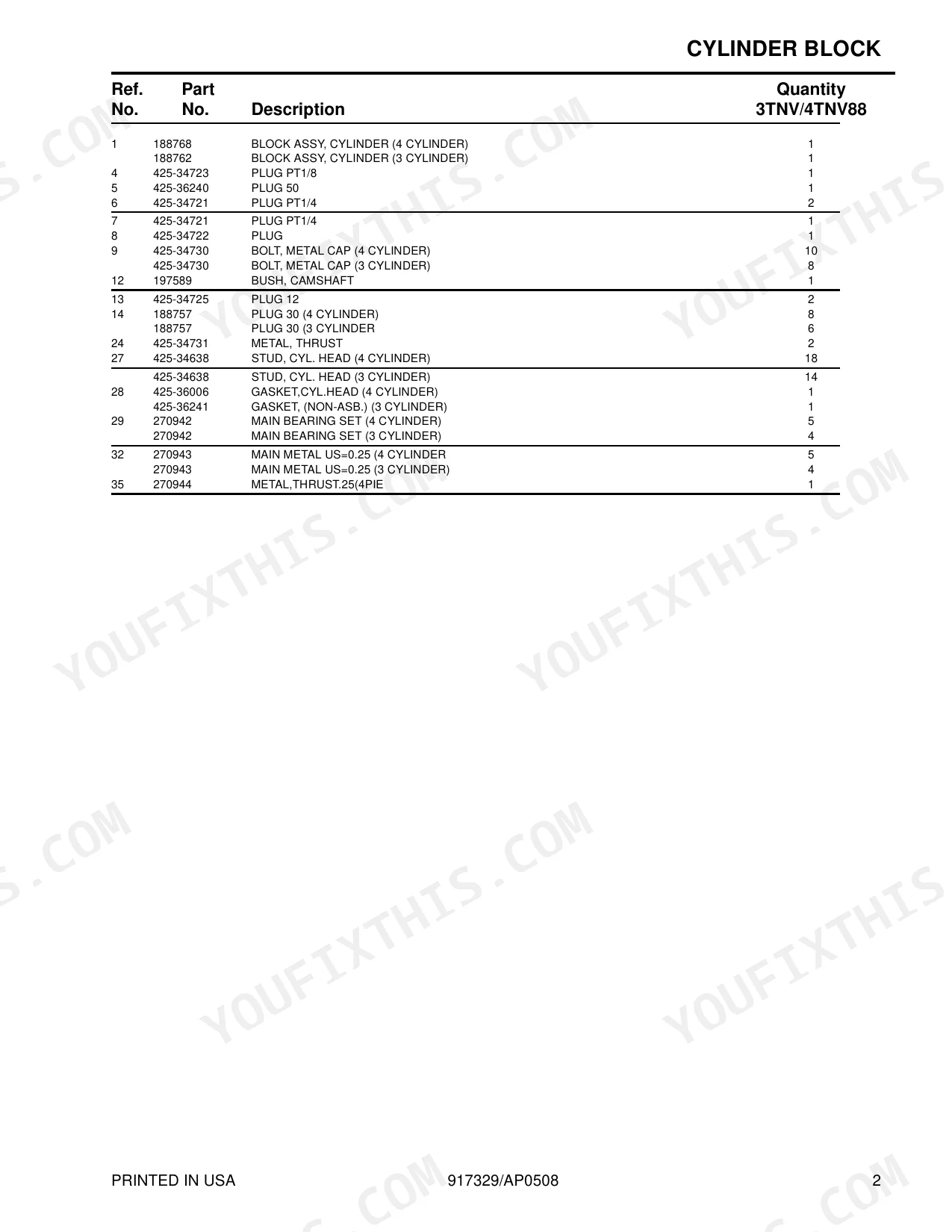

| Cylinder Block | 1-2 | Block Assy, Cylinder, Plug, Bolt, Bush, Main Bearing Set |
| Gear Housing | 3-4 | Gear Case Assy, Seal, Oil, Flange, Cover, O-Ring, Bolt |

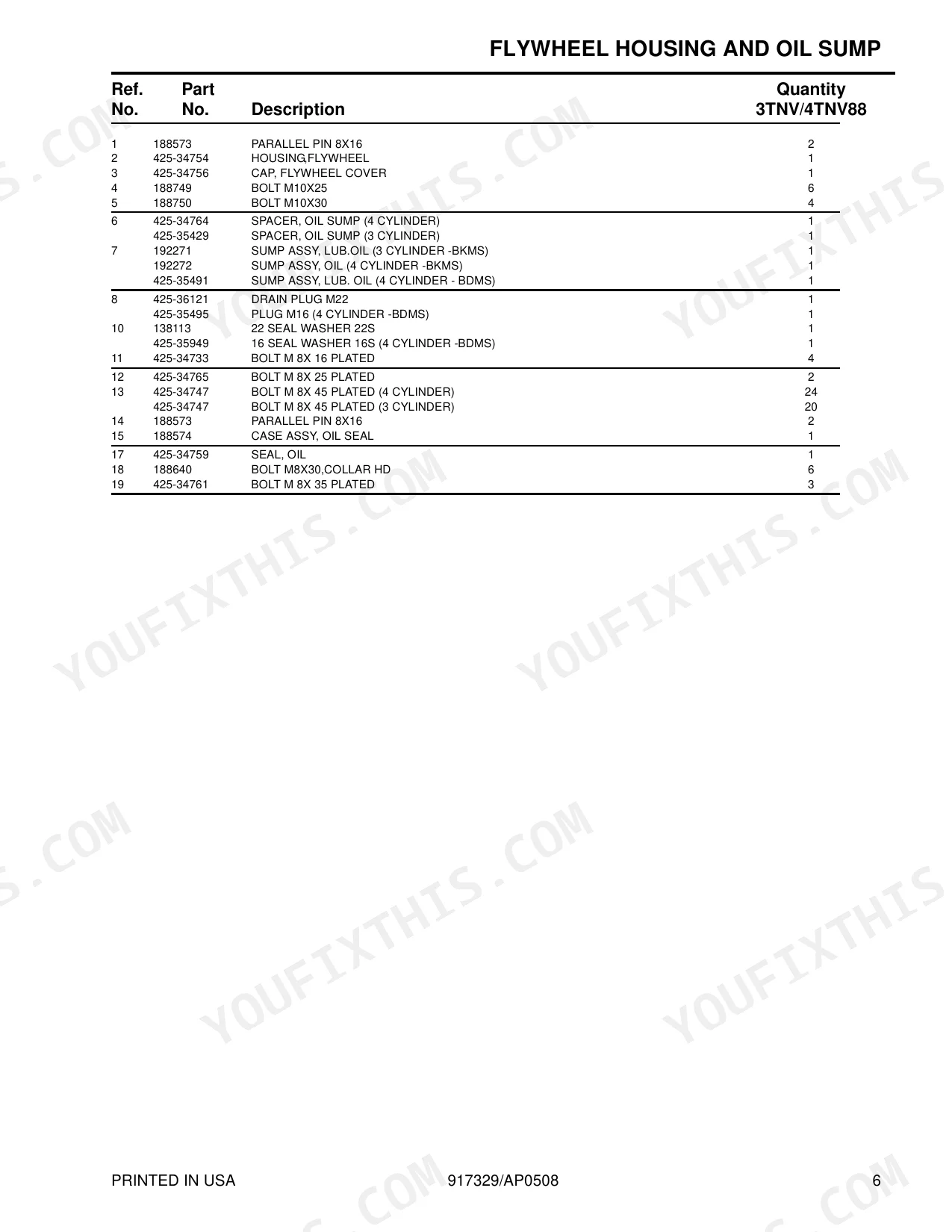

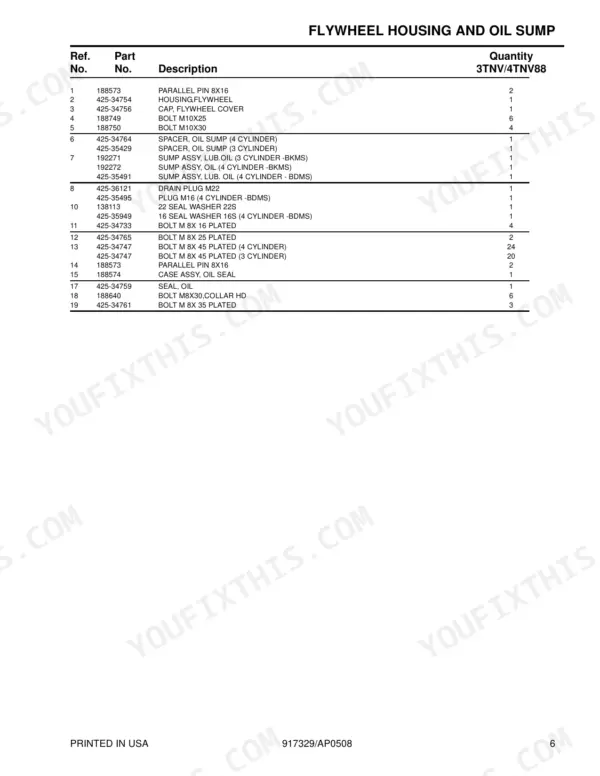

| Flywheel Housing and Oil Sump | 5-6 | Housing, Flywheel, Oil Sump, Sump Assy, Drain Plug, Seal Washer, Oil Seal |
| Cylinder Head and Bonnet | 7-10 | Head Assy, Cylinder, Bonnet Assy, Valve, Rocker Arm, Nozzle, Glow Plug |

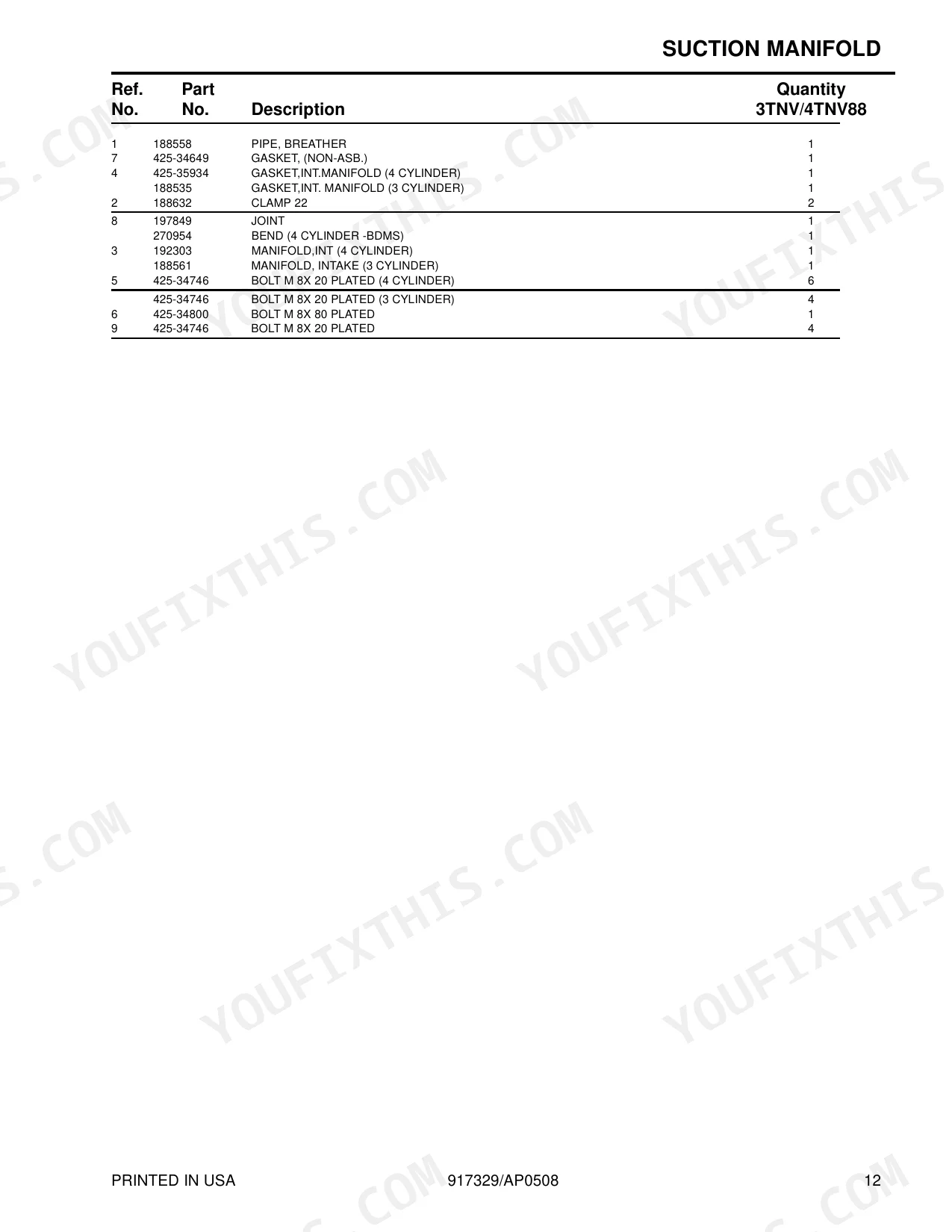

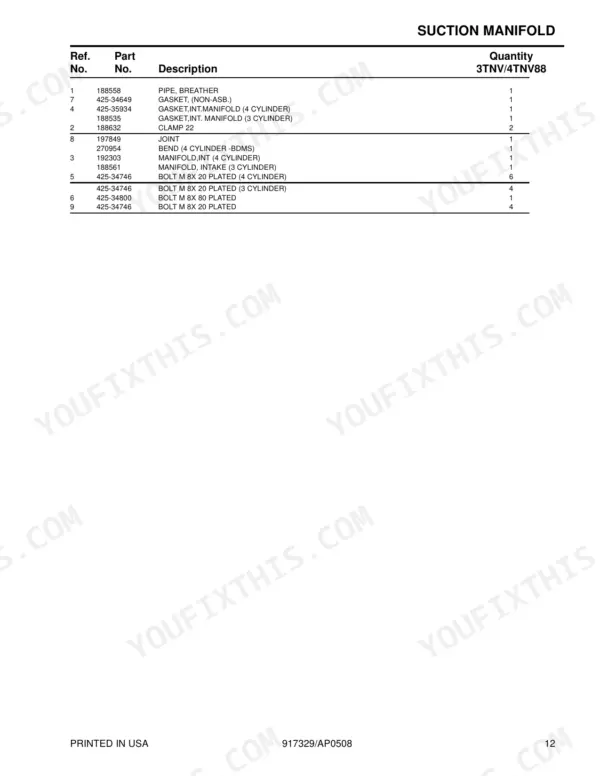

| Suction Manifold | 11-12 | Manifold, Intake, Gasket, Pipe, Breather, Clamp, Bolt |
| Exhaust Manifold | 13-14 | Manifold, Exhaust, Gasket, Stud Bolt, Bolt, Nut |
| Camshaft and Driving Gear | 15-16 | Camshaft Assy, Driving Gear, Tappet, Rod, Push, Idle Gear, Gear, Pump |
| Crankshaft and Piston | 17-18 | Crankshaft Assy, Piston Assy, Flywheel, Connecting Rod, Crankpin, Ring Set |
| Lubrication Oil System | 19-20 | Pump Assy, Lub. Oil, Dipstick, LUB.OIL, Pipe Assy, Cooler Assy, Oil |
| Cooling Water System | 21-22 | Pump Assy, Water, V-Belt, V-Pulley, F.W.PUMP, Thermostat, Pipe Assy, A MP2 |
| Fuel Injection Pump | 23-24 | Injection Pump Assy, Valve Assy, Delivery, Holder, Barrel Plug, Timer Set, Pump Assy |
| Governor | 25-26 | Packing, Case, Lever, Regulator, Bolt, Idle Limit, Solenoid, Stop |
| Fuel Injection Valve | 27-28 | Fuel Injector, Nozzle Assy, Holder Assy, Nozzle, Spring, Pipe Assy, Injection |
| Fuel Line | 29-30 | Bracket, Fuel Filter, Filter, Fuel, Pipe, Fuel Oil |
| Starting Motor | 31-32 | Armature Assy, Ball Bearing, Coil Assy, Field, Pinion Assy, Switch, Magnetic |
| Generator | 33-34 | Adjuster, Belt, Rotor Assy, Flame Assy, Drive, Pulley, Regulator Assy |
| Tool and Gasket Set | 35-47 | Printed In Usa, Gehl Company Printed In Usa |
Yanmar 3TNV88-BKMS / 4TNV88 (Gehl / Mustang) Common Problems This Manual Covers
Yanmar 3TNV88-BKMS pushrod part number to order after engine ingested contaminated fuel, bent rods confirmed p. 15
Open the Camshaft and Driving Gear exploded view on page 15. Push rod part number 188603 (ROD, PUSH) is listed there. Since the 3TNV88-BKMS runs three cylinders, order three rods at minimum; 4TNV88-series variants take four. Check the tappet listings on the same page before you finalize the order, since tappets often take damage alongside bent rods.
Manual Section: Camshaft and Driving GearFuel filter part number unclear for routine replacement, engine losing power under load p. 29
Check the Fuel Line parts list on page 29. Fuel filter part number 182130 (FILTER, FUEL) is listed in that section. Cross-reference the exploded view to confirm whether you need just the filter or the full bracket and pipe assembly. If the injection pump feed line is also suspect, the Fuel Injection Pump section starts on page 23.
Manual Section: Fuel LineGlow plug part number needed, engine cranks but won't fire in cold weather p. 7
Locate the Cylinder Head and Bonnet section starting on page 7. Glow plug part number 270951 (PLUG,
Frequently Asked Questions
What are the replacement specifications for Fuel filters?
Part No. 182130 is the fuel filter, listed under the 'FUEL LINE' section.
What are the replacement specifications for Oil filters?
Part No. 194315 is the oil filter, found in the 'LUBRICATION OIL SYSTEM' section.
How do you fix yanmar 3TNV88-BKMS pushrod part number to order after engine ingested contaminated fuel, bent rods confirmed?
The Camshaft and Driving Gear exploded view on page 15 lists push rod part number 188603 (ROD, PUSH). The 3TNV88-BKMS has three cylinders, so plan on three rods minimum; 4TNV88-series variants need four. Scan the tappet listings on that same page first, since tappets often get damaged alongside bent rods.
How do you fix fuel filter part number unclear for routine replacement, engine losing power under load?
Page 29's Fuel Line parts list shows the fuel filter as part number 182130 (FILTER, FUEL). Cross-reference the exploded view to confirm whether you need only the filter or the full bracket and pipe assembly. Should the injection pump feed line also be suspect, the Fuel Injection Pump section begins on page 23.
How will I receive this Yanmar 3TNV88-BKMS & variants Parts Catalog?
It is a 47-page Parts Catalog in searchable PDF, ready the moment checkout completes. Read it on computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this manual?
Yes. No DRM restrictions sit on the PDF, so print any page or section your shop needs. It works with any standard printer.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy text throughout. The text quality is crisp and easy to read on all pages. Diagrams and illustrations are clear raster images, with labels generally readable, though they will pixelate if you zoom in significantly. Pages are clean with no major scan artifacts or marks, and the layout is consistent. Note that page 40 is a blank "SECTION NOTES" page, and pages 44-45 are mostly blank index continuation pages.
