Need OEM part numbers for your Yanmar 3TNV70-DPE Mini Digger? These 26 pages (OEM #0CR10-G78700) give you the complete factory parts breakdown for every engine system in Dingo Mini Diggers Pty Ltd machines, from cylinder block to short block assembly. Packed with exploded views and factory part numbers, it walks through the cylinder head, crankshaft and piston, fuel injection pump, governor, fuel injection valves, lubrication system, cooling water circuit, starting motor, and more. You also get interchangeability marks and effective machine numbers in every section, so cross-compatibility is confirmed before the order goes in. Generator output is rated at 15 A with a 20 A current limiter, the kind of component-level data that tells you immediately whether this catalog matches your machine. Wrong parts waste a week. Bookmarked by system and keyword-searchable: open it on any device and find the right part number before you call the dealer.
What's Inside This Yanmar 3TNV70-DPE (Dingo Mini Digger) Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Preface. | 2-3 | Ref. No., Lev. (Level), Interchangeability Mark, Effective Machine No., Remarks Mark |

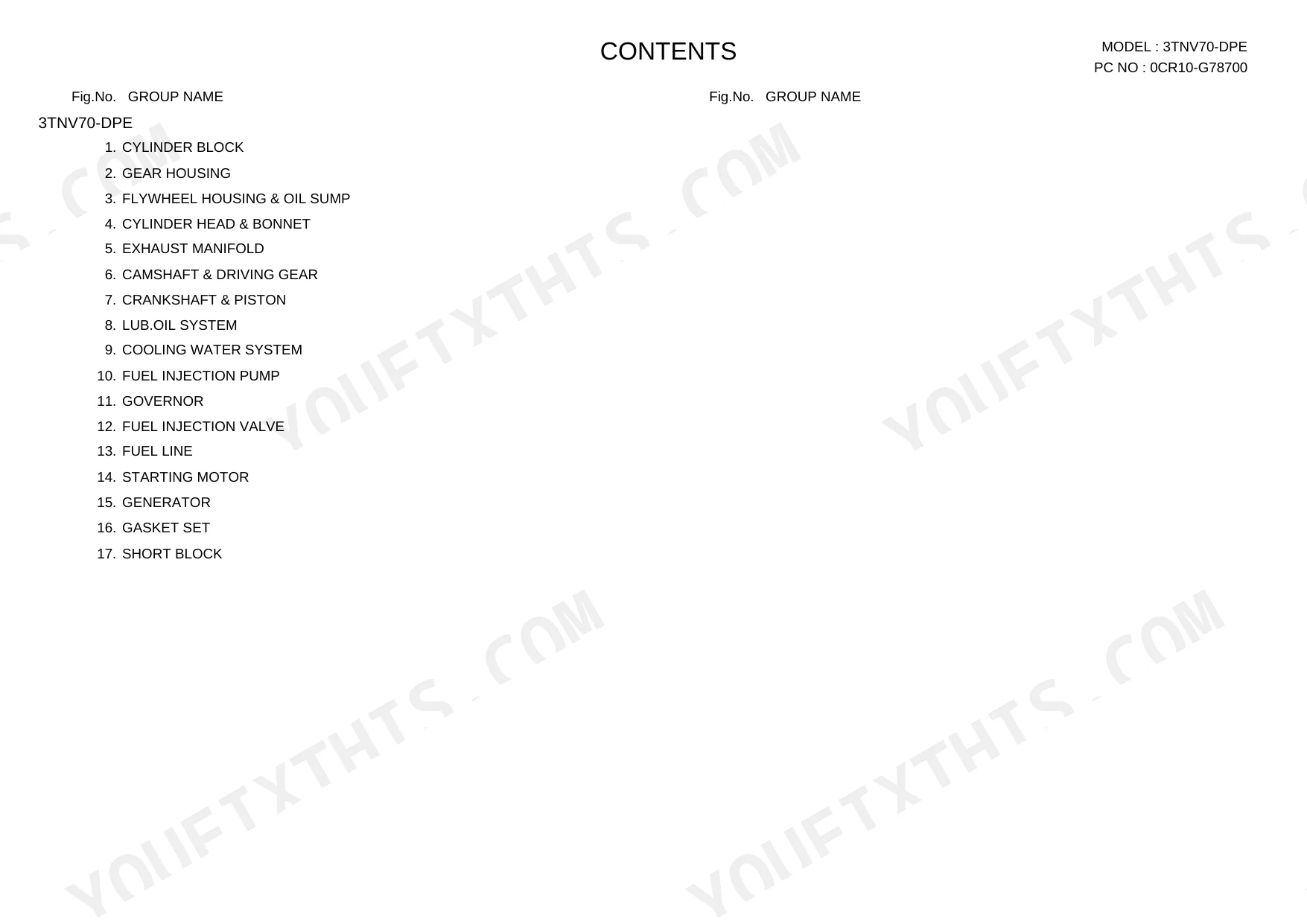

| Content. | 4 | - |

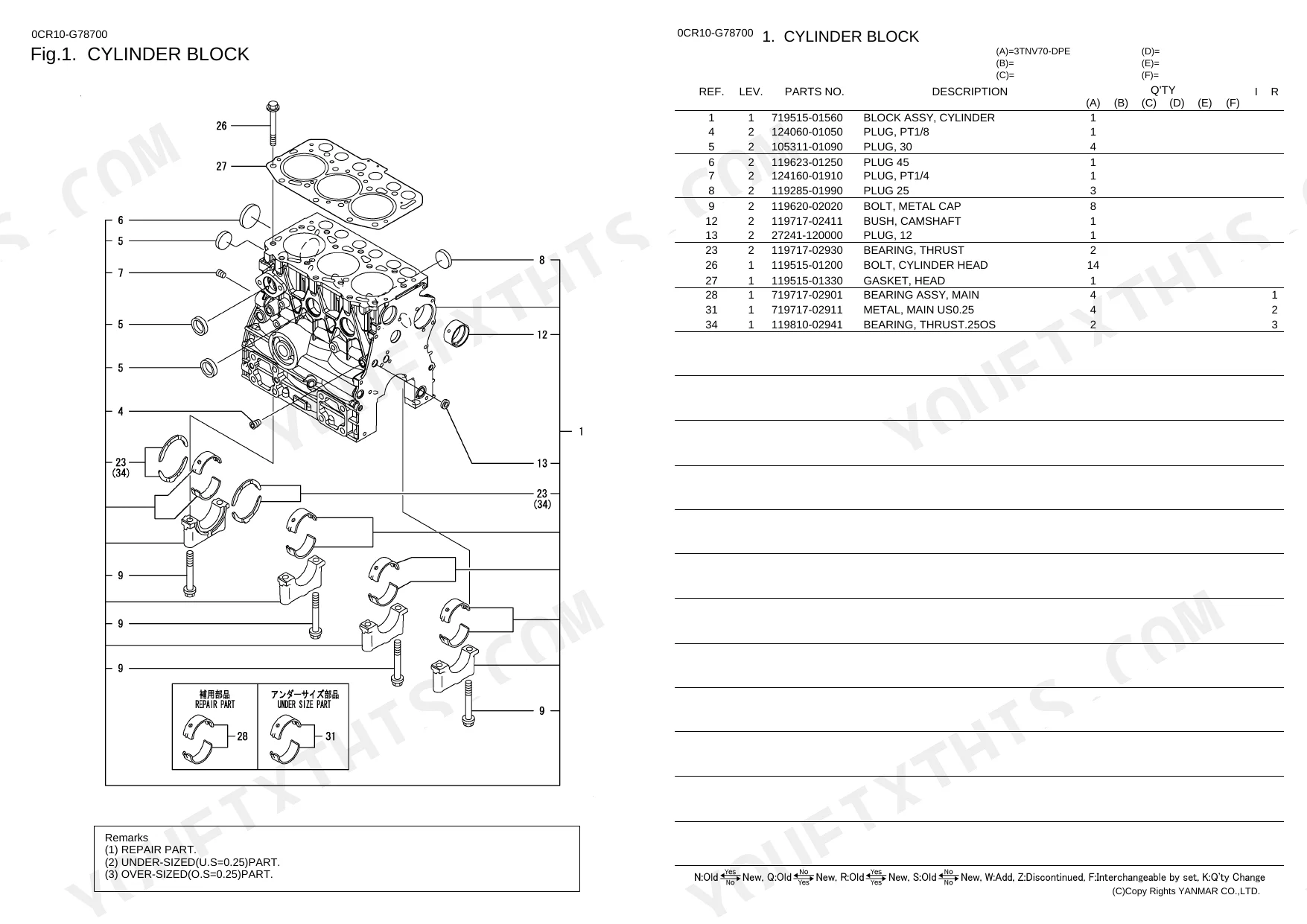

| Cylinder Block | 5 | Cylinder Block Assy, Camshaft Bush, Thrust Bearing, Head Gasket, Main Bearing Assy, Main US0 Metal |

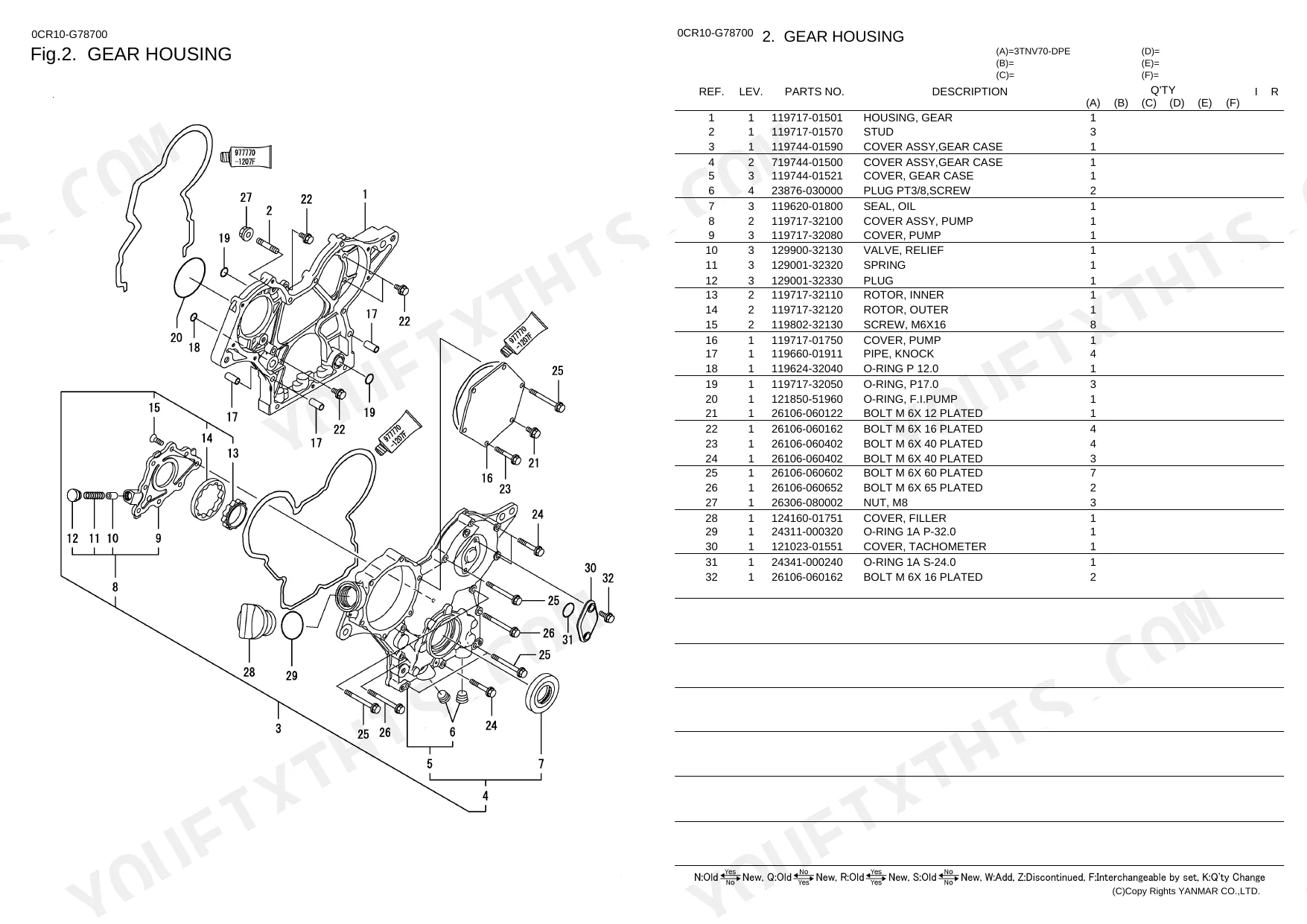

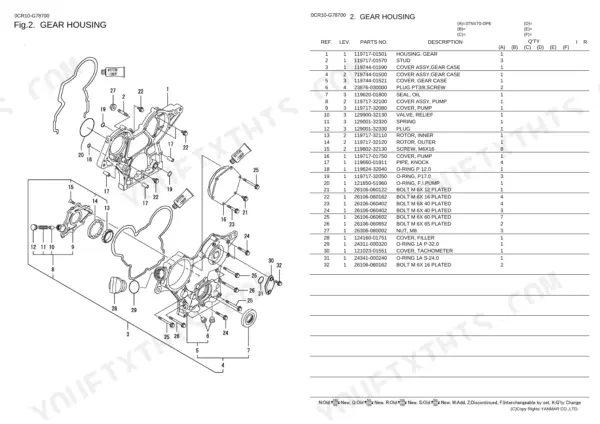

| Gear Housing | 6 | Gear Case Cover Assy, Oil Seal, Pump Cover Assy, Relief Valve, Spring, Inner Rotor, Outer Rotor |
| Flywheel Housing & Oil Sump | 7 | Flywheel Housing, Flywheel Cover Cap, Oil Seal, Oil Sump Spacer, Lub. Oil Sump Assy |
| Cylinder Head & Bonnet | 8 | Nozzle Protector, Nozzle Gasket, Valve Cap, Cylinder Head Assy, Intake Valve, Exhaust Valve, Valve Spring, Spring Retainer |
| Exhaust Manifold | 9 | Manifold Gasket, Silencer Gasket, Stud |
| Camshaft & Driving Gear | 10 | Tappet, Push Rod, Camshaft Assy, Idle Shaft, Idle Gear Assy, Idle Gear Bush, Pump Gear |
| Crankshaft & Piston | 11 | Crankshaft Assy, Crankshaft Gear, Flywheel Assy, Ring Gear, Crankshaft V-pulley, Piston w/ Ring, Piston Ring Set, Connecting Rod Assy |
| Lub.Oil System | 12 | Dipstick Guide, Lub. Oil Dipstick, Lub. Oil Filter Assy, Oil Inlet Pipe Assy, Oil Pressure Switch, Lub. Oil Pipe, Joint Bolt Assy |
| Cooling Water System | 13 | Water Pump Assy, Gasket, Cover, Water Pump Gasket, Round Gasket, Water Pump V-pulley, A35 V-belt, Cooling Fan |
| Fuel Injection Pump | 14-15 | Fie Assy, Camshaft, Camshaft Support, Plunger w/ Barrel, Flange, Spring Retainer, Plunger Spring, Tappet Assy |
| Governor | 16 | Case Gasket, Governor Case Cover, Cover Gasket, Governor Case Assy, Link, Governor Lever Shaft, Control Shaft Assy, Control Lever |
| Fuel Injection Valve | 17 | Injection Valve Assy, Nozzle Holder, Adjusting Shim Set, Pipe Retainer, Injection Pipe Assy, Fuel Oil Pipe Assy, Fuel Pipe, Return Pipe Assy |
| Fuel Line | 18 | Fuel Strainer Assy, Spring, Lever, Strainer Cup, Retaining Ring, Element Spring, Strainer Element, Filter Bracket |
| Starting Motor | 19 | Starter, Yoke Assy, Armature Assy, Clutch Assy, Sub, Housing Assy, Switch Assy |
| Generator | 20 | 15A Generator, Generator Spacer, Belt Adjuster, Starting Switch, Diode, Current 20A Limiter, Grow Relay, Timer |
| Gasket Set | 21 | Head Gasket, Nozzle Protector, Nozzle Gasket, Valve Stem Seal, Bonnet Gasket, Bonnet Cover Gasket, Manifold Gasket |
| Short Block | 22 | Short Block Assy, Cylinder Block Assy, Tappet, Camshaft Assy, Crankshaft Assy, Piston Assy, Connecting Rod Assy, Crank Bearing Assy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Generator Current Output | 15 A | p. 20 |
| Current Limiter Rating | 20 A | p. 20 |
Yanmar 3TNV70-DPE (Dingo Mini Digger) Common Problems This Manual Covers
Yanmar 3TNV70-DPE injection nozzle part numbers needed, worn nozzles have no legible markings p. 17
Turn to the Fuel Injection Valve section on page 17. The exploded view lists the Valve Assy (Injection), Nozzle Holder, and Shim Set (Adjusting) as separate orderable line items. This is a 3-cylinder engine, so confirm you are ordering 3 nozzle assemblies. Verify the Effective Machine No. column before placing the order to confirm interchangeability.

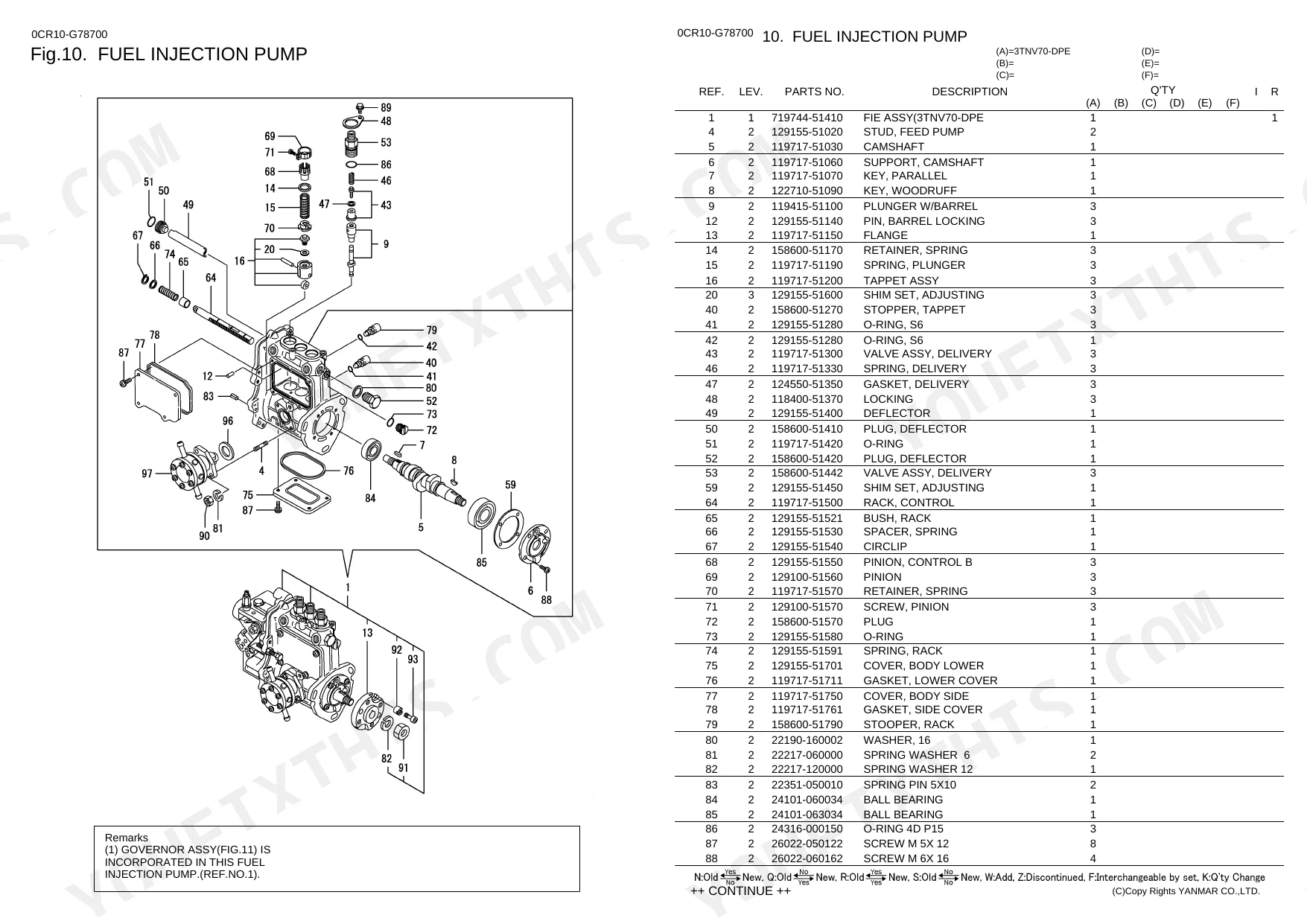

Manual Section: Fuel Injection ValveFuel injection pump assembly part number unknown, entire pump contaminated after bad diesel p. 14
Check the Fuel Injection Pump diagram on page 14. The FIE Assy (3TNV70-DPE) is listed at the top level, with the Fuel Feed Pump Assy, Plunger W/Barrel, Delivery Valve Assy, and Control Rack each shown as separate orderable components. Pull part numbers for every item you are replacing and cross-reference the Remarks column for applicable variants.
Manual Section: Fuel Injection PumpWater pump assembly part number missing, coolant weeping from housing around the pulley p. 13
Open the Cooling Water System list on page 13. The Water Pump Assy, V-Pulley (Water Pump), Gasket (Water Pump), and Cooling Fan are each cataloged with separate part numbers. Add the Gasket (Water Pump) to your order alongside the pump assembly; it is a distinct line item and does not ship included with the pump assy.
Manual Section: Cooling Water SystemStarter motor sub-clutch part number needed, pinion spins freely but won't engage ring gear p. 19
Locate the Starting Motor parts list on page 19. The Clutch Assy, Sub is cataloged as a discrete replaceable component, separate from the full Starter assembly. Also check the Armature Assy and Yoke Assy line items on the same page if the starter has been running sluggishly before failure; all three are listed as individual part numbers.
Manual Section: Starting MotorComplete engine gasket set part number needed for full top-end and sump reseal p. 21
Find the Gasket Set section on page 21 for the complete overhaul set part number. For individual items not covered by the full set, check page 7 (Flywheel Housing and Oil Sump) for the sump and flywheel seal part numbers, and page 9 (Exhaust Manifold) for the manifold gasket, as those are listed separately from the kit.
Manual Section: Gasket SetGenerator charging system part numbers needed, output dropping below 15 A rated spec p. 20
Open the Generator section on page 20. The charging system is rated at 15 A output with a 20 A current limiter; both values appear on page 20 alongside individual component part numbers. Identify whether you need the full Generator assembly or a sub-component only, as the parts list breaks each out as a separate line item.
Manual Section: GeneratorFrequently Asked Questions
How do you fix yanmar 3TNV70-DPE injection nozzle part numbers needed, worn nozzles have no legible markings?
Turn to the Fuel Injection Valve section on page 17. The exploded view lists the Valve Assy (Injection), Nozzle Holder, and Shim Set (Adjusting) as separate orderable line items. This is a 3-cylinder engine, so confirm you are ordering 3 nozzle assemblies. Verify the Effective Machine No. column before placing the order to confirm interchangeability.
How do you fix fuel injection pump assembly part number unknown, entire pump contaminated after bad diesel?
Check the Fuel Injection Pump diagram on page 14. The FIE Assy (3TNV70-DPE) is listed at the top level, with the Fuel Feed Pump Assy, Plunger W/Barrel, Delivery Valve Assy, and Control Rack each shown as separate orderable components. Pull part numbers for every item you are replacing and cross-reference the Remarks column for applicable variants.
How do you fix water pump assembly part number missing, coolant weeping from housing around the pulley?
Open the Cooling Water System list on page 13. The Water Pump Assy, V-Pulley (Water Pump), Gasket (Water Pump), and Cooling Fan are each cataloged with separate part numbers. Add the Gasket (Water Pump) to your order alongside the pump assembly; it is a distinct line item and does not ship included with the pump assy.
How do you fix starter motor sub-clutch part number needed, pinion spins freely but won't engage ring gear?
Locate the Starting Motor parts list on page 19. The Clutch Assy, Sub is cataloged as a discrete replaceable component, separate from the full Starter assembly. Also check the Armature Assy and Yoke Assy line items on the same page if the starter has been running sluggishly before failure; all three are listed as individual part numbers.
Is this Yanmar 3TNV70-DPE, Mini Digger Parts Catalog a digital download?
You get a 26-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Document Quality
This document is a scanned parts catalog with an accurate OCR text layer, allowing you to search and copy text from all pages. The text throughout is crisp and easy to read. Diagrams and illustrations are clear raster images, with all labels perfectly readable. Pages are clean, free of scan artifacts, stains, or skewed content. There are a few blank pages interspersed, primarily serving as section breaks.
