All 178 pages of this Yanmar ELB Lighting Tower Operation Manual (OEM #LGBELB-00001) cover four models: ELB 44SC, 114BC, 144BW, and 144BS, from first startup through long-term storage. Inside: complete electrical diagrams tracing the full lamp circuit, a troubleshooting section that walks you through the lamp unit, electrical system, generator components, mast assembly, winch mechanism, and balloon assembly, plus step-by-step procedures for outrigger deployment, parking brake, and mast operation. Maintenance intervals, periodic inspection tables, and a lamp replacement walkthrough are included too. Set tire pressure between 196 and 245 kPa (28.4 to 35.5 psi) and verify starting current at 14.0 A for the 44SC or 5.2 A for the 114BC, 144BW, and 144BS before you power up. Your tower is sitting dark on the job site. Grab the PDF, jump to any section by bookmark, search by keyword, and get your lights back on.
What's Inside This Yanmar ELB 44SC, ELB 114BC, ELB 144BW, ELB 144BS Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 4 | Safety Overview, Document Scope, Model Coverage, How to Use This Manual |
| Introduction | 5 | Purpose, Scope, Intended Audience |
| Safety Information | 6-8 | Basic Precautions, Operating Precautions (Precautions Working and Parking), Location of Warning Labels |
| Safety | 9 | General Safety Rules and Warnings |
| Basic Precautions | 10 | Operation Manual, Maintenance Manual, Clothing, Safety Items, Alcohol |
| Operating Precautions | 11-15 | Precautions Working and Parking |
| Precautions for Servicing | 16 | Appropriate Tools, Lamp Handling, Electric Supply, Balloon Handling, Ballast Handling |
| Location of Warning Labels | 17-18 | Warning Labels and Location |

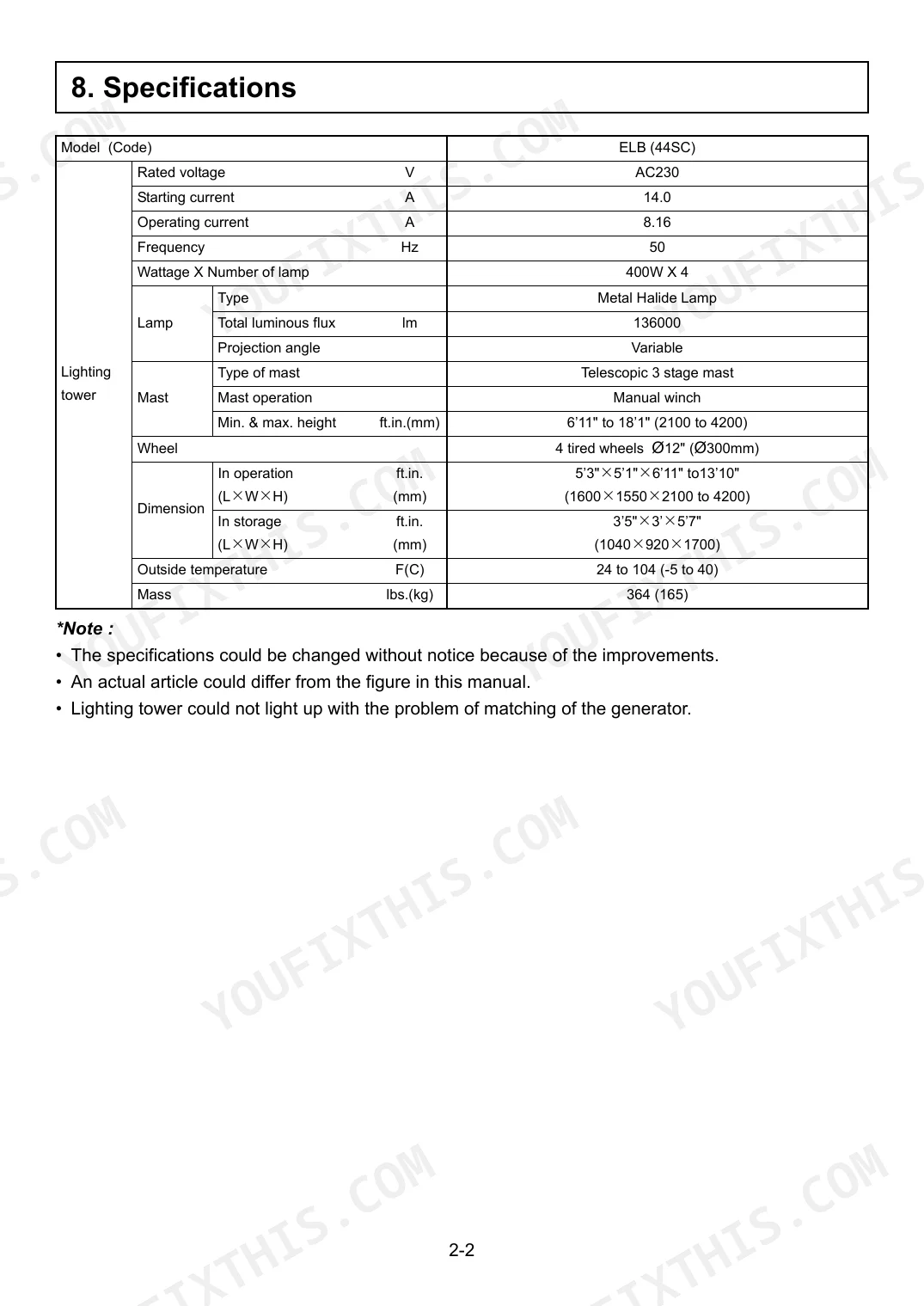

| Specifications | 19-20 | Rated Voltage, Operating Current, Lamp Wattage, Mast Type, Dimensions, Mass |
| Operation | 21 | Product Overview (Parts Name), Replacing Consumable Parts (Lamp) |

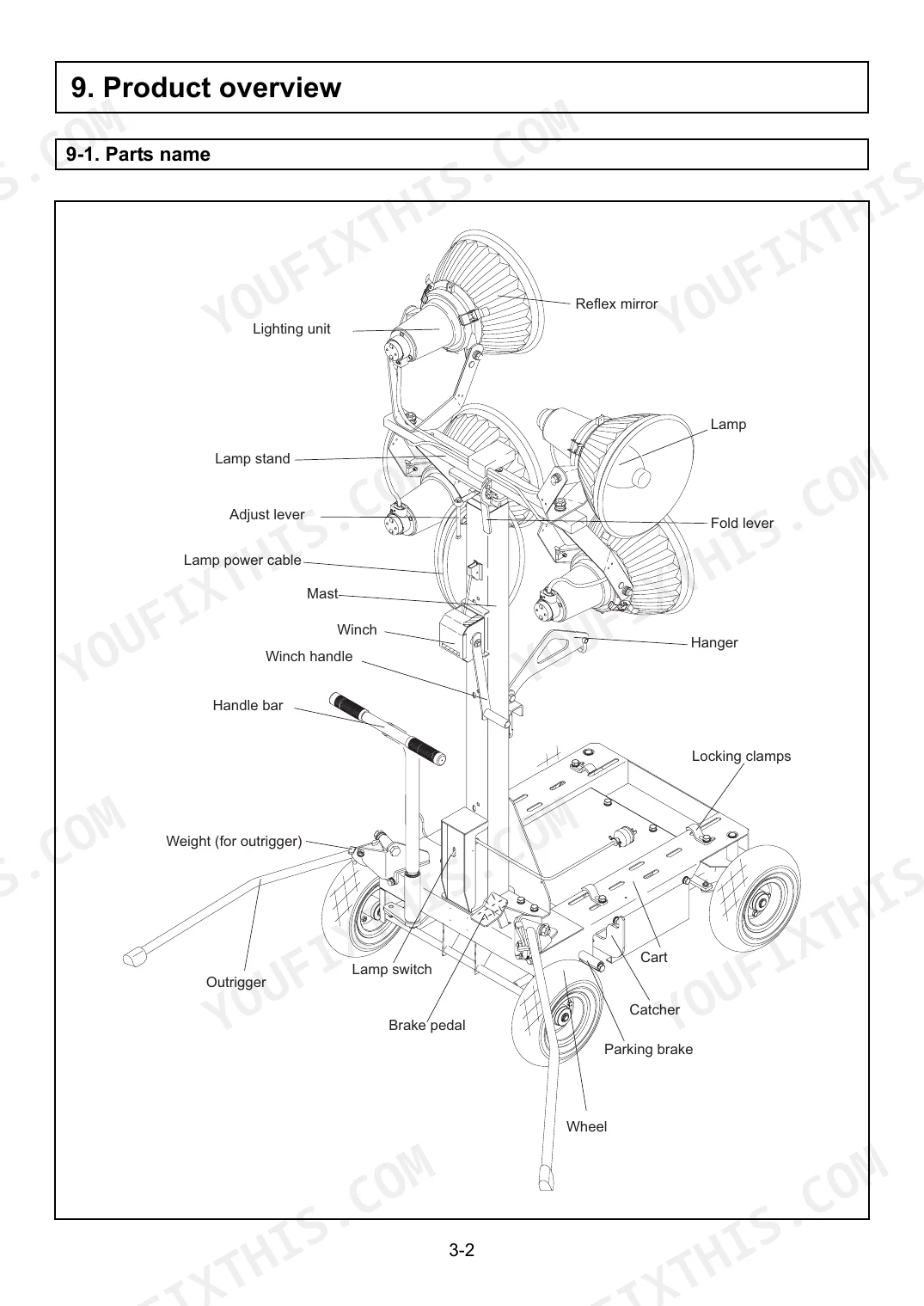

| Product Overview | 22 | Parts Name |
| Replacing Consumable Parts | 23-24 | Lamp |

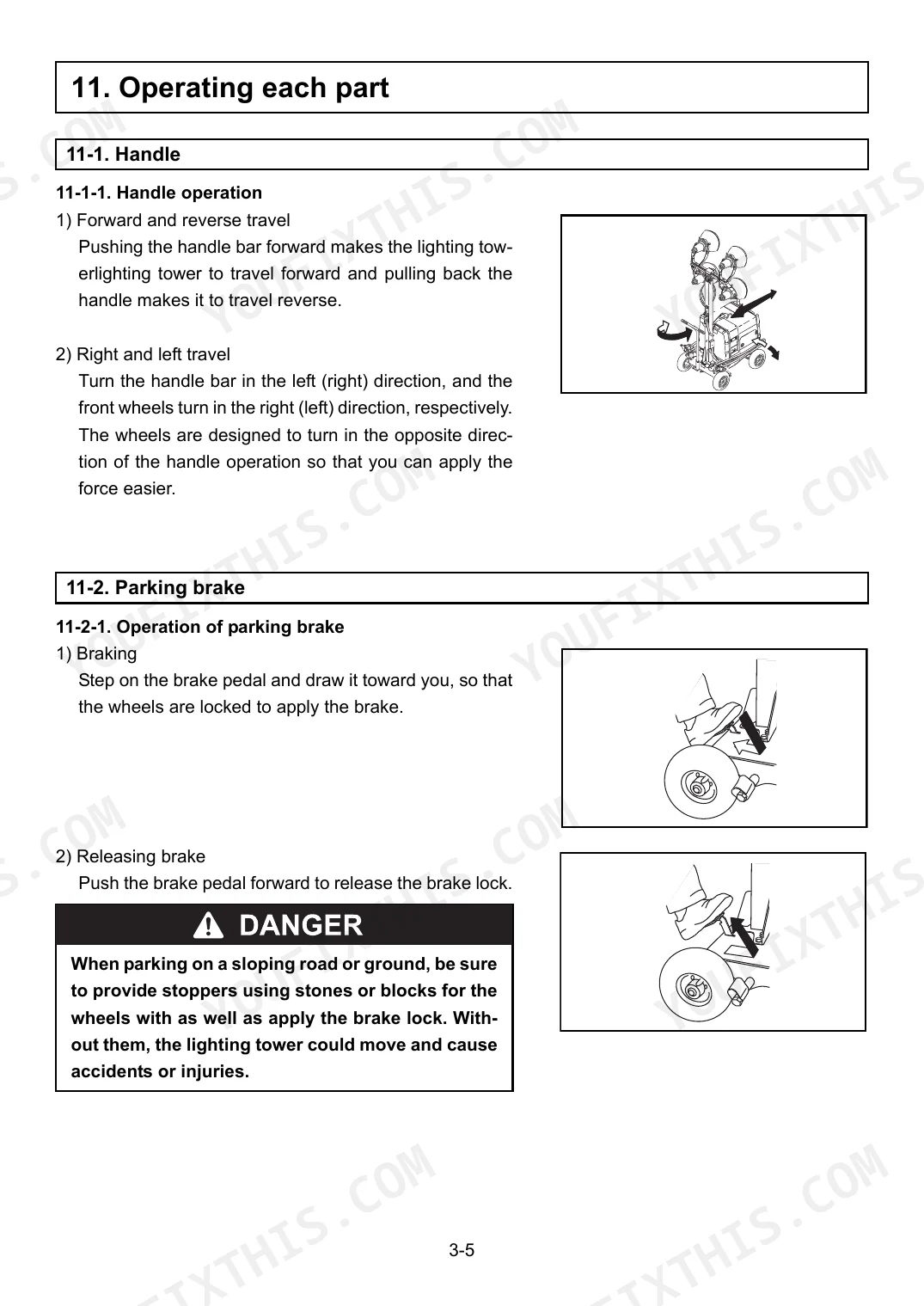

| Operating Each Part | 25-32 | Handle, Parking Brake, Outrigger, Preparation for Turning Light on, Turning Light on, Off and on Again, Storage of Lighting Unit, Conveyance by Forklift |
| Maintenance | 33 | Maintenance Intervals, Service Schedule, Lubrication Points, Inspection Criteria |
| Periodic Checks, Maintenance and Storage | 34-35 | Periodic Checks, Maintenance and Storage, Unclear Points or Problems |
| Unclear Points or Problems | 36 | Model Number, Serial Number, Operation Stage, Period of Use, Problem Conditions |
| Troubleshooting | 37 | Trouble Shooting |

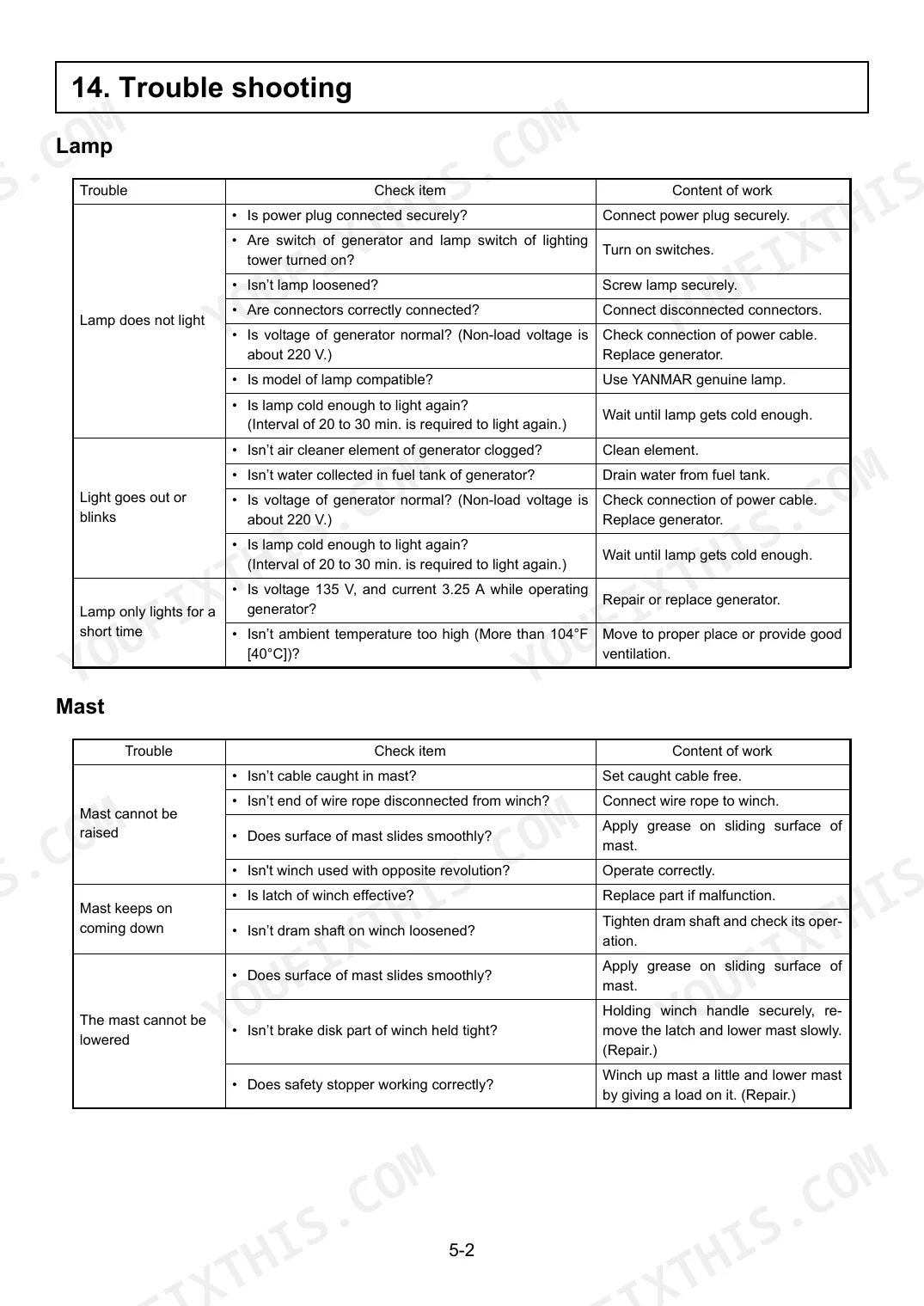

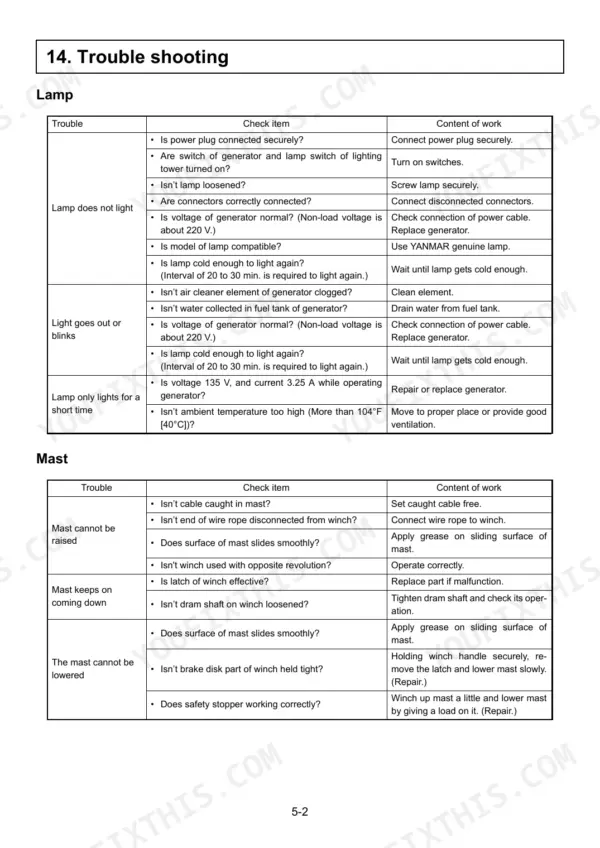

| Trouble Shooting | 38 | Lamp Unit, Electrical System, Generator Components, Mast Assembly, Winch Mechanism, Balloon Assembly |

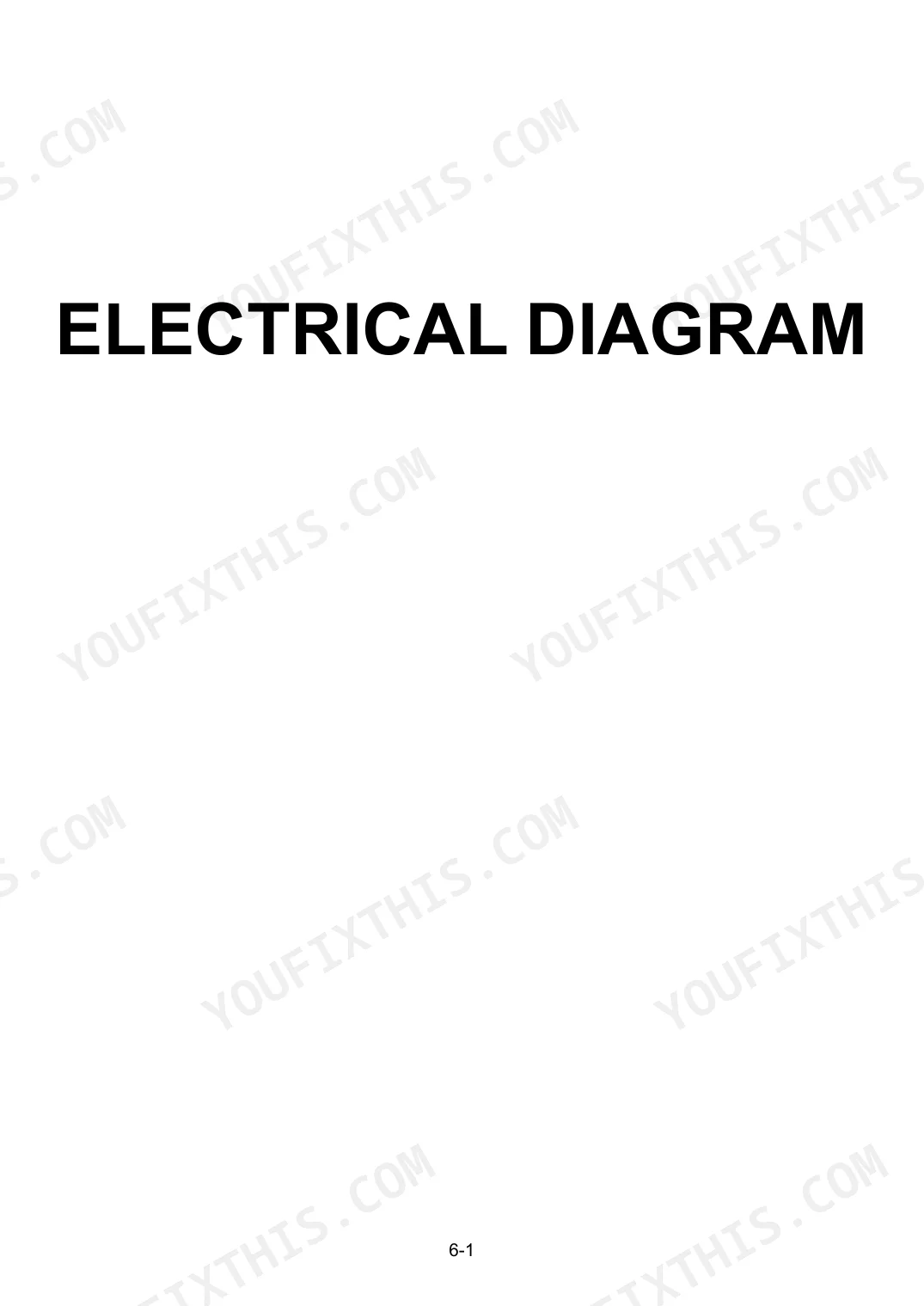

| Electrical Diagram | 39-40 | Wiring Schematics, Circuit Layout, Electrical Connections |
| Ordering Replacement Parts and Service Call | 41-50 | Part Numbers, Replacement Parts List, Service Contact |
| Precautions for Servicing | 51-54 | Servicing Safety, Tool Requirements, Electrical Precautions |
| Installation | 63 | Setup Procedures, Site Preparation |
| Replacing Consumable Parts | 64-68 | Lamp |
| Operating Each Part | 69-79 | Handle, Parking Brake, Outrigger, Preparation for Turning Light on, Turning Light on, Off and on Again, Storage of Lighting Unit, Conveyance by Forklift |

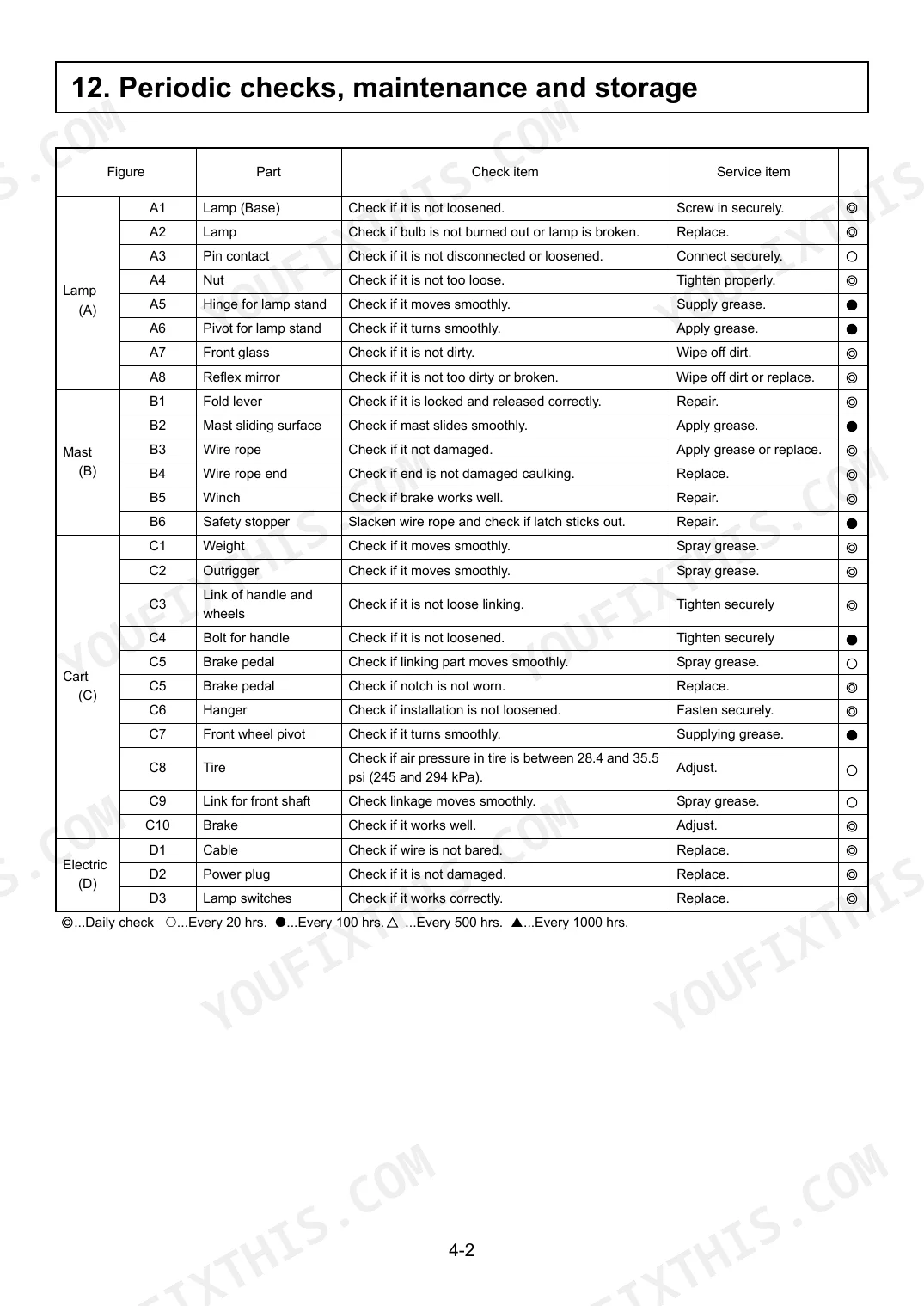

| Periodic Checks, Maintenance and Storage | 80-82 | Maintenance Intervals, Inspection Records, Storage Procedures |
| Trouble Shooting | 84-86 | Fault Diagnosis, Corrective Actions, Error Codes |
| Maintenance | 126-128 | Periodic Checks, Maintenance Intervals, Storage Procedures |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Rated voltage | 230 V | p. 20 |
| Frequency | 50 Hz | p. 20 |
| ELB 44SC, ELB1 14BC, ELB1 14BW | ||
| Tire air pressure | 28.4 to 35.5 psi (196 to 245 kPa) | p. 11 |
| ELB 44SC | ||
| Starting current | 14.0 A | p. 20 |
| Wattage X Number of lamp | 400W X 4 | p. 20 |
| Total luminous flux | 136000 lm | p. 20 |
| Mass (total unit) | 364 lbs (165 kg) | p. 20 |
| ELB1 14BC, ELB1 14BW, ELB1 14BS | ||
| Starting current | 5.2 A | p. 60 |
| Wattage X Number of lamp | 1000W X 1 | p. 60 |
| Total luminous flux | 105000 lm | p. 60 |
| ELB1 14BC | ||
| Mass (total unit) | 271 lbs (123 kg) | p. 60 |
| ELB1 14BW | ||
| Mass (total unit) | 141 lbs (64 kg) | p. 108 |
Yanmar ELB 44SC, ELB 114BC, ELB 144BW, ELB 144BS Common Problems This Manual Covers
Yanmar ELB 44SC lighting tower lamp does not light or only lights for a short time p. 38
Check the power supply and connections outlined on page 38. Verify the rated voltage is exactly 230 V and frequency is 50 Hz. Inspect the 400W X 4 lamp fixtures for damaged bulbs or loose wiring harnesses. Replace any burnt bulbs and secure all connectors before restarting.
Manual Section: Trouble ShootingLighting tower trailer wanders during transport or feels unstable when positioning at the job site p. 11
Check the tires before moving the unit as noted on page 11. Inflate all tires to the specified tire air pressure of 28.4 to 35.5 psi (196 to 245 kPa). Inspect the outriggers for damage and verify the parking brake is fully disengaged before towing.
Manual Section: Operating PrecautionsBalloon type lamp does not light up or the balloon fails to inflate fully p. 84
Inspect the balloon assembly and ballast connections using the troubleshooting steps on page 84. Verify the power source provides a steady 230 V at 50 Hz. Measure the starting current to ensure it draws exactly 5.2 A. Clean any debris blocking the inflation fan.
Manual Section: Trouble ShootingFour-lamp tower mast cannot be raised or lowered and feels physically jammed during operation p. 38
Inspect the winch mechanism and mast assembly cables on page 38. Verify the total unit mass of 364 lbs (165 kg) is safely supported by the outriggers on level ground. Lubricate the mast tracks and remove any dirt preventing smooth movement of the sections.
Manual Section: Trouble ShootingFrequently Asked Questions
How do you fix yanmar ELB 44SC lighting tower lamp does not light or only lights for a short time?
Check the power supply and connections outlined on page 38. Verify the rated voltage is exactly 230 V and frequency is 50 Hz. Inspect the 400W X 4 lamp fixtures for damaged bulbs or loose wiring harnesses. Replace any burnt bulbs and secure all connectors before restarting.
How do you fix lighting tower trailer wanders during transport or feels unstable when positioning at the job site?
Check the tires before moving the unit as noted on page 11. Inflate all tires to the specified tire air pressure of 28.4 to 35.5 psi (196 to 245 kPa). Inspect the outriggers for damage and verify the parking brake is fully disengaged before towing.
How do you fix balloon type lamp does not light up or the balloon fails to inflate fully?
Inspect the balloon assembly and ballast connections using the troubleshooting steps on page 84. Verify the power source provides a steady 230 V at 50 Hz. Measure the starting current to ensure it draws exactly 5.2 A. Clean any debris blocking the inflation fan.
How do you fix four-lamp tower mast cannot be raised or lowered and feels physically jammed during operation?
Inspect the winch mechanism and mast assembly cables on page 38. Verify the total unit mass of 364 lbs (165 kg) is safely supported by the outriggers on level ground. Lubricate the mast tracks and remove any dirt preventing smooth movement of the sections.
How quickly can I access this manual?
Immediate download of the complete 178-page searchable Operation Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Can I find wiring schematics in this Yanmar ELB 44SC, 114BC, 144BW, 144BS?
Yes, this Yanmar ELB 44SC, 114BC, 144BW, 144BS Operation Manual includes a wiring diagram for the electrical system.
