Every one of the 701 pages in this Yanmar SV100-2A Service Manual is factory-written for the SV100-2A compact excavator. Inside: complete hydraulic schematics tracing every circuit through the control valve, swing motor, and travel motor, plus wiring diagrams covering both the engine ECU and hydraulic controller. You get a full error code section, hundreds of pages of step-by-step procedures spanning engine, hydraulic, electrical, and undercarriage systems, a complete tightening torque table, and a troubleshooting quick-reference built to point you straight at the fault. When reassembling after a hydraulic repair, torque your M10 × 1.5 hex bolt to 44.1–58.9 N·m (32.53–43.44 ft·lbf) and confirm rubber crawler lug height at 1.30 in. (33 mm). Your machine is down and every idle hour costs money. Bookmarked and searchable; jump straight to the system you need from any device.
What's Inside This Yanmar SV100-2A Manual
| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | 13-24 | 1-1 Correct Work, 1-2 Safety Precautions, 1-3 Preparations, 1-4 Cautions for Disassembly and Reassembly, 1-5 Cautions for Removal and Installation of Hydraulic Equipment |

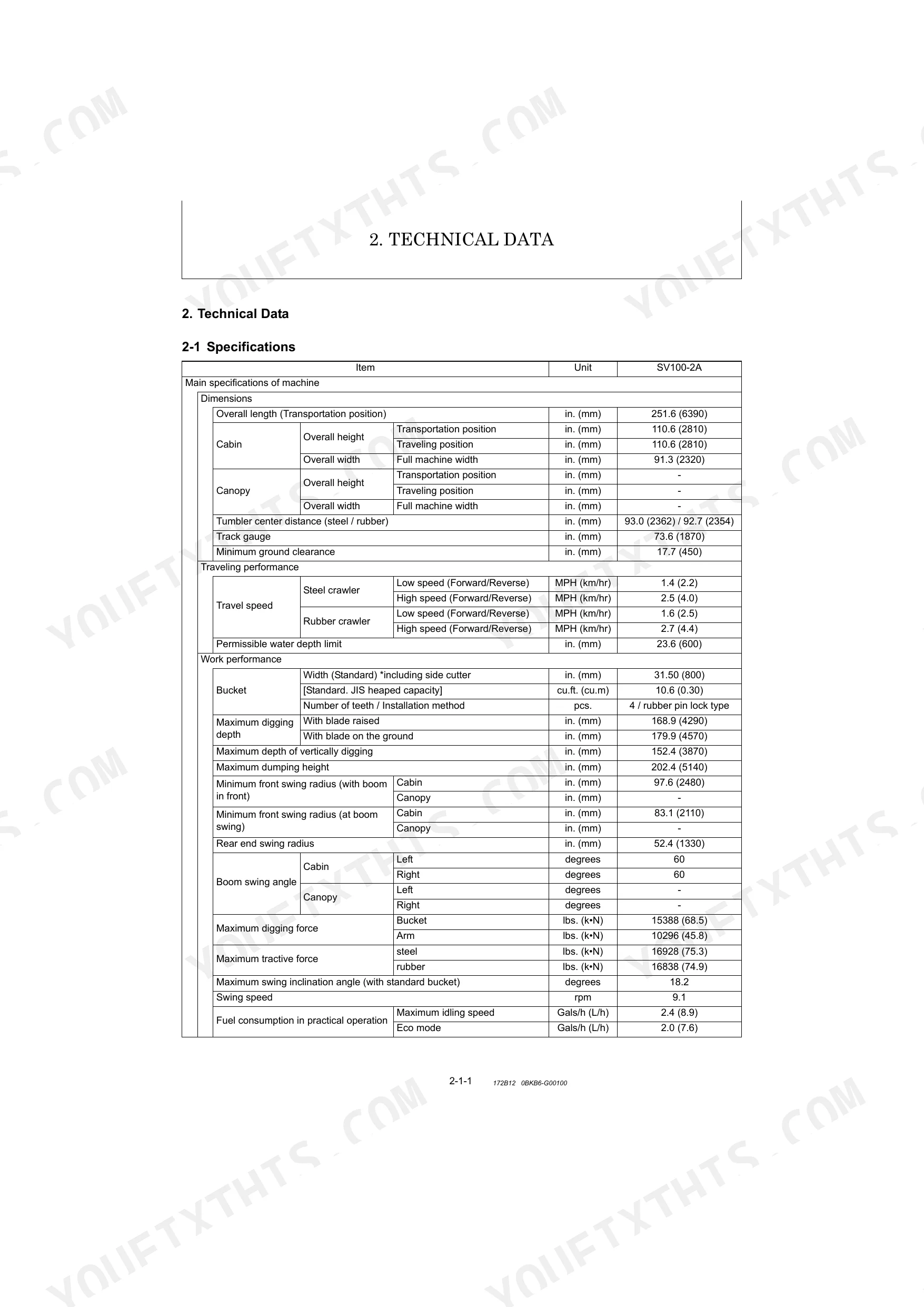

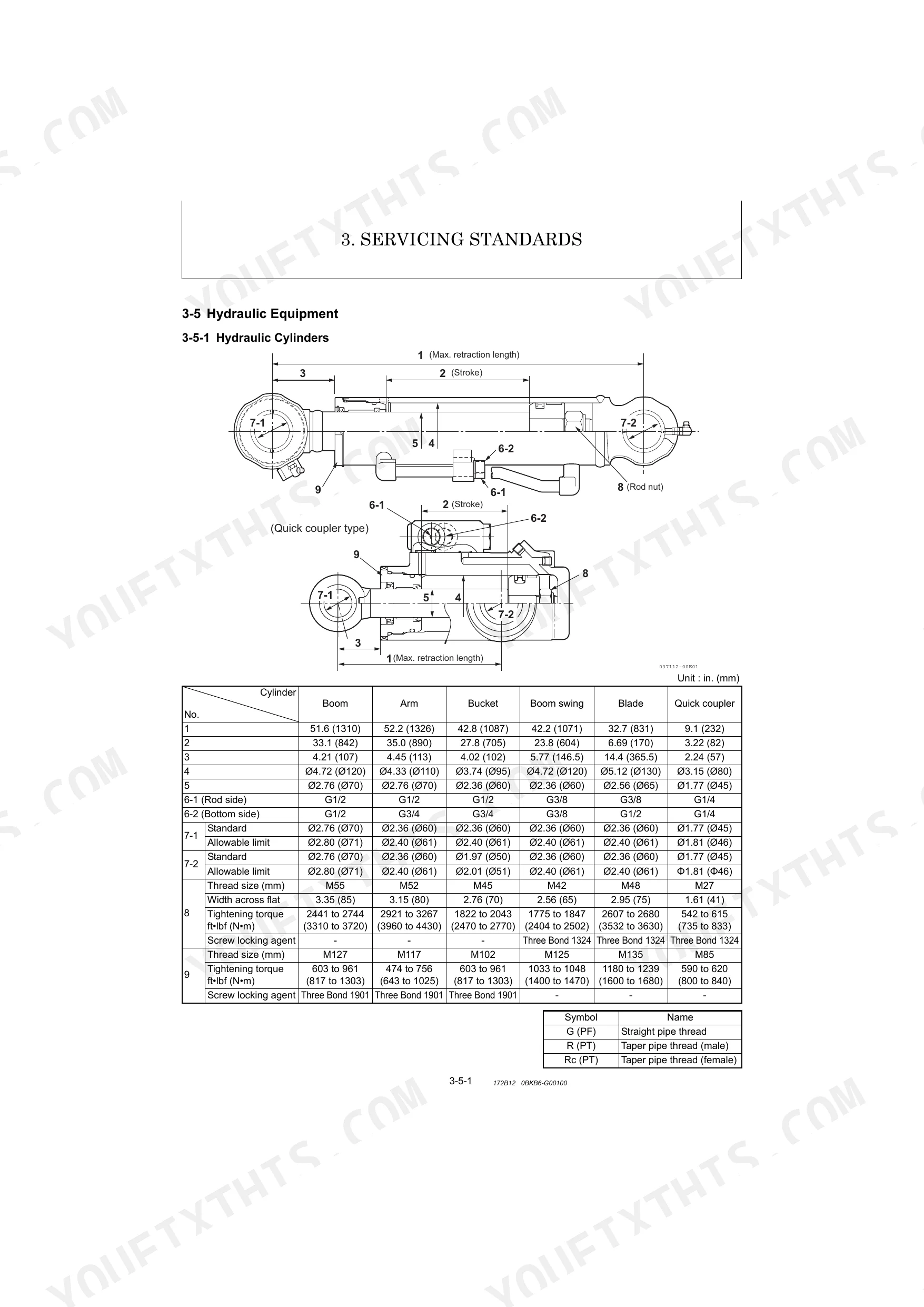

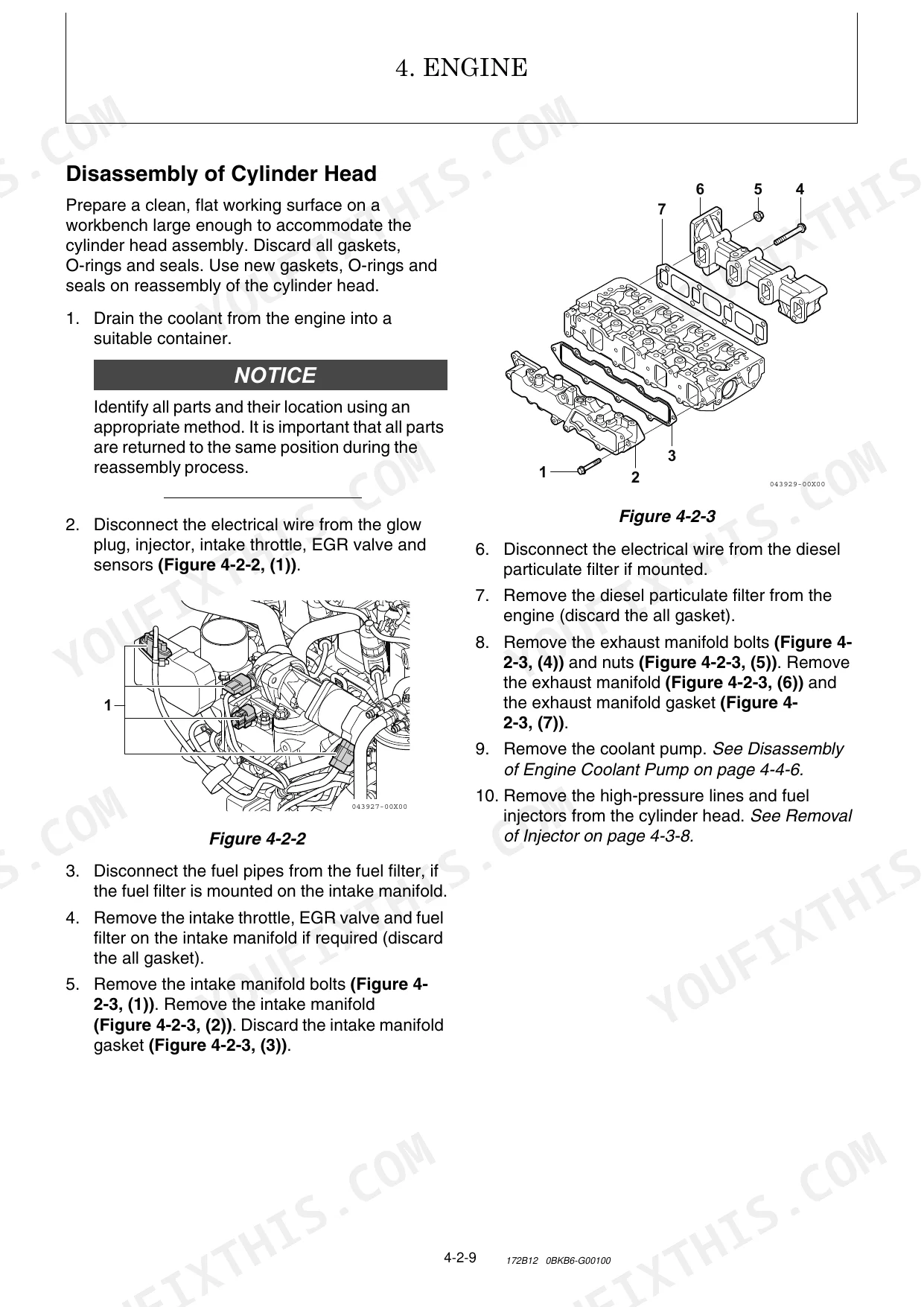

| Technical Data | 25-52 | 2-1 Specifications, 2-2 Outline Drawing and Working Area, 2-3 Weight List of Main Parts, 2-4 Lifting Capacity List, 2-5 Specifications for Attachment |
| Service Standards | 53-80 | 3-1 Machine Performance, 3-2 Engine, 3-3 Undercarriage, 3-4 Controls, 3-5 Hydraulic Equipment, 3-6 Implement, 3-7 List of Tightening Torque, 3-8 Pressure Adjustment |
| Engine | 81-266 | 4-1 Safety, 4-2 Engine, 4-3 Fuel System, 4-4 Cooling System, 4-5 Lubrication System, 4-6 Turbocharger, 4-7 Starter Motor, 4-8 Alternator |
| Electric System | 267-320 | 5-1 Electric Equipment of Machine, 5-2 Circuit Description of Engine Start and Stop, 5-3 Engine ECU (Engine Controller), 5-4 Hydraulic ECU (Controller), 5-5 Error Code |
| Hydraulic System | 321-550 | 6-1 Outline, 6-2 Circuit Operation, 6-3 Hydraulic Pump, 6-4 Control Valve, 6-5 Pilot Valve, 6-6 Swing Motor, 6-7 Travel Motor, 6-8 Cutoff Valve |
| Adjustment and Repair | 551-688 | 7-1 Engine and Electric Equipment, 7-2 Undercarriage, 7-3 Controls, 7-4 Swing Bearing, 7-5 Hydraulic Equipment, 7-6 Implement, 7-7 Cabin, 7-8 Air Conditioner |

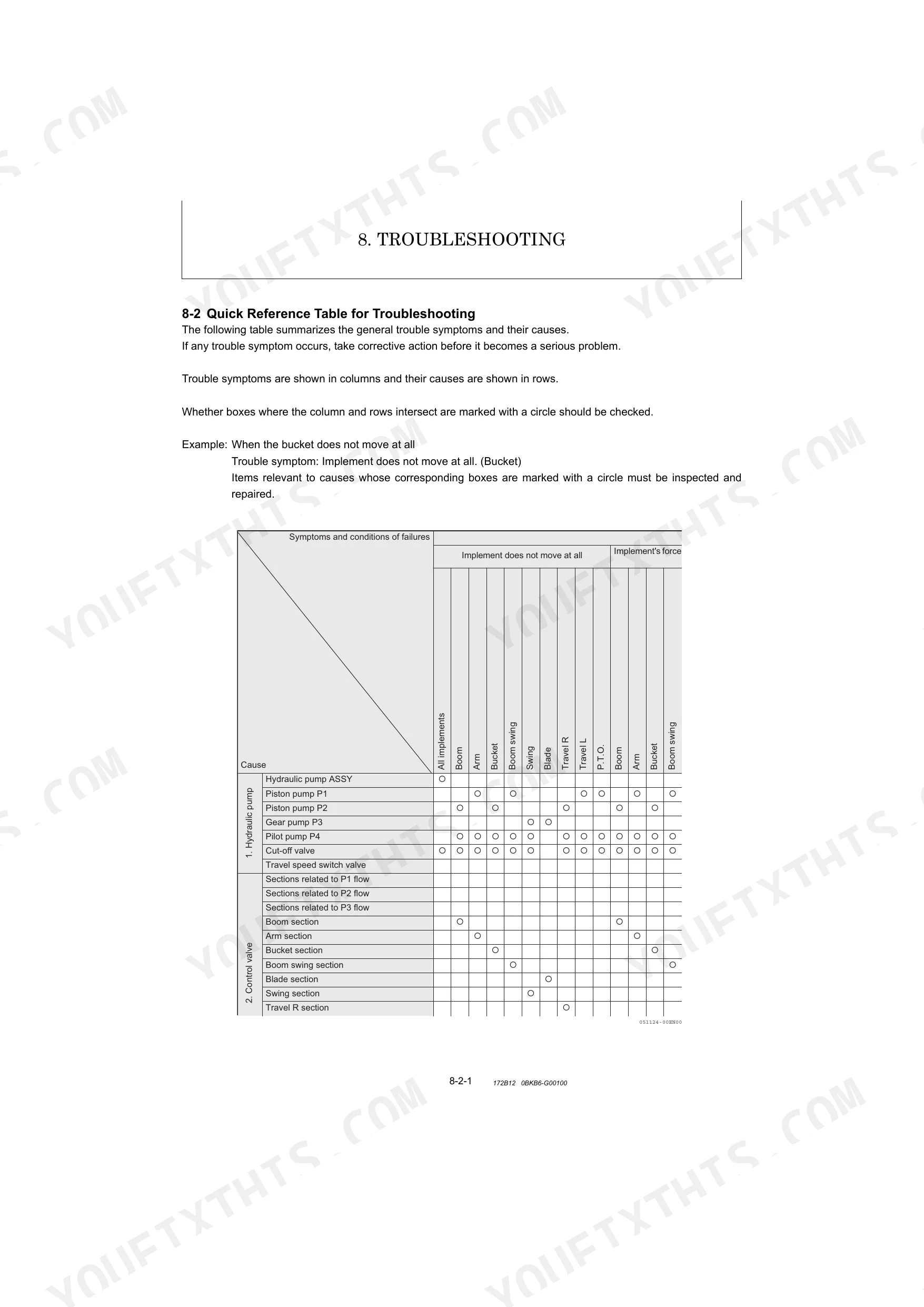

| Troubleshooting | 689-696 | 8-1 Non-Breakdowns, 8-2 Quick Reference Table for Troubleshooting |

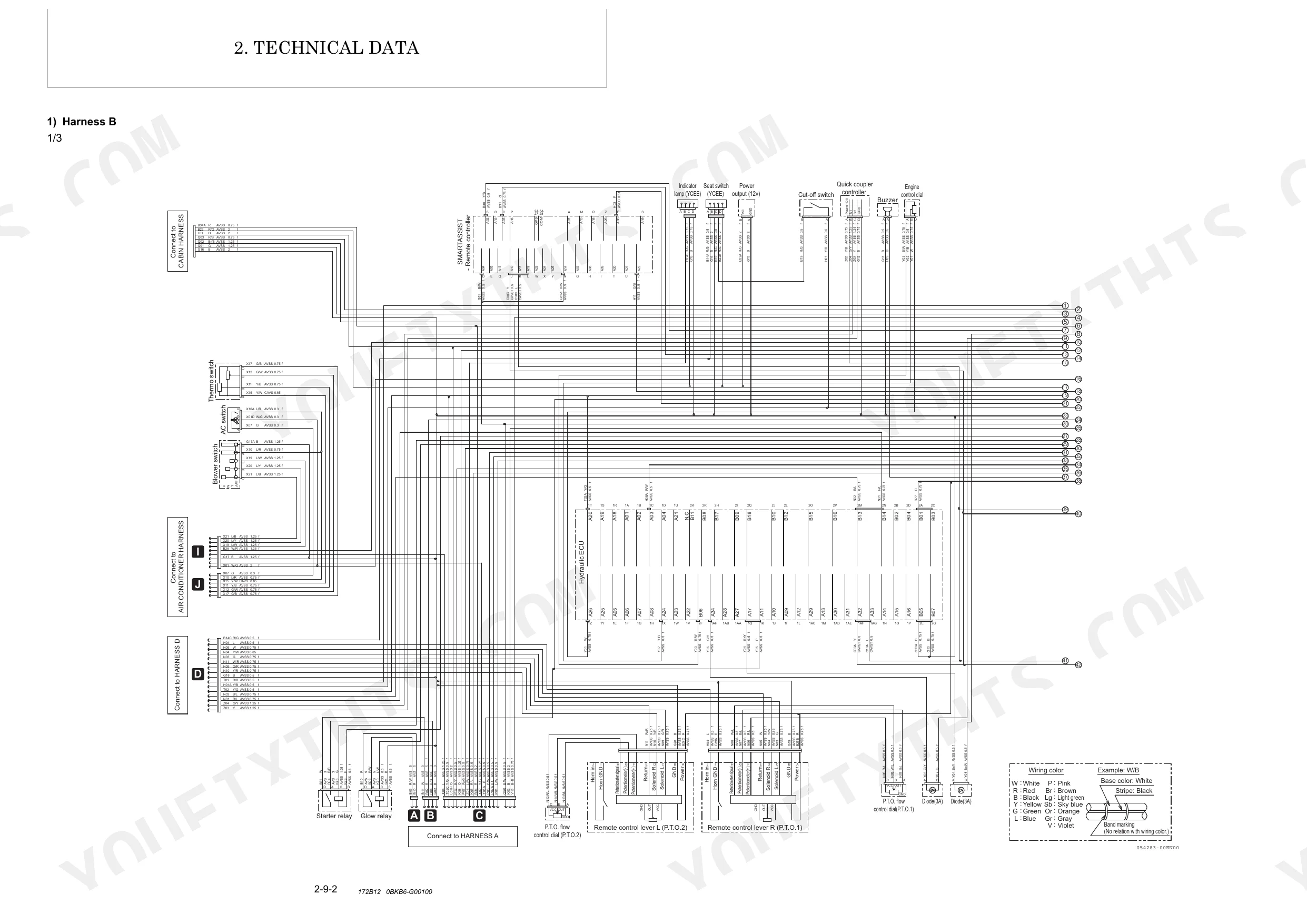

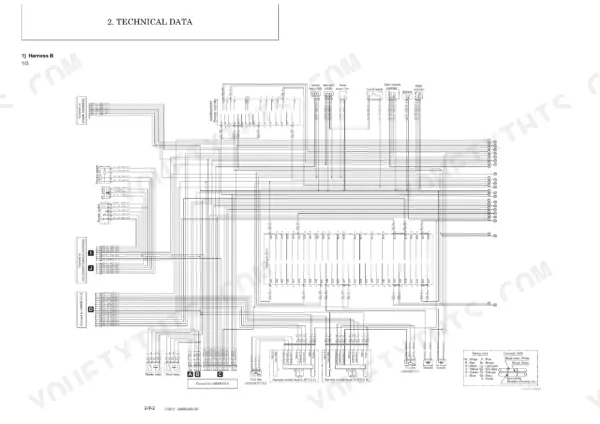

| Appendix | 697 | SV100-2A Wiring Diagram |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

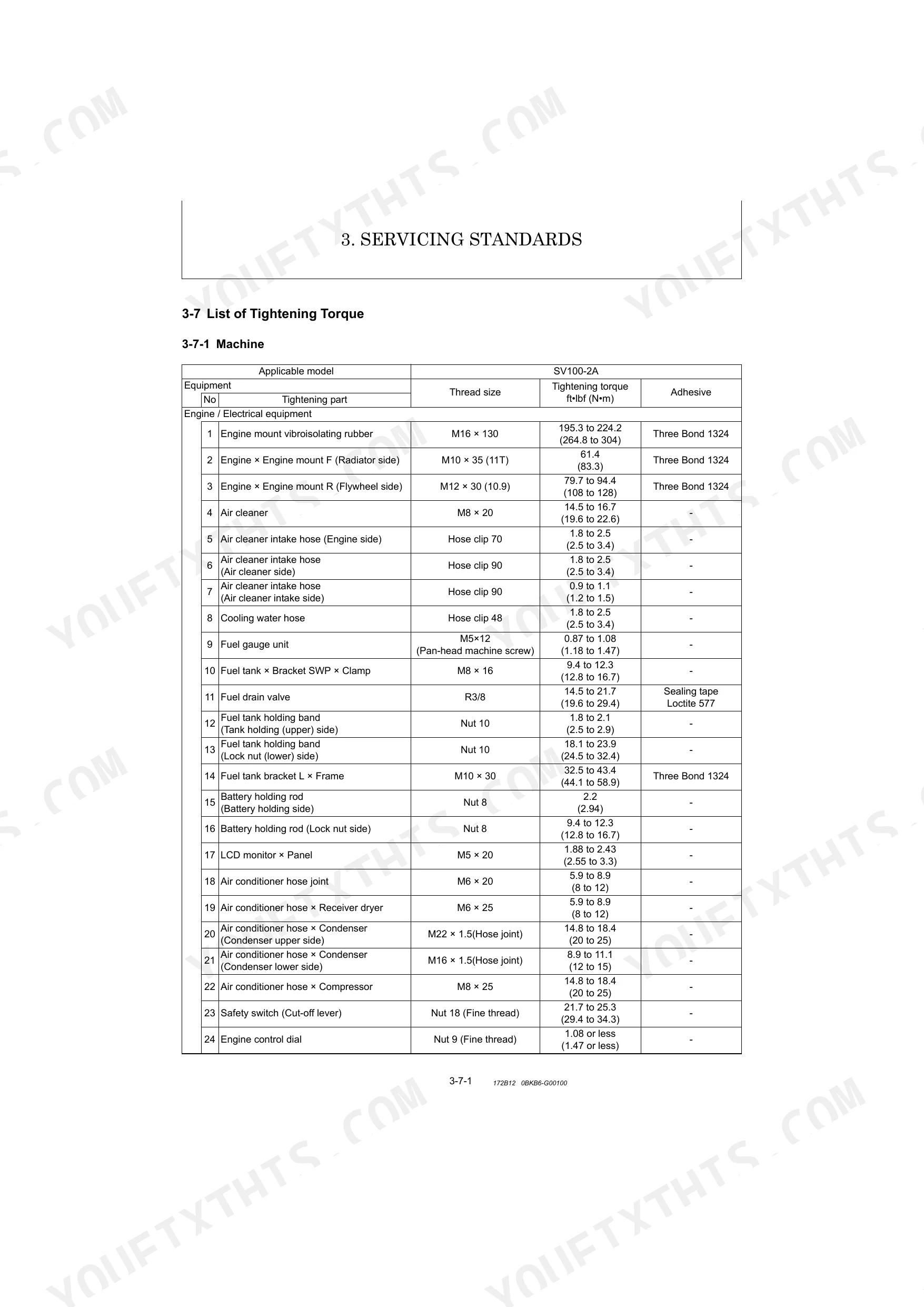

| Tightening torque for Hexagon head bolt (7T) Nut, Coarse screw thread, M10 × 1.5 | 32.53 to 43.44 ft·lbf (44.1 to 58.9 N·m) | p. 73 |
| Air cleaner, Filtration area | 20.8 sq.ft. (1.93 sq.m) | p. 30 |
| Fuel filter filtration area | 310 sq.in. (2000 sq.cm) | p. 30 |
| LO filter filtration area | 180 sq.in. (1160 sq.cm) | p. 30 |
| Rubber crawler, A (Standard) | 1.30 in. (33 mm) | p. 62 |
| Steel crawler, Crawler link (Triple grouser), A (Standard) | 3.50 in. (89 mm) | p. 63 |
| System relief set pressure, Piston pump P1 | 3989 PSI (27.5 MPa) at 7.9 GPM (30 L/min) | p. 75 |
| Overall length (Transportation position) | 251.6 in (6390 mm) | p. 25 |
| Maximum digging force (Bucket) | 15388 lbs (68.5 kN) | p. 25 |
| Swing speed | 9.1 rpm | p. 25 |
| System relief set pressure (P1, P2) | 3989 PSI (27.5 MPa) | p. 26 |
| Swing motor displacement | 2.35 cu.in./rev (38.5 cu.cm/rev) | p. 27 |
Yanmar SV100-2A Common Problems This Manual Covers
Yanmar SV100-2A hydraulic pump weak output, machine requires high RPM before implements or tracks respond
Check system relief pressure at the pump outlet against the spec of 3989 PSI (27.5 MPa) at 7.9 GPM (30 L/min) on page 75. Inspect pump for abnormal noise, low flow, and overloading symptoms covered. If pressure reads low under load, pull the pump and inspect for worn internals before condemning the relief valve. Verify hydraulic oil level is at 15.8 Gals. (60 L) capacity on page 39.
Manual Section: Hydraulic Pump TroubleshootingEngine won't reach rated power or stalls under load, sluggish digging response across all implements
Measure cylinder compression and compare against 479 PSI (3.3 MPa) at 250 rpm from page 29. Check air cleaner element condition; a clogged filter on an element with 20.8 sq.ft. (1.93 sq.m) filtration area starves the engine fast. Inspect fuel filter (310 sq.in. filtration area) and engine oil at 11.8 Qts. (11.2 L) capacity per page 39. If compression is low, follow engine failure diagnosis procedures starting.
Manual Section: Engine Failure DiagnosisTravel drive inconsistent, one or both tracks slip or fail to move under normal load
Inspect the travel motor for insufficient torque, abnormal sounds, and delay in start/stop per . Verify system relief pressure holds at 3989 PSI (27.5 MPa) under travel load before pulling the motor. Check rubber crawler wear dimension against the 1.30 in. (33 mm) standard on page 62; worn tracks increase slip and mask motor faults. Confirm track tension and undercarriage service standards on page 53.
Manual Section: Travel Motor TroubleshootingControl valve spool sticking, bucket or arm movement jerky or stops mid-cycle
Remove and visually inspect spool condition per the control valve troubleshooting procedures. Clean spool bores and check for scoring, contamination, or debris causing load-side issues. Verify pilot pressure is reaching the valve by checking pilot unit operation. Hydraulic oil contamination is the most common cause; flush and refill to 15.8 Gals. (60 L) with correct grade per page 39 if metal particles are found in the old oil.
Manual Section: Control Valve TroubleshootingElectrical fault codes displayed, machine derated or certain functions locked out
Pull active error codes and cross-reference the corrective measures table starting. Note the exact code number before clearing, since some codes point to Engine ECU faults and others to the Hydraulic ECU. Inspect wiring harness connectors at the controller for corrosion or loose pins before replacing sensors. Refer to the wiring diagram on page 697 to trace circuit paths back to the affected sensor or actuator.
Manual Section: Electric System Error Code DiagnosisSwing rotation slow, stops short of rated speed, or makes abnormal noise during rotation
Measure swing speed against the spec of 9.1 rpm and check swing motor displacement at 2.35 cu.in./rev (38.5 cu.cm/rev) from page 27. Inspect the motor for insufficient torque, abnormal heating, and oil leaks per . Verify swing bearing condition and torque specifications on page 53; a worn bearing increases drag and mimics low motor output. Check system relief at 3989 PSI (27.5 MPa) on page 75 to rule out a pressure-side cause before pulling the swing motor.
Manual Section: Swing Motor TroubleshootingFrequently Asked Questions
How do you reset the YANMAR SV100-2A hydraulic/monitor error code?
To reset a hydraulic/monitor error code on the YANMAR SV100-2A, turn the starter switch to the "OFF" position and then to the "ON" position. This action allows the system to recheck and clear the error code if the underlying issue has been resolved.
What does error code mean on a YANMAR SV100-2A excavator?
On the YANMAR SV100-2A excavator, an error code displayed on the LCD monitor indicates an abnormality detected by the engine ECU or other controllers. These codes correspond to specific malfunctions within the machine's electrical or hydraulic systems.
What are the torque specs for YANMAR SV100-2A track motor or final drive bolts?
For the YANMAR SV100-2A, the tightening torque for track motor mounting bolts (M16) is 195.3 to 224.2 ft·lbf (264.8 to 304 N·m). For track motor mounting stud bolts and nuts (M16), the torque is 123.2 to 151.9 ft·lbf (167 to 206 N·m).
What are the torque specs for YANMAR SV100-2A swing bearing bolts?
For the YANMAR SV100-2A, the tightening torque for swing bearing installation bolts is 224.1 to 238.6 ft·lbf (303.9 to 323.5 N·m). This applies to both the turning frame to outer race (M16 × 85) and the track frame to inner race (M16 × 90) bolts.
How quickly can I access this manual after buying?
Immediate download of the complete 701-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this Service Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are there hydraulic schematics in this Yanmar SV100-2A (YCEE) manual?

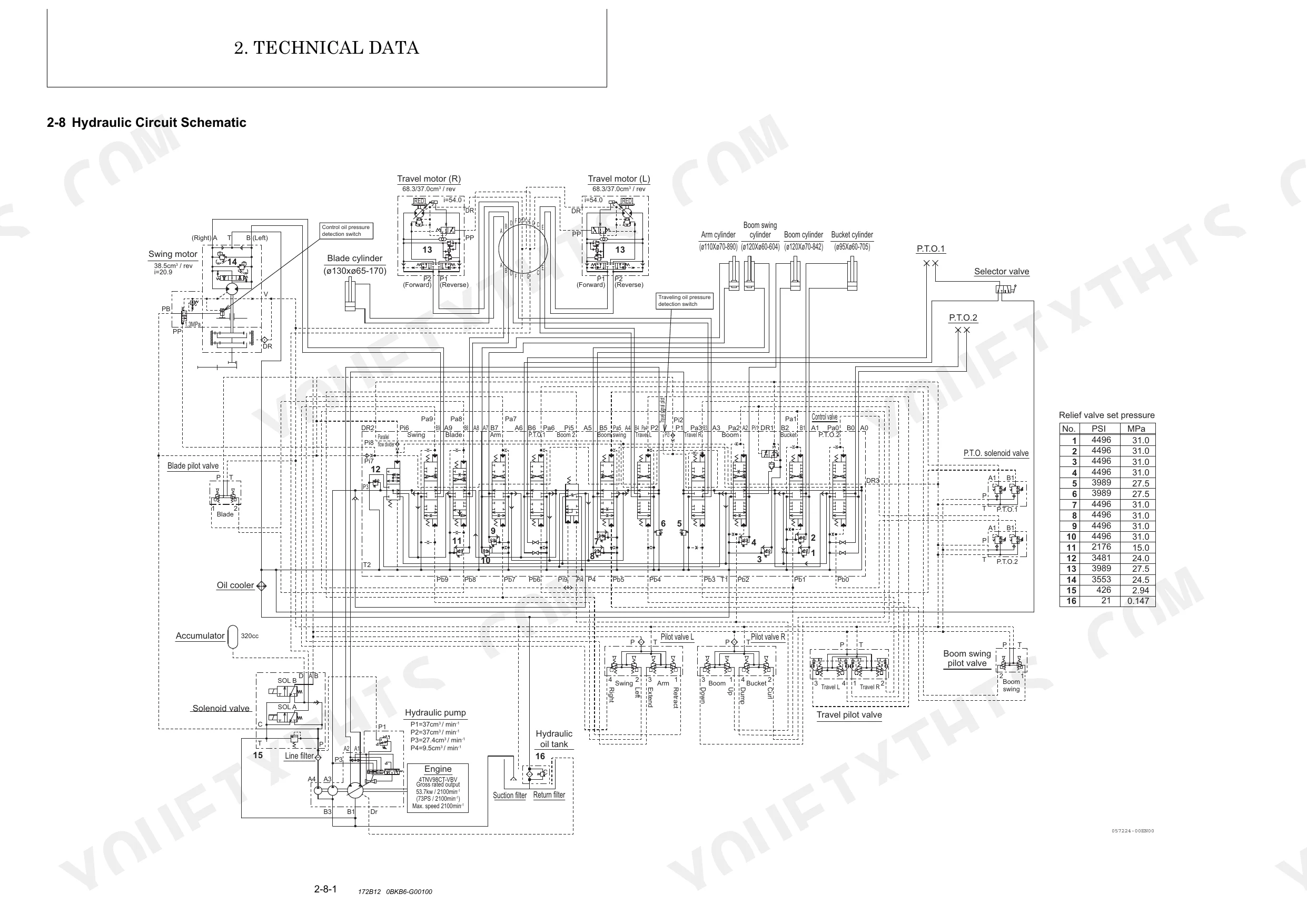

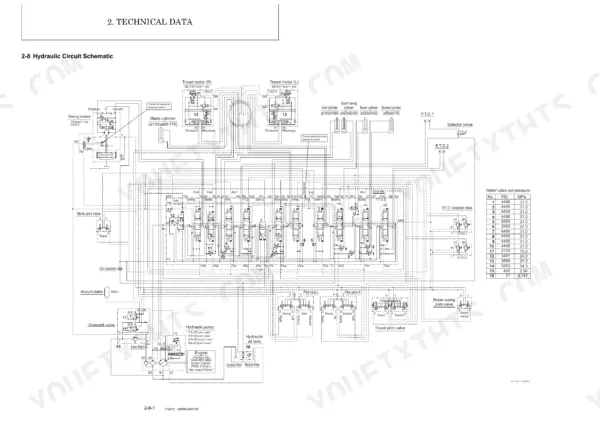

Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Yanmar SV100-2A (YCEE).
