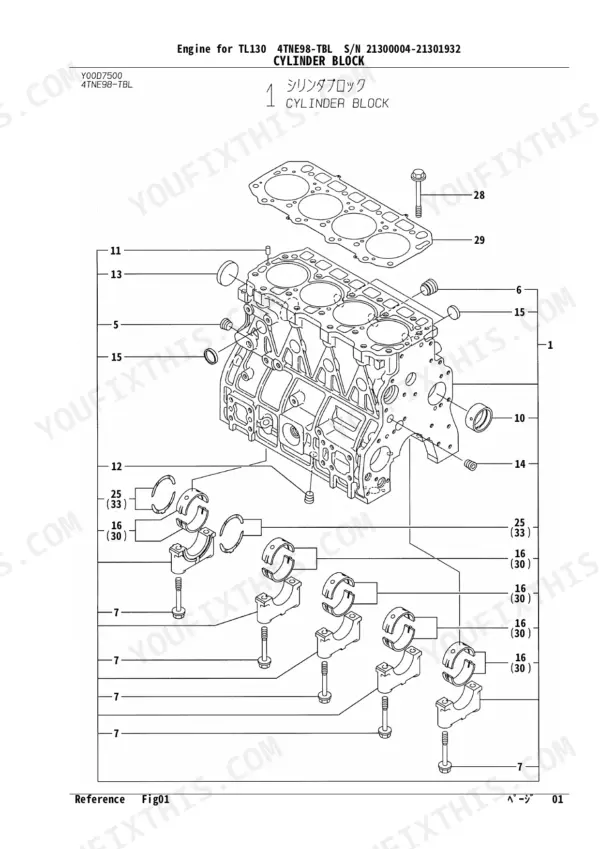

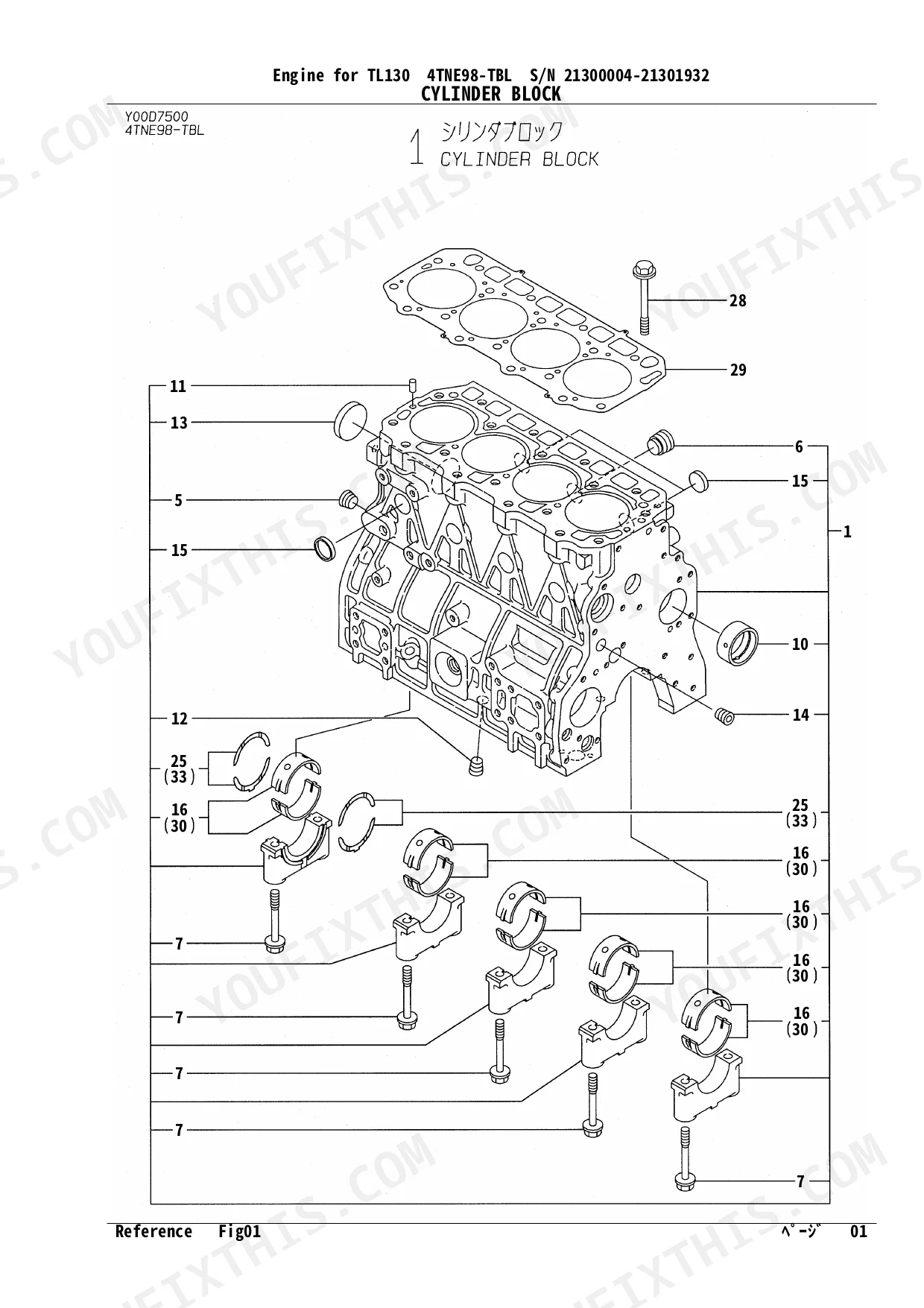

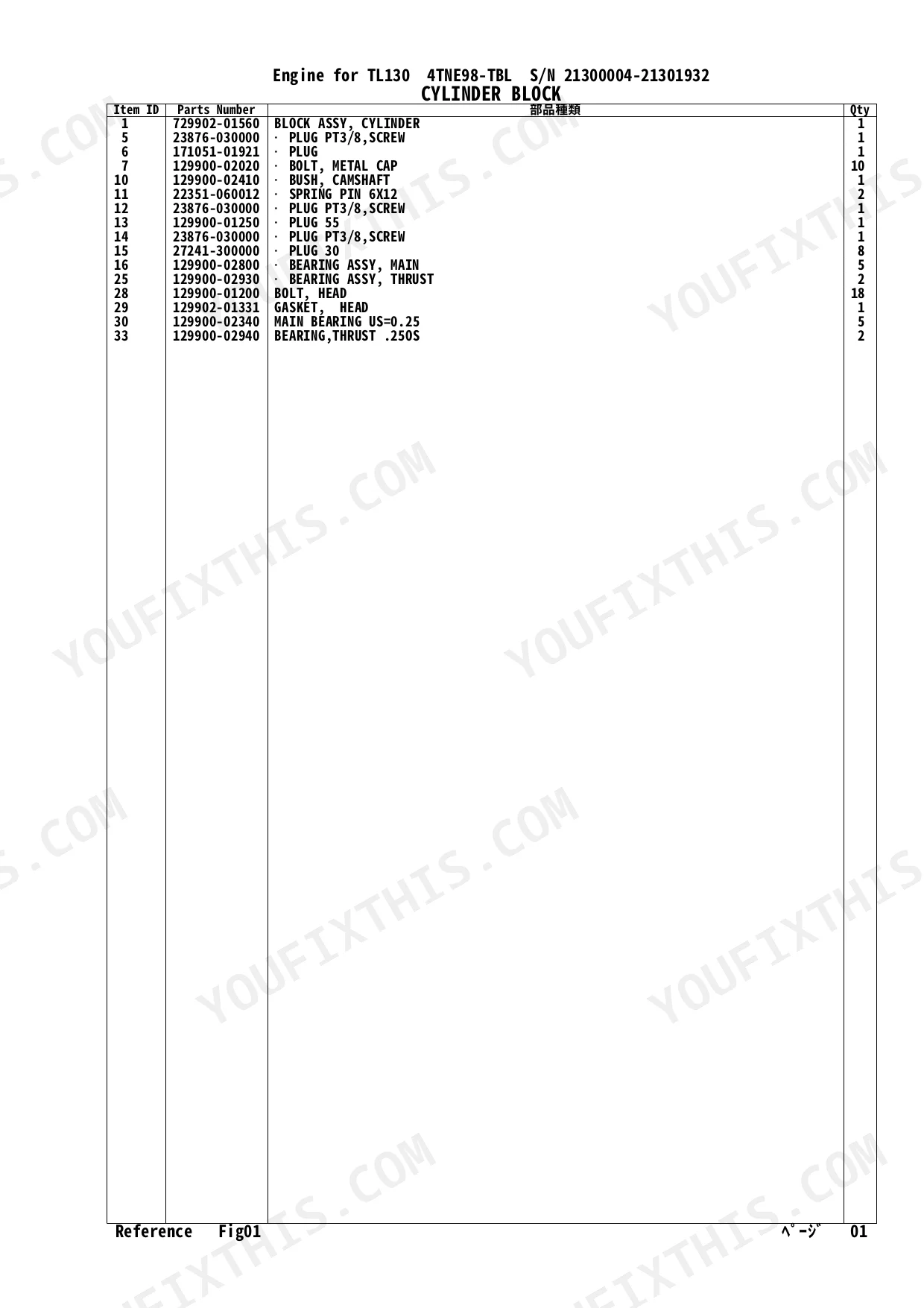

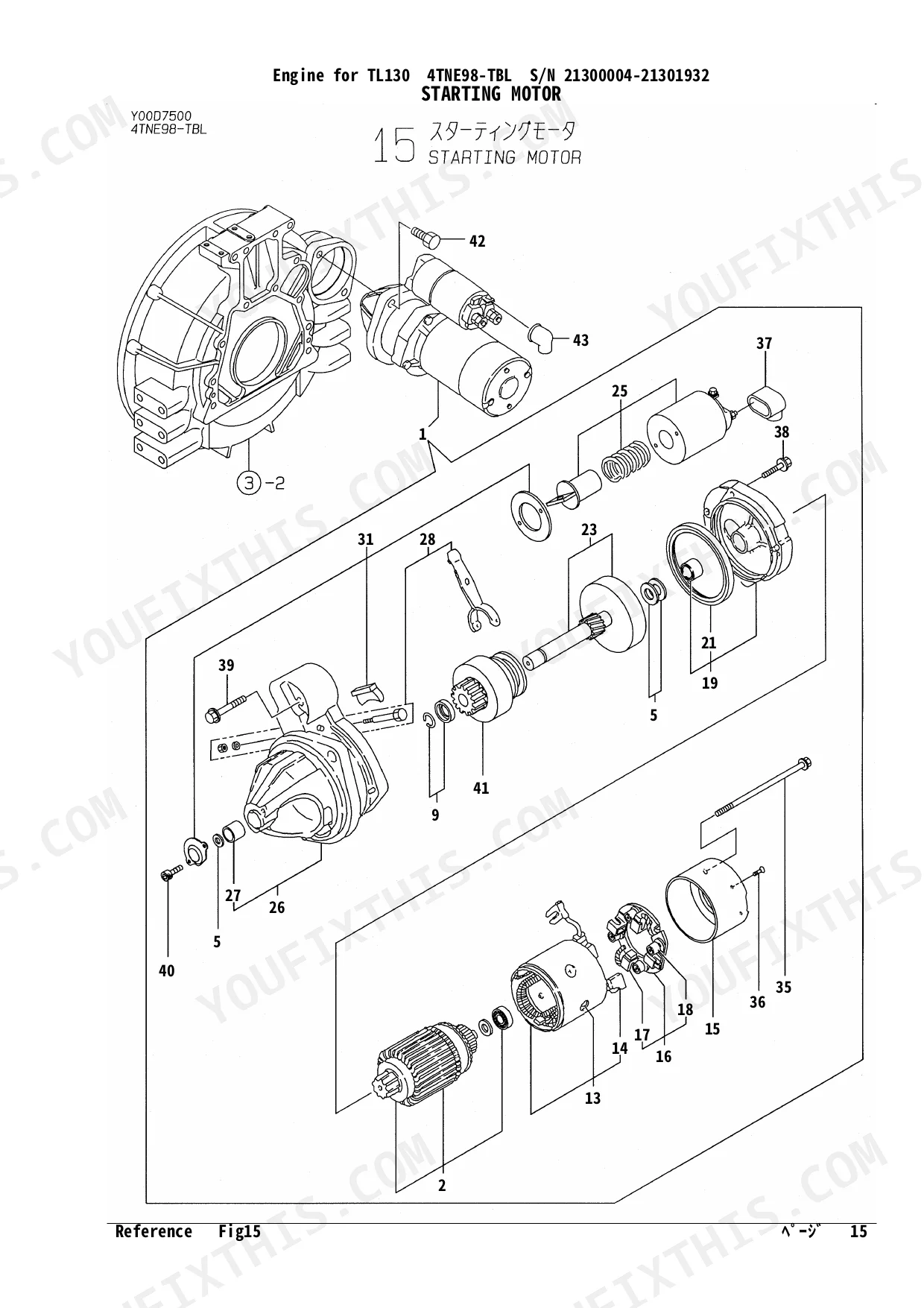

All 120 pages of this Yanmar TL130 Parts Catalog divide cleanly across three engine families: the 4TNE98-TBL, 4TNV98-YTBL, and 4TNV98-YTBL1, each in its own dedicated section so you're never pulling part numbers from the wrong variant. Inside you get exploded assembly views and factory part numbers for the full engine: cylinder block, gear housing, flywheel housing, cylinder head, camshaft and driving gear, crankshaft and piston, lubrication oil system, cooling water system, fuel injection pump and valve, fuel lines, engine stop device, starter motor, generator, and gasket sets. The parts index ties all three variants together for fast cross-referencing. Order with confidence: O-ring P-20 and a 6mm x 12mm spring pin are called out right in the crankshaft assembly so you match exact factory dimensions before the part ships. Wrong part sitting on your shelf is money burned. Download, search by component name, and get the right number on the first order.
What's Inside This Yanmar 4TNE98-TBL Parts Manual

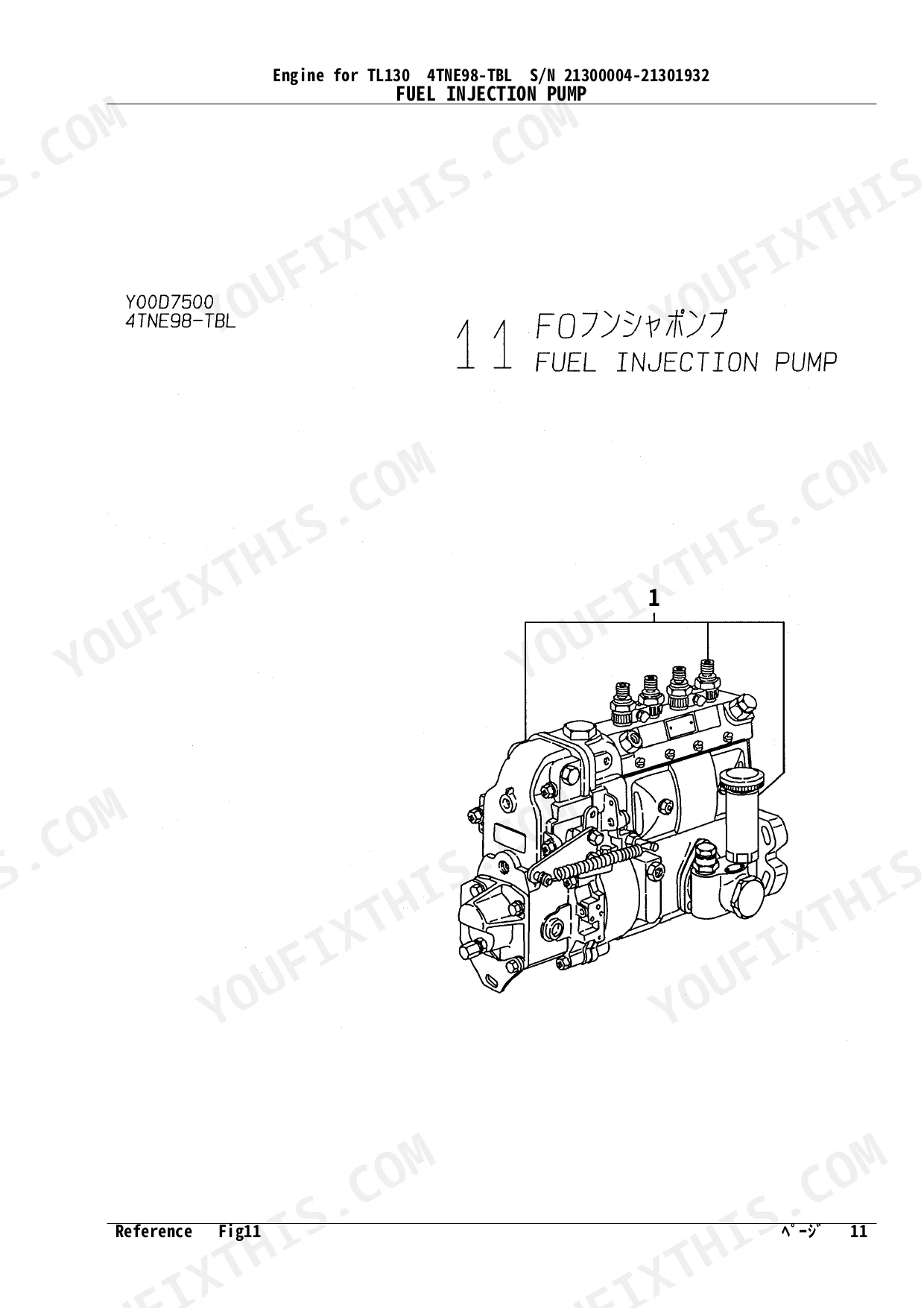

| System | Pages |
|---|---|
| Cylinder Block | - |
| Gear Housing | - |
| Flywheel Housing & Oil Sump | - |
| Cylinder Head & Bonnet | - |
| Suction Manifold & Air Cleaner | - |
| Exhaust Manifold & Silencer | - |
| Camshaft & Driving Gear | - |
| Crankshaft & Piston | - |
| Lub.Oil System | - |
| Cooling Water System | - |
| Fuel Injection Pump | - |
| Fuel Injection Valve | - |
| Fuel Line | - |
| Engine Stop Device | - |
| Starting Motor | - |
| Generator | - |
| Gasket Set | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Spring Pin Dimension | 6mm x 12mm | p. 59 |
| Parallel Pin Dimension | 10mm x 22mm | p. 59 |
| O-Ring Size | P-20 | p. 7 |
| O-Ring Size | S-53.0 | p. 59 |
| Clamp Size | 140mm | p. 29 |
Yanmar 4TNE98-TBL Common Problems This Manual Covers
Yanmar TL130 4TNE98-TBL engine hard starting or no-start condition after fuel system service p. 24
Check the fuel parts exploded diagram on page 24. Identify the correct replacement rubberized fuel hoses and air bleed components. Verify the exact part numbers in the index. Inspect all connections and order the exact 140mm clamp listed on page 29 to properly secure the lines.
Manual Section: Tne98-TblMissing part numbers for the cylinder head gasket and associated internal O-rings after white smoke p. 59
Inspect the engine parts diagram to locate the cylinder head gasket assembly. Review the breakdown on page 59 for 4TNV98-YTBL and 4TNV98-YTBL1 applications. Order the correct S-53.0 O-ring size and the exact head gasket kit matching your engine serial number from the parts list.
Manual Section: Tnv98-YtblCannot locate replacement internal injector seals and rings to fix fuel leakage into lubricating oil crankcase p. 7
Find the specific P-20 O-ring size on page 7. Compare the engine parts diagram with your current setup to ensure correct seal identification. Order the exact replacement O-rings from the parts list on page 5 to prevent fuel from bypassing into the oil pan.
Manual Section: Tne98-TblMissing part numbers for the replacement water pump and cooling components after coolant level dropping unexpectedly p. 22

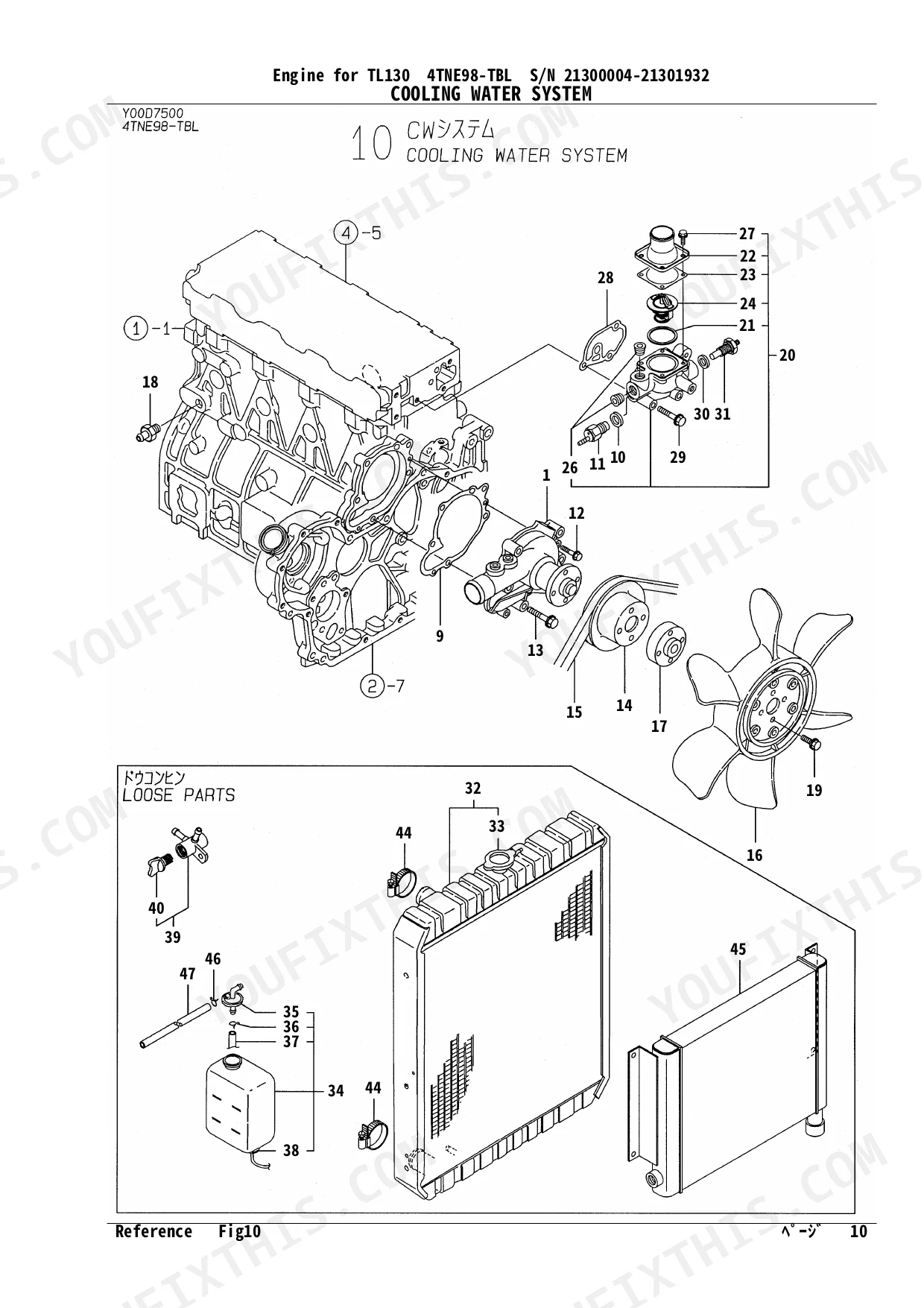

Review the cooling parts exploded view on page 22. Identify the correct water pump, gaskets, and hoses required for your repair. Check the hardware list to ensure you order the required 6mm x 12mm spring pin shown on page 59 for complete water pump assembly.
Manual Section: Tne98-TblFrequently Asked Questions
What are the replacement specifications for Fuel filter?
For the Yanmar 4TNE98-TBL engine, the replacement fuel filter part number is 119000-55601. This filter is listed under the 'FUEL LINE' section of the parts catalog.
What are the replacement specifications for Oil filter?
For the Yanmar 4TNE98-TBL engine, the replacement oil filter part number is 129150-35152, identified as 'FILTER 80X80L'. This part is found in the 'LUB.OIL SYSTEM' section of the manual.
Which diagram and part numbers cover this issue: Yanmar TL130 4TNE98-TBL engine hard starting or no-start condition after fuel system service?
Check the fuel parts exploded diagram on page 24. Identify the correct replacement rubberized fuel hoses and air bleed components. Verify the exact part numbers in the index. Inspect all connections and order the exact 140mm clamp listed on page 29 to properly secure the lines.
Which diagram and part numbers cover this issue: Missing part numbers for the cylinder head gasket and associated internal O-rings after white smoke?
Inspect the engine parts diagram to locate the cylinder head gasket assembly. Review the breakdown on page 59 for 4TNV98-YTBL and 4TNV98-YTBL1 applications. Order the correct S-53.0 O-ring size and the exact head gasket kit matching your engine serial number from the parts list.
Which diagram and part numbers cover this issue: Cannot locate replacement internal injector seals and rings to fix fuel leakage into lubricating oil crankcase?
Find the specific P-20 O-ring size on page 7. Compare the engine parts diagram with your current setup to ensure correct seal identification. Order the exact replacement O-rings from the parts list on page 5 to prevent fuel from bypassing into the oil pan.
Which diagram and part numbers cover this issue: Missing part numbers for the replacement water pump and cooling components after coolant level dropping unexpectedly?
Review the cooling parts exploded view on page 22. Identify the correct water pump, gaskets, and hoses required for your repair. Check the hardware list to ensure you order the required 6mm x 12mm spring pin shown on page 59 for complete water pump assembly.
How will I receive this Yanmar TL130 Engine Parts Catalog?
You get a searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this manual?
No. The PDF is DRM-free, so print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
