Searching for a Yanmar 4TNE98 service manual PDF that covers the full engine family? These 174 pages (OEM #HINSHI-H8013-R1) tackle all four variants: the 4TNE94, 4TNE98, 4TNE106, and turbocharged 4TNE106T, fitted to 5-ton mini-excavators and skid steer loaders. Inside: a full troubleshooting section with compression pressure procedures, page after page of torque tables, detailed clearance specs for cylinder bores, crankshaft, pistons, and gear backlash, plus exploded views and test value charts for the starting motor and alternator broken out by engine variant. A dedicated turbocharger section walks the 4TNE106T through disassembly, washing, inspection, and reassembly. Torque the injection pump drive gear nut to 83.3-93.1 N-m, then verify your 4TNE94/98 starter pulls no more than 140A at 11V unloaded. No more hunting specs from a faded decal. Jump to any section by keyword; download it and bring your tablet straight to the machine.
What's Inside This Yanmar 4TNE Series Manual
| System | Pages | Key Topics |
|---|---|---|

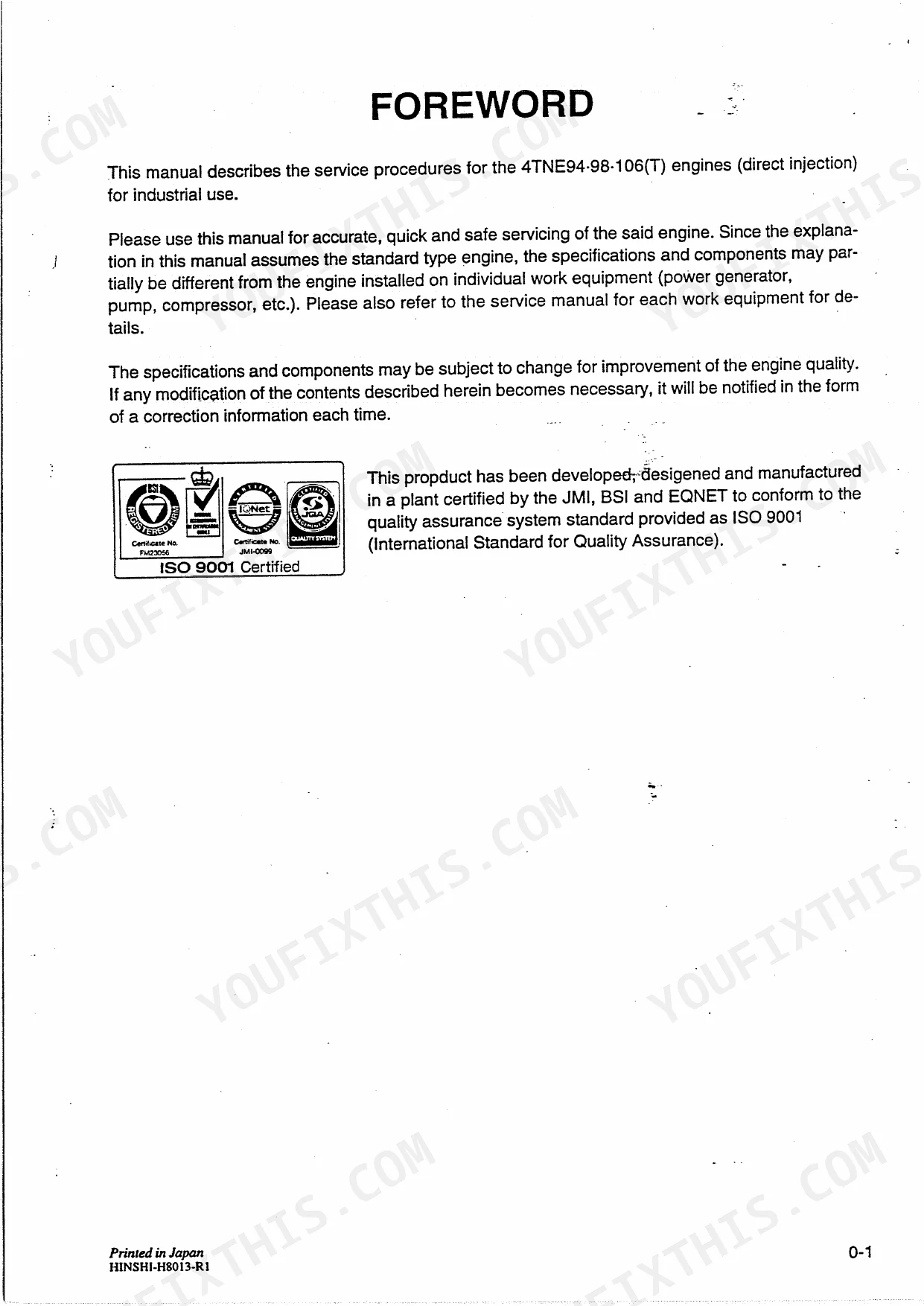

| Foreword | 0-1 to 0-2 | Purpose and Scope of Manual, Safety Notices |
| For Safe Servicing | 0-2 to 0-3 | Service Shop Safety, Working Wear, Tools, Genuine Parts, Bolt Torques, Electrical Parts, Waste Treatment |

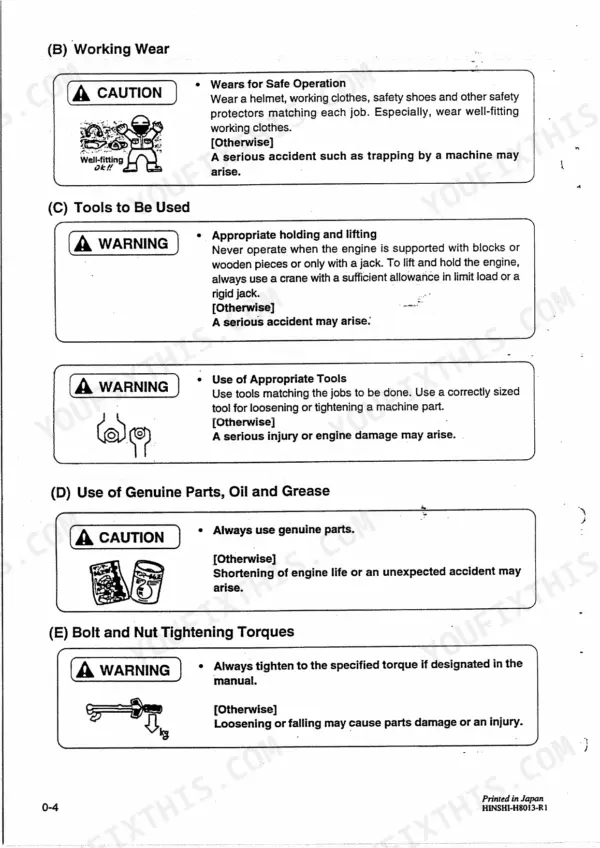

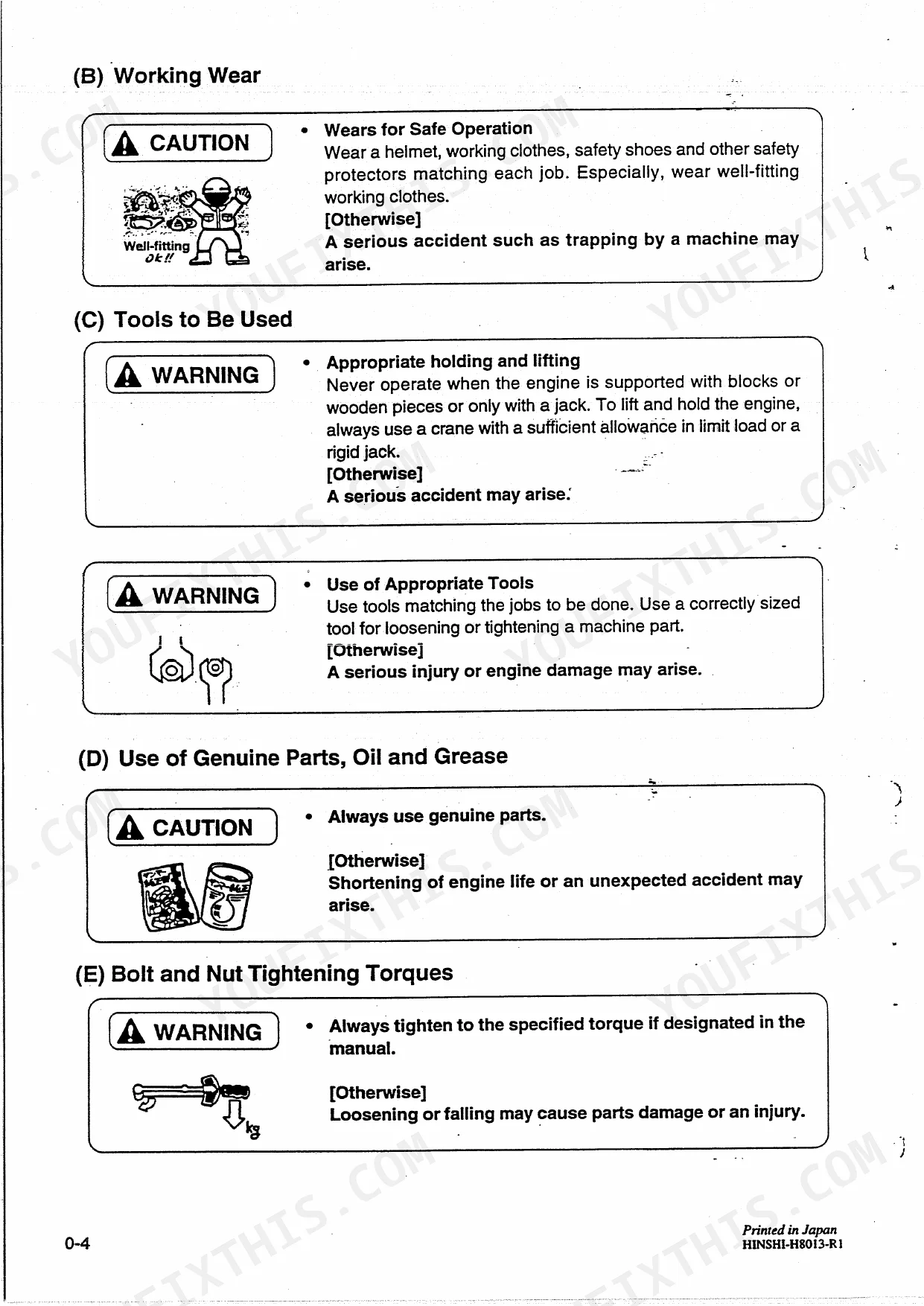

| Precautions for Safe Servicing | 0-3 to 0-6 | Service Shop (Place), Working Wear, Tools to Be Used, Use of Genuine Parts Oil and Grease, Bolt and Nut Tightening Torques, Electrical Parts, Waste Treatment, Handling the Product |

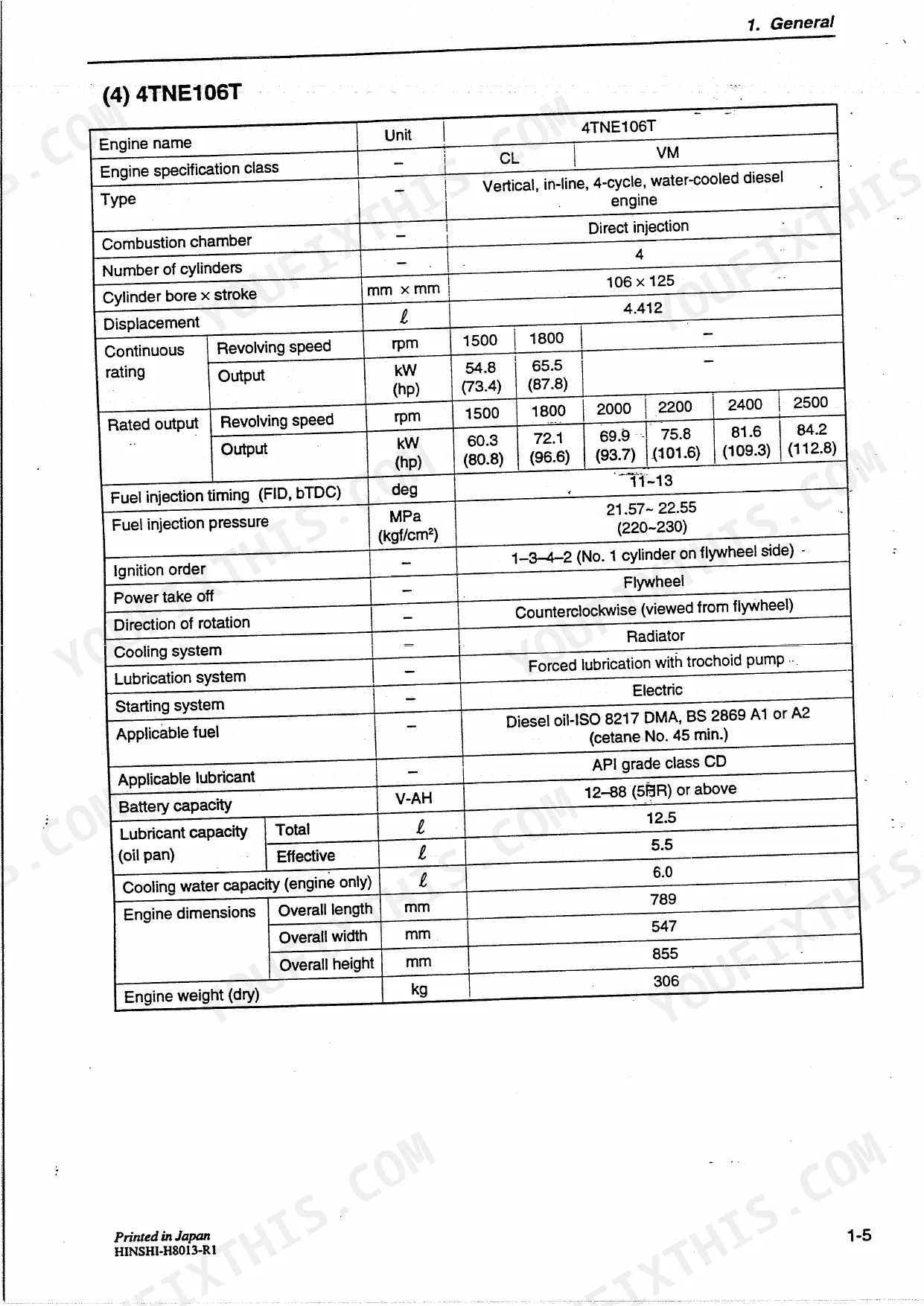

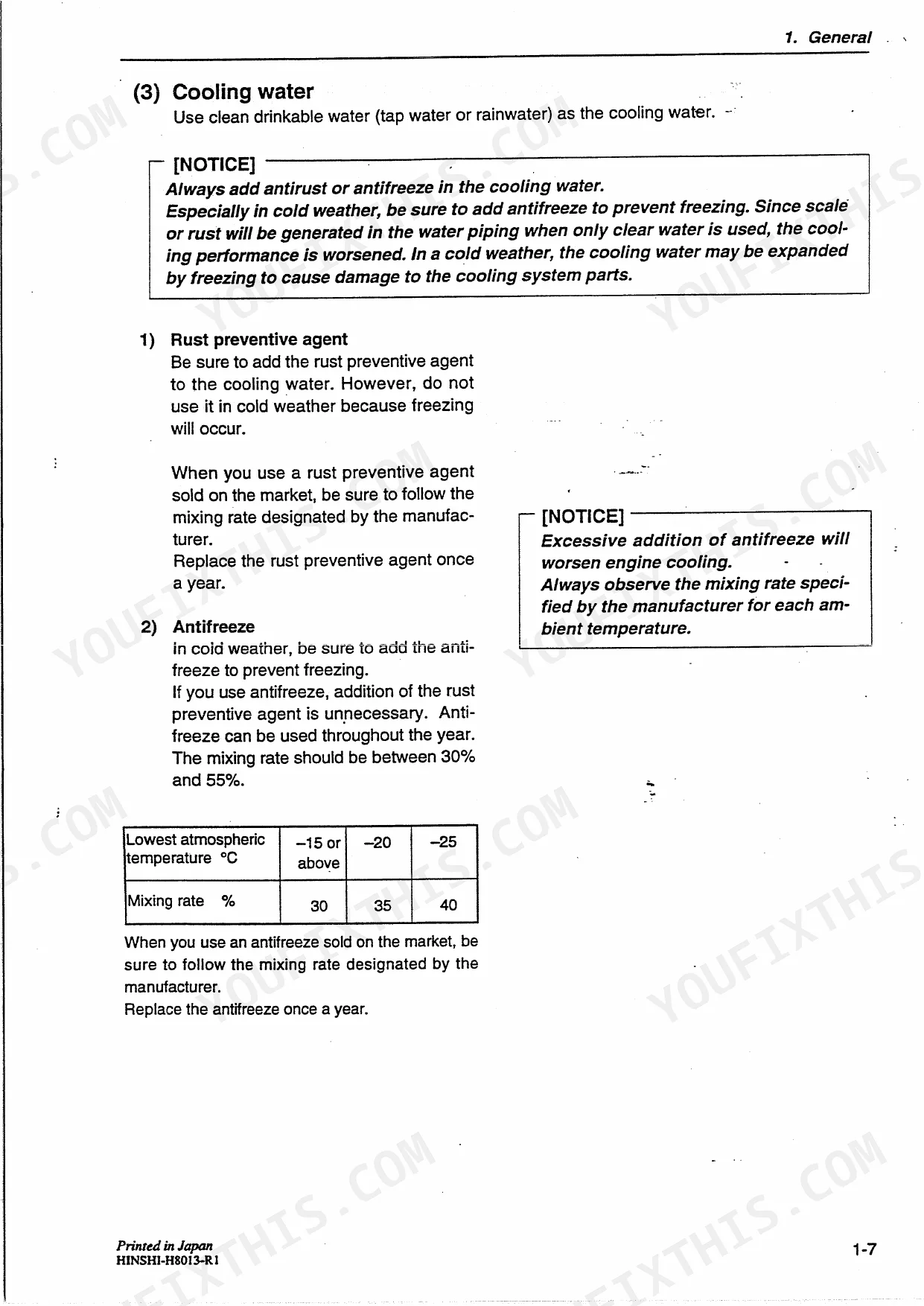

| General | 12-25 | Engine Nomenclature, Specifications, Fuel Oil, Lubricating Oil and Cooling Water, Engine External Views, Structural Description |

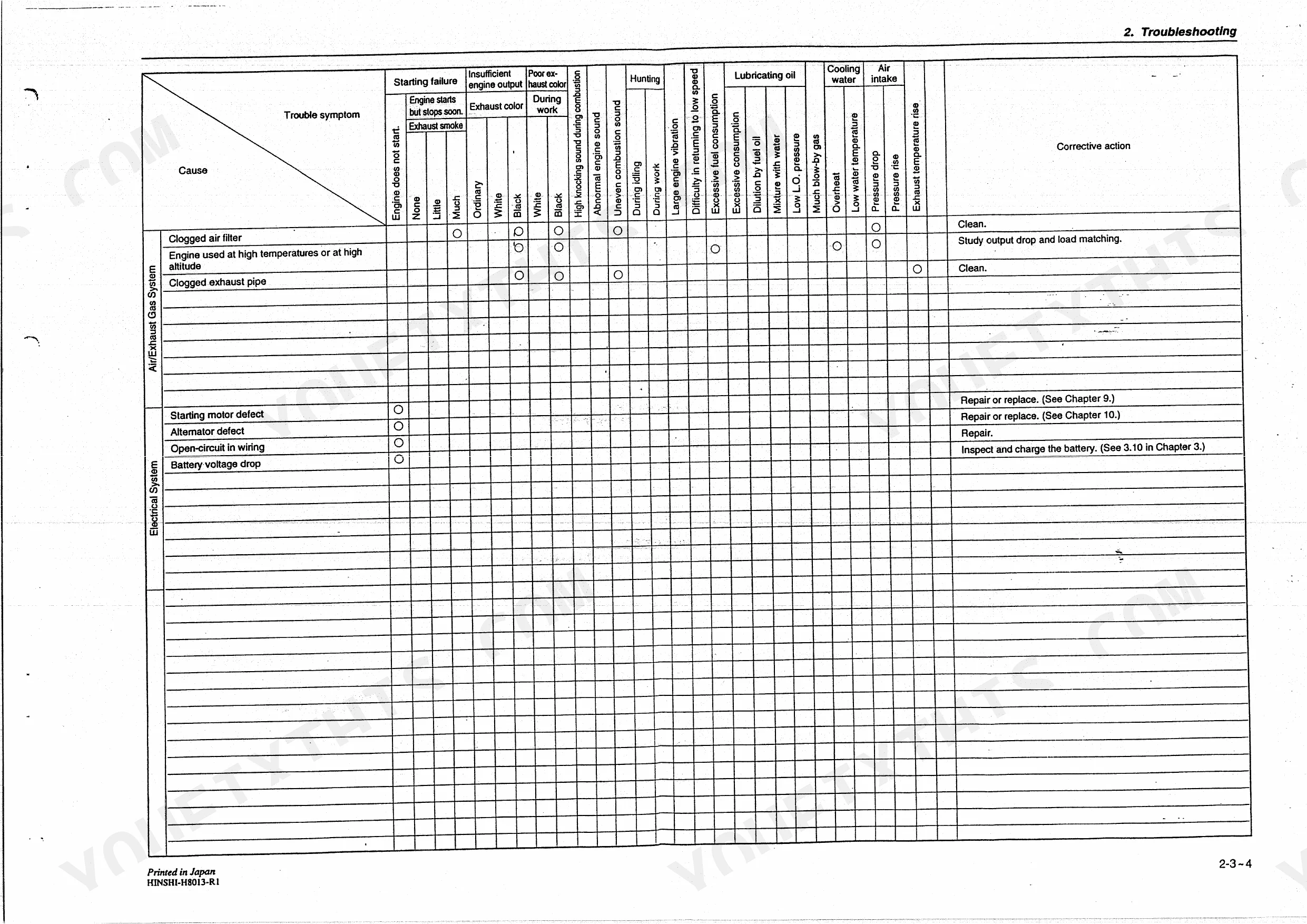

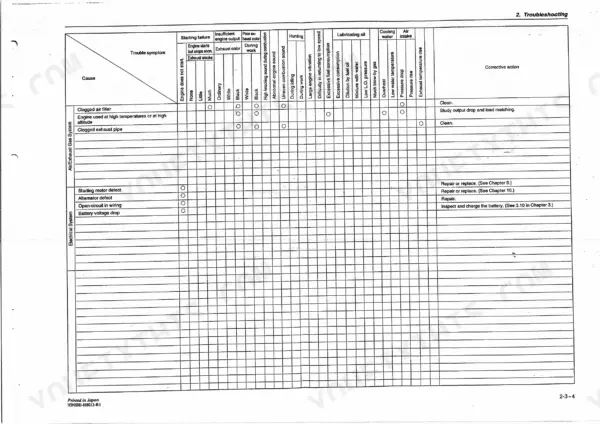

| Troubleshooting | 26-31 | Quick Reference Table, Compression Pressure Measurement Method, Standard Compression Pressure, Engine Speed and Compression Pressure, Measured Value and Troubleshooting |

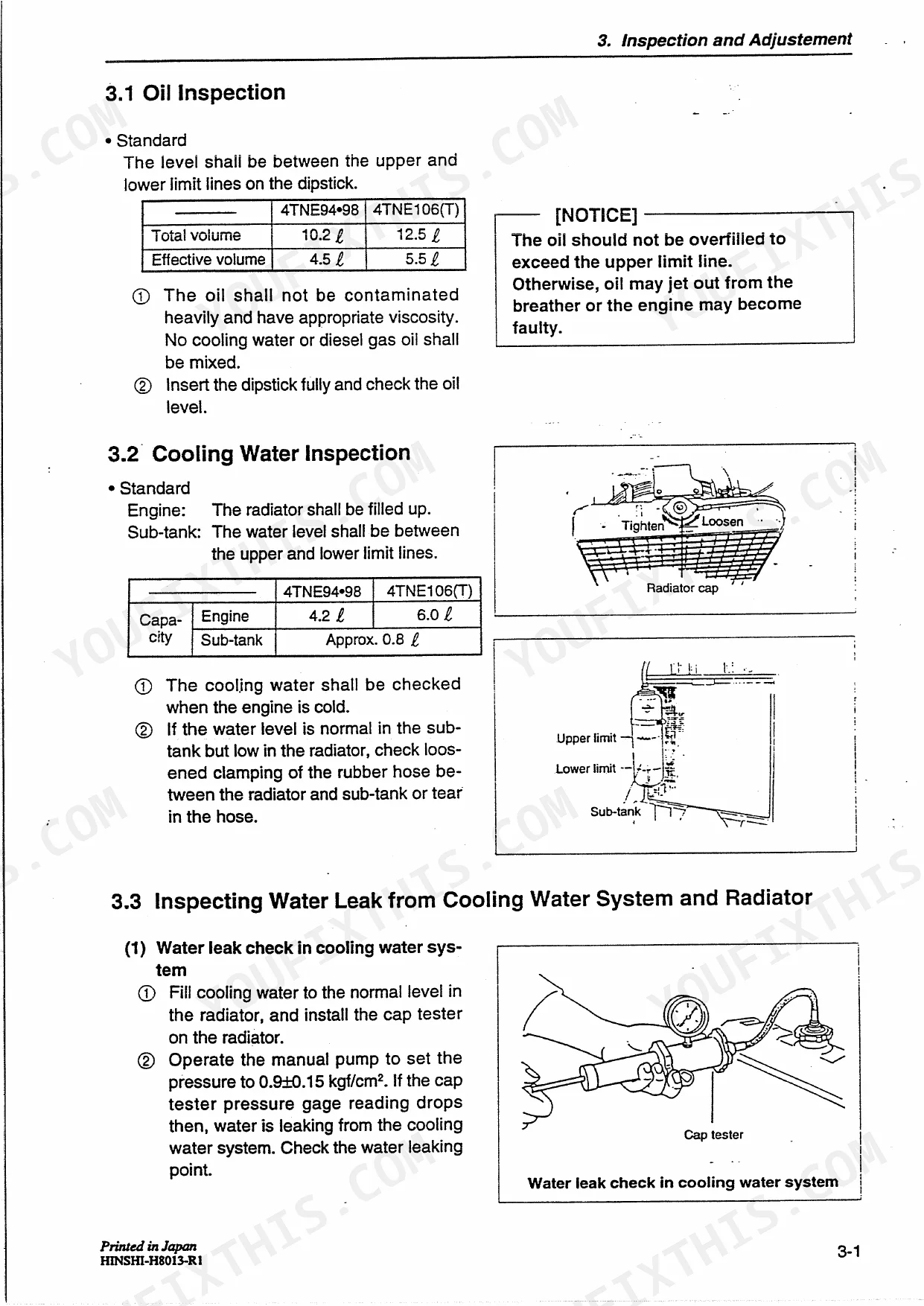

| Inspection and Adjustment | 32-47 | Oil Inspection, Cooling Water Inspection, Fan Belt Tension Inspection and Adjustment, Adjusting the Valve Clearance, Fuel Injection Valve Injection Pressure and Spray Pattern |
| Engine Body | 48-77 | Cylinder Head, Gear Train and Camshaft, Cylinder Block, Valve Seat Correction, Piston Pin Bushing Replacement, Oil Seal Replacement |
| Lubrication System | 78-79 | Lubrication System Diagram, Trochoid Pump Components, Disassembly, Servicing Points, Parts Inspection and Measurement |
| Cooling System | 80-81 | Cooling Water System, Cooling Water Pump Components, Disassembly, Servicing Points |
| Fuel Injection System /Governor | 82-91 | Fuel Injection Pump, Fuel Injection Valve, Fuel Feed Pump, Governor, Special Service Tools |

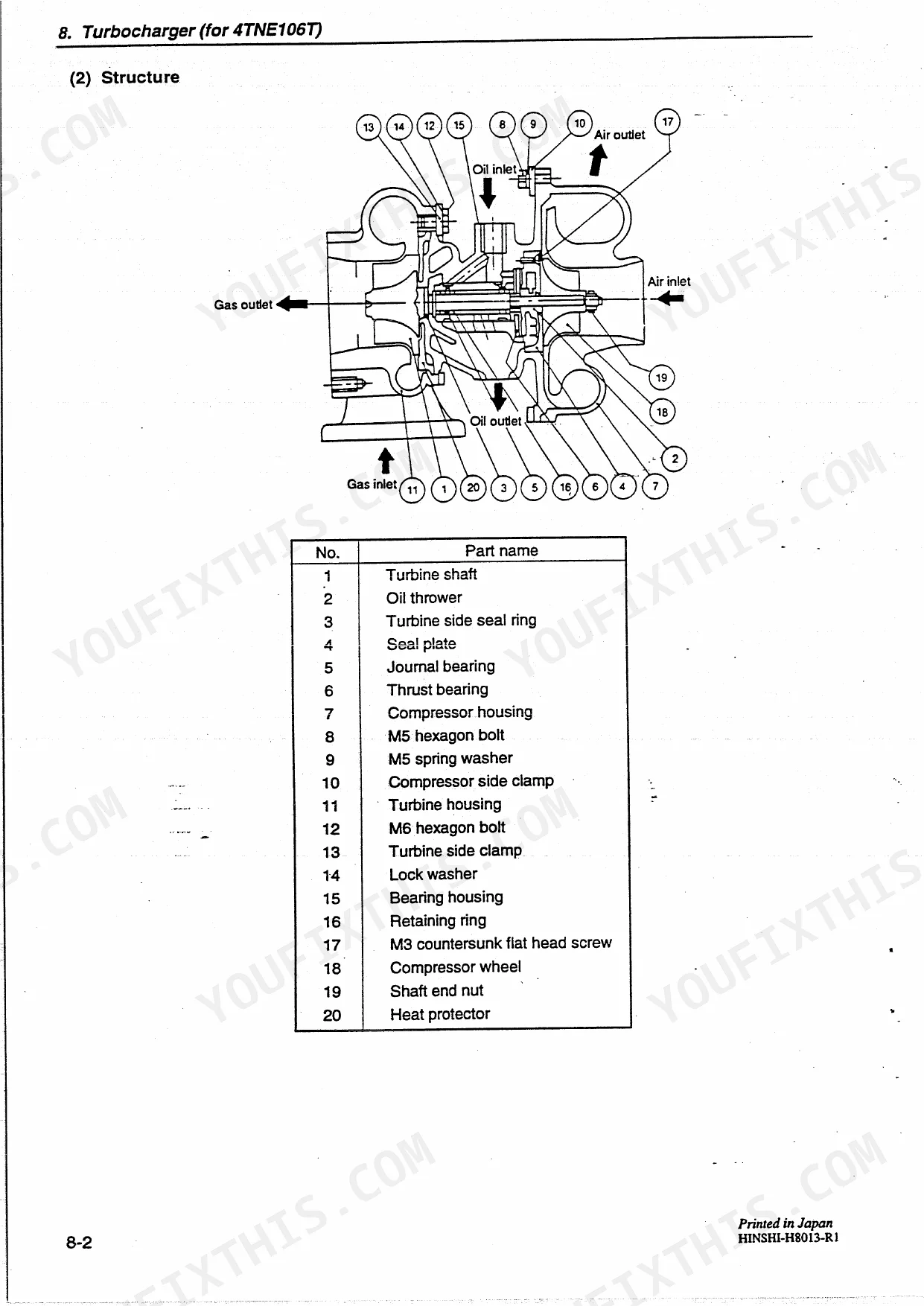

| Turbocharger(For 4Tne106T) | 92-111 | Structure and Functions, Service Standards, Periodic Inspection Procedure, Disassembly Procedure, Washing and Inspection Procedure, Reassembly Procedure |
| Starting Motor | 112-142 | Pinion and Drive Mechanism, Solenoid Switch, Brushes and Commutator, Armature Inspection, For 4TNE94/98, For 4TNE106(T) |
| Alternator | 143-164 | Charging Output Specifications, Voltage Regulator, Rotor and Stator Inspection, Rectifier Assembly, For 4TNE94/98, For 4TNE106(T) |
| Special Service Tools | 165-170 | Valve Guide Tool, Connecting Rod Bushing Replacer, Flex-Hone, Dial Gage, Micrometer, Torque Wrench |
| Service Standards | 171-174 | Idle Gear Shaft and Bushing, Backlash of Each Gear, Cylinder Inside Diameter, Crankshaft, Thrust Bearing, Piston and Ring |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Pump drive gear nut tightening torque | 83.3-93.1 Nm (8.5-9.5 kgf·m) | p. 85 |
| No-load Terminal voltage/current | 11/140 or less V/A | p. 116 |
| Loaded Terminal voltage/current | 2.5/1050 or less V/A | p. 116 |
| Hexagon Bolt (7T)/Nut M6 x 1 Tightening Torque | 9.8-11.8 Nm (1.0-1.2 kgf-m) | p. 25 |
Yanmar 4TNE Series Common Problems This Manual Covers
Yanmar 4TNE94 hard starting, no-start, or starts only with extended cranking in cold weather p. 116
Test the starter motor electrical draw. Inspect the battery and wiring for corrosion. Measure the no-load terminal voltage and current, verifying it reads 11/140 or less V/A as shown on page 116. Replace the starter if current draw exceeds specifications and connections are clean.
Manual Section: Starting MotorLoss of power, bogging, or black smoke under load after injection pump service p. 85
Check the injection pump timing and drive gear security. Remove the timing cover to inspect the gear assembly. Torque the pump drive gear nut to 83.3-93.1 Nm (8.5-9.5 kgf·m) following the procedure on page 85. Adjust fuel delivery settings if black smoke persists under load.
Manual Section: Fuel Injection System /GovernorOil leaks from covers or engine surging due to loose intake and exhaust manifold hardware p. 25
Inspect all M6 x 1 external cover bolts and manifold nuts for proper tension. Clean the mating surfaces and replace worn gaskets. Torque the hexagon bolts and nuts to 9.8-11.8 Nm (1.0-1.2 kgf-m) as specified on page 25. Run the engine and verify leak-free operation.
Manual Section: GeneralHeavy equipment hydraulic functions weak or slow after engine replacement combined with slow engine cranking p. 133
Verify electrical connections at the magnetic switch and battery terminals. Measure the starter motor no-load terminal voltage and current. Ensure the draw is 12/180 or less V/A according to page 133. Clean all battery cable ends and retest before assuming internal starter brush failure.
Manual Section: Starting Motor
