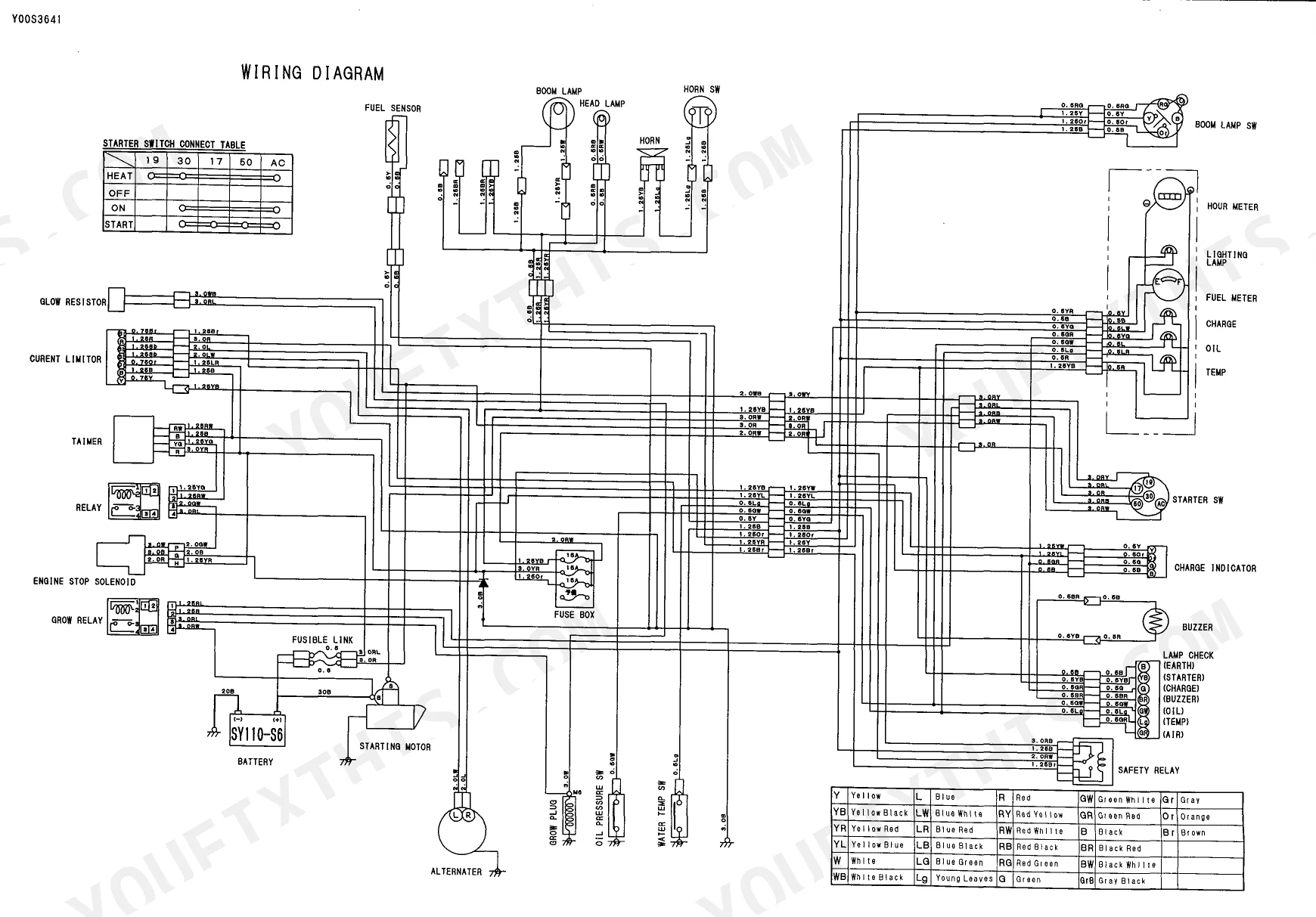

Need OEM part numbers for your 1997 Yanmar VIO15 (EP) Crawler Backhoe? This 115-page parts catalog (OEM #000Y00S3641) covers the 3TNE68L-UBB from engine mount and air cleaner through every hydraulic cylinder, travel motor, and boom linkage. Inside: exploded-view diagrams with cross-referenced part numbers for the complete hydraulic system (boom, arm, bucket, swing, and blade cylinders, control valve, swivel joint, and oil piping), electrical wiring coverage for the harness, fuse box, and relay circuit, plus crawler/roller and frame assembly breakdowns. Even factory paint gets documented: Yanmar Ocean Green is spec'd at Munsell 7.62BG3/8.09, so your body shop hits the original color on the first coat. Stop hunting part numbers across four dealer calls. Bookmarked by system and keyword-searchable; pull it up on any device, jump straight to the section you need, and order the right part the first time.
What's Inside This Yanmar VIO15 (EP) Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Label | 15-16 | Caution Plate Assy |
| Safety Label | 17-18 | Exhaust Tube Assy, Thermal Insulant, Gasket, Silencer Gasket, Silencer, Air Cleaner Hose a, Air Cleaner Hose B, Cleaner Support Cmp |
| Silencer & Air Cleaner | 19-20 | Accel Lever, Accelerator Arm Comp, Accelerator Grip, Accel Bracket, Accelerator Cable, Spring |
| Accelerator | 21-22 | Engine Mount, Stopper Plate, Shock Absorber, Cushion, Engine Stopper |
| Engine Mount | 23-24 | Radiator Mount Assy, Radiator Seal a, Radiator Seal B, Radiator Seal D, Radiator Seal C, Seal Rubber, Fuel Hose B, Seal Plate J |
| Radiator & Mount | 25-26 | Fuel Tank Assy, Cock, Fuel Gauge Hose, Gasket, Seal Rubber, Float, Fuel Tank Cap, Fuel Gauge Unit |
| Fuel Tank & Fuel Pipe | 27-28 | Battery Positv Cord, Battery Harness, Battery, Battery Cover, Battery Clamp Rod |
| Battery | 29-30 | Wire Harness, Cover, Huse, Fuser Body, Fusible Link, Fuse Bracket, Band, Hose Clip |
| Electric Part | 31-32 | Band, Grow Relay, Indicator Box Assy, Front Cover, Fuel Meter Assy, Harness, Valve, Hourmeter |
| Work Lamp | 33-34 | Lead Wire, Band, Work Lamp Cover, Cover, Bulb 12V 27W |

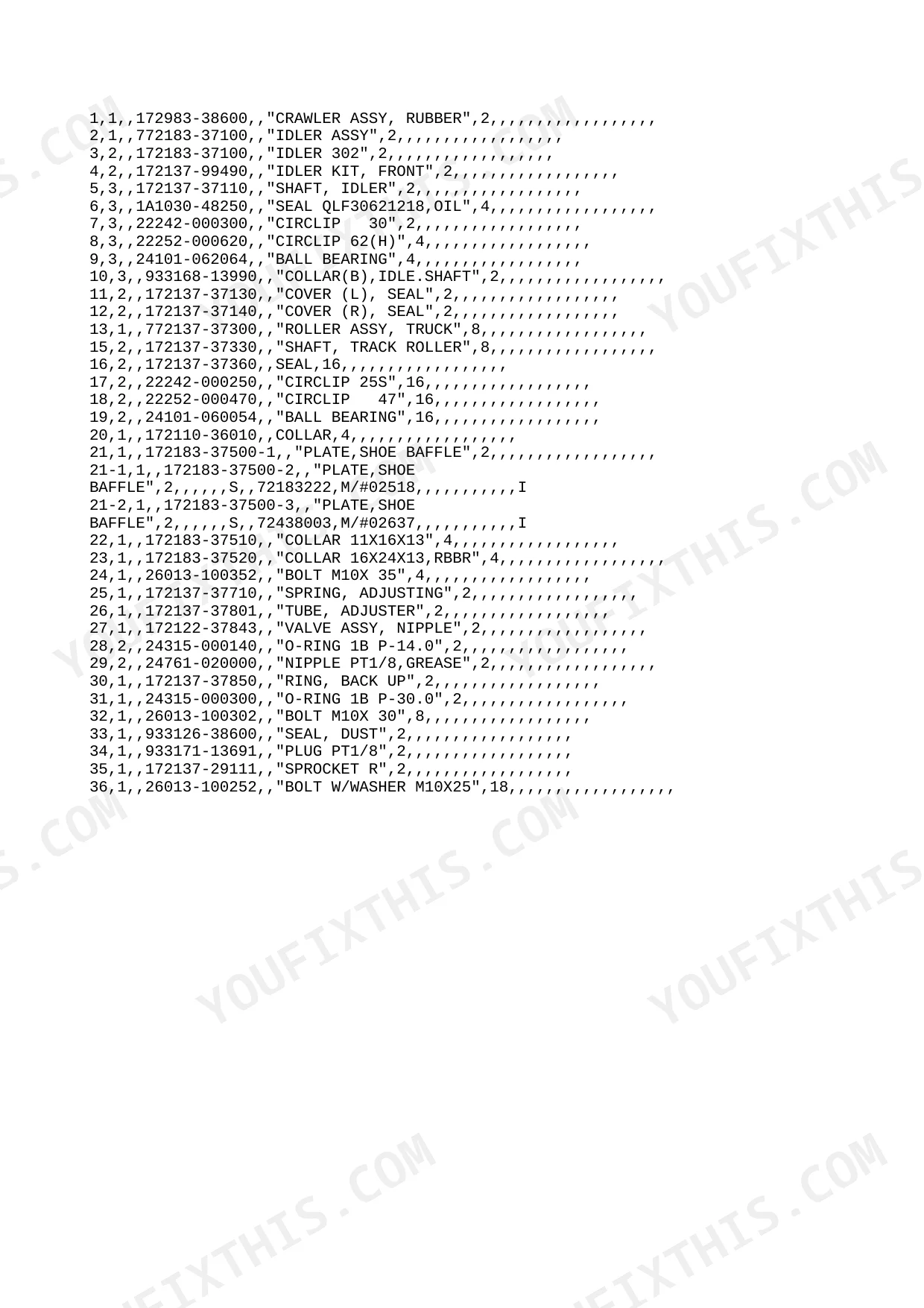

| Crawler, Roller & Adjust | 35-36 | Rubber Crawler Assy, Idler Assy, Front Idler Kit, Idler Shaft, Oil Seal QLF30621218, Idle.shaft Collar, Seal Cover, Truck Roller Assy |
| Control Equipment | 37-50 | Shaft, Spring, Support Cover, Cover L Compl, Cover R Compl, Grommet, Lock Pipe, Lock Link |
| Frame & Turning Bearing | 51-52 | Lower Frame, Grommet, Counter Weight, Turning Frame W/ Bush, Bush 50X65, Dust Seal 50X60X4, Grease Nipple B, Swing Bearing |
| Frame Cover | 53-54 | Lamp Cover, Cv Cover, Reservoir Cover, Silencer Cover, Stand Cover, Under Cover, Travel Cover, Reservr Cover |
| Step & Turning Lock Pin | 55-56 | Lock Lever Knob, Step Compl, Ns Side Step, Floor Mat, Step Bar |
| Instrument Panel | 57-58 | Instrmnt Panel, Instrument Moldings, Bolt, Washer |

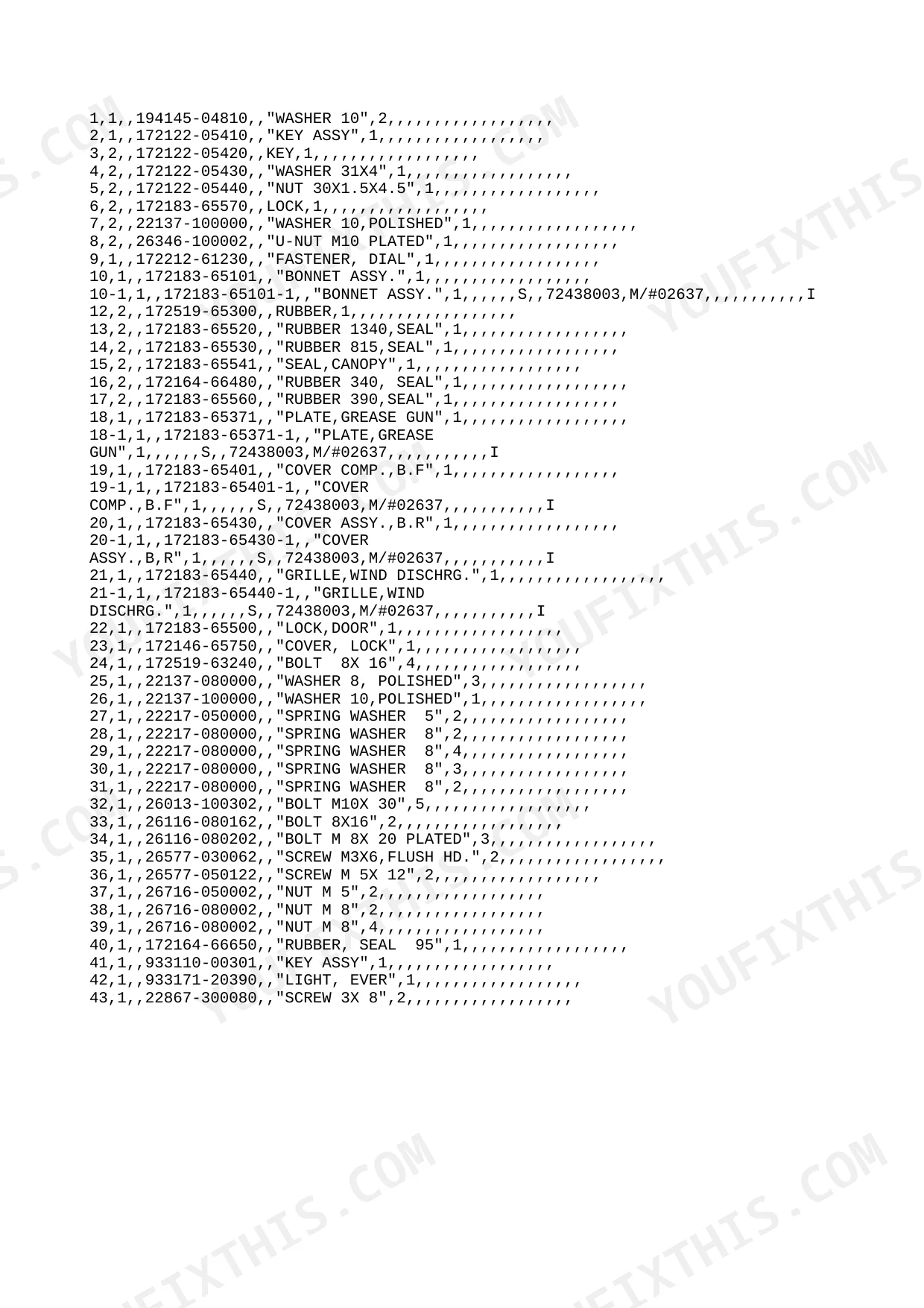

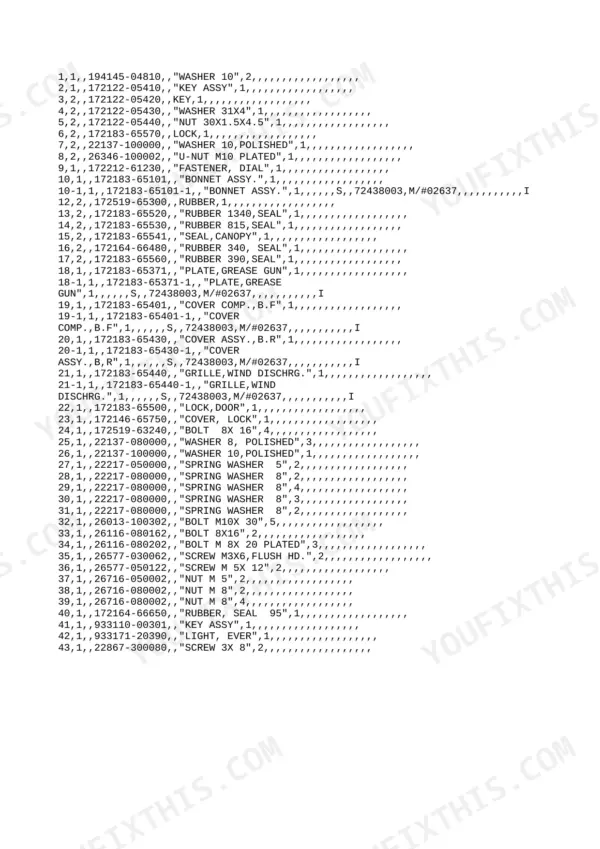

| Bonnet | 59-60 | Lock, U-Nut M10 Plated, Dial Fastener, Bonnet Assy, Rubber, Seal Rubber, Canopy Seal, Grease Gun Plate |
| Canopy | 61-62 | Canopy Roof, Canopy Pole, Canopy Base, Canopy Step |

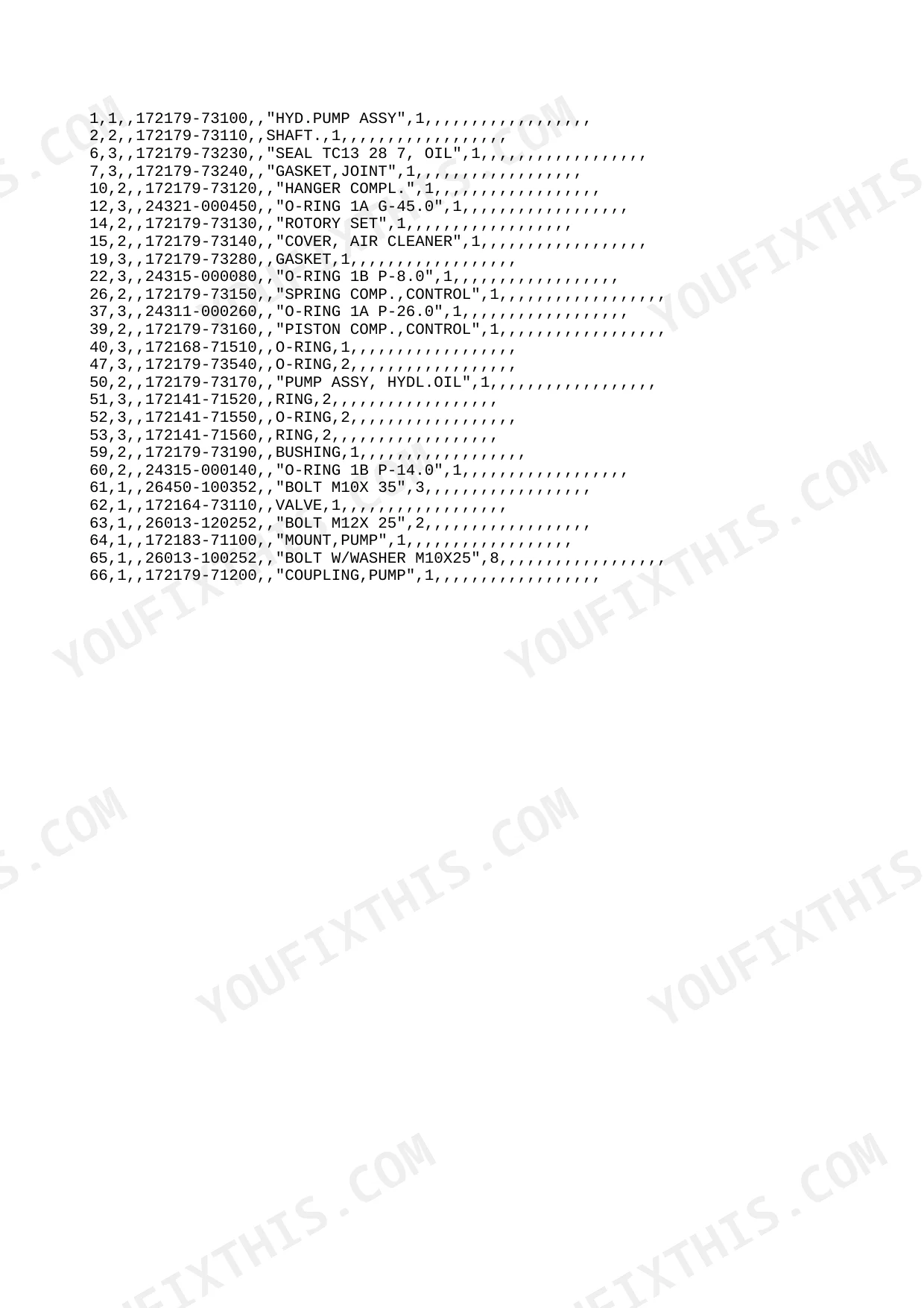

| Hyd. Oil Pump & Joint | 63-64 | Hydraulic Pump Assy, Shaft, Oil Seal TC13, Joint Gasket, Hanger Compl, Rotory Set, Air Cleaner Cover, Gasket |
| Boom Cylinder | 65-66 | Boom Tube, Seal 35X45X4, Boom Rod, Head Compl, Rod Bush, Support, Cushion Ring |
| Arm Cylinder | 67-68 | Arm Tube, Dust Seal 38X48X, Arm Rod, Piston, Cylinder Head, Rod Bush, Bucket Cylinder Kit |
| Bucket Cylinder | 69-70 | Bucket Cylinder Cmp, Piston, Cylinder Head, Rod Bush, Bucket Cylinder Kit, Piston Seal Set 60A, Head Seal Set, Spring Ring |
| Swing Cylinder | 71-72 | Grease Nipple PT1, Cylinder Seal Set, Head Seal Set, Piston Seal Set, Spring Ring, U-Nut M27, Head |
| Blade Cylinder | 73-74 | Piston, Cylinder Head, Rod Bush, Bucket Cylinder Kit, Piston Seal Set 60A, Head Seal Set, Spring Ring |
| Travel Motor | 75-76 | Orifice, Spring Seat, Spring, Cap, Plate, Speed Reducer, Floating Seal |
| Turning Motor | 77-78 | Swing Motor, Valve 85K Compl, Cartridge Assy, Seal Kit, Motor Swing, Motor Assy, Pinion Assy, Turn.motor Seal Kit |
| Swivel Joint | 79-80 | Swivel Joint Assy, Swivel Shaft, Swivel Flange, Swivel Hub, Swivel Spacer, Swivel Seal Set, Buck Up Ling El |
| Control Valve | 81-82 | Travel Section L Cmp, Dust Wiper, Arm Section, Turn G Section, Blade Section, Service Section Comp, Swing Section |
| Low-High Valve | 83-84 | Valve, Seal Plate, Spacer, Wiper, Cap, Spring Seat, Spring |
| Hyd. Oil Tank | 85-86 | Reservoir Assy, Seal Rubber, Rubber, Rsvr.therml Insulant, Oil Level Gauge, Gasket, Suction Flange, Intake Cover |
| Hyd. Oil Piping | 87-104 | Adaptor, -Way Joint, Suction Flange, Connector, Joint, Joint PF1, Drain CONNECTR.PT3, Elbow - |
| Greasing | 105-106 | Spacer, Boom W/ Bush, Seal 35X45X4, Bush, Grease Nipple B, Boom Bracket, Grease Nipple PT1, Tree Clip |
| Boom & Boom Bracket | 107-108 | Spacer, Arm Assy, Dust Seal 38X48X, Grease Nipple B, Arm Pin Kit, Grease Nipple PT1, Bucket Link, Bush |
| Arm & Bucket Link | 109-110 | Shift Collar, Grease Nipple PT1, Pin, Bolt |
| Bucket Pin | 111-112 | Spacer, Collar, Blade Compl, Dust Seal 38X48X, Grease Nipple PT1, Grease Nipple B |
| Blade | 113-115 | Blade Cylinder |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| M/#02517 | ||
| YANMAR OCEAN GREEN Munsell No. | 7.62BG3/8.09 | p. 2 |
| YANMAR OCEAN GREEN Color Code | 98 | p. 2 |
| YANMAR PEACOCK GREEN Munsell No. | 3.8BG5.31/9.15 | p. 2 |
| YANMAR PEACOCK GREEN Color Code | 97 | p. 2 |
| YANMAR CITRUS GREEN Munsell No. | 4.84GY8.42/6.99 | p. 2 |
| YANMAR CITRUS GREEN Color Code | 96 | p. 2 |
| YANMAR DARK OLIVE GRAY Munsell No. | 5.39Y2.92/0.78 | p. 2 |
| YANMAR DARK OLIVE GRAY Color Code | 72 | p. 2 |
| M/#02518 ~ M/#02636 | ||
| YANMAR NEW DEEP GREEN Color Code | 88 | p. 3 |
Yanmar VIO15 (EP) Common Problems This Manual Covers
Need to order correct touch-up paint and replacement safety labels for Yanmar VIO15 cab restoration p. 17
Check page 2 for the exact paint match. Order YANMAR OCEAN GREEN using Color Code 98 or Munsell No. 7.62BG3/8.09 for serial M/#02517. Inspect the safety label diagrams on page 17 to identify the required caution plate assembly part numbers.

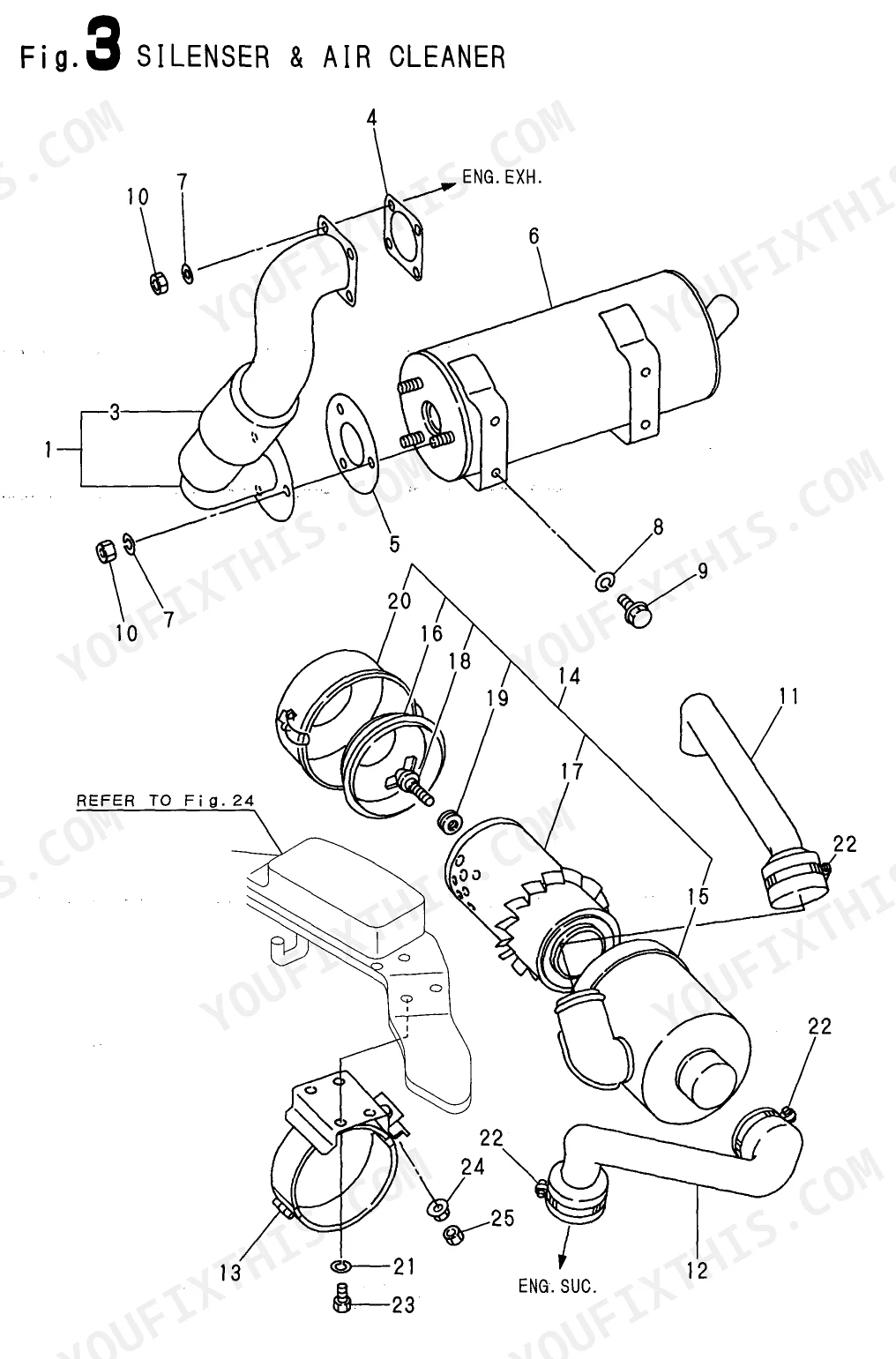

Manual Section: Safety LabelCan't identify the right replacement air cleaner element and exhaust tube components for engine maintenance p. 19
Review the engine parts diagram on page 19. Find the exact part numbers for the air cleaner element and exhaust tube assembly. If repainting the mounting brackets on serials M/#02518 through M/#02636, use YANMAR NEW DEEP GREEN Color Code 88.
Manual Section: Silenser & Air CleanerNeed to find the correct control valve sections and replacement wiper dust seals for hydraulic system leaks p. 81
Check the exploded view on page 81. Locate the exact part numbers for the travel section, wiper, and dust seals. Verify the proper placement of the Plug PF1/4 fitting within the valve assembly before ordering replacement components to fix leaks.
Manual Section: Control ValveUnable to identify the right suction flange and return filter assembly numbers for the low-high valve circuit p. 83
Inspect the parts breakdown on page 83. Find the correct part numbers for the suction flange, return filter assembly, and oil level gauge. Use the Joint 3/8 fitting reference on page 85 to confirm compatibility with your hydraulic oil tank lines.

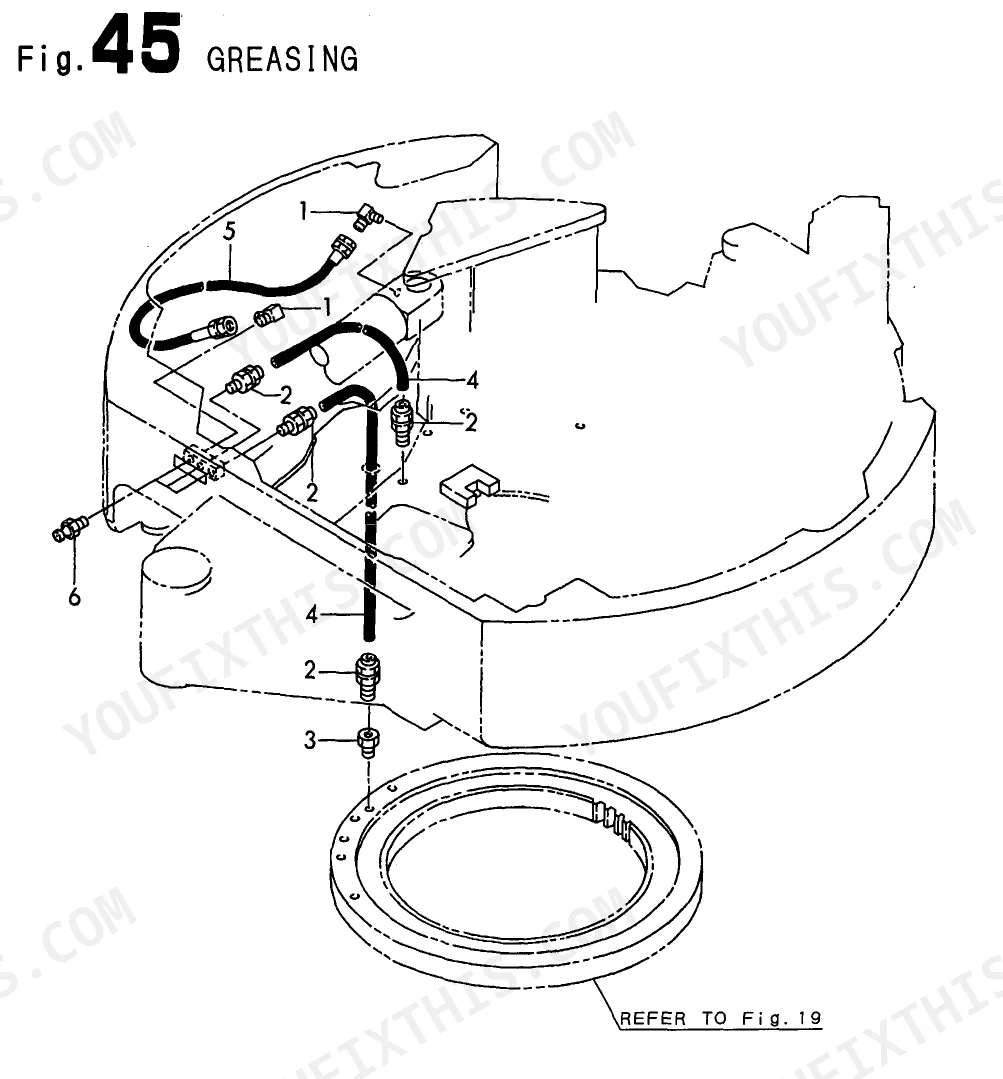

Manual Section: Low-High ValveLooking for the exact grease nipple and bucket pin spacer part numbers to fix linkage wear p. 105
Review the attachment parts diagram on page 105. Identify the required part numbers for the boom bushings, shims, and spacers. Confirm the specific Nipple PT1/8 grease fitting part numbers on page 111 to ensure proper lubrication of the bucket pins.
Manual Section: GreasingFrequently Asked Questions
What paint colors and codes does the Yanmar VIO15 (EP) use?
Page 2 lists the factory paint match. YANMAR OCEAN GREEN is Color Code 98 / Munsell No. 7.62BG3/8.09 for serial M/#02517. For serials M/#02518 through M/#02636, use YANMAR NEW DEEP GREEN Color Code 88. Page 17 shows the caution-plate (safety label) part numbers.
Where do I find the air cleaner element and exhaust parts?
Review the engine parts diagram on page 19 for the exact air cleaner element and exhaust tube assembly part numbers.
How do I find the control valve sections and seal parts?
Check the exploded view on page 81 for the control valve sections, wiper, and dust seal part numbers, and confirm the Plug PF1/4 fitting placement before ordering.
Where are the suction flange and return filter assembly parts?
Inspect the parts breakdown on page 83 for the suction flange, return filter assembly, and oil level gauge. Use the Joint 3/8 fitting on page 85 to confirm tank-line compatibility.
Where do I find the grease nipple and bucket pin parts?
Review the attachment parts diagram on page 105 for the boom bushings, shims, and spacers, and confirm the Nipple PT1/8 grease fitting part numbers on page 111.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy text throughout. The text quality is generally clear and readable, though some pages exhibit minor fading or slight blurriness typical of scanned materials. Diagrams and illustrations are raster images; they are mostly clear with readable labels at standard zoom levels. Pages are largely clean, with only occasional minor scan artifacts or slight skewing that do not hinder readability. Be aware that there are several blank filler pages interspersed, particularly at the end of sections.
