Hunting for the right replacement components? This 261-page Yanmar VIO35-6A Parts Manual PDF (OEM #0CS10-M57800EN) maps out every bolt, pin, and linkage assembly for your crawler back-hoe excavator. Inside, you get detailed exploded views, complete part number lists, and precise component identification for the entire machine. Open up the undercarriage, cabin, and hydraulic sections to see exactly how your equipment fits together down to the last washer. Pull the exact part number for the QLF30621218 oil seal on your track roller, or verify the O-ring layout inside the Angle Blade control valve before tearing it apart. Stop ordering the wrong hardware from aftermarket sites. Download this bookmarked file directly to your phone, search for the assembly, and get your excavator back in the dirt.
What's Inside This Yanmar VIO35-6A Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Reference Materials | 2-5 | Preface, Parts Catalog History, Parts No. Index |

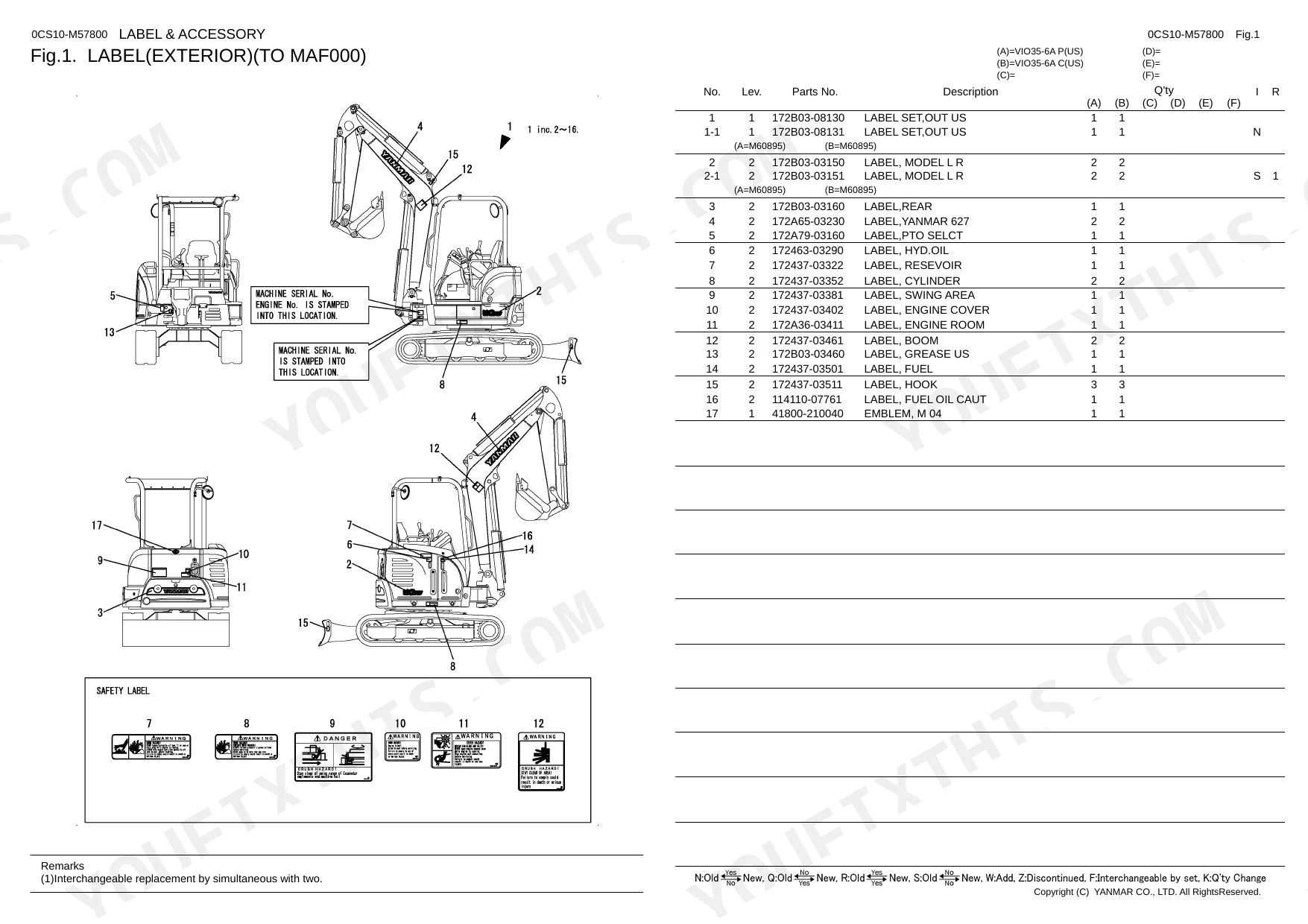

| Label (Exterior) (to Maf000) | 11 | Set, Out Us, Model L R, Rear, Yanmar 627, PTO Selct, HYD.OIL |
| Label (Exterior) (From Maf001) | 12 | Label Set, Out Us D, Label, Reflector M, Rear 30, Yanmar 630 Br |
| Label (Bonnet Inside) | 13 | Set, In Us, Sub Tank, Anti-Freezing, Fuse, Radiator, Battery |
| Label (Canopy) (to Maf000) | 14 | Set, 4P Us, Brandlogo 200, Crawler, Spec Us, Support, Operation |
| Label (Canopy) (From Maf001) | 15 | Label Set, 4P Us D, Label, Brandlogo 200, Crawler, Spec Us |
| Label (Canopy) (Angle Blade Spec.) (to Maf000) | 16 | Label Set, 4P Us Ang, Label, Brandlogo 200, Crawler, Spec Us Angle |
| Label (Canopy) (Angle Blade Spec.) (From Maf001) | 17 | Label Set, 4PUS Ang D, Label, Brandlogo 200, Crawler, Spec Us Angle |
| Label (Cabin) (to Maf000) | 18 | Set, Cab Us, Brandlogo 200, Crawler, Spec Us, Accelerator, Tag Assy, Caution |
| Label (Cabin) (From Maf001) | 19 | Label Set, Cab Us D, Label, Sw, Brandlogo 200, Crawler |
| Label (Cabin) (Angle Blade Spec.) (to Maf000) | 20 | Label Set, Cab Us Ang, Label, Cab L, Brandlogo 200, Crawler |
| Label (Cabin) (Angle Blade Spec.) (From Maf001) | 21 | Label Set, Cab Us Ang, Label, Sw, Brandlogo 200, Crawler |
| Label (Quick Coupler) | 22 | Set, Q Ex, Operation, Lock, Pinus, Finger, Lock Pin |
| Case (Tool) | 23 | Box Assy, Tool, Plate Assy, Up Box, Trim, Bolt, Wing, Washer |
| Muffler | 24 | Pipe Assy, Exhaust, Bracket Assy, Cover Assy, Sheet, Insulation, Label |
| Air Cleaner | 25 | Hose, Cleaner Assy, Air, Element, Cover Assy, Plug |
| Quick Coupler (Switch Box) | 42 | Box, Switch, Label, Switch Assy, Lamp, Indicator, Packing |
| Canopy Lamp | 43 | Band, Harness, Lamp a, Lamp B, Lamp, Work, Bulb |
| Work Lamp | 44 | Harness, Lamp Assy, Work, Bulb, Clamp, Band, Washer, Bolt |
| Instrument Panel | 45 | Plug, Panel, Buzzer, Monitor Assy, Switch, Light, Eco |
| Electric Parts (Ess) | 46 | Band, Harness Assy, Ess, Diode, Clamp, Relay, Control-Unit, Service |
| Heater | 47 | Band, Harness, Relay, Ca Type C, 200, Bolt, M6X 16 |
| Bracket Control | 48 | Bracket Assy, Cont, Cover Assy, Control, Rubber, Stopper, Bolt, M6X 16 |
| Electric Parts (Angle Blade Lever) (Angle Blade Spec.) | 50 | Band, Harness, Angle, Relay, Ca C Type, Bolt |
| Electric Parts (Angle Blade Lever) (Angle Blade & Ess Spec.) | 51 | Band, Harness Assy, Angle S, Diode, Relay, Ca C Type, Bolt |
| Air Conditioner (Electric Parts) | 52 | Band, Harness Assy, A/C, Diode, Relay, Ca Type C, Bolt |
| Air Conditioner (Unit) | 53 | Joint, Hose, Stay Assy, Bracket Assy, AC F, Filter, Air, Switch |

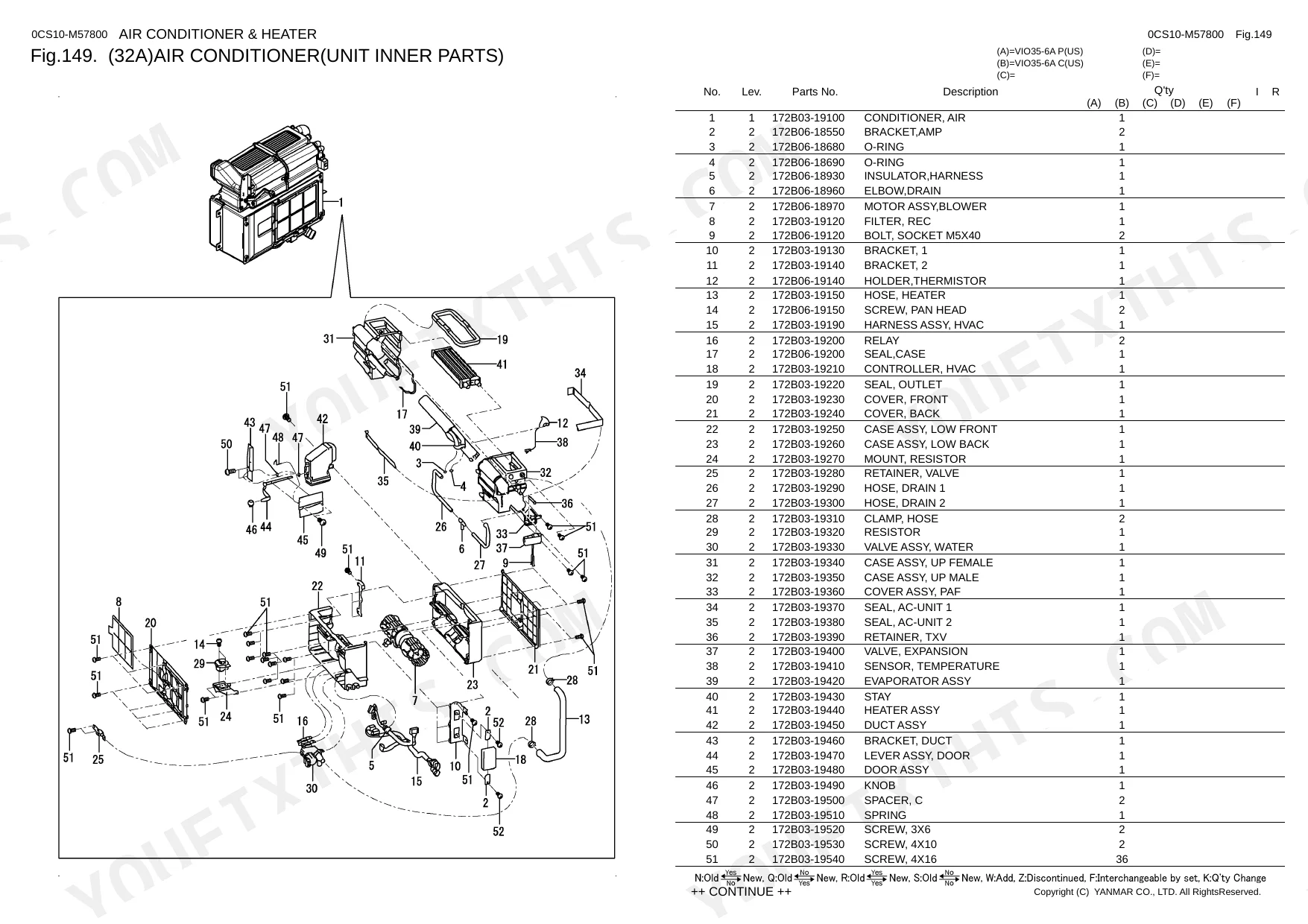

| Air Conditioner (Unit Inner Parts) | 54-55 | Conditioner, Air, Motor Assy, Blower, Harness Assy, HVAC, Controller |
| Air Conditioner (Piping) | 56 | Band, Clip, Hose, Joint, Pipe, Pipe Assy, Heater, Hose Assy |
| Air Conditioner (Engine Related) | 57 | Pulley, Compressor Assy, V-Belt, Bracket Assy, Adjuster Assy, Cover, Compressor |
| Air Conditioner (Condenser) | 58 | Drier, Receiver, Duct Assy, Condenser Assy, Bracket Assy, Cond, Motor Assy, Fan |
| Heater (Unit) | 59 | Joint, Hose, Stay Assy, Bracket Assy, Assy, Filter, Air |
| Heater (Unit Innetr Parts) | 60 | Heater Assy, Harness Assy, Motor Assy, Blower, Filter, Rec, Controller, HVAC |
| Heater (Piping) | 61 | Valve Assy, Joint, Pipe, Hose Assy, Clamp, Hose |
| Duct (Air Conditioner & Heater) | 62 | Grille, Assy, Intake, Seal |
| Sprocket | 63 | Bolt, Spring |
| Idler & Adjust (Rubber Crawler Spec.) | 64 | Idler Assy, Rubber, Bush, Seal, Floating, Adjuster Assy, Spring Assy, Crawler |
| Idler & Adjust (Iron Crawler Spec.) | 65 | Idler Assy, Iron, Seal, Floating, Shaft Assy, Idler, Adjuster Assy, Spring Assy |
| Track Roller (Y Spec.) (to M61258) | 66 | Roller Assy, Track, Shaft, Roller, Spacer, Seal, Oil, Bearing |
| Track Roller (K Spec.) (From M61259) | 67 | Roller Assy, Lower, Spacer, Shaft, Seal, Oil QLF30621218, Ring, Bearing |
| Carrier Roller | 68 | Roller Assy, Carrier, Shaft, Seal, Oil, Collar, Plug, PT1/8 |

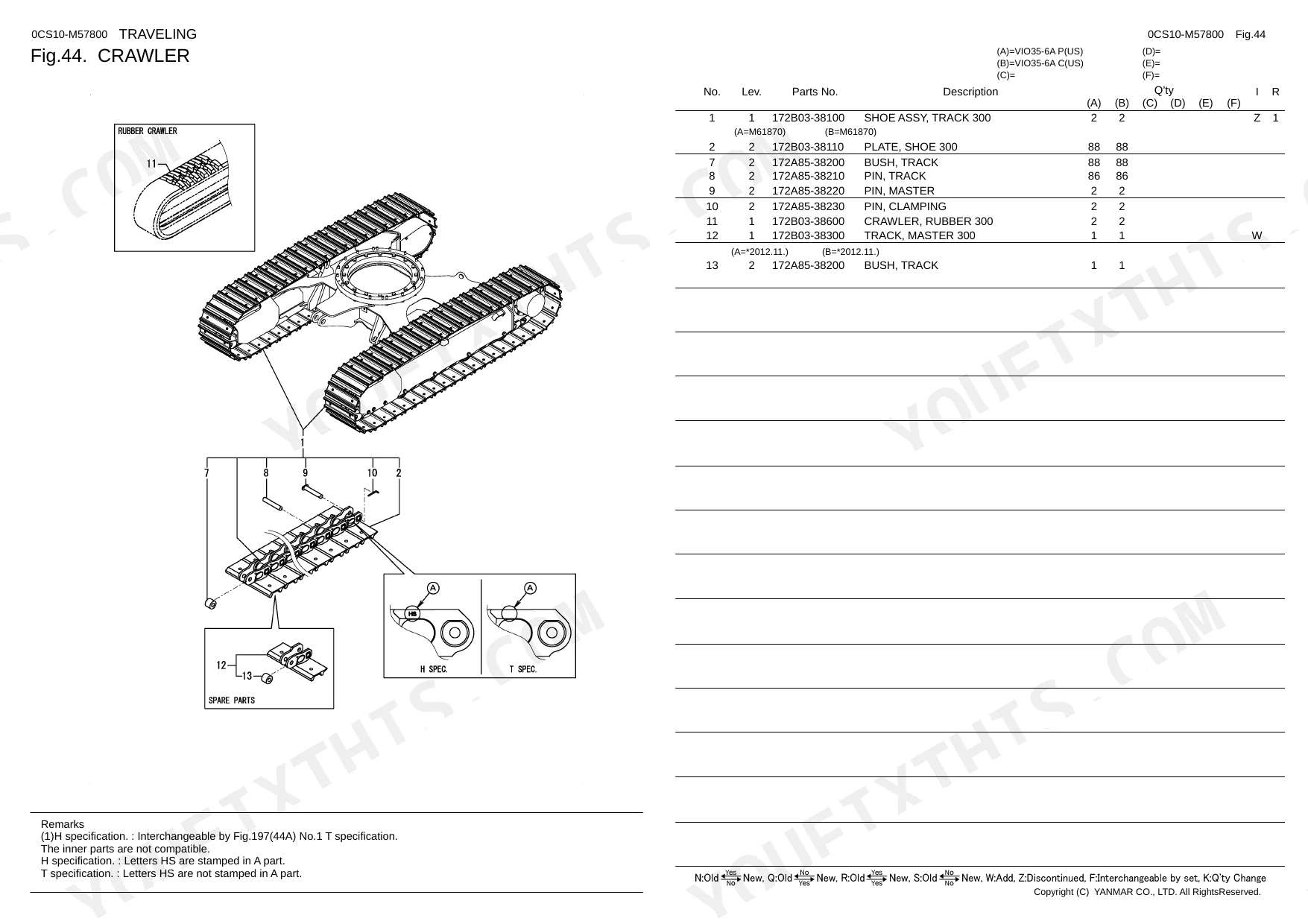

| Crawler | 69 | Shoe Assy, Track 300, Plate, Shoe 300, Bush, Track, Pin |
| Crawler (T Spec.) | 70 | Shoe Assy, Track 300, Shoe, Bush, Truck, Pin |
| Mount (Valve) | 71 | Assy, Link, Washer, 10, Bolt, M10X 20, M10X 25 |
| Travel Lever (Fixed Type) | 72 | Boot, Lever Assy, Track L, Bush, Shaft Assy, Grip, Drive, O-Ring |
| Travel Pedal (Folding Type) | 73 | Pedal Assy, Track L, Spring, Track Fl, Track Rl, Bush |
| Swing Pedal | 74 | Nut, M8, Link Assy, Swing, Bush, Shaft, Pedal, Bracket |
| Pedal Cover | 75 | Bracket, Boot, Cover, Washer, Bolt, Pad |
| Blade Lever | 76 | Lever Assy, Bush, Cable, Bracket Assy, Shaft Assy, Rod |
| Control Equipment (Blade Lever) (Angle Blade Spec.) | 77 | Grip, Lever Assy, Bush, Cable, Bracket Assy, Shaft Assy |
| Armrest | 78 | Guide Assy, Plate, Bolt |
| Lock Lever & Stand | 79 | Grip, Stand Assy, Bush, Nipple, Base Assy, Spring |
| Travel Frame | 80 | Cover, Frame Assy, Bolt, Grommet |
| Crawler Guard | 81 | Washer, Plate, Bolt |
| Counter Weight | 82 | Weight, Washer, Bolt, Grommet |

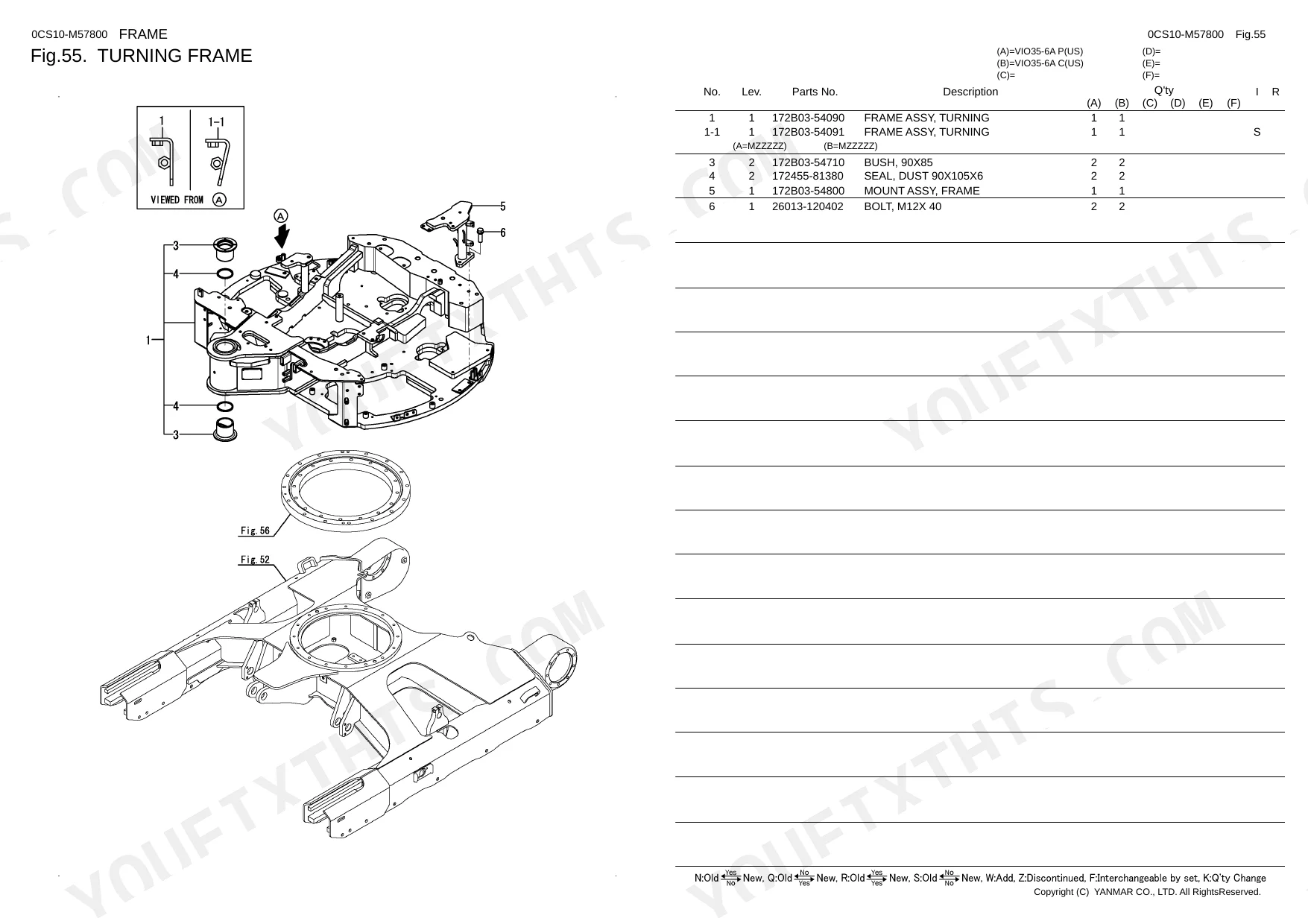

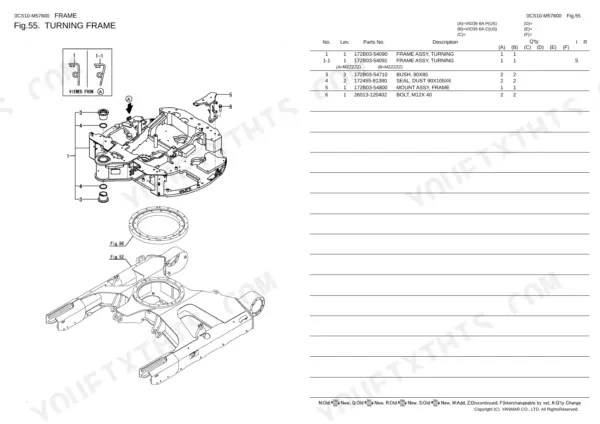

| Turning Frame | 83 | Frame Assy, Bush, Seal, Dust, Mount Assy |
| Turning Bearing | 84 | Bearing, Seal, Swing, Pin, Parallel |
| Cover (Multi) | 85 | Stay Assy, Assy, Seal, Sponge, Grommet, Hinge Assy |
| Upper Cover | 86 | Handle, Lock, Cover Assy, Hinge Assy, Stay, Cylinder Assy |
| Cover (Turning Frame) | 87 | Fuel, Valve Stand, Oil Sump, Pump, Reservoir |
| Cover (Travel Frame) | 88 | Travel, Washer, Bolt |
| Guard (Frame) | 89 | Frame, Assy, Trim, Label, Seal |
| Step (Cabin) | 91 | Assy, Floor Mat, Plate, Cover Assy, Sheet |
| Step (Canopy) | 92 | Assy, Floor Mat, Cover, Washer |
| Cover (Lever) | 93 | Bolt, Rivet |
| Cover (Monitor) (Canopy) | 94 | Clip, Screw, Nut, Grommet, Label, Stay Assy |
| Cover (Monitor) (Cabin) | 95 | Screw, Nut, Grommet, Seal, Panel, Rivet |
| Seat Mount | 96 | Stand Assy, Stay Assy, Mount Assy, Plate, Grommet, Rubber, Plug, Washer |
| Seat Mount (Cover) | 97 | Handle, Cover Assy, Sponge, Seal, Box Assy, Tag Assy, Label, Washer |
| Seat | 98 | Bolt, Holder, Assy, Rod Assy, Plate, Seal, Sponge, Washer |
| Cabin (Electric Parts) | 116 | Screw, Bolt, Harness, Relay, Lamp, Speaker |
| Cabin (Accessory) | 117-118 | Screw, Bolt, Rivet, Cover, Pad, Ashtray |
| Rearview Mirror | 119 | Bracket Assy, Mirror, Bolt |
| Mount (Cabin) | 120 | Clip, Washer, Grommet, Pad, Seal, Bolt |
| Hydraulic Pump Mount | 122 | Cover, Flywheel, Bolt, Coupling |

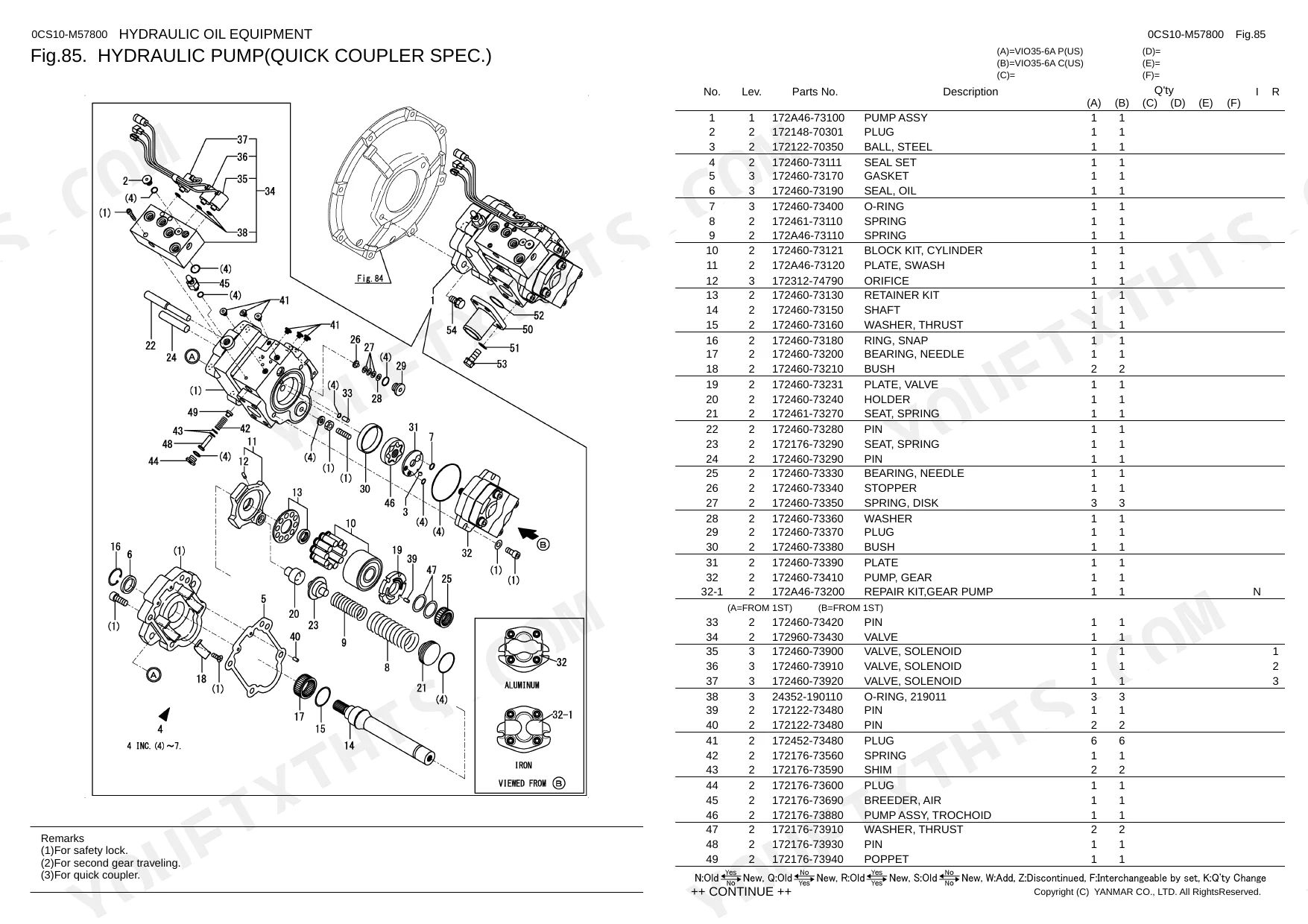

| Hydraulic Pump (Quick Coupler Spec.) | 123-124 | Pump Assy, O-Ring, Spring, Shaft, Valve, Bearing |
| Hydraulic Pump (Ess Spec.) | 125-126 | Pump Assy, O-Ring, Spring, Shaft, Valve, Bearing |
| Hydraulic Pump (Standard Spec.) | 127-128 | Pump Assy, Seal Set, O-Ring, Valve, Solenoid, Repair Kit, Gear Pump, Flange |
| Boom Cylinder (Y Spec.) | 129 | Cylinder Assy, Boom, Seal Set, Piston, Rod Assy, Head Assy, Nipple |
| Boom Cylinder (K Spec.) | 130 | Cylinder Assy, Boom, Seal Kit, Piston, Head, Bush, Pin |
| Arm Cylinder (Quick Coupler Spec.) (Y Spec.) | 131 | Cylinder Assy, Arm, Seal Set, Piston, Rod Assy, Head Assy, Nipple |
| Arm Cylinder (Quick Coupler Spec.) (K Spec.) | 132 | Cylinder Assy, Arm Q, Seal Kit, Piston, Head, Bush, Pin |
| Arm Cylinder (Standard Spec.) (Y Spec.) | 133 | Cylinder Assy, Arm, Seal Set, Piston, Rod Assy, Head Assy, Nipple |
| Arm Cylinder (Standard Spec.) (K Spec.) | 134 | Cylinder Assy, Arm, Seal Kit, Piston, Head, Bush, Pin |
| Bucket Cylinder (Y Spec.) | 135 | Cylinder Assy, Bucket, Seal Set, Piston, Rod Assy, Head Assy, Nipple |
| Bucket Cylinder (K Spec.) | 136 | Piston, Head, Pipe Assy, Repair Kit, Bush, Seal Kit |
| Swing Cylinder (Y Spec.) | 137 | Cylinder Assy, Swing, Piston, Head, Tube Assy, Rod Assy |
| Swing Cylinder (K Spec.) | 138 | Cylinder Assy, Swing, Piston, Head, Repair Kit, Seal Kit, Bush |
| Blade Cylinder (Y Spec.) | 139 | Cylinder Assy, Blade, Seal Set, Piston, Tube Assy, Rod Assy |
| Blade Cylinder (K Spec.) | 140 | Cylinder Assy, Blade, Seal Kit, Piston, Head, Repair Kit, Tube As |
| Blade Cylinder (Angle Blade Spec.) | 141 | Cylinder Assy, Bladea, Seal Kit, Piston, Tube Assy, Blade Ang, Piston Assy, Rod Assy |
| Angel Cylinder (Angle Blade Spec.) | 142 | Cylinder Assy, Angle, Seal Kit, Piston, Tube Assy, Rod Assy |
| Travel Motor | 143-144 | Motor Assy, Travel, Valve Assy, Piston, Gear Assy, Reduction, Seal, Floating |
| Travel Motor (Angle Blade Spec.) | 145-146 | Motor Assy, Travel at, Plug, Orifice, Seat, Spring, Valve Assy |
| Turning Motor | 147 | Motor Assy, Turning, Plug, Collar, Holder, Retainer, Orifice, Bolt |
| Swivel Joint (Y Spec.) (to M60555) | 148 | Joint Assy, Swivel, Shaft Assy, Swing, Hub, Flange |
| Swivel Joint (N Spec.) (From M60556) | 149 | Joint Assy, Swivel, Shaft Assy, Hub, Flange |
| Swivel Joint (Angle Blade Spec.) | 150 | Joint Assy, Swivel, Shaft Assy, Rotor, Seal Kit, Ring |
| Control Valve (1/7) | 151 | Valve Assy, Cv Ex, Bolt |
| Control Valve (2/7) | 152 | O-Ring, Bolt, Valve Assy, Lock, Section Assy, Valve, Reverse |
| Control Valve (3/7) | 153 | Valve Assy, Boom, Section Assy, Valve, Reverse, Spring |
| Control Valve (4/7) | 154 | Valve Assy, Relief Assy, Section Assy, Spool Assy, O-Ring, Piston |
| Control Valve (5/7) | 155 | Valve Assy, Relief Valve Plug, Section Assy, Spool Assy, O-Ring, Anti-Cavitation |
| Control Valve (6/7) | 156 | Valve Assy, Section Assy, Spool Assy, O-Ring, Block, Relief Assy |
| Control Valve (7/7) | 157 | Section Assy, Valve, Spring, Spool Assy, O-Ring, Relief Assy |
| Control Valve (2/8) (Angle Blade Spec.) | 159 | Valve Assy, Section Assy, O-Ring, Cover, Spool Assy, Relief Valve |
| Control Valve (3/8) (Angle Blade Spec.) | 160 | Valve Assy, Section Assy, Spool Assy, O-Ring, Piston, Relief Assy |
| Control Valve (4/8) (Angle Blade Spec.) | 161 | Valve Assy, Relief Assy, Section Assy, O-Ring, Spool Assy, Piston |
| Control Valve (5/8) (Angle Blade Spec.) | 162 | Section Assy, TRAVEL1, Wiper, Dust, Valve, Reverse, Spool Assy, Travel |
| Control Valve (6/8) (Angle Blade Spec.) | 163 | Valve Assy, Arm, Section Assy, Valve, Reverse, Spool Assy |
| Control Valve (7/8) (Angle Blade Spec.) | 164 | Valve Assy, Conflux |
| Control Valve (5/7) (Thumb Bracket Spec.) | 170 | Valve Assy, PTO Us, Section Assy, PTO, O-Ring, Cover, Pilot, Spool Assy |
| Control Valve (6/7) (Thumb Bracket Spec.) | 171 | Valve Assy, Conflux, Section Assy, Spool Assy, O-Ring, Block |
| Control Valve (7/7) (Thumb Bracket Spec.) | 172 | Section Assy, Swing, Valve, Reverse, Spool Assy, O-Ring, Cover |
| Control Valve (1/8) (Angle Blade Spec.) (Thumb Bracket Spec.) | 173 | Valve Assy, Cv Ang Us, Bolt |
| Control Valve (2/8) (Angle Blade Spec.) (Thumb Bracket Spec.) | 174 | Valve Assy, Angle, Section Assy, O-Ring, Cover, Pilot, Spool Assy |
| Control Valve (3/8) (Angle Blade Spec.) (Thumb Bracket Spec.) | 175 | Valve Assy, Boom, Section Assy, Spool Assy, O-Ring, Cover |
| Control Valve (4/8) (Angle Blade Spec.) (Thumb Bracket Spec.) | 176 | Valve Assy, Inlet, Relief Assy, Section Assy, O-Ring, Spool Assy |
| Control Valve (5/8) (Angle Blade Spec.) (Thumb Bracket Spec.) | 177 | Section Assy, Travel, Wiper, Dust, Valve, Reverse, Spool Assy |
| Solenoid Valve (P.T.O.) | 186 | Stay, Bolt, Valve Assy, Cartridge Assy, O-Ring, Block |
| Solenoid Valve (P.T.O.2) (Angle Blade Spec.) | 187 | Bolt, Valve Assy |
| Solenoid Valve Bracket (P.T.O.2) (Angle Blade Spec.) | 188 | Bracket Assy, Bolt |
| Hyd. Oil Tank | 189 | Reservoir Kit, Sensor, Filter, Valve Assy, Rod Assy, Cap |
| Quick Coupler (Hitch Cylinder) | 190 | Cylinder Assy, Rod Assy, Bush, Seal Set, Head Assy, Piston |
| Tank - Pump & Control Valve | 191 | Elbow, O-Ring, Tube Assy, Plug, Hose, Clamp |
| Control Valve - Turning Motor | 192 | Adapter, Elbow, O-Ring, Connector Assy, Plug, Hose |
| Control Valve (Fitting) (1) | 193 | Connector, O-Ring, Elbow, Nipple, Adapter, Bolt |
| Control Valve (Fitting) (1) (Angle Blade Spec.) | 194 | Connector, O-Ring, Elbow, Nipple, Adapter |
| Control Valve (Fitting) (2) | 195 | Elbow, O-Ring, Adapter, Connector, Block, Joint Assy |
| Control Valve (Fitting) (2) (Angle Blade Spec.) | 196 | Elbow, O-Ring, Connector Assy, Adapter, Block, Joint Assy |
| Control Valve - Return & Drain | 197 | Hose, Clamp |
| Control Valve - Boom Bulkhead & Swing | 198 | Hose, Guide Assy, Plate Assy, Clamp |
| Control Valve - Boom Cylinder | 199 | Hose, Clamp |
| Control Valve - Swivel Joint | 200 | Elbow, O-Ring, Nipple, Hose, Clamp |
| Control Valve - Swivel Joint (Angle Blade Spec.) | 201 | Nipple, Elbow, Joint, Hose, Clamp |
| Track Frame | 202 | Elbow, O-Ring, Connector Assy, Hose, Clamp |
| Track Frame (Angle Blade Spec.) | 203 | Elbow, O-Ring, Connector Assy, Hose, Clamp, Band |
| Arm Cylinder & Bucket Cylinder | 204 | Tube Assy, Rubber, Clamp, Bolt, Washer, Hose |
| P.T.O. (Control Valve - Boom) | 205 | Valve Assy, Ring, O-Ring, Connector, Elbow, Hose, Clamp |
| P.T.O. (Boom - Arm End) | 206 | Valve Assy, Adapter, Plate, Tube Assy, Clamp, Hose |
| P.T.O. (Solenoid Valve) | 207 | Elbow, O-Ring, Adapter, Nipple, Connector, Hose |
| P.T.O. (Solenoid Valve) (Angle Blade Spec.) | 208 | Elbow, O-Ring, Adapter, Nipple, Connector, Hose |
| P.T.O. (Solenoid Vavle, Ess) | 209 | Elbow, O-Ring, Adapter, Nipple, Connector, Hose |
| P.T.O. (Solenoid Vavle, Ess) (Angle Blade Spec.) | 210 | Elbow, O-Ring, Adapter, Nipple, Connector, Clamp |
| P.T.O.2 (Angle Blade) (Angle Blade Spec.) | 211 | Valve, Ball, O-Ring, Elbow, Joint, Connector |
| Control Piping (1) | 212 | Elbow, O-Ring, Joint, Connector, Adapter, Hose |
| Control Piping (1) (Angle Blade Spec.) | 213 | Elbow, O-Ring, Joint, Connector, Adapter, Hose |
| Control Piping (2) | 214 | Hose |
| Accumulator | 215 | O-Ring, Stay, Bolt |
| Greasing | 216 | Hose, Joint, Nipple |
| Quick Coupler (Hyd. Oil Piping) (1) | 217 | Band, Tube, Elbow, O-Ring, Connector, Hose |
| Quick Coupler (Hyd. Oil Piping) (2) | 218 | Plate, Tube Assy, Collar, Bolt, Clamp, Guide Assy |
| Quick Coupler (Body) | 219 | Collar, O-Ring, Bracket, Pin, Bolt, Plate |
| Boom Bracket | 220 | Bracket Assy, Bush, Pin Assy, Shim, Bolt, Ring |
| Boom | 221 | Boom Assy, Seal, Bush, Label, Spacer, Pin Assy |
| Arm | 222 | Arm Assy, Seal, Bush, Label, O-Ring, Pin Assy |
| Arm (Thumb Bracket Spec.) | 223 | Arm Assy, Seal, Bush, Label, O-Ring, Pin Assy |
| Bucket Arm & Link | 224 | Pin Assy, Shim, Link Assy, Seal, Bush, Plate Assy |
| Bucket Pin (Quick Coupler Spec.) | 225 | Pin Kit, Pin Assy, Collar, Nipple, Bolt, Nut |
| Bucket | 226 | Bucket Assy, Nut, Adapter, Cutter, Tooth Kit, Pin Assy |
| Bucket Pin | 227 | Pin Kit, Collar, Pin Assy, Nipple, Bolt, Nut |
| Blade | 228 | Spacer, Shim, Blade Assy, Bush, Seal, Pin |
| Blade (Angle Blade Spec.) | 229 | Spacer, Shim, Blade Assy, Bush, Seal, Pin |
| Label Kit (for Canada) (Optional) | 230 | Label Kit, Label, Tag Assy |
| Label Kit (for Canada) (Angle Blade Spec.) (Optional) | 231 | Label Kit, Label, Tag Assy |
| Remote Controller Kit (Optional) | 232 | Controller Kit, Parts Assy, Harness Assy, Bracket Assy, Plate, Antenna |
| Additional Weight Kit (Optional) | 234 | Weight Kit, Label, Weight Assy, Washer, Bolt, Bracket Assy |
| Bucket Link with Hook (Optional) | 235 | Link Assy, Seal, Dust, Bush, Pin, Stopper |
| Radio Kit (Optional) | 236 | Radio Kit, Screw, Bolt, Washer, Antenna, Bracket |
| Radio Kit (Optional) (Without Radio) | 237 | Radio Kit, Antenna, Screw, Bolt, Washer, Bracket |
Yanmar VIO35-6A Common Problems This Manual Covers
Yanmar VIO35-6A needs exact battery and electrical component part numbers for hard starting or weak cranking condition p. 33
Check the electrical parts exploded view on page 33 for the 12V battery assembly. Identify the correct starter switch components on page 39. Cross-reference your machine's serial number to ensure you order the exact replacement cables and terminals for your starting system.
Manual Section: BatteryNeed replacement idler assembly or track shoe part numbers to fix one track not moving correctly p. 69
Inspect the undercarriage drivetrain parts diagram on page 69. Locate the exact 300 mm track shoe assembly and track pins. Verify the rubber track adjuster assembly and floating seals on page 64 before ordering replacement components to fix poor track tension.
Manual Section: CrawlerLooking for the correct seal kit part numbers to fix a main boom cylinder leaking hydraulic fluid p. 129
Review the boom cylinder parts diagram on page 129. Identify the correct seal set, piston assembly, and head assembly for the Y spec cylinder. Measure the rod diameter to within 0.1 mm to confirm compatibility with the listed wiper rings and O-rings before ordering.
Manual Section: Boom Cylinder(Y Spec.)Searching for replacement radiator hoses and clamp part numbers to resolve engine overheating and rising coolant temperature p. 29
Examine the engine parts diagram on page 29. Locate the exact molded coolant hoses and required replacement clamps. Verify the hose part numbers match your specific engine serial number block. Torque the new hose clamps to 45 in-lbs (5 Nm) during installation to prevent leaks.
Manual Section: Radiator & Oil CoolerFrequently Asked Questions
What are the replacement specifications for track tension components?
The parts catalog lists several components related to track tension. For rubber crawler specifications, key components include the SPRING ASSY, CRAWLER (Part No. 172458-37700), PISTON ASSY, ADJUST (Part No. 172B03-37780), SEAL, SQARE (Part No. 172B03-37850), and NIPPLE, GREASE PT1/8 (Part No. 24761-020000). For iron crawler specifications, the same part numbers apply for these components. Detailed replacement specifications such as torque values or wear limits are not provided in this parts catalog.
What are the replacement specifications for undercarriage wear parts?
The parts catalog provides part numbers for various undercarriage wear parts. For track rollers, the ROLLER ASSY,TRACK (Part No. 172441-37302) and BEARING, BALL (Part No. 933111-73800) are listed. For crawlers, the SHOE ASSY, TRACK 300 (Part No. 172B03-38100), BUSH, TRACK (Part No. 172A85-38200), and PIN, TRACK (Part No. 172A85-38210) are available. This parts catalog does not include detailed replacement specifications such as wear limits or specific installation procedures.
How do you fix yanmar VIO35-6A needs exact battery and electrical component part numbers for hard starting or weak cranking condition?
Check the electrical parts exploded view on page 33 for the 12V battery assembly. Identify the correct starter switch components on page 39. Cross-reference your machine's serial number to ensure you order the exact replacement cables and terminals for your starting system.
How do you fix need replacement idler assembly or track shoe part numbers to fix one track not moving correctly?
Inspect the undercarriage drivetrain parts diagram on page 69. Locate the exact 300 mm track shoe assembly and track pins. Verify the rubber track adjuster assembly and floating seals on page 64 before ordering replacement components to fix poor track tension.
How will I receive this Yanmar VIO35-6A Parts Manual?
Instant PDF download. You get the full 261-page searchable Parts Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this Yanmar VIO35-6A Parts Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Reviews
There are no reviews yet.
