You're about to pull the dipstick, top off the hydraulic tank or tee a gauge into a pressure port on a 580M, 580SM, 580SM+ or 590SM Series 2. This is Case publication 6-74432, the 2004 loader backhoe service manual, revised July 2005.
When the machine is dead on a jobsite and there is nobody to call, you need the specs in front of you. Stall test check sheets, steering pressure checks and transmission troubleshooting tell you which system is at fault before you start pulling hoses.
The Case 445/M2, 445T/M2 and 668T/M2 engine manual is bound in, and it starts with engine identification. Confirm which engine is under your hood before you order, so the parts counter gets the right part number the first time.
What's Inside This Case 580M–590SM Series 2 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 6-25 | Standard Torque Specifications, Fluids and Lubricants with Capacities, Metric Conversion Chart |
| Engine Removal and Tests | 26-73 | Engine and Radiator Removal and Installation, Stall Tests with Check Sheets, In-Vehicle Injection Pump Removal and Static Timing, Counterbalance |
| Engine Service Manual 445/M2, 445T/M2, 668T/M2 | 74-253 | Bound-In Case Engine Manual: Engine Identification, Lubrication and Cooling Circuits, Overhaul and Technical Specifications, Fuel System Repair |
| Electrical System | 254-395 | Electrical Specifications and Troubleshooting Tables, Component Removal, Starter and Starter Solenoid, Alternator |
| Steering and Front Axle | 396-579 | Steering Components, Steering Control Valve, Steering Pressure Checks and Troubleshooting, Two-Wheel and Four-Wheel Drive Front Axles |
| Standard Transmission Removal and Testing | 580-669 | Power Train Removal and Installation, Special Torques and Fluid Capacities, Pressure Checks and Troubleshooting |
| Rear Axle and Planetaries | 670-837 | Rear Axle and Planetaries for 580M, 580SM and 580SM+ Series 2 |
| Standard Transmission Overhaul | 838-1055 | Standard Transmission Disassembly and Assembly, Input Shaft, Backlash Adjustment, Oil Pump, Shifter Housing, Transmission Control Valve |
| Brakes | 1056-1077 | Brake Component Removal and Installation, Master Cylinder, Bleeding the Brakes |
| Hydraulic System | 1078-1235 | Hydraulic Component Removal and Installation, System Specifications, Pressure Checks and Troubleshooting, Cleaning the Hydraulic System |
| Hydraulic Pump and Control Valves | 1236-1409 | Hydraulic Pump, Loader Control Valve and Backhoe Control Valve, Pilot Control Unit |
| Accumulator and Cylinders | 1410-1459 | Ride Control Accumulator, Hydraulic Cylinders |
| Mounted Equipment and Air Conditioning | 1460-1564 | Pedals and Levers, Air Conditioning Troubleshooting and Components Service |
| ROPS Cab and Canopy | 1565-1583 | ROPS Cab and Canopy Torque Specifications and Maintenance, Possible Damage to the ROPS Cab or ROPS Canopy, Maintenance and Inspection of the ROPS Cab or ROPS Canopy |
| Backhoe | 1584-1629 | Backhoe Structure and Components |
| Seats and Windows | 1630-1707 | Standard, Mechanical and Air Suspension Seats, Rear Window Replacement |
| Schematic Set | 1708-1713 | Fold-Out Electrical Schematic and Hydraulic Schematics, Cranking and Keyswitch Power Relays, Start Relays |

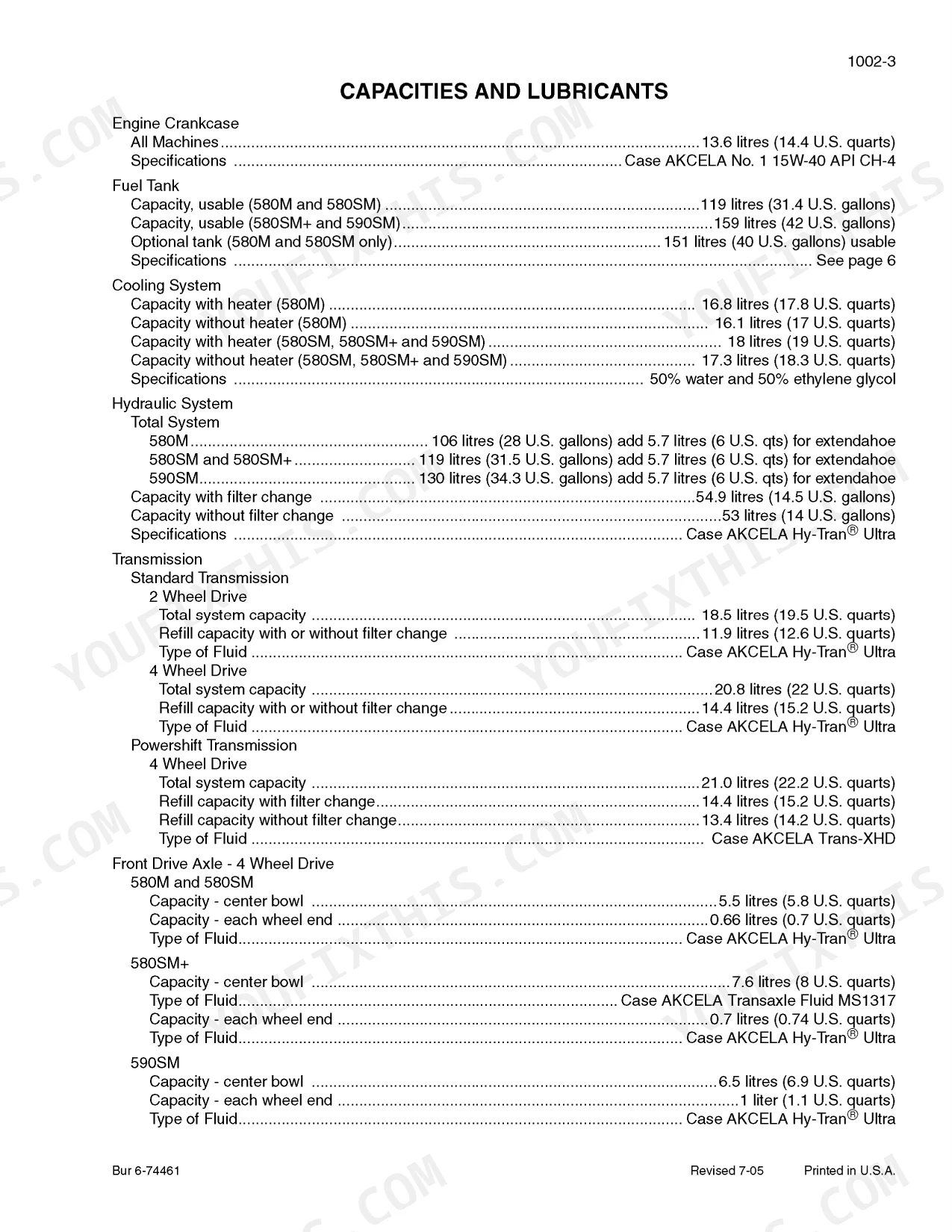

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All machines | ||

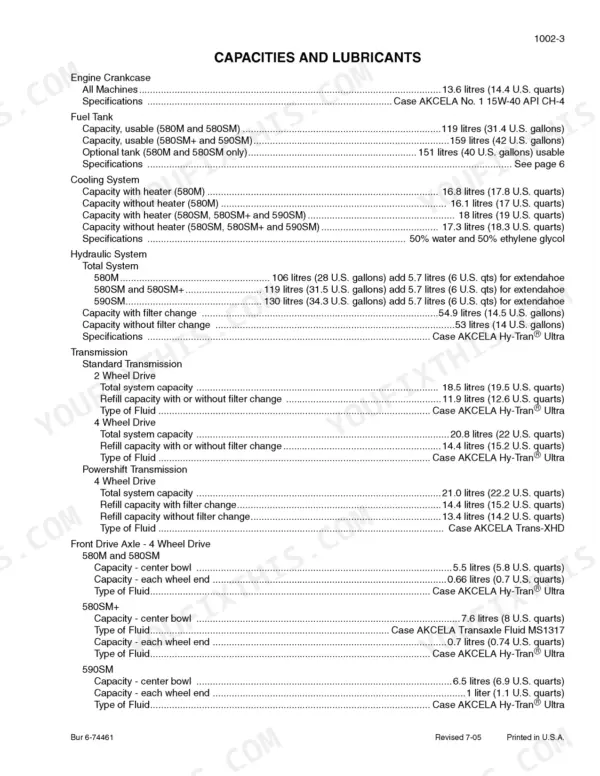

| Engine Crankcase Capacity | 13.6 litres (14.4 U.S. quarts), Case AKCELA No. 1 15W-40 API CH-4 | p. 16 |
| All Models | ||
| Fuel Tank Capacity (Usable) | 119 litres (31.4 U.S. gallons) (580M, 580SM) / 159 litres (42 U.S. gallons) (580SM+, 590SM) | p. 16 |
| Hydraulic System Total Capacity | 106 litres (28 U.S. gallons) (580M) / 119 litres (31.5 U.S. gallons) (580SM, 580SM+) / 130 litres (34.3 U.S. gallons) (590SM) | p. 16 |
| Cooling System Capacity with Heater | 16.8 litres (17.8 U.S. quarts) (580M) / 18 litres (19 U.S. quarts) (580SM, 580SM+, 590SM) | p. 16 |
| Torque Converter Stall Speed | 2135 to 2310 rpm (580M Series 2 Natural Aspirated) / 2215 to 2315 rpm (580M Turbo Series 2) | p. 44 |

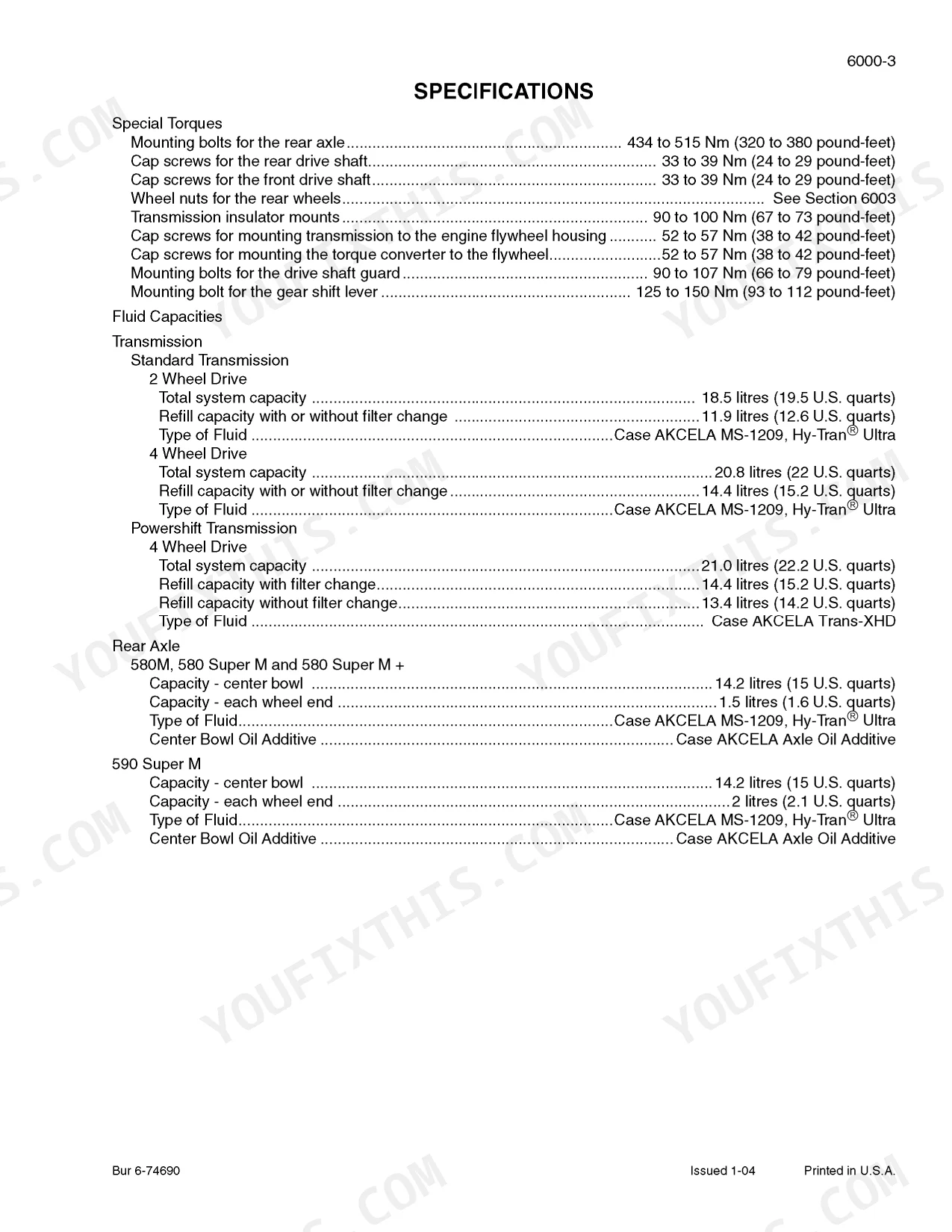

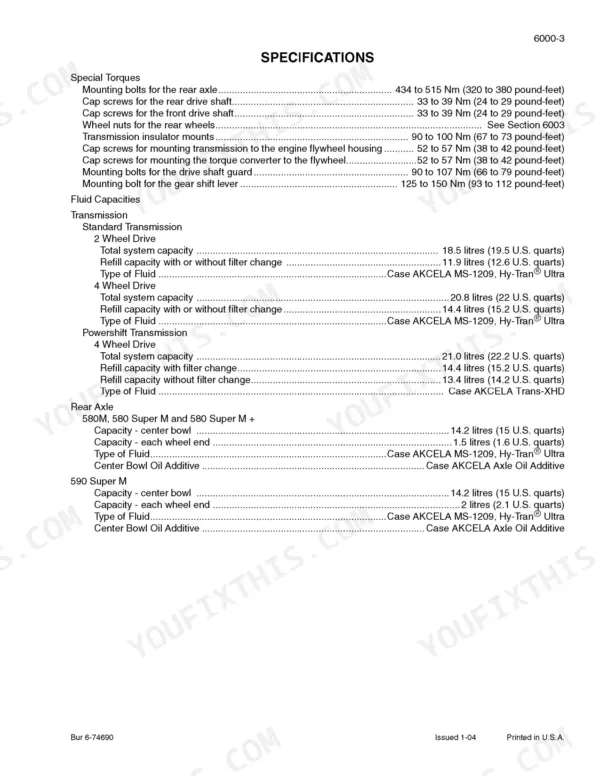

| Rear Axle Mounting Bolts Torque | 434 to 515 Nm (320 to 380 pound-feet) | p. 584 |
| 580M, 580SM, 580SM+ | ||
| Main Relief Valve Setting | 210 ± 3 bar (3050 ± 50 psi) | p. 1128 |
Case 580M–590SM Series 2 Common Problems This Manual Covers

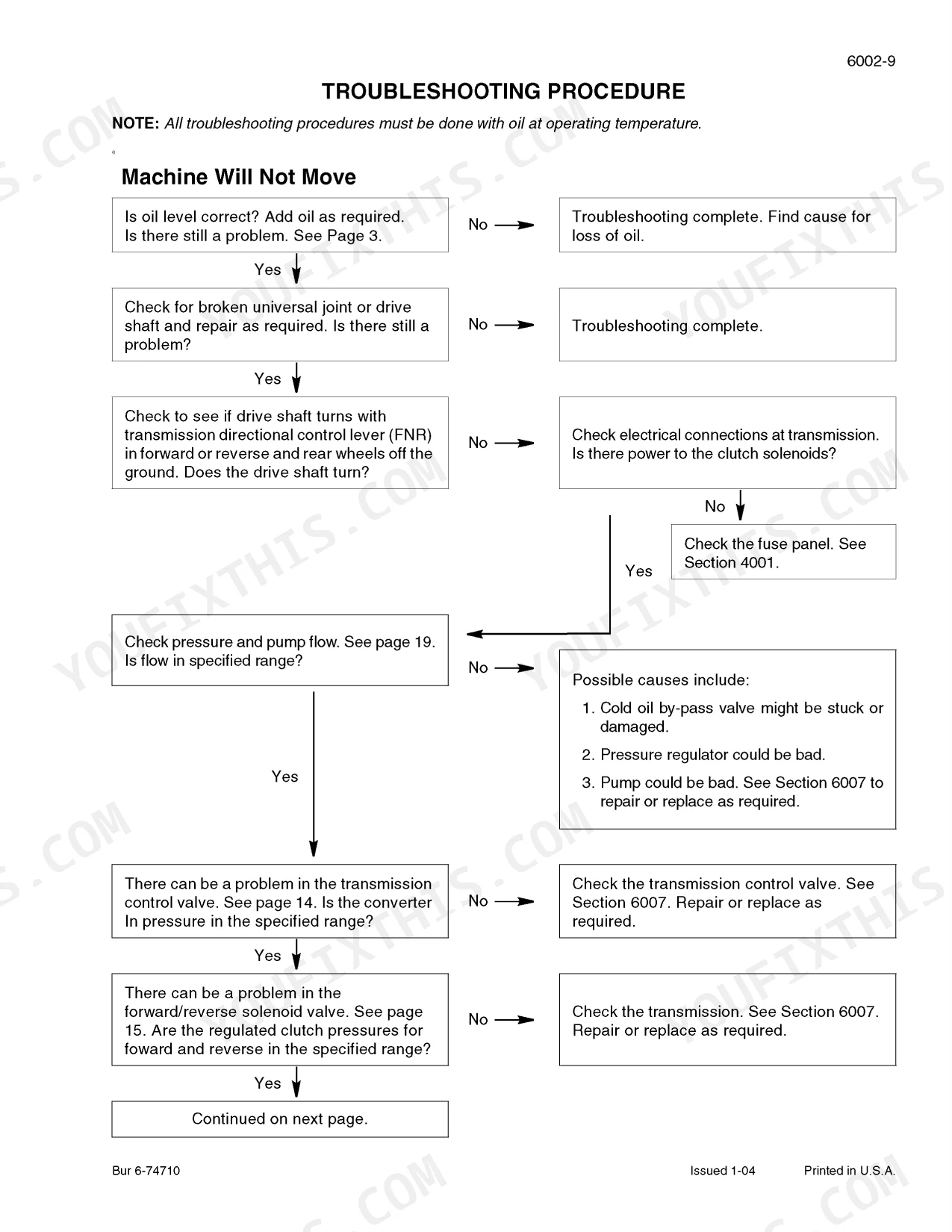

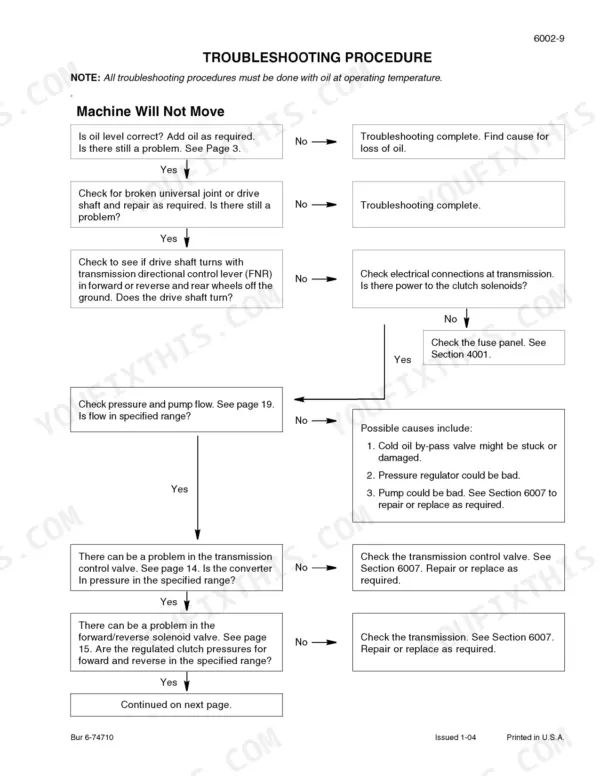

Machine will not move
Start with the oil level, then look for a broken universal joint or drive shaft. Check the fuse panel for power to the clutch solenoids. Next come the pressure and pump flow checks. The book lists a stuck or damaged cold oil by-pass valve, the pressure regulator or the pump as possible causes.
Manual Section: Standard transmission - pressure checks and troubleshooting p. 610Steering wheel difficult to turn
Put a gauge on the system and check the steering relief valve setting first. If the pressure is right, the book points you to the flow control valve spool, then the steering cylinder piston packing, and finally the hydraulic pump. Steering control valve service is in the same steering and front axle section.
Manual Section: Steering - pressure checks and troubleshooting p. 425Alternator not charging
The electrical troubleshooting table has you check the 10 ampere fuse at location 5 first. Next, check wire 1A between the starter terminal and the alternator, then wire 34 to the instrument cluster. If the alternator itself has to come out, removal is covered separately in Removal and Installation of Electrical Components.
Manual Section: Electrical specifications and troubleshooting p. 273Stall test readings out of range

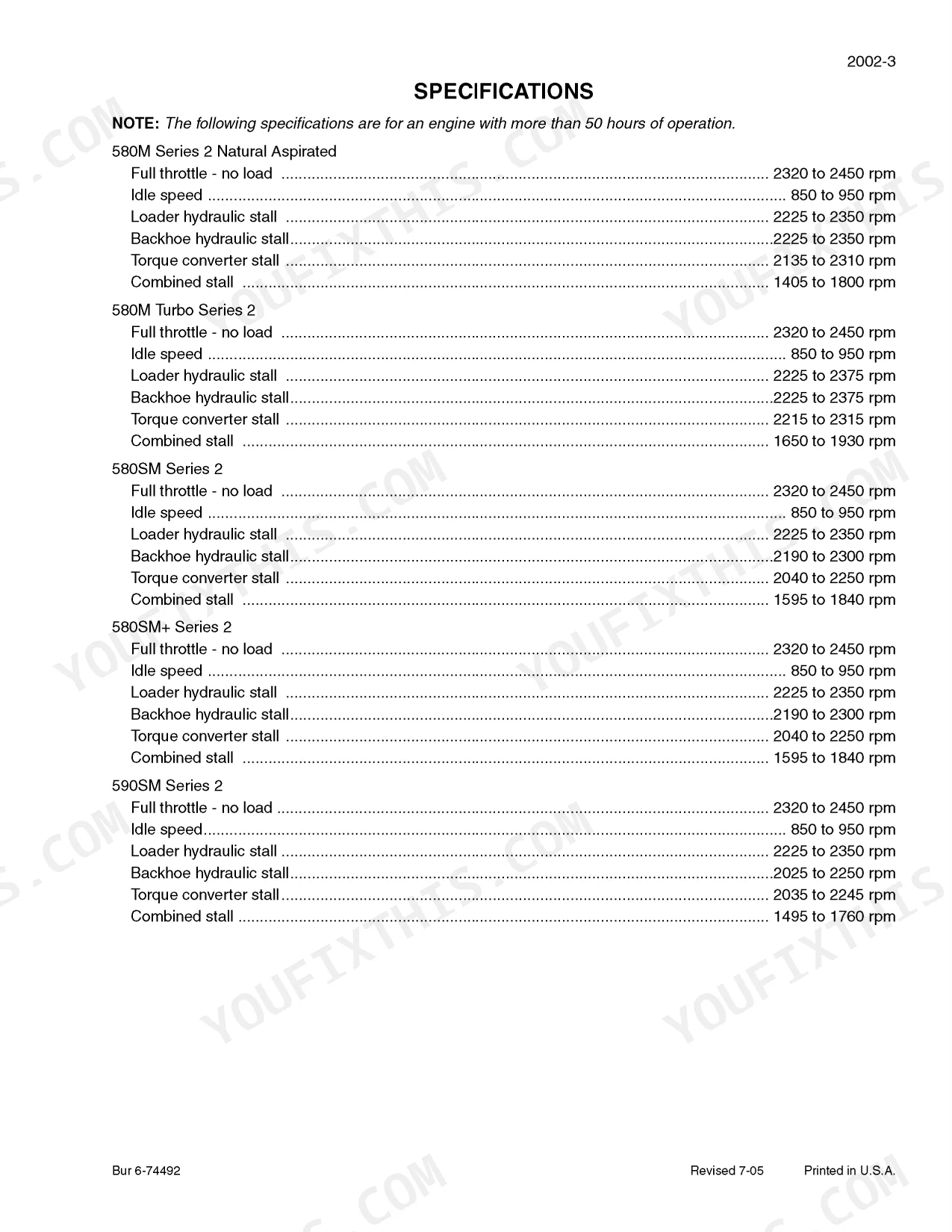

Use the stall test check sheets to separate engine problems from hydraulic problems such as the main relief setting, and from torque converter or transmission problems. On a 580M, torque converter stall is 2135 to 2310 rpm naturally aspirated and 2215 to 2315 rpm turbo. Full throttle no load is 2320 to 2450 rpm.
Manual Section: Engine - stall tests p. 47Frequently Asked Questions
Does this manual cover the 590SM, or only the 580 models?
It covers all four Series 2 machines: 580M, 580SM, 580SM+ and 590SM. Where the specs differ, the book lists each model separately. For example, usable fuel is 119 litres on the 580M and 580SM and 159 litres on the 580SM+ and 590SM. p. 16
How much hydraulic oil does my machine take?
Total system capacity is 106 litres (28 U.S. gallons) on the 580M and 119 litres (31.5 U.S. gallons) on the 580SM and 580SM+. The 590SM takes 130 litres (34.3 U.S. gallons). Add 5.7 litres (6 U.S. quarts) if the machine has an extendahoe. The crankcase takes 13.6 litres of 15W-40 API CH-4. p. 16
What should the main relief valve be set to?
The hydraulic specifications section for the 580M, 580SM and 580SM+ gives 210 ± 3 bar (3050 ± 50 psi). Check it before you blame the pump or a cylinder. A low main relief will also throw off your stall test readings. p. 1128
Can I rebuild the engine or time the injection pump with this book?
Yes. The bound-in Case engine manual covers overhaul, lubrication and cooling circuits, technical specifications and fuel system repair. In-vehicle injection pump removal and static timing are in the engine removal and tests section. Engine and radiator removal are covered there too. p. 74

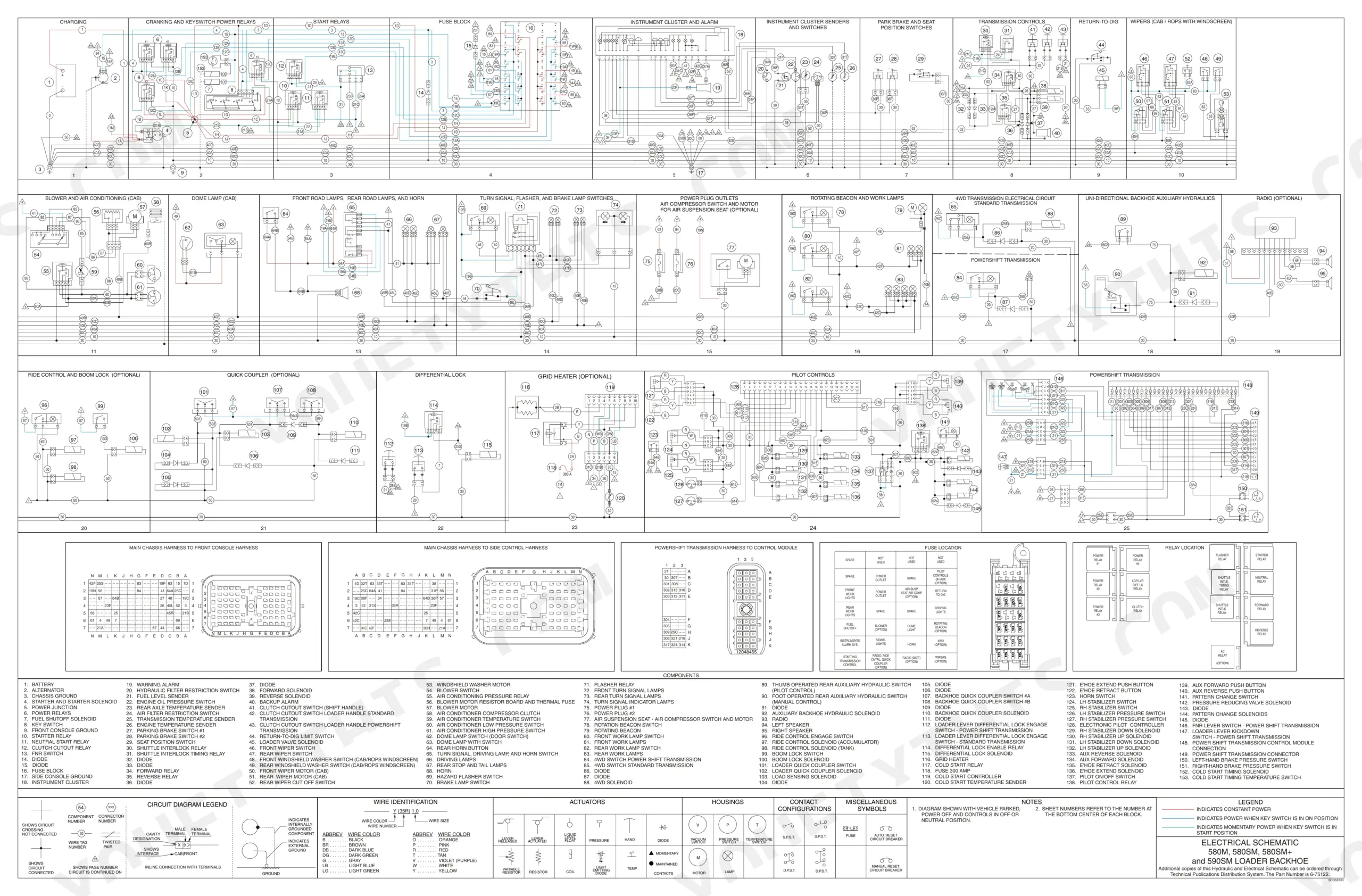

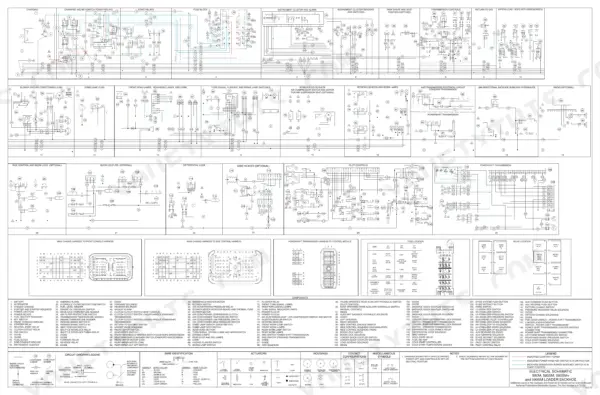

Are wiring and hydraulic diagrams included?

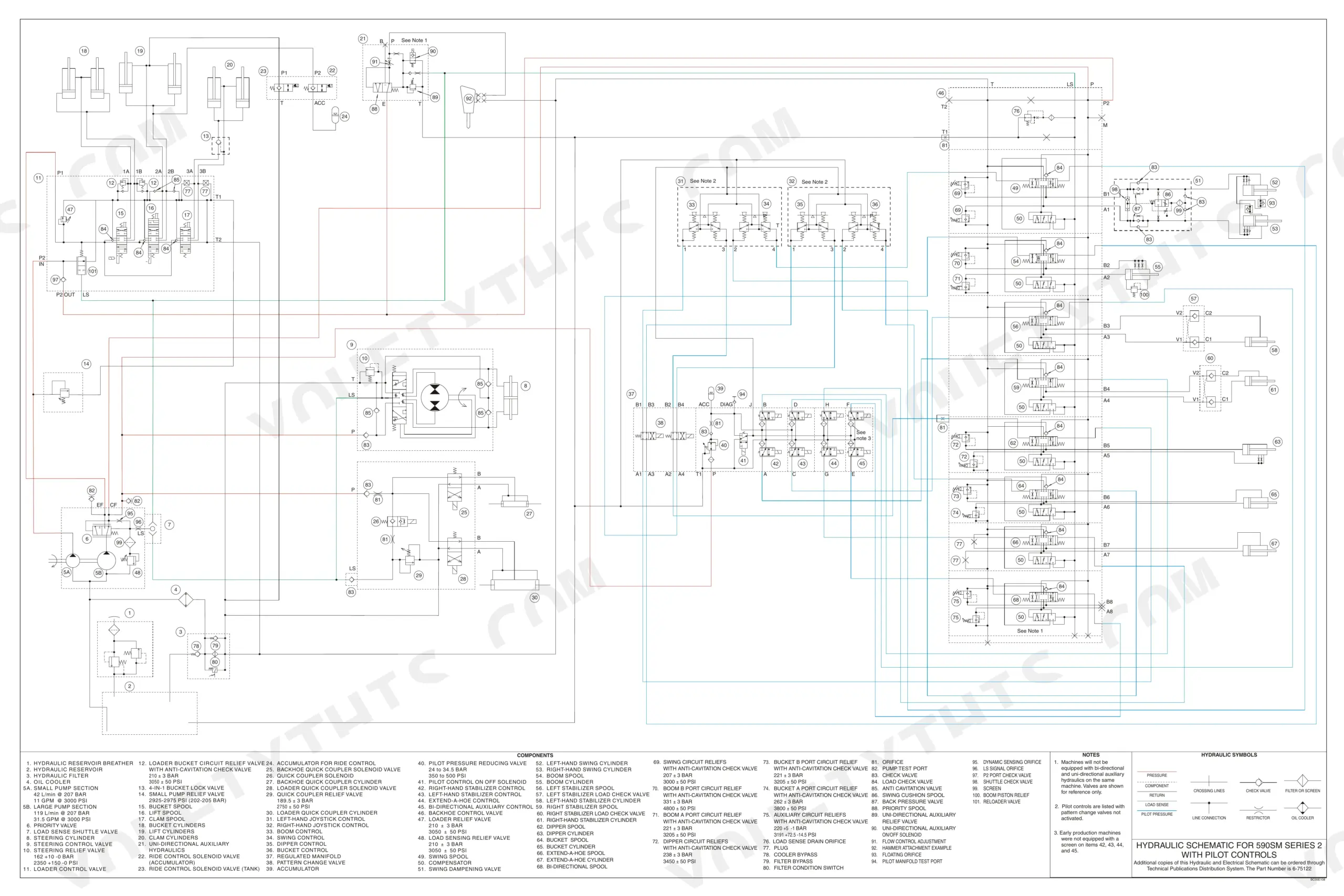

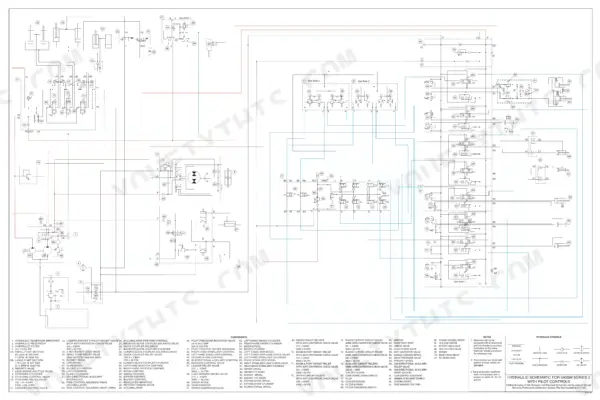

There is a fold-out electrical schematic for the 580M, 580SM, 580SM+ and 590SM at the back of the book. The schematic set also includes the hydraulic schematic for the 590SM with pilot controls. Tracing a dead circuit is much easier with the wire numbers in front of you. p. 1708
