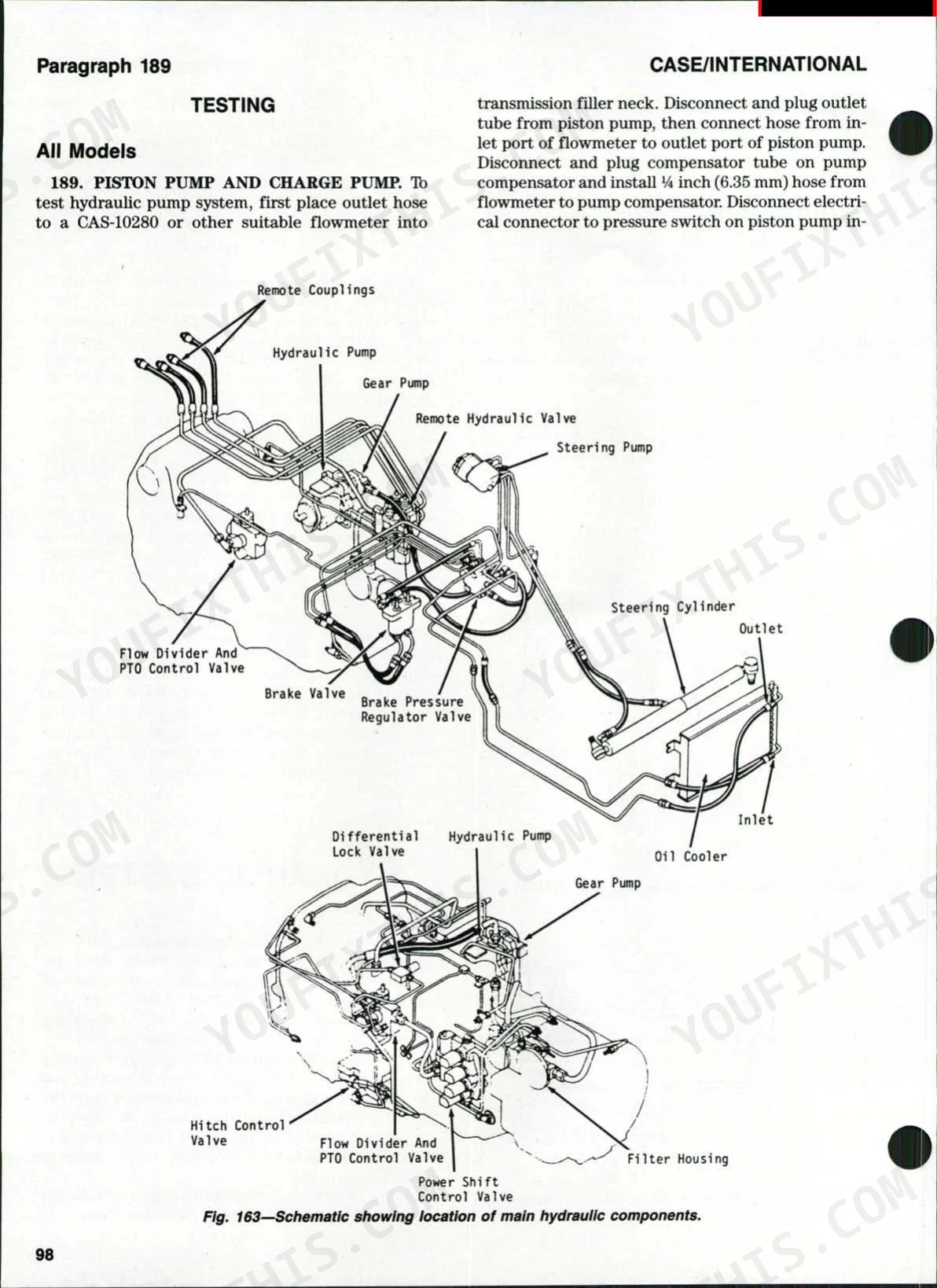

This 115-page Case/international 1896, 2096 Shop Manual walks you through both tractors' engine, drivetrain, and electrical systems with the same factory detail Case techs used on the line. Open it and you get wiring diagrams for chasing charging faults, hydraulic schematics for the power shift clutch circuit, torque tables for front axle work, and a dedicated troubleshooting section instead of guesswork. Specs are exact: torque the spindle bolt to 200-250 ft.-lbs. (271-339 N-m), and set power shift clutch pressure to 210 psi at 2100 engine rpm, shimming the flow divider valve until it holds. Your alternator output test, battery drain test, and voltage regulator bypass procedures are all laid out step by step, not buried in a forum thread. Stop pulling panels blind to trace a wiring gremlin. This PDF carries bookmarks for every section, so you jump straight to axle, electrical, or hydraulic work, pull it up on a tablet in the shop, and get the 1896 or 2096 running right.
What's Inside This Case/international 1896, 2096 Manual

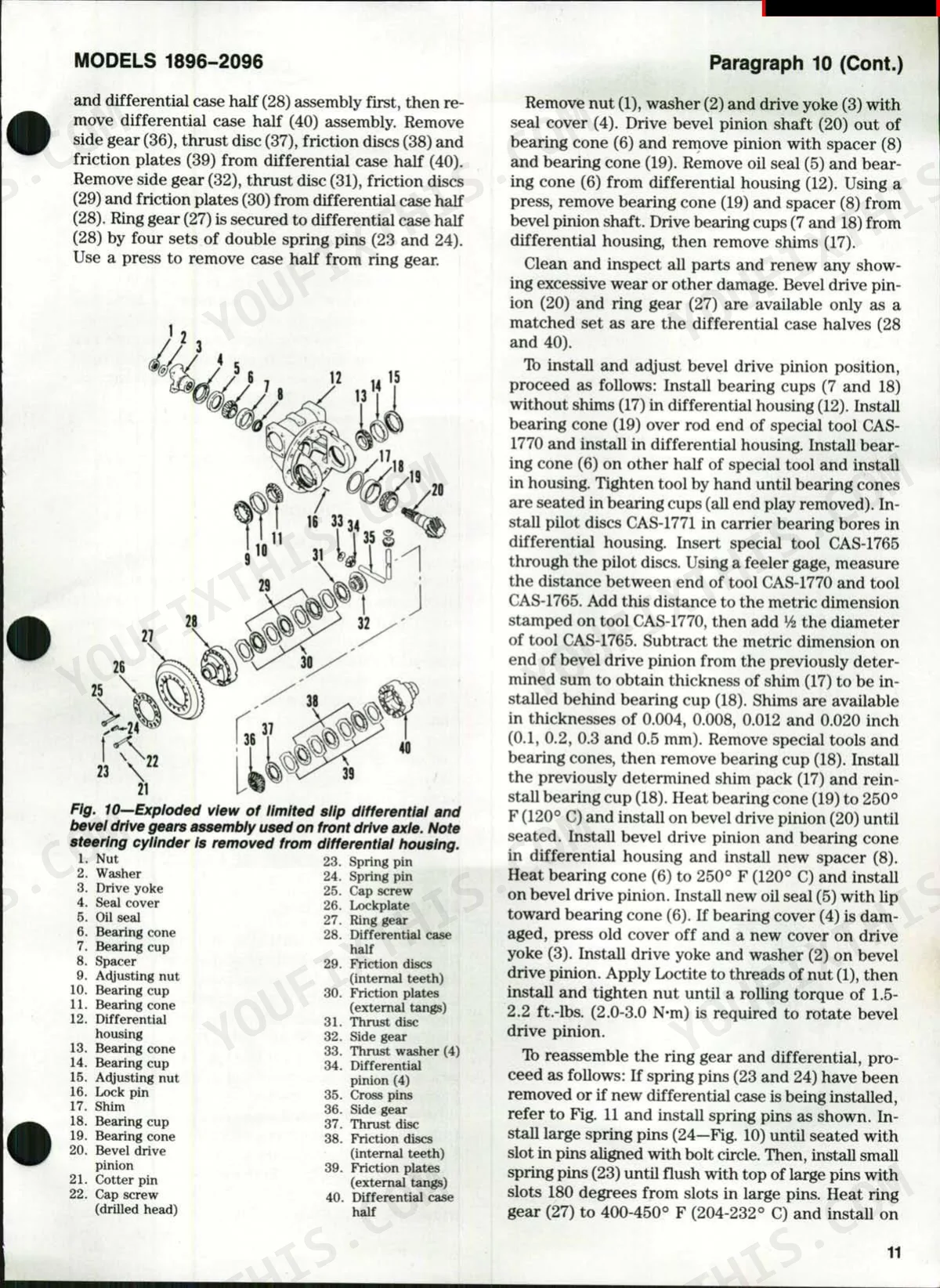

| System | Pages | Key Topics |
|---|---|---|
| 02-03 | 1-2 | Engine Assembly, Timing Gear Cover, Valve Adjustment, Front Drive Shaft, Hitch Control Valve, Fluid, Filters & Bleeding |
| 04-05 | 3-40 | Front Wheel Bearings, Spindles, Spindle Bushings, Tie Rods and Toe-In, Axle Main Member, Pivot Pin |
| 42-43 | 41-63 | Batteries, Battery Current Drain Test, Alternator Voltage Output Test, Voltage Regulator Bypass Test, Alternator Amperage Output Test, Charging System |
| 65-76 | 64-75 | Injector Nozzles, Locating a Faulty Nozzle, Remove and Reinstall, Opening Pressure, Spray Pattern, Seat |
| 77-81 | 76-108 | - |
| 110-116 | 109-115 | - |

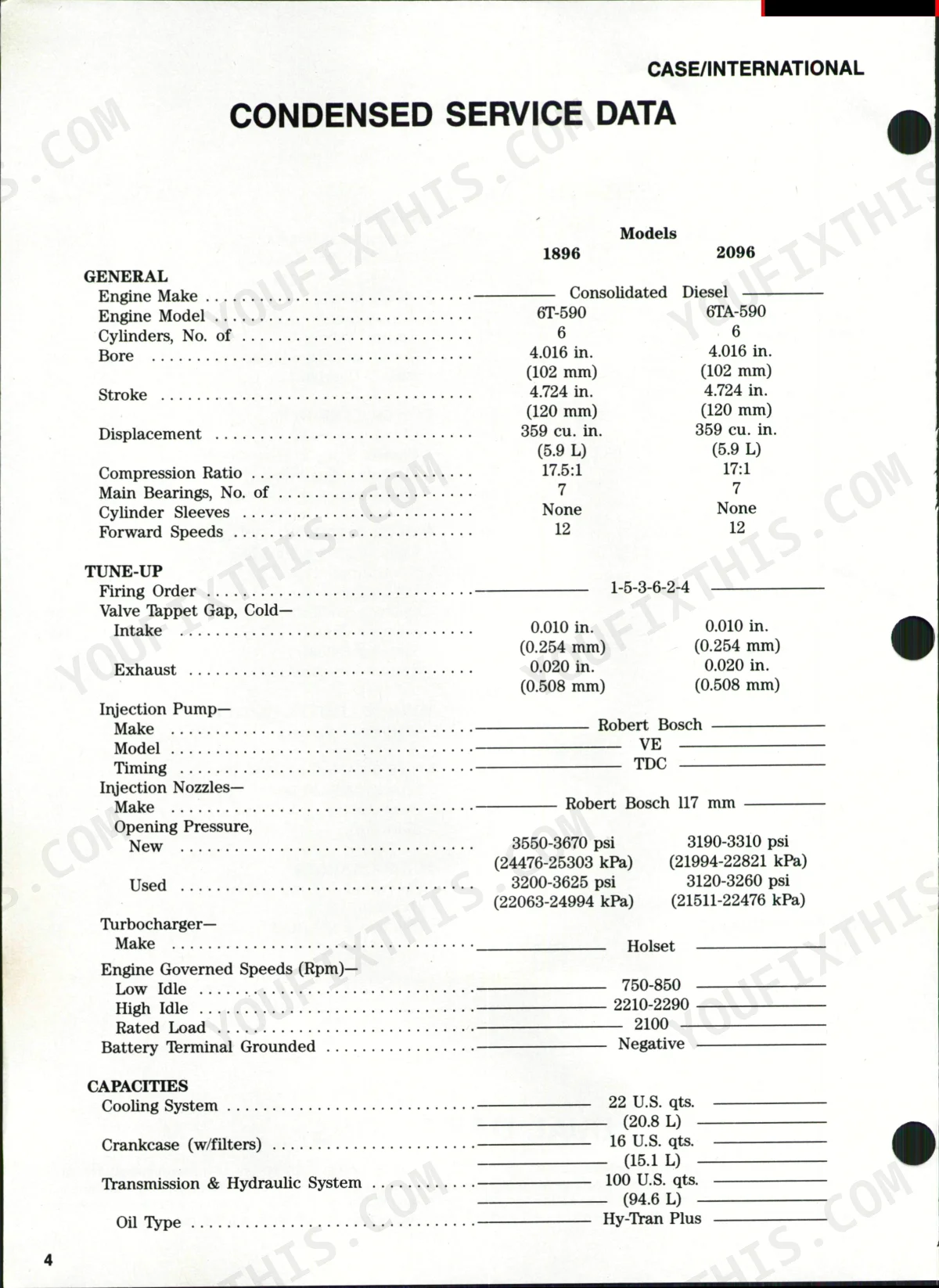

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Power shift clutch operating pressure | 210 psi (1448 kPa) at 2100 engine rpm | p. 68 |
| Power shift clutch operating pressure adjustment | Add or remove shims as required to obtain correct pressure | p. 68 |
| Digital instrument cluster replacement | renew digital instrument cluster | p. 56 |
| Wheel bearings end play | zero end play | p. 4 |
| Spindle bolt torque | 200-250 ft.-lbs. (271-339 N-m) | p. 5 |
| Vacuum switch replacement | renew the vacuum switch | p. 52 |
| Low rpm pressure switch (opens) | 10 psi (68.9 kPa) | p. 51 |
| Low rpm pressure switch (closes) | 6 psi (41.4 kPa) | p. 51 |
| Valve Tappet Gap, Cold (Intake) | 0.010 in. | p. 3 |
| Valve Tappet Gap, Cold (Exhaust) | 0.020 in. | p. 3 |
| 1896 | ||
| Engine Compression Ratio | 17.5:1 | p. 3 |
| 2096 | ||
| Engine Compression Ratio | 17:1 | p. 3 |
Case/international 1896, 2096 Common Problems This Manual Covers
Case IH 1896 oil pressure warning light stays on while engine idles at normal temperature
Check the oil pressure switch circuit on page 51. The low rpm switch opens at 10 psi (68.9 kPa) and closes at 6 psi (41.4 kPa); the high rpm switch opens at 25 psi (172 kPa). Ground the switch wire at the connector; if the light clears, the switch is faulty and should be renewed per page 52. If it stays lit with the wire grounded, trace wire (39) for a short to pin (2) before condemning the gauge.
Manual Section: Electrical System - Charging System Testing p. 51Wiring harness failure cuts all power to the fuse panel with no accessories working
Check the wiring harness continuity per the troubleshooting chart on page 48. Inspect the protective circuits (fuses, circuit breaker, and diodes) for opens or shorts before pulling any panels apart. Set an ohmmeter to zero and probe each harness run for chafed insulation where it passes through the frame; replace any section reading infinite resistance to restore power to the panel.

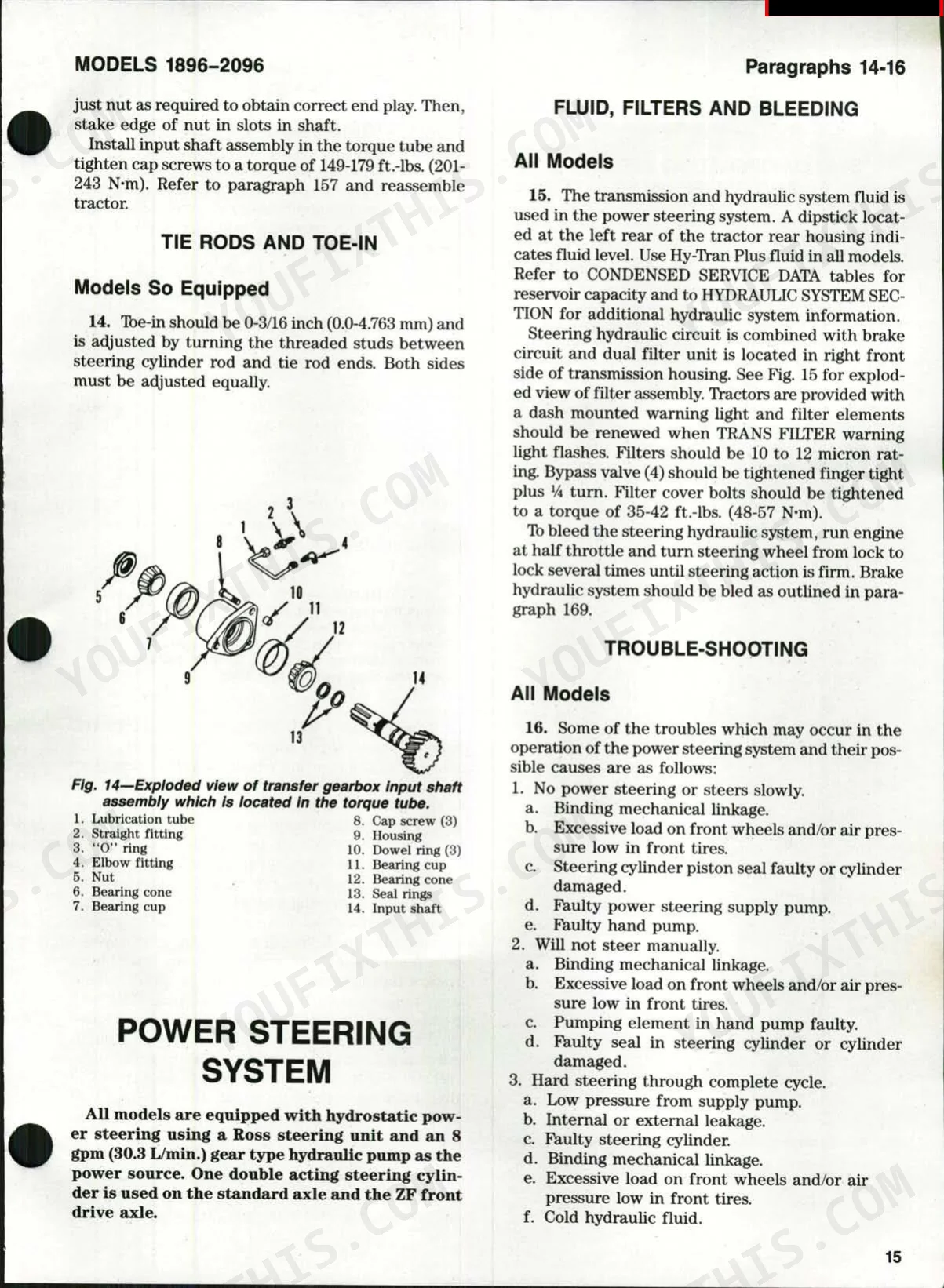

Manual Section: Electrical System - Wiring Trouble-shooting p. 48Tractor will not steer manually even after shutting the engine off completely
Check the power steering troubleshooting chart on page 14. Inspect for an air leak between the engine and torque tube first; a leak here kills manual steering when the pump stops. Verify the front wheels aren't overloaded from added ballast or front-mounted attachments. Bleed the circuit at the highest fitting and cycle the wheel lock to lock before rechecking effort.
Manual Section: Power Steering System Trouble-shooting p. 14Digital instrument cluster reads erratically or goes completely blank during normal operation
Check the wiring and float mechanism first per page 56; don't swap the cluster until both test good. Verify a clean 12V reference reaches the cluster connector and check for corroded or backed-out pins. If wiring and float check out and the display still misbehaves, renew the digital instrument cluster as the last step, not the first.
Manual Section: Electrical System - Wiring Trouble-shooting p. 56Power shift transmission slips or loses pressure under load in the field
Check power shift clutch operating pressure on page 68; correct spec is 210 psi (1448 kPa) at 2100 engine rpm. If pressure reads low, add or remove shims in the PTO control and flow divider valve body; shims come in 1/64 inch and 3/32 inch thicknesses. Retest at full operating temperature before pulling the clutch pack for inspection.
Manual Section: Power Shift Transmission Stall Test p. 68Batteries drain back to dead within days whenever the tractor sits unused
Run the battery current drain test referenced around page 41. Disconnect one battery cable and place an ammeter in series to measure parasitic draw. Pull fuses one at a time until the draw drops out; that circuit has a short or a light, radio, or accessory left energized. Repair or replace the shorted component before returning the battery to service.
Manual Section: Batteries, Battery Current Drain Test, Alternator Voltage Output Test p. 41Frequently Asked Questions
What are the torque specs for Case 1896 engine bolts?

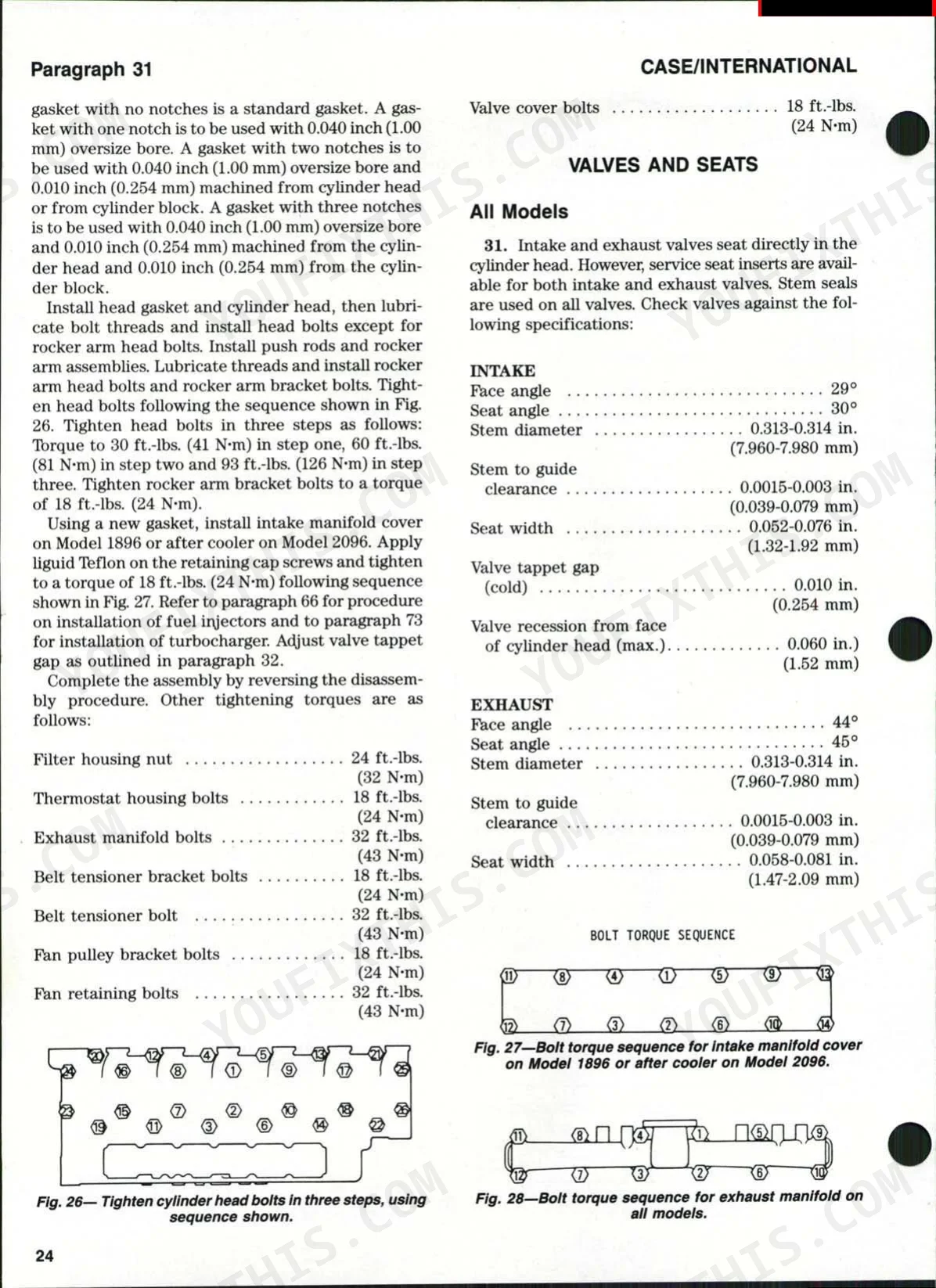

The cylinder head bolts should be tightened in three steps: 30 ft.-lbs. (41 N-m) in step one, 60 ft.-lbs. (81 N-m) in step two, and 93 ft.-lbs. (126 N-m) in step three, following the sequence shown in Fig. 26. Other engine-related bolts, such as thermostat housing bolts, require 18 ft.-lbs. (24 N-m) of torque. p. 23
What do error codes on Case 1896 dashboard mean?
The Case 1896 dashboard uses a digital instrument cluster with LED and LCD indicators to show critical system conditions, rather than "error codes." For example, an Engine oil LED, Water level LED, or Alternator LED will illuminate, and a Coolant temperature LCD bar indicator will flash to signal specific issues. When a critical condition occurs, the green "Systems Normal" light turns OFF, and a red LED warning light or LCD bar indicator flashes. p. 49
How to fix powershift issues on Case 1896?
To address powershift issues, first perform a stall test by running the engine at approximately 1200 rpm, shifting into 4th range, holding brakes, and slowly releasing the inching pedal. If the engine stalls, the torque limiter is not slipping; if bucking does not occur, check for power shift clutch or valve leakage as outlined in paragraphs 193 through 198. Leakage tests for power shift clutches and control valves are detailed in paragraph 194, referring to overhaul procedures in paragraphs 139-140 and 142-149. p. 63
Why is Case 1896 not pulling or lifting properly?
If the draft arms do not raise, potential causes include the tractor hydraulic system not operating correctly, disconnected or incorrectly adjusted hitch control cables, or issues with the hitch control valve lowering piston, rockshaft piston, or cylinder. If the draft arms do not lower, check for disconnected or incorrectly adjusted hitch control cables, a broken or disconnected hitch control valve spool control linkage, or problems with the rockshaft cylinder(s) or hitch control valve. p. 109
Is this Case/international 1896, 2096 Shop Manual a digital download?
This is a 115-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this Case/international 1896, 2096 manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

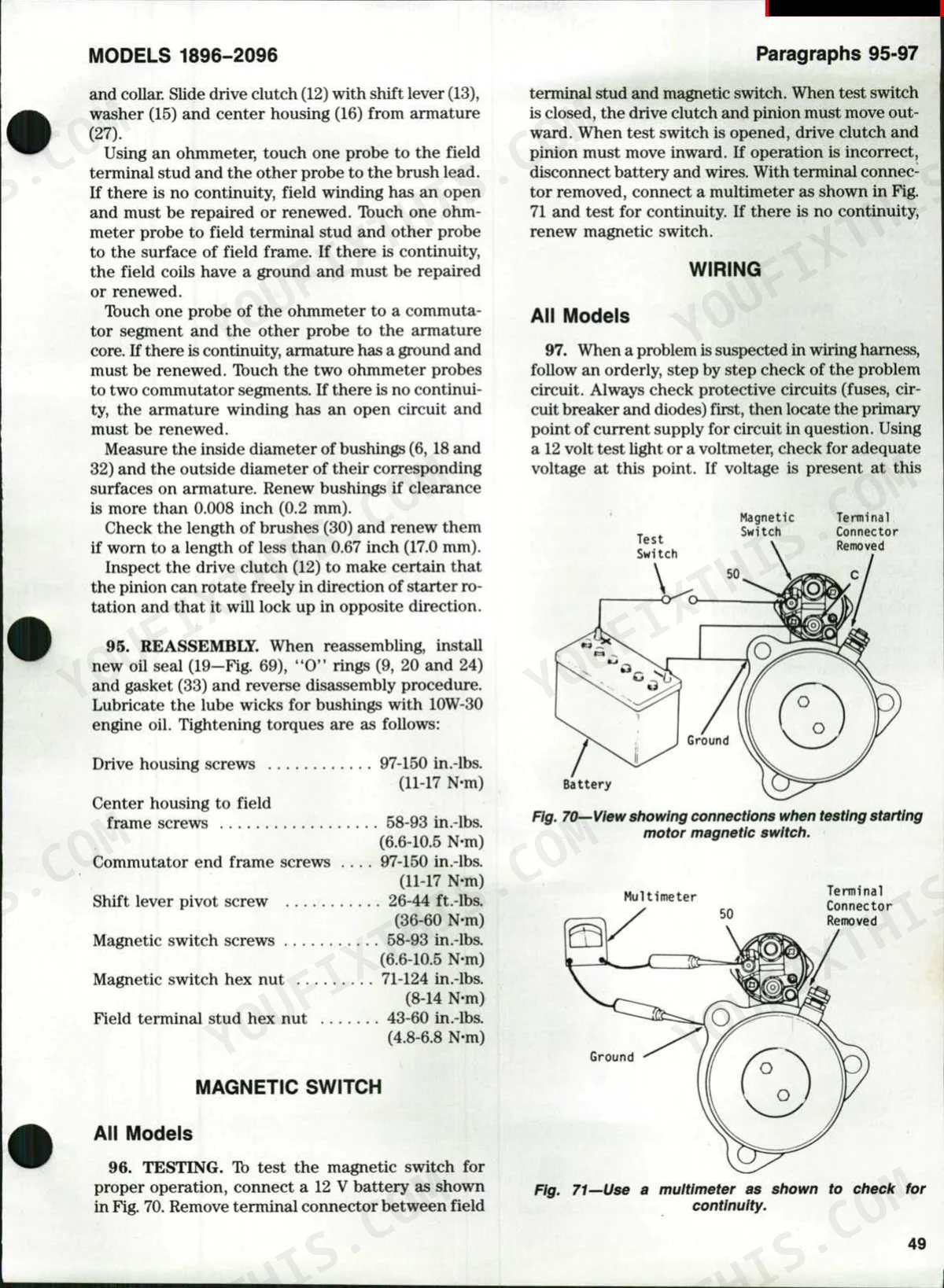

Does this Case/international 1896, 2096 Shop Manual have electrical diagrams?
Yes, this Case/international 1896, 2096 Shop Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
