Part of the Case Repair Manuals.
Need the complete factory procedures for your Case JX tractor? This 174-page Case JX1100U service manual update PDF (OEM #87623196) covers the JX1070U, JX1080U, JX1090U, and JX1100U across transmissions, power take-off, braking, hydraulics, and a two-volume electrical system. Inside you get wiring diagrams that dominate the back half of the manual, full hydraulic schematics for the Bosch auxiliary control valves, a complete transmission fault code listing, connector pinouts, and a troubleshooting section thorough enough to track down electrical problems without a dealer. Torque the PTO casing retaining bolts to 221 Nm, then verify your dual-line braking pressure between 113.1 and 120.35 psi before you button it up. No more chasing wiring faults with a test light and a forum post. Bookmarked and keyword-searchable; open on any device and jump straight to the section you need.
What's Inside This Case JX1070U, JX1080U, JX1090U, JX1100U Manual
| System | Pages | Key Topics |
|---|---|---|
| Transmissions | 9-12 | Gearbox Sensor G, Range Lever Position Sensors, Transmission Fault Code Listing, Clutch Casing with Power Shuttle, Dual Command (2 Speed Power Shift) Solenoid Valve |

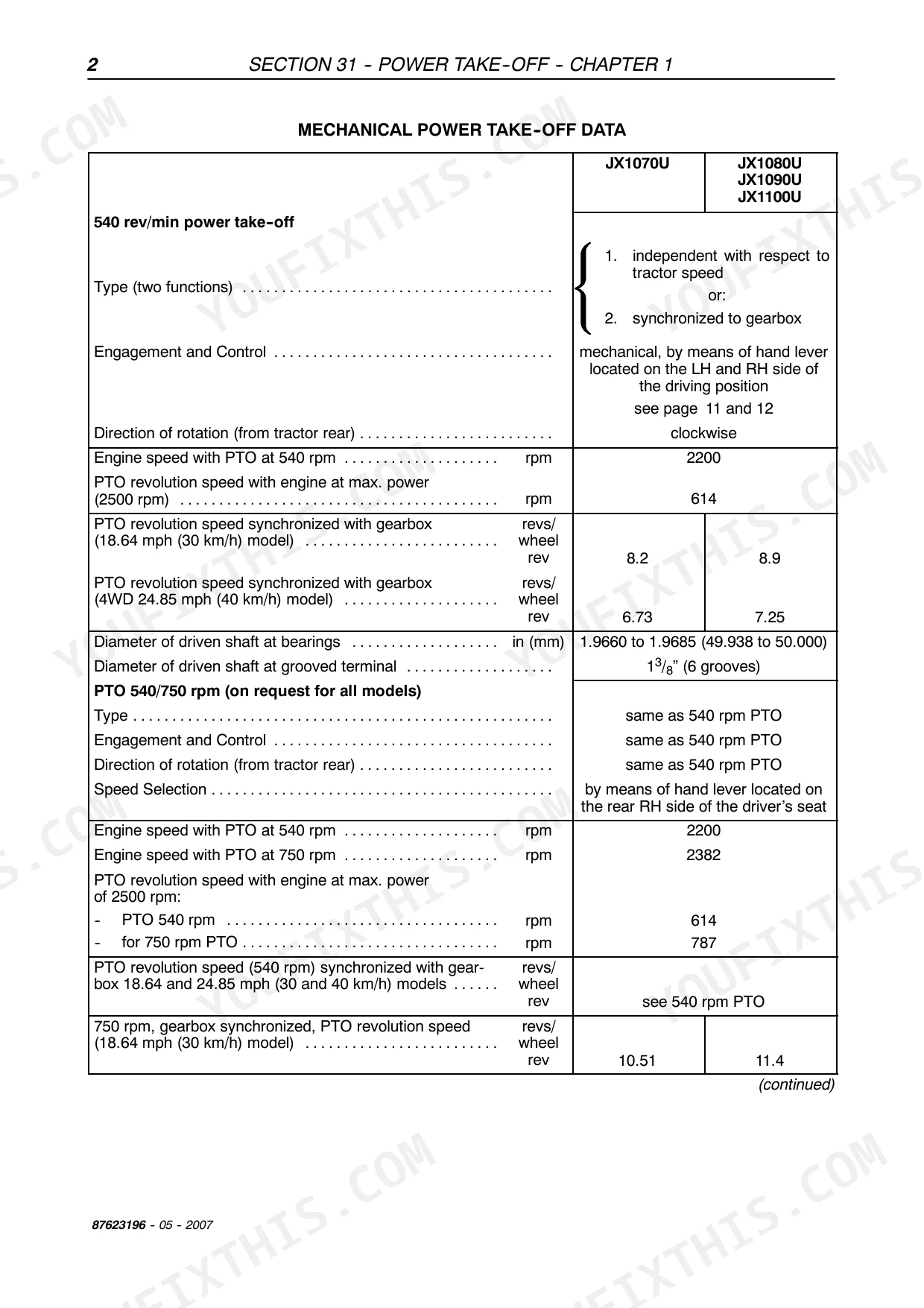

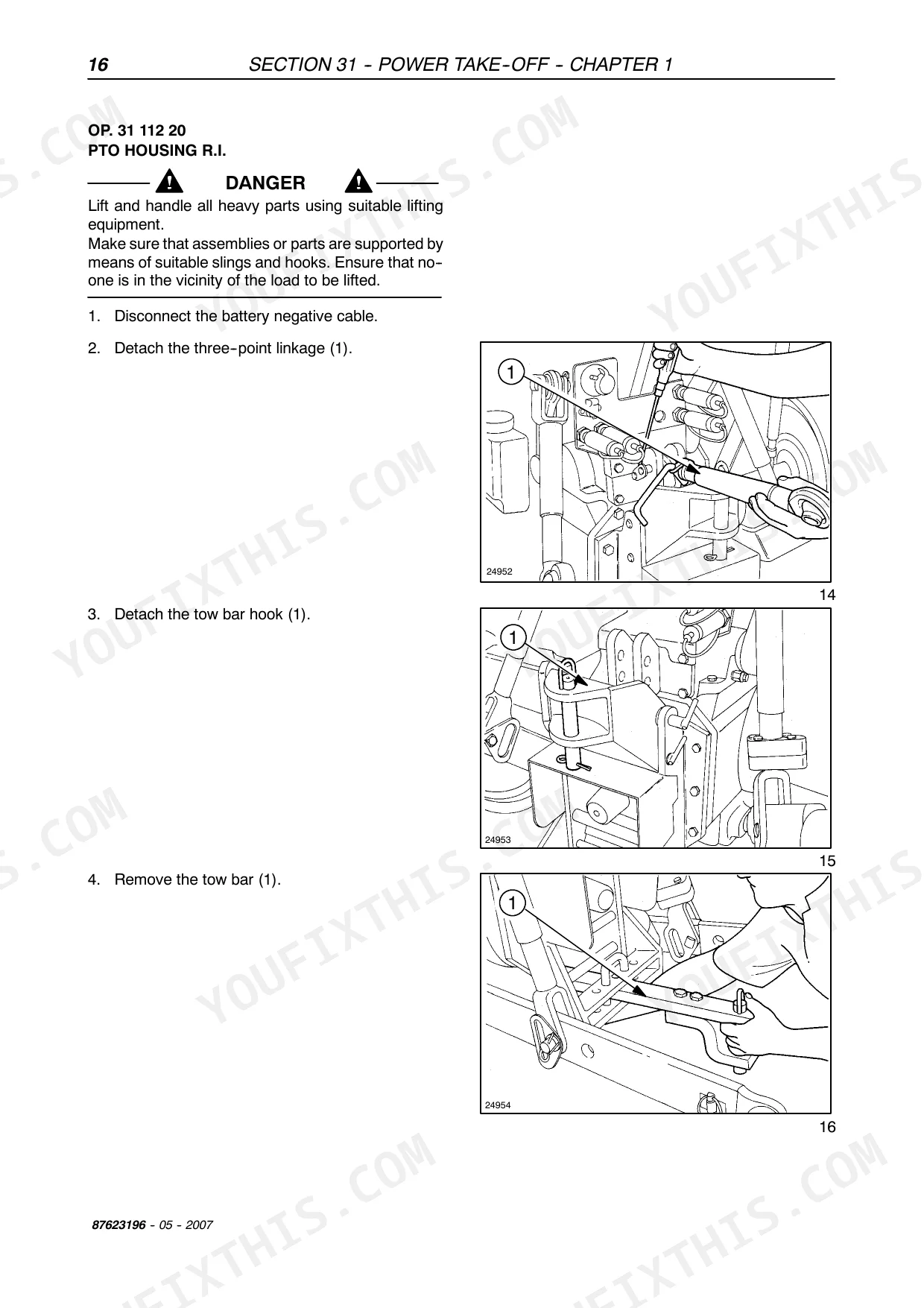

| Power Take--Off | 13-40 | Mechanical Power Take-Off Data, Electro-Hydraulic PTO Data, PTO Housing, PTO Driving Shaft, Driven Shaft, Power Take-Off Clutch Brake |
| Braking System | 41-58 | Air Brake Components, Air Brake Diagram, Compressor, Pressure Regulating Valve, Dual Line Control Valve, Pressure Testing |
| Hydraulic Systems | 59-64 | Auxiliary Control Valves (Bosch), Control Valve Inter-Connection |

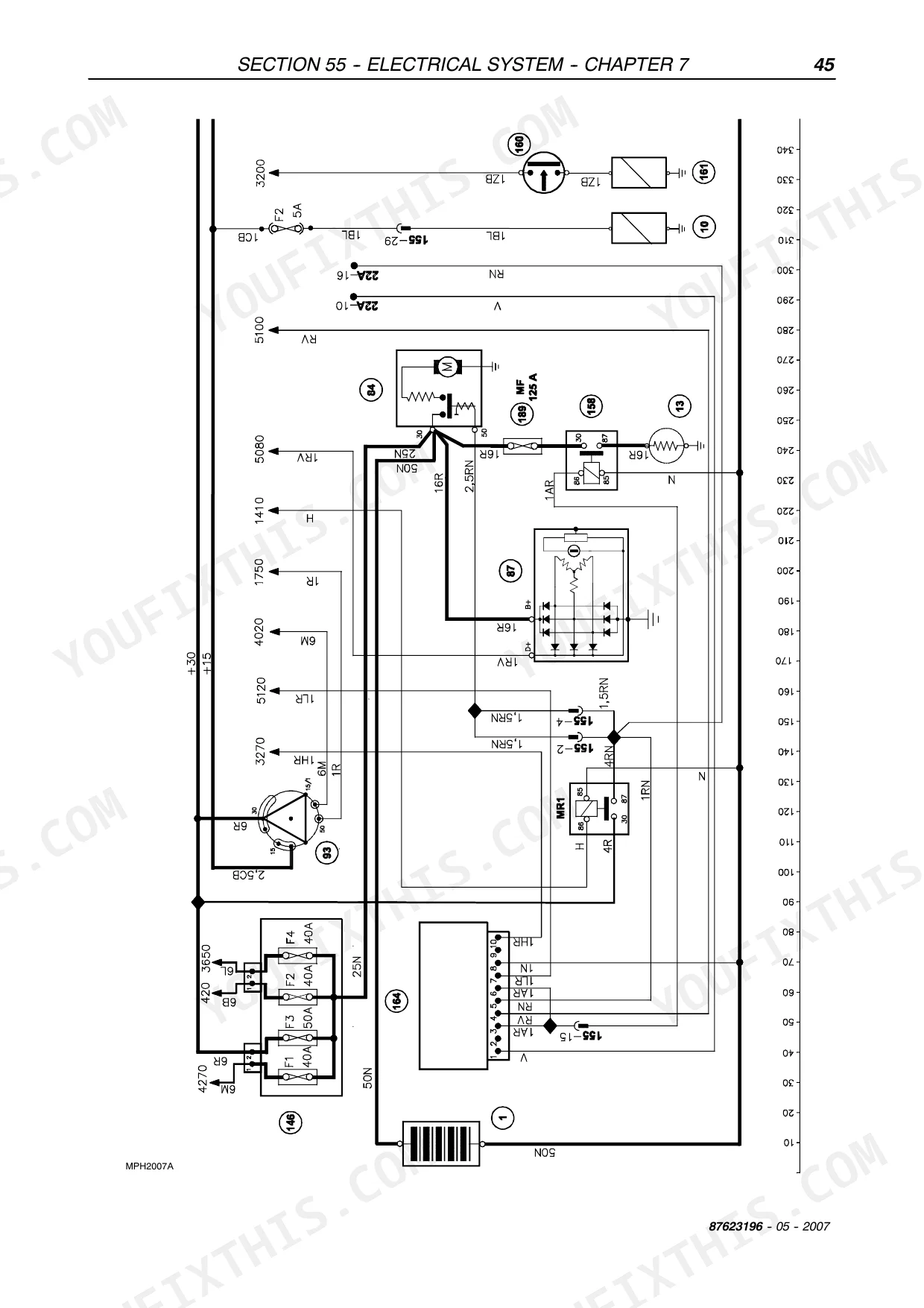

| Section 55 − Electrical System | 69-122 | - |
| Electrical System | 125-174 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

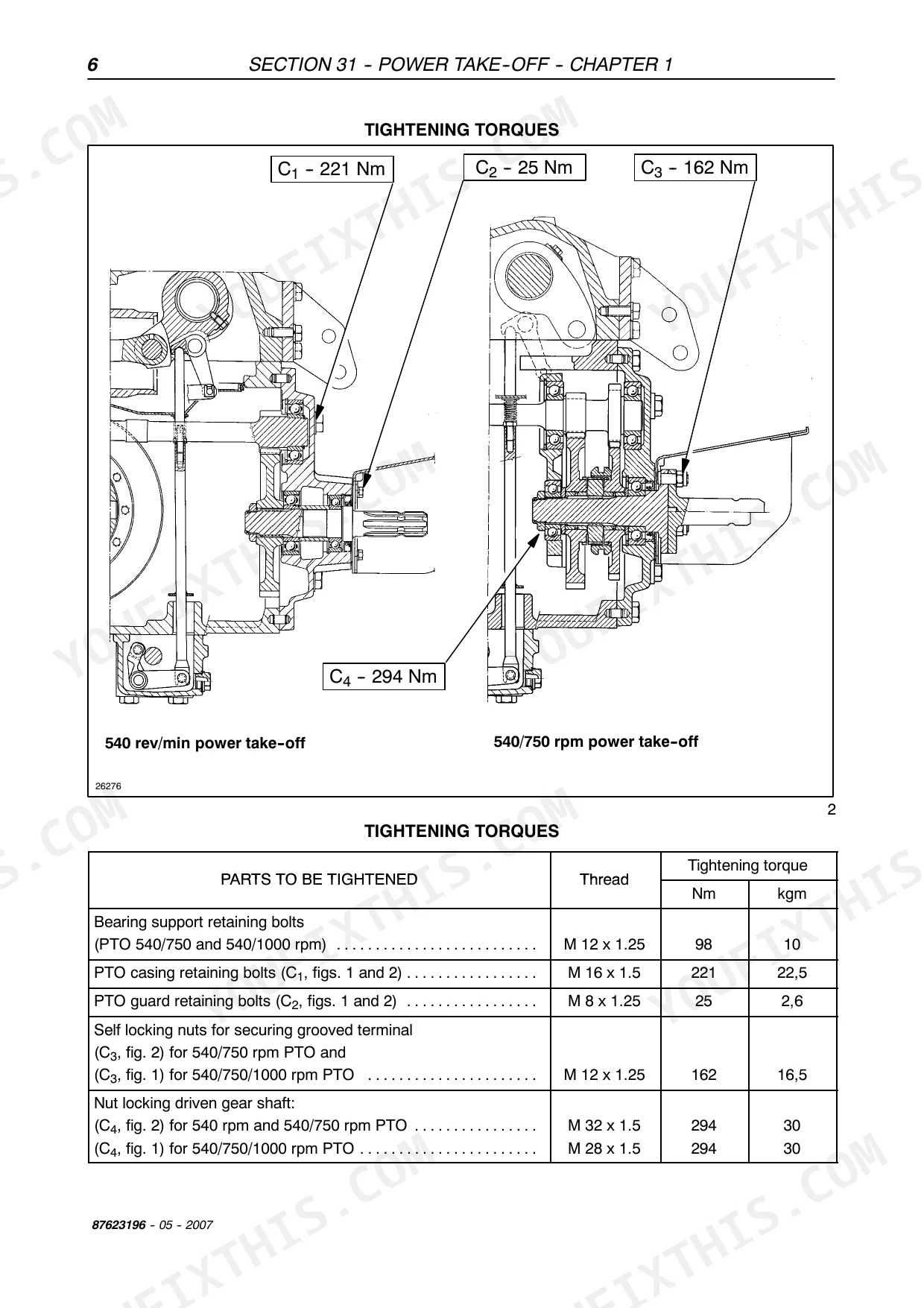

| PTO Casing Retaining Bolts Torque (C1) | 221 Nm | p. 18 |
| Compressor Operating Pressure | 261 psi (18 bar) | p. 41 |
| Dual-line Braking System Working Pressure | 113.1 to 120.35 psi (7.8 to 8.3 bar) | p. 41 |
| Transmission Belt Tension | 310 ± 15 Hz | p. 41 |
| Compressor Pulley Fixing Nut Torque (C2) | 100 to 120 Nm | p. 42 |
| Automatic Release Valve Calibration Pressure | 2537 psi (175 bar) | p. 60 |
| Engine Speed with PTO at 540 rpm | 2200 rpm | p. 14 |
Case JX1070U, JX1080U, JX1090U, JX1100U Common Problems This Manual Covers
Case JX1070U mechanical PTO slipping under heavy load and grooved terminal loses speed. p. 14
Inspect the PTO driving shaft and clutch brake components. Verify the engine speed with the PTO at 540 rpm measures exactly 2200 rpm as shown on page 14. If components require replacement, torque the PTO casing retaining bolts to 221 Nm during reassembly according to page 18.
Manual Section: Power Take--OffInstrument cluster warning light illuminates and trailer air brakes experience delayed operation or fail entirely. p. 54
Troubleshoot the air brake components using the procedures on page 54. Test the compressor operating pressure to ensure it reaches 261 psi (18 bar). Verify the dual-line braking system working pressure measures between 113.1 and 120.35 psi (7.8 to 8.3 bar) as specified on page 41.
Manual Section: Braking SystemError code indicator flashes fast at 8 Hz during calibration and hydraulic lift arm fails. p. 174
Check the working depth potentiometer and upper travel limit sensor for mechanical binding. Access the diagnostic test values on page 174 to verify sensor alignment. Test the automatic release valve calibration pressure to confirm it holds at 2537 psi (175 bar) as detailed on page 60.
Manual Section: Electrical SystemAir compressor system pressure runs too high and drive belt exhibits excessive vibration during operation. p. 41
Inspect the pressure regulating valve and dual line control valve. Check the transmission belt tension on page 41 to ensure it measures 310 ± 15 Hz. If replacing the pulley, torque the compressor pulley fixing nut between 100 and 120 Nm as directed on page 42.
Manual Section: Braking SystemFrequently Asked Questions
How do you fix case JX1070U mechanical PTO slipping under heavy load and grooved terminal loses speed?
Inspect the PTO driving shaft and clutch brake components. Verify the engine speed with the PTO at 540 rpm measures exactly 2200 rpm as shown on page 14. If components require replacement, torque the PTO casing retaining bolts to 221 Nm during reassembly according to page 18.
How do you fix instrument cluster warning light illuminates and trailer air brakes experience delayed operation or fail entirely?
Troubleshoot the air brake components using the procedures on page 54. Test the compressor operating pressure to ensure it reaches 261 psi (18 bar). Verify the dual-line braking system working pressure measures between 113.1 and 120.35 psi (7.8 to 8.3 bar) as specified on page 41.
How do you fix error code indicator flashes fast at 8 Hz during calibration and hydraulic lift arm fails?
Check the working depth potentiometer and upper travel limit sensor for mechanical binding. Access the diagnostic test values on page 174 to verify sensor alignment. Test the automatic release valve calibration pressure to confirm it holds at 2537 psi (175 bar) as detailed on page 60.
How do you fix air compressor system pressure runs too high and drive belt exhibits excessive vibration during operation?
Inspect the pressure regulating valve and dual line control valve. Check the transmission belt tension on page 41 to ensure it measures 310 ± 15 Hz. If replacing the pulley, torque the compressor pulley fixing nut between 100 and 120 Nm as directed on page 42.
Is this Service Manual Update a digital download?
You get a 174-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Case JX1070–JX1100 Series Service Manual Update printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Case JX1070–JX1100 Series manual cover the hydraulic system?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
