Engine, fuel, electrical, steering, power train, brakes, hydraulics and mounted equipment each run end to end through the 888 pages of this Case 570MXT service manual PDF, the factory repair manual (OEM ID 87728463) for the 570MXT Loader Landscaper. Power train work takes up the biggest share of the book, from transmission pressure checks to rear axle and planetary overhaul, while the hydraulics section covers the pump, loader control valve, cylinders and ride control accumulator. Wiring diagrams and hydraulic schematics show you how each circuit and oil route runs out to the lift arms and bucket cylinders. Torque the bucket cylinder piston bolt to 332 to 380 Nm (245 to 280 lb-ft), and tighten 1/2 inch 37 degree flare fittings to 180 to 504 lb-in. Tracking down a drifting loader valve can eat a whole afternoon. With bookmarks and text you can search, the right procedure is quick to find, and your 570MXT goes back to loading trucks.
What's Inside This Case 570MXT Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 5-21 | Section Index - General (Standard Torque Specifications, Fluids and Lubricants, Metric Conversion Chart) |

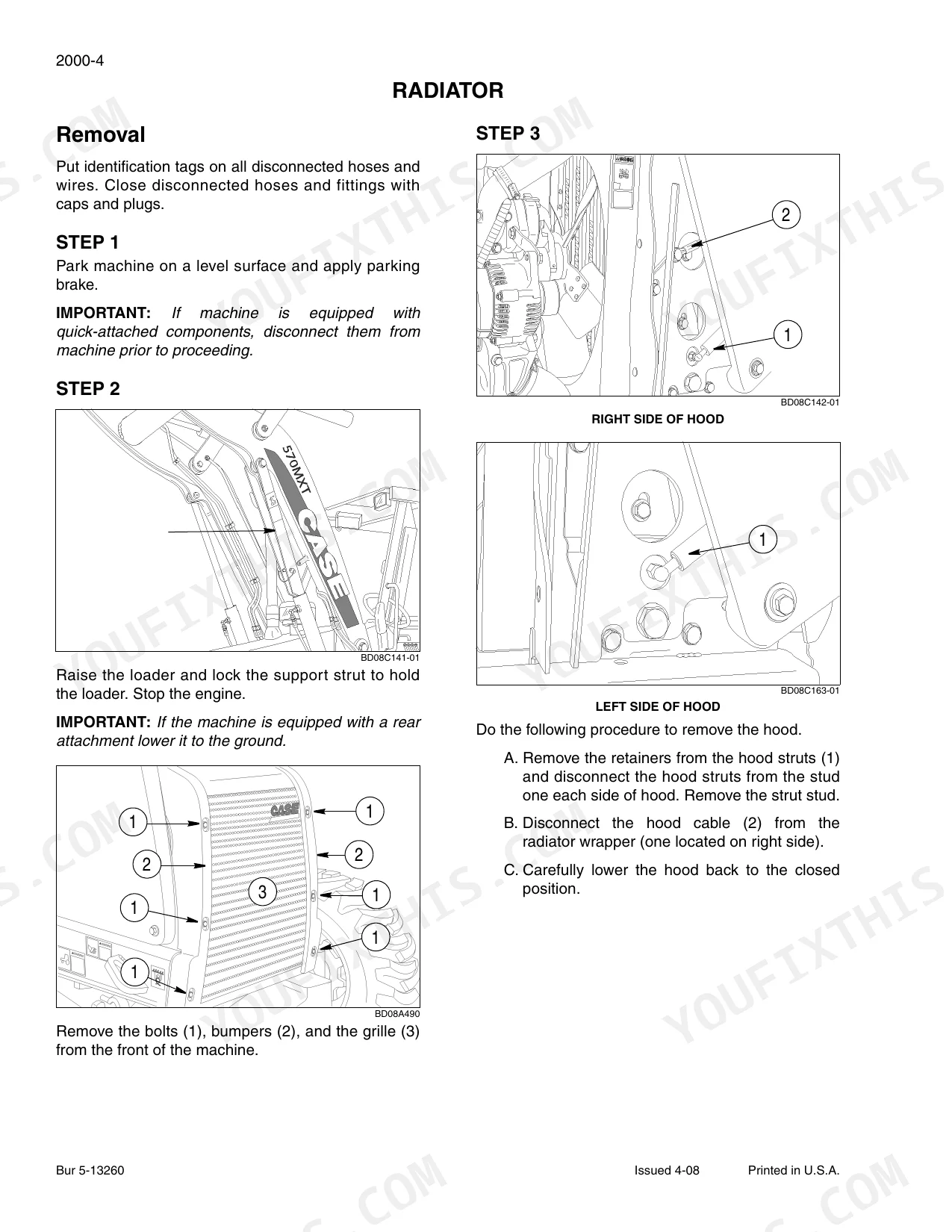

| Engine | 22-74 | Section Index - Engine (Engine and Radiator Removal and Installation, Stall Test, Diagnosing Engine Oil Consumption, Counter Balance Removal and Installation, Turbocharger Diagnosis Procedure Family 3 Engines) |
| Fuel System | 75-91 | Section Index - Fuel System (in Vehicle Injector Pump Removal, Installation and Static Timing) |

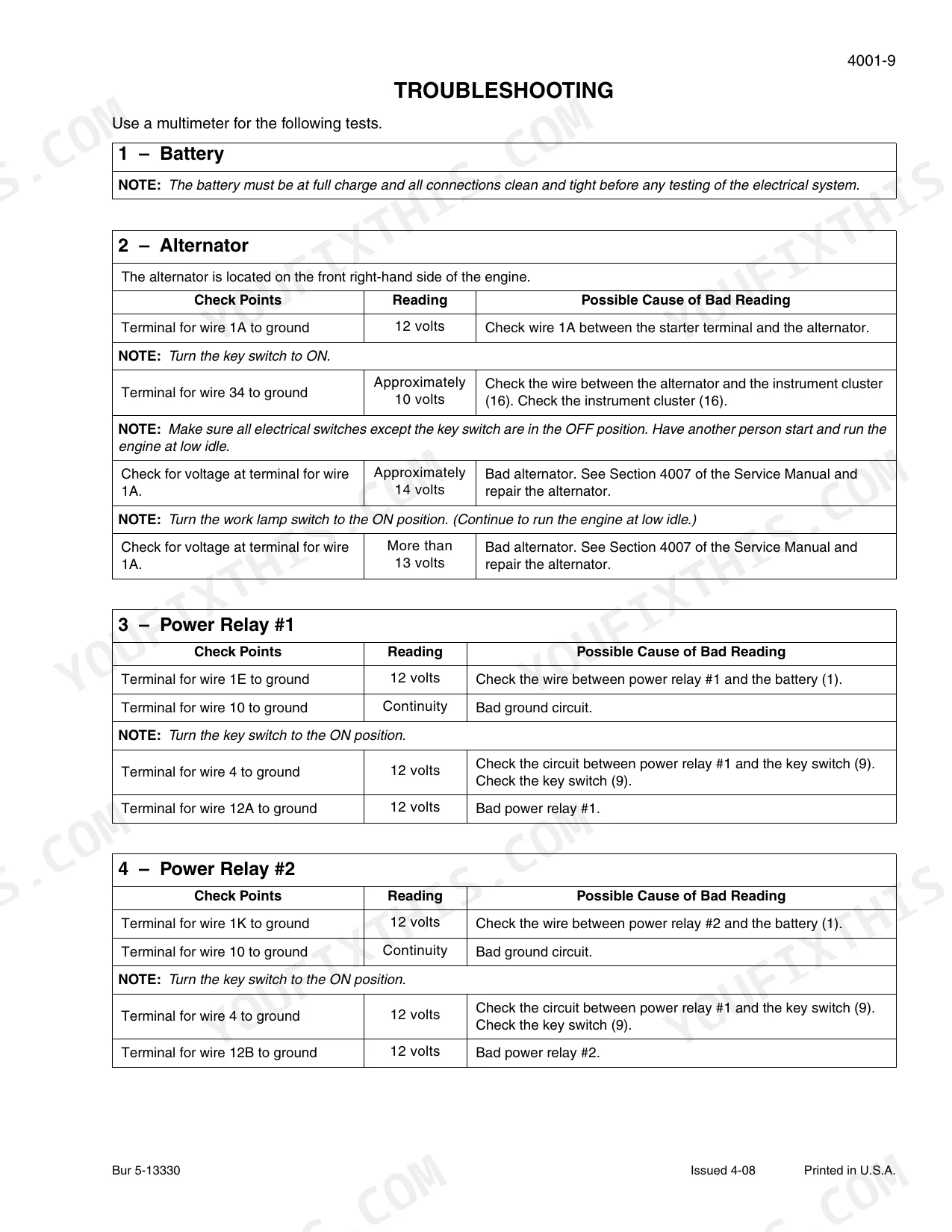

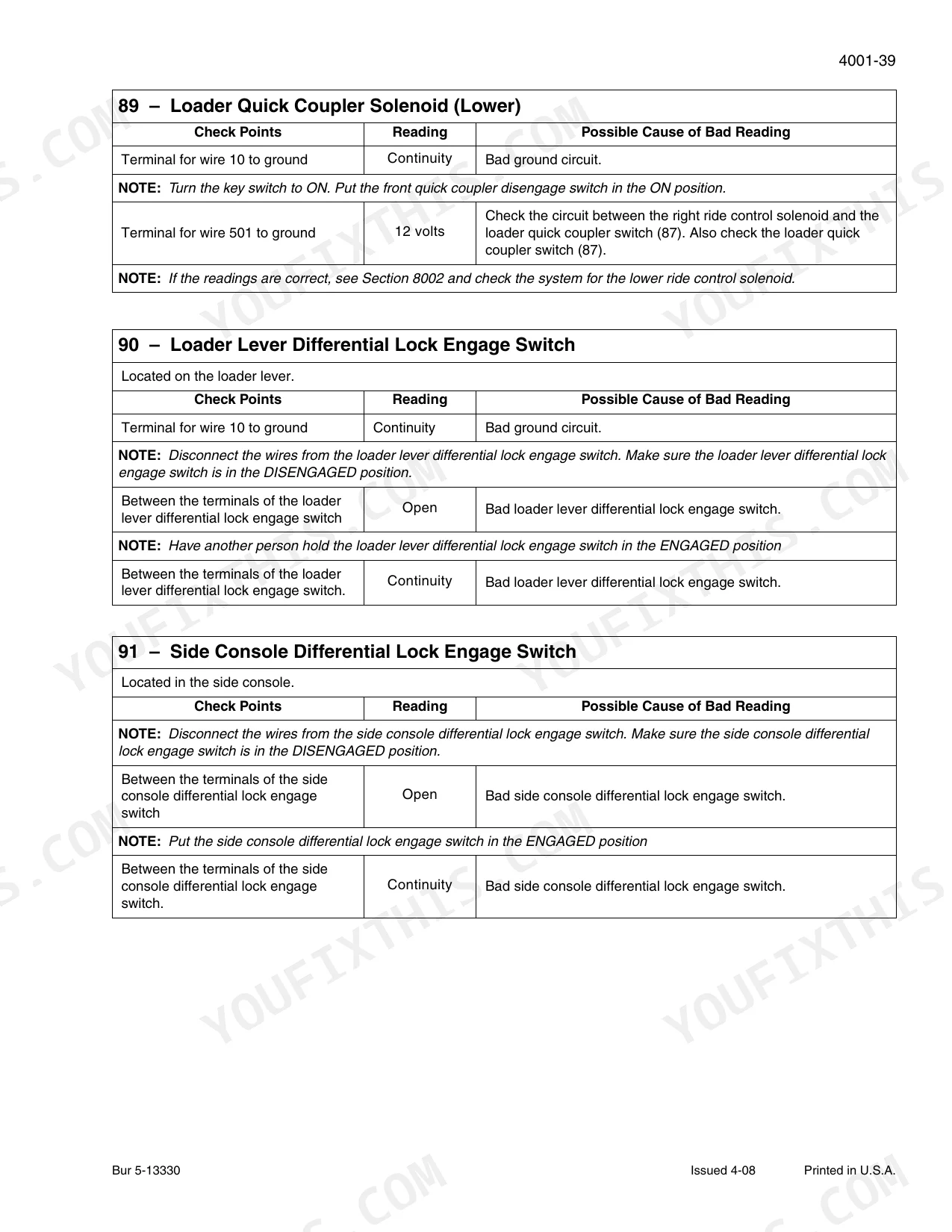

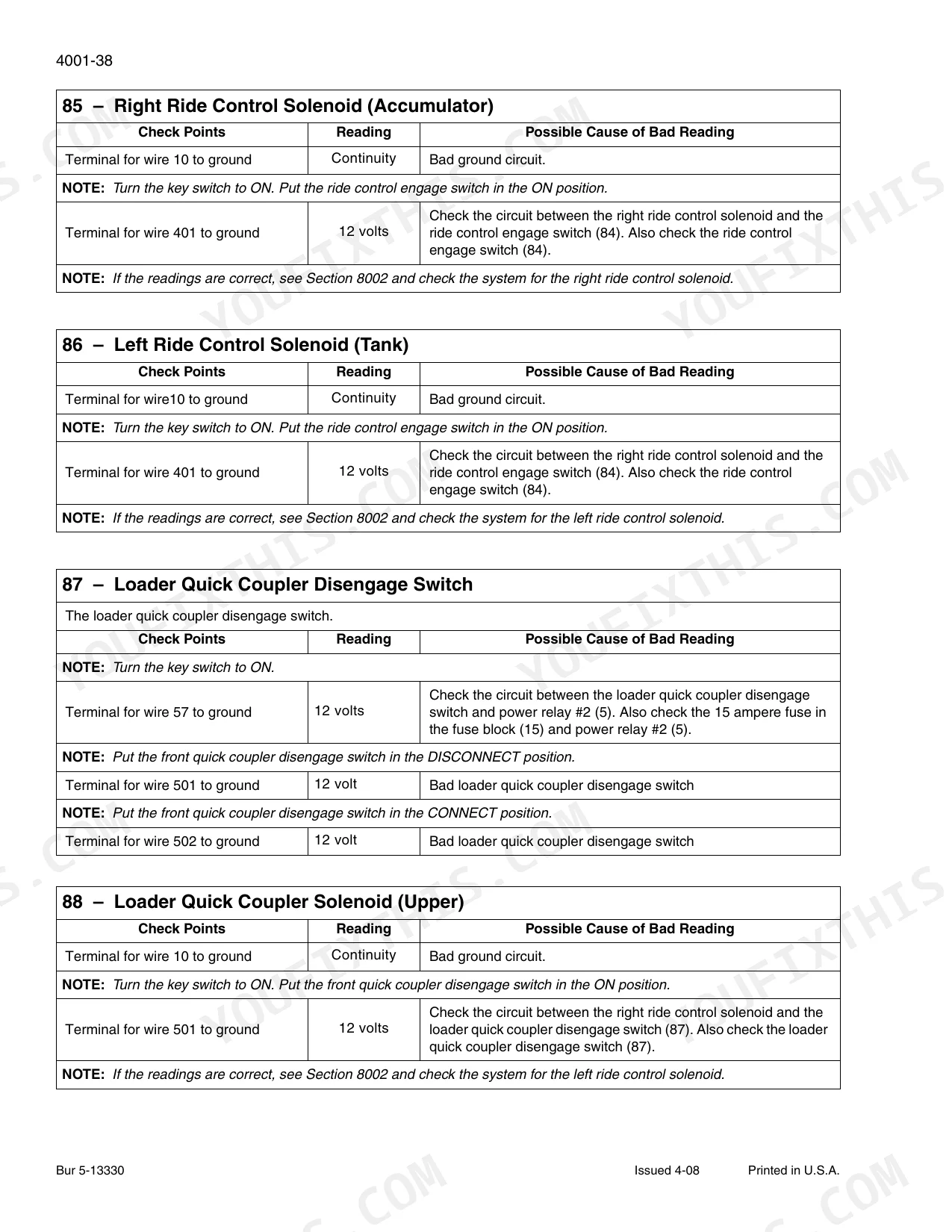

| Electrical | 92-212 | Section Index - Electrical (Removal and Installation of Electrical Components, Electrical Specifications and Troubleshooting, Batteries, Starter and Starter Solenoid, Instrument Cluster) |
| Steering | 213-321 | Section Index - Steering (Removal and Installation of Steering Components, Steering Specification, Pressure Checks and Troubleshooting, Steering Control Valve, Steering Cylinders, Front Axle - Two Wheel Drive, Front Axle - Four Wheel Drive) |
| Power Train | 322-574 | Section Index - Power Train (Removal and Installation of Power Train Components, Standard Transmission Specifications, Pressure Checks, And Troubleshooting, Wheels and Tires, Rear Axle and Planetaries, Standard Transmission) |
| Brakes | 575-595 | Section Index - Brakes (Removal and Installation of Brake Components, Hydraulic Brake Troubleshooting, Master Cylinder) |
| Hydraulics | 596-754 | Section Index - Hydraulics (Removal and Installation of Hydraulic Components, Hydraulic System Specifications and Troubleshooting, Cleaning the Hydraulic System and Hydrostatic System) |
| Mounted Equipment | 755-885 | Section Index - Mounted Equipment (Pedals and Levers, Air Conditioning Troubleshooting, Air Conditioning System Service) |
| Schematic Set | 886-888 | Hydraulic and Electrical Schematics |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

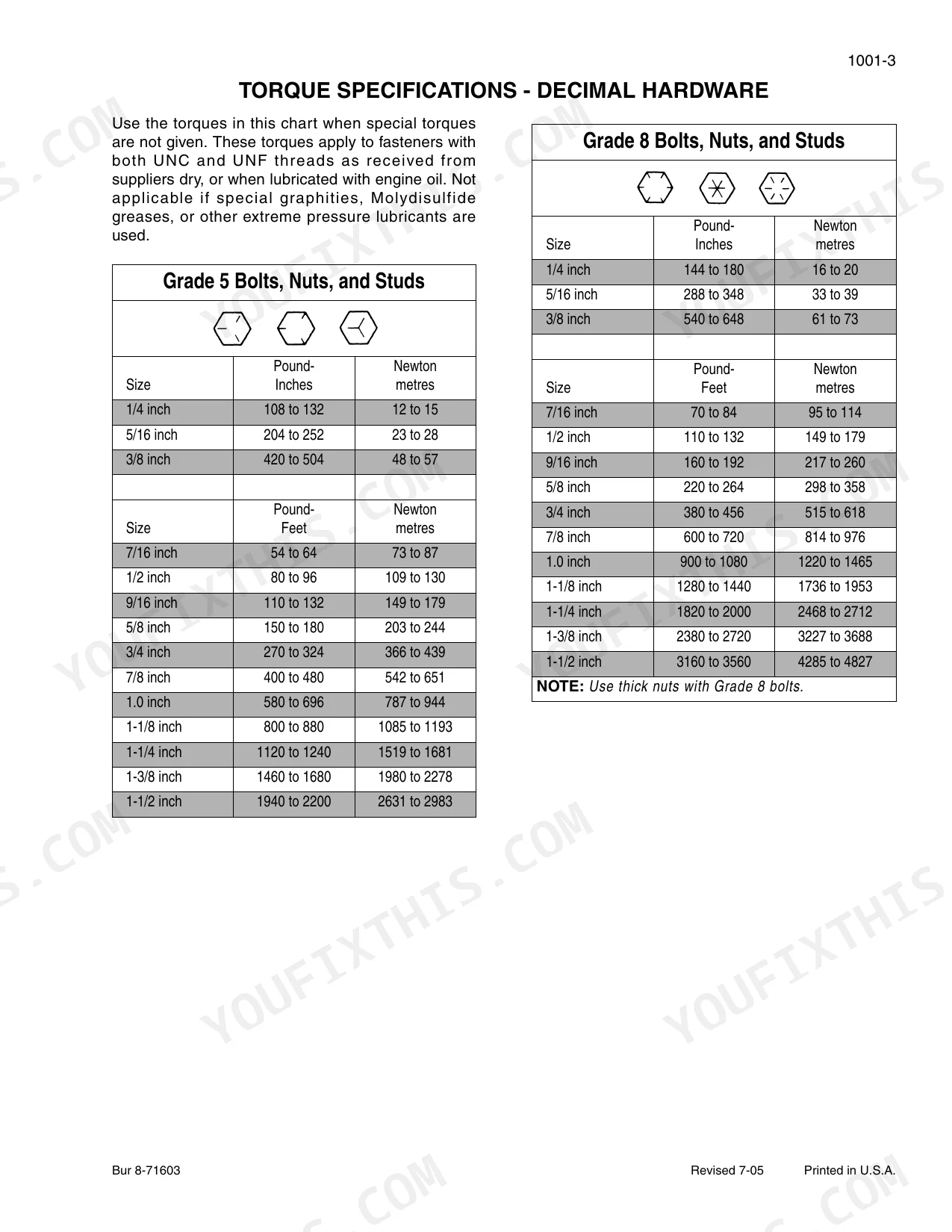

| Grade 5 Bolts, Nuts, and Studs (1/4 inch) | 108 to 132 Pound-Inches | p. 8 |
| Grade 5 Bolts, Nuts, and Studs (1/2 inch) | 80 to 96 Pound-Feet | p. 8 |
| 37 Degree Flare Fitting (1/4 inch Tube OD) | 72 to 144 Pound-Inches | p. 10 |
| 37 Degree Flare Fitting (1/2 inch Tube OD) | 180 to 504 Pound-Inches | p. 10 |
| Loader Bucket Cylinder Piston Bolt Torque | 332 to 380 Nm (245 to 280 Pound-Feet) | p. 709 |
| Loader Bucket Cylinder Gland Torque | 135 to 540 Nm (100 to 400 Pound-Feet) | p. 709 |
| Engine Crankcase Oil Capacity | 11 litres (11.6 U.S. quarts) | p. 14 |
| Cooling System Capacity (with heater) | 17.4 litres (18.4 U.S. quarts) | p. 14 |
| Hydraulic System Capacity (with filter change) | 54.5 litres (14.4 U.S. gallons) | p. 14 |
| Transmission 2WD Total System Capacity | 18.5 litres (19.5 U.S. quarts) | p. 14 |
| Transmission 4WD Total System Capacity | 21.0 litres (22 U.S. quarts) | p. 14 |
| Engine Full Throttle - No Load Speed | 2300 to 2450 rpm | p. 51 |
Case 570MXT Common Problems This Manual Covers
Case 570MXT loader standard transmission and torque converter showing hesitation and loss of power under load
Test engine full throttle no load speed first against 2300 to 2450 rpm, so you know the engine is healthy. Then do the stall test on page 51 and compare torque converter stall speed against 2180 to 2310 rpm. Work through the hesitation and loss of power tables in the Standard Transmission troubleshooting before you pull anything.
Manual Section: Standard Transmission Specifications and Troubleshooting p. 322During long days of heavy loader cycling, the standard transmission keeps showing oil overheating
Check transmission oil level first. Then follow the oil overheating table in the Standard Transmission troubleshooting section step by step before you start swapping parts. Do the stall test on page 51 as well and write down the result: torque converter stall speed should fall between 2180 and 2310 rpm.
Manual Section: Standard Transmission Specifications and Troubleshooting p. 322Machine will not move when shifted into gear, or the front drive 4WD does not work
Check transmission oil level before you pull a single cover. Total system capacity is 21.0 litres (22 U.S. quarts) on 4WD units and 18.5 litres (19.5 U.S. quarts) on 2WD, per page 14. Then work through the will not move and 4WD does not work tables in the Standard Transmission troubleshooting in order.
Manual Section: Standard Transmission Specifications and Troubleshooting p. 322Lift arms and bucket both underperforming, a problem showing up in all hydraulic circuits at once
Test the main relief valve against 210 ± 3 bar (3050 ± 50 psi) on page 657 after you finish the visual checks. Do the pump output test next, then check loader hydraulic stall speed on page 51 against 2230 to 2330 rpm. Don't guess on a pump when the gauge can tell you.
Manual Section: Hydraulic System Specifications and Troubleshooting p. 657Loader bucket cylinder torn down for service: piston bolt and gland torque at reassembly
Torque the piston bolt to 332 to 380 Nm (245 to 280 pound-feet) and the gland to 135 to 540 Nm (100 to 400 pound-feet) per page 709. Measure bore and rod before ordering parts: bore is 76.2 mm (3 inches), rod is 38.1 mm (1.5 inches), stroke 522.3 mm (20.56 inches).
Manual Section: Hydraulics p. 709Family 3 engine turbocharger showing loss of power, oil residue, or impeller damage
Verify engine full throttle no load speed against 2300 to 2450 rpm on page 51 before blaming the turbo. Then inspect the impeller for damage and the shaft for scoring, following the Turbocharger Diagnosis Procedure for Family 3 engines in the Engine section. Trace oil residue back to its source before fitting anything new.
Manual Section: Turbocharger Diagnosis p. 22Frequently Asked Questions
What are the torque specifications for the wheel lug nuts on a Case 570MXT?
For the front wheels on a two-wheel drive model, the torque is 156 to 203 Nm (115 to 150 pound-feet). For the front wheels on a four-wheel drive model, the torque is 251 Nm (185 pound-feet). The rear wheel mounting nuts must be torqued to 305 Nm (225 pound-feet). p. 369
What are the torque specifications for steel hydraulic fittings on the Case 570MXT?
Torque specifications for steel hydraulic fittings vary by size and type. For example, a 37-degree flare fitting with a 1/4 inch tube OD and 7/16-20 thread size requires 72 to 144 pound-inches (8 to 16 Newton-metres). A 1-1/4 inch tube OD fitting with 1-5/8-12 thread size requires 125 to 165 pound-feet (169 to 223 Newton-metres). p. 10
What is the engine oil capacity for the Case 570MXT?
The engine crankcase capacity with a filter change is 11 litres (11.6 U.S. quarts). p. 14
What is the correct engine oil viscosity for the Case 570MXT based on ambient temperature?
For ambient temperatures between -20°C and 40°C (-4°F to 104°F), SAE 15W-40 is recommended. For temperatures between -25°C and 10°C (-13°F to 50°F), use SAE 10W-30. For extreme cold between -40°C and 40°C (-40°F to 104°F), SAE 0W-40 Synthetic is recommended. p. 15
What is the procedure for checking the hydraulic pump output on the Case 570MXT?
To check pump output, connect a flowmeter to the pump inlet and outlet. Run the engine at 2000 rpm and record the flow. Then, close the load valve until the pressure reaches 138 bar (2000 psi) and record the flow again. Divide the second reading by the first and multiply by 100 to find the pump efficiency; if it is less than 70 percent, the pump should be repaired or replaced. p. 666
Do I get instant access to this Case 570MXT Service Manual?
You get a 888-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print a copy of this Case 570MXT Service Manual for the shop?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
