Part of the Case Repair Manuals.
This is the complete Case IH factory service manual for the STX275, STX325, STX375, STX425, and STX450 Steiger articulated four-wheel-drive tractors, including the Quadtrac track models. It is organized into the standard Case IH service groups, General, Engines, Fuel, Electrical, Steering, Power Train, Brakes, Hydraulics, Chassis, and Controller Systems. Each group carries specifications, troubleshooting, and step-by-step removal, disassembly, inspection, assembly, and installation procedures, including the powershift drivetrain, the articulated steering and hydraulics, the fan-drive systems, and the electronic controllers. Many sections carry a separate version for machines with product identification number JEE00099501 and after.
What's Inside This Case IH STX275–STX450 Series Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General | Standard Torque Specifications, Loctite Product Chart, And Safety | |
| Engines | Engine Removal and Installation (STX275 Through 450), Air Induction System, Turbocharger, And Viscous and Hydraulic Fan Drive Tests; Engine Internal Repair Is in the Separate Engine Service Manual | |
| Fuel | Fuel System, Fuel Filters, Fuel Pump, And Injection | |

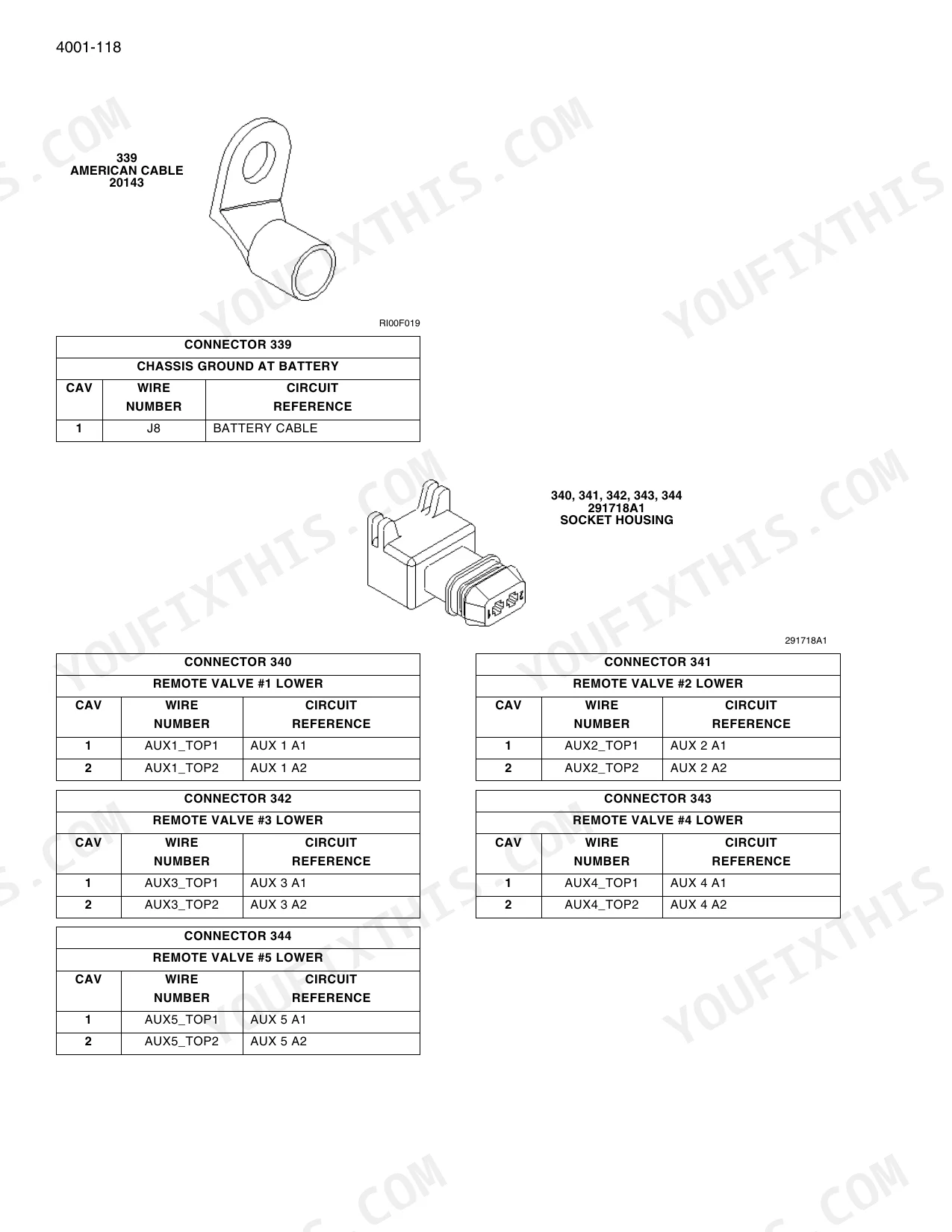

| Electrical | Electrical System How-It-Works and Troubleshooting, Wiring, Batteries, Charging, And Lighting | |
| Steering | Articulated Steering, Steering Cylinders, Steering Control and Priority Valves | |

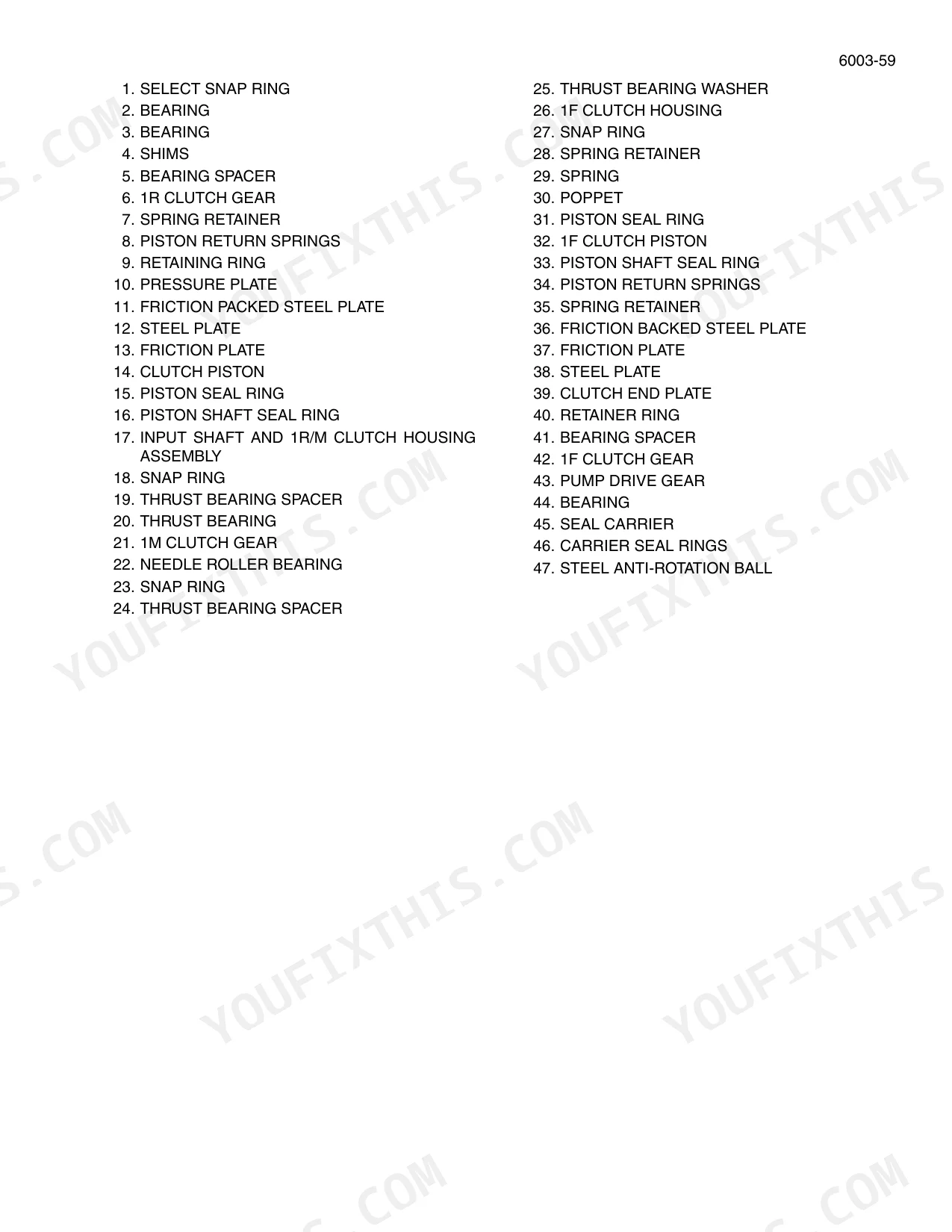

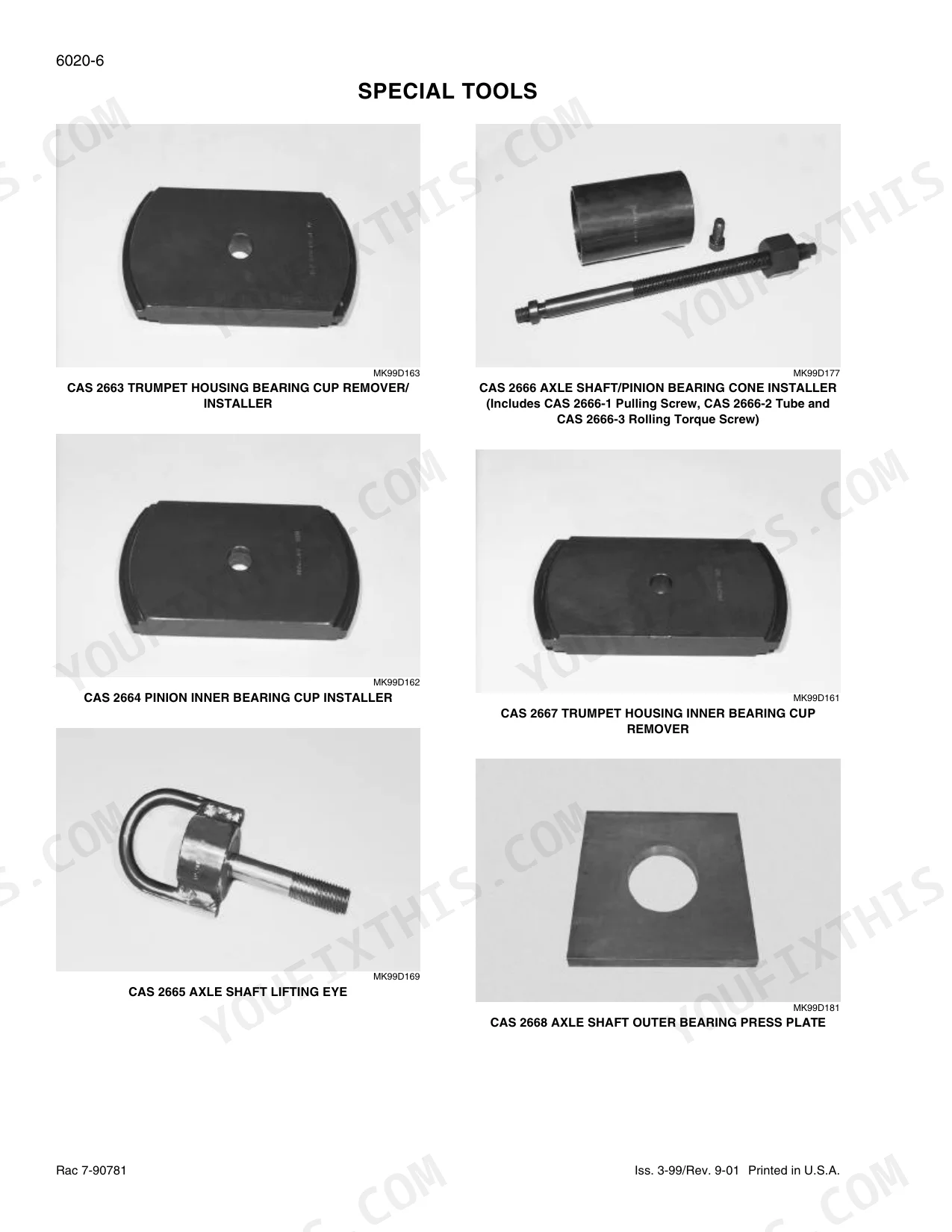

| Power Train | Powershift Transmission, Transfer Case, Axles and Differentials, Drive Shafts, And Quadtrac Drive | |
| Brakes | Service Brakes, Brake Valves, And Parking Brake | |
| Hydraulics | Hydraulic System, Pump, Remote Control Valves, And Three-Point Hitch | |
| Chassis | Frame, Cab, Ballast, Wheels and Tires, And Tracks | |

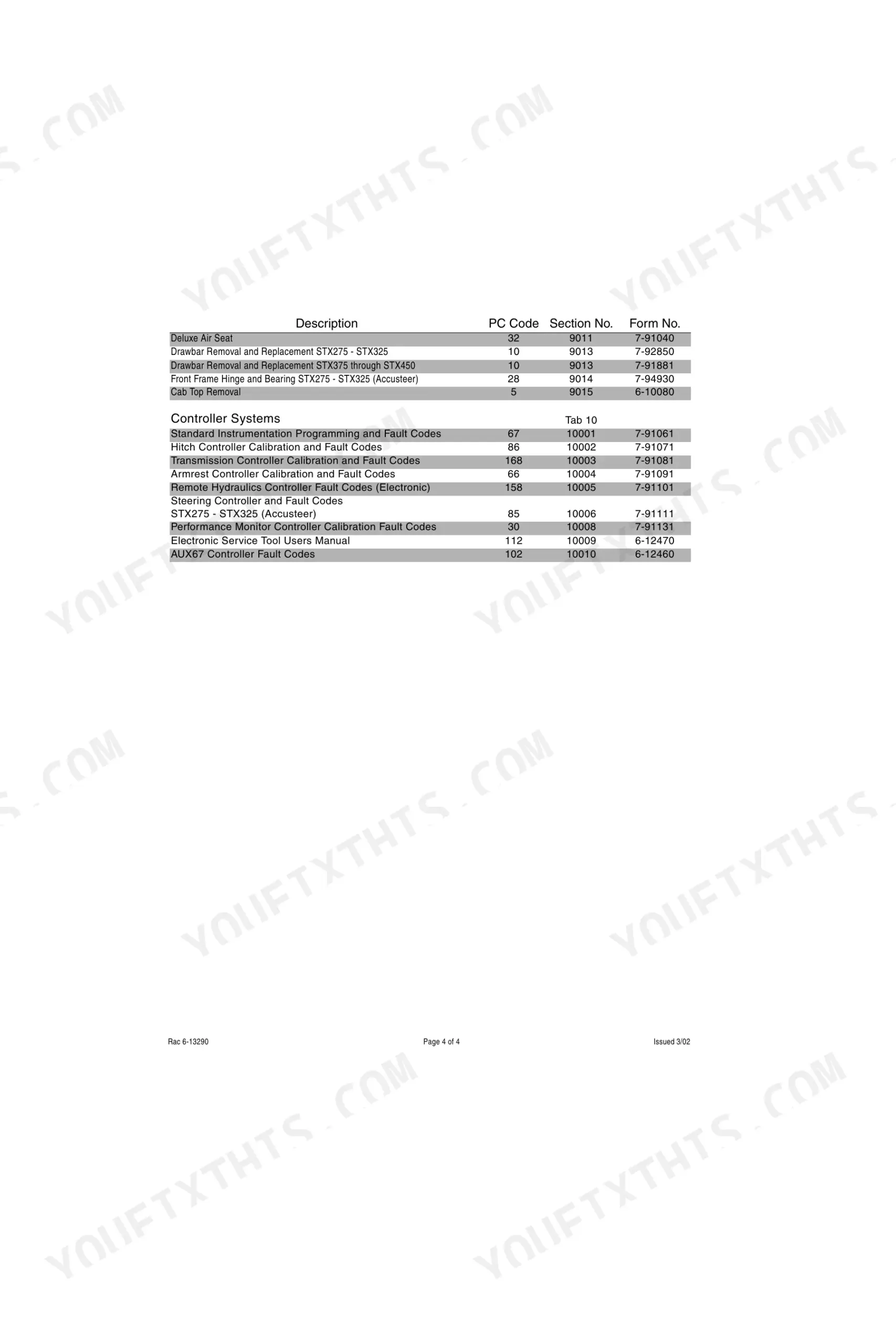

| Controller Systems | Electronic Controllers, Diagnostics, Calibration, And Instrumentation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| STX275-STX450 | ||
| Configuration | Articulated four-wheel-drive Steiger tractor (wheeled and Quadtrac track) | |
| Transmission | Powershift | |
| STX375-STX450 | ||
| Front motor mount bolts torque | 286 to 320 Nm (208 to 236 lb ft) | |
| Rear motor mount bolts torque | 252 to 278 Nm (185 to 205 lb ft) | |
| Turbocharger air inlet clamp torque | 9 to 11 Nm (77 to 93 lb in) | |
Case IH STX275–STX450 Series Common Problems This Manual Covers
Engine cranks slowly or will not start despite good fuel and battery
Work the Electrical and Fuel groups. Use the electrical how-it-works and troubleshooting to verify the batteries, charging, and starting circuit, then check the fuel filters and fuel pump supply. Confirm the starting and fuel circuits against spec before replacing the fuel pump, which owners often replace before finding the real fault.
Manual Section: ElectricalHydraulic system loses pressure, so the tractor will not lift a load or steers weakly
Use the Hydraulics and Steering groups. Check the hydraulic pump output and the remote-valve and steering priority-valve pressures against the specifications. Pressure loss that appears with accumulated hours is usually a worn pump or seals, so measure before replacing, since a single pump or relief fault affects lift and articulated steering together.
Manual Section: HydraulicsEngine overheats in hot conditions with a clean radiator and full coolant
Run the viscous fan drive and hydraulic fan drive tests in the Engines group. A fan drive that does not engage fully will let the engine overheat even with a clean cooling package, so test the fan drive and check the Controller Systems for fan-command faults before condemning the radiator or thermostat.
Manual Section: EnginesFrequently Asked Questions
My STX cranks slowly or will not start even with good fuel and battery. Where do I look?
Start in the Electrical and Fuel groups. Use the electrical how-it-works and troubleshooting section to confirm the batteries, charging, and starting circuit, then check the fuel filters and fuel pump. Owners commonly chase this to the fuel supply and the starting circuit, so verify both against the manual before replacing the fuel pump.
Does this manual cover the engine internals?
The Engines group covers engine removal and installation for the STX275 through 450, the air induction system, the turbocharger, and the viscous and hydraulic fan drive tests. Internal engine repair is handled in the separate engine service manual that this book references, so use this manual for pulling and reinstalling the engine and everything around it.
The hydraulics are weak, or the tractor will not lift or steer with full effort. What should I check?
Use the Hydraulics and Steering groups. Check the hydraulic pump output and the remote and steering priority valve pressures against spec, since a pump or relief fault will weaken the lift and the articulated steering together. Pressure loss that develops with hours is usually a worn pump or seals, both of which the procedures cover.
The tractor overheats in hot weather even with a clean radiator and full coolant. What next?
The Engines group includes the viscous fan drive and hydraulic fan drive tests. A fan drive that is not engaging fully is a common cause of overheating with a clean cooling package, so run those tests before assuming a coolant or radiator problem, and check the cooling and control systems for fan-command faults.
Does it cover the later serial-number machines?
Yes. Several sections, including Engine Removal and the Electrical system, carry a separate version for machines with product identification number JEE00099501 and after, so both the earlier and later STX builds are documented. Match your machine's PIN to the correct section.
How will I receive this Case IH STX275, STX325, STX375, STX425, STX450 manual?
A 3636-page Repair Manual in searchable PDF format (349 MB), available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this Case IH STX275, STX325, STX375, STX425, STX450 Repair Manual printable?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
