This is the Cat SIS repair bundle for the 302.5C mini hydraulic excavator, serial prefix GBB - the dealer publications stitched together, not one authored book. The heart of it is the hydraulic section: systems operation plus testing and adjusting, with the actual numbers - main relief at 21700 kPa on P1 and P2, pilot relief at 3400 kPa, cylinder speeds, drift limits, travel and swing times. Around that sit engine testing, cooling, fuel injection, travel motors and final drives, undercarriage, cab, and the named schematic sheets for the 302.5C hydraulic circuit and the 301.6C/301.8C/302.5C electrical system. If you wrench on one of these, or you are about to buy one, this is the checkbook.
What's Inside This Caterpillar 302.5C Repair Manual

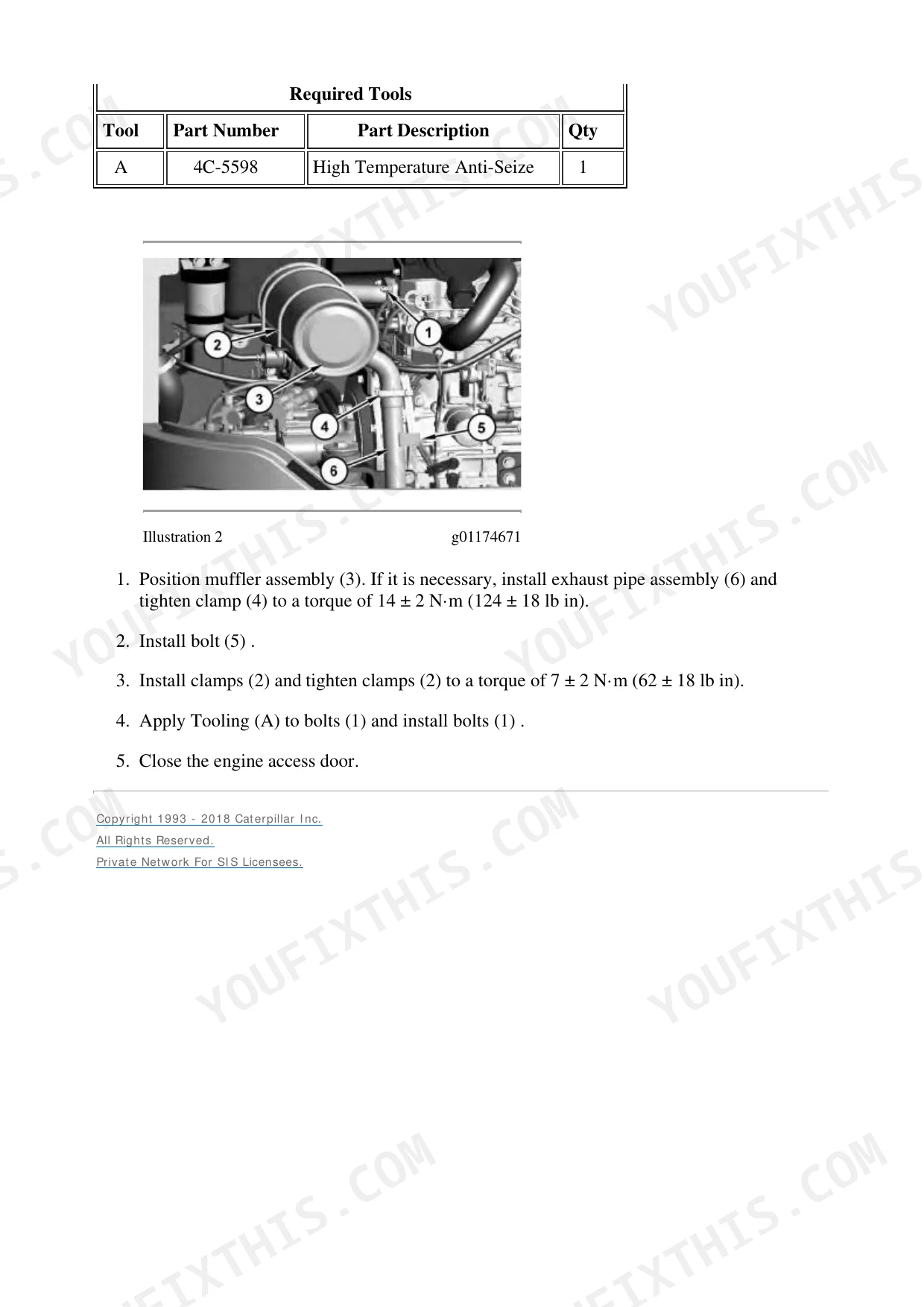

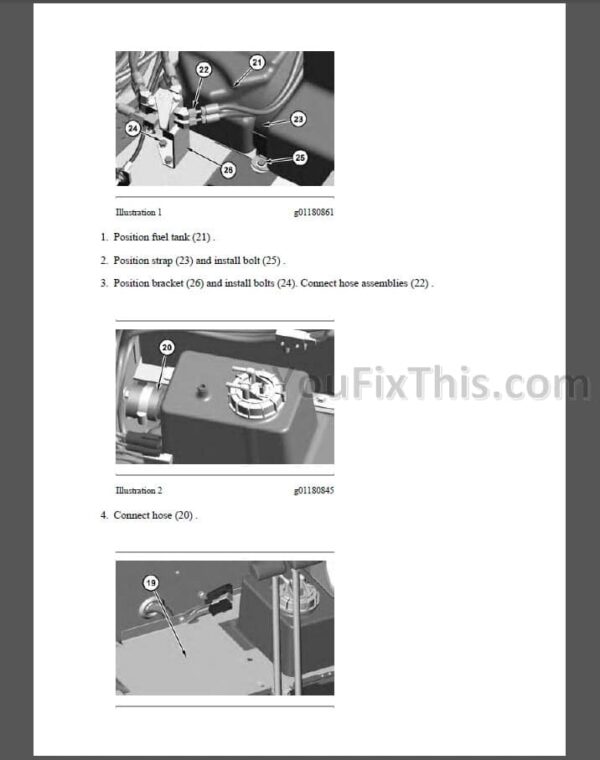

| System | Pages | Key Topics |
|---|---|---|
| Air Inlet and Exhaust System | 2-4 | Turbocharger, Exhaust and Air Intake Service |
| Basic Engine | 5-9 | Engine Testing and Adjusting |
| Cooling System | 10-19 | Radiator, Water Pump, Thermostat and Cooling System Service |
| Electrical and Starting System | 20-799 | Starting and Charging System Service (Alternator, Starter, Batteries) with System Schematics; Plus the CAT Add-On Publications Bundled Into This Section: EquipmentManager Dealer and User Guides, Product Link PL522/523 and 121S/300 Telematics, And R134a Air Conditioning and Heating |
| Engine Arrangement | 800-816 | Engine Mounting and Arrangement, Testing and Adjusting |
| Frame and Body | 817-867 | Frame, Covers and Body Panels |
| Fuel System | 868-889 | Injection Pump, Injectors and Fuel System Service |
| Hydraulic System | 890-1307 | Systems Operation, Testing and Adjusting (Travel, Swing and Cylinder Speeds, Drift Checks, Relief Valve Settings, Pilot Accumulator Charging), Pumps, Valves and Cylinders |
| Implements | 1308-1353 | Boom, Stick, Bucket and Blade Linkage Service |
| Machine Arrangement | 1354-1366 | Overall Machine Arrangement, Systems Operation and Testing |
| Operator Station | 1367-1684 | Cab, Seat, Controls and Monitor |
| Power Train | 1685-1724 | Travel Motors, Final Drives and Swing Drive |
| Service Equipment and Supplies | 1725-1741 | Dealer Service Tools and Shop Supplies |
| Undercarriage | 1742-1799 | Track, Rollers, Idlers and Recoil Spring Service |
| Work Tools | 1800-1814 | Work-Tool Mounting and Coupler Service |
| Torque Specifications | 1815-1864 | Cat's Generic Torque Charts (Metric ISO, English SAE, Fittings, Plugs, Hose Clamps) |
| Schematic | 1865-1898 | Named Schematic Sheets - 302.5C Hydraulic System (243-4139-04) and the 301.6C/301.8C/302.5C Electrical System - Plus the Fluid Power and Electrical Graphic Symbol Legends |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main relief valve setting (P1 and P2) | 21700 +/- 500 kPa (3147 +/- 73 psi) | p. 1031 |
| Main relief valve setting (P3) | 18050 +/- 450 kPa (2618 +/- 65 psi) | p. 1031 |
| Line relief valve (bucket Close / boom Lower / stick Out) | 25250 +/- 250 kPa (3662 +/- 36 psi) | p. 1042 |
| Pilot relief valve setting | 3400 +/- 200 kPa (495 +/- 30 psi) | p. 1013 |
| Temporary main relief valve setting (test only) | 28950 +/- 250 kPa (4200 +/- 36 psi) | p. 1037 |
| Hydraulic oil temperature for all tests | 55 +/- 5 C (131 +/- 9 F) | p. 985 |
| Cylinder drift wear limit (boom / stick) | 10 mm (0.39 in.) or less | p. 1002 |
| Cylinder drift wear limit (bucket) | 5 mm (0.2 in.) or less | p. 1003 |
| Cylinder drift wear limit (blade) | 3 mm (0.12 in.) or less | p. 1004 |
| Machine drift on a 12 degree slope (wear check) | maximum 30 mm (1.2 in.) | p. 991 |
| Swing drift (maximum) | 120 mm (4.7 in.) | p. 1000 |
| Swing time, 90 degrees | 2.0 seconds or less (left and right) | p. 994 |
| Continuous swing time, 3 revolutions | 18.0 - 22 seconds | p. 994 |
| Swing overswing | 190 mm (7.5 in.) or less | p. 994 |
| Bucket load for swing and drift tests | 105 kg (231.5 lb) | p. 994 |
| Travel time over 20 m measured (high speed) | 17.5 +/- 2.5 seconds forward and reverse | p. 987 |
| Travel time over 20 m measured (low speed) | 26.0 +/- 1.5 seconds forward and reverse | p. 987 |
| Travel deviation over the measured distance | 1500 mm (59 in.) or less | p. 987 |
| Track speed, 3 revolutions (high / low) | 9.7 +/- 1.5 s / 15.7 +/- 1.5 s | p. 985 |
| Cylinder speed (boom extension) | 2.5 +/- 0.5 seconds | p. 1010 |
| Cylinder speed (stick extension / retraction) | 3.0 +/- 0.5 seconds | p. 1010 |
| Cylinder speed (bucket extension / retraction) | 2.2 +/- 0.4 s / 2.9 +/- 0.3 s | p. 1010 |
| Cylinder speed (blade extension / retraction) | 1.1 +/- 0.2 seconds | p. 1010 |
| Cylinder speed (boom swing extension / retraction) | 6.7 +/- 1.4 s / 5.8 +/- 1.4 s | p. 1010 |
| Pilot accumulator nitrogen purity | 99.8 percent | p. 1016 |
| Pilot accumulator charge pressure (varies with ambient) | 1490 kPa at -25 C rising to 1940 kPa at 50 C (full table in the manual) | p. 1024 |
| Accumulator pilot pressure with oil exhausted | 860 kPa (125 psi) | p. 1023 |
| Bucket control linkage pin height for the drift test | 720 mm (28.3 in.) | p. 990 |
Caterpillar 302.5C Common Problems This Manual Covers
Boom or bucket sinks while the machine sits, or the whole excavator creeps when parked across a grade.
Run the drift checks in Hydraulic System testing and adjusting: at 55 C oil with the 105 kg bucket load, boom and stick drift must stay within 10 mm, bucket within 5 mm, blade within 3 mm, and machine drift on a 12 degree slope within 30 mm. Beyond limits means worn cylinder seals or valve leakage, and the section walks you to the culprit.
Manual Section: Hydraulic System p. 991Machine feels weak - slow digging, stalls under load, poor breakout force.
Verify relief pressures per the Hydraulic System section: main relief 21700 kPa on P1 and P2, 18050 kPa on P3, line reliefs 25250 kPa, pilot relief 3400 kPa. Test only at 55 C oil temperature or the readings mislead you. The section covers gauge hookup, adjustment, and the temporary 28950 kPa test setting used during certain checks.
Manual Section: Hydraulic System - Testing and Adjusting p. 1031Sluggish or dead pilot controls, especially first thing on a cold morning.
Check the pilot accumulator charge per the Hydraulic System section. The correct nitrogen precharge changes with ambient temperature - 1490 kPa at -25 C rising to 1940 kPa at 50 C, full table in the manual - so a charge that was right in July is wrong in January. Charging requires 99.8 percent pure nitrogen, and the residual pressure spec with oil exhausted is 860 kPa.
Manual Section: Hydraulic System - Pilot AccumulatorMachine pulls to one side when travelling, or tracks noticeably slower than it used to.
Time it against the specs in the testing sections: 20 m in 17.5 seconds at high speed and 26.0 seconds at low, with deviation over the measured distance no more than 1500 mm, and track speed of 9.7 or 15.7 seconds for 3 revolutions. Out-of-spec results point you to travel motor and final drive service in Power Train, or to track tension and rollers in Undercarriage.
Manual Section: Power Train / Undercarriage p. 1024Frequently Asked Questions
How do I read or reset fault codes on the 302.5C?
You mostly don't, because this bundle has no fault-code table. The 302.5C of this era is diagnosed the old way: pressure gauges on the test ports, a stopwatch, and a tape measure. The testing and adjusting sections give you pass/fail numbers - relief pressures, cylinder speeds, drift distances, travel times - and you compare what the machine does against them. If someone sold you on plugging in a laptop and clearing codes, that is not how this machine gets diagnosed in this manual. p. 985
Does it have the torque specs for final drive bolts and hydraulic pump mounting?
Be clear on what you get: the torque section is Cat's generic chart set - standard metric ISO and English SAE fasteners, hydraulic fittings, plugs and hose clamps, by thread size. It is not a per-bolt table that says 'final drive bolt, X Nm.' You find the fastener size and grade, then read the chart. Component-specific procedures live in the disassembly sections for the power train, hydraulic pumps and so on, but if you want a single lookup table of every machine torque, this bundle does not work that way. p. 1817
I'm looking at a used 302.5C. Can this manual tell me if the hydraulics are worn out?
Yes, and this is the best money argument for it. The drift checks need only a tape measure and a watch: with the specified 105 kg bucket load, boom and stick cylinder drift must be 10 mm or less, bucket 5 mm, blade 3 mm, and the whole machine parked on a 12 degree slope must not creep more than 30 mm. Add the swing test - 90 degrees in 2.0 seconds or less - and the 20 m travel times, and you have an honest field verdict on pumps, valves and cylinders before any cash changes hands. p. 987
My pressure and speed readings look off, but the machine feels fine. What am I missing?
Check your oil temperature first. Every hydraulic test in this manual is specified at 55 C plus or minus 5 C hydraulic oil. Test on cold oil and the numbers read wrong - cylinder speeds slow, reliefs off - and you will chase a fault that is not there. Warm the machine up to spec temperature, then run the tests. The manual also uses a temporary main relief setting of 28950 kPa for certain tests only, which must go back to the normal 21700 kPa afterward, so follow the procedure order exactly. p. 1016
Does this cover Product Link and EquipmentManager on my machine?

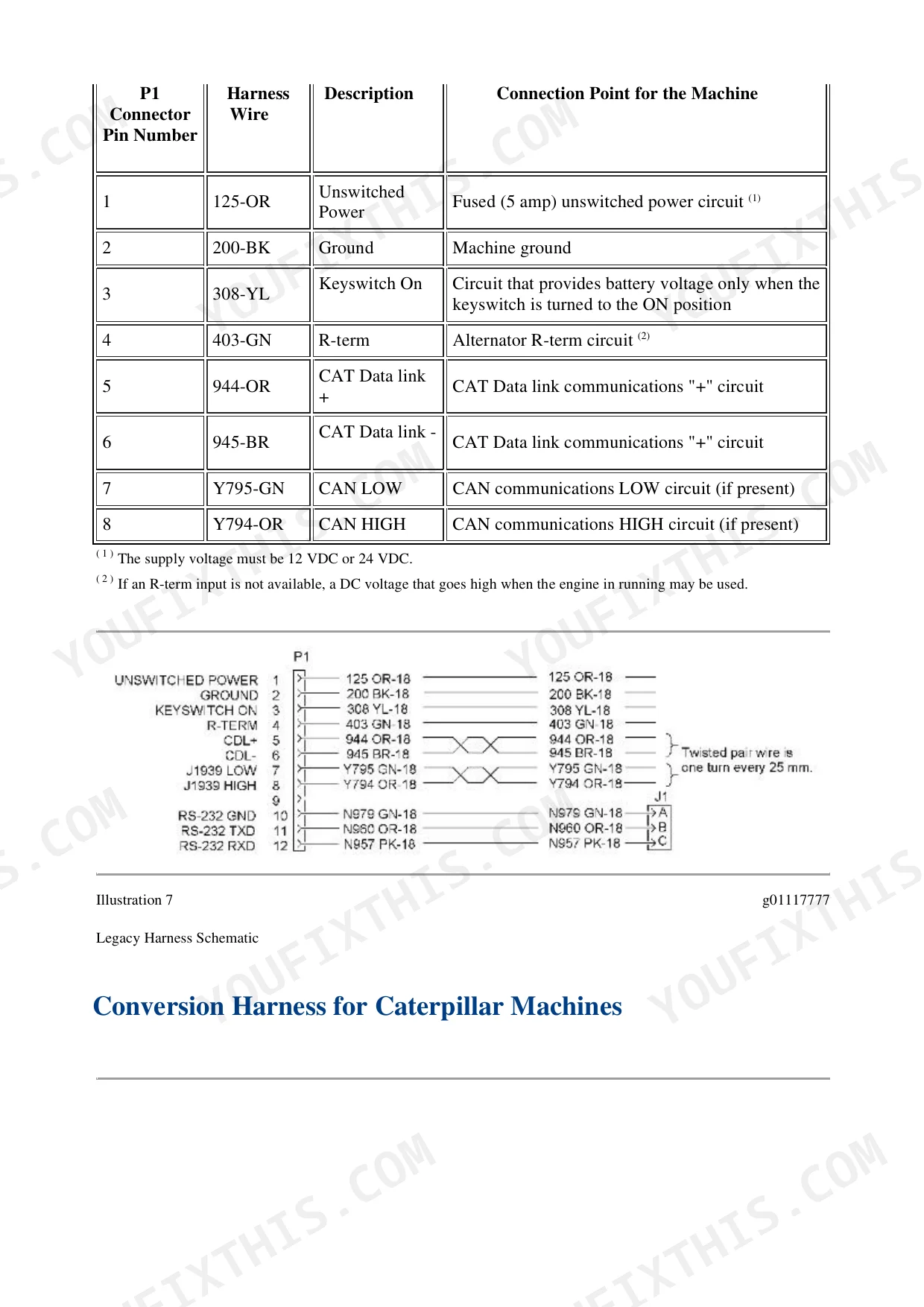

The bundle includes Cat's generic publications for EquipmentManager, Product Link PL522/523 and 121S/300, and R134a air conditioning, filed under the electrical section. Those are optional dealer and telematics products - their presence in the bundle does not mean your 302.5C has them fitted. Most of these machines run without any of it. The core electrical coverage you will actually use is starting and charging service, plus the named 301.6C/301.8C/302.5C electrical schematic with the symbol legend. p. 1866
