Part of the Doosan Repair Manuals.
Need factory answers for your Doosan DX180LC-3? This 882-page Doosan DX180LC-3 shop manual PDF (OEM #950106-00417E) covers the crawler excavator from swing bearing to bucket pins, and the same procedures apply to the DX140LC-3, DX225LC-3, DX255LC-3, DX300LC-3, and DX340LC-3. Inside: full-machine electrical schematics, the complete hydraulic schematic, error code tables for the EPOS control system, and page after page of exploded views covering the main pump, swing device, travel device, and main control valve. You get standard torque tables for every fastener size, plus hydraulic testing and adjustment procedures with the exact relief pressures Doosan calls for. Chasing a hot swing gearbox or a leaking center joint? The troubleshooting charts walk you straight to the cause. No more forum guesses. Bookmarked with a live text layer; search any spec, jump to any section, and get wrenching.
What's Inside This Doosan DX180LC-3 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 5-72 | Track Excavator Maintenance Safety (Safety Instructions, Applicable Models, Safety Messages, Safety Decals, General, Transportation, Operation, Environment and Circumstances) |

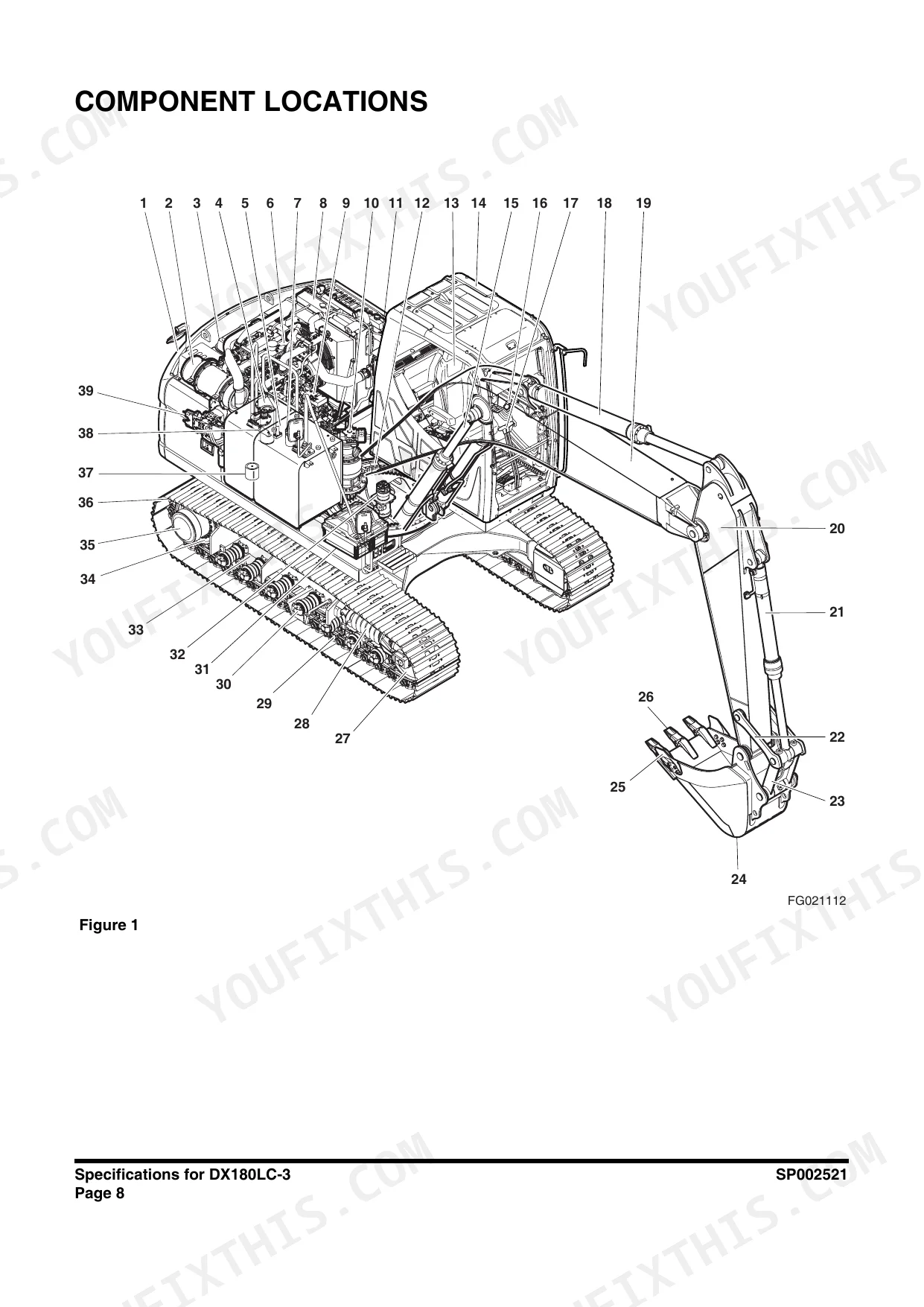

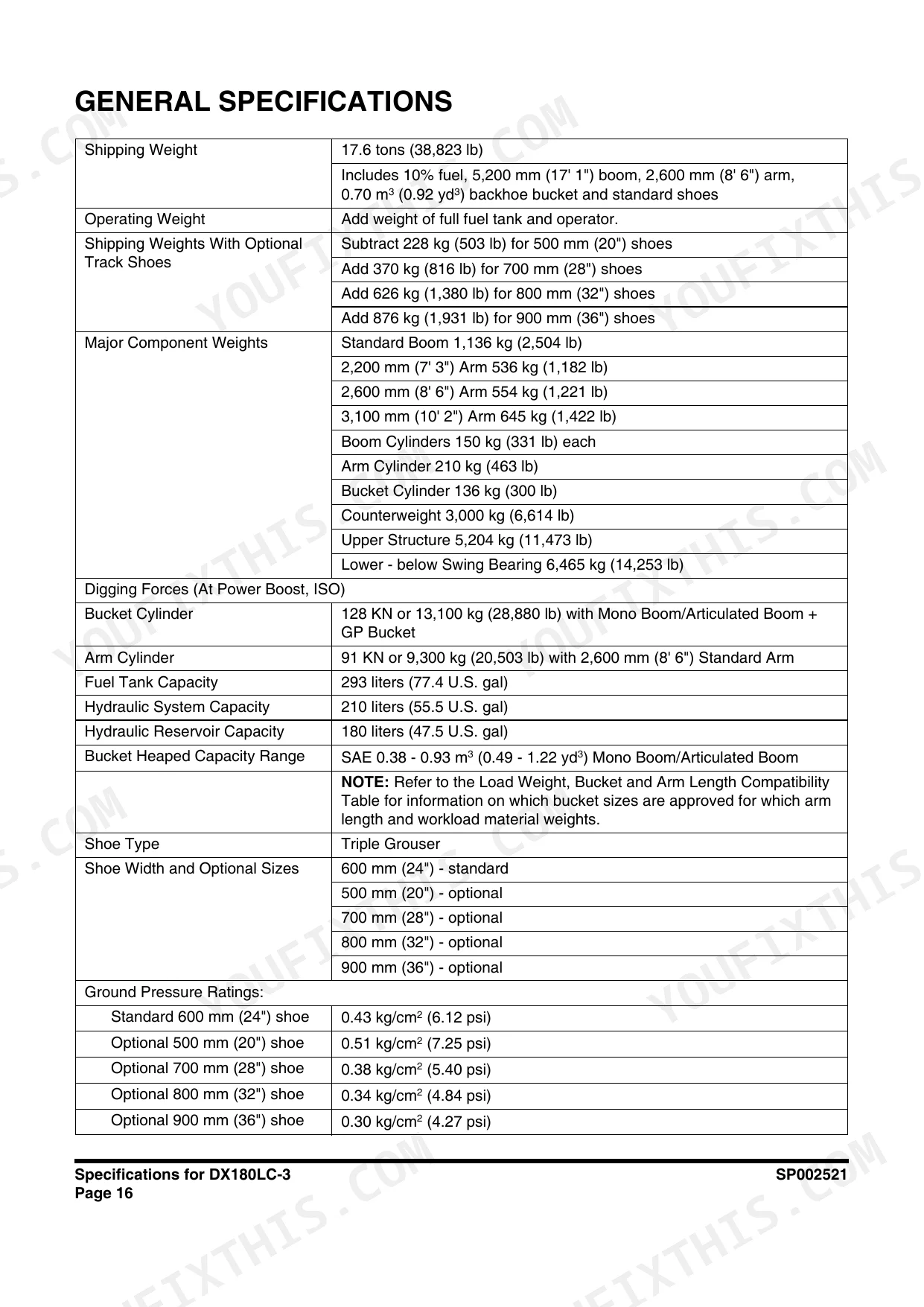

| Specifications | 73-102 | Specifications for DX180LC-3 |

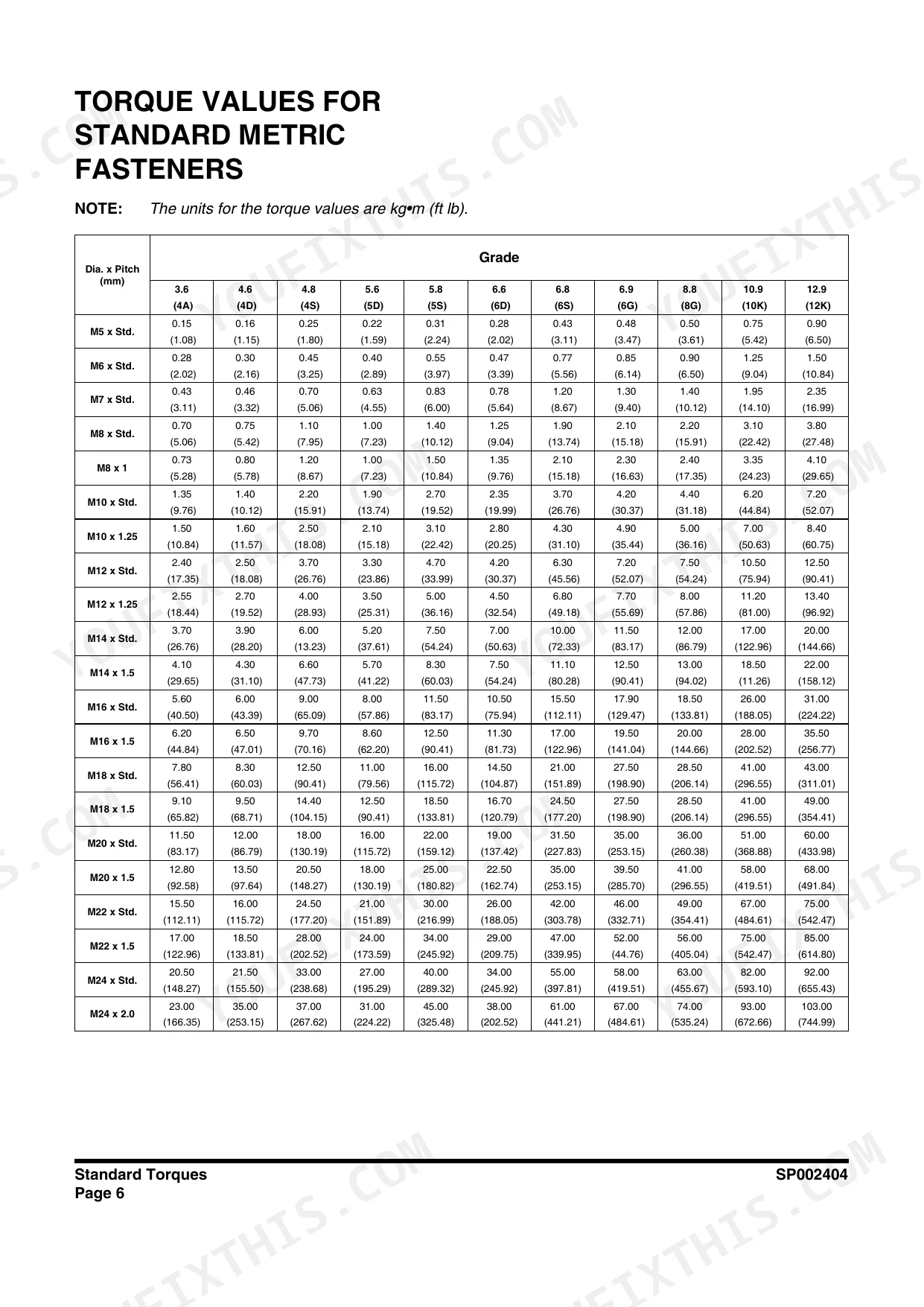

| General Maintenance | 103-140 | Standard Torques |

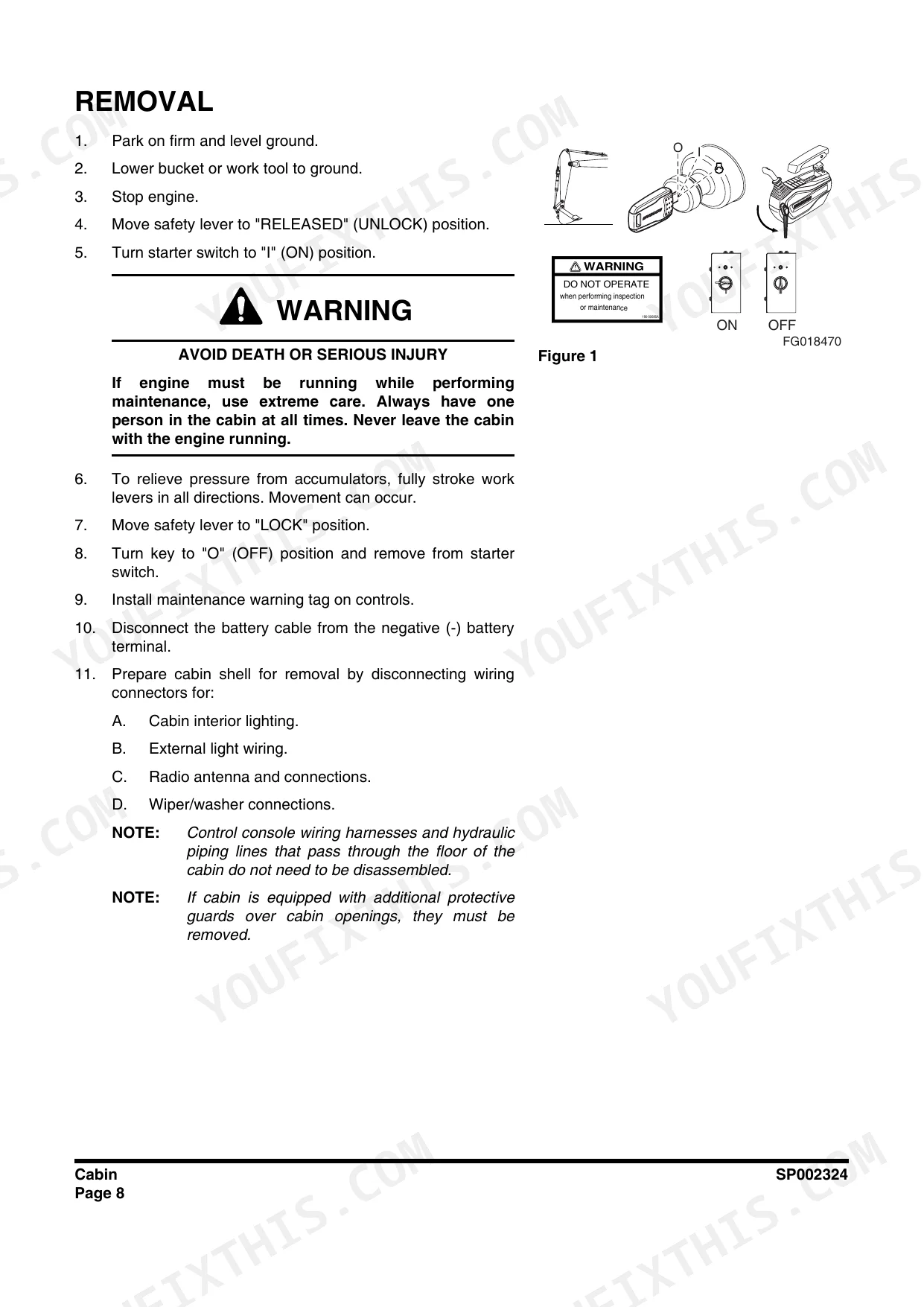

| Upper Structure | 141-202 | Cabin, Counterweight, Fuel Tank, Fuel Transfer Pump, Swing Bearing |
| Lower Structure and Chassis | 203-236 | Track Assembly |
| Engine and Drivetrain | 237-266 | Engine Coolant Heater, Drive Coupling |
| Hydraulics - System Troubleshooting, Testing and Adjustment | 267-302 | Hydraulic Circuit Description (Boom, Arm, Bucket, Swing, Travel), Pump Input Power Control, Troubleshooting Baseline, Pressure Checks and Regulator Adjustment, Meter Kit Installation |
| Hydraulics - Accumulator and Center Joint (Swivel) | 303-324 | Accumulator SP002455 (Gas Charge, Safety, Charge Pressure by Model), Center Joint SP002456 (Function, Seal Replacement, Adjustment) |
| Hydraulics - Cylinders | 325-364 | Boom, Arm and Bucket Cylinders SP002579: Theory of Operation, Parts Lists, Seal and Bushing Dimensions, Disassembly and Reassembly, Wear Limits |
| Hydraulics - Swing Device | 365-414 | Swing Motor and Gearbox SP002498: Structure, Anticavitation and Relief Valves, Cylinder Block, Brake Piston, Inspection, Reassembly, Wear Standards |
| Hydraulics - Travel Device | 415-474 | Travel Motor and Reduction Gear SP002514: 2-Stage Switching Mechanism, Brake Release, Disassembly of Reduction Gear, Floating Seal Fitting, Air Testing, Efficiency Checks |
| Hydraulics - Main Pump | 475-530 | Rexroth A8VO80LA1KH1/63 Main Pump SP002531: Subassemblies, Regulator and Control Module Lr, Adjustment Measurements, Bearing and Cup Inspection, Tightening Torques |
| Hydraulics - Gear Pump | 531-542 | Gear Pump SP002500: Disassembly and Assembly, Seal Fitting, 45 Nm Torque Value |
| Hydraulics - Main Control Valve | 543-594 | Main Control Valve SP002584: Spool Movement (Swing, Boom, Arm, Travel), Neutral Cut Spool, Anti-Drift Valve, Main and Negacon Relief Valves, Disassembly Precautions, Specifications and Troubleshooting |
| Hydraulics - Remote Control Valve (Work Lever / Joystick) | 595-616 | Joystick Valve SP-series: Theory of Operation, Performance Checks, Disassembly, Plug Kit Assembly, Wiring Routing |
| Hydraulics - Travel Control Valve (with Damper) | 617-644 | Travel Pedal Valve: Neutral and Operating Conditions, Removal of Pedal and Bellows, Spring and Plug Assembly, Installation and Function Test |
| Hydraulics - Solenoid, Breaker Eppr and Dozer Valves | 645-682 | Solenoid Valve Assembly SP002406, Breaker Eppr Proportional Reducing Valve SP002458 (Option), Dozer Valve SP002529: Parts Lists, Assembly Torques, Symptoms and Causes |

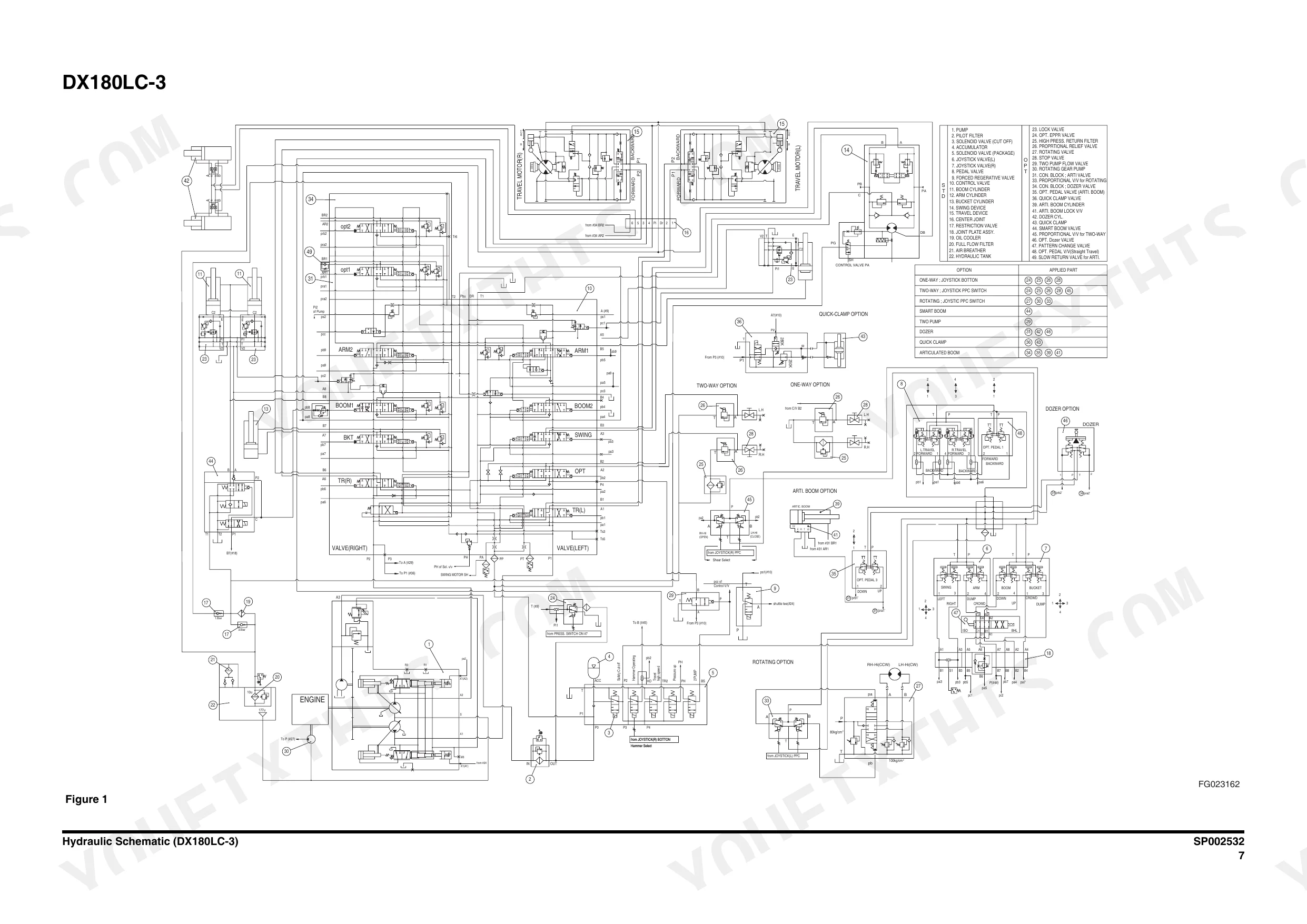

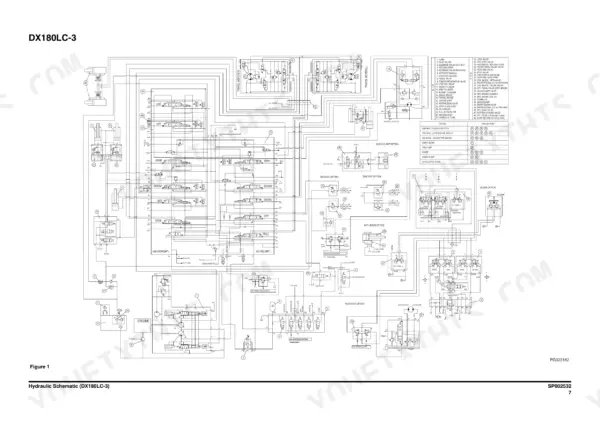

| Hydraulics - Hydraulic Schematic (DX180LC-3) | 683-690 | Full Hydraulic Schematic SP002532, Circuit Legend, Optional Circuits |

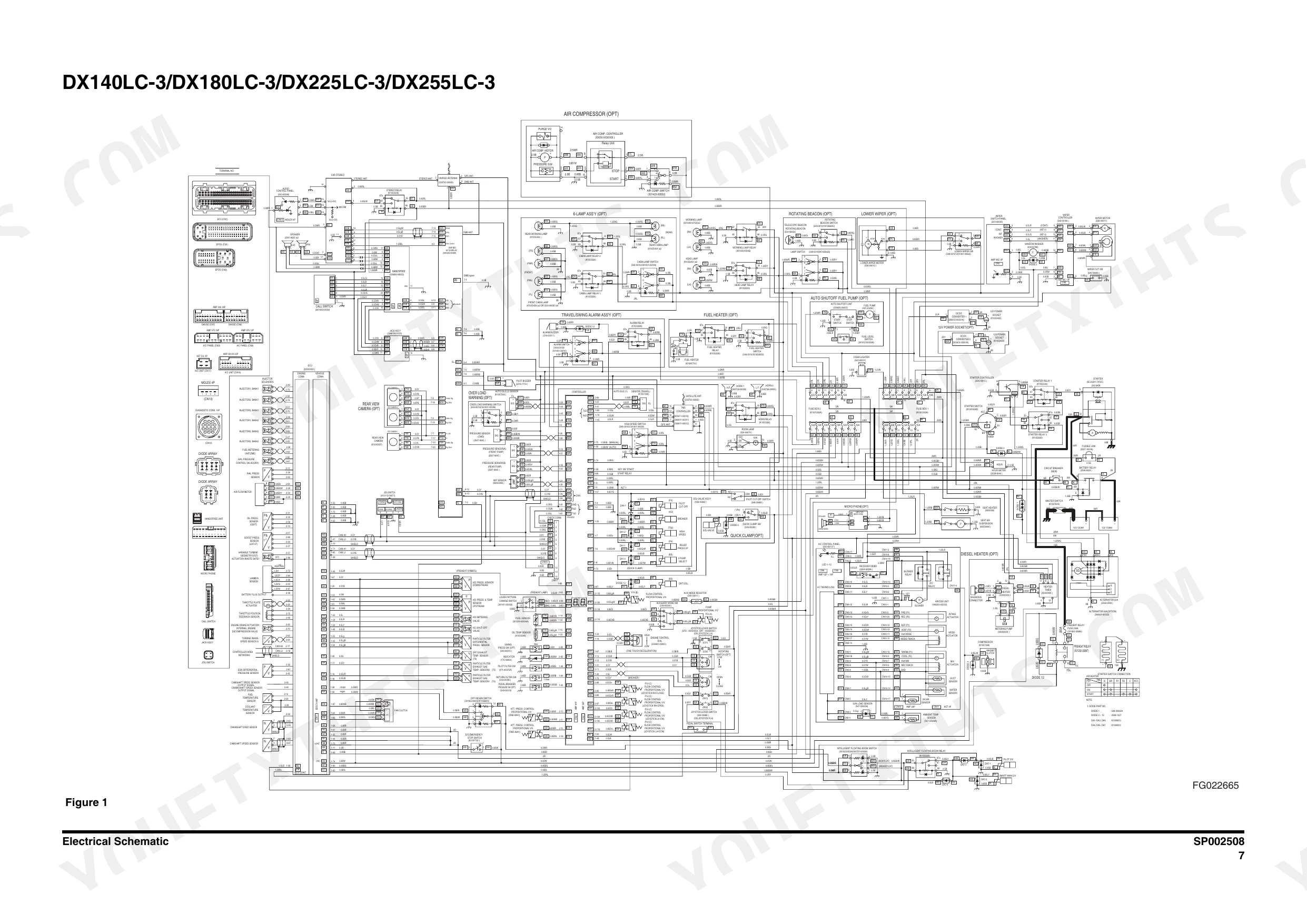

| Electrical System | 691-856 | Electrical Supply System, Engine Starting Circuit, Charging System, Monitoring System, Electronic Hydraulic Control System (Epos), Air Conditioner System |
| Attachments | 857-882 | Boom and Arm, Bucket |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Swing Device | SP002498 | p. 4 |
| Hydraulic Schematic (DX180LC-3) | SP002532 | p. 4 |
| Oil seal damaged Assembly compound (joint sealer) old and not sealing. Or bolt not tight or flange warped. | Replace oil seal Disassemble and check mating surfaces. Reapply Loctite; torque bolts to specifications. | p. 297 |

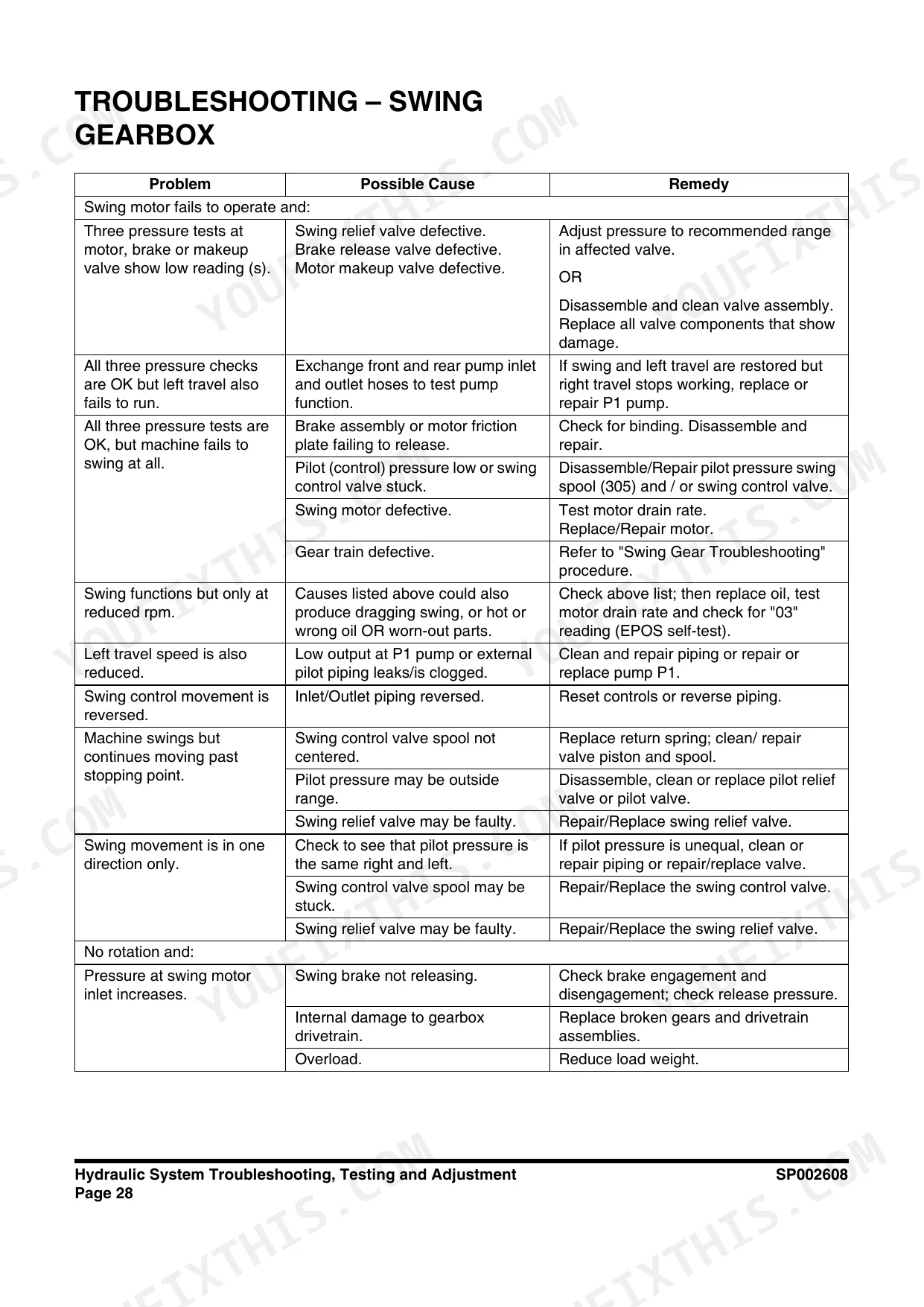

| Gearbox casing becomes excessively hot, with or without irregular noise (s), during operation. | Replace oil; refill to specified level. Repair or replace gearbox. | p. 297 |
| No.1 Sun Gear | Module: 3, No. of teeth: 23 | p. 371 |
| No.2 Sun Gear | Module: 3, No. of teeth: 22 | p. 371 |
| Ring Gear | Module: 3, No. of teeth: 82 | p. 371 |
| Oil seal replacement | Replace the oil seal. | p. 389 |
| Oil leak from joint surface | The bolt is loose or not tightened. | p. 389 |
| Oil temperature | Reduce the oil temperature. | p. 388 |
| Lift ring gear | ring gear (801) | p. 371 |
Doosan DX180LC-3 Common Problems This Manual Covers
Doosan DX180LC-3 swing gearbox grinding noise, upper structure won't rotate or rotates slowly under load
Drain the gearbox oil and inspect it for metal flakes before disassembly. Check the No.1 sun gear (23 teeth) and ring gear (82 teeth) for chipped or worn teeth against the specs on page 371, then replace damaged gears and bearings. After reassembly, confirm brake torque holds at 63 kg•m before returning the machine to work.
Manual Section: Swing Device Troubleshooting and Oil Leakage p. 371Hydraulic oil leaking from swing motor housing and hose fittings after reassembly
Check every flange bolt on the motor mounting surface; a loose bolt or warped flange is the usual cause per page 389. Remove the motor, replace the oil seal and O-rings, clean both mating surfaces, reapply Loctite, and torque the bolts using the standard torque table on page 130. Refill the hydraulic system to its 210 liter capacity.
Manual Section: Swing Device Troubleshooting and Oil Leakage p. 389Swing gearbox casing runs excessively hot with irregular noise during continuous slewing
Drain the gearbox oil and check it for metal particles, then refill to the specified level as page 297 directs. Let the oil temperature come down before further testing. Test main relief pressure at the pump; anything above the 330 kg/cm2 normal setting works the swing circuit hard and overheats the oil.
Manual Section: Hydraulic System General Troubleshooting p. 297Error code E010 flashes intermittently on the gauge panel during swing operations
The error code E010 is not listed in the manual. For issues related to swing pressure, refer to error code V000251 'Swing Press. Sensor' on page 768. Troubleshooting for swing system problems, including pressure issues, can be found on page 296. Verify actual relief pressure with a gauge; the normal operation setting is 330 kg/cm2 per page 96. Replace the sensor only if the gauge disagrees with the panel.
Manual Section: Electrical System Failure Codes and Self-Diagnostic FunctionFrequently Asked Questions
How to reset Doosan DX180LC-3 error codes?
To reset error codes, navigate to the 'Vehicle Information Delete' menu. When the jog switch is pressed in this menu, the system will initialize and 'Delete Failure Log' will be executed. This procedure is detailed on page 781. p. 781
What are the torque specifications for Doosan DX180LC-3 hydraulic connections?
Torque specifications for hydraulic connections vary by type. For ORFS swivel nuts, a Dash Size 4 with 1/4" hose I.D. and 9/16" thread requires 2.4 - 2.6 kg•m. Split flange connections for a 1/2" flange size with 5/16" bolts require 2.1 - 2.5 kg•m (15 - 18 ft-lb). p. 134
How to reset the Doosan DX180LC-3 engine maintenance light?
To reset the engine maintenance light, access the 'Filter/Oil Information' screen via the jog switch. Locate the cursor to 'Engine oil' or 'Engine oil filter' and click the jog switch to access the reset option for the operation hour. This procedure is detailed on page 726. p. 726
What do error codes E0, E1, E2, and E3 mean on the Doosan DX180LC-3?
The error codes indicate specific sensor issues. E0 means 'Normal' operation. E1 signifies an 'Internal air temperature sensor short', E2 indicates an 'Internal air temperature sensor open', and E3 points to an 'Ambient air temperature sensor short'. These codes are listed in the 'Error codes' table on page 135. p. 827
How to reset the Doosan DX180LC-3 diesel filter warning?
To reset the diesel filter warning, navigate to the 'Filter/Oil Information' screen using the jog switch. Position the cursor on 'Fuel filter' and click the jog switch to access the reset option for the operation hour. This process is outlined on page 726. p. 726
What format is this manual in?
Immediate download of the complete 882-page searchable Shop Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
