First cut is drying and the 1215 is due for its 50-hour service before it goes back out. That job, and every scheduled one after it, is laid out in this 68-page Ford 1215 operator manual PDF, the factory owner's book for the tractor, OEM ID 42121510. Lubrication and maintenance fills close to a third of the book, from hour-interval charts for two-wheel and four-wheel drive units down to fuel and lubricant service procedures and tractor storage. Separate chapters walk you through the 6x2 and hydrostatic transmission controls, PTO operation, differential lock, wheel tread settings, and tractor weighting. Check fan belt deflection at 7/16 to 9/16 inch under 20 to 25 pounds of thumb pressure, and torque the front wheel disc-to-hub bolts to 43-54 lbs.ft. The specification chapter closes the book with engine, cooling, electrical, hydraulic lift, PTO and tire figures. Bookmarks land you on the right chapter in two taps, and the live text layer puts any spec one search away.
What's Inside This Ford 1215 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| International Symbols | 5 | Engine Speed, Engine Oil Pressure, Differential Lock, Power Take-Off, Hydraulic Remote Cylinder |
| Safety Precautions | 6-7 | Servicing the Tractor |

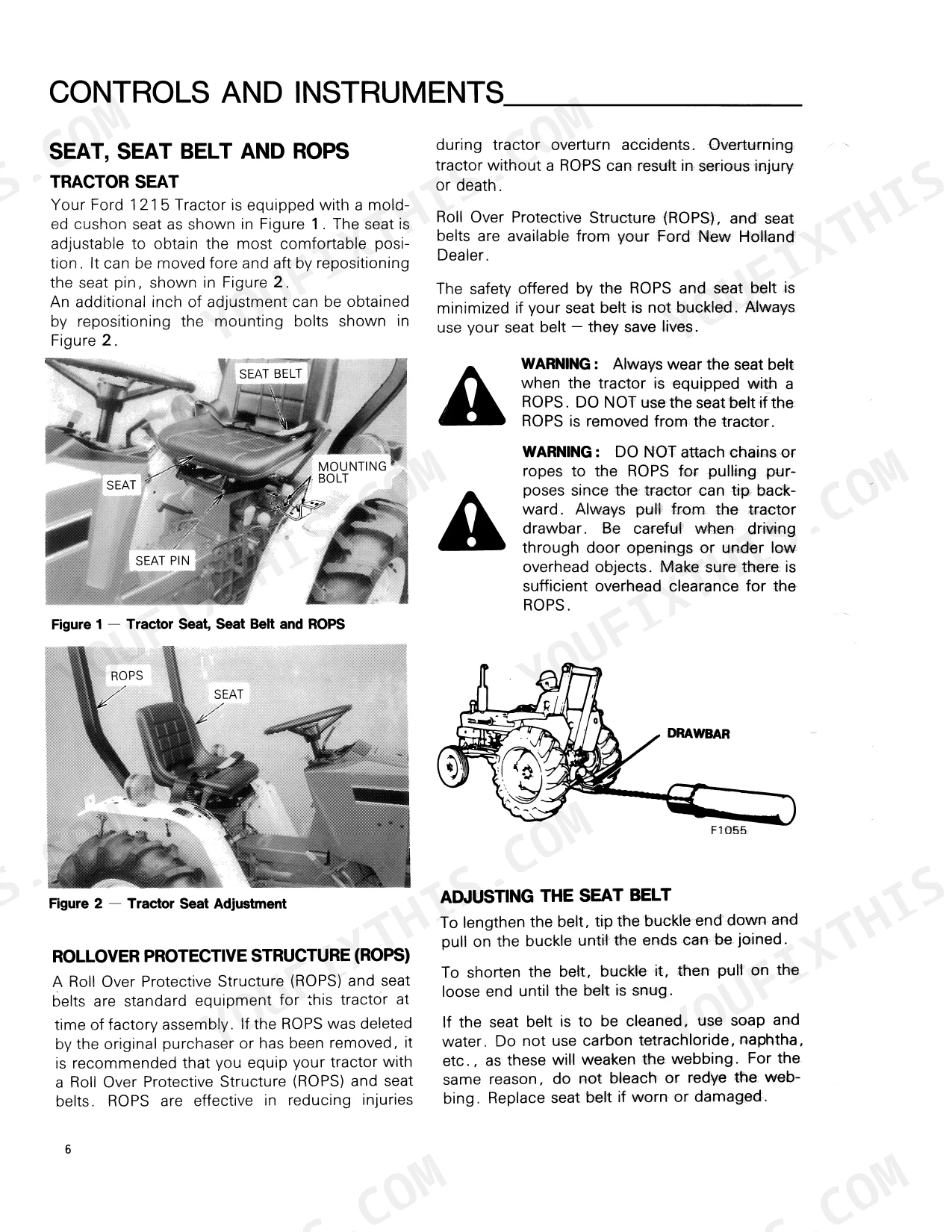

| Controls and Instruments | 8-12 | Seat, Seat Belt and ROPS, Lighting, Instrument Panel, Throttle Controls, Brake Controls, Differential Controls, 6x2 Transmission and PTO Controls |

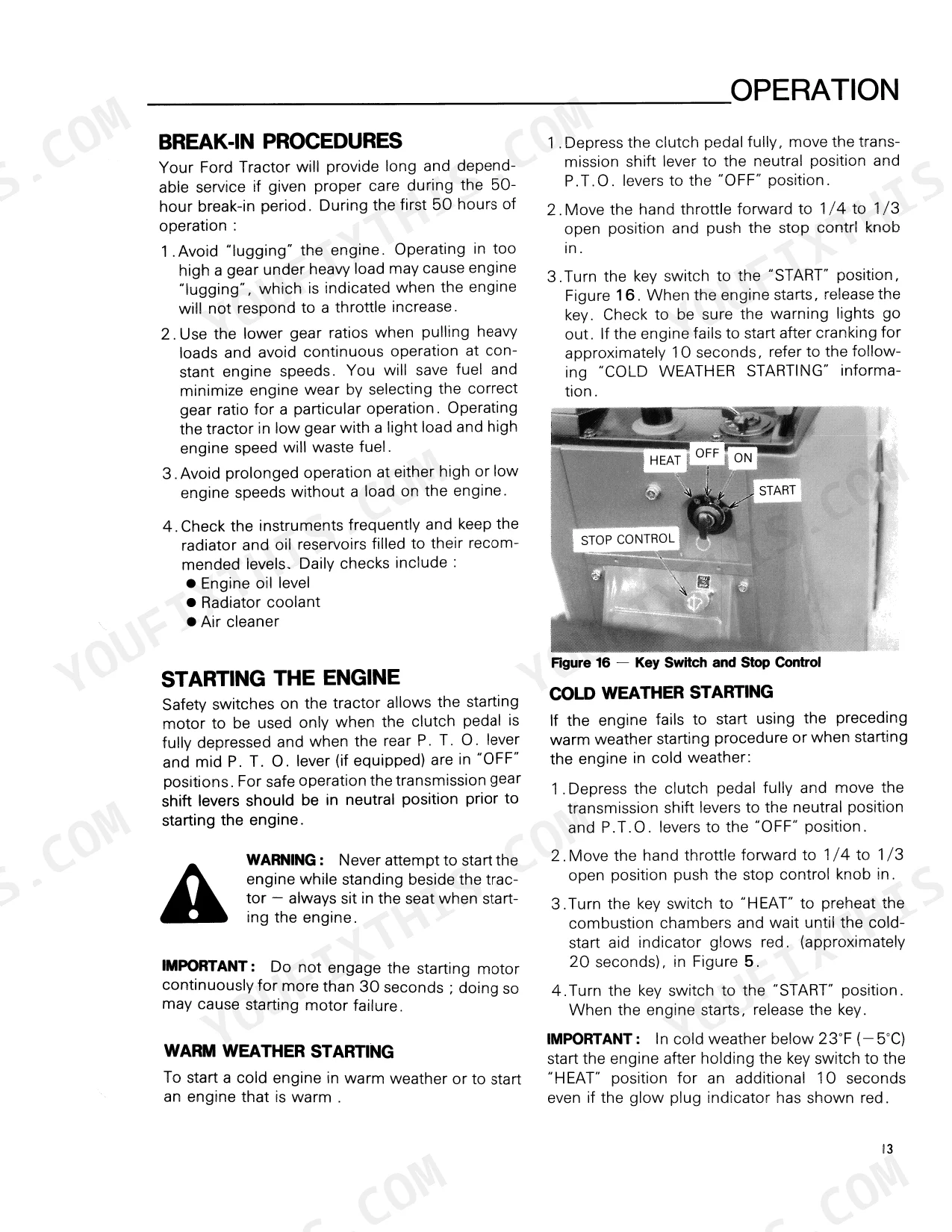

| Operation | 13-24 | Break-In Procedures, Starting the Engine, Stopping the Engine, Operating the Transmissions, Four-Wheel Drive and PTO, Towing the Tractor, Operating the Differential Lock |

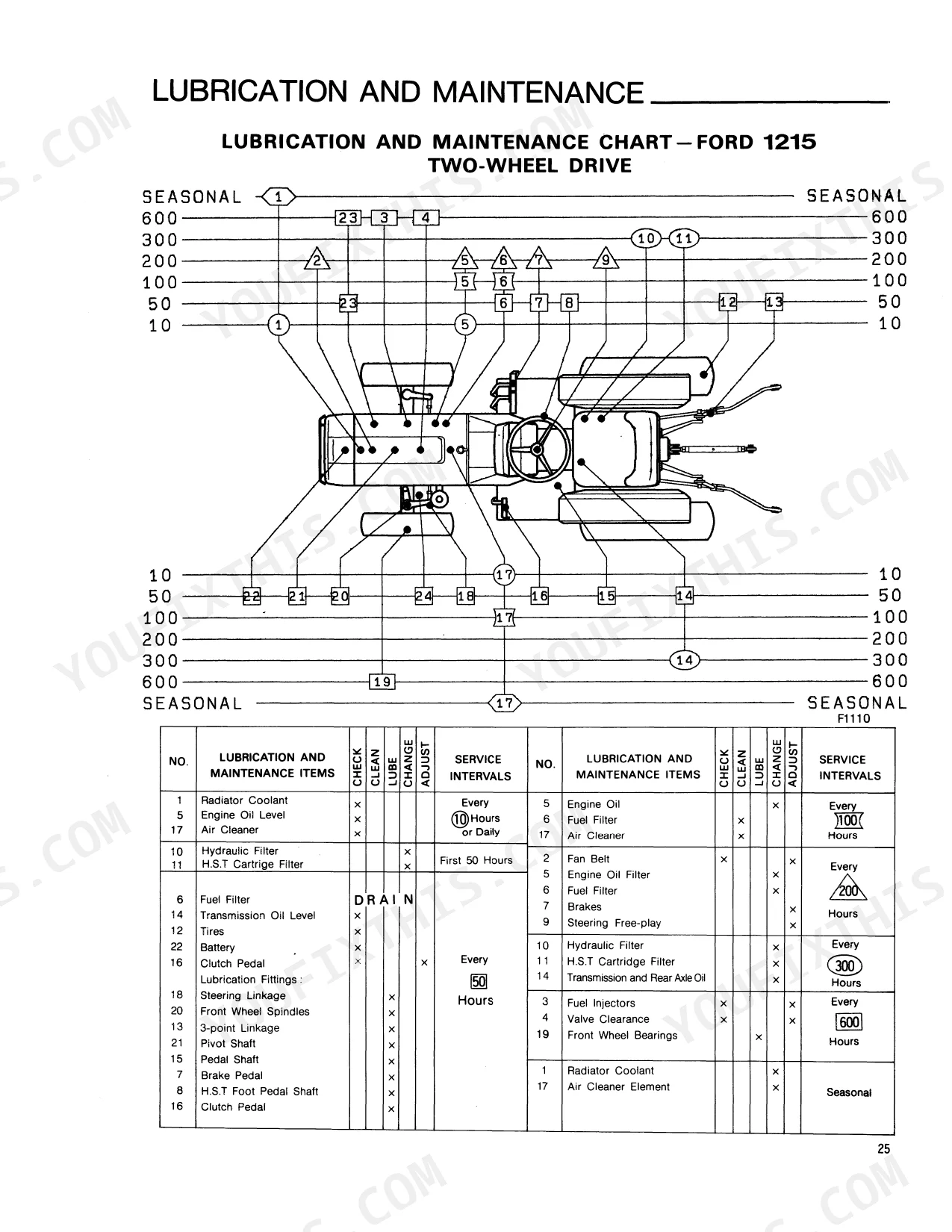

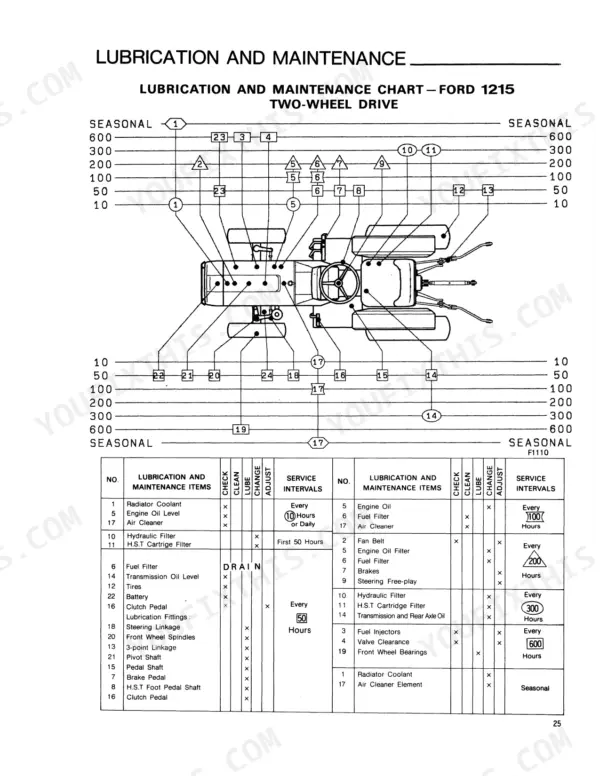

| Lubrication and Maintenance | 25-47 | Lubrication and Maintenance Chart (Two-Wheel Drive, Four-Wheel Drive), Fuel and Lubricants, Fuel and Lubricant Service Procedures, Tractor Storage |
| Specifications | 48-51 | Engine, Cooling System, Electrical System, Hydraulic Lift System, Power Take-Off, Tires |
| Safety and Instruction Decals | 52-62 | P.T.O. Control Lever, Hydraulic Lift Control Lever, Differential Lock, Four-Wheel Drive Control Lever, Remote Control Valve |
| Predelivery and 50-Hour Service | 63-66 | Inoperative Service Checks, Operative Service Checks, Safety Items Checks, Performance Service Checks |
| Owner Assistance | 67-68 | Dealership Contact, Branch Office Contact, Service Department Contact, Service Publications Catalog |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel disc to hub bolts (front) | 43-54 lbs.ft. (58-73 N.m) | p. 22 |
| Side axle adjusting bolts (front) | 137-159 lbs.ft. (186-215 N.m) | p. 22 |
| Fan belt deflection | 7/16 to 9/16 inch (10 to 15 mm) | p. 38 |
| Fan belt thumb pressure | 20 to 25 pounds (9 to 11 kg) | p. 38 |
| Electrolyte level above plates | 1/4 inch (6.35 mm) | p. 41 |
| Steering wheel free play | 0.78-1.38 in. (20-35 mm) | p. 45 |
| Engine Oil Change Interval | 100 hours | p. 32 |
| Engine Oil Filter Change Interval | 200 hours | p. 32 |
| Fuel Filter Change Interval | 200 hours | p. 33 |
| Transmission/Rear Axle Oil Change Interval | 300 hours | p. 35 |
| Hydraulic System Oil Filter Change Interval | 300 hours | p. 35 |
| Valve Clearance (Intake) | 0.008 in. | p. 40 |
Ford 1215 Common Problems This Manual Covers
Ford 1215 engine cranks but will not start after fuel filter or injector line work
Check the tank and open the fuel shutoff valve first. Bleed the fuel system at the filter and injection pump until fuel runs free of bubbles, then crack each injector line while cranking until it fires. If the filter is due (change interval is 200 hours, page 33), install a new element before bleeding again.
Manual Section: Fuel System Bleeding p. 33Engine stalls as soon as the transmission is shifted into gear
Check the seat and safety start switch circuit first: a faulty switch or a loose connector under the seat can shut the engine down while you are still sitting on it. Inspect that connector and the fuse feeding the circuit, then use the controls layout on page 8 to confirm the PTO lever is disengaged before you shift. Re-test with the engine at low idle, 800 to 900 rpm (page 51).
Manual Section: Controls and Instruments p. 8Loader or three-point hitch will not lift after connecting remote hydraulic couplers
Check that each remote coupler is seated fully; a half-connected coupler blocks oil flow and the lift goes dead. Clean both coupler faces before connecting to keep dirt out of the valve. Verify transmission and rear axle oil level, since that sump feeds the hydraulic lift, and change the oil every 300 hours per the schedule on page 35.
Manual Section: Operation p. 13Engine turns over slowly and will not fire during cold weather starting
Check battery electrolyte level first; keep it 1/4 inch (6.35 mm) above the plates as shown on page 41, and clean both terminal posts. Follow the cold weather starting and jumper cable procedures on page 15 if the battery is weak. Charge or replace the battery before the frost hits, not during it.
Manual Section: Engine Starting Troubleshooting p. 15Coolant temperature warning light comes on during heavy mowing or loader work
Check coolant level in the radiator once the engine has cooled, never while hot. Inspect the fan belt: it should deflect 7/16 to 9/16 inch (10 to 15 mm) under 20 to 25 pounds (9 to 11 kg) of thumb pressure, adjusted per page 38. Clean chaff and dust off the radiator screen before heading back out.
Manual Section: Cooling System Maintenance p. 36Frequently Asked Questions
How tight should the fan belt be on a Ford 1215 tractor?
A correctly tightened fan belt will deflect 7/16 to 9/16 inch (10 to 15 mm) when 20 to 25 pounds (9 to 11 kg) of thumb pressure is applied midway between the belt pulleys. p. 38
What are the valve clearance specifications for the Ford 1215 engine?
The intake and exhaust valve clearance should both be set to 0.008 inches (0.2 mm) with the engine cold. p. 40
What is the engine oil capacity for the Ford 1215 tractor?
The engine crankcase capacity is 3.2 U.S. quarts (3.0 Liters) without a filter change, and 3.5 U.S. quarts (3.3 Liters) with a filter change. p. 51
What is the required torque for the ROPS to axle mounting bolts on a Ford 1215 tractor?
The ROPS to axle mounting bolts (M12) should be torqued to 55 lbs. ft. (74 N.m). p. 52

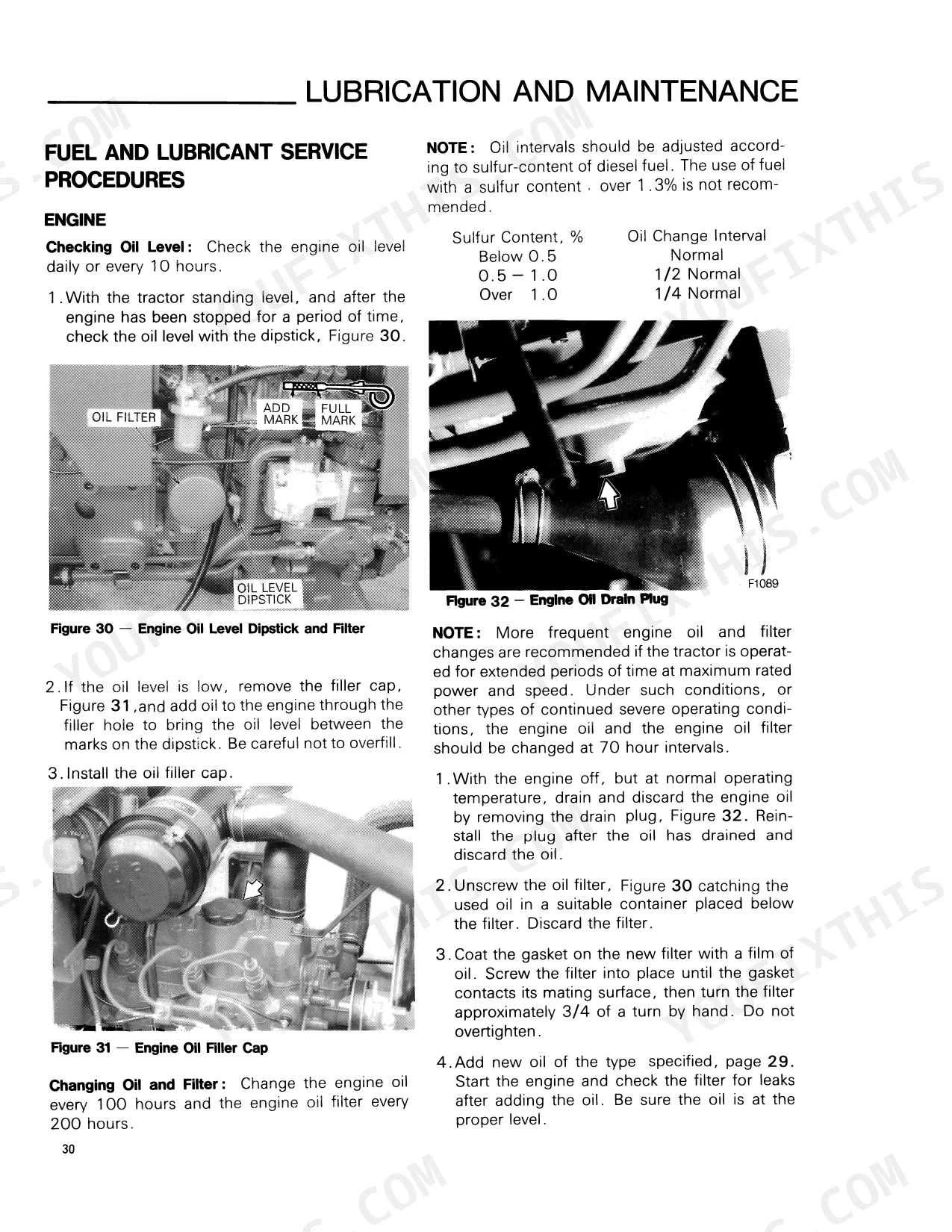

How often should the engine oil and filter be changed?
The engine oil should be changed every 100 hours, and the engine oil filter should be changed every 200 hours. p. 32
Is this Ford 1215 Operator Manual a digital download?
A single searchable PDF file of 68 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Does this Ford 1215 manual allow printing?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
