Fifty pages stand between a Ford LGT 17H that has not turned over since last fall and one that cuts grass again this weekend, and this is that book: Ford publication 42001711, the operator manual for the LGT 17H garden tractor, model number 09GN2204, built around the Kohler 17 H.P. engine.
Chasing an electric PTO clutch or a drifting hydrostatic drive lever without it means guessing at settings the factory already wrote down. Inside you get every control and interlock switch explained one at a time, the daily and hourly lubrication schedule, adjustment procedures for the drive lever, electric clutch and brake pads, a full wiring diagram, a troubleshooting chart, and illustrated component parts lists from page 28 to the back cover.
It is a PDF, so it goes out to the barn or the garage on a phone or tablet and stays open next to the tractor.
What's Inside This Ford LGT 17H, LGT 09GN2204 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 4-7 | Tractor Operation, Tractor Servicing, Fuel Usage, Mower Operation, Maintenance and Storage |
| Preparing Tractor for Operation | 9-12 | Assembly, Initial Servicing |
| Controls and Operation | 13-15 | Safety Interlock Switches, Clutch Brake Pedal, Fuse, Hour/Amp Meter, Light Switch, P.T.O. Switch, P.T.O. Warning Light, Parking Brake Latch |
| Trial Run | 16 | Pre-Start Inspection, Engine Starting, Tractor Operation, Engine Stopping |
| Maintenance and Lubrication | 17-19 | Daily, Operating Hours |
| Adjustment and Servicing | 20-21 | Hydrostatic Drive Lever, Electric Clutch, Brake Pad, Brake Pad Replacement |
| Safety Interlock System | 22 | |
| Wiring Diagram | 23 | |
| Trouble Shooting | 24 | Engine, Battery, Fuel System |
| Replacement Decals | 25-27 | Danger Decals, Warning Decals, Instrument Panel Decals, Grille Decals, Hood Decals |
| Body Parts | 28-29 | - |
| Drive Parts | 30-31 | - |
| Transmission & Lift Parts | 32-33 | Transmission and Lift Parts |
| Front Wheel, Rear Wheel and Electrical Parts | 34-37 | Front and Rear Wheel Parts, Electrical Parts |
| Steering Parts | 38-39 | - |
| Engine and Gas Tank Parts | 40-41 | - |
| Electric Clutch & Brake Parts | 42 | Electric Clutch and Brake Parts |
| Frame and Transaxle Parts | 43-45 | |
| Hydraulic Cylinder Parts | 46 | |
| Hydraulic Valve Parts | 47-50 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery charging time | 3-4 hours | p. 9 |
| Battery storage temperature | above 32°F | p. 22 |
| Recommended operating tire pressure | 10 lbs. | p. 11 |

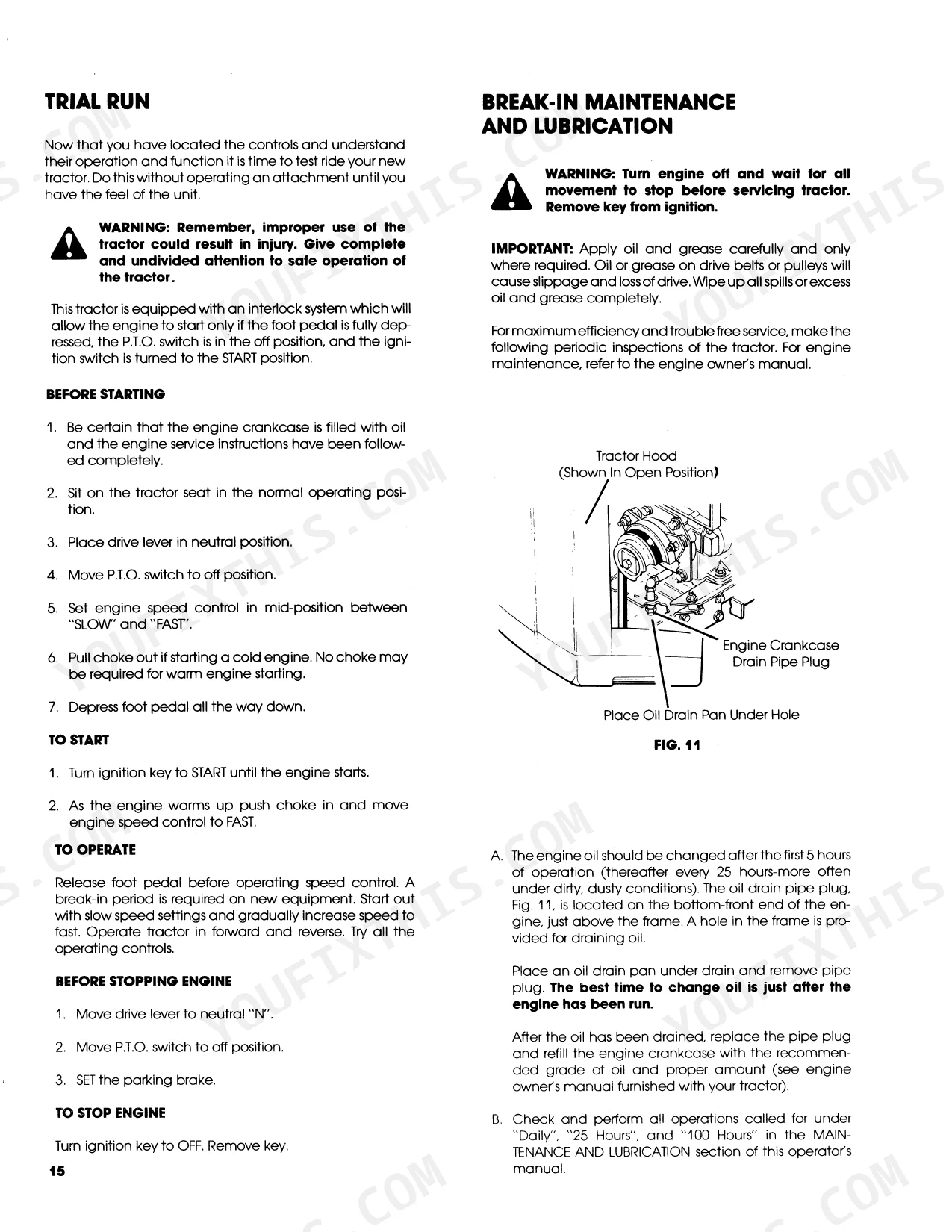

| Engine oil change interval | 5 hours | p. 16 |
| Engine Oil Change Interval (Initial) | 5 hours | p. 16 |
| Engine Oil Change Interval (Routine) | 25 hours | p. 18 |
| Fuse Rating | 25 amp | p. 13 |
Ford LGT 17H, LGT 09GN2204 Common Problems This Manual Covers
PTO clutch will not pull the deck
As the friction faces wear, the electric clutch gap opens up and the deck slips under load or refuses to spin at all. Adjustment and Servicing walks through setting the electric clutch, so you can rule out adjustment before buying a new one.
Manual Section: Adjustment and Servicing p. 20Engine quits when you leave the seat
The seat interlock is designed to stop the engine if you leave the seat with the P.T.O. on or the parking brake off, so check those two first. The Safety Interlock System section spells out what each switch is supposed to do before you start taking the harness apart.
Manual Section: Safety Interlock System p. 22Lights, PTO clutch and warning light all dead

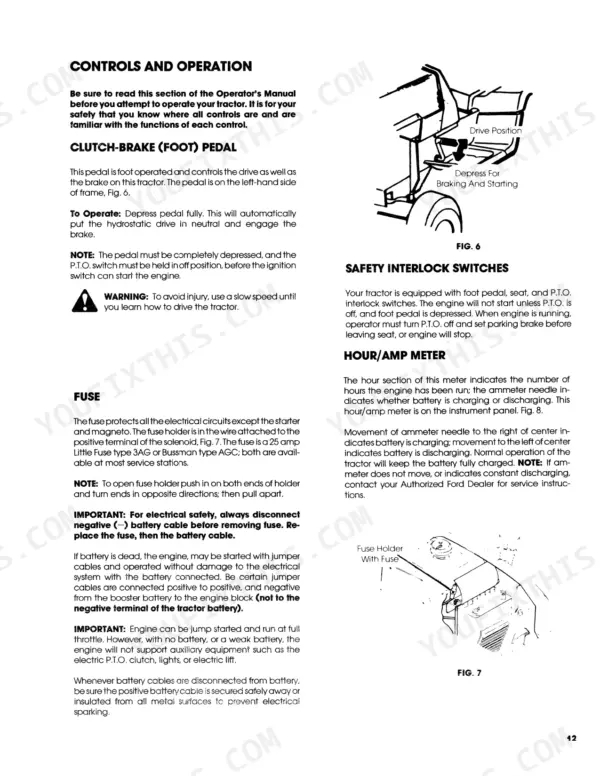

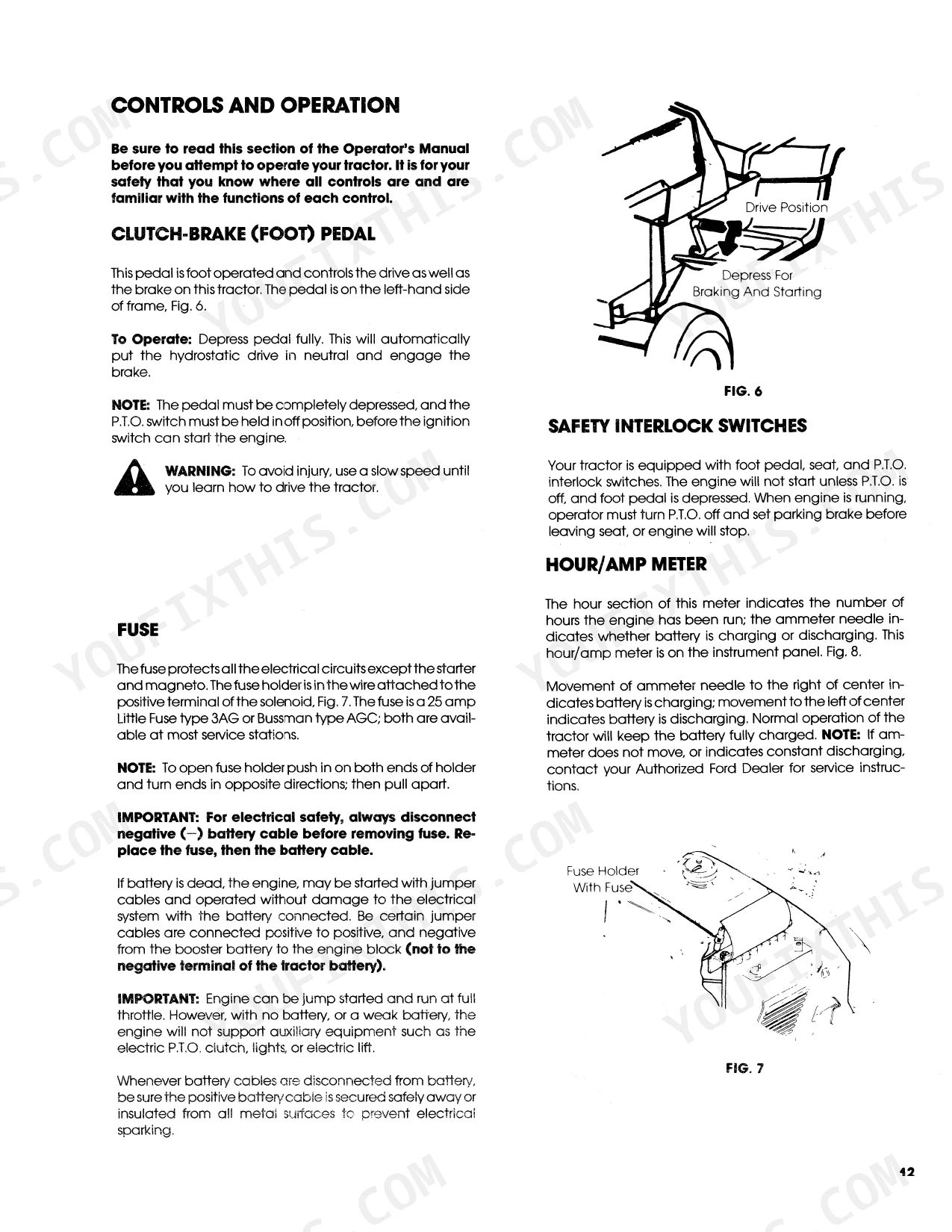

A short in the lighting or P.T.O. circuit takes out the single 25 amp fuse, which protects every circuit except the starter and magneto, and lights, clutch and warning light all go quiet together. Controls and Operation shows where the fuse sits and what it should be rated, so you replace it properly instead of fitting whatever is in the drawer.
Manual Section: Controls and Operation p. 13Tractor creeps with the lever in neutral
Linkage wear on the hydrostatic drive lever leaves the transaxle slightly in gear, and the tractor inches forward or back while your foot is off everything. The Adjustment and Servicing section gives the drive lever neutral adjustment step by step.
Manual Section: Adjustment and Servicing p. 20Kohler run far past its oil change
A tractor that only comes out to mow racks up hours quietly, and the oil in these engines is due every 25 hours of operation, sooner in dusty grass. Maintenance and Lubrication sets out the daily checks alongside the hourly service items.
Manual Section: Maintenance and Lubrication p. 18Stepped, uneven cut across passes
Deck height is referenced off the ground, so tires that have bled down over a winter tilt the deck and leave a ridge between passes. Preparing Tractor for Operation gives the recommended operating pressure of 10 lbs. for both front and rear tires.
Manual Section: Preparing Tractor for Operation p. 11Battery flat after a winter sitting

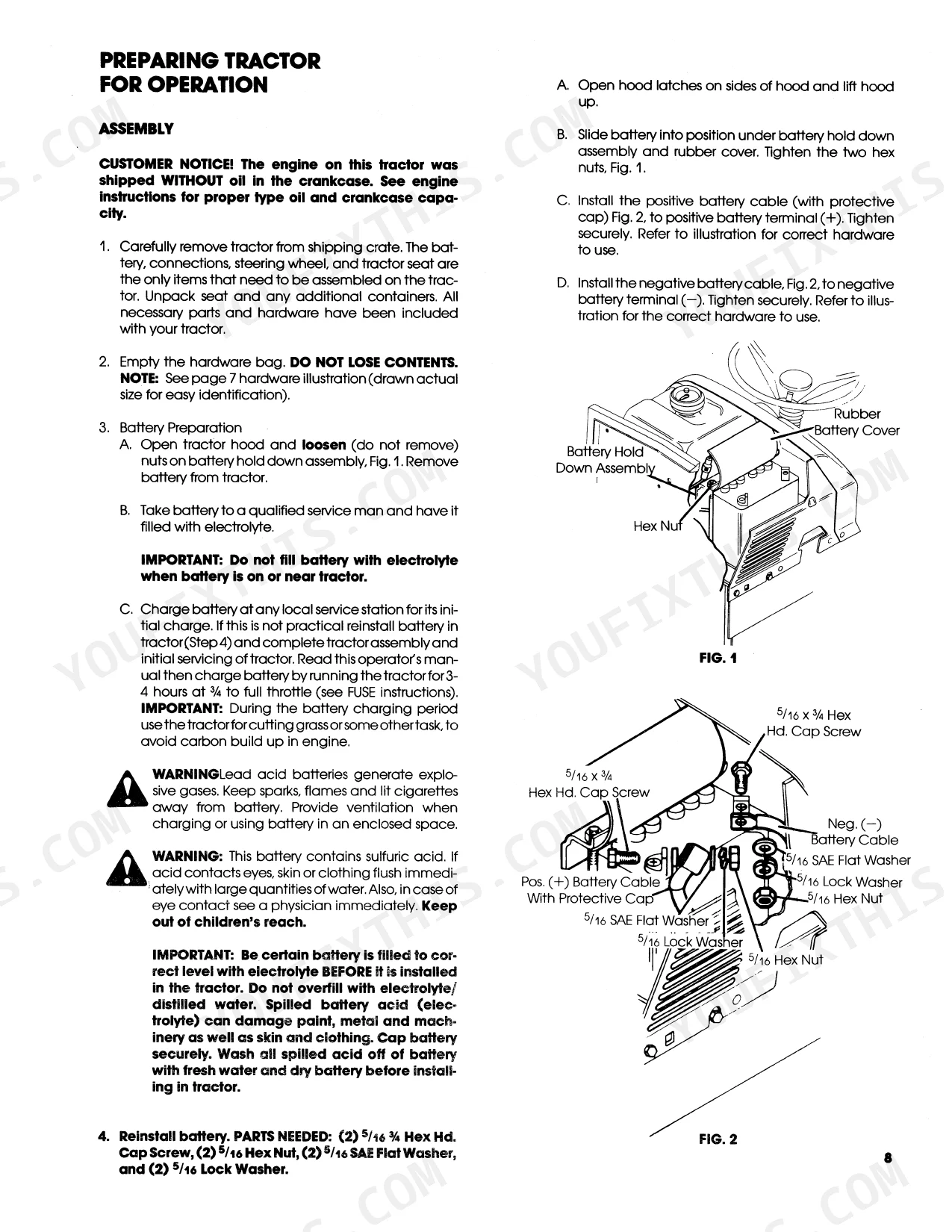

A battery that sat cold and discharged may crank once and quit, and slapping it on a charger for ten minutes proves nothing. Preparing Tractor for Operation covers initial battery service, including the initial charge, or 3-4 hours of running the tractor at 3/4 to full throttle when a service station charge is not practical.
Manual Section: Preparing Tractor for Operation p. 9Frequently Asked Questions
Which tractor and engine does this manual cover?
Ford publication 42001711, written for the LGT 17H garden tractor, model number 09GN2204, with the Kohler engine. It is the operator manual, so it covers assembly, controls, operation, maintenance, adjustment, wiring, troubleshooting and parts lists rather than full engine overhaul work.
Does it include parts numbers for ordering?

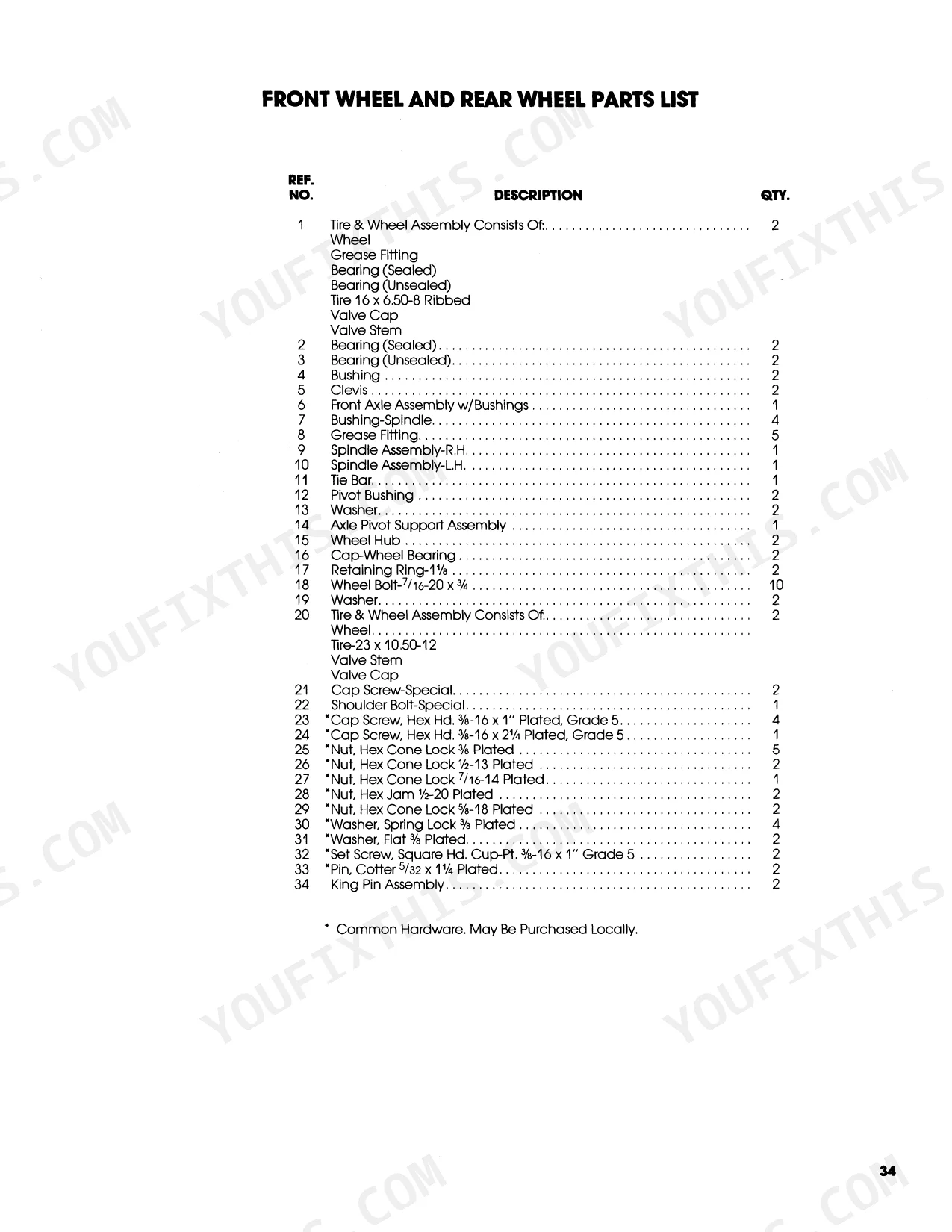

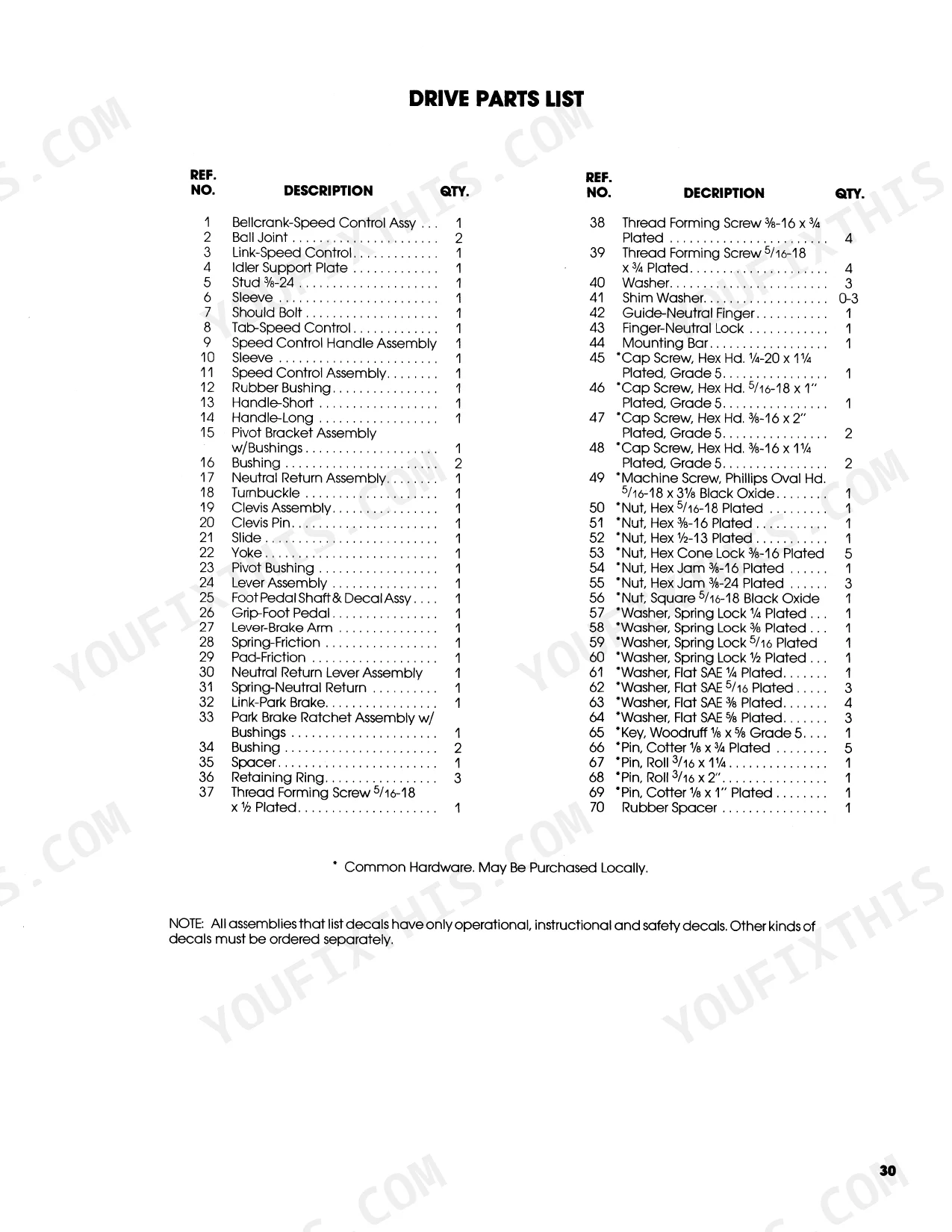

Yes. The Component Parts Lists start on page 28 and run to the end, covering body, drive, transmission and lift, front and rear wheels, electrical, steering, engine and gas tank, and the electric clutch and brake parts. p. 28
How often should the engine oil be changed?
After the first 5 hours of operation, then every 25 hours, and more often in dirty or dusty conditions. The Maintenance and Lubrication section lists the rest of the daily and hourly service items alongside it. p. 16
Is there a wiring diagram for the clutch circuit?
Yes. The Wiring Diagram section covers the ignition switch, light switch, battery, solenoid, electric clutch and P.T.O. switch, which is what you need when the interlocks or the PTO stop behaving and the fault is upstream of the clutch itself. p. 23
Will this Ford LGT 17H Operator Manual download right away?
This is a 50-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Does this Ford LGT 17H manual allow printing?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
