Hyster fits the operating, safety and battery care instructions for the T6.0UT (A3C7) seat type electric tow tractor into 17 pages, so this Hyster T6.0UT operator manual PDF (OEM ID 4279952) takes you from walkaround to charger without filler. The controls and display get a clear layout, and the pages also set out intended uses such as goods towing, the safety operation norms, and technical parameters from axle loading and tyre size to travel speed. Driving procedures follow, bracketed by pre-use inspection and after-operation checks. Plan your battery handling around a 48 V, 400 Ah pack weighing 680 kg (1499 lb), and hold towed loads within the 6000 kg rated traction weight. If a battery problem calls for emergency treatment, or you just need the external charger and storage routine, that section sets it out. Bookmarked and text-searchable, it is a one-time purchase that stays yours for this tow tractor's daily inspections and charging.
What's Inside This Hyster T6.0UT, T6.0UT (A3C7) Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Original Instructions | 1-2 | Foreword, Description of Symbols, Obligations and Responsibilities of Equipment User, Installation Accessories |
| Intended Use | 4 | Goods Towing, Transportation, Short Distance Traction, Slope Weight Reduction |

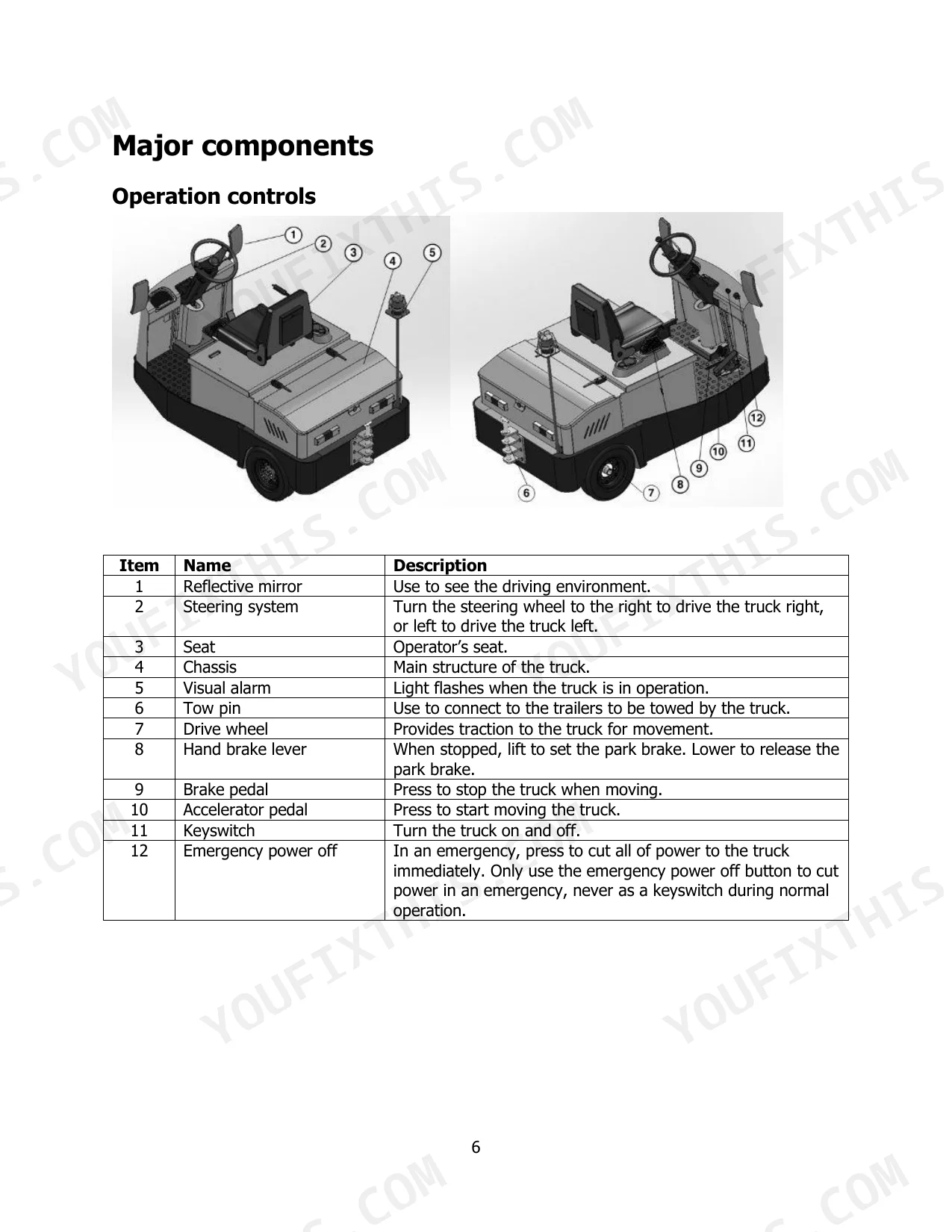

| Unit Description | 5-7 | Specified Use, Operating Environment, Major Components (Operation Controls, Display) |
| Main Technical Parameters | 8-9 | Rated Traction Weight, Axle Loading, Tyre Size, Wheelbase, Travel Speed, Driving Motor Power |
| Operation | 10-14 | Applicable Scope and Site, Rules for Safe Operation (Safety Operation: Norms, Specification), Driving and Operation (Inspection Before Operation, After Operation) |
| Battery Use, Charging, and Maintenance | 15-17 | Charging with the External Charger, Battery Storage, Emergency Treatment, Manufacturer’s Address |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery voltage | 48 V | p. 9 |
| Battery capacity | 400 Ah | p. 9 |
| Driving motor power | 5.6 KW | p. 9 |
| Steering motor power | 0.6 KW | p. 9 |
| Rated traction weight (60 minutes rated) | 6000 kg | p. 9 |
| Overall length | 1995 mm | p. 9 |
| Overall width | 1100 mm | p. 9 |
| Overall height | 1280 mm | p. 9 |
| Travel speed, laden | 8 km/h | p. 9 |
| Travel speed, unladen | 14.5 km/h | p. 9 |
| Min. turning radius | 1650 mm | p. 9 |
Hyster T6.0UT, T6.0UT (A3C7) Common Problems This Manual Covers
Hyster T6.0UT tow tractor, after key switch on, display panel showing a controller fault code
Check the controller fault code on the display (item 10 on page 7) and stop using the truck; page 13 says do not operate the truck with faults. Before checking the electrical system, turn off the key switches and the emergency isolation switches as page 11 requires. Then confirm all connecting points and plugs of the electric system are in good condition. Resume towing only after the malfunction is eliminated.
Manual Section: Controller fault codes p. 7Battery charge indicator dropping and battery voltage reading 41 V or lower while towing

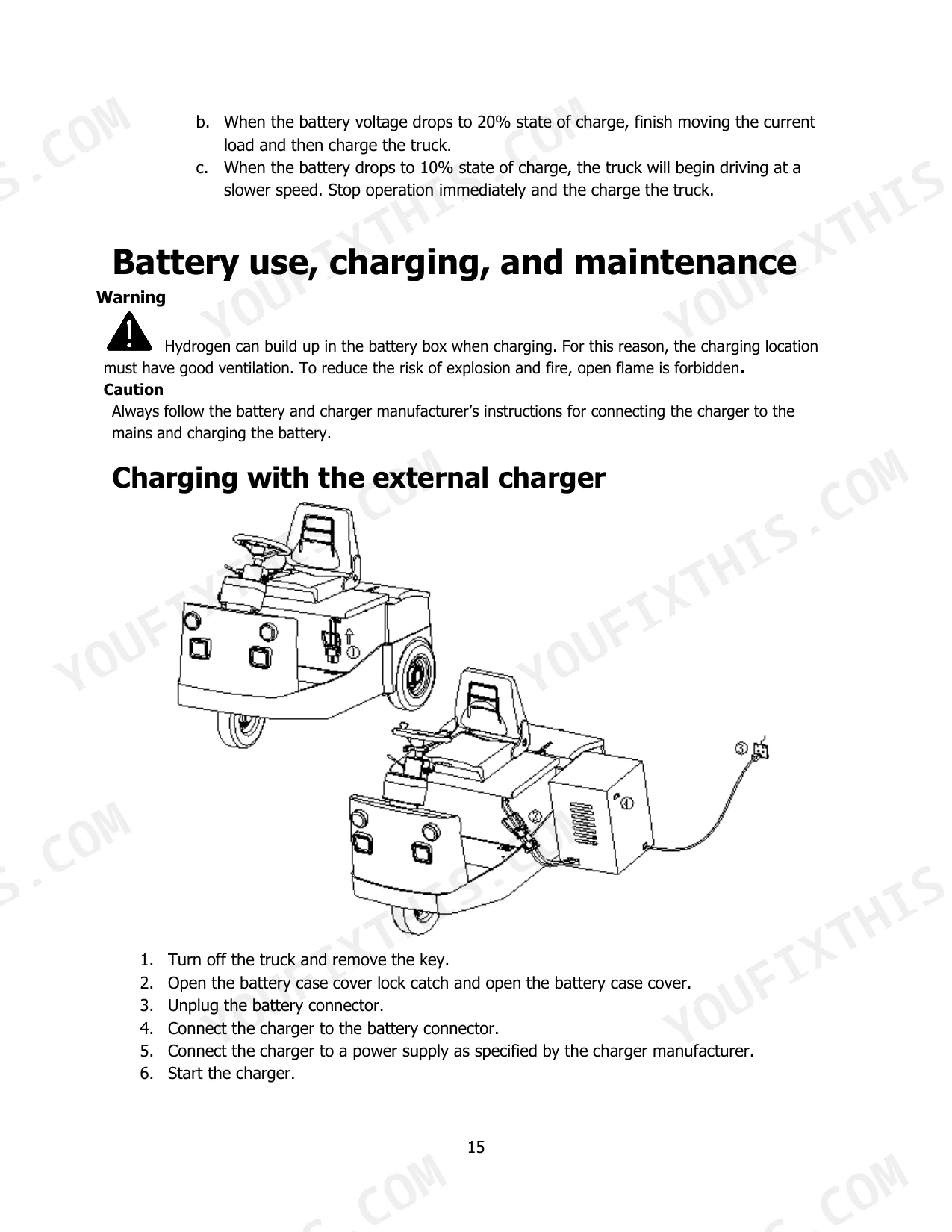

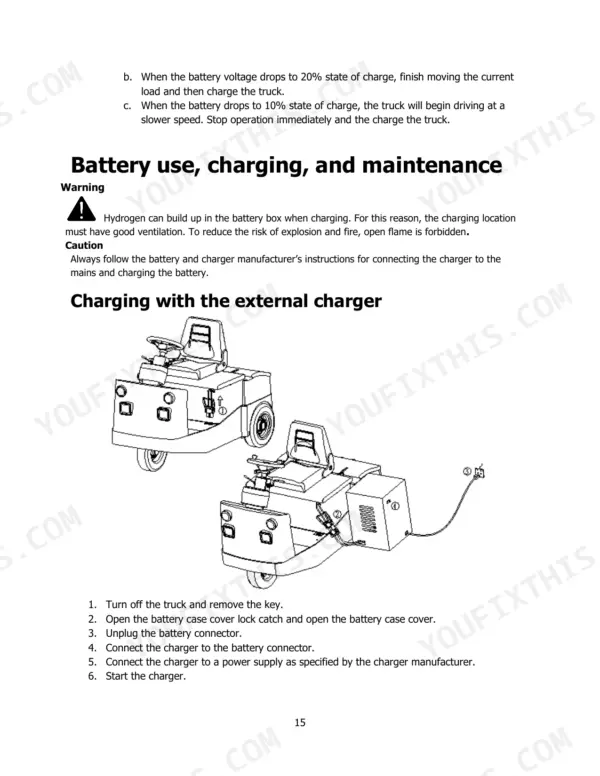

Check the battery charge indicator against the 48 V rating. Page 14 says that at 41 V or lower you must stop the truck and charge immediately. Turn off the truck, remove the key, open the battery case cover, unplug the battery connector and connect the charger following page 15. Follow the battery and charger manufacturer's instructions. Charge only in a well ventilated area with no open flame, because hydrogen builds up in the battery box.
Manual Section: Battery Use, Charging, and Maintenance p. 15Electrolyte leaking from the traction battery or spilled on skin during the daily battery check
Clean up leaked electrolyte by neutralizing it with lime or strong carbonic acid, then flush with a large amount of water as page 16 directs. Wash skin contact with plenty of water. Flush eyes with water, then see a specialized doctor. Remove soaked clothes right away, wash them with water, then rinse with a weak basic soap solution. Check electrolyte proportion and level before the next shift following page 13.
Manual Section: Emergency treatment p. 16Brake fluid leak found or brake pedal not stopping normally during the slow pre-shift drive check

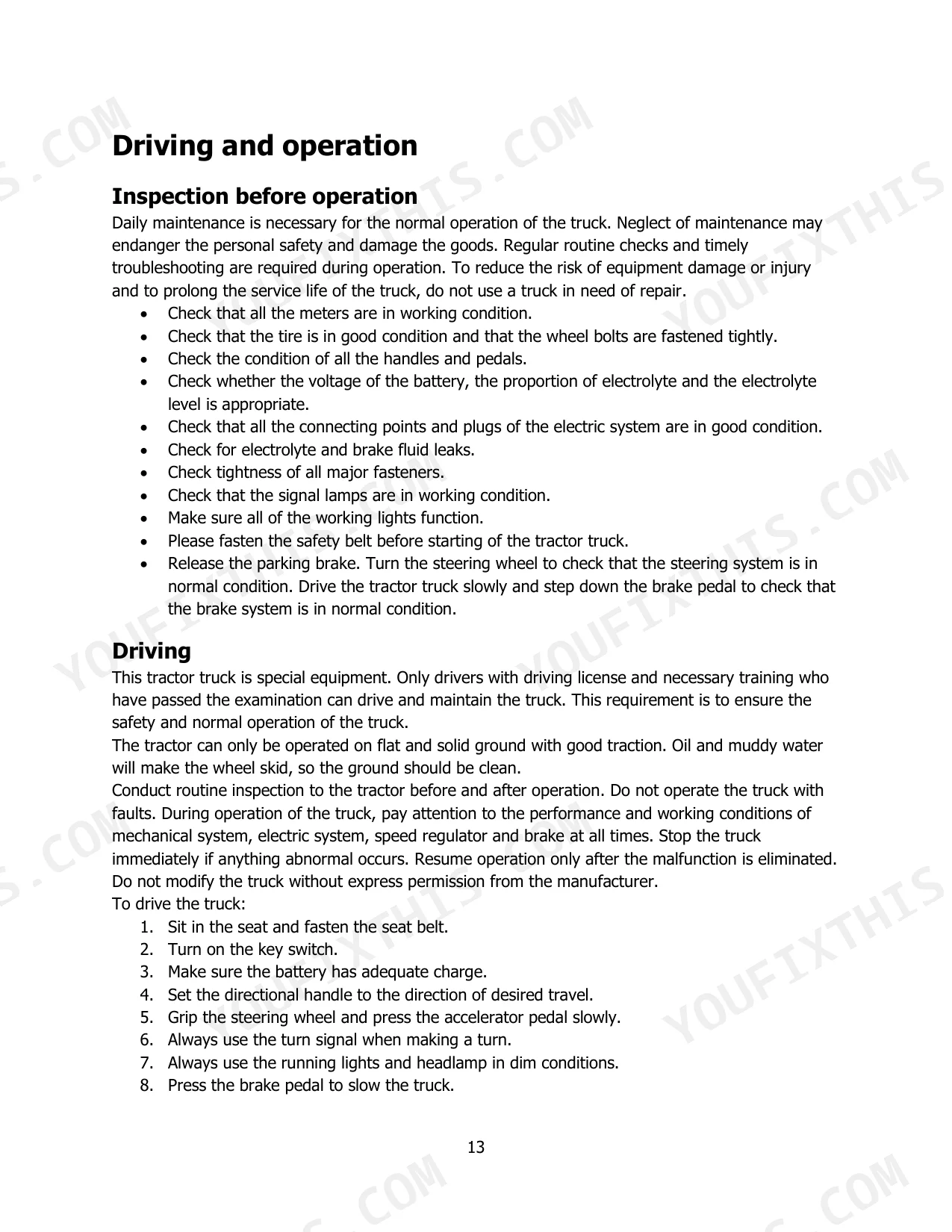

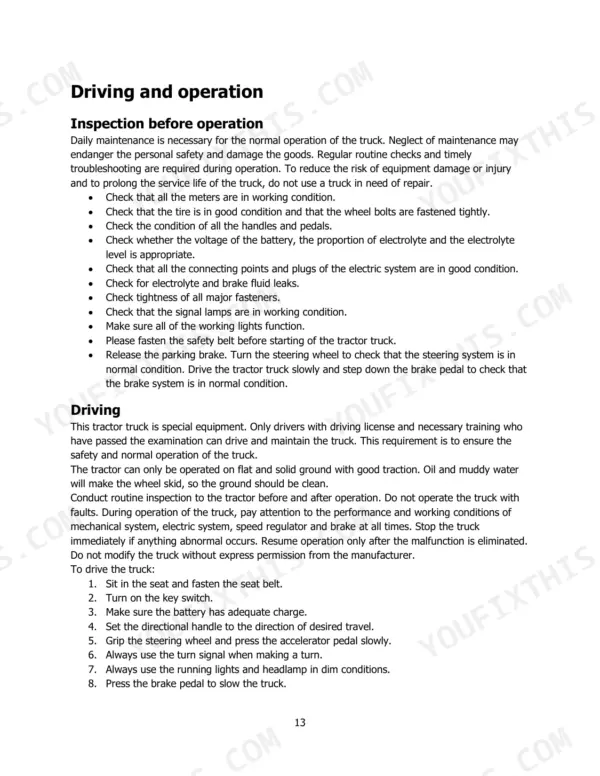

Check for brake fluid leaks during the inspection before operation on page 13. Release the parking brake, drive slowly and step down the brake pedal to confirm the brake system is normal. If anything is abnormal, do not operate the truck with faults. Page 11 says to repair or replace immediately in case of any abnormal condition, so keep the truck off goods towing until it is fixed.
Manual Section: Inspection before operation p. 13Steering wheel feels abnormal or steer angle indicator not matching wheel direction on startup check
Test steering by releasing the parking brake and turning the steering wheel, as the page 13 inspection lists. Watch the steer angle indicator on the display (page 7); it should show the direction the steer wheel is turned. If steering is not normal, stop and keep the truck out of service. Resume operation only after the malfunction is eliminated, never with a known fault.
Manual Section: Inspection before operation p. 13Truck tops out near 8 km/h unladen instead of reaching full rated travel speed

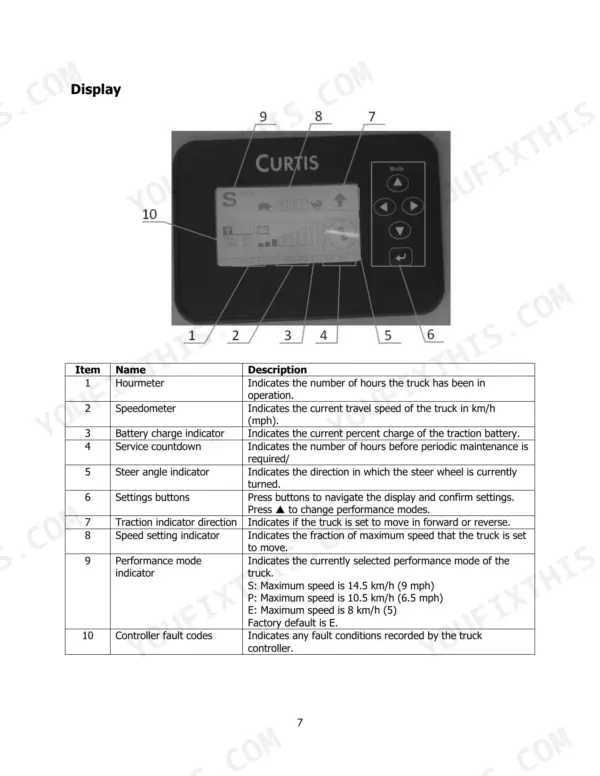

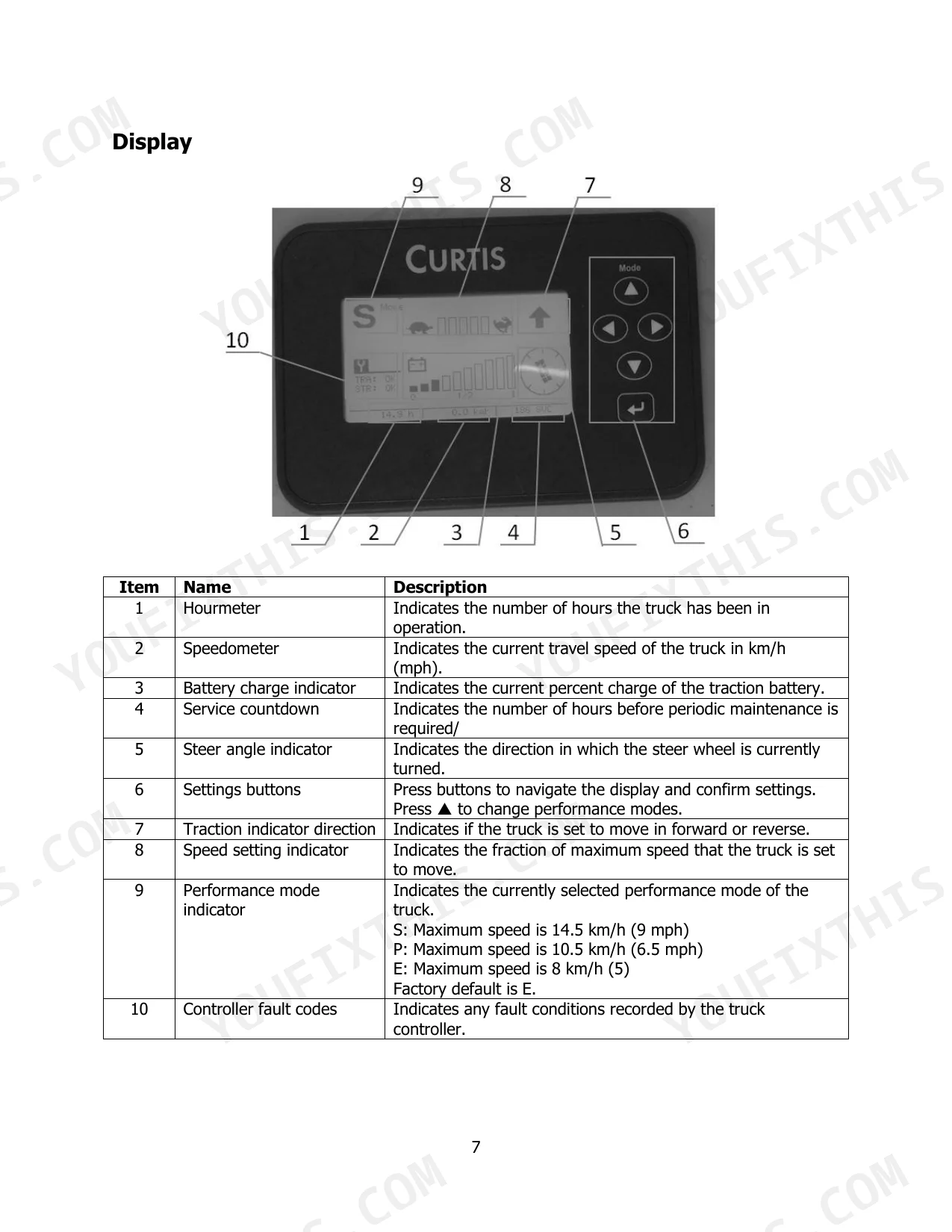

Check the performance mode indicator on the display, item 9 on page 7. Factory default is E, capped at 8 km/h; P allows 10.5 km/h and S allows 14.5 km/h. Press the settings button to change modes, then verify the speed setting indicator is not set to a fraction of maximum. Page 9 lists 14.5 km/h unladen and 8 km/h laden.
Manual Section: Unit Description p. 7Frequently Asked Questions
What is the maximum travel speed of the Hyster T6.0UT when unladen?
The maximum travel speed for the Hyster T6.0UT when unladen is 14.5 km/h (9 mph). p. 9
What is the rated traction weight of the Hyster T6.0UT?
The rated traction weight for the Hyster T6.0UT is 6000 kg (13228 lb) based on a 60-minute rating. p. 9
What is the battery capacity for the Hyster T6.0UT?
The Hyster T6.0UT uses a 48V battery with a capacity of 400 Ah. p. 9
What is the minimum turning radius of the Hyster T6.0UT?
The minimum turning radius for the Hyster T6.0UT is 1650 mm (65 in). p. 9
What is the procedure for cleaning the electrical system of the Hyster T6.0UT?

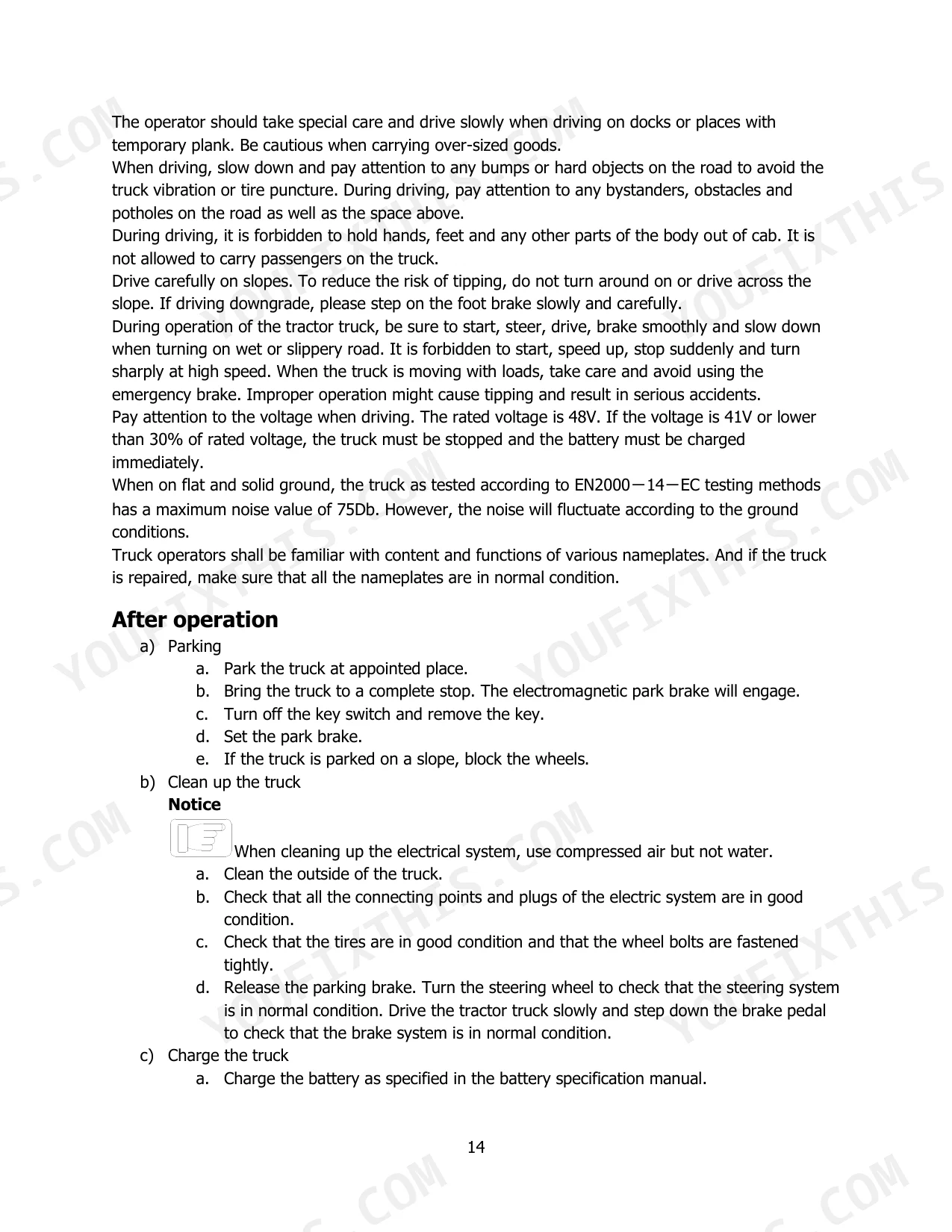

When cleaning the electrical system, you must use compressed air instead of water to avoid damage. This is specified in the 'After operation' section on page 14. p. 14
Will this Hyster T6.0UT Operator Manual download right away?
All 17 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Can I print this Hyster T6.0UT manual?
Yes. Many mechanics print the section they need for their own shop and bring it to the bench.
