Need the exact repair procedures for your JCB wheeled loader? This 590-page JCB WLS 432ZX, 432ZX, 6BTAA 5.9 150C service manual PDF (OEM #9813/0800-5) breaks down the complete powertrain, hydraulic, and electrical systems. Full wiring diagrams trace electrical faults, step-by-step diagnostic charts cover the powershift transmission, and detailed technical data and specifications back the Cummins engine. Open up the troubleshooting section to quickly isolate pressure drops through the loader valves and steering block. Verify the main hydraulic system operating pressure hits 315 bar, and torque the engine sump drain plug to exactly 75 Nm before putting it back in the dirt. Guessing at transmission faults wastes shop hours. Download this bookmarked file, open it on your tablet right next to the machine, and turn some wrenches.
What's Inside This JCB WLS 432ZX, 432ZX, 6BTAA 5.9 150C Manual

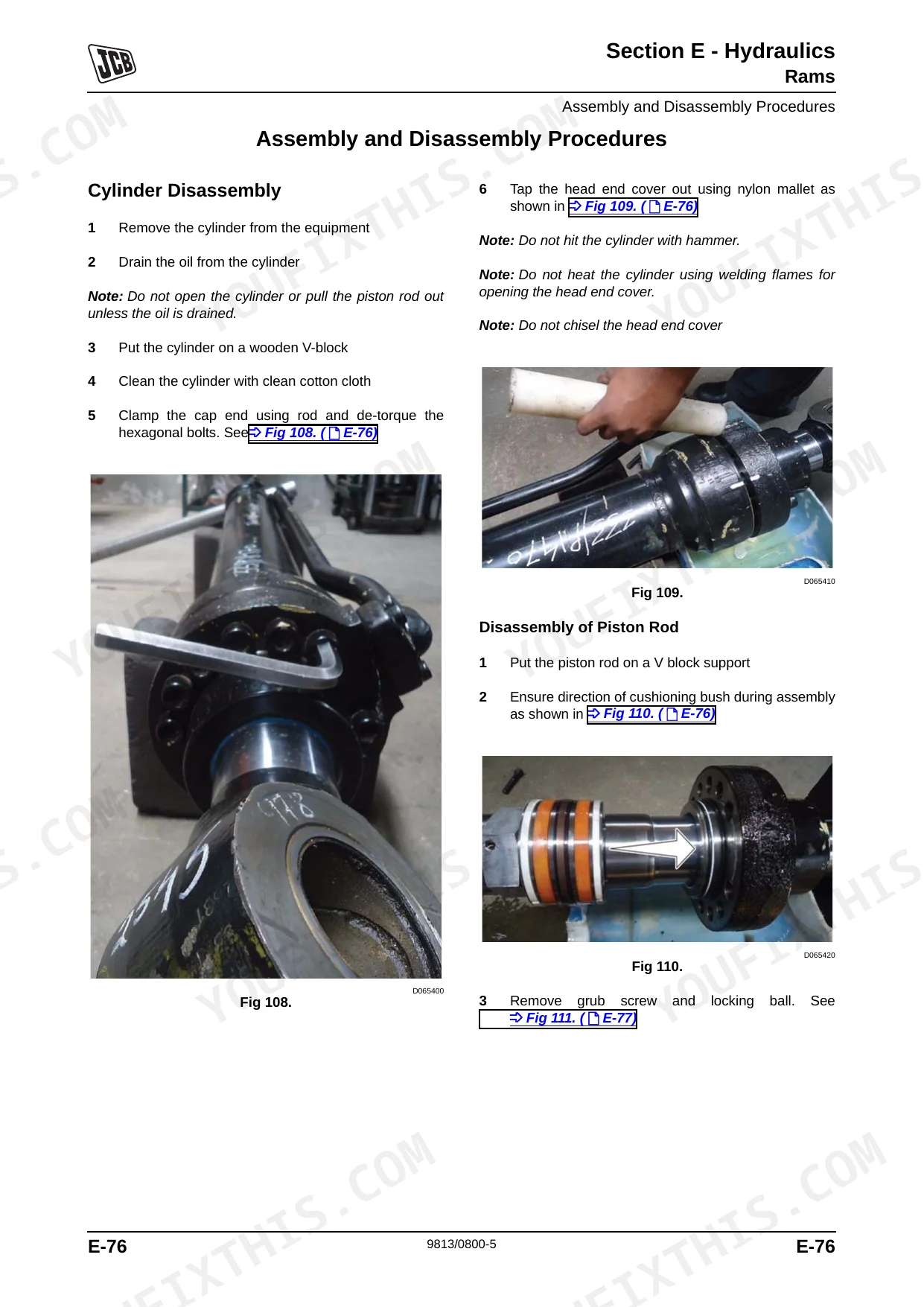

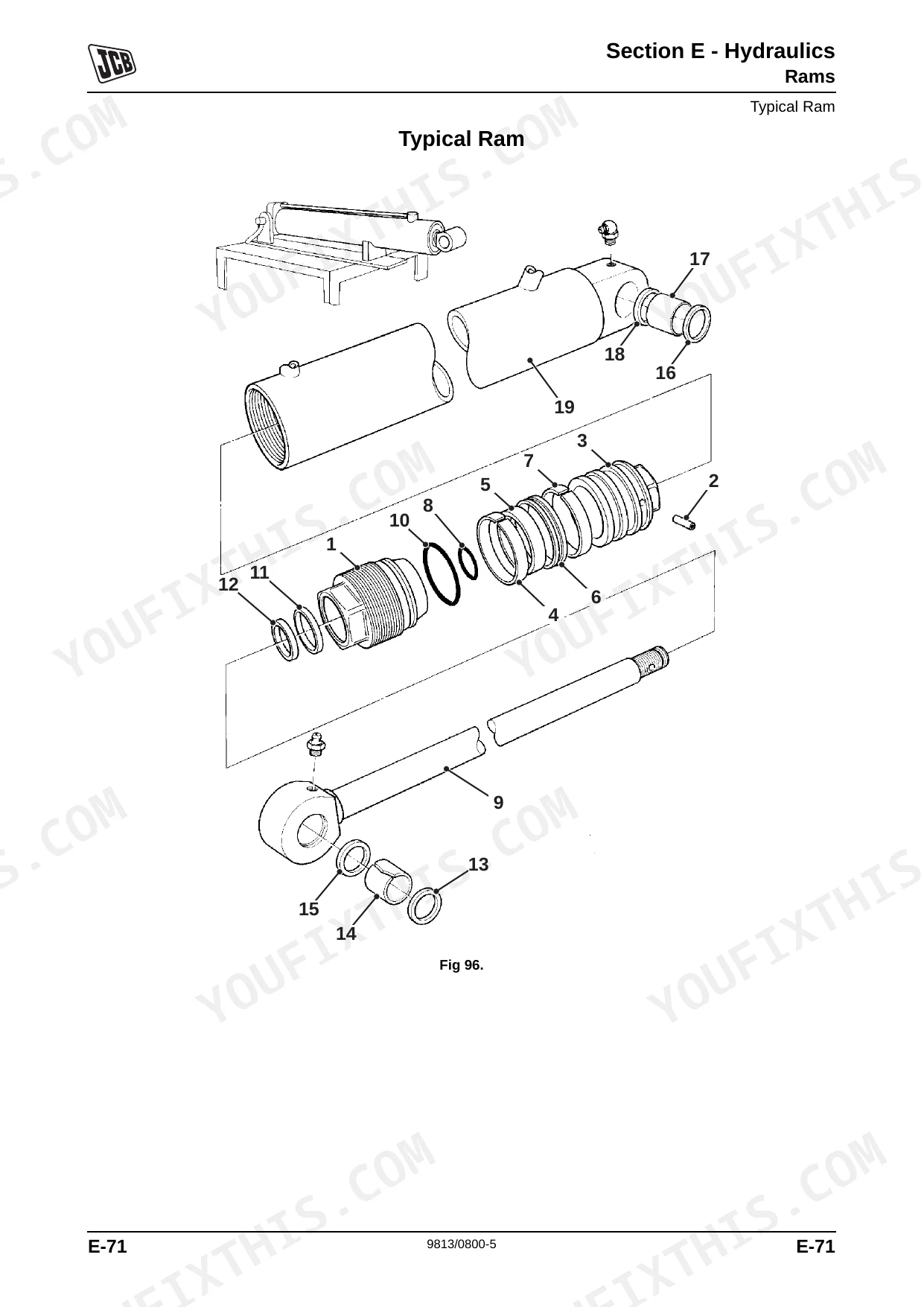

| System | Pages | Key Topics |
|---|---|---|
| Care and Safety | 46-61 | Important Information, Safety Check List, Operating Safety, Maintenance Safety |
| Routine Maintenance | 62-125 | Service Requirements, Initial Service and Inspection, Health and Safety, Battery, Service Schedules, Pre-Start Cold Checks, Service Points and Fluid Levels |
| Body and Framework | 126-185 | Cab, Centre Pivot, Installation, Articulation Bump Stop, Service Procedures, Refrigerant Charging and Discharging, Pressure Switch Assembly, Condenser |
| Electrics | 186-235 | Technical Data, Service Procedures, Measuring DC Voltage, Measuring Continuity, Testing a Diode or a Diode Wire, Battery, Testing a Battery, Specific Gravity Testing |
| Hydraulics | 236-329 | Technical Data, Loader Valve (From 2186067), Basic System and Operation, Introduction to Hydraulic Schematic Symbols, Control Valves, Example of Schematic Circuit |
| Transmission | 330-513 | Towing Procedure, Powershift Transmission, Disassembly and Assembly, Disassembly, Assembly, Independent Calibration of the Shifting Elements (Aeb), Aeb Calibration Procedure |
| Brakes | 514-540 | Technical Data, Service Brake Circuits, Valves and Pedals, Feeder Block, Brake Pump, System Testing, Remote Test Point, Service Brake |
| Steering | 541-582 | Technical Data, General Description, Descriptions, Steering Valve - Operation 2 (Right Hand Turn), Steering Valve - Operation 3 (Left Hand Turn), Steering Shock Valve |
| Engine | 583-590 | Technical Data, Specifications, Accelerator Pedal |
Quick Reference Specifications

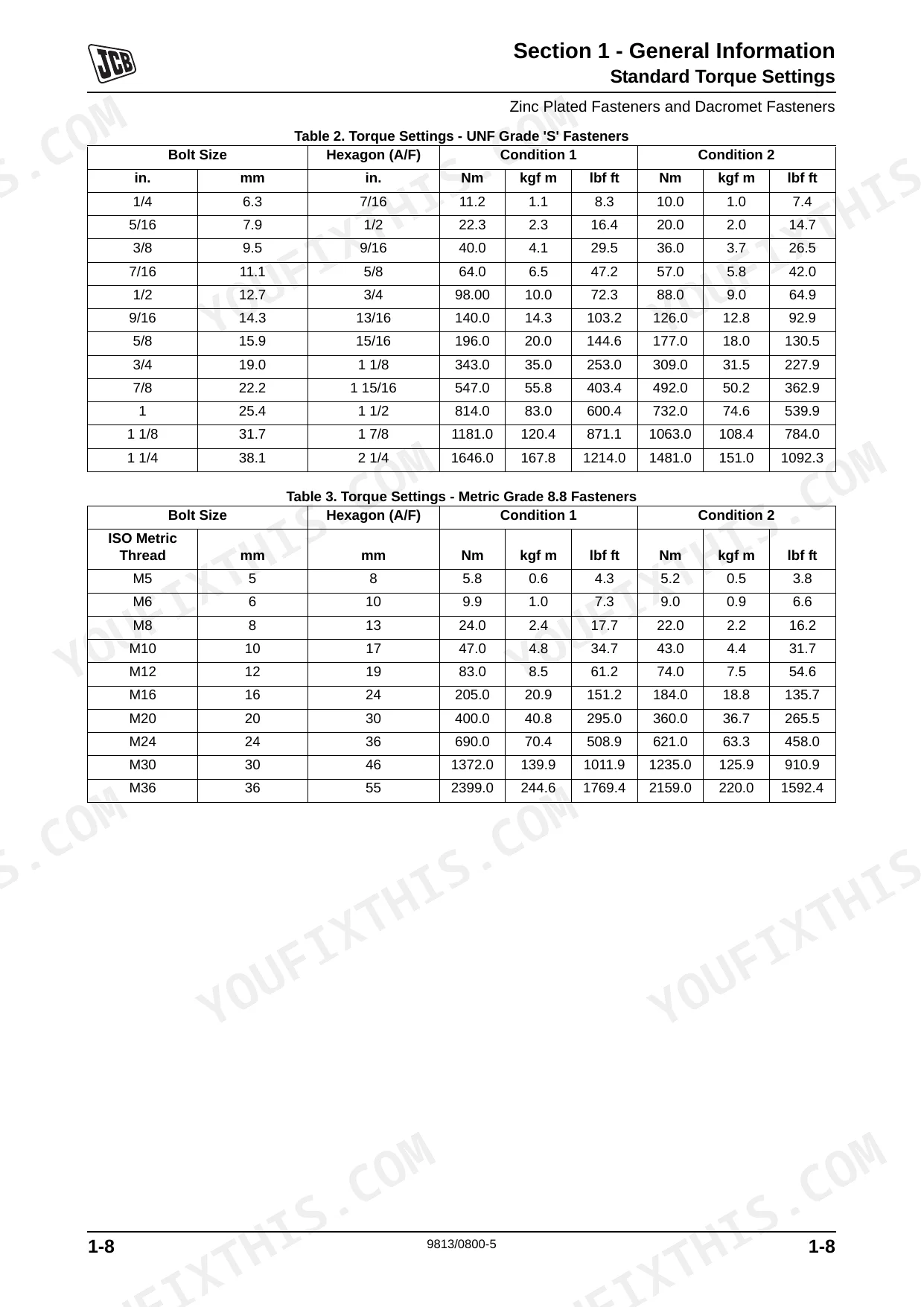

| Specification | Value | Page |
|---|---|---|
| Wheel Nut Torques | 600-580Nm | p. 123 |
| Engine Sump Drain Plug Torque | 75 Nm (55 ft-lbs) | p. 104 |
| Hydraulic System Operating Pressure (max) (To 2186066) | 315 bar | p. 240 |
| Air Cleaner Outer Element Replacement | renewed immediately if the warning light on the instrument panel illuminates | p. 108 |
| Air Cleaner Inner Element Replacement | renewed every other time the outer-element is replaced | p. 109 |
| Engine Oil and Filter Change Interval | Every 250 Hrs | p. 78 |
| Hydraulic Filter Element Cover Nuts Torque | 7 Nm (5 lbf ft) | p. 116 |
| Hydraulic Filter Filtration Size | 10 Micron | p. 241 |
| Coolant Change Interval | Every 2000 Hrs | p. 78 |
| Coolant Fill Rate (Cooling-Pack) | 10 litres per minute | p. 168 |
| BSP Hose Torque Setting (1/4 inch) | 24.0 - 27.0 Nm | p. 17 |
| Drive Belt Adjustment | no adjustment required (automatically tensioned) | p. 107 |

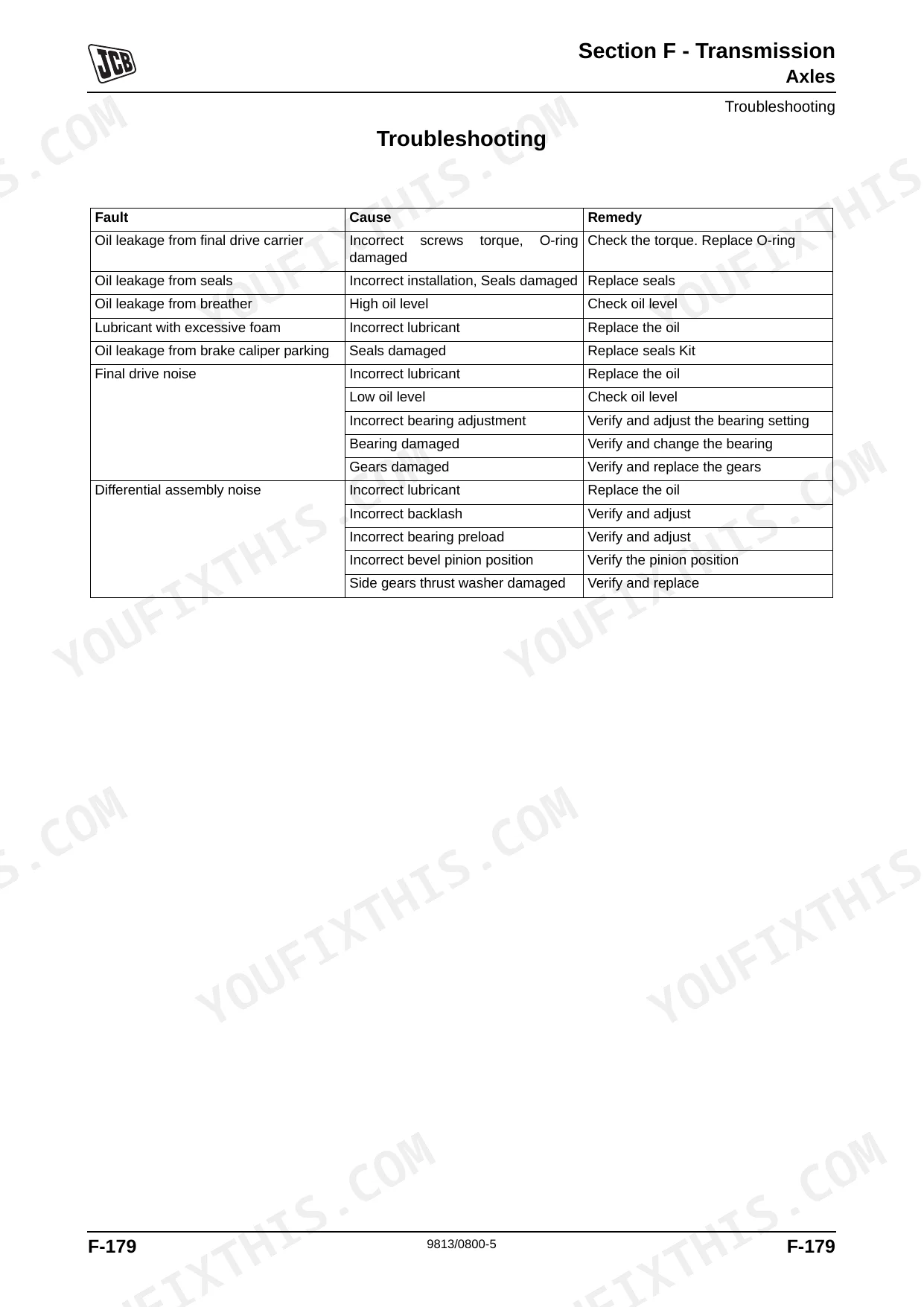

JCB WLS 432ZX, 432ZX, 6BTAA 5.9 150C Common Problems This Manual Covers
JCB WLS 432ZX hydraulic functions are slow, weak, or intermittent during heavy bucket operation p. 241
Test the main relief valve pressure using a hand pump as shown on page 241. Verify the MRV pressure reaches 250 bar on machines from serial 2186067. If pressure drops below specification, inspect the control valves and replace the hydraulic filter.
Manual Section: Hydraulic Pressure TestingEngine turns over slowly or presents a hard starting and no-start condition in cold weather p. 197
Measure the battery no-load voltage to ensure it reads at least 12.4V as specified on page 197. Check that the battery electrolyte level sits exactly 6 mm (1/4 in) above the plates on page 98. Clean the terminals and test continuity.
Manual Section: ElectricsDashboard warning light indicates engine overheating, sudden loss of power, or unexpected shutdown under load p. 168
Drain the cooling system and refill the cooling-pack at a maximum rate of 10 litres per minute as outlined on page 168. Verify the total engine coolant capacity reaches exactly 40 Liters. Inspect the radiator core for debris blockages and clean thoroughly.
Manual Section: Routine MaintenanceVisible fluid loss and severe hydraulic leaks around the loader valve connections and steering hoses p. 16
Inspect the hydraulic connections for cracks and replace any damaged seals. Torque the 1/4 in BSP adaptor connections to 18.0 Nm using the specifications on page 16. Tighten the associated 1/4 inch BSP hose fittings to 24.0 - 27.0 Nm on page 17.
Manual Section: HydraulicsFrequently Asked Questions
What does the JCB 432ZX fault code mean?

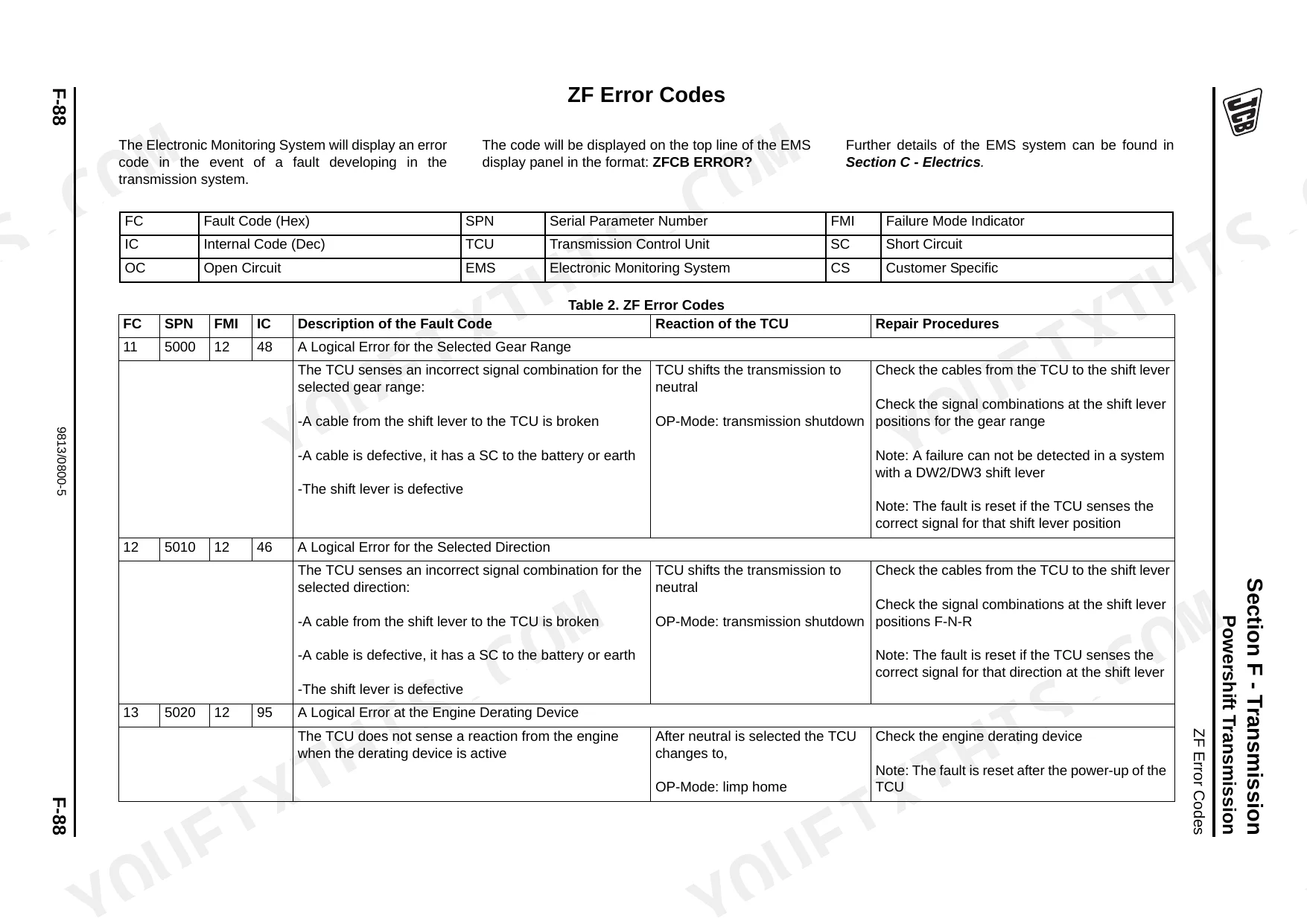

The JCB 432ZX fault codes are listed in the "ZF Error Codes" section of the manual, starting on page 421. Each fault code is identified by an FC (Fault Code Hex), SPN (Serial Parameter Number), FMI (Failure Mode Indicator), and IC (Internal Code Dec), along with a description of the fault. For example, FC 11 (SPN 5000, FMI 12, IC 48) indicates "A Logical Error for the Selected Gear Range".
What are the replacement specifications for air filter?

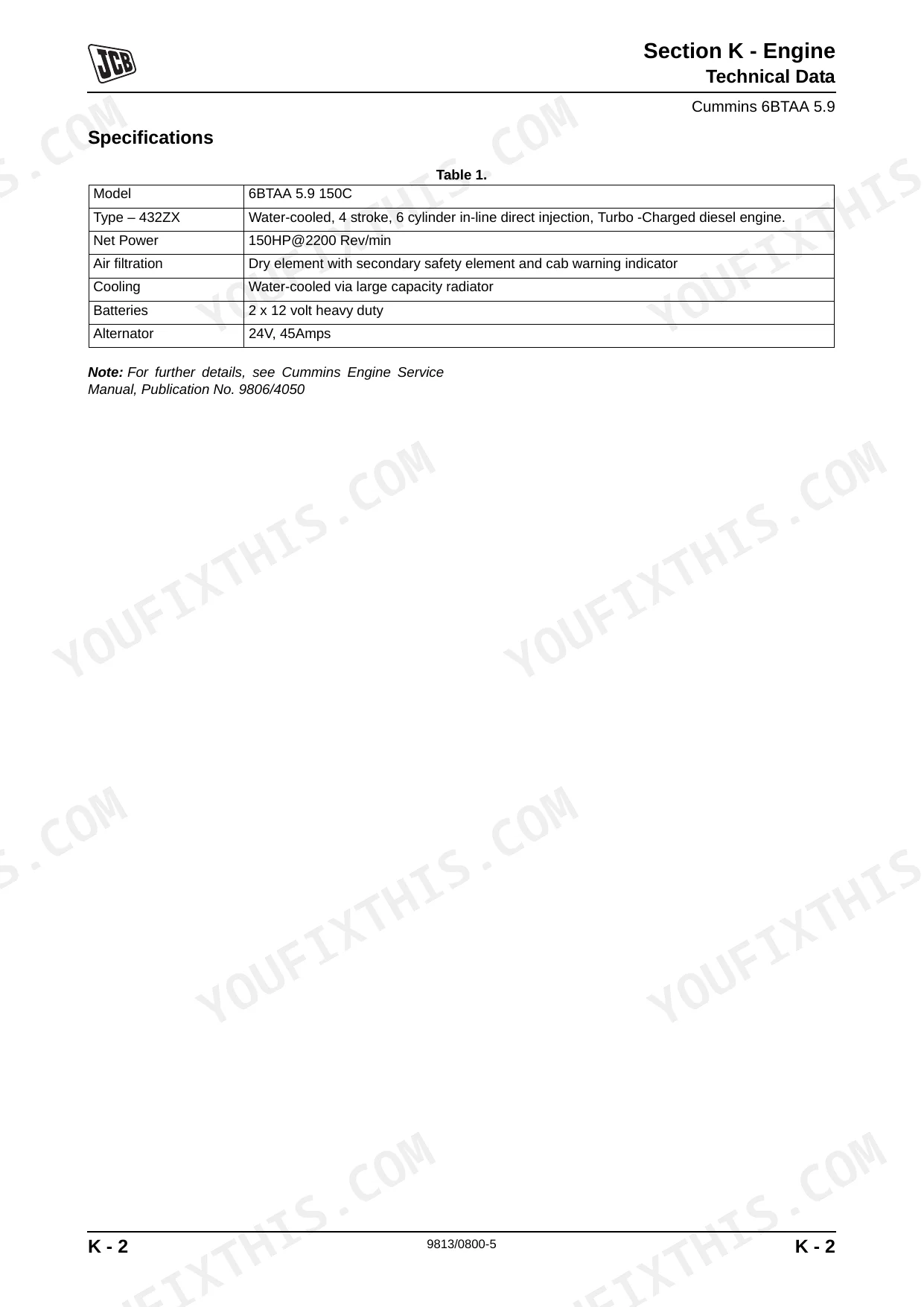

For the JCB 432ZX, the outer air filter element should be renewed immediately if the warning light on the instrument panel illuminates. The inner element should be replaced every other time the outer element is replaced. The air filtration system is described as a dry element with a secondary safety element and a cab warning indicator.
What are the replacement specifications for oil filter?
The engine oil and filter for the JCB 432ZX should be changed at regular intervals, such as every 250 hours, as indicated in the service schedule. When changing the filter, a new filter canister and a new O-ring should be used, as detailed in the changing procedure.
How do you fix JCB WLS 432ZX hydraulic functions are slow, weak, or intermittent during heavy bucket operation?
Test the main relief valve pressure using a hand pump as shown on page 241. Verify the MRV pressure reaches 250 bar on machines from serial 2186067. If pressure drops below specification, inspect the control valves and replace the hydraulic filter.
What format is this JCB WLS 432ZX, 432ZX, 6BTAA 5.9 150C manual in?
This is a 590-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this JCB WLS 432ZX, 432ZX, 6BTAA 5.9 150C?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

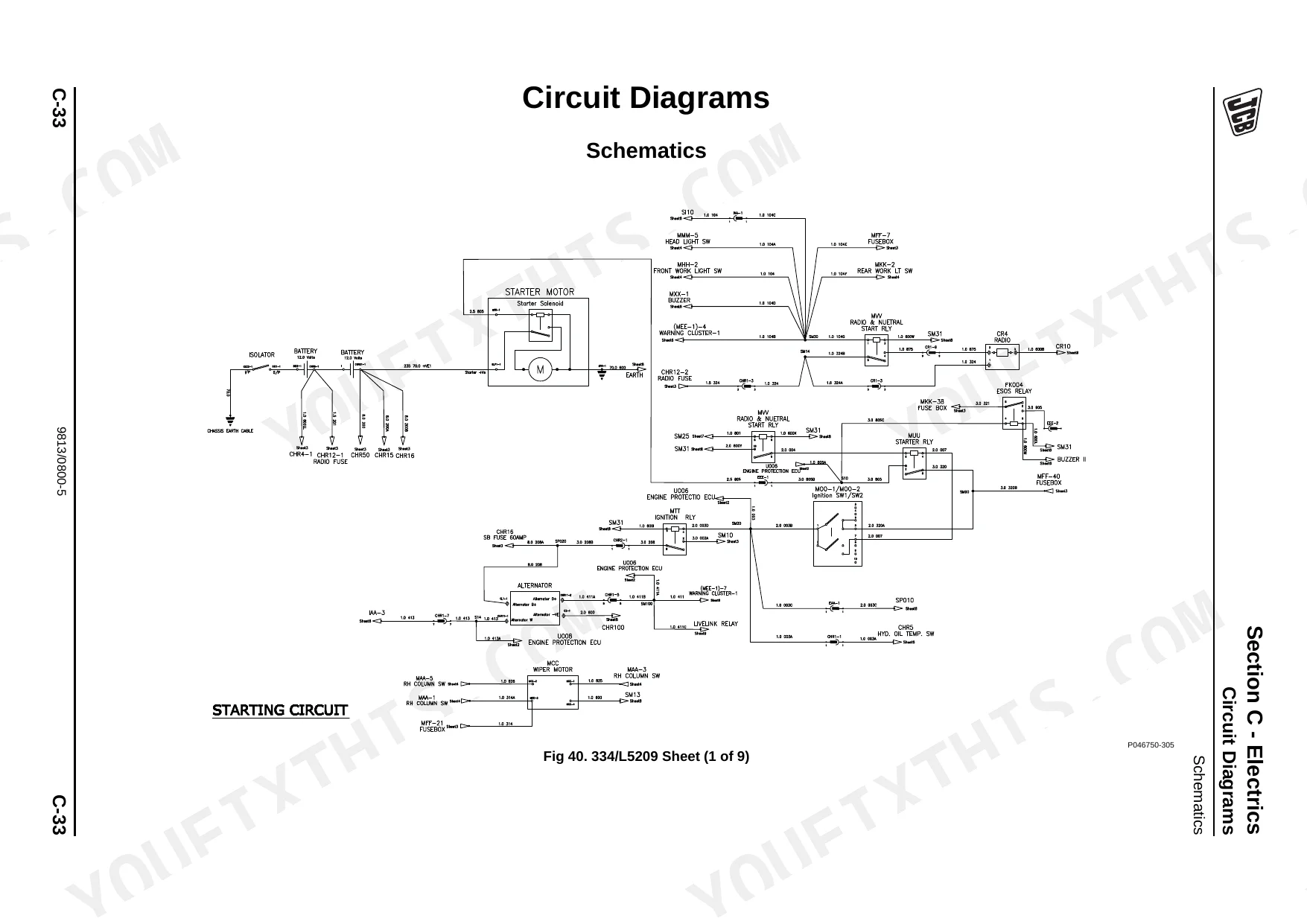

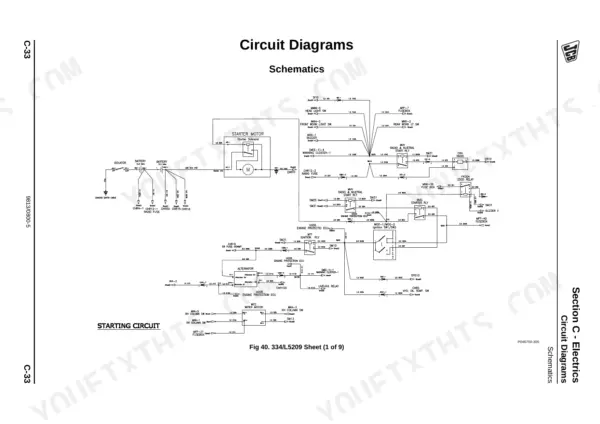

Does this JCB WLS 432ZX, 432ZX, 6BTAA 5.9 150C manual have electrical diagrams?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
Document Quality
This document is a native digital PDF, allowing you to search and copy the full text content. Text throughout the manual is crisp and consistently easy to read. Diagrams and illustrations are a mix; some are sharp vector graphics, particularly the circuit diagrams, while others are clear raster images with readable labels. The pages are clean, free from scan artifacts, stains, or skewed content, and there are several intentionally blank pages for notes or filler.
