This is the complete John Deere factory repair manual for the 6103, 6203, 6403 and 6603 tractors. Across 1,404 pages it covers every major system on the 6003 Series: engine removal, teardown and reassembly for both 4-cylinder and 6-cylinder engines, the full power train from clutch and transaxle through differential and final drives, front axle and brake repair, hydraulic pump and Rockshaft service with the selective control valve, and the complete electrical system with wiring harness routing. Cab and ROPS operator station sections cover air conditioning and heating. It is the same factory information a John Deere dealer technician works from, with all torque values, capacities and test pressures called out so a repair is done to spec the first time.
What's Inside This John Deere 6103, 6203, 6403, 6603 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | Safety, Specifications, Fuel and Lubricants, Serial Number Locations | |
| Engine Repair | Engine, Cooling System | |
| Fuel and Air Repair | Fuel System, Speed Control Linkage, Air Intake System | |
| Electrical Repair | Battery, Starter and Alternator, Harness and Connector Repair, Wiring Harness Routing, Electrical System Components, Auxiliary Lighting, Fuses and Relays, Lighting | |
| Power Train | Towing, Component Removal, PTO, Clutch, Clutch Housing, Transaxle, Differential, Final Drives, MFWD Drop Gearbox | |
| Steering and Brake Repair | Steering Repair, Front Axle, Brake Repair | |
| Hydraulic Repair | Hydraulic Pump and Filter, Rockshaft, Lubrication System, Selective Control Valve (SCV) | |
| Miscellaneous Repair | Hood and Shields, 3-Point Hitch, Wheels, Front Support | |
| Operator Station Repair | Seat and Support, ROPS, Operator Platform | |
| Cab Operator Station Repair | Component Removal and Installation, SCV Cable Adjustment, Air Conditioning System, Heating System, Seat | |
| 6003 Series Tool Kit | Essential Tool Reference for 6003 Series Service | |
| Special Tools | Dealer-Fabricated Special Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All models | ||
| Transmission and Hydraulic Oil Capacity | 58 L (15.3 gal.) | |
| Radiator Capacity | 8.9 L (9.4 qt) | |
| Cooling System Pressure Test | 103 kPa (1 bar / 15 psi) | |
| 6103, 6203 | ||
| Engine Oil Pan Capacity (4-Cylinder) | 12 L (13 qt) | |
| 6403, 6603 | ||
| Engine Oil Pan Capacity (6-Cylinder) | 19 L (20 qt) | |
| Engine Assembly | ||
| Flywheel Housing-to-Clutch Housing Cap Screws (A) Torque | 610 N.m (450 lb-ft) | |
| Fan Drive Belt | ||
| Fan Drive Belt New Belt Tension | 535 - 715 N (120 - 160 lb-force) | |
| Engine Oil Pan | ||
| Oil Pan Drain Plug with O-Ring Torque | 50 N.m (37 lb-ft) | |
John Deere 6103, 6203, 6403, 6603 Common Problems This Manual Covers
Hydraulic system drops pressure or SCV stops responding under load
The most common cause is a stuck or contaminated spool valve inside the selective control valve or a worn hydraulic pump. The Hydraulic Repair section covers removing and inspecting the pump and SCV, testing for internal leakage and verifying the Rockshaft relief pressure so you identify whether the fault is in the valve body, the pump or a downstream restriction before swapping parts.
Manual Section: Hydraulic RepairSoft or unresponsive brake pedal resulting in reduced stopping ability
On these tractors brake pedal problems come from worn linkage components - typically stretched or broken rods, worn pins or seized bushings in the mechanical brake assembly. The Steering and Brake Repair section details the full brake linkage with clearances and adjustment specs so you identify and replace only the worn component rather than the entire assembly.
Manual Section: Steering and Brake RepairEngine loses power or stalls under load, especially in dusty field conditions
Power loss under load almost always traces to fuel starvation from a clogged fuel filter or air starvation from a plugged primary air filter. Service both at the intervals in the General Information section, then check fuel supply pressure using the procedure in the Fuel System section before condemning the injection pump or turbocharger.
Manual Section: Fuel and Air RepairClutch slips or fails to fully disengage on a high-hours machine

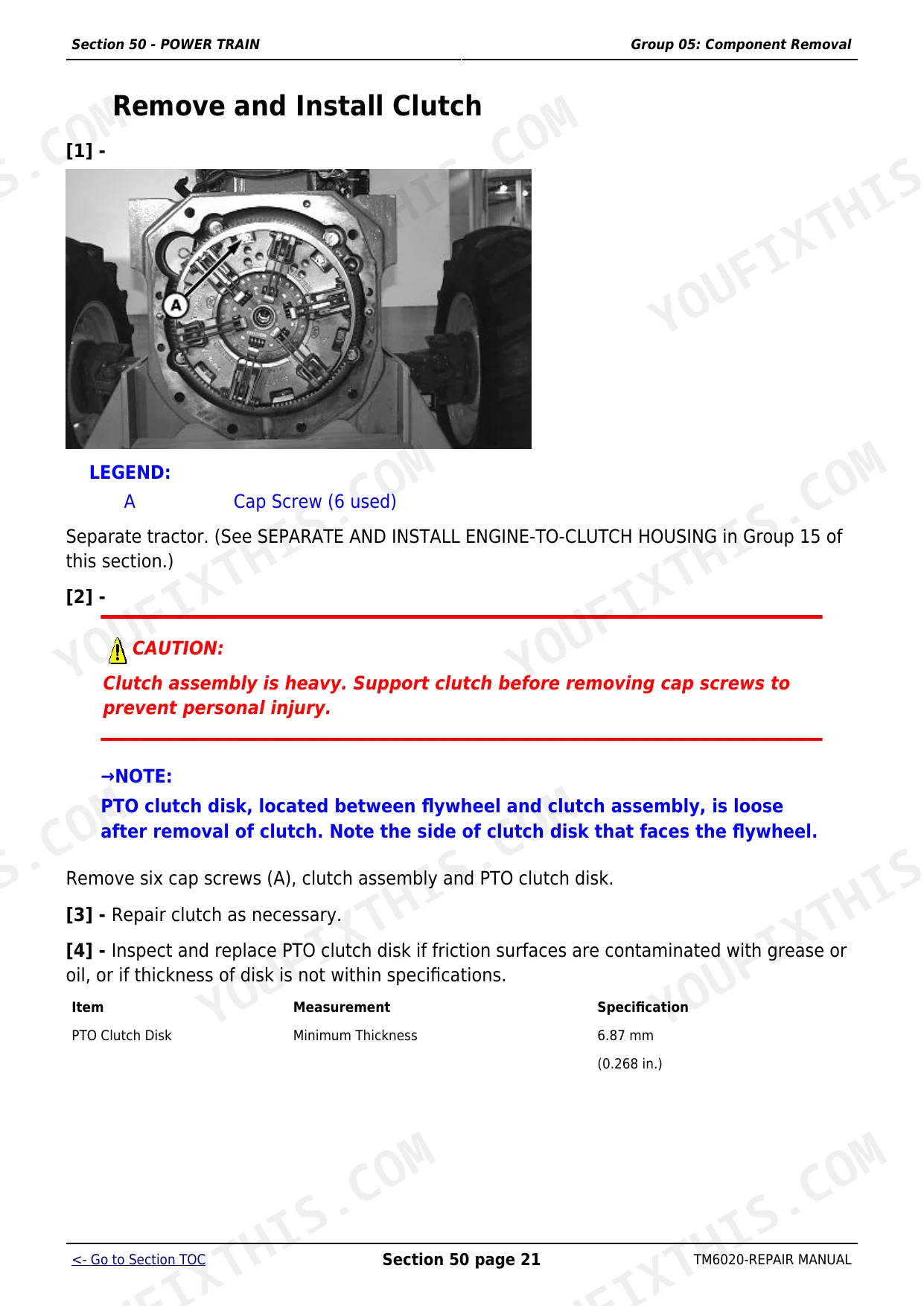

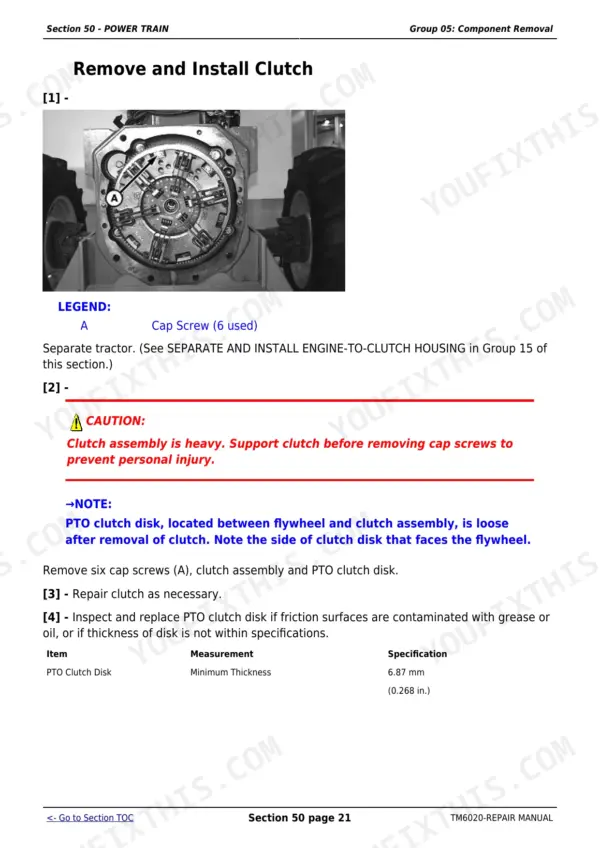

A slipping clutch on a high-hours 6003 Series tractor usually points to a worn clutch disc or a pressure plate that has lost clamping force. The Power Train section covers clutch removal using the tractor-splitting procedure, with reassembly torques and the documented 38.6 kg (85.1 lb) clutch assembly weight so you plan the job with the right support equipment before cracking the tractor in half.
Manual Section: Power TrainFrequently Asked Questions
What engines are in the John Deere 6103, 6203, 6403 and 6603 tractors?
The 6103 and 6203 use 4-cylinder engines with a 12 L (13 qt) crankcase oil capacity, while the 6403 and 6603 run 6-cylinder engines with a 19 L (20 qt) capacity. The General Information section lists full specifications for each model so you verify the right oil volume before draining.
What are the engine assembly torque specs for the John Deere 6403 or 6603?
Engine assembly torque values are in the Engine Repair section. Grounded values for the 6003 Series include 610 N.m (450 lb-ft) for flywheel housing-to-clutch housing cap screws (A) and 310 N.m (228 lb-ft) for the (B) bolts. Do not rely on a generic chart when the factory values are in the manual.
Why does the hydraulic system on a 6603 lose pressure or the SCV stop responding?
Loss of pressure at the SCV usually points to a contaminated or stuck spool inside the selective control valve or a worn hydraulic pump. The Hydraulic Repair section covers removing and inspecting the pump, Rockshaft and SCV so you can isolate a stuck valve from a pump that needs rebuilding, before replacing expensive parts.
How do I diagnose brake linkage failure on a John Deere 6103 or 6203?
Soft or missing brake pedal response is typically worn or broken mechanical linkage - pins, rods or bushings in the brake assembly. The Steering and Brake Repair section covers the full front axle and brake linkage, giving you the component layout and clearance specs to identify which part failed before ordering.
Does this manual cover air conditioning and electrical wiring for the 6603 cab?
Yes. The Cab Operator Station Repair section covers air conditioning and heating service, and the Electrical Repair section covers full wiring harness routing, connectors, fuses, relays, lighting, alternator and starter motor. Wiring diagrams let you trace intermittent electrical faults to a specific harness segment.
