This 576-page John Deere Garden Tractor Technical Manual (OEM #TM2023) covers the X465, X475, X485, X575, and X585 down to the last bolt, from the air-cooled and liquid-cooled engine bays through the hydrostatic power train. You get full wiring diagrams for chasing electrical gremlins, hydraulic schematics for the steering and lift circuits, and a dedicated troubleshooting section that walks fault codes back to root cause instead of leaving you guessing. Inside, the fuel gauge sensor reads 5.72 VDC full and 0.87 VDC empty, and the coolant temperature sensor should test between 40 and 700 ohms; specs like these come straight from the factory, not a forum thread. No more staring at a dead gauge wondering if the sensor or the wiring is the problem. It's bookmarked and searchable, so pull it up on your phone, jump straight to the section you need, and get your tractor back in the yard.
What's Inside This John Deere X465, X475, X485, X575, X585 Manual
| System | Pages | Key Topics |
|---|---|---|

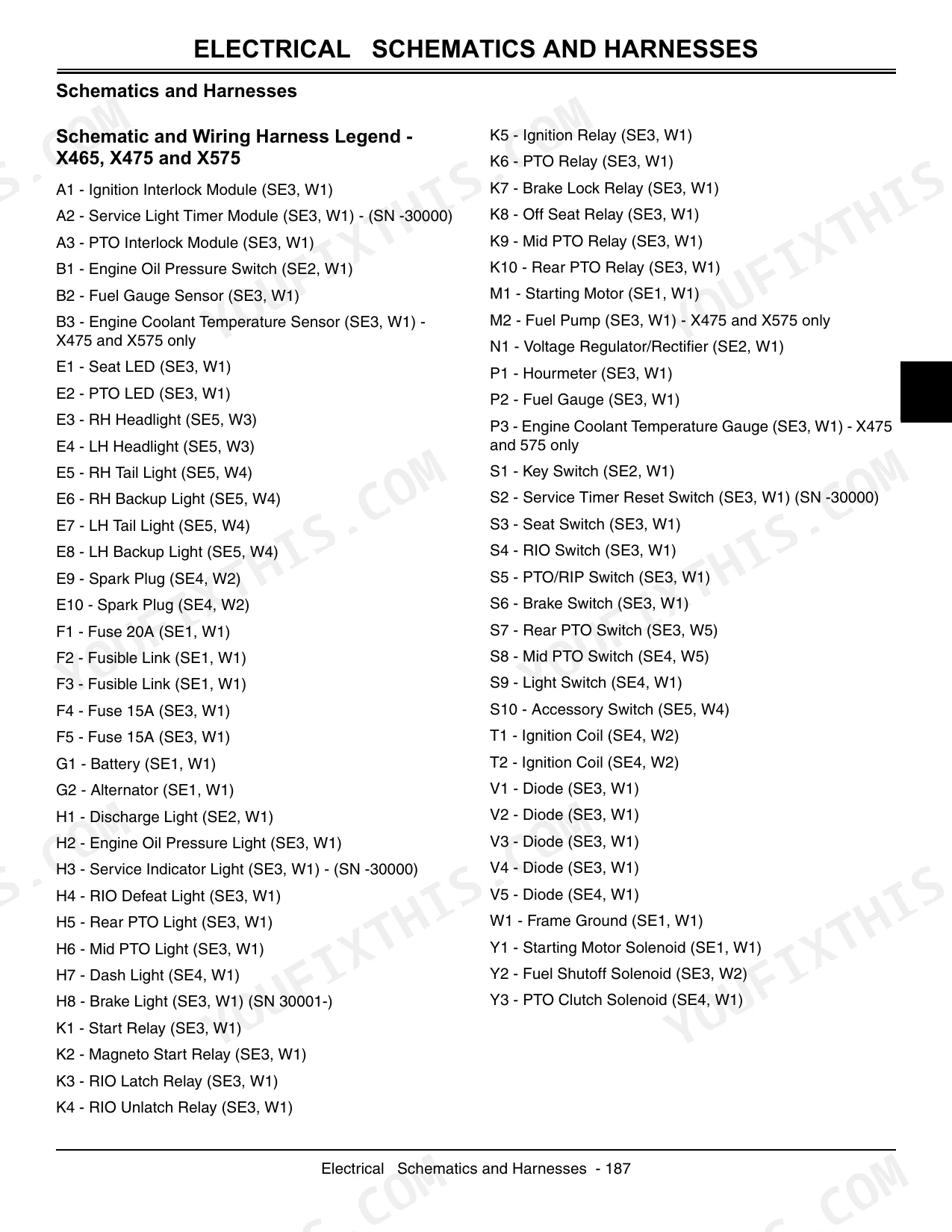

| Introduction | 3-4 | Table of Contents, Specifications and Information, Identification Numbers, Tools and Materials, Component Location, Schematics and Harnesses |
| Safety | 5-10 | Prevent Battery Explosions, Prevent Acid Burns, Wear Protective Clothing, Avoid High-Pressure Fluids, Avoid Harmful Asbestos Dust, Service Tires Safely |

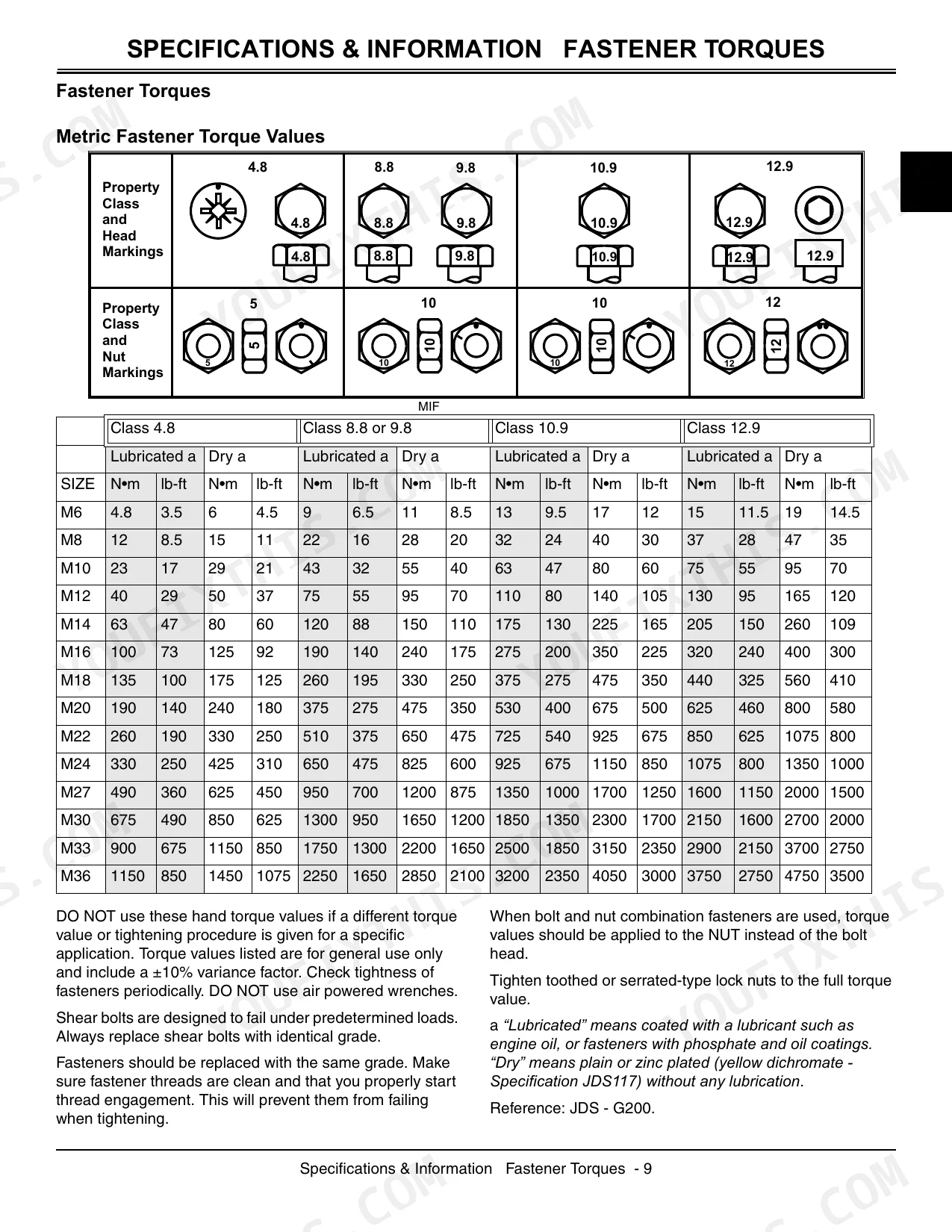

| Specifications & Information | 11-24 | Fastener Torques, O-Ring Seal Service Recommendations, General Information, Coolant Specifications, Serial Number Locations |

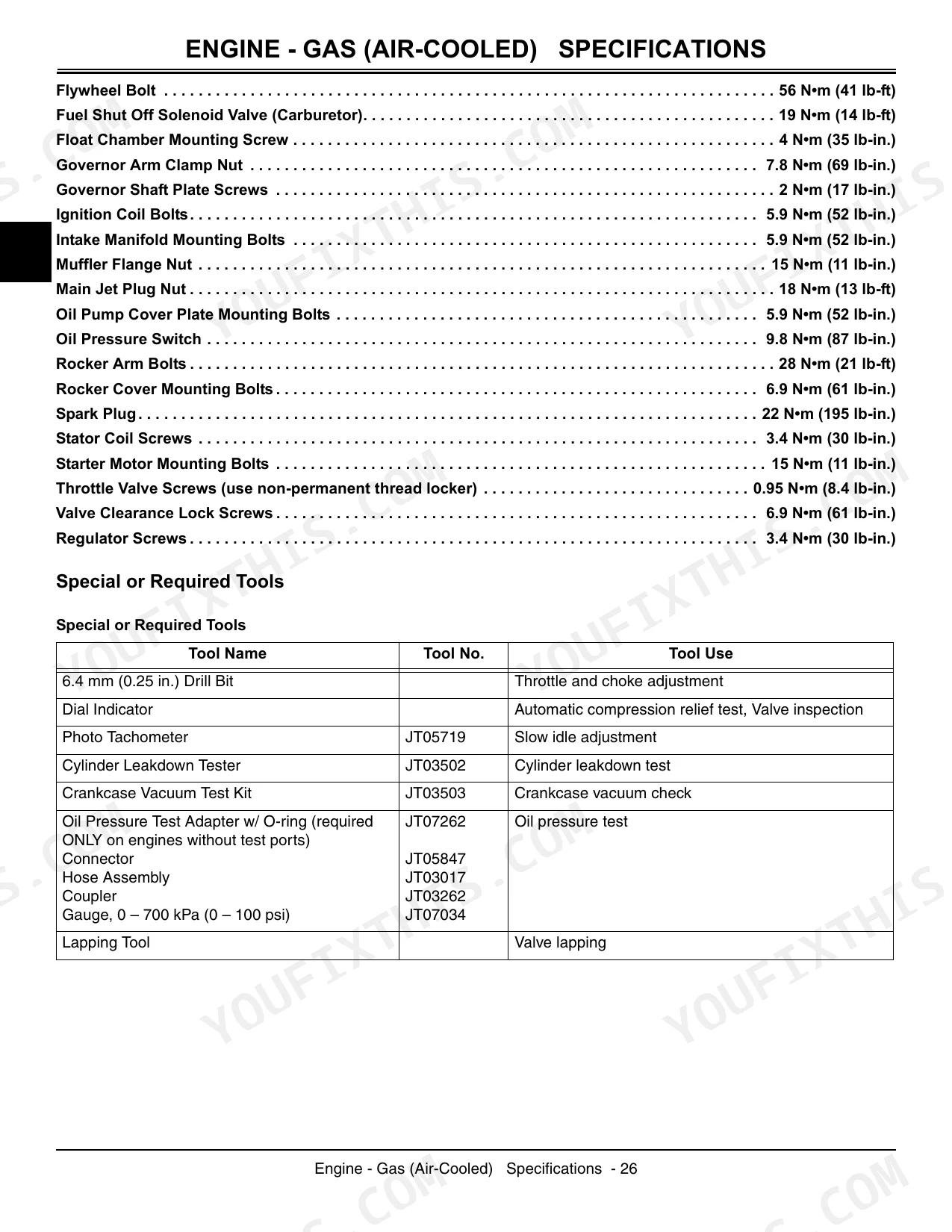

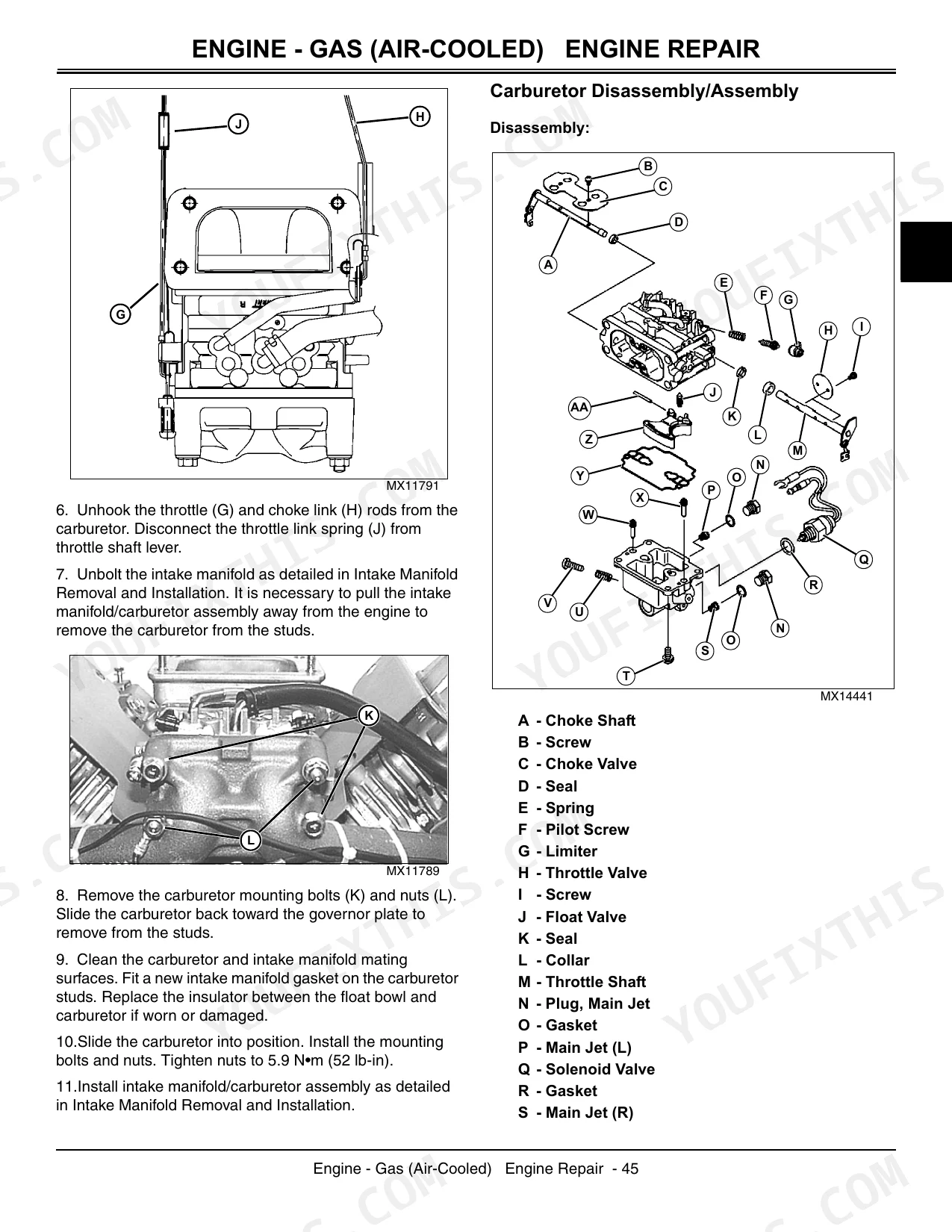

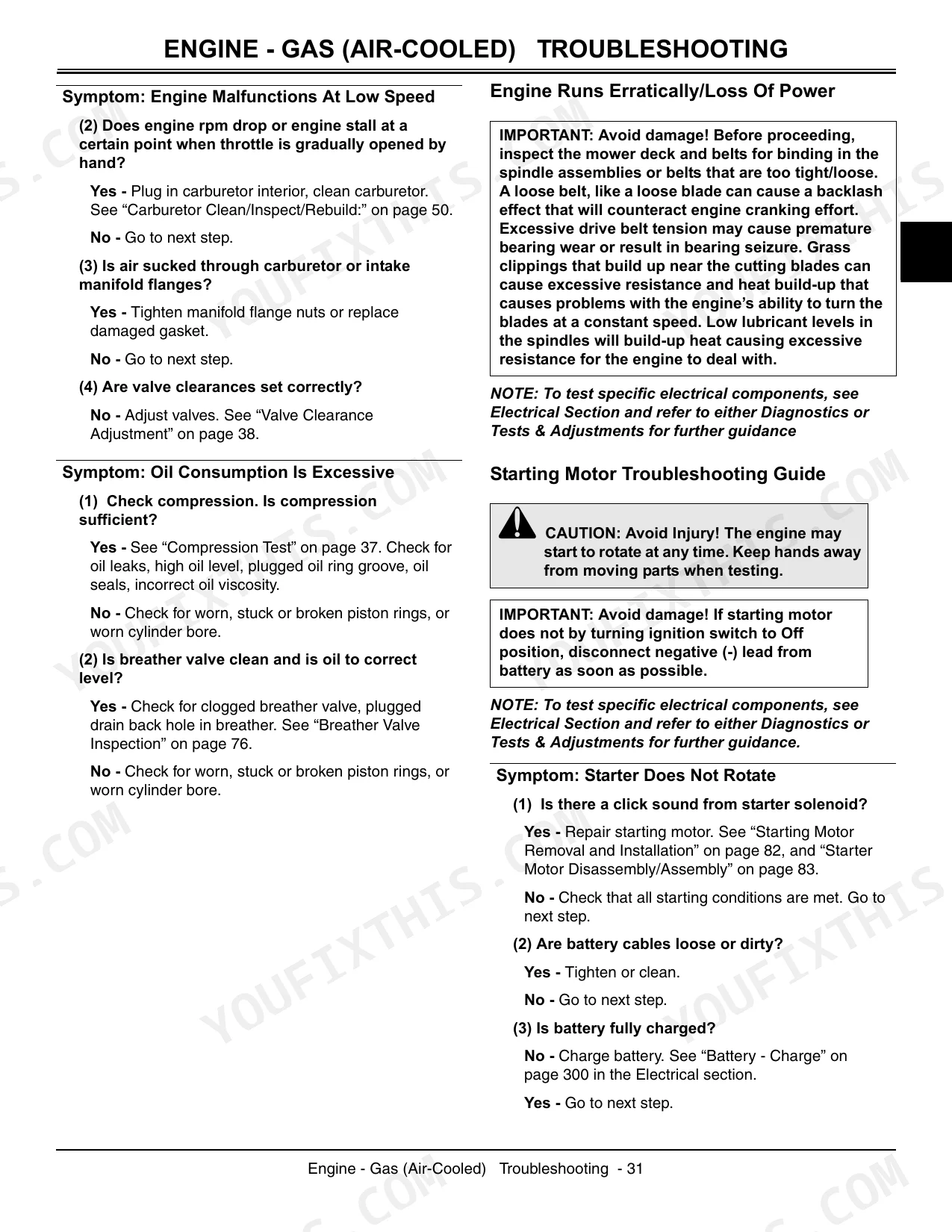

| Engine - Gas (Air-Cooled) | 25-92 | Specifications, Component Location, Theory of Operation, Troubleshooting, Tests and Adjustments, Engine Repair |
| Engine - Gas (Liquid-Cooled) | 93-174 | Specifications, Component |
| Electrical | 175-330 | - |
| Power Train - Hydrostatic | 331-432 | - |

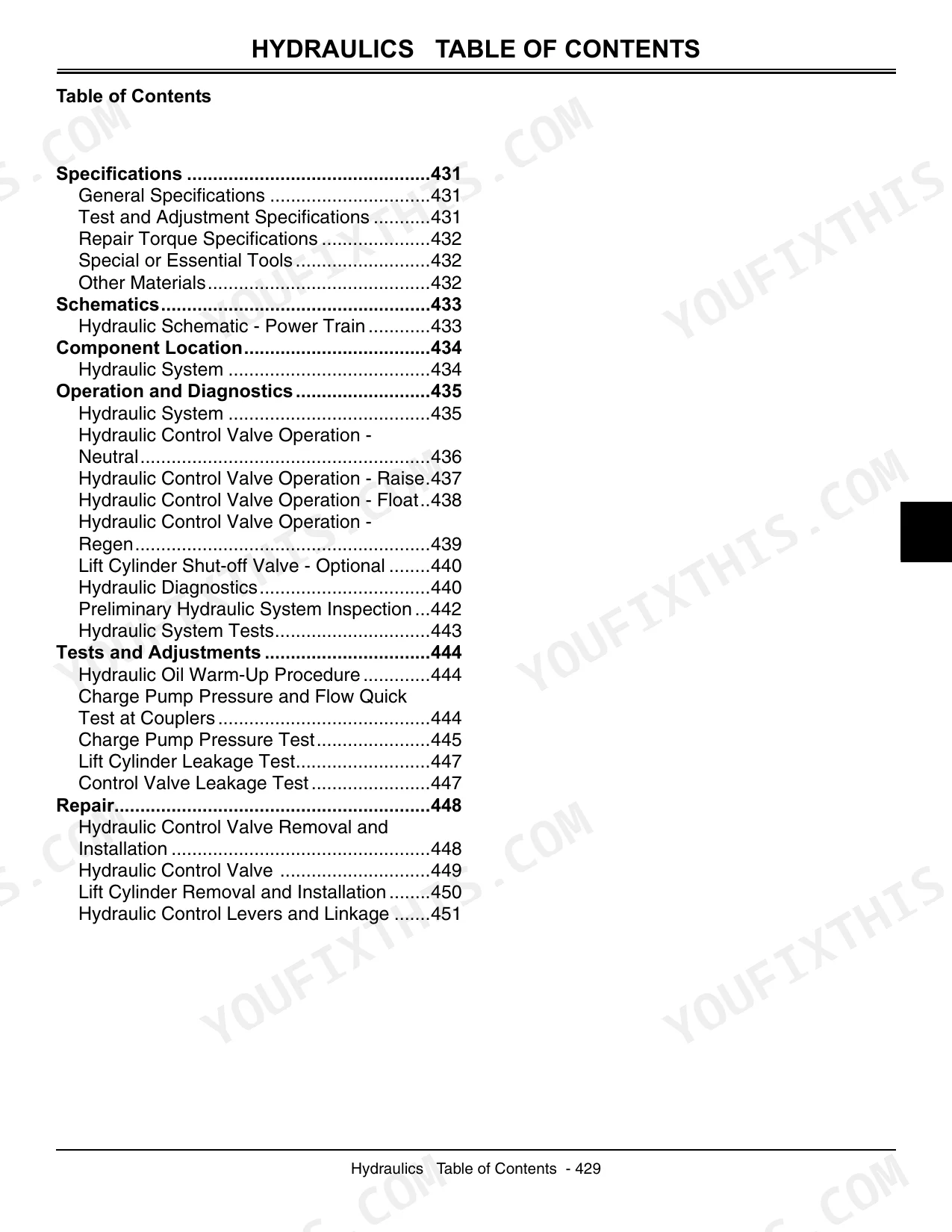

| Hydraulics | 433-456 | - |
| Steering | 457-486 | Steering Components - Front Wheel Steer, Steering System Operation, Steering Valve Operation - Neutral, Steering Valve and Cylinder Leakage Test |
| Brakes | 487-500 | Brake System Component Location, Brake/Differential Linkage (Exploded), Brake System Operation, Brake/Differential Linkage Adjustment, Brakes Removal and Installation |
| Attachments | 501-552 | 48, 54 and 62-Inch Mower Deck Diagnosis, 45 Loader Diagnosis, Adjusting Cutting Height (48C, 54C, And 62C Mower Deck), Mower Deck Blade Removal and Installation |
| Miscellaneous | 553-566 | Fender Deck Removal and Installation, Fuel Tank Removal and Installation, Fuel Pump/Fuel Gauge Sensor Removal and Installation, Headlights Adjustment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Service Timer Reset Switch | press and release | p. 270 |
| Engine coolant temperature sensor resistance | 40 - 700 ohms | p. 270 |
| Fuel tank FULL voltage | 5.72 VDC | p. 270 |
| Tighten four transaxle mounting lock nuts (S) | 71 - 106 N•m (52 - 78 lb-ft) | p. 334 |
| Blade Bolt Torque | 122 N•m (90 lb-ft) | p. 93 |
| X475, X575, X485, X585 | ||
| Engine Coolant Temperature Sensor Test - Variable Resistance | 40-700 ohms | p. 270 |
| X465 | ||

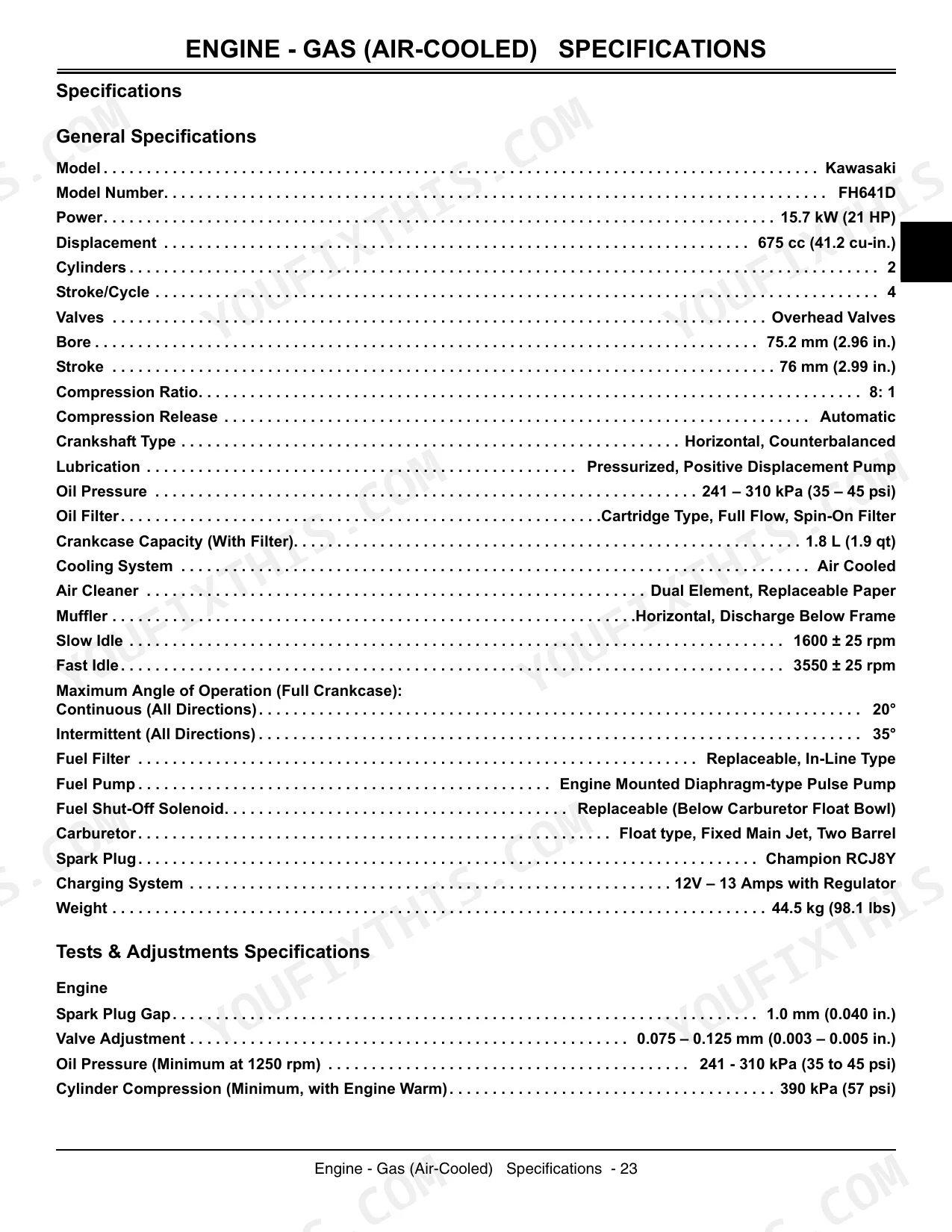

| Engine Displacement | 675 cc | p. 27 |
| Engine Crankcase Capacity (With Filter) | 1.8 L | p. 27 |
| X475, X485, X575, X585 | ||
| Engine Displacement | 745 cm3 | p. 95 |
| Engine Cooling System Capacity | 4.0 L | p. 95 |
| Spark Plug Gap | 0.75 mm | p. 96 |
John Deere X465, X475, X485, X575, X585 Common Problems This Manual Covers
Instrument cluster display going blank or fuel gauge showing empty intermittently while operating.
Test the fuel gauge circuit if the dash reading drops. Check the sensor resistance, which should read 5 to 95 ohms according to page 270. Inspect the wiring harness for shorts. Verify the engine oil pressure switch closed pressure is at 98 kPa (14.2 psi).
Manual Section: Electrical p. 270Hydrostatic transmission leaking fluid heavily around the rear axle seals or spool cover.
Search for leaks with a piece of cardboard as directed on page 6. Protect hands from high pressure fluids. Inspect the charge pressure control valve minimum oil pressure, which should read 1958 kPa on page 435. Replace worn hydraulic seals and O-rings.
Manual Section: Hydraulics p. 435Transaxle shifting or making excessive noise while driving over uneven terrain or pulling attachments.
Inspect the rear transaxle housing for loose hardware. Tighten the four transaxle mounting lock nuts to 71 - 106 N•m (52 - 78 lb-ft) as shown on page 334. Drain and refill the two-wheel steer transaxle capacity with exactly 6.6 L of fluid.
Manual Section: Power Train - Hydrostatic p. 334Frequently Asked Questions
How to reset the oil change indicator on John Deere X475?
The service indicator light (H3) on the John Deere X475, which illuminates 2 hours before scheduled maintenance, can be reset by pressing the S2 service timer reset switch after performing the scheduled maintenance. This switch is applicable to models with SN -30000. p. 270
What are the torque specs for the blade bolts on John Deere X485?
For John Deere X485 mower decks, the blade cap screw torque specification is 122 N•m (90 lb-ft). This applies to 48-Inch, 54-Inch, and 62-Inch Mulch, Bag or Side Discharge Mower Decks. p. 501
What is the torque specification for the pulley bolt on John Deere X465?
For the John Deere X465 (Air-Cooled) engine, the torque specification for the M8 fan housing bolts, which secure components related to the fan/pulley system, is 6.9 N•m (61 lb-in.). p. 29
How do you fix john Deere X485 engine surging at full throttle under no load or stalling completely?
Remove the fuel pump assembly from the tank to inspect the internal fuel hose. Test the fuel tank FULL voltage on page 270 to confirm 5.72 VDC. Replace the degraded internal hose and ensure the fuel pump has not detached from the line. p. 270
How quickly can I access this John Deere X465–X585 Series manual after buying?
Immediate download of the complete 576-page searchable Technical Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this John Deere X465–X585 Series manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this John Deere X465–X585 Series manual include wiring diagrams?
Included. The John Deere X465–X585 Series Technical Manual provides a wiring diagram for the electrical system.
